Abstract:

There is a need to facilitate access to the required information in the web and adapting it to the users’ prefer-

ences and requirements. This paper presents a system that, based on a collaborative ﬁltering approach, adapts

the web site to improve the browsing experience of the user: it generates automatically interesting links for

new users. The system only uses the web log ﬁles stored in any web server (common log format) and builds

user proﬁles from them combining machine learning techniques with a generalization process for data repre-

sentation. These proﬁles are later used in an exploitation stage to automatically propose links to new users.

The paper examines the effect of the parameters of the system on its ﬁnal performance. Experiments show

that the designed system performs efﬁciently in a database accessible from the web and that the use of a gen-

eralization process, speciﬁcity in proﬁles and the use of frequent pattern mining techniques beneﬁt the proﬁle

generation phase, and, moreover, diversity seems to help in the exploitation phase.

1 INTRODUCTION

In recent decades, information in the web has in-

creased dramatically and this often makes the amount

of information intractable for users. As a result, there

is a need for easier access to the required informa-

tion and adapting it to the preferences and needs of

the users. That is, web personalization becomes es-

sential. Web personalization (Pierrakos et al., 2003)

can be deﬁned as the set of actions that are use-

ful to dynamically adapt the presentation, the navi-

gation scheme and/or web content, based on prefer-

ences, abilities, or user requirements. Nowadays, as

described in (Brusilovsky et al., 2007), many research

projects focus on this area, especially in the context of

electronic commerce (Brusilovsky et al., 2007) and e-

learning (Garc´ıa et al., 2009).

This paper presents a step in that direction that

presents the design of a complete and generic sys-

tem to adapt web pages according to the browsing

preferences of the users and focuses on the analysis

of its performance depending on different design pa-

rameters. The proposed adaptation is to automatically

generate links to the user while she/he is navigating so

that her/his objective is reached more easily.

Adaptations of the web environments to speciﬁc

users in navigation time require a previous phase of

generating user proﬁles which can be explicitly pro-

vided by the user or learned using some intelligent

techniques. Although the ﬁrst option might seem eas-

ier the most widely used method for obtaining infor-

mation about users is observing their actions (Schi-

afﬁno and Amandi, 2009). User proﬁling implies

inferring unobservable information about users from

observable information about them, that is, their ac-

tions. In adaptive systems, the user proﬁle is used to

perform the adaptation according to it.

Our research is contextualized in the use of web

mining (Mobasher, 2007) to build user proﬁles and

then propose adaptations to the website based on the

obtained proﬁles. This process requires a data acqui-

sition and pre-processing stage, then, in the pattern

discovery and analysis phase machine learning tech-

niques are mainly applied to ﬁnd groups of web users

with common characteristics and the corresponding

patterns or user proﬁles. And ﬁnally, the patterns de-

tected in the previous steps are used in the operational

phase to adapt the system and make navigation more

comfortable for new users.

We have built a system based on the collaborative

ﬁltering approach that takes as input server log ﬁles

stored in web Common Log Format (CLF) (W3C,

1995) and blends the supervised and unsupervised

machine learning techniques and pattern mining tech-

187

Arbelaitz O., Gurrutxaga I., Lojo A., Muguerza J., M. Pérez J. and Perona I..

Adaptation of the User Navigation Scheme using Clustering and Frequent Pattern Mining Techiques for Proﬁling.

DOI: 10.5220/0004130801870192

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2012), pages 187-192

ISBN: 978-989-8565-29-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

niques to build user proﬁles. The proﬁles will be used

in the future to adapt the navigation of new users pro-

viding them with links that they will probably use in

the future. The link suggestion to adapt the naviga-

tion can be done in different ways: including a ﬂoat-

ing list of links, modifying the navigation bar, etc. In

this kind of systems the proposal of a large amount of

links would probably distract the user and wouldn’t

be very helpful. As a consequence, we priorize a re-

duced amount of useful links so that the user is not

confused. This means, in machine learningterms, that

high precision values will be preferable to high recall

values.

This paper is centered in evaluating how different

parameters of the system affect to its performance. To

evaluate our system we performed experiments in a

database accessible from the Internet containing web

server log information captured in NASA (Arlitt and

Williamson, 1995) (Wilson, 2010).

We developed the described system and conducted

experiments to try to answer the following research

question. Is it possible to automatically generate and

propose links to be used in the future to users? Which

is the inﬂuence of the proposed generalization proce-

dure when selecting interesting links for new users?

Does the speciﬁcity of the generated proﬁles affect to

the quality of the obtained proﬁles? Is it worth using

a frequent pattern mining algorithm to improve the

quality of the proﬁles instead of using a popularity

based strategy? How does the introduction of diver-

sity in the exploitation stage affect to the usefulness

of the proposed links?

The article summarizes in Section 2 the main char-

acteristics of the system we have developed and the

database used for experiments. The paper continues

in Section 3 presenting some of the results obtained

in the performed experiments. Finally, we summarize

in Section 4 the conclusions and future work.

2 PROPOSED SYSTEM

The work presented in this paper is a web usage min-

ing (Srivastava et al., 2005) application and as every

web usage mining process it can be divided into three

main stages: data acquisition and preprocessing (Coo-

ley et al., 1999), pattern discovery and analysis, and,

exploitation. Different approaches can be used to im-

plement each of these three steps; the ones we propose

and evaluate in this work are summarized in Figure 1.

The data acquisition phase has not been part of

our work. We have designed the system starting

from the data preprocessing step up to the exploita-

tion phase. The data we have used is from The In-

Generalization

Preprocess

Popularity/SPADE

Proﬁling:

k-NN

Predicted links

Adapted Scheme

New user

PATTERN

EXPLOITATION

PAM(K)

Clustering:

online

oﬄine

DISCOVERY

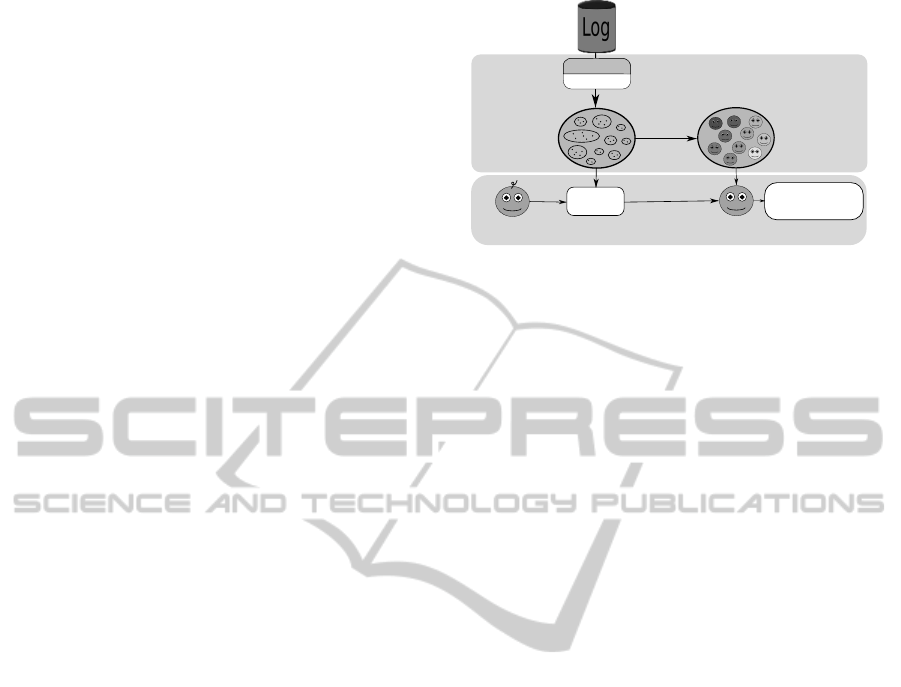

Figure 1: Architecture of the proposed system.

ternet Trafﬁc Archive (Danzig et al., 2008) concretely

NASA-HTTP (National Aeronautics and Space Ad-

ministration) database (Arlitt and Williamson, 1995;

Wilson, 2010). The information contained in this

database was obtained from a server located at NASA

Kennedy Space Center in Florida during two months

of the year 1995. The complete database contains

3,461,612 requests. The contained information is in

common log format (W3C, 1995) which is the mini-

mum information saved on a web server.

2.1 Data Preprocessing

The data preprocessing stage is the one that is more

tightly coupled to the concrete database. For the

rest of the phases we propose general procedures that

could be applied with little changes to any web envi-

ronment. Firstly, we ﬁltered erroneous requests, im-

age requests, etc. that have not direct relationship

with user activity. Secondly, we performed the user

identiﬁcation process based on IP addresses and ﬁxed

the expire time of each session to 30 minutes of in-

activity (Liu, 2007). Among the obtained sessions,

we selected the ones with higher activity (6 or more

clicks). After ﬁnishing the data pre-processing phase,

the database was reduced to 346,715 requests and

31,778 sessions composed of at least 6 clicks where

a total of 1,591 different URLs are visited. We rep-

resented the information corresponding to each of the

sessions as a clickstream or sequence of clicks pre-

formed in the visited URLs.

Having too speciﬁc paths in the used data will

make complicated to draw conclusions from the out-

put of machine learning algorithms, because it is very

probable that navigation paths of different users, or

the same user in different moments, won’t be exactly

the same. In order to avoid this, we added a gener-

alization procedure to the URL representation which

aim is to represent the URLs with a higher level of

abstraction. This approach consists on erasing a frac-

tion of the segments from the right end of the path to

KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

188

diminish their speciﬁcity. For each one of the visited

URLs, we obtained the length of the generalized URL

based on next expression:

max{MinNSegment, (1− α) ∗ NSegments} (1)

Where NSegments represents the number of

segments separated by ’/’ appearing in the URL.

MinNSegment represents the minimum number of

segments, starting from the root, an URL can have af-

ter the generalization step, whereas, α represents the

fraction of the URL that will be erased in the gener-

alized version. This generalization process will allow

us to work with a more general structure of the site

avoiding the confusion that too speciﬁc zones could

generate. For the NASA database we instantiated

MinNSegment to 3 and evaluated the system with a

range of values for α from 0 to 0.75. The experiments

showed that values larger than 0.5 saturated and, as a

consequence, we will show results for the following

values for α: 0 (not generalized), 0.25 and 0.5. In ad-

dition, the stages of the system where the generaliza-

tion is used can also be varied. Thus, we will evaluate

the effect of the values for α parameter as well as the

effect of using it or not in the different stages.

2.2 Pattern Discovery and Analysis

Unsupervised machine learning techniques have

shown to be adequate to discover user proﬁles (Pier-

rakos et al., 2003) in the pattern discovery and

analysis stage. We used PAM (Partitioning Around

Medoids) (Kaufman and Rousseeuw, 1990) clustering

algorithm and a Sequence Alignment Method, Edit

Distance (Gusﬁeld, 1997)(Chordiaand Adhiya, 2011)

as a metric to compare sequencesand to groupinto the

same segment users that show similar navigation pat-

terns. PAM requires the K parameter to be estimated.

This parameter is related to the speciﬁcity of the gen-

erated proﬁles, when greater its value is more speciﬁc

the proﬁles will be. We didn’t have prior knowledge

of the structure of the data in NASA database and we

performed an analysis to try to ﬁnd the value of K that

is enough to group the sessions with common charac-

teristics but does not force to group examples with not

similar navigation patterns in the same cluster. The

outcome of the clustering process is a set of groups of

user sessions that show similar behaviorbut we intend

to generate proﬁles. That is, to ﬁnd the common click

sequences appearing among the sessions in a cluster.

To generate proﬁles or to discover the associated

navigation patterns for each one of the discovered

groups we evaluated two strategies: popularity and

frequent pattern mining. The popularity based strat-

egy selects the X most popular URLs in each cluster

as its proﬁle. The amount of URLs to propose to the

user, X, has to be decided and the system does not

provide any kind of evidence for making this deci-

sion. The frequent pattern mining algorithm we used

to build proﬁles is SPADE (Sequential PAttern Dis-

covery using Equivalence classes) (Zaki, 2001) which

provides for each cluster a set of URLs that are likely

to be visited for the sessions belonging to it. The num-

ber of proposed URLs depends on parameters related

to SPADE algorithm such as minimum support and

maximum allowed number of sequences per cluster.

A ﬁxed value for minimum support, 0.5, showed to

be a good option. With this value the designed system

becomes a self regulated system thatﬁnds an adequate

number of URLs to propose and achieves a balance

between precision and recall.

Although for the rest of the stages we experi-

mented with generalized and not generalized URLs,

we applied the SPADE algorithm using the original

URLs appearing in the user click sequence, because,

otherwise, the system would require an extra stage.

2.3 Exploitation

In the exploitation stage, the only part that has to be

done in real time, we propose the use of k-Nearest

Neighbor (Dasarathy, 1991) to calculate the distance

of the click sequence (average linkage distance based

on Edit distance (Gusﬁeld, 1997)) of the new users

to the clusters generated in the previous phase. The

distance can be calculated at any stage of the naviga-

tion process, that is, from the ﬁrst click of the new

user to more advanced navigation points. As a con-

sequence the system will propose to the new user the

proﬁle corresponding to the nearest cluster. That is

the set of links that models the users in the clusters.

Those URLs are no generalized, because otherwise it

would be proposing zones of the web site, and, as a

consequence, the system would require an extra stage

in order to be useful for the ﬁnal user.

At this point a question arises: will new users’ be-

havior be identical to the generated proﬁles or will

they have some similarities with more than one pro-

ﬁle? That is, will diversiﬁcation help when generating

link proposals? To answer to the question we have an-

alyzed two options: 1-NN based approach, where just

the proﬁle of the nearest cluster to the user is used

to make proposals, and, 2-NN based approach, which

combines two proﬁles, the ones belonging to the two

nearest neighbors clusters of the user.

AdaptationoftheUserNavigationSchemeusingClusteringandFrequentPatternMiningTechiquesforProfiling

189

3 EXPERIMENTS

3.1 Experimental Setup

The best validation strategy would be to perform a

controlled experiment where the users need to per-

form a concrete task and the improvement obtained

with the adaptation can be quantiﬁed. Since it is im-

possible to perform such an experiment for NASA

database, in order to perform the evaluation, we sup-

pose that if the proposed links are among the links

that the user will be using in the future, the proposal

will help her/him to achieve her/his objectives faster.

We applied the hold-out method dividing the

NASA database into two parts. One for training and

another one for testing. To simulate a real situation

we based the division of the database on temporal

criteria: we used the oldest examples (66% of the

database, 21,185 user sessions) for training and the

latest ones (33%, 10,595 user sessions), for testing.

We applied to the training data PAM clustering

algorithm with 3 different values for K parameter:

100 (P100), 200 (P200) and 500 (P500) combined

with different values for α generalization parameter:

0 (G00), 0.25 (G25), 0.5 (G50). Then, we generated

navigation proﬁles for each group of users using two

different approaches: one based on popularity (PP)

and another one based on SPADE (SP). To validate

the system, we used the test examples and we com-

pared the automatically generated links with the real

click sequences of the users. Note that even at this

point we are evaluating two options: the option where

each new user is modeled with a single proﬁle (1-NN)

and the one where two proﬁles are used to model the

user (2-NN).

We performed the evaluation taking into account

that, when a user starts navigating, only its ﬁrst few

clicks will be available to be used for deciding the cor-

responding proﬁle and proposing new links accord-

ing to it. We have simulated this real situation using

10% (just one click out of 8; too early), 25% (S25)

and 50% (S50) of the user navigation sequence in the

test examples to select the nearest cluster or proﬁle.

This way, we compared the number of proposed links

that are really used in the test examples (hits) and the

number of proposals that are not used (misses) and

calculated precision and F0.5-measure. Note that this

could be seen as a lower bound because, although not

appearing in the user navigation sequence, the pro-

posed links could be useful.

We calculated two values for the used statistics:

an upper bound (PrUp, FMUp) taking into account

the whole test sequence, and the values calculated us-

ing only the clicks in the test sequence that have not

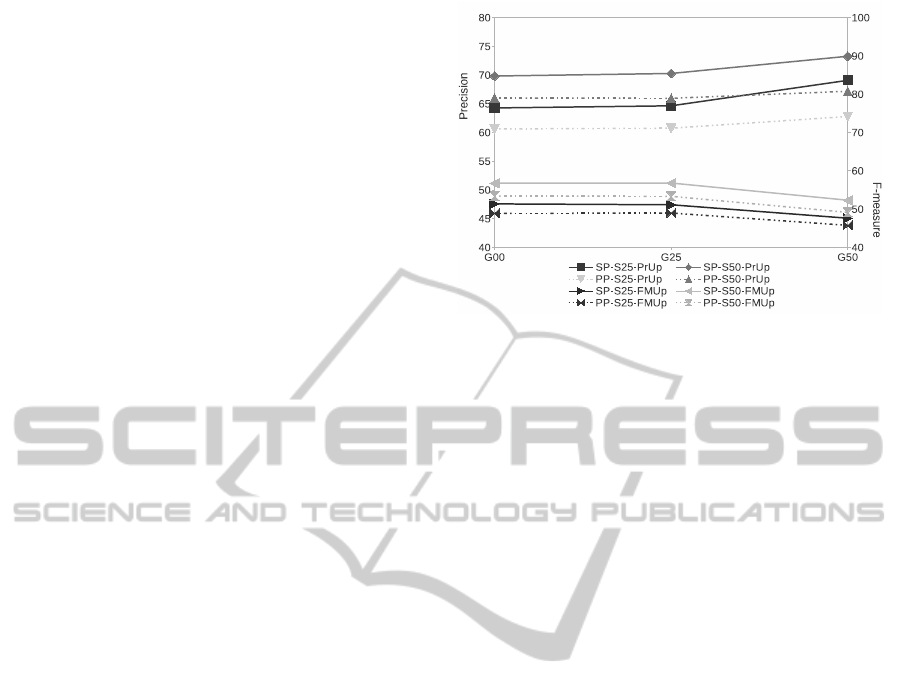

Figure 2: Precision and F-measure values achieved for

P100.

been used to select the nearest proﬁle(Pr, FM); that is,

taking into account the remaining 90%, 75% or 50%

(for the cases 10%, 25% and 50% respectively).

3.2 Results and Analysis

We designed a wide range of experiments but due to

lack of space we will skip some results and summa-

rize some others. For example, in the exploitation

phase, the use of real URLs (G00) improves the re-

sults. Consequently, it will be done without general-

ization. On the other hand, we will show results only

for tests done at 25% and 50% of the navigation.

As a ﬁrst stage to determine the best parameter

combination Figures 2, 3 and 4 summarize results for

different values of K parameter of PAM clustering

(P100, P200 and P500). The values in Axe X rep-

resent the different generalization degrees used in the

clustering (G00, G25 and G50) and the curves show

the upper bounds for precision and F-measure (PrUp

and FMUp) obtained using popularity based proﬁles

(PP, dashed lines) or SPADE based proﬁles (SP, con-

tinuous lines) and different portions of the user se-

quence for testing: 25% (S25) and 50% (S50). Every

result belongs to the 1-NN option. Although the ﬁg-

ures only show values for PrUp and FMUp, the trends

of the graphics for Pr and FM (results obtained only

with not seen test sequence) are the same.

The ﬁrst conclusion we can draw from the results

is that even if the values of the measured parameters

vary depending on the selected option, all of them are

able to predict a certain percentage of the links a new

user will be visiting. Furthermore, keeping constant

the rest of the parameters, SPADE based proﬁles are

more adequate than popularity based ones. Moreover,

it seems that taking into account F-measure values,

bigger K values seem to perform better. Nevertheless,

the improvement from P200 to P500 does not seem

KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

190

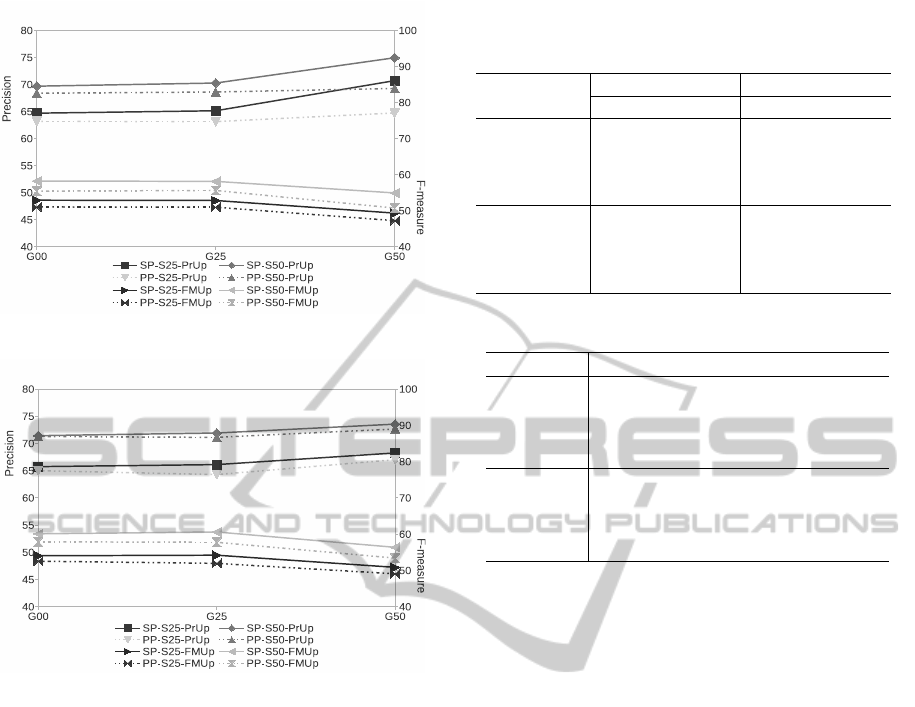

Figure 3: Precision and F-measure values achieved for

P200.

Figure 4: Precision and F-measure values achieved for

P500.

too big and, as a consequence, it does not seem that

the analysis of bigger K valueswill beneﬁt the system.

Moreover, we can conclude that the use of a cer-

tain generalization degree in the clustering stage im-

proves the quality of the results. In addition, the

generalization procedure seems more important when

smaller the amount of generated clusters is. As a sum-

mary we could state that, when 1-NN strategy is used

in exploitation, and independently of the part of the

sequence seen for prediction (S25 or S50), the best

parameter combination is SP-P500-G25.

Next step is to analyze the effect of changing the

exploitation approach; the effect of using two pro-

ﬁles (2-NN) instead of one (1-NN). Table 1 shows

the comparison for precision and F-measure values

obtained with 1-NN and 2-NN for the conﬁgurations

showing the best performance in previous ﬁgures: SP

for proﬁling and P500 options.

The results show that combining two proﬁles to

propose links to the new user clearly beneﬁts the per-

formance of the system. Both parameters, precision

and F-measure increase around 10 points. Another

observable effect is that, also in this case the improve-

Table 1: Results of 1-NN and 2-NN exploitation approaches

(SP-P500).

Upper bound Real

Option G00 G25 G50 G00 G25 G50

1NN-S25-Pr 65.76 66.13 68.27 41.66 42.17 45.45

1NN-S25-FM 54.08 54.23 50.88 31.63 31.89 30.71

1NN-S50-Pr

71.45 71.93 73.57 34.84 35.96 39.27

1NN-S50-FM 60.12 60.63 56.40 28.42 29.39 28.95

2NN-S25-Pr 50.97 78.43 73.49 51.03 53.49 50.23

2NN-S25-FM 48.32 65.21 55.29 35.96 37.31 32.95

2NN-S50-Pr

81.27 81.53 79.58 44.80 45.48 45.13

2NN-S50-FM 69.28 69.60 61.54 33.75 34.28 31.43

Table 2: Results of generalized proﬁles.

Option PP-G25 PP-G50 SP-G25 SP-G50

S25-PrUp 58.95 93.08 66.80 95.17

S25-FMUp 51.15 83.33 55.09 85.89

S50-PrUp 65.76 95.39 72.55 97.01

S50-FMUp 57.24 87.30 61.47 89.67

S25-Pr 41.39 89.13 43.36 92.20

S25-FM 31.27 76.63 33.00 79.32

S50-Pr 35.76 88.83 36.76 92.43

S50-FM 28.38 77.87 30.11 80.88

ment is greater when mid-range values for general-

ization are used (G25). Concretely the best precision

values (PrUp=81.53 and Pr=53.49)are obtained when

the 2NN-G25 is applied.

Finally, as we commented previously, we present

results achieved using generalization in the proﬁle

generation stage. Since the data used to generate

the proﬁles will vary (we will be using generalized

URLs), in this case we present results for the two pro-

ﬁling options PP and SP. Table 2 shows the precision

and F-measure values obtained for P500 and perform-

ing the test at two different stages of the navigation:

S25 and S50. The numbers in the table show again

that SP proﬁling option performs better than PP, so

the use of the frequent pattern mining algorithm is

again worth it. Moreover, greater generalization rates

also seem to improve results when generating those

proﬁles, achieving precision values up to 97.01 in the

upper bound and up to 92.43 in the real case. This

is an important outcome since it means that the pro-

posed generalized links (web site zones) are located

in interesting zones for the users in more than 90% of

the times.

Although it is not the ﬁnal aim of this paper, if we

center the analysis in the 0-day problem, we realize

that the values are still acceptable in very early stages

of the navigation. When just 10% (one click in aver-

age) of the user navigation sequence is known, good

precision values (Pr = 56.41 and PrUp = 69.94) are

obtained.

AdaptationoftheUserNavigationSchemeusingClusteringandFrequentPatternMiningTechiquesforProfiling

191

4 CONCLUSIONS

We designed a generic system using machine learn-

ing techniques, that based only on web server log in-

formation, is able to propose web navigation scheme

adaptations to make easier and more efﬁcient the nav-

igation of new users. Since at this point we haven’t

used any domain speciﬁc information, this system

would be useful for any web site collecting server log

information.

Results showed that the proposed generalization is

appropriate for the clustering stage, the speciﬁcity of

the generated proﬁles favors the results, it is worth us-

ing SPADE for building user proﬁles and, ﬁnally, the

use of diversity to select links to propose to new users

improves the obtained results. Concretely the best re-

sults for the complete system are achieved for K =

500 in the clustering algorithm, SPADE for building

the proﬁle of each group of users, α = 0.25 for gen-

eralization and 2-NN option in the exploitation phase.

The obtained precision values are 81.53 in the upper

bound and 53.49 in the real case. Moreover, the val-

idation results showed that even when the prediction

is made at very early stages in the navigation, 10%,

the system performs satisfactorily. Furthermore, the

results using generalization in the proﬁle generation

stage showed that the proposed links are situated in

interesting zones for the users in more than 90% of

the times. Since we achieved precision values up to

97.01 in the upper bound and up to 92.43 in the real

case.

This work addresses many future tasks such as ap-

plying it to morerecent data, improvingthe evaluation

and including web structure and content information

of the selected web page for improving the results of

the system.

ACKNOWLEDGEMENTS

This work was funded by the University of the Basque

Country, general funding for research groups, AL-

DAPA (GIU10/02); by the Science and Education

Department of the Spanish Government, ModelAc-

cess (TIN2010-15549 project); by the Diputaci´on

Foral de Gipuzkoa, Zer4You (DG10/5); and by the

Basque Government’s SAIOTEK program, Datacc

(S-PE11UN097).

REFERENCES

Arlitt, M. and Williamson, C. (1995). Http requests to the

nasa kennedy space center www server. NASA-HTTP

logs.

Brusilovsky, P., Kobsa, A., and Nejdl, W., editors (2007).

The Adaptive Web: Methods and Strategies of Web

Personalization, volume 4321 of Lecture Notes in

Computer Science. Springer, Berlin.

Chordia, B. S. and Adhiya, K. P. (2011). Grouping web

access sequences using sequence alignment method.

Indian Journal of Computer Science and Engineering

(IJCSE), 2(3):308–314.

Cooley, R., Mobasher, B., and Srivastava, J. (1999). Data

preparation for mining world wide web browsing pat-

terns. Knowledge and Information System, 1:5–32.

Danzig, P., Mogul, J., Paxson, V., and Schwartz, M. (2008).

The internet trafﬁc archive.

Dasarathy, S. (1991). Nearest neighbor norms: NN pat-

tern classiﬁcation techniques. IEEE Computer Soci-

ety Press.

Garc´ıa, E., Romero, C., Ventura, S., and Castro, C. D.

(2009). An architecture for making recommendations

to courseware authors using association rule mining

and collaborative ﬁltering. User Modeling and User-

Adapted Interaction, 19(1-2):99–132.

Gusﬁeld, D. (1997). Algorithms on strings, trees, and se-

quences: computer science and computational biol-

ogy. Cambridge University Press, New York.

Kaufman, L. and Rousseeuw, P. (1990). Finding Groups

in Data An Introduction to Cluster Analysis. Wiley

Interscience, New York.

Liu, B. (2007). Web Data Mining: Exploring Hyperlinks,

Contents, and Usage Data. Data-Centric Systems and

Applications. Springer.

Mobasher, B. (2007). Web Data Mining: Exploring Hyper-

links, Contents, and Usage Data, chapter Web Usage

Mining.

Pierrakos, D., Paliouras, G., Papatheodorou, C., and Spy-

ropoulos, C. D. (2003). Web usage mining as a tool for

personalization: A survey. User Modeling and User-

Adapted Interaction, 13(4):311–372.

Schiafﬁno, S. N. and Amandi, A. (2009). Intelligent user

proﬁling. 5640:193–216.

Srivastava, T., Desikan, P., and Kumar, V. (2005). Web min-

ing – concepts, applications and research directions.

pages 275–307.

W3C (1995). The world wide web consortium: The com-

mon log format.

Wilson, J. (2010). Website of national aeronautics and space

administration.

Zaki, J. M. (2001). Spade: An efﬁcient algorithm for min-

ing frequent sequences. Mach. Learn., 42(1-2):31–60.

KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

192
