A New Evolutionary Approach for the Structural Testing of

Switch-case Constructs

Gentiana Ioana Latiu, Octavian Augustin Cret and Lucia Vacariu

Technical University of Cluj-Napoca, Computer Science Department, Bariţiu Street, Cluj-Napoca, Romania

Keywords: Evolutionary Structural Testing, Control Flow Graph, Switch Case Constructs.

Abstract: Evolutionary structural testing uses specific approaches based on guided searches that involve evaluating

fitness functions to determine whether test data satisfy or not various structural testing criteria. For testing

switch-case constructs the nested if-then-else structure and Alternative Critical Branches (ACBs)

approaches were used so far. In this paper a new evolutionary structural approach based on Compact and

Minimized Control Flow Graph (CMCFG), which is derived from the concept of Control Flow Graph

(CFG), is presented. Experiments on different levels of imbrications demonstrate that this new approach has

significantly better results in finding test data which cover a particular target branch in comparison with the

previous approaches reported in the literature.

1 INTRODUCTION

The main idea behind evolutionary testing process is

to transform the test goal into an optimization

problem that is solved using evolutionary algorithms

(Wegener et al., 2001). The evolutionary process

search space is represented by the domains of the

input variables of the software program under test.

Evolutionary structural testing has been intensively

used for generating test data by many researchers.

Harman and McMinn (2010) present a theoretical

exploration of global search techniques embodied by

Genetic Algorithms. Other approaches related to

evolutionary testing with flag conditions are

presented in Baresel and Sthamer (2003), Baresel et

al., (2004), and Wappler et al., (2007). Different

transformations were applied and reported in the

literature for Evolutionary Testing in order to

improve the fitness function calculation, because a

well-defined fitness function is essential for the

efficiency of evolutionary search process ((Harman,

et al., 2002), (McMinn and Holcombe, 2005), and

(McMinn et al., 2009)).

The main software programs constructs (loops,

simple statements, if-then-else decision structures)

were extensively tested in the literature using

evolutionary algorithms. Less work has been done

on the switch-case constructs which are used to

express multi-way decisions and were studied in

Wang, et al. (2008), where the switch-case construct

was tested using the concept of Alternative Critical

Branches (ACBs). ACBs consist of all case branches

that can lead to a miss of chosen target branch when

the target branch is leaving a switch node. The

ACBs consist of one element that is the alternative

branch of target if it is leaving a two-way decision

node. Each control dependent node has assigned

only one ACB. All the ACBs with respect to the

target branch make up a set. The array of all the

corresponding ACBs for the target branch forms the

Critical Branches Set (CBS). This is extended from

the single critical branch concept. If any element

which is contained in CBS corresponding to target

branch is taken, then there is no chance to cover the

target branch. The focus in this approach is on

structural testing of multi-way decision statements,

in particular on branch coverage.

Our paper proposed a new evolutionary approach

for testing switch-case constructs. The main idea of

this approach is to generate a Compact and

Minimized Control Flow Graph (CMCFG), derived

from Control Flow Graph (CFG). The CFG is a

directed graph where each node has at most two

successors (Ferrante et al., 1987). Inside this new

Compact and Minimized Control Flow Graph

(CMCFG) each node can have more than two

successors and all the case branches which

correspond to the same switch node are on the same

level. The case branches which don’t have any break

or return options are merged with the next case

Latiu G., Cret O. and Vacariu L..

A New Evolutionary Approach for the Structural Testing of Switch-case Constructs .

DOI: 10.5220/0004149000420051

In Proceedings of the 4th International Joint Conference on Computational Intelligence (ECTA-2012), pages 42-51

ISBN: 978-989-8565-33-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

branches which have one of these options and thus a

new, improved fitness function was proposed, tested

and compared against the previous ones reported in

the literature (Wang, et al., 2008).

The rest of this paper is organized as follows:

Section II describes the evolutionary testing

methodology and the switch-case constructs. Section

III describes different fitness function calculation

approaches used for structural testing in case of

switch-case constructs. Section IV presents the

experimental results and Section V presents the final

conclusions and future work.

2 EVOLUTIONARY TESTING

METHODOLOGY AND

SWITCH-CASE CONSTRUCTS

Evolutionary testing (ET) is a meta-heuristic

approach by which test data can be generated

automatically using optimization search algorithms.

The search space is represented by the variation

domains of the input variables of the software under

test, in which test data fulfil the specific test

objectives. ET is generally used in many search

problems in software testing, because it has a very

good capacity of adapting itself to the system under

test. The main steps of ET process are presented in

Figure 1:

Generate random

test data

Evaluate test data

using fitness

function

Testing

criteria met?

Modify test

data

Stop

Yes

Star

Figure 1: Evolutionary testing process.

ET was successfully applied for different forms

of testing, namely: specification testing (Tracey et

al., 1998), unit testing (Gupta and Rohil, 2008), and

extreme execution time testing (Wegener and

Grochtmann, 1998).

During the ET process the test data are initially

randomly generated and take values from the

domains of input variables of the software under

test. Then the test data performance is evaluated

based on the fitness function which represents a

formalized version of the test objective. If the

established testing criteria are met, then the process

stops and the best solution found will be the testing

solution, otherwise the test data will be modified

using specific evolutionary operators and the process

will restart by evaluating the new test data. The

most important evolutionary operators used during

ET process are crossover and mutation. Crossover is

used to combine two parents to produce a new

offspring. Mutation is used for altering a gene value

from the chromosome (switching from 1 to 0 in case

of binary chromosomes).

Based on the ET methodology the goal of this

research was to study the switch-case construct in

the context of structural testing, aiming to find test

data which executes a particular branch in a program

containing multi-way decision constructs. In order to

retrieve the input data which triggers the execution

of a particular branch of the program, every possible

solution is evaluated with respect to the test

objective.

The switch-case construct is a multi-way

selection control mechanism which is used as a

substitute for the nested if-then-else structure. It is

extensively used in software programs because it

improves the readability of the software program

source code and it reduces repetitive coding.

The general structure of a switch-case construct

is presented in Figure 2:

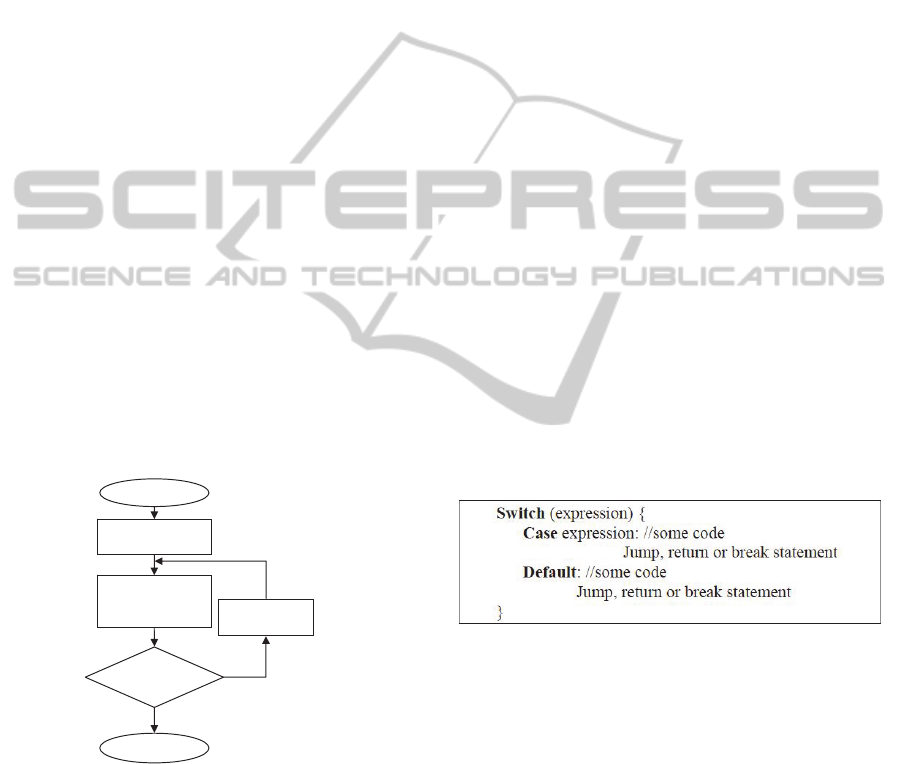

Figure 2: General switch-case conditional construct.

The switch-case construct gives the developer

the possibility of choosing between many

statements, by passing the flow control to one of the

case statements within its body. The switch

statement evaluates the expression which can be an

expression of any type and executes the case branch

that corresponds to the expression’s value. It can

include any number of case statements. Each case

branch is followed by an optional break, return or

goto statement (named breaking statements). These

statements are used either to break out of the switch

construct when a match is found, or return a value

and exit the switch body, or go to a specific location

in the code.

ANewEvolutionaryApproachfortheStructuralTestingofSwitch-caseConstructs

If the optional statements break, return and goto

are not present after a case branch then the control

flow is transferred to next case branch until it will

meet one of the breaking statements. If an

expression passed to switch-case construct does not

match any case statement, the control will go to the

default statement. If no default statement exists, the

control will go outside the switch body.

A simple switch-case construct is presented in

Figure 3.

Figure 3: Simple switch-case conditional construct.

A previous work (Wang, et al., 2008) has argued

that for a particular branch condition, the Critical

Branches Set (CBS) should be defined. This array is

composed by all case branches causing the target to

be missed. The CBS which corresponds to the target

branch from the source code listed in Figure 3 is

composed by {branch “case 1”, branch “case 5”,

branch “case 2”, and branch “default”}. The branch

target is definitely missed when the execution of test

data diverges away down any branch which is in

CBS.

The fitness function used for evaluating each test

data is calculated using the sum between two

metrics: the approximation level and the branch

distance. The approximation level is calculated by

subtracting 1 from the number of ACBs which are

between the node from which the test data diverges

away and the target itself (the branch that

corresponds to “case 0”). The branch distance is

calculated using the following expression |expr - C|

+ 1, where expr is the value of the expression which

appears after switch keyword, C is the constant value

for the desired case statement and 1 is the positive

failure constant (Tracey et al., 1998). For example, if

x = 10, then the branch distance metric for the target

branch specified in Figure 3 is |10 - 0| + 1 = 11. The

fitness value indicates how close the test data are to

triggering the execution of the code located on the

particular branch of the switch statement, which

constitutes the target of the current evaluation.

3 FITNESS CALCULATION

APPROACHES FOR

SWITCH-CASE CONSTRUCTS

3.1 Fitness Calculation based on Nested

If-then-Else Statements

Switch-case constructs are considered to be

equivalent to nested if-then-else constructs with

respect to the Control Flow Graph (CFG). The

switch-case construct presented in Figure 3 is

equivalent to the nested if-then-else construct shown

in Figure 4:

Figure 4: Transformation of switch-case conditional

constructs in nested if-then-else statements.

The target branch for which test data should be

generated is the case branch corresponding to x = 0.

In order to be able to generate test data which cover

this specific branch, every potential solution

randomly generated by the evolutionary search

process must be evaluated using a fitness function.

The aim of the fitness function is to guide the

evolutionary search to find the proper test data

which execute the target branch.

In structural testing, previous work (Gursaran,

2012) has demonstrated that the fitness function

having the expression illustrated in (1) evaluates

how close the test object is to cover the target

branch.

Fitness(test_data) = Approximation_Level +

Normalized_branch_distance

(1)

The normalized branch distance is computed using

(2) and indicates how close the test object is to take

the alternative branch.

Normalized_branch_distance = 1 – 1.001

-distance

(2)

The approximation level counts the number of

decision nodes lying between the decision node

where the actual test data diverge away from the

target branch itself. In Figure 5 given x = 1 the

control flow takes the true branch at decision node 1.

The approximation level is 3. The branch distance is

IJCCI2012-InternationalJointConferenceonComputationalIntelligence

computed according to (2) using the values of the

variables or constants involved in the conditions of

the branching statement (Gursaran, 2012). For the

branching condition x = 1 the branch distance is |x -

1|.

start

x==1

x==0

x==5

x==2

stop

y=4

y=30

y=8

Yes

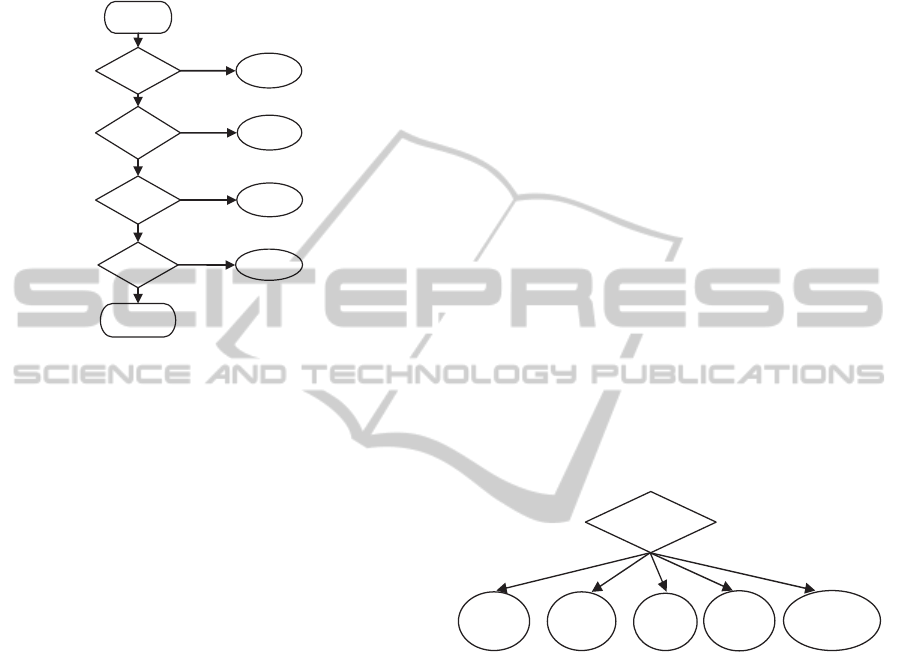

Figure 5: CFG for simple switch-case construct which was

transformed in nested if-then-else statements.

As shown in Figure 5 each decision node is

control dependent on the previous control nodes. For

switch-case constructs represented as nested if-then-

else statements, each case branch is dependent on

the case branching node it leaves and all the case

branching nodes located before it. For example in

Figure 3 branch “case 2” is control dependent on

branches “case 1” and “case 5”. Considering that

the target branch is the branch corresponding with

the “case 0”, the test data will receive approximation

level 0 if it diverge away at condition x==0, will

receive approximation level 1 if it diverge away at

condition x==2 and approximation level 3 if it

diverge away at condition node x==1. If the fitness

function is calculated for two specific values of the x

variable, which are 1 and 5, the branch distance for

both these test data are 0 according with the

traditional approach for calculating branch distance

which uses the branch predicate (Tracey et al.,

1998). So the fitness value for these two numbers (1

and 5) differs only in terms of the approximation

level. For the constant 1 the approximation level

value equals 3 and for the constant 5 the

approximation level equals 2.

Taking into consideration the principle that better

test data have smaller fitness, value 5 is considered

to be better than 1 because it has a smaller fitness

value. This choice is contrary to the traditional

approach, because value 1 is much closer to the 0,

which is the target branch.

In conclusion the approach which uses nested if-

then-else statements to represent switch-case

constructs is not a perfect one because the fitness

value for x = 5 is smaller than the fitness value for x

= 1 even though 1 is much closer to 0 in comparison

with 5. This approach is not guiding the evolutionary

search algorithm in the correct direction, because the

dependencies between case branches result in an

inappropriate approximation value.

3.2 Fitness Calculation based on

Alternative Critical Branches

Approach

The approach for fitness calculation based on ACBs

assumes that all case branches in the switch-case

construct are mutually exclusive in semantics. A

special CFG called Flattened Control Flow Graph

(FCFG) is described in Gursaran (2012). This graph

is extended from the traditional CFG, with the only

difference that the switch node is allowed to have

more than two successors. In this graph each case

branch is control dependent only on the switch

branching node.

Figure 6 presents the FCFG corresponding to the

switch-case construct presented in Figure 3:

Switch x

Case 1 Case 5

Case 2

Case 0

Default

Figure 6: FCFG for simple switch-case construct.

Based on the FCFG definition each node has

assigned an array of control nodes on which it

depends. The target branch is definitely missed

when the execution of test data diverges away in any

node from the CBS. When any node in the CBS is

taken by the test data, then there is no chance that

the test data cover the target branch. In the example

shown in Figure 6 the CBS attached to the target

branch is composed by: branch “case 1”, branch

“case 5”, branch “case 2” and “default”. If the

actual test data object executes one of the case

statements from the CBS, it has no chance to

execute the target branch case 0.

With this proposed concept of CBS and FCFG

the approximation level metric (that is part of the

fitness function expression) is calculated by

subtracting 1 from the number of critical branches

situated between the node from which the test data

ANewEvolutionaryApproachfortheStructuralTestingofSwitch-caseConstructs

diverge away from target and the target itself. The

target branch is the case branch for which the

evolutionary algorithm should generate test data.

The branch distance metric used for evaluating the

test data uses the value which comes after the switch

expression and the constant for the target branch.

Using this approach for the case when x equals 1

or 5, the approximation level value will be 0 and the

branch distance will be |1 – 0| + 1 = 2 and |5 – 0| + 1

= 6, respectively. The fitness calculated based on (1)

will be equal to 2 in case x = 1 and equal to 6 in case

x = 5.

For this simple case it is obvious that the fitness

value based on ACBs approach is guiding the

evolutionary search in a correct direction compared

to the nested if-then-else approach, because x = 1

has a smaller fitness value in comparison with x = 5.

If the simple switch-case construct becomes a

more complex one, containing case statements

without break options and one level of nesting, then

it can look like in Figure 7:

Figure 7: Complex switch-case conditional construct.

The corresponding FCFG is shown in Figure 8:

Switch x

Case 1 Case 10 Case 2

Switch y

default

Case 7 Case 8 Case 13 default

Figure 8: Flattened control flow graph.

For the complex switch-case structure presented

in Figure 7, if test data is composed by x = 1 and y =

7 the approximation level is 1 and the branch

distance is |1 - 0| + 1 = 2. The total fitness function

value is 3. If x = 0 and y = 7 then the approximation

level is 0 and the branch distance is |7 - 13| + 1 = 7.

The total fitness function value is 7. So the pair of

values (x = 1, y = 7) has a smaller fitness value than

(x = 0, y = 7), even though the second pair of values

is closer to the solution values (x = 0, y = 0).

So it is obvious that the fitness value calculation

approach proposed in Wang, et al. (2008), which is

based on ACBs approach, misleads the evolutionary

search process.

3.3 Fitness Calculation based on

CMCFG Approach

To correctly guide the evolutionary search algorithm

in a correct direction we propose a new approach,

CMCFG.

As shown in Figure 8 all the switch nodes have

as descendants several case branches. For the target

branch, one or more case branches can lead to the

target branch being missed.

In the CMCFG approach each switch statement

is represented on a different level. The

approximation level is calculated based on the

number of switch nodes from which we subtract 1.

The numbering of approximation level starts in

CMCFG top-down. As shown in Figure 8, if test

data derive away from target branch at first switch

have an approximation level of 1, and if the test data

derive away from target branch at the second switch

have an approximation level of 0.

All the case branches which prevent the target

branch from being executed are the case branches

which have one of the following options: break,

return or goto statement. All these branches stop the

execution of the switch-case constructs and force the

exit from this structure. For the case branches which

don’t have a jump or break option, they are

considered as not preventing the target branch to be

missed and they are merged in the CMCFG graph

with the next case branches which have a break

option.

The CMCFG that corresponds to the complex

switch-case structure presented in Figure 7 is shown

in Figure 9:

The node which corresponds to the “case 8”

branch has no break or return statements and

therefore it is merged with the node which

corresponds to the “case 13” branch. In Figure 9

node 13 has resulted by merging “case 8” and “case

13” nodes. So it doesn’t matter whether is 8 or 13,

IJCCI2012-InternationalJointConferenceonComputationalIntelligence

because the target is prevented to be executed only

when break option is met.

Switch x

Case 1 Case 10 Case 2

Switch y

default

Case 7 Case 13 default

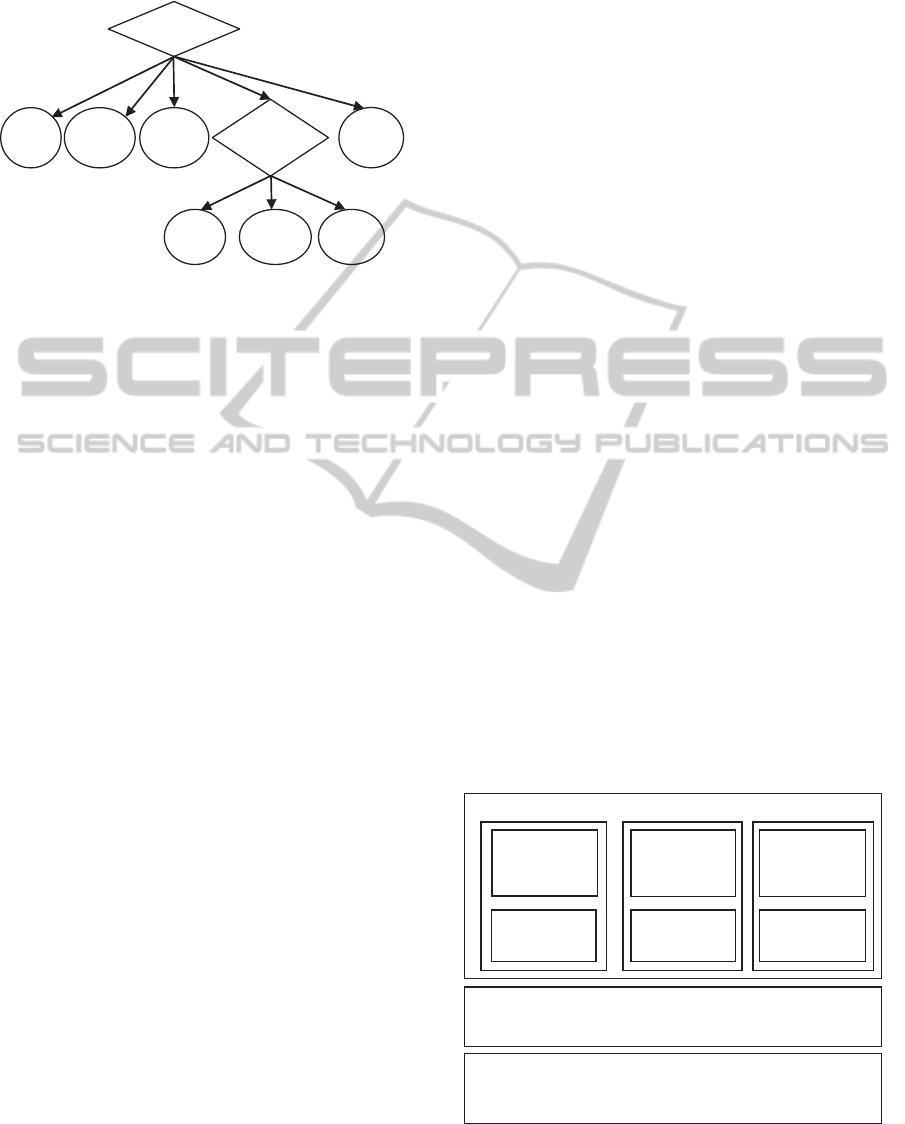

Figure 9: CMCFG for switch-case construct with 1 nesting

level.

In CMCFG the case branches which have no

break, return or goto statements are not represented.

Instead of these cases, the next case branch which

has a break or a return statement is represented.

Compared to the approach based on critical

branches, this approach is more compact because it

can be successfully used for modeling different type

of switch constructs and the decision nodes which

don’t prevent the target to be covered are not present

in the graph. The processing time of this new graph

is smaller in comparison with the processing time

for FCFG, because the graph has fewer nodes.

The fitness function which evaluates each test

data is presented in (3):

Fitness(test_data) = Approximation_Level +

∑Normalized_branch_distance

(3)

The sum that appears in (3) refers to the sum of the

normalized branch distances computed for each

gene of the individuals using (4):

Normalized_branch_distance = branch_distance

/ (branch_distance + 1)

(4)

In fitness function calculation the normalized branch

distance is chosen because the approximation level

is more important in comparison with branch

distance. We use the equation (4) for branch

distance normalization based on the study presented

in Arcuri (2010). The formula used for our proposed

fitness function is derived from (1). The sum of

normalized branch distance allows the algorithm to

converge faster. This formula was chosen based on

some experimental practical trials made before.

The branch distance is calculated using the

switch expression value and the target case value:

|switch_expr – target_case |.

The test data values x = 1 and y = 7 will diverge

away at node “case 1”; therefore the approximation

level will be 1. The fitness function will be (|1 - 0| /

|1 - 0| + 1) + (|7 - 13| / |7 - 13| + 1) + 1 = 2.35. The

second test data values x = 0 and y = 7 will diverge

away at node “case 7”; therefore the approximation

level will be 0. The fitness function will be (|7 - 13| /

|7 - 13| + 1) = 0.85. The second test data object has

a fitness function value smaller than the first test

data object, which means it is closer to the desired

test data values (x = 0 and y = 13). This means that

the approach based on CMCFG gives a better

guidance to the evolutionary search process in

finding test data covering the target branch in

comparison with the approaches based on nested if-

then-else and ACBs.

4 EXPERIMENTAL RESULTS

Experiments using the new approach based on

CMCFG were executed on eight different switch-

case constructs having different nested levels – from

0 to 7. All these switch-case constructs were also

tested using the nested if-then-else approach and the

ACBs approach.

The tool used for testing the switch-case

constructs was written in C# and all the experiments

were performed using a PC having the following

configuration: Intel I3 processor running at 2.2 GHz,

and Windows 7 Operating System.

For all the three approaches ten runs were

performed for testing each switch-case construct and

the results were compared. The architecture of the

software program used for generating test data to

cover the target branch using the three approaches

presented in Section III is presented in Figure 10:

Program Static Analyzer

Construct nested

if-then-else

structure

Code

instrumented

Control

dependency

graph

Code

instrumented

Compact and

minimized graph

Code

instrumented

Evolutionary module

Run evolutionary search process

Display module

Display evolutionary process results in graphical user interface

Figure 10: High-level architecture of the software

program.

ANewEvolutionaryApproachfortheStructuralTestingofSwitch-caseConstructs

The software program used for experiments is

composed of three parts: a static analyzer module, a

module for running the evolutionary process and a

module for displaying the graphical results.

The module that performs the static analysis

consists of three sub-modules which build the nested

if-then-else structures, or build the dependency

graph for ACBs approach, or build the CMCFG

(depending on which approach is to be executed).

The static analyzer instruments the code with the

information needed for calculating the fitness

function.

The module that executes the evolutionary

process uses the data provided by the program

analyzer component and performs the evolutionary

process. This is using genetic algorithms for

evolutionary process. This module runs the

evolutionary process for 100 generations and uses an

initial population composed of 40 randomly

generated individuals. For all three approaches the

individuals are generated using Random class

instance from .Net. This class uses a time-dependent

default seed value. The default seed value is based

on system clock and has finite resolution. Each

individual from the population consists of a set of

genes in which each gene corresponds to a data input

variable of the program under test.

The last module takes the results provided by the

evolutionary module and displays them in a

graphical user interface. The best solution for each

generation is displayed in a data grid. For the

current generation, the table displays the best

individual genes values, the fitness function value

and the computational time needed for current

generation.

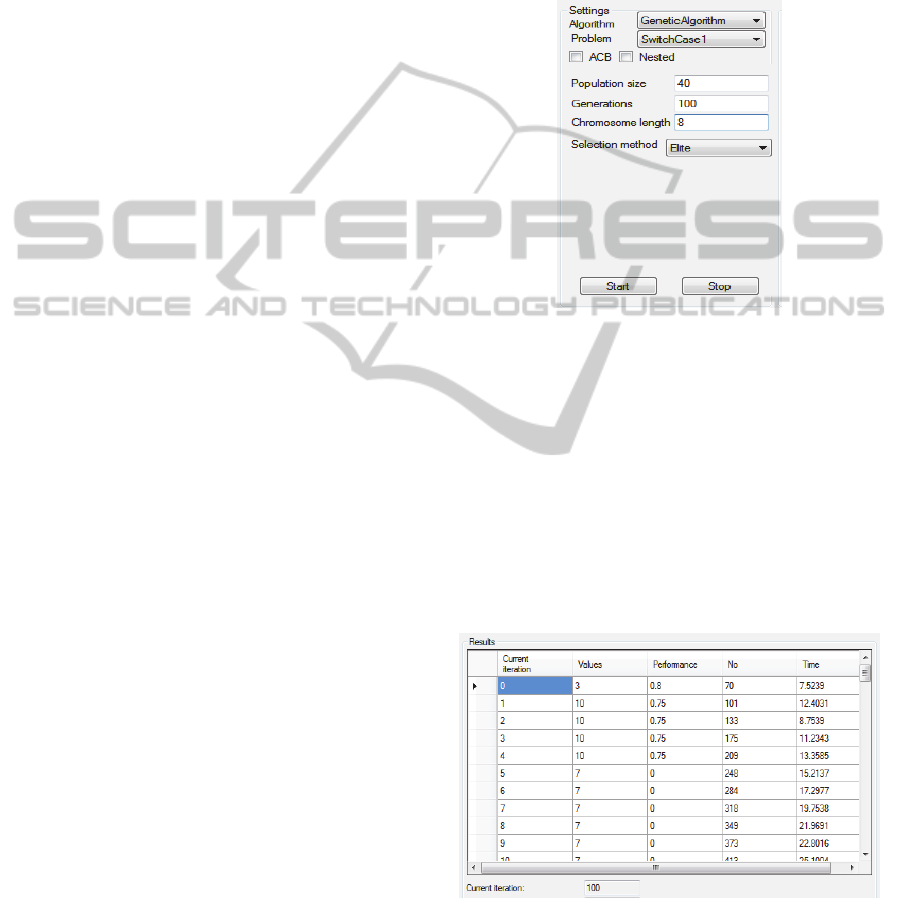

Figure 11 and Figure 12 show the user interface

of the software program that was created for

performing experiments. Figure 11 shows the

settings area from the user interface of the software

program, where the user can choose which

evolutionary algorithm will be used for generating

test data, which switch-case construct will be tested

(selected as target) and also which fitness calculation

approach will be used.

By checking “ACB” or ”Nested” options, the

ACBs approach or the nested if – then-else approach

will be applied. If none of these options is checked

then the CMCFG approach is applied by default.

The parameters for the current evolutionary

algorithms can be set up as well: population size,

number of generations, individual length and also

the selection method.

Figure 12 shows the results obtained for testing a

switch-case construct which has the nested level 0.

These results are obtained for a random run. The

results table allows the developer to trace the current

algorithm’s execution and displays all the important

information: the generation number, the value of the

best individual from the current generation, the

fitness function for the best individual and the

processing time for current generation in

milliseconds.

Figure 11: Software application’s user interface.

For the run shown in Figure 12, the algorithm

found test data which cover the target case branch at

generation 4. The Current iteration column displays

the current iteration of the evolutionary search

process. The second column contains the best

individual from the current generation. The column

called Performance display the fitness function value

corresponding to the best individual from the current

iteration. The last column from the data grid display

the Time needed for processing the entire population

of 40 individuals.

Figure 12: Software application’s results view.

Table 1 presents the best run for each of the three

evolutionary approaches out of ten runs for each. It

shows that the iteration number at which the

evolutionary algorithm is able to find test data which

IJCCI2012-InternationalJointConferenceonComputationalIntelligence

covers the target branch is smaller for the CMCFG

approach compared to the two other approaches.

Table 1: Experimental results – the iteration number at

which the solution is found.

Nested

level

Evolutionary approaches

IF-THEN-ELSE

(nested if-then-else

structure)

ACBs

(Alternative

Critical Branches

Approach)

CMCFG

(Compact and

Minimized Control

Flow Graph)

0 27 18 7

1 90 56 30

2 98 65 40

3 100 79 52

4 >100 83 60

5 >100 91 68

6 >100 96 80

7 >100 100 89

The test data were generated for unstructured

switch-case constructs having case branches with no

break or return options. The processing time for the

CMCFG-based method was smaller compared to the

processing time needed for the ACBs approach and

the nested if-then-else constructs approach. The

processing time strongly depends on the number of

nodes in the control flow graph. If the CMCFG has

one branch node less than the normal control flow

graph, then from our experiments the processing

time resulted to be significantly smaller in

comparison with the processing time for a normal

control flow graph. From the experiments

implemented was found out that for each nested

level our proposed method managed successfully to

find test data which cover the target branch in less

number of iterations.

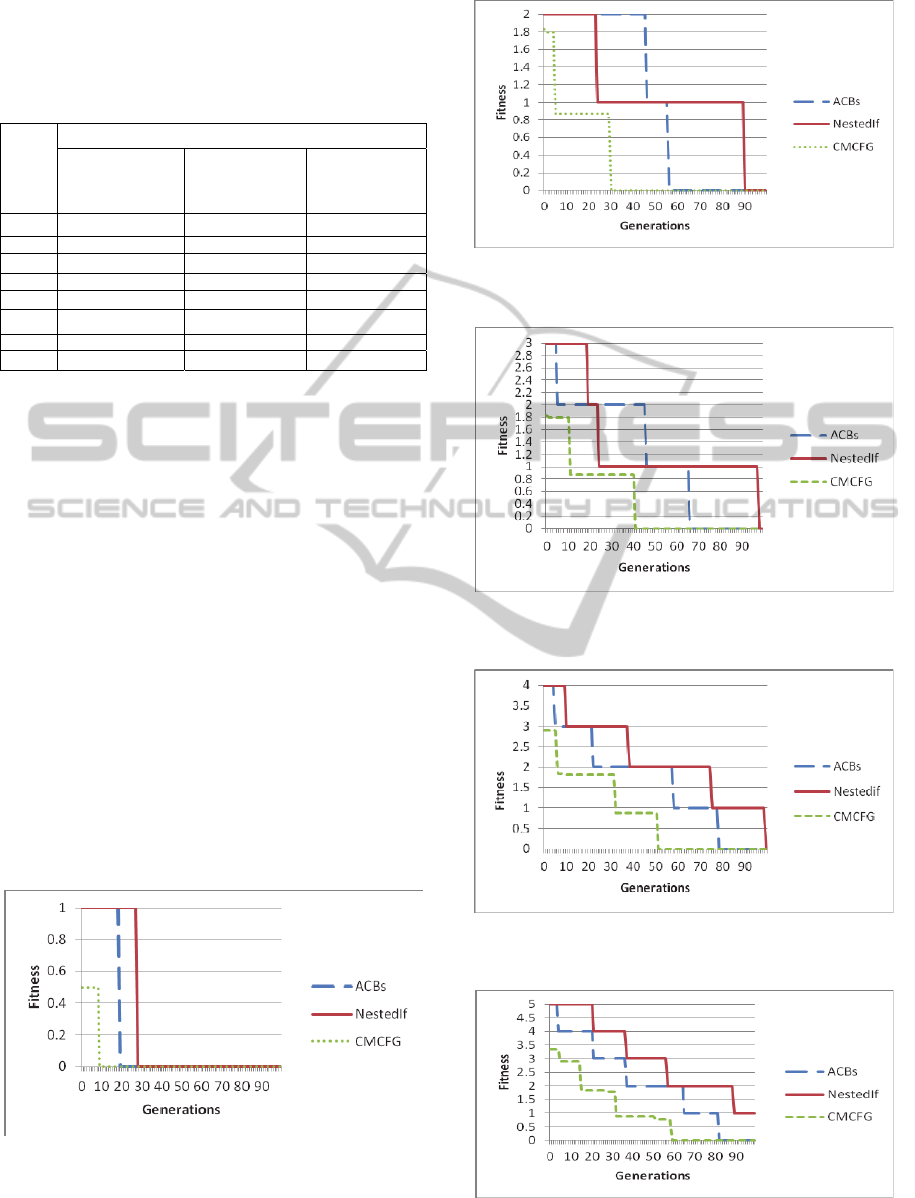

Figures 13 ÷ 20 show the results obtained for

each nested level of the switch-case construct. All

three approaches are displayed on the same figure in

order to facilitate their comparison.

Figure 13: Test data generation for a particular case

branch in nested level 0 – switch-case construct.

Figure 14: Test data generation for a particular case

branch in nested level 1 – switch-case construct.

Figure 15: Test data generation for a particular case

branch in nested level 2 – switch-case construct.

Figure 16: Test data generation for a particular case

branch in nested level 3 – switch-case construct.

Figure 17: Test data generation for a particular case

branch in nested level 4 – switch-case construct.

ANewEvolutionaryApproachfortheStructuralTestingofSwitch-caseConstructs

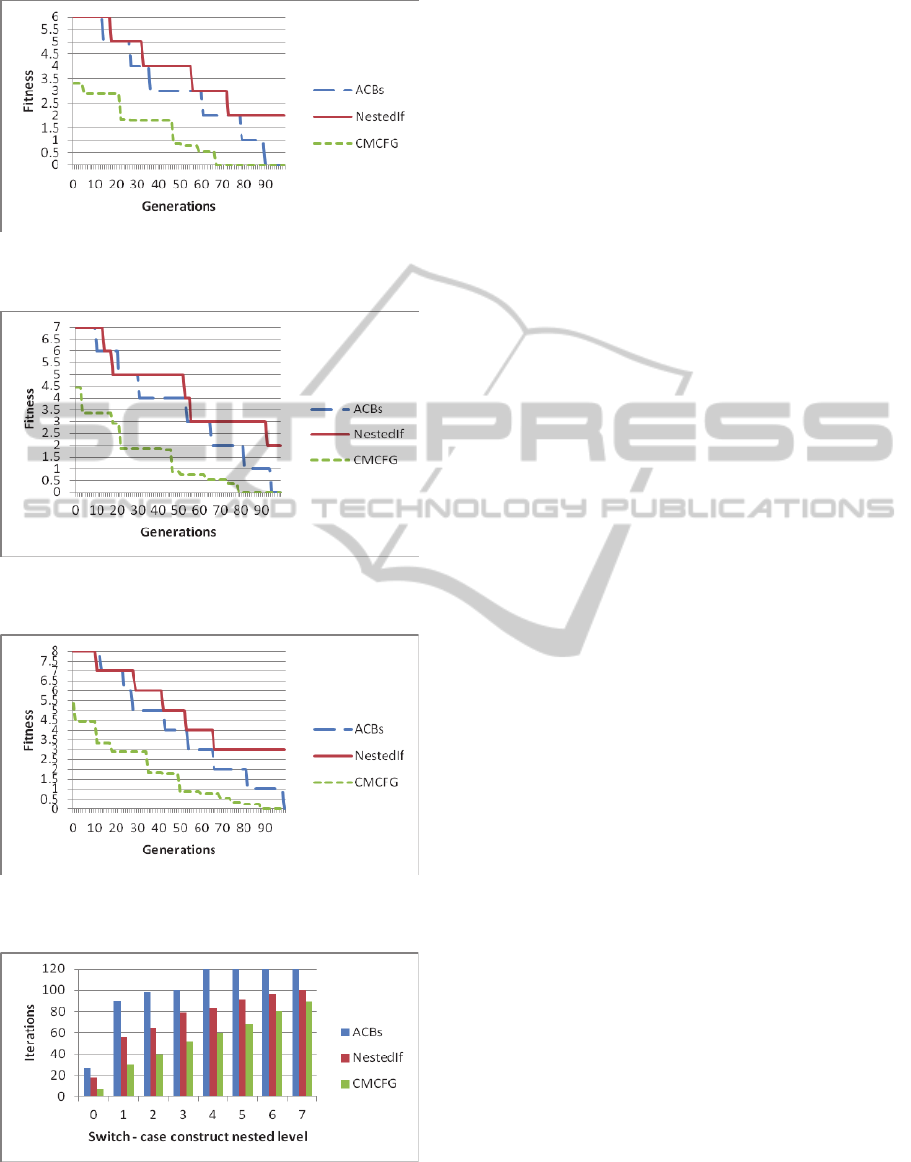

Figure 18: Test data generation for a particular case

branch in nested level 5 – switch-case construct.

Figure 19: Test data generation for a particular case

branch in nested level 6 – switch-case construct.

Figure 20: Test data generation for a particular case

branch in nested level 7 – switch-case construct.

Figure 21: Iteration number at which each approach is able

to find test data for different nesting levels of switch-case

construct.

As shown in the previous Figures, the proposed

CMCFG-based approach converges faster than the

two other approaches. The nested if-then-else

approach is not able to generate test data for a

particular case in 100 generations for a switch-case

construct with more than 3 nested levels. The ACBs

based approach converges much slower in

comparison with our proposed approach. This means

that the fitness function formula used in this paper

improves the guidance of the evolutionary search

process, compared with the other tested approaches.

The process was improved with approximation 15

iterations in comparison with ACBs approach and

with approximation 50 iterations in comparison with

nested if-then-else approach.

In Figure 21 there is displayed a comparison

between the three approaches for generating test data

which cover target branch in switch-case constructs

which have the nesting level between 0 and 7. As it

is shown for all tested switch-case constructs our

approach was able to generate test data in less

number of iterations in comparison with ACBs

approach and nested if-then-else approach.

5 CONCLUSIONS AND FUTURE

WORK

Evolutionary testing uses evolutionary search

algorithms to generate test data that cover a

particular path in a software program. The approach

based on nested if-then-else constructs and the one

based on ACBs have been pointed out to be

problematic because of a poor guidance of the

search algorithm. This paper introduced a new

approach for calculating the fitness function for

switch-case constructs which improves the

evolutionary testing process.

For generating test data which cover a particular

case branch in a switch-case construct the CMCFG

approach was used. The solution was tested on

switch-case constructs having different levels of

nesting and which can also have case branches

without break or return options.

The proposed improvements solve the problem

of generating test data for a particular case branch in

a switch-case construct faster with approximation 15

iterations in comparison with ACBs approach and

with approximation 50 iterations faster than nested

if-then-else approach. The representation of the

switch–case construct as a CMCFG structure is an

original approach proposed here. The formula used

for fitness function is also an original metric

IJCCI2012-InternationalJointConferenceonComputationalIntelligence

proposed here which improves the guidance of the

evolutionary search method.

Future work will involve using evolutionary

algorithms for generating test data that cover a

particular case branch in larger projects. Also

Simulated Annealing and PSO algorithms will be

implemented for testing switch-case constructs. A

testing framework based on evolutionary algorithms

could be designed and implemented, for completely

automate the test data generation process.

REFERENCES

Arcuri, A., 2010. It Does Matter How You Normalise the

Branch Distance in Search Based Software Testing. In

Software Testing, Verification and Validation, pp.

205-214.

Baresel, A., Sthamer, H., 2003. Evolutionary testing of

flag conditions. In Proceeding of the Genetic and

Evolutionary Computation Conference, GECCO’03,

pp. 2428-2441.

Baresel, A., Binkley, D., Harman, M., 2004. Evolutionary

Testing in the Presence of Loop-Assigned Flags: A

Testability Transformation Approach. In Proceedings

of the ACM SIGSOFT International Symposium on

Software Testing and Analysis, ISSTA ’04, vol. 29, pp.

43-52.

Ferrante, J., Ottenstein, K., Warren, J., 1987. The program

Dependence Graph and Its Use in Optimization. In

ACM Transactions on Programming Languages and

Systems, vol. 9, pp. 319-349.

Harman, M., Hu, L., Hierons, R., Baresel, A., Sthamer, H.,

2002. Improving Evolutionary Testing by Flag

Removal. Proceeding of the Genetic and Evolutionary

Computation Conference, GECCO’02, pp. 1359-1366.

Harman, M., McMinn P., 2010. A Theoretical and

Empirical Study of Search-Based Testing: Local,

Global, and Hybrid Search. In IEEE Transactions on

Software Engineering, Journal vol. 36, pp. 226-247.

McMinn, P., Holcombe, M., 2005. Evolutionary testing of

state-based programs. In Proceedings of the Genetic

and Evolutionary Computation Conference,

GECCO’05, pp. 1013-1020.

McMinn, P., Binkley, D., Harman M., 2009. Empirical

Evaluation of a Nesting Testability Transformation for

Evolutionary Testing. In ACM Transformation

Software Engineering Methodology, vol. 18, pp. 1-27.

Tracey, N., Clark, J., Mander, K., 1998. Automated

program flaw finding using simulated annealing. In

Proceeding of the ACM SIGSOFT International

Symposium of Software Testing and Analysis,

ISSTA’98, pp. 73-81.

Gupta, N. K., Rohil, M. K., 2008. Using Genetic

Algorithm for Unit Testing of Object Oriented

Software. In Emerging Trends in Engineering and

Technology, pp. 308-313.

Gursaran, A. P., 2012. Program test data generation

branch coverage with genetic algorithm: Comparative

evaluation of a maximization and minimization

approach. In International Journal of Software

Engineering and Applications, vol. 3, pp. 207-218.

Tracey, N., Clark, J., Mander, K., McDermin, J., 1998. An

Automated Framework for Structural Test-Data

Generation. In Proocedings of the 13th IEEE

International Conference on Automated Software

Engineering, pp. 285.

Wang, Y., Bai, Z., Zhang, M., Du, W., Qin, Y., Liu, X.,

2008. Fitness Calculation Approach for the Switch-

Case Construct in Evolutionary Testing. In

Proceedings of the Genetic and Evolutionary

Computation Conference, GECCO’08, pp. 1767-1774.

Wappler, S., Baresel, A., Wegener, J., 2007. Improving

Evolutionary Testing in the Presence of Function-

Assigned Flags. In Testing: Academic and Industrial

Conference Practice and Research Techniques-

Mutation, pp. 23-34.

Wegener, J., Grochtmann, M., 1998. Verifying Timing

Constraints of Real-Time Systems by Means of

Evolutionary Testing. In Real Time Systems Journal,

vol. 15, pp. 275-298.

Wegener, J., Baresel, A., Sthamer H., 2001. Evolutionary

test environment for automatic structural testing. In

Information and Software Technology, Journal vol. 43

(14), pp. 841-854.

ANewEvolutionaryApproachfortheStructuralTestingofSwitch-caseConstructs
