Fault Injection for Web-services

Marek Rychl

y and Martin

Zou

zelka

Department of Information Systems, Faculty of Information Technology, Brno University of Technology,

IT4Innovations Centre of Excellence, Bo

zet

echova 2, 612 66 Brno, Czech Republic

Keywords:

Software Testing, Fault Injection, Fault Model, Service-oriented Architecture, Web-service, Tool.

Abstract:

Recently, web-services have become a popular technology for implementing information systems as service-

oriented applications. The service orientation allows to decompose complex software systems into collections

of cooperating and autonomous components which communicate asynchronously via messages of appropriate

formats. Nevertheless, the assurance of reliability and robustness of these systems is becoming more and more

complicated matter. For this reason, the new testing methods such as fault injection and specialised tools for

automated validation of web-services appear. This paper discusses the design, implementation, and evaluation

of a tool for software implemented fault injection into web-services. This tool allows to monitor and to test

the most common types of web-services according to given setup criteria.

1 INTRODUCTION

Currently, information systems are often designed

as component-based systems with service-oriented

architecture and web-service technology. The ser-

vice orientation allows to decompose a complex soft-

ware system into a collection of cooperating and au-

tonomous components known as services. These ser-

vices communicate asynchronously via messages of

appropriate formats and through various protocols.

They cooperate with each other to carry out a busi-

ness process representing a particular functionality of

the implemented software system.

Design of an information system as service-

oriented architecture (SOA), i.e. its decomposition

into a collection of cooperating services, increase

reusability of its components and usually reduces its

development time and effort. The system designed

as SOA can adopt existing services and integrate

them together with new services implementing miss-

ing functionality. The services can be adopted from

other information systems developed in-house includ-

ing their full development documentation and their

source code, or they can be purchased as commercial

third-party services available as “black-boxes” only,

i.e. with limited or without any insight into their extra-

functional or safety-critical properties. In the second

case, it is necessary to perform thorough reliability

testing, i.e. unit tests of the adopted services as well

as integration tests of their compositions.

Although the intensive reliability testing may in-

crease trustworthiness of the services and decrease

probability of undetected failures, it is often impos-

sible to test the services in all conﬁgurations and all

possible integrations and guarantee robustness (fault

tolerance) of the resulting system (Crnkovic, 2002,

pp. 197–198). For this reason, new testing methods

such as fault injection and specialised tools for au-

tomated validation of the services appear. The fault

injection, contrary to the previously mentioned reli-

ability testing, tries to reveal how robust (tolerant) a

software system is to potential failures caused by the

unreliable services.

This paper discusses the design, implementation,

and evaluation of a tool for software implemented

fault injection into web-services. The tool allows

to monitor and to test robustness of the most com-

mon types of web-services compositions according to

given setup criteria, i.e. to reveal the consequences of

failures of the web-services to the rest of a system.

The rest of this paper is organised as the fol-

lows. Section 2 describes software implemented fault

injection (SWIFI) techniques, their applications in

fault injection into web-services, and existing SWIFI

tools and their usability for robustness testing of web-

services of different technologies. In Section 3, we

introduce the architecture and the implementation

of our SWIFI tool for SOAP and RESTful web-

services. Its evaluation is described in Section 4. Fi-

nally, Section 5 sums up the results, provides a con-

clusion, and outlines a future work.

377

Rychlý M. and Žouželka M..

Fault Injection for Web-services.

DOI: 10.5220/0004153003770383

In Proceedings of the 14th International Conference on Enterprise Information Systems (NTMIST-2012), pages 377-383

ISBN: 978-989-8565-11-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 SOFTWARE IMPLEMENTED

FAULT INJECTION INTO

WEB-SERVICES

The goal of software implemented fault injection

(SWIFI) is to ensure robustness testing, as it has been

mentioned in the introduction of this paper. Accord-

ing to (Crnkovic, 2002, p. 198), the fault injection into

a software component means to artiﬁcially corrupt a

function of this component, input data consumed by

the component, or output data produced by the com-

ponent and sent to its successors, to observe how the

component, the successors, or the whole system be-

haves. To perform this tasks, a fault injection tool has

to inject one or more faults into a software component

under test and to help to analyse the consequences of

potential failures. By simulating the faults in various

software components, we determine whether or not

their failures can be tolerated.

According to (Hsueh et al., 1997), SWIFI tech-

niques can be classiﬁed into two types, compile-time

injection and run-time injection. In the ﬁrst technique,

a source code is modiﬁed to inject simulated faults

into a software component in its compile-time. In the

second technique, the software component’s function-

ality or data are modiﬁed in its run-time.

The compile-time injection requires availability of

the source code of a software component provided by

its developers or obtained by its disassembling. This

technique does not require any modiﬁcations of the

component’s run-time environment, and therefore, it

is applicable especially in the case of in-house de-

veloped software components deployed into different

uncontrollable environments. The compile-time in-

jection into web-services with available source codes

can be done by common SWIFI tools without any

specialisation to web-service technologies.

During the run-time injection, a software compo-

nent is executed as a “black-box” in a special run-

time environment without need of any modiﬁcations

or recompilation of the component’s source code. The

run-time environment enables a tester to modify the

component’s control-ﬂow and internal memory (inva-

sive testing) as well as input and output data trans-

mitted via the component’s interfaces (non-invasive

testing). In the case of the run-time injection into a

web-service, a run-time modiﬁcation of the service’s

control-ﬂow or its internal memory does not require

any knowledge of a web-service technology contrary

to a modiﬁcation of data transmitted via the service’s

interfaces, which are technology dependent. For the

ﬁrst type of modiﬁcations, common SWIFI tools can

be used while the second type of modiﬁcations re-

quire SWIFI tools specialised for web-services.

The SWIFI tools for the run-time injection into

web-services usually act as HTTP proxies encapsulat-

ing web-services under test, or they can be integrated

into web-servers providing run-time environments for

the web-services (i.e. service containers).

2.1 SWIFI Tools for Web-services

This section describes the state of the art for the

SWIFI tools specialised for (non-invasive) run-time

fault injection into web-services. In addition to

the specialised tools, also SWIFI tools providing

network-level fault injection, such as DOCTOR (Han

et al., 1993) or ORCHESTRA (Dawson et al., 1996),

can be used for the fault injection into web-services to

corrupt the services’ messages without understanding

their content, i.e. a particular web-service technology.

WS-FIT (Looker et al., 2007) is a tool implement-

ing targeted perturbation of web-services’ RPC pa-

rameters as well as generic network-level fault in-

jection, which can be applied to a range of other

RPC-based middlewares, such as DCE, DCOM, and

CORBA. To enable the run-time fault injection into

web-services, WS-FIT requires to insert a hook code

into a SOAP stack of web-servers providing run-

time environments for the web-services to capture

SOAP messages. A reference implementation of

WS-FIT includes its integration into service contain-

ers of Apache Jakarta Tomcat web-servers versions 4

and 5. The implementation of WS-FIT tool is not

publicly available.

wsrbench (Laranjeiro et al., 2008) is a publicly

available on-line tool for robustness testing of SOAP-

based web-services represented by their WSDL de-

scriptions. The tool acts as a web-service client which

automatically generates SOAP requests according to

a given test-case speciﬁcation (e.g. to call a web-

service with parameters outside a given domain, etc.).

This approach allows to test only single services, but

not service compositions. Faults also cannot be in-

jected outside parameters of a web-service’s opera-

tions, e.g. to test a corruption of message headers.

WSInject (Valenti et al., 2010) is a fault injection

tool for testing single and composed web-services.

It allows to inject both communication and interface

faults, i.e. to simulate a network-level malfunction as

well as wrong service calls which do not match their

descriptions. The tool acts as a HTTP proxy inject-

ing faults into passing SOAP messages while trans-

mitting non-SOAP HTTP messages without modiﬁ-

cation. WSInject is able to inject faults into service

compositions, but it is not applicable to web-services

using non-SOAP technologies (e.g. RESTful web-

services).

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

378

All the mentioned tools are capable of run-time

injection into SOAP-based web-services. However,

they are not useful for testing of RESTful web-

services which are recently becoming popular on the

Internet.

3 FAULT INJECTION TOOL FOR

WEB-SERVICES

As it has been mentioned in the previous sections,

the demand for SWIFI tools which enable a tester to

create test speciﬁcations for fault injection and to ap-

ply them automatically at the speciﬁed parts of web-

services is still growing.

This section describes the development of the

FIWS tool (Fault Injector for Web Services), which

can be classiﬁed as a tool for software implemented

run-time fault injection and non-invasive robustness

testing of SOAP-based, XML-RPC, and RESTful

web-services and their compositions. It allows to in-

ject faults in run-time of tested web-services, into

communication between the web-services and their

partners. After the injection, the resulting abnormal

states and erroneous behaviour of the web-services

can be observed.

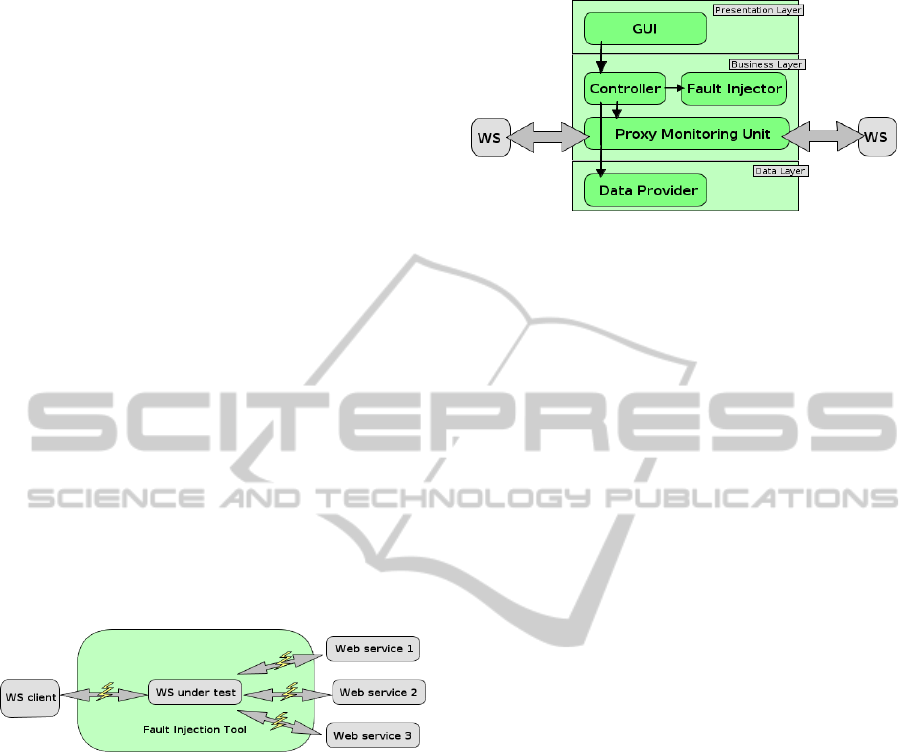

Figure 1: The communication scheme.

Figure 1 describes an application style of the tool

in the communication scheme between a tested ser-

vice (i.e. “WS under test”) and its surroundings. All

communication of the tested service with its clients

and another web-services required by the tested ser-

vice (i.e. “WS client” and “Web service 1–3”, re-

spectively) is routed via a proxy server where the

FIWS tool monitors incoming and outgoing mes-

sages. When the communication meets particular cri-

teria given by a test speciﬁcation, the corresponding

messages are corrupted with faults of deﬁned types.

The FIWS tool does not require a speciﬁc type of

the message routing method – the routing can be done

by an arbitrary network setting (e.g. network routing

or ﬁrewall rules), by a transparent HTTP proxy, by a

modiﬁcation of a web-server providing web-services’

run-time environment (i.e. service containers), etc.

The tool’s internal architecture is described in Fig-

ure 2. The three-layered architecture divides program

Figure 2: The three-layered architecture model.

components into three groups of different responsi-

bilities for different tasks. The top-level layer is the

presentation layer that contains modules and classes

responsible for a (graphical) user interface of the tool

(it consists of classes representing windows and di-

alogs). The next one is the business layer implement-

ing the application logic, which is composed of three

units:

• Proxy Monitoring Unit – Its goal is to act as a

HTTP proxy, which listens at a given port for in-

coming connections and mediates the communi-

cation between services. Behaviour of this com-

ponent is a bit different from common proxy

servers. It waits until a whole HTTP message is

read, and then, it analyses important parts of the

message and forwards them to the Fault Injector.

• Fault Injector – It receives speciﬁc parts of

service-call messages from the Proxy Monitoring

Unit and processes them by classes representing

different types of conditions and faults. The pro-

cessing is deﬁned by a particular test speciﬁca-

tion in the tool’s user interface and received by

the Controller.

• Controller – It is a unit controlling the business

layer according to events from the tool’s user in-

terface. It also implements the persistence of tests

and results which are stored in a XML database.

Finally, the bottom-level layer is the data layer,

which consists of classes accessing the mentioned

XML database with test speciﬁcations and results.

3.1 Conditions and Faults

The fault injection mechanism in the FIWS tool is

based on a model of conditions and faults and with

respect to the general fault model by (Looker et al.,

2005). In the tool, the fault injection mechanism is

controlled by user-deﬁned test speciﬁcations. Every

test speciﬁcation contains a list of named rules and

every rule consists of a set of conditions and a set of

faults. When a service message meets all conditions

FaultInjectionforWeb-services

379

of a particular rule, each of the corresponding faults

is applied.

A rule in a test speciﬁcation can include a combi-

nation of the following conditions:

• Content linked Condition – fulﬁlled iff a particular

message contains a speciﬁed string;

• URI linked Condition – fulﬁlled iff a particular

message contains a speciﬁed string in URI ad-

dress;

• Destination linked Condition – fulﬁlled iff a par-

ticular message is a HTTP request (i.e. a service

call) or a HTTP response (i.e. a service response).

Moreover, the rule can include a set of the fol-

lowing faults, which will be applied to the communi-

cation between services or between a service and its

clients. Some faults have been adopted from exist-

ing SWIFI tools (see Section 2.1) and the others have

been designed for our needs solely.

• String Corruption is a simple fault which replaces

all speciﬁed sub-strings in a message for another

sub-string. Since this is done on the string level

regardless the message’s format, it can be used

with various data interchange formats (e.g. XML,

JSON, YAML, HDF, etc.).

• XPath Corruption is similar to the previous fault

except that the replaced parts are speciﬁed by

an XPath expression (the message has to be in

XML). This kind of fault is useful when we want

to modify a value of a particular element or an at-

tribute representing parameters of a service’s op-

eration.

• XPath Multiplication also uses XPath expressions

to ﬁnd a particular part of a message in XML,

however, the targeted part is not changed, but mul-

tiplied (which is a speciﬁc type of the corruption).

• WSDL Operation Corruption uses a WSDL ser-

vice description to identify service operation calls

or responses inside a SOAP message and to mod-

ify the message’s body. By means of these faults,

we are able to test robustness of service opera-

tions.

• Header Corruption allows to modify parameters

of an URI inside a message’s HTTP header. This

is useful for testing of RESTful services contain-

ing data (or meta-data) also in the HTTP header.

• Emptying Fault empties the content of a HTTP

message (just its header remains and the rest of

the message is discarded). This can be used for

testing a service’s response to empty HTTP mes-

sages.

-ID

-Name

-filePath

TestSet

-ID

-Name

TestStatem ent

-ID

+ getDescription()

+ isFulfilled()

Condition

-ID

+ getDescription()

+ inject()

Fault

ContainsCondition

...Condition

StringCorruptionFault

...Fault

0..*

contains

0..*

contains

0..*

is made of

Figure 3: The class diagram of test speciﬁcations.

• Delay Fault delays a targeted message for a spec-

iﬁed number of milliseconds. This fault allows to

simulate some network anomalies caused by mes-

sage loss or problems with network latency.

Figure 3 outlines the class diagram of test spec-

iﬁcations

. A test speciﬁcation is represented by an

instance of class TestSet and consists of several state-

ments represented by TestStatement. Each statement

contains several test conditions and injected faults

represented by classes Condition and Fault, respec-

tively.

The pre-deﬁned list of test conditions and in-

jected faults can be extended by new specialisations

of classes Condition and Fault, respectively. Each

specialisation of class Condition has to implement

method getDescription to obtain its informative de-

scription and method isFulﬁlled, which decides, ap-

plied to a HTTP message, whether the condition is

meet or not. Each specialisation of class Fault has to

implement method getDescription analogously to the

previous case and method inject performing desired

modiﬁcations of the HTTP message (i.e. the fault in-

jection).

4 EXPERIMENTS

We performed several experiments with robustness

testing of various web-services by the FIWS tool.

At ﬁrst, we tested sample web-service projects in-

cluded in the Netbeans IDE as demonstrations of

JAX-WS and JAX-RS standard Java EE frameworks

Please note that for space reasons the class diagram is

not complete in the sense that it contains classes of all the

mentioned conditions and faults and full deﬁnitions of the

mentioned methods of the classes.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

380

for SOAP-based and RESTful web-services, respec-

tively. The web-services have been deployed into ser-

vice containers of the Oracle GlassFish web-server in

version 3.2 providing a run-time environment for the

services.

Our goal has been to analyse fault tolerance of

web-services in the JAX-WS and JAX-RS frame-

works and also compatibility of the tool with the web-

server. The results are in Sections 4.1 and 4.2. Fi-

nally, we also focused on several publicly available

web-services with results described in Section 4.3.

4.1 SOAP-based Calculator (JAX-WS)

The ﬁrst tested service is called Calculator. It is a

common SOAP-based web-service implemented as

a composition of web-services and providing a few

methods to perform basic arithmetic operations. The

composition has been slightly modiﬁed to allow test-

ing interception and corruption of messages sent be-

tween services inside the composition (i.e. not only

between the main web-service and its client).

The testing scenario consists of two SOAP-based

web-services in the composition and one client. The

client sends its requests to the ﬁrst service, which

serves as a mediator to access operations provided

by the second service. This arrangement creates

three HTTP interactions to monitor, which means six

HTTP messages in one service call by the client.

In the ﬁrst test set, we focused on a parameter cor-

ruption test, i.e. a fault injection into input parame-

ters of the service’s operations and into return values

produced by the operations and consumed by another

service in the service composition. Each test was per-

formed two times to eliminate unexpected conditions.

In test statements, WSDL Operation Corruption

and XPath Corruption types of faults were utilised

(see Section 3.1). Based on these fault types, parame-

ter mutation rules for numeric values were adopted

from (Vieira et al., 2007) as it is described in Ta-

ble 1. The table describes names of the tests and

corresponding actions which are applied to the oper-

ation’s parameters or to the return values by the men-

tioned types of faults.

During the testing, the NumNull corruption was

interpreted by Calculator as a number zero in all per-

formed cases, so the operation was completed without

any errors or exceptions shown. The NumMax and

NumMin tests resulted in data type overﬂow, while

the service responded without any error messages and

returned wrong values. For example, the additive op-

eration with parameters 2147483647 and 4 returned

−2147483645. On the other hand, during the corrup-

tion of the return values, the consuming service inter-

Table 1: Numeric parameter curruption.

Test name Parameter corruption

NumNull Replace by null val.

NumEmpty Replace by empty val.

NumAbsoluteMinusOne Replace by −1

NumAbsoluteOne Replace by 1

NumAbsoluteZero Replace by 0

NumAddOne Add one

NumSubtractOne Subtract 1

NumMax Max. type valid

NumMin Min. type valid

NumMaxPlusOne NumMax + 1

NumMinMinusOne NumMin − 1

preted the overﬂowed value as a zero number.

In the second test set, several tests were performed

to verify robustness of interfaces of the tested ser-

vices. The XPath Multiplication fault was injected

into a SOAP message, however, it did not effect pro-

cessing the message in a service, since SOAP parsers

process only the ﬁrst occurrence of an element within

the message. The injection of Emptying Fault resulted

into a SOAP error message response informing that an

XML reader exception was thrown. Finally, we tried

to inject Delay Faults with delays for 10, 20, and 60

seconds. The ﬁrst two cases run correctly, however,

the one-minute delay resulted in the unavailable con-

suming service (it did not close its connection).

4.2 RESTful CustomerDB (JAX-RS)

The second tested service is a RESTful web-service

which is called CustomerDB. This service pro-

vides standard RESTful HTTP methods GET, PUT,

POST, and DELETE, to query and update resources

representing data in a Java Derby database.

In this test set, we created test statements using

the Header Corruption fault to be able to modify

the speciﬁc parts HTTP URIs containing service re-

quest parameters, i.e. describing a database query go-

ing towards the web-service. The parameters were

corrupted as values of the string data-type by actions

shown in Table 2. Each test was performed two times

to eliminate unexpected conditions.

Table 2: String parameter corruption.

Test name Parameter corruption

StrNull Replace by null val.

StrEmpty Replace by empty str.

StrNonPrintable Replace by nonprintable

StrAddNonPrintable Add one nonprintable

StrAlphaNumeric Apply alphanumeric string

StrOverﬂow Overﬂow max size

After the fault injection, some of the corrupted ser-

vice calls resulted in inconsistencies in the queried

database while no errors were indicated. The web-

FaultInjectionforWeb-services

381

service came into the “silent” failure mode accord-

ing to the wsCrash scale introduced by (Vieira et al.,

2007).

Contrary to the SOAP parsers in the case of

SOAP-based web-services (see Section 4.1), the

RESTful approach does not provide any implicit val-

idation of formats of incoming messages. The mes-

sages of RESTful web-services can be in various for-

mats (e.g. XML, JSON, YAML, HDF, etc.) and

the fault tolerance of such web-services has to be en-

sured by their developers, e.g. by usage of a particular

validator corresponding to a speciﬁc message format.

Obviously, this was not the case of the CustomerDB

web-service.

4.3 Publicly Available Web-services

Finally, we performed robustness testing of the fol-

lowing publicly available web-services:

• Afﬁliate Web Service by alpharooms.com

• WSCore Web Service by altaircom.net

• ForeignExchangeService by as.asp2.cz

• wvWAVKY by cuni.cz

These services have been tested as “black-boxes”

without any knowledge of their internal implemen-

tations. Therefore, we were not able to inject faults

into communication between services of potential ser-

vice compositions (we cannot redirect the communi-

cation between the externally provided services via

our proxy). We also did not have access to error logs

of the web-services’ containers, so could not detect

internal errors of the services which were not exter-

nally visible.

We performed random fault injection into calls of

the services by their clients and observed the services’

external behaviour, speciﬁcally their responses and

availability. The fault injection caused few failures

resulting into unpredictable behaviour. The Emptying

Fault corruption mostly ended with the “HTTP 400

Bad Request” notiﬁcation, however, in some cases,

the response was “HTTP 500 Internal Server Error”

indicating that a failure of a web-service occurred.

Moreover, the fault injection into XML element Af-

ﬁliateAuthentication in a call of Afﬁliate Web Service

resulted into the unexpected behaviour where non-

printable characters in the element’s content did not

caused the “permission denied” message.

http://xml.alpharooms.com/afﬁliate.asmx

http://palehorse.altaircom.net/WS/WSCore.asmx

http://as.asp2.cz/ForeignExchangeService.asmx

http://is.cuni.cz/webapps/ws.php

5 SUMMARY AND

CONCLUSIONS

In this paper, we introduced the FIWS tool for soft-

ware implemented fault injection (SWIFI) into web-

services. Contrary to the previously existing SWIFI

tools, the FIWS tool is able to inject faults into ser-

vice compositions and to perform robustness test-

ing of common SOAP-based web-services as well

as contemporary RESTful web-services. To evalu-

ate applicability of the tool, several web-services have

been tested using both web-service technologies. We

performed fault injections into a SOAP-based web-

service implemented in Java JAX-WS, a RESTful

web-service implemented in Java JAX-RS, and sev-

eral publicly available web-services.

The further research will focus on integration of

the tool and the fault injection in general into inte-

grated development environments (IDEs) to enable

developers to deﬁne and automatically perform tests

of web-services’ robustness in desired service com-

positions.

ACKNOWLEDGEMENTS

This work was supported by the research programme

MSM 0021630528 “Security-Oriented Research in

Information Technology”, the BUT FIT grant FIT-

S-11-2, and by the European Regional Development

Fund in the IT4Innovations Centre of Excellence

project (CZ.1.05/1.1.00/02.0070).

REFERENCES

Crnkovic, I. (2002). Building Reliable Component-Based

Software Systems. Artech House, Inc., Norwood, MA,

USA.

Dawson, S., Jahanian, F., and Mitton, T. (1996). ORCHES-

TRA: A fault injection environment for distributed

systems. Technical Report CSE-TR-318-96, Univer-

sity of Michigan, Michigan.

Han, S., Rosenberg, H. A., and Shin, K. G. (1993). DOC-

TOR: An integrated software fault injection environ-

ment. Technical Report CSE-TR-192-93, University

of Michigan, Michigan.

Hsueh, M.-C., Tsai, T. K., and Iyer, R. K. (1997). Fault

injection techniques and tools. Computer, 30:75–82.

Laranjeiro, N., Canelas, S., and Vieira, M. (2008). wsr-

bench: An on-line tool for robustness benchmarking.

In Proceedings of the 2008 IEEE International Con-

ference on Services Computing - Volume 2, SCC ’08,

pages 187–194, Washington, DC, USA. IEEE Com-

puter Society.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

382

Looker, N., Burd, L., Drummond, S., Xu, J., and Munro,

M. (2005). Pedagogic data as a basis for web ser-

vice fault models. In IEEE International Workshop

on Service-Oriented System Engineering, pages 125–

136, Los Alamitos, CA, USA. IEEE Computer Soci-

ety.

Looker, N., Xu, J., and Munro, M. (2007). Determining

the dependability of service-oriented architectures. In-

ternational Journal of Simulation and Process Mod-

elling, 3:88–97.

Valenti, A. W., Maja, W. Y., Martins, E., Bessayah, F., and

Cavalli, A. (2010). WSInject: A fault injection tool for

web services. Technical Report IC-10-22, Institute of

Computing, University of Campinas, Campinas.

Vieira, M., Laranjeiro, N., and Madeira, H. (2007). Bench-

marking the robustness of web services. In 13th

Paciﬁc Rim International Symposium on Dependable

Computing, pages 322–329.

FaultInjectionforWeb-services

383
