A Neural Network Model of Cortical Auditory-visual Interactions

A Neurocomputational Analysis of the Shams-Illusion

Cristiano Cuppini, Elisa Magosso and Mauro Ursino

Department of Electronics, Computer sciences and Systems - DEIS, University of Bologna, Bologna, Italy

Keywords: Multisensory Integration, Neural Networks, Visual Illusion.

Abstract: The perception of the external world is based on the integration of data from different sensory modalities.

Recent theories and experimental findings have suggested that this phenomenon is present since the early

low-level cortical areas. The mechanisms underlying these early processes and the organization of the

underlying circuitries is still a matter of debate. Here, by using a simple neural network to reproduce and

analyse a well-known cross-modal illusion occurring in the visual cortex, we suggest that a fundamental

role is played by direct excitatory synapses between visual and auditory regions.

1 INTRODUCTION

The ability of the brain to integrate information from

different sensory channels is fundamental to

perception of the external world (Stein and Meredith,

1993). The classical idea of independent sensory

processing streams in the brain is challenged by

several recent evidences, which support models of

brain organization with multisensory interactions

occurring since early processing stages in primary

cortices (for a review, see Schroeder and Foxe, 2005).

Recent studies have revealed that even the visual

modality can be affected by signals of other sensory

modalities: as an example, sound can affect the

visual percept qualitatively, even when there is no

apparent ambiguity in the visual stimulus (Shams et

al., 2002). Several experimental works used a well-

known auditory-visual illusion to analyse the

mechanisms underlying multisensory interactions in

the brain. This is known as the sound-induced flash

illusion (or Shams illusion), in which sound alters

visual perception: a single flash, accompanied by

two auditory beeps, is mis-perceived as two flashes

(Shams et al., 2002). Several psychophysical and

neuroimaging results indicate that the illusion

reflects a perceptual phenomenon, and the auditory

interaction corresponding with the visual perceptive

illusion is associated with a modulation of the

activity in the visual cortex (Watkins et al., 2006).

The mechanisms subtending this phenomenon

can be better understood through mathematical

models, the use of which allows to put the mass of

data accumulated about this phenomenon and its

underlying circuitry into a coherent theoretical

structure. The objective of the present endeavour

was to develop a neural network model that suggests

a possible circuitry underlying cortical multisensory

integration, able to explain some audio-visual

illusions.

2 METHOD

The model consists of two arrays of N auditory and

N visual neurons, (Figure 1), topologically aligned

(i.e., proximal neurons in the array code for

proximal positions in space).

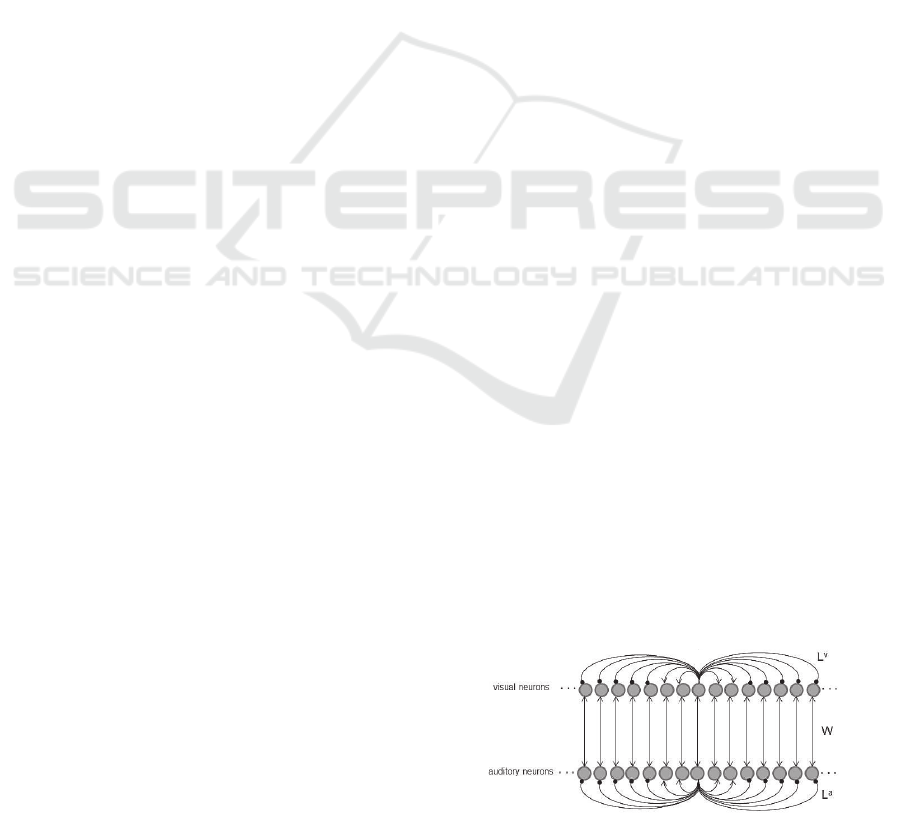

Figure 1: Schematic diagram of the neural network. Each

grey circle represents a neuron. Each line represents a

synaptic connection: lines ending with an arrow indicate

excitatory connections; lines ending with a solid point

indicate inhibitory connections.

We assumed a distance of 1° between adjacent

neurons and used N = 180, so that each layer covers

an area of 180° in the visual and acoustic space.

639

Cuppini C., Magosso E. and Ursino M..

A Neural Network Model of Cortical Auditory-visual Interactions - A Neurocomputational Analysis of the Shams-Illusion.

DOI: 10.5220/0004155306390642

In Proceedings of the 4th International Joint Conference on Computational Intelligence (NCTA-2012), pages 639-642

ISBN: 978-989-8565-33-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Neuron response is described with a first order

differential equation, and a steady-state sigmoidal

relationship, that simulates the presence of a lower

threshold and an upper saturation for neural

activation. In the following each element will be

denoted with a superscript, m, referred to a specific

cortical area (m = a or v, where a is referred to the

auditory area and v to the visual), and a subscript, j,

which indicates the spatial position within that area.

u(t) and y(t) are used to represent the net input and

output of a given neuron at time t, respectively.

Thus,

)(ty

represents the output of a unit at

position j with modality m, described by the

following differential equation:



)()(

)(

tuFty

tdy





(1)

where



is the time constant and F(u) represents a

sigmoidal relationship:

)(









(2)

s and θ are parameters which establish the slope and

the central position of the sigmoidal relationship,

respectively. The saturation value is set at 1, i.e., all

activities are normalized to the maximum.

For the sake of simplicity, in this work the

neurons belonging to both areas are described by

using the same parameters and the same time

constant.

The net input that reaches a neuron (i.e., the

quantity

)(tu

in Eq. 1) is the sum of an external

input, the contribution of lateral synapses from other

neurons in the same area, and an input from the area

processing the other sensory modality.

The external inputs are simulated by means of a

spatial Gaussian function, to mimic the sensory

receptive fields, and a second order differential

equation, to mimic the temporal evolution of the

stimuli on the cortex, as shown in Figure 2.

A fundamental point in the model is that the visual

neurons exhibit a smaller spatial receptive field

compared with the auditory ones (i.e., better spatial

resolution) but a slower time constant (i.e., less

accurate temporal precision), as shown in Figure 2.

This is the only difference between the two areas.

To simulate the lateral input, neurons within each

area interact via excitatory and inhibitory lateral

synapses, following a classical Mexican-hat

disposition (a central excitatory zone surrounded by

an inhibitory annulus, see Fig. 3). Thus, each neuron

excites (and is excited by) its proximal neurons, and

inhibits (and is inhibited by) more distal neurons.

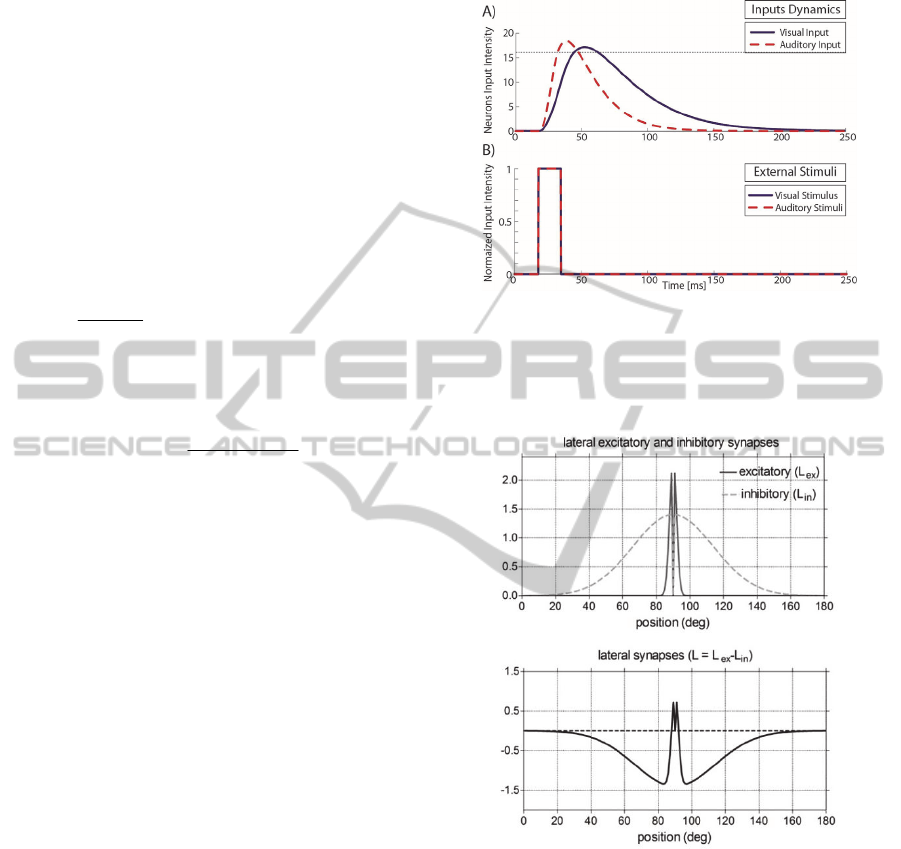

Figure 2: Panel A) reports the temporal evolution of the

overall visual (blue line) and auditory (red line) input

targeting a neuron, generated respectively by a single

visual flash (blue line, panel B) and a single auditory beep

(red line) filtered by a second order differential equation.

Figure 3: Pattern of the lateral synapses targeting (or

emerging from) an exemplary neuron.

Finally, the cross-modal input is obtained

assuming that each neuron receives an excitation

from the neuron of the other modality placed at the

same spatial position (i.e., we have a one-to-one

reciprocal connection). The weight of this reciprocal

excitation is the same for all neurons.

3 RESULTS

Simulations were performed to study cortical

IJCCI2012-InternationalJointConferenceonComputationalIntelligence

640

multisensory interactions, and to elucidate the

mechanisms responsible for the visual illusion.

In a first set of trials, we simulated the case of

unisensory stimulation, to check that stimuli of one

modality do not evoke any activity in the other

modality. Since the Shams illusion is tested by

applying two beeps and a single flash, we first

mimicked the case of two beeps only (Figure 4a),

then the case of a single flash (Figure 4b). The upper

panels in these figures represent the evoked activity

in the visual and auditory areas, the middle panel

represents the net inputs to the corresponding

neurons (i.e., the quantity

)(tu

in Eq. 1), and the

bottom panels the position and amplitude of the

stimuli.

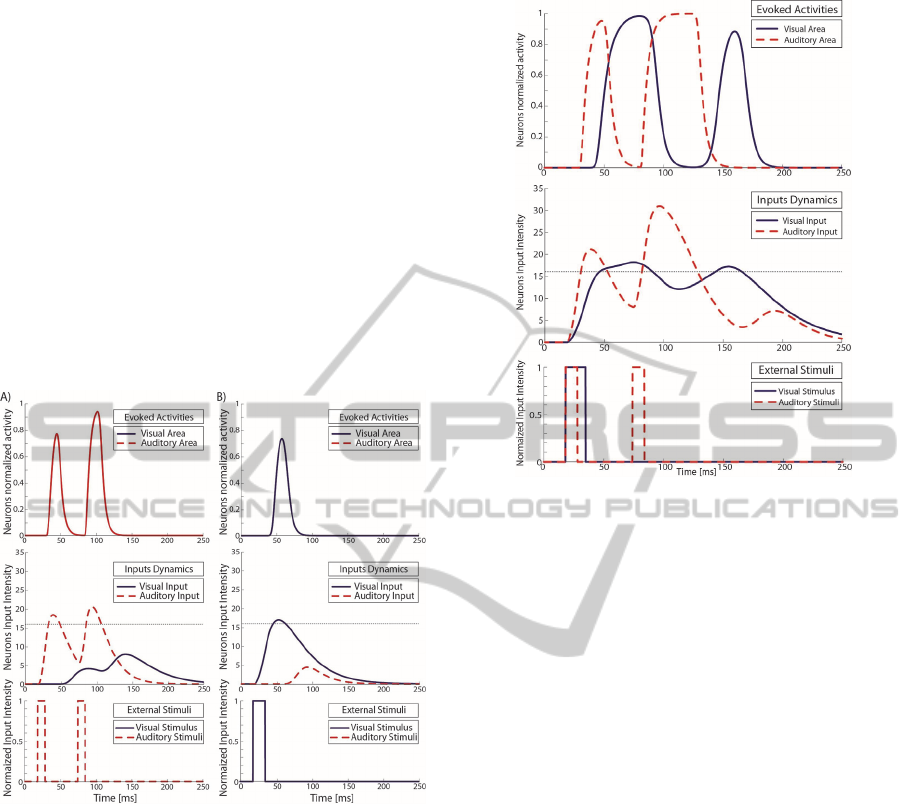

Figure 4: The upper panels show the evoked activities in

the auditory (red line) and in the visual (blue line) areas of

the model, respectively, in case of a double auditory

stimulus (two beeps) and in case of a single visual

stimulus (one flash) presented to the network, as depicted

in the lower panels. In the middle panels, the temporal

dynamics of the overall inputs targeting the visual and the

auditory neurons, filtered by a second order differential

equation, are compared with the level of the neurons

activation threshold (black dotted line).

These figures show that unisensory stimulation

does not evoke any cross-modal activity, since the

input targeting neurons of the other modality do not

reach the threshold for activation (which has the

value 16 in our model).

Subsequently, we simulated the conditions leading

to a Sham illusion, by applying two auditory beeps

and a visual flash, as shown in Figure 5.

In this simulation as a result of the external flash,

Figure 5: The evoked activities and inputs dynamics in the

visual (blue line) and in the auditory (red line) areas of the

model, in case of a cross-modal stimulation (a single flash

and two beeps presented to the network, as depicted in the

lower panel) which caused the Shams illusion.

a peak of activity is elicited in the visual area (at

50ms). This is followed by a second activation (at

150ms) that leads to the illusory perception of a

second visual flash.

This second peak is induced by the activity present

in the auditory area, as a result of the second beep,

and transmitted to the visual area by the excitatory

inter-area synapses. As shown by the second panel

of Figure 5, describing the temporal profiles of the

overall inputs reaching the auditory (red lines) and

the visual (blue lines) neurons, the effect of the

second beep on the visual area is to strengthen the

visual excitatory input, and to push the stimulus

targeting the visual neuron over its activation

threshold. This leads to the emergence of the second

peak of activity in the visual area, associated with

the visual illusion.

It is worth noting that the activity in the two

cortical areas (upper panel in Figures 4 and 5)

depend on the input received by the neurons (middle

panels in the same figures) in a complex way: the

input is passed through a sharp sigmoidal

relationship (Eq. 2) and a low pass filter (Eq. 1) to

obtain the activity. Consequently, neural activity

depends both on crossing the threshold of the

sigmoid, and on the time elapsed above threshold.

Finally, we performed a further simulation (Figure

ANeuralNetworkModelofCorticalAuditory-visualInteractions-ANeurocomputationalAnalysisoftheShams-Illusion

641

Figure 6: The evoked activities and inputs dynamics in the

visual (blue line) and in the auditory (red line) areas of the

model, in case of a cross-modal stimulation (a single flash

and two beeps presented to the network, as depicted in the

lower panel B) but without the visual illusion.

6), in which the network was stimulated with the

same pattern of external stimuli, but we used

auditory stimuli slightly weaker.

In this case, the second beep is not able to enhance

the visual input enough to overcome the visual

threshold, and to elicit a sufficient activity to

produce the perceptual visual illusion.

4 CONCLUSIONS

The present results match with the neuroimaging and

psychophysical findings present in literature about

the Shams illusion (Watkins et al., 2006, 2007).

These works have studied this phenomenon by using

the same cross-modal stimulation (one flash, two

beeps), and comparing the evoked potentials in the

visual area in case of perception of the visual

illusion, and in case the illusion was not present

(subjects correctly perceived just one flash). The

interesting finding was that only in the first case the

illusory perception was paired with an increase of

the visual cortex activity, in agreement with the

results in Fig. 5 and 6. In our model the fundamental

point that can lead to the illusory perception is the

ability of the auditory activity to enhance the visual

input over the activation threshold, to drive an

additional peak of activity in the cortex.

Moreover, by comparing these results it is worth

to note that the illusory activity in the visual area is

comparable, in terms of strength and duration, with

the activity evoked by a real visual stimulus. This

result supports the idea this illusion is a perceptual

phenomenon involving the primary visual areas.

The model suggests that the mechanisms

underlying multisensory interactions in early cortical

areas are based on direct excitatory synapses among

these regions, and do not need feedback projections

from higher-order integrative regions.

Furthermore, model ascribes the Shams illusion to

the better temporal resolution of the auditory

processing compared with the visual one. Similarly,

the better spatial resolution of visual processing can

explain the ventriloquism effect (not shown here for

briefness), with the same model structure and the

same parameter values. Future works will be

devoted to analyse if the same neural mechanisms

can explain further auditory-visual interactions too,

such as the fusion effect and the temporal

ventriloquism. Moreover, future model versions may

include a more precise characterization of the time

delays involved in the visual and auditory pathways,

in order to provide an accurate simulation of

electrophysiological data.

REFERENCES

Schroeder, C. E., Foxe, J., 2005. Multisensory

contributions to low-level ‘unisensory’ processing.

Curr. Opin. Neurobiol. 15, 454– 458.

Shams, L., Kamitani, Y., Shimojo, S. 2002. Visual

illusion induced by sound. Cogn. Brain Res. Vol. 14,

pp. 147–152.

Stein, B. E., Meredith, M. A., 1993. The merging of the

senses, The MIT Press. Cambridge MA.

Watkins, S., Shams, L., Tanaka, S., Haynes, J.D., Rees,

G., 2006. Sound alters activity in human V1 in

association with illusory visual perception.

NeuroImage 31, 1247–1256.

Watkins, S., Shams, L., Josephs, O., Rees, G., 2007.

Activity in human V1 follows multisensory

perception. NeuroImage 37, 572–578.

IJCCI2012-InternationalJointConferenceonComputationalIntelligence

642
