A MDA Approach for Agent-oriented Development using FAML
Carlos Eduardo Pantoja and Ricardo Choren
Military Institute of Engineering, Pça Gen Tibúrio 80, Rio de Janeiro, 22270-290, RJ, Brazil
Keywords: MDA, Agent-oriented Development, Multi-agent Systems.
Abstract: There are several multi-agent development modelling tools to aid system design and implementation. How-
ever, such tools are modelling language specific, which imposes the use of a given modelling technique.
This paper presents a MDA approach for multi-agent system development based on the FAML meta-model.
Thus the approach aims to support a wide range of modelling techniques.
1 INTRODUCTION
Software agents are cognitive and autonomous com-
ponents, situated in an environment, which are capa-
ble of flexible and autonomous actions in this envi-
ronment in order to achieve their projects goals
(Wooldridge, 2000). The multi-agent systems
(MAS) approach allows complex systems modelling
(Bellifemine et al., 2007).
Currently, there are several agent-oriented
modeling techniques like Tropos (Bresciani et al.,
2003), Prometheus (Padgham and Winikoff, 2004),
among others. Besides, there are some development
platforms that generate code from a specific agent-
oriented modeling techniques, such as PDT (Sun et
al., 2010), which generates code from Prometheus to
JACK and IDK (Gomez-Sanz et al., 2008), which
generates from INGENIAS to JADE. To overcome
the issue of specific code generators for specific
modeling languages, it is important to employ meta-
models. FAML (Beydoun et al., 2009) is a meta-
model that unifies common concepts of existent
agent-oriented modeling languages, thus being a
potential candidate for standardization and
engineering a MAS System using the Model-Driven
Development techniques.
This paper proposes a MDA approach for agent-
oriented development that provides a set of explicit
transformation rules in Query, View, Transformation
Language (QVT) to construct a Platform Specific
Model (PSM) and generate code to the Jason agent-
oriented programming language. This paper is
structured as follows: section 2 the describes some
base concepts; section 3 shows the proposed MDA
approach; section 4 presents a simplified working
example of the MDA approach. Section 5 describes
some and section 6 concludes the paper.
2 MODELING MAS
This section describes the FAML meta-model, the
Jason programming language and the concepts used
to develop the transformations, mappings and tem-
plates for the proposed approach.
2.1 FAML
FAML is a meta-model that unifies different agent-
oriented modelling languages inside the same soft-
ware engineering domain for MAS development.
This generic meta-model was validated to guarantee
the concepts promoted by the extant agent-oriented
methodologies (Beydoun et al., 2009).
The FAML is divided into two scopes: the de-
sign-time, where the central concept is the agent’s
system, and the runtime, where the central concept is
the environment where the agent is situated. An
agent is also a central concept in the meta-model,
defining an internal and external scope. Thus, four
levels can be raised: system; environment; agent,
and; agent definition levels.
The internal scope of an agent comprises the
agent and the agent-definition levels. The first level
is responsible for the description of the agents' defi-
nitions and specifications. The second is responsible
for the runtime agent-internal classes, describing the
mental state of an agent, its plans actions, roles and
communications.
The external scope of an agent comprises the
415
Eduardo Pantoja C. and Choren R..
A MDA Approach for Agent-oriented Development using FAML.
DOI: 10.5220/0004158104150420
In Proceedings of the 14th International Conference on Enterprise Information Systems (MDDIS-2012), pages 415-420
ISBN: 978-989-8565-11-2
Copyright
c
2012 SCITEPRESS (Science and Technology Publications, Lda.)
system and the environment-definition levels. The
system level describes the system organizations and
its relationships (roles and tasks). The environment
level describes all agents situated in the environ-
ment, its resources and facets. Furthermore, the
environment also maintains an event history and is
generated by a related system.
2.2 QVT and MTT
QVT is an OMG approach to describe model-to-
model transformations. It is used since queries can
be applied in a source model. Moreover, the view is
a description of the target model and the transfor-
mation is the part where the results of queries are
projected into the view, creating the target model.
QVT can be used to create platform specific
models (PSM) in the MDA viewpoint. Model To
Text (MTT) is an OMG approach to transform mod-
els to text artefacts, e.g. code (OMG, 2008). This
work uses the Acceleo (Obeo, 2012) tool that uses
QVT and MTT. It was projected to allow source
code generation from UML and MOF.
2.3 Jason
Jason is a programming language for MAS devel-
opment. In Jason an agent can be programmed based
on beliefs, goals, plans and actions. The agents have
a belief base, which is changed in consequence of
their perceptions about the environment. A plan has
a trigger event and whenever a belief is changed, a
sequence of actions can be started. In Jason, an agent
also has committed goals that represent a pursued
project goal (Bordini et al., 2007).
However, Jason does not support organizational
programming. Moise+ (Hubner et al., 2002) is an
organizational model that can be integrated to Jason
to support the specification of an agent organization
in three dimensions: structural specification, func-
tional specification and deontic specification. More-
over, Jason does not provide environmental support.
JaCaMo (Boissier et al., 2012) is used to enhance
Jason with environmental concerns.
3 THE PROPOSED APPROACH
This section proposed the MDA approach for agent-
oriented development using FAML and Jason (fig-
ure 1). The approach intends to be modelling lan-
guage independent thus it begins its model transfor-
mation from FAML concepts. Any agent modelling
language that adheres to FAML (Beydoun et al.,
2009) can be used. The approach provides a set of
transformations to map instances of FAML concepts
to the target model based on Jason constructions, in
order to generate MAS code.

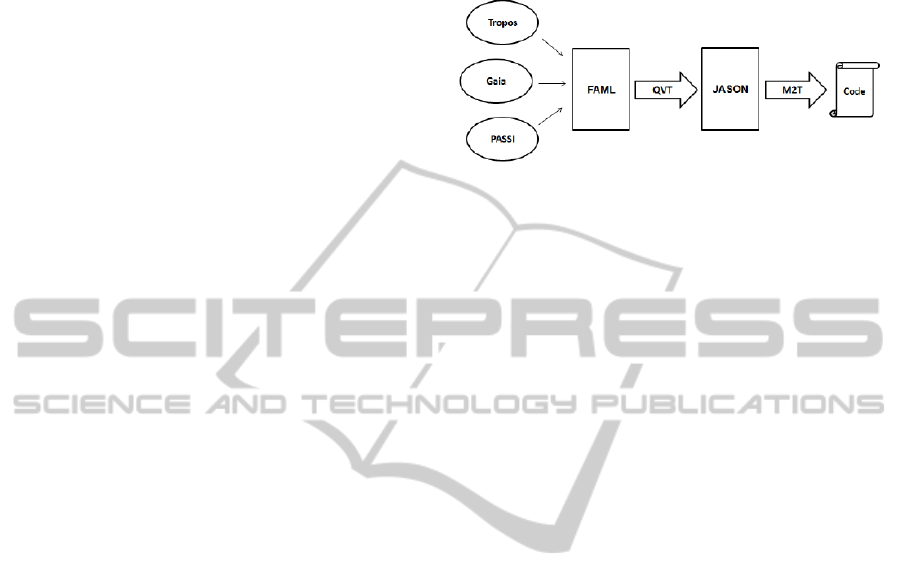

Figure 1: The proposed MDA approach.
To design the transformations, it was necessary
to make some extensive modifications in FAML.
For example, originally, in FAML, an agent can
send several messages in a communication. Jason
does not have the communication concept, so each
communication will have only one message. Anoth-
er modification is the unification of the Agent Goal
and System Goal into a single Goal class, since in
Jason (integrated with Moise+ and JaCaMo), an
agent shares the same goals with the System. This
unification decreases the number of mappings per-

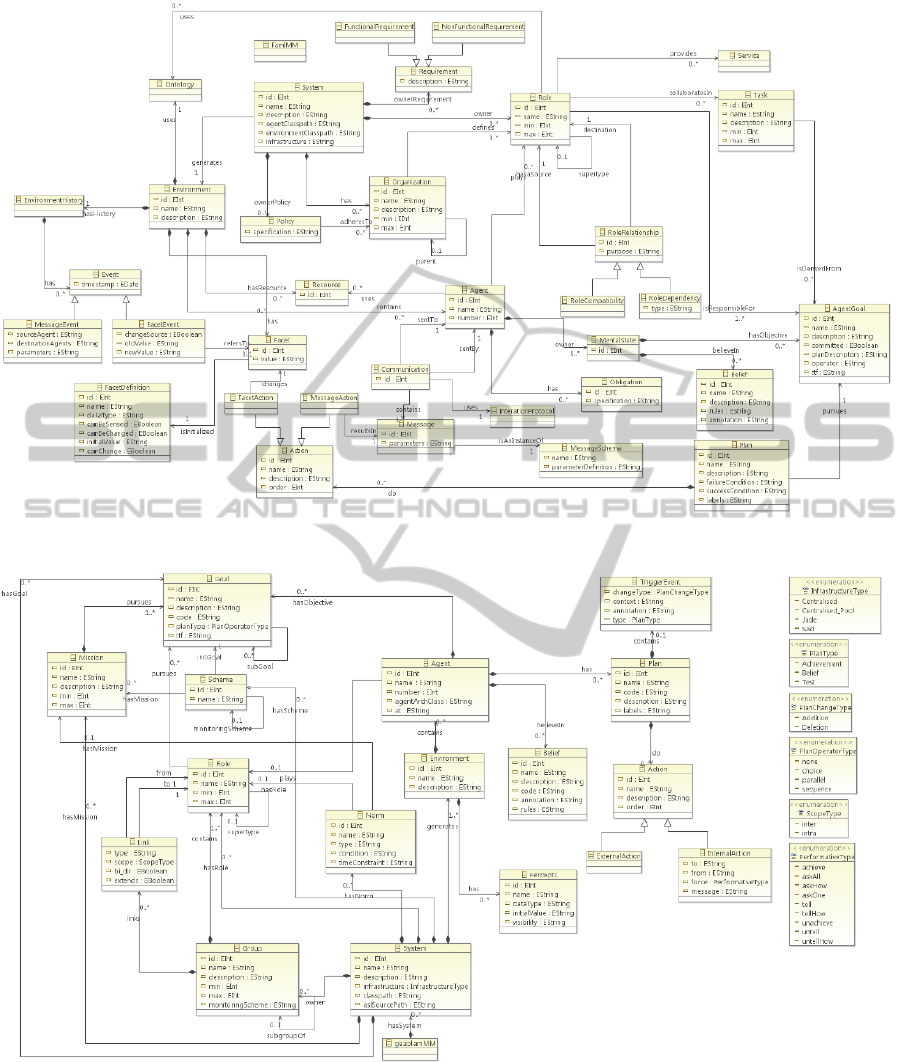

formed by the approach. The modified meta-model
can be seen in figure 2.

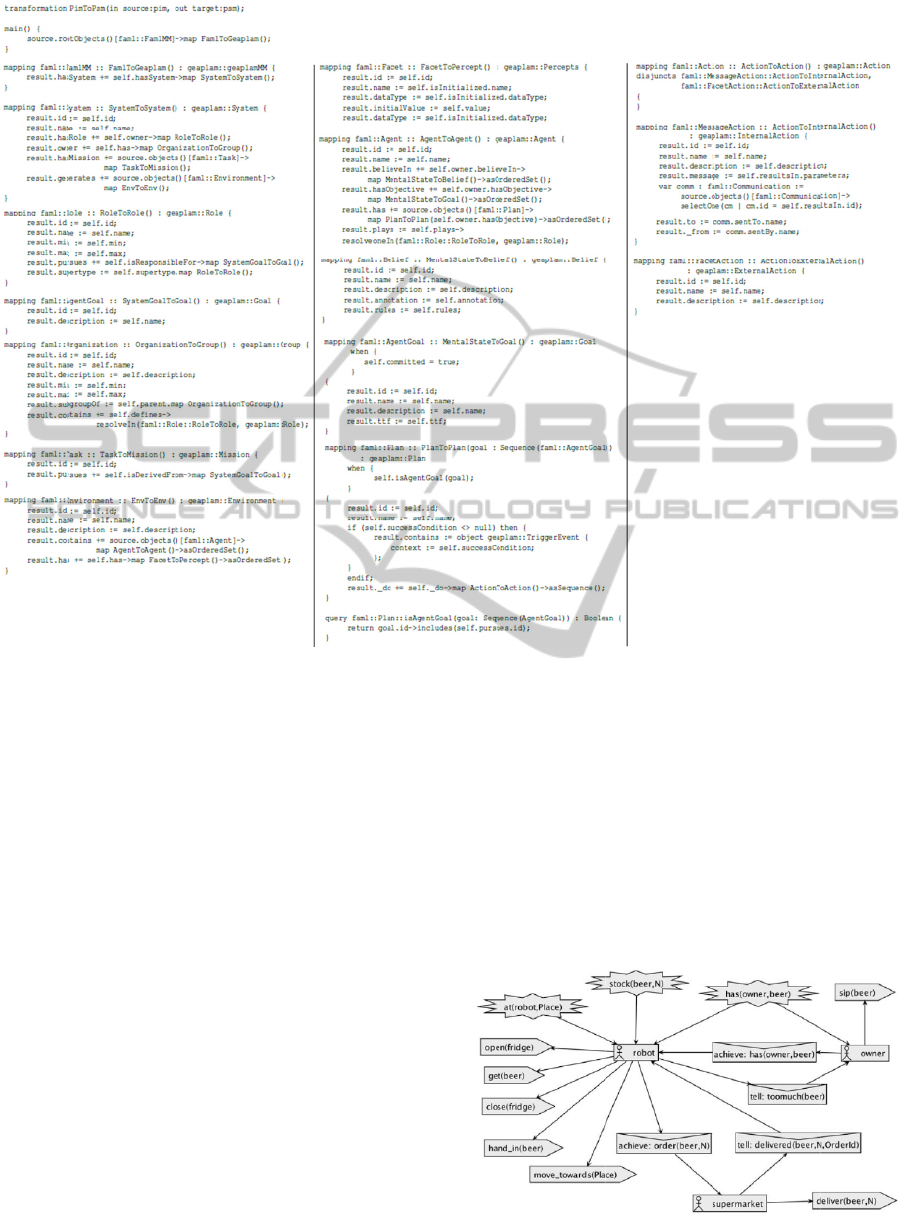

The Jason model (figure 3) will be populated
from the results of the QVT transformations from
the FAML source meta-model (see figure 4). The
main transformation called PimToPsm receives the
FAML model and returns a Jason model completely
mapped. The main mapping recovers all FAML
model objects and calls FamlToGeaplam.
The initial mapping transforms a FamlMM ob-
ject into a geaplamMM. It maps all the FAML sys-
tems objects to Jason systems objects calling the
SystemToSystem mapping, which transforms roles,
organizations, tasks and environments from FAML
to roles, groups, missions and environments of Ja-
son/Moise+/JaCaMo platform.
The RoleToRole transformation maps the
agentgoal concept from FAML to Jason and calls
itself recursively to determine the roles hierarchy.
The SystemGoalToGoal transformation only maps
the objects attributes. The OrganizationToGroup
transformation determines the groups’ hierarchy and
recovers the roles already mapped previously. The
TaskToMission transformation maps the agentgoal
from FAML to Jason and maps the objects attributes
from task to mission.
The EnvToEnv maps all agents from FAML to
Jason and maps all the facets to percepts calling the
