A New Compaction Algorithm for LCS Rules

Breast Cancer Dataset Case Study

Faten Kharbat

, Larry Bull

and Mohammed Odeh

Emirates College of Technology, Abu Dhabi, U.A.E.

University of the West of England, Bristol, U.K.

Keywords: Learning Classifier System, Compaction Algorithm, XCS.

Abstract: This paper introduces a new compaction algorithm for the rules generated by learning classifier systems that

overcomes the disadvantages of previous algorithms in complexity, compacted solution size, accuracy and

usability. The algorithm is tested on a Wisconsin Breast Cancer Dataset (WBC) which is a well well-known

breast cancer datasets from the UCI Machine Learning Repository.

1 INTRODUCTION

Learning Classifier Systems (LCS) (Holland, 1976)

is a sample of the main issues that have been

investigated in Artificial Intelligence (AI) over the

last three decades. LCS is a rule-based system that

uses evolutionary algorithms to facilitate rule

discovery. It may be said that most current LCS

research has made a shift away from Holland’s

original formalism after Wilson introduced XCS

(Wilson, 1995).

XCS uses the accuracy of rules as their fitness

and Genetic Algorithms (GA) (Holland, 1975) to

evolve generalizations over the space of possible

state-action pairs of a reinforcement learning task

with the aim of easing the use of such approaches in

large problems, (i.e., those with state-action

combinations that are too numerous for an explicit

entry for each). XCS can also avoid problematic

over general rules that receive a high optimal payoff

for some inputs, but are sub-optimal to other lower

payoff inputs.

Illustrates the architecture of XCS, and readers

who are interested in further details are referred to

(Butz and Wilson, 2000) and (Butz et al., 2004).

LCS in general and XCS in particular have been

applied to different data mining problems. It was

shown that LCS could be effective for predicting

and describing evolving phenomenon in addition to

its modelling ability (e.g. Holmes et al., 2002). In

particular, Wilson (2001a) (2001b) applied XCS to a

medical dataset, namely the Wisconsin Breast

Cancer Dataset (WBC), and showed that XCS can

tackle real complex learning problems, in addition to

its capability to deal with different representations.

Also, XCS was tested on the Wisconsin Diagnostic

Breast Cancer Dataset (WDBC) dataset in (Bacardit

and Butz, 2004) and shown to have competitive

performance in both training and testing phases.

However, in real environments, having generated

descriptive rules, an LCS needs a further step in

which the minimal number of rules can be found that

can still describe this environment. In other words,

this implies that a compaction process is required to

run over the rules generated by the learning

classifier system.

A number of approaches have been attempted to

develop a sufficient compaction algorithm where a

minimal subset of rules can be extracted with

minimal run time required. In general, these attempts

suffer from the same deficiency in terms of poor

performance and difficult usability.

In this paper, a new compaction algorithm that

overcomes the previous algorithms’ rules

compaction disadvantages is introduced. Evaluation

of the results obtained is discussed briefly after

applying the algorithm to a well-known breast

cancer datasets: Wisconsin Breast Cancer Dataset

(WBC) (Blake and Merz, 1998), followed by a

conclusion and future directions.

Table 1 (Bernado et al., 2004) shows the

prediction accuracy of XCS over the WBC (average

and standard deviation) compared to other popular

learning algorithms showing the efficiency and

ability of XCS to tackle real complex problems. In

this research, the WBC dataset has been used as the

382

Kharbat F., Bull L. and Odeh M..

A New Compaction Algorithm for LCS Rules - Breast Cancer Dataset Case Study.

DOI: 10.5220/0004167403820385

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2012), pages 382-385

ISBN: 978-989-8565-29-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

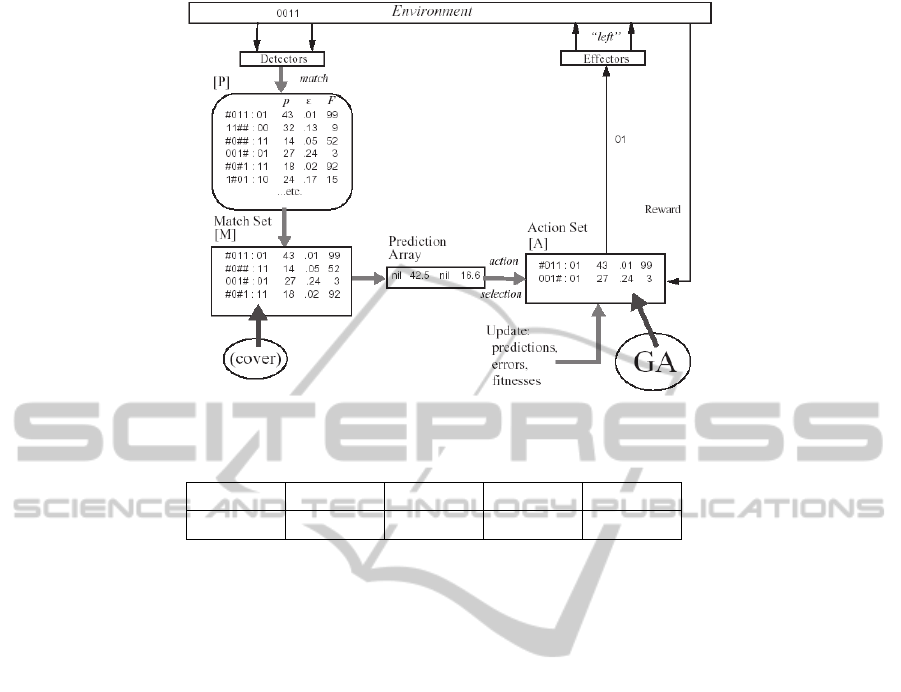

Figure 1: XCS Architecture (Wilson, 1995).

Table 1: Prediction accuracy of XCS and other learning algorithms on the WBC (Bernado et al., 2004).

DS C4.5r8 PART SMO XCS

WBC 95.4 ±1.6 95.3±2.2 96.7±1.7 96.4±2.5

test bed to study and evaluate the outcomes of the

new LCS compaction approach, namely Compaction

using Recognise-Act Cycles (CRAC).

2 APPROACHES TO LCS RULE

COMPACTION

2.1 Goals of LCS Rule Compaction

XCS has shown encouraging results in different

domains in terms of its capability to produce a

maximal, general, correct solution for a given

environment. The huge size of the generated

solution, however, may still be considered as a

barrier to exploit its entire knowledge. For example,

more than 2000 rules on average were generated

when WBC dataset was applied to XCS.

The main objective of applying real problems to

LCS is to provide the domain experts with a

complete, minimal, readable, and usable solution

with an organized underlying knowledge that has the

ability to describe the given environment.

“Complete” is one of the proved characteristics

related to XCS (Kovacs, 1997) which implies that

XCS is able to describe all regions of the

input/action space (complete map) for a given

environment. However, by increasing the number of

rules describing the environment, overlapped

patterns are allowed to exist, which conflict with the

second term: “minimal”. In other words, there will

be some regions in the environment that are

described and covered by more than one rule (or

pattern). Actually, some real problem domains

require an overlapping solution as per their nature of

complexity. But, the issue here relates to

unnecessary overlapping that can be avoided.

One of the other main problems caused by large

numbers of LCS rules is when they are presented to

domain experts. This violates the third term

“readable” due to the over expected number of

rules that make it impossible to comprehend them

smoothly or make the maximum benefit of them. For

example, providing a breast cancer specialist with

more than 2000 rules describing the 700 WBC cases

is not easily comprehendible to make use of the

underlying hidden knowledge for better

understanding and enrichment of breast cancer

knowledge.

Therefore, developing a compaction algorithm

that addresses the above issues is essential to

increase the level of rules readability, interpretation,

and organization of the underlying knowledge held

in them. We present below a brief description of the

main algorithms attempted to compact LCS rules.

It is clear from the previous algorithms’

descriptions and from experimental results (not

ANewCompactionAlgorithmforLCSRules-BreastCancerDatasetCaseStudy

383

shown) that Dixon et al. algorithm outperforms other

algorithms although it may generate larger

compacted solution in some cases. However, two

main issues should be considered; first, the usability

of the rules is essential which stands for the ability

of the domain expert to utilize the generated solution

without applying each new problem case to the

prediction array calculation. In other words, the

dependency on the prediction array calculation

means that the solution should be resident in a

computer system which makes no difference to store

the full generated rule set from the beginning.

Second, the quality of generated compacted rules

needs to be sustained. While Dixon et al.’s algorithm

performance is competitive, it can be seen that

involving spoilers will adversely affect the quality of

the compacted solution classifiers let alone the

readability and usability of these rules.

3 THE NEW APPROACH

In an attempt to combat the main disadvantage of

Dixon et al.’s algorithm, a new algorithm has been

devised one additional step is added and another one

is modified. The added step is to calculate for each

rule its entropy as follows:

which represents its correct covering percentage and

is affected by its incorrect ones. The entropy

represents an accuracy measurement for each rule by

which its potential can be evaluated. The higher the

entropy, the higher its weight will be.

casesofnumbe

casesmatchedwrongcasesmatchedcorrect

)

leentropy(ru









The algorithm continues to perform for each fact

(case) the prediction array calculation as usual and

the higher fitness-weighted action is selected. The

modification step is that the rule with the highest

entropy is selected from the action set and then

added to the final compacted set. However, if the

prediction array calculation reveals an equal weight

for the actions, the rule with the highest entropy in

the match set - instead of the action set - is to be

added to the final compacted set. This step insures

that the added rule covers correctly the largest

number of facts which guarantees, to some extent,

the generality of the final compacted set. Moreover,

the rules in the final compacted set could be used

without the need for a prediction array calculation.

This new algorithm is summarized below.

1. For each rule in the ruleset find its

entropy.

2. For each fact in the dataset

2.1. Create its match set and

prediction array.

2.2. Select the best action which is

represented by the highest fitness-

weight calculation.

2.3. Add the rule that has the

highest entropy to the final compacted

set if it does not yet exist.

3. End for

Although the main aim of introducing the new

approach was to overcome the problem of the

dependency on the prediction array calculation, the

algorithm seems to produce more compacted

solutions. Table 2 reveals a brief comparison

between Dixon et al.’s algorithm and the newly

proposed one, in which it clearly demonstrates that

the latter approach has the ability to tackle the

problem of generating a more compacted solution

while sustaining its accuracy. Note that in Table 2

the idea of the spoilers is not implemented so as to

keep the solution as compacted as possible.

In summary, the importance of the compaction

step has been addressed as an essential post-phase in

LCS computations. The simplest algorithm was of

Dixon et al. (2003) which has a polynomial run-time

complexity rather than exponential as in the

algorithms of Fu et al. (2002) and Wilson (2001a).

In contrast, the contribution of Wyatt et al.’s

(2004) modifications can be considered as a

performance improvement over the latter ones.

However, since the above algorithms use a simple

match algorithm (mainly the XCS one), the

acceptance of these algorithms is expected to be

adversely affected by the excessive low match

performance.

Table 2: comparison between Dixon et al. (2003) and the proposed approach.

Dixon compacted ruleset The proposed approach compacted ruleset

Accuracy Size Accuracy Size

98.9% 44 98.1% 36.7

KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

384

4 CONCLUSIONS AND FUTURE

WORK

A new compaction algorithm has been proposed and

implemented that overcomes the disadvantages of

previous LCS rules compaction algorithms in terms

of their poor performance and dependency on

prediction array calculations. The results obtained

will pave the way for a reflective approach that

respects the quality of a rule’s selection based on the

expert’s opinion.

REFERENCES

Holland J., 1976, Adaptation in R. Rosen and F. Snell

Progress in Theoretical Biology IV Academic Press,

pp.263-93.

Wilson S., 1995, Classifier Fitness Based on Accuracy.

Evolutionary Computation, 3 (2): 149-175.

Holland J., 1975, Adaptation in Natural and Artificial

Systems. Ann Arbor: University of Michigan Press.

Butz, M., Wilson, W., 2000, An Algorithmic Description

of XCS, Lecture Notes in Computer Science, 1996:

253 - 272. Springer-Verlag.

Butz, M, Tim, K., Lanzi, L., and Wilson, W., 2004,

Toward a Theory of Generalization and Learning in

XCS. IEEE Transactions on Evolutionary

Computation, 8(1): 28—46.

Holmes J., Lanzi P., Stolzmann W., and Wilson S., 2002,

Learning Classifier Systems: New Models, Successful

Applications. Information Processing Letters, 82 (1):

23-30.

Wilson S., 2001a, Compact Rulesets From XCSI. In

Fourth International Workshop on Learning Classifier

Systems (IWLCS-2001). pp. 197-210, San Francisco,

Wilson S., 2001b, Mining Oblique Data With XCS. in

Lanzi, P. L. Stolzmann W. and S. W. Wilson

Advances in Learning Classifier Systems. Third

International Workshop (IWLCS-2000), pp. 253-272,

Berlin Springer-Verlag .

Bacardit, J, Butz, M., 2004, Data Mining in Learning

Classifier Systems: Comparing XCS with GAssist, in

Advances in Learning Classifier Systems (7th

International Workshop, IWLCS 2004), Seattle, USA,

LNAI, Springer.

Blake C., Merz C., 1998, UCI Repository of Machine

Learning Databases [online]. Irvine, CA: University of

California, Department of Information and Computer

Science. Available from: http://www.ics.uci.edu/~mle

arn/MLRepository.html [Accessed 2/2004].

Bernado E., Llora X., Garrell J., 2002, XCS and GALE: a

Comparative Study of Two Learning Classifier

Systems on Data Mining in Advances in Learning

Classifier Systems, 4th International Workshop,

volume 2321 of Lecture Notes in Artificial

Intelligence, Springer, pp.115-132.

Kovacs, T., 1997, XCS Classifier System Reliably

Evolves Accurate, Complete, and Minimal

Representations for Boolean Functions. In Roy,

Chawdhry and Pant (Eds), Soft Computing in

Engineering Design and Manufacturing (WSC2), pp.

59-68. Springer-Verlag.

Dixon, P., Corne, D., Oates, M., 2003, A Ruleset

Reduction Algorithm for the XCS Learning Classifier

System, in Lanzi, Stolzmann, Wilson (eds.),

Proceedings of the 3rd International Workshop on

Learning Classifier Systems, pp.20-29. Springer

LNCS.

Fu, C., Davis L., 2002, A Modified Classifier System

Compaction Algorithm. GECCO-2002. pp 920-925.

Wyatt, D., Bull, L., Parmee, I., 2004, Building Compact

Rulesets for Describing Continuous-Valued Problem

Spaces Using a Learning Classifier System. In

Parmee (ed) Adaptive Computing in Design and

Manufacture VI. Springer, pp235-248.

ANewCompactionAlgorithmforLCSRules-BreastCancerDatasetCaseStudy

385
