Attractor Neural Networks for Simulating Dyslexic Patients’ Behavior

Shin-ichi Asakawa

Center for Information Sciences, Tokyo Woman’s Christian University,

Zempukuji 2, 6, 1, Suginami, 1678585 Tokyo, Japan

Keywords:

Attractor Neural Network, Reaction Time, Identiﬁcation and Categorization Tasks, Orthography, Phonology

and Semantics, Brain Damaged Patients.

Abstract:

It was investigated that the ability of an attractor neural network. The attractor neural network can be applicable

to various symptoms of brain damaged patients. It can account for delays in reaction times in word reading

and word identiﬁcation tasks. Because the iteration numbers of mutual connections between an output and a

cleanup layers might increase, when they are partially damaged. This prolongation looks or behaves the delays

of reaction times of brain damaged patients. When we applied the attractor neural network to the data of Tyler

et al. (2000) for categorization task, it showed a kind of category speciﬁc phenomenon. In this sense, the

attractor neural network could explain an aspect of the category speciﬁc disorders. In this sense the attractor

network might simulate the human semantic memory organization. In spite of variations in data, and in spite

of the simplicity of the architecture, the attractor network showed good performances. We could say that the

attractor network succeeded in mimicking human normal subjects and brain damaged patients. The possibility

of explaining the triangle model (Plaut & McClelland,1989; Plaut, McClelland, Seidenberg, and Patterson,

1996) also discussed.

1 INTRODUCTION

1.1 Category Speciﬁcity in

Neuropsychology

Neuropsychological studies have revealed important

insights such as an art and a structure of our seman-

tic memories. In addition to this, Neuropsychological

evidences from brain damaged patients might show

the way of stores of semantic memory items. Among

them, the category speciﬁcity are suggestive. Because

the data of these patients often shows the double–

dissociation between animate and inanimate objects.

Warrington and her colleagues beganto describe these

kinds of phenomena in early 1980s. The discussion

continues so far. This kind of patients often show the

deﬁcits of an identiﬁcation, an naming, and a cate-

gorization task of animate objects, but the knowledge

of inanimate objects (i.e. tools, outdoor objects, and

tools, and so on) remain intact. On the other hand,

there are another patients who are not able to identify,

to name, and to categorize inanimate objects. How-

ever, these type of patients have an intact knowledge

of animals. Based upon these evidences, Warrington

and her colleagues have tried to explain that the struc-

ture of semantic memory and its nature. Why some

types of brain damages patients cause animate spe-

ciﬁc category disorders, and the knowledge of inan-

imate objects is intact. On the contrary, another pa-

tients groups cause inanimate speciﬁc category disor-

ders, and the show no decay of knowledge of animals.

Would these data suggest that different contents of se-

mantic memory are localized in the brain (maybe the

left lateral inferior gyrus)? Might these data suggest

that the information of these two categories are stored

in a distributed manner in the brain? Or might these

data emerge from the inter- and intra- correlations be-

tween items? In this paper, we intend to answer these

questions.

In the literature, several kinds of category speciﬁc

disorders were reported so far. These are fruits, veg-

etables, animals, and so on. Many researchers insisted

that there existed at least two kinds of deﬁcits; per-

ceptual and functional knowledge (Warrington, 1981;

Warrington and McCarthy, 1983; Warrington and

Shallice, 1984a; Warrington and McCarthy, 1994).

According to this theory, the category speciﬁcity cat

be regarded as our semantic memories are organized

by both perceptual and functional knowledge. (War-

rington and Shallice, 1984b; Warrington and Mc-

Carthy, 1983; Warrington and McCarthy, 1987). War-

582

Asakawa S..

Attractor Neural Networks for Simulating Dyslexic Patients’ Behavior.

DOI: 10.5220/0004170505820587

In Proceedings of the 4th International Joint Conference on Computational Intelligence (NCTA-2012), pages 582-587

ISBN: 978-989-8565-33-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

rington and her colleagues advocated that knowledge

about musical instruments and jewelry were similar

to animate objects. They also, on the other hand,

insisted that inanimate objects and body parts could

be identiﬁed as functional knowledge. According

to their perceptional/functional hypothesis, the brain

damages to the regions for dealing with perceptual se-

mantic knowledge would cause the deﬁcits of knowl-

edge of animate objects. In other words, the differ-

ence between animate and inanimate objects might

be different on the loci damaged. This hypothesis

proposed by Warrington and her colleagues was also

supported by the results of the neural network model

(Farah and McClelland, 1991).

1.2 Representation of Semantic

Memory

However, there exist studies that the semantic mem-

ory of animates had been damaged without lack of

any perceptual knowledge. There are patients who

show the deﬁcits about animals without any speciﬁc

disorders of perceptual knowledge(Caramazza and

Shelton, 1998).

Can we say that the representations of perceptual

and functional aspects of semantic memory would

differentiate between animates and inanimate ob-

jects? Are the information of perceptual and func-

tional knowledge stored separately in the brain? And

therefore, are localized brain damages cause any cat-

egory speciﬁcity? Can we say that that the category

speciﬁcity suggests differences in the contents and the

structures between categories?

Especially, there exists a kind of category speci-

ﬁcity without any semantic memory damages. A hy-

pothesis based upon this hypothesis is that each con-

cept in out memory has been represented by the ac-

tivation patterns of micro features, i.e. multidimen-

sional vectors. A similar relationship between con-

cepts could be regarded as overlapped activation pat-

terns in the micro features.

We tried to represent data on the basis of the dis-

criminability. The correlation matrix among items

could be explained the category speciﬁcity. This

method of memory representation was originally de-

scribed by Devlin et al. (Devlin et al., 1998). The

characteristics they adopted were enumerated as fol-

lows.

1. Speciﬁcity of features: Representation of seman-

tic memory varies based on how they can be re-

trieved within the same category. Animates stored

many perceptual features shared in the brain. On

the other hand, inanimate objects have more dis-

criminative features than animates.

2. Correlation: The co–occurrence of features

strengthens in accordance with the correlation

matrix of each item The concept of animates has

higher feature correlations than that of inanimate

objects.

Fig.1 shows the correlation matrix of each item

calculated from data of Tyler et al. (2000). A compar-

ison between an upper left square and a lower right

square in the ﬁgure would be found that the upper

left square (inanimate objects) have less mutual cor-

relations than that of the mutual correlations within

animate objects (the lower right square). Tyler et al.

could be considered that they could control the stim-

uli.

Neural networks accounts of the brain damage in-

sists that the correlations patterns among micro fea-

tures are important in order to understandthe category

speciﬁc disorders. The researchers regard the neu-

ropsychological evidences as veriﬁcations of these

correlation patterns of micro features.

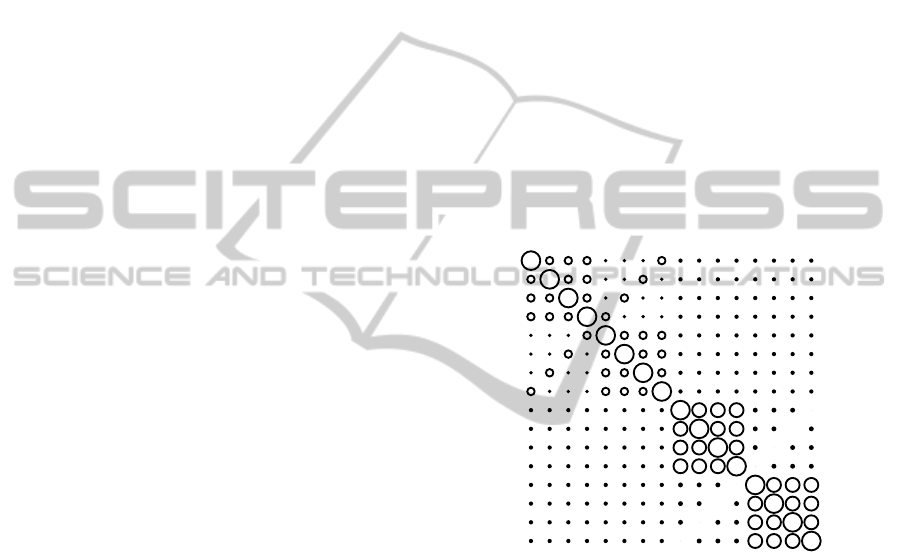

Figure 1: The correlation matrix calculated from the data

by Tyler et al. (2000). The open circles mean positive ()

correlation coefﬁcients, and the ﬁlled circles mean nega-

tive (•) correlation coefﬁcients. The size of circles shows

the correlation strengths. The upper left side of this ﬁgure

shows inanimate objects, while the lower right side shows

animates.

.It was able to be

2 ATTRACTOR NEURAL

NETWORKS

Tyler et al. (Tyler et al., 2000) adopted a three–

layered–network(perceptron)as a model dealing with

the data described above. Although this type of net-

work architecture is sufﬁcient to account for the dou-

ble dissociation between animate and inanimate ob-

jects, the attractor network seems to have more advan-

tages than the perceptron describing some aspects of

characteristics of semantic memory. For example, the

AttractorNeuralNetworksforSimulatingDyslexicPatients'Behavior

583

times of iterations between output and cleanup layers

(Fig.2) until reaching the threshold of output criteria

can be regarded as the prolonged reaction times of the

brain damaged patients.

Output layer

Hidden layer

Input layer

Cleanup layer

Figure 2: An attractor network originally proposed by Plaut

and Shallice (1993).

Plaut et al.(Plaut et al., 1995; Plaut, 2001) adopted

the attractor networks and tried to account for seman-

tic dyslectic errors and compound errors from both

visually and semantically. In the neural network, ba-

sic processing units are connected mutually. Upon

this multidimensional space consisted of the values

of processing units, the networks can change and re-

trieve the contents of adequate memories. In other

words, when the network was given random initial

values, the activation values of each processing unit

would transit from the values to the value on the se-

mantic memory space. The behavior of this network

could be absorbed in an ’attractor’. There are many

attractors corresponded to each memory item. If the

initial values may be altered, the attractor network can

be absorbed in the correct ’point’ attractor. Thus, it is

postulated that the ’basins’ of each attractor are dif-

ferent.

Plaut et al. tried to explain the semantic errors,

visual errors, and compounded both semantic and vi-

sual errors by using attractor networks. In neural net-

works, in general, units are connected mutually caus-

ing interactions among units. This interaction of ac-

tivation patterns of each unit can be identiﬁed as the

states of activation patterns of units. The activations

of the units are transited from one to another as the

memory retrievals. The transition from arbitrary ini-

tial states to some attractors are called the ’absorb-

ability’ of attractors. Therefore, we can consider that

there are different basins of each words.

In case of the attractor networks, each attractor

corresponds to each concept, and its basin represents

its range to be absorbed in. Even if the state of the net-

work deﬁned by the activations of each unit would be

changed on inﬂuences either noises or perturbations

to the network, the state would stay within its basin.

This means that we could get to the correct concept

no matter how high the noises or perturbations are.

In addition, if damages in attractor networks de-

stroy positions of point attractors, the same stimuli

fall in incorrect attractors due to transformations of

size and shapes of basins. Therefore, it requires more

time to fall in correct attractors than the normal attrac-

tor network does (Fig3).

CAT

DOG

attractor

basin

Figure 3: An attractor network originally proposed by Plaut

and Shallice (1993).

2.1 Mathematical Notations

Each neuron, or unit, U

has an output function f (x),

which is a sigmoid function, as follows,

= f(x) =

1+ e

−ax

. (1)

Throughout the numerical experiments in this study,

we ﬁxed a constant a = 4.0. The units in the hidden

layer (U

) can be expressed as follows:

= f

∑

i∈I

+ θ

, (2)

where, w

means i–th connection weight, U

means an

output value of the i–th input unit, and θ

means a

threshold value in the unit h, the subscription I means

the output values in the units of input layer.

A unit in the output layer (U

) and a unit in the

cleanup layer (U

) are denoted as (3) and (4);

= f

∑

i∈H

∑

i∈C

+ θ

(3)

= f

∑

i∈O

+θ

(4)

where, θ

and θ

in the equations denote threshold

values in the output and the cleanup layers respec-

tively. The states in units both the output and the

cleanup layers were updated repeatedly until the con-

vergence criterion had been reached or until the max-

imum numbers of iterations (τ ≤ 50).

In the learning phase, we deﬁned the mean square

error as:

E =

∑

− t

)

. (5)

IJCCI2012-InternationalJointConferenceonComputationalIntelligence

584

where, t

indicated an i–th teacher signal. Actual

learning of connection weights of each unit can be

obtained by partial differential as follows:

∆w = −η

∂E

∂w

, (6)

where, η indicates a learning rate ﬁxed as η = 0.01

throughout this study.

The initial values of w and θ were assigned in

accordance with an uniform random value generator

(−0.1 ≤ w, θ ≤ 0.1).

2.2 An Application of Attractor

Networks to Dyslexia

Plaut et al. showed that their attractor network could

reproduce symptoms of deep dyslexia. According to

their simulations, by means of the operation of se-

mantic memory structure, they succeeded to account

for the double–dissociation between concrete and ab-

stract words (Plaut et al., 1995; Plaut, 2001). They

constructed the semantic memory that the represen-

tations of concrete words have more micro features

than those of abstract words. They postulated when

the degree of the brain damages would be moderate,

concrete words would show lighter deﬁcits than ab-

stract words. Further, if the degree of the brain dam-

age would be severe, the concrete words would have

more severe deﬁcits than the abstract words.

In this study, we did not rely on the dichotomous

taxonomy, such as animate–inanimate objects classi-

ﬁcation, but rather, we represented the data on the

basis of the discriminability and correlation. Thus,

we adopted attractor neural networks in order to ac-

count for more phenomena, such as confusion matrix

among items, reaction times, categorization task. We

then studied the validity of the data expressions as de-

scribed above.

3 NUMERICAL EXPERIMENTS

3.1 The Data of Tyler et al., (2000)

Tyler et al. (Tyler et al., 2000) adopted the isomorphic

mappings in order to train their networks. In other

words, their networks had to learn the output pattern

identical to the input patterns. In this condition, the

network must acquire the reproduction of the input

pattern. However, we can consider two other condi-

tions (teacher signals in this case). One is that the

target matrix (teacher signals) being the identity ma-

trix, having 16 rows and 16 columns, all the diagonal

elements being 1 and all the non–diagonal elements

being 0. Another is that the matrix having 16 rows

times 2 columns, where the elements of this matrix

consisting (1, 0) when the item is an animate object,

and (0, 1) when the item is an inanimate object. To

summarize these three conditions;

Category Condition: the target matrix is a 16 rows

× 2 columns matrix, where the targets to be

learned are animate objects, the output vectors are

(1, 0). Otherwise (inanimate objects) the output

vectors are (0, 1).

Unitary Condition: the target matrix is a 16 rows ×

24 columns matrix. This target matrix is identical

to the matrix of the input signals.

Identical Condition: the target matrix is an unitary

matrix of 16 rows × 16 columns, where diagonal

elements are 1 and other elements in this matrix

are 0.

In the unitary condition, the network is required

to learn the precise knowledge of each member in the

input patterns. In category condition, the network is

required to learn the higher concepts of both animate

and inanimate objects, as Tyler et al. (Tyler et al.,

2000) suggested. In the homo condition, the unitary

matrix means that each item can play a roll to form

the identical matrix.

3.1.1 Network Architecture

We adopted the number of units in the hidden layer to

be 10, and the number of units in the cleanup layer to

be 1. The reason for determining the number of units

in the cleanup layer to be 1 is based on the preliminary

experiment.

3.1.2 Procedure

We decided the maximum iteration numbers between

the output and the cleanup layers to be 50 for each

item. If the error of this attractor network did not

reach the convergence criteria, deﬁned by the sum

of squared errors being less than 0.05 for each item.

Within the maximum number of iterations between

the output and the cleanup layer, the program gave up

to let the networks learn this item, and was given the

next item to be learned. The order of the items to be

learned was randomized within each epoch. This pro-

cedure was repeated until the network learned all the

items.

The convergence criteria was set that all the sum

of squared errors are below 0.05 throughout in this

study. The network was given the input signals and

teacher signals at a time to learn the output patterns.

AttractorNeuralNetworksforSimulatingDyslexicPatients'Behavior

585

At ﬁrst, the output values were calculated from the

input patterns to the units in the output layer. Then

iterations between the output and the cleanup layers

started until the output values have reached the crite-

ria, or the iteration numbers have been exceeded 50

times.

3.1.3 Results

We investigated the mean iteration numbers between

the output and the cleanup layers. These numbers in-

dicate the times that the initial value is absorbed in an

attractor when the initial value was located within a

basin of an attractor (Fig. 3).

1.5

2.5

3.5

Category Unitary Identical

Iterations

The mean iteration numbers between output and cleanup layers

Figure 4: The mean mutual iteration numbers (n=20) be-

tween the output and the cleanup layers, when we train the

attractor network by the data of Tyler et al., (2000).

In the category condition, the iteration numbers

were nearly equal to 3. The attractor network may

be able to utilize the connections between the output

and the cleanup layers in the category condition. On

the other hand, the mean iteration numbers both the

identical and the unitary conditions were from 1.0 to

1.5. These results might indicate that the attractor net-

work did not always utilize the connections between

the output and the cleanup layers, when these two

conditions were given. Therefore the attractor net-

work might be considered that it behaved as a three–

layered–perceptron. The attractor networks include

three–layered–perceptions in the special case.

3.2 The Triangle Model

3.2.1 Procedure and Conditions

The triangle model of word reading (Sidenberg and

McClelland, 1989; Plaut et al., 1996) was developed

to mimic human performance of word reading. The

triangle model includes phonology, orthography, and

semantics (Fig.5). The attractor neural network model

can be applied to this model. One arrow in Fig.5, for

example, from orthography to semantics, can be re-

garded as an attractor network. Because there are 6 ar-

rows in Fig.5, we can apply 6 attractor networks to the

Semantics

Orthography Phonology

Figure 5: A schematic drawing of the triangle model pro-

posed by Seidenberg and McClelland, 1989; Plaut et al.,

1996.

triangle model. In addition to these 6 arrows, we can

add 3 self recurrent arrows, from orthography to or-

thography, from semantics to semantics, from phonol-

ogy to phonology. These self recurrent arrows can

be also regarded as attractor networks. Furthermore,

we can add 2 more mappings from 3 elements, or-

thography, semantics, and phonology, to concept and

identical conditions (see the section of Tyler et al.).

Therefore, we can obtain 15 conditions in total. We

Figure 6: Two hypothesized concepts of semantics Plaut &

Shallice (1993). The upper left part and the lower right part

of the matrix, similar to Fig.1.

adopted the attractor neural networks to all 15 condi-

tions respectively. We set the number of units in the

cleanup layer to 1, and set the number of units in the

hidden layer to 50 for every condition.

3.2.2 Results

As we predict from the data of Tyler et al., (2000),

attractor networks could solve all the data of 15 con-

ditions. Table 1 shows the examples of iteration times

for convergence.

4 DISCUSSION

If we could consider the attractor network as a con-

cept formation model of human brains, then the iden-

tical condition could be regarded as the model to rec-

IJCCI2012-InternationalJointConferenceonComputationalIntelligence

586

Table 1: The examples of iteration times for convergence.

from

Orthography Phonology Semantics

Category 1547.1 1965.3 48.4

Unitary

302.3 171.8 228.1

Orthography

78.2 359.8 378.20

Phonology

966.4 136.1 294.1

Semantics

577.9 288.5 74.4

ognize the shape of a dog exposured in one’s retina

as ’dog’. The category condition might be considered

that subjects and patients could recognize this visual

image of a dog as an animal. We could interpret the

unitary condition as that subjects and patients would

have been recognized a ’dog’ per se. In this way, we

could interpret the three conditions we adopted in this

paper as the human models of recognition described

here. The category condition could be considered as

the one which utilized the loop between the output

and the cleanup layers the best among three condi-

tions. Thus, it seems that the category conditionmight

be the model of category judgement. In addition to

this, we observed one of the category speciﬁc disor-

ders in the destruction experiment which destroyed

the mutual connections between the output and the

cleanup layers. This results should not be considered

as accidental artifacts of the computer simulations.

Attractor networks could be applied to the triangle

models of word reading as well. Although the origi-

nal triangle model (Sidenberg and McClelland, 1989)

has self recurrent arrows, each arrow could not be re-

garded as an attractor network. This study tried to

interpret that the triangle model would be consisted

of all 15 attractor networks in total.

5 CONCLUSIONS

In spite of the simplicity, the attractor neural network

could describe several symptoms of neuropsychol-

ogy. This is one of major advantages of this model.

The possibility to explain the double–dissociation be-

tween animate and inanimate objects should be dis-

cussed further in separate papers. However, there

still are possibilities for this model to account for the

double–dissociation between animate and inanimate

objects. The difference between intra– and inter– cor-

relations shown in ﬁg. 1 might cause the category

speciﬁcity, because one category has higher inner–

category correlations than that of the other category.

In this study, we adopted non–dichotomous memory

representations whose correlation matrix of micro-

features such as Fig.1 and Fig.6. These representa-

tions can be considered as one of the major advan-

tages of the model.This kind of object representations

might emerge as one aspect of category speciﬁc mem-

ory disorders.

REFERENCES

Caramazza, A. and Shelton, J. (1998). Domain spe-

ciﬁc knowledge system in the brain: The animate–

inanimate distinction. Journal of Cognitive Neuro-

science, 10(1):1–34.

Devlin, J., Gonnerman, L., Andersen, E., and Seidenberg,

M. (1998). Category-speciﬁc semantic deﬁcits in fo-

cal and widespred brain damage: A computational ac-

count. journal of cognitive neuroscience, 10(1):77–

94.

Farah, M. J. and McClelland, J. L. (1991). A computational

model of semantic memory impairment: Modality

speciﬁcity and emergent category speciﬁcity. Journal

of Experimental Psychology: General, 120(4):339–

357.

Plaut, D. C. (2001). A connectionist approach to word

reading and acquired dyslexia: Extension to sequen-

tial processing. In Chirstiansen, M. H. and Char-

ter, N., editors, Connectionist Psycholinguistics, chap-

ter 8, pages 244–278. Ablex Publishing, Westport, CT.

Plaut, D. C., McClelland, J. L., and Seidenberg, M. S.

(1995). Reading exception words adn pseudowords:

Are two routes really necessary? In Levy, J. P.,

Bairaktaris, D., Bullinaria, J. A., and Cairns, P., edi-

tors, Connectionist Models of Memory and Language,

pages 145–159. University College London Press,

London.

Plaut, D. C., McClelland, J. L., Seidenberg, M. S., and

Patterson, K. (1996). Understanding normal and

impaired word reading: Computational principles

in quasi-regular domains. Psychological Review,

103:56–115.

Sidenberg, M. and McClelland, J. (1989). A distributed, de-

velopmental model of word recognition and naming.

Psychological Review, 96:523–568.

Tyler, L., Moss, H., Durrant-Peatﬁeld, M., and Levy, J.

(2000). Conceptual structure and the structure of

concepts: A distributed account of category-speciﬁc

deﬁcits. Brain and Language, 75:195–231.

Warrington, E. and McCarthy, R. (1983). Category speciﬁc

access dysphasia. Brain, 106:859–878.

Warrington, E. and McCarthy, R. (1994). Multiple mean-

ing systems in the brain: A case for visual semantics.

Neuropsychologica, 32:1465–1473.

Warrington, E. and Shallice, T. (1984a). Category-speciﬁc

semantic impairment. Brain, 107:829–854.

Warrington, E. K. (1981). Neuropsychological studies of

verbal semantic systems. Phil. Trans. R. Soc. Lond. B,

295:411–423.

Warrington, E. K. and McCarthy, R. (1987). Categories of

knowledge further fracitonations and an attempted in-

tegration. Brain, 110:1273–1296.

Warrington, E. K. and Shallice, T. (1984b). Category spe-

ciﬁc semantic impairment. Brain, 107:829–854.

AttractorNeuralNetworksforSimulatingDyslexicPatients'Behavior

587
