A Novel Formalization Process for Use Case Maps

Yahia Menassel

and Farid Mokhati

Department of Mathematics and Computer Science, University of Tébessa, Algiers, Algeria

Department of Mathematics and Computer Science, University of Oum El Bouaghi, Oum El Bouaghi, Algeria

Keywords: UCM, Maude Strategy Language, Formal Specification, Translation.

Abstract: This paper presents a novel process for formalizing UCM notation as an executable formal specification

described in the Maude language Strategy, a recent extension of Maude. The main motivation of our work is

essentially to provide a sound and rigorous description of complex systems described by UCM, which can

help analysts, designers and developers, to automating their verification and validation processes and to

assuring their quality.

1 INTRODUCTION

Use Case Maps (UCM) (Buhr and Casselman, 1995)

is an integral part of User Requirements Notation

(URN) (ITU-T, 2003); (Amyot, 2003) standards

proposed to the International Telecommunication

Union-Telecommunication (ITU-T) for describing

functional requirements as causal scenarios. UCM

allows developers to model dynamic behavior of

systems where scenarios and structures may change

at run-time. For these reasons, UCM have

successfully been used for service-oriented,

concurrent, distributed, and reactive systems

(Mussbacher, 2007).

In recent years, some works are proposed in

order to deal with UCM formalization, validation

and testing, we cite among others (He et al., 2003);

(Hassine et al., 2005). Those works have

considerably forwarded the domain by proposing

novel strategies for improving complex systems

development process based on UCM notation.

Although the formalization of UCM notation is not

new problem, we present in this paper, a novel

process for formalizing UCM notation as an

executable formal specification described in Maude

Strategy language (Marti-

Oliet et al., 2009), a recent

extension of Maude. The main motivation of our

work is essentially to provide a sound and rigorous

description of complex systems described by UCM,

which can help analysts, designers and developers,

to automating their validation and verification

processes and to assuring their quality.

The proposed formalization process consists in a

preliminary specification phase of transformation of

UCM modeling elements into Maude-Strategy.

The remainder of this paper is organized as

follows. In Section 2 we give a summary of UCM

notation. Section 3 presents a brief introduction to

Maude Strategy language. In section 4 we present

the translation process we propose. We discuss in

section 5, our actual research, draw some

conclusions and give some future work directions.

2 OVERVIEW OF USE CASE

MAPS

Use Case Maps (UCM) is a semi-formal notation for

describing scenarios of a system. This notation is a

high level scenario based modeling technique that

can be used to specify functional requirements and

high-level designs for wide range of systems (Liu

and Yu, 2001).

UCM expressed by a simple visual notation

allow for an abstract description of scenarios in

terms of causal relationships between

responsibilities along paths allocated to a set of

structural elements (components) (Mussbacher,

2007).

UCM consists of one or more paths describing

the causal flow of behavior of a system.

Furthermore, behavioral aspects (scenario paths) are

superimposed over components which represent the

architectural structure of a system. UCM abstract

from the details of message exchange and

communication infrastructures while still showing

307

Menassel Y. and Mokhati F..

A Novel Formalization Process for Use Case Maps.

DOI: 10.5220/0004170603070310

In Proceedings of the International Conference on Knowledge Management and Information Sharing (KMIS-2012), pages 307-310

ISBN: 978-989-8565-31-0

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

the interaction between architectural entities

(Mussbacher, 2007). UCM are integrated with goal

models described with the Goal-oriented

Requirement Language (GRL), allowing for the

seamless capture of stakeholders’ goals, rationale,

and alternative solutions to achieve such goals. The

solutions are reasoned about with GRL and their

behavior and structure described in more detail with

UCM (Mussbacher and Amyot, 2008).

3 MAUDE STARTEGY

LANGUAGE

Maude strategy language (Marti-Oliet et al., 2009), a

recent extension of Maude, introduces some regular

expression combinators: concatenation (;), union (|),

and iteration (E* for zero or more iterations and E+

for one or more iterations). Additionally, there is the

combinator orelse is a typical if-then-else. These

combinators can be used to control how rules are

applied to rewrite a term in an attempt to control the

non-determinism in the execution process. For more

detail see (Marti-Oliet et al., 2009).

4 TRANSLATING UCM TO

MAUDE-STRATEGY

In this section, we present our translation process in

order to give a formal semantics of UCM notation

using Maude’s strategy language.

Table 1 presents the description of each element

of the UCM notation and the corresponding formal

semantics.

5 CONCLUSIONS AND FUTURE

DIRECTIONS

In this paper, a novel formalization process is

proposed for formalizing UCM element modeling in

the Maude strategy language. The proposed process

consists in a preliminary specification phase of

transformation of UCM modeling elements into

Maude-Strategy.

Currently we are developing a formal framework

which is based on transformation rules presented in

Table 1 for translating complex systems functional

requirements described by UCM into a formal

specification written in the Maude strategy language.

The Maude language is supported by a tool, which

will allow us to validate the generated code by

simulation.

REFERENCES

Amyot, D., (2003) ‘Introduction to the User Requirements

Notation: Learning by Example’, Computer Networks,

Vol. 42(3), pp. 285-301.

Buhr, R. J. A. and Casselman, R. S. (1995) ‘Use Case

Maps for Object-Oriented Systems’, Prentice-Hall,

USA. http://www.UseCaseMaps.org/UseCaseMaps/pu

b/UCM_book95.pdf.

Hassine, J., Rilling, J. and Dssouli, R., (2005) ’An ASM

Operational Semantics for Use Case Maps’, In RE '05:

Proceedings of the 13th IEEE International

Conference on Requirements Engineering (RE'05),

IEEE Computer Society, Paris, p. 467-468.

He, Y., Amyot, D., and Williams, A. W. (2003)

‘Synthesizing SDL from Use Case Maps: An

experiment’, In Proc SDL 2003: System Design, 11th

International SDL Forum, Stuttgart, Germany, p. 117-

136.

ITU-T, (2003) ‘User Requirements Notation (URN) –

Language Requirements and Framework’, ITU-T

Recommendation Z.150. Geneva, Switzerland.

Liu L., and Yu E., (2001) ‘From Requirements to

Architectural Design - Using Goals and Scenarios’,

From Software Requirements to Architectures

Workshop (STRAW 2001).

Mussbacher G., (2007) ‘Evolving Use Case Maps as a

Scenario and Workflow Description Language’, 10th

Workshop on Requirements Engineering (WER'07),

Toronto, Canada, p. 56-67.

Mussbacher G., and Amyot D., (2008) ‘Assessing the

Applicability of Use Case Maps for Business Process

and Workflow Description’, 3rd Int. MCETECH

Conference on e-Technologies, p. 219-222.

Martı-Oliet N., Meseguer J., Verdejo A, (2009) ‘A

Rewriting Semantics for Maude Strategies’, Electronic

Notes in Theoretical Computer Science, vol. 238(3),

pp. 227–247.

KMIS2012-InternationalConferenceonKnowledgeManagementandInformationSharing

308

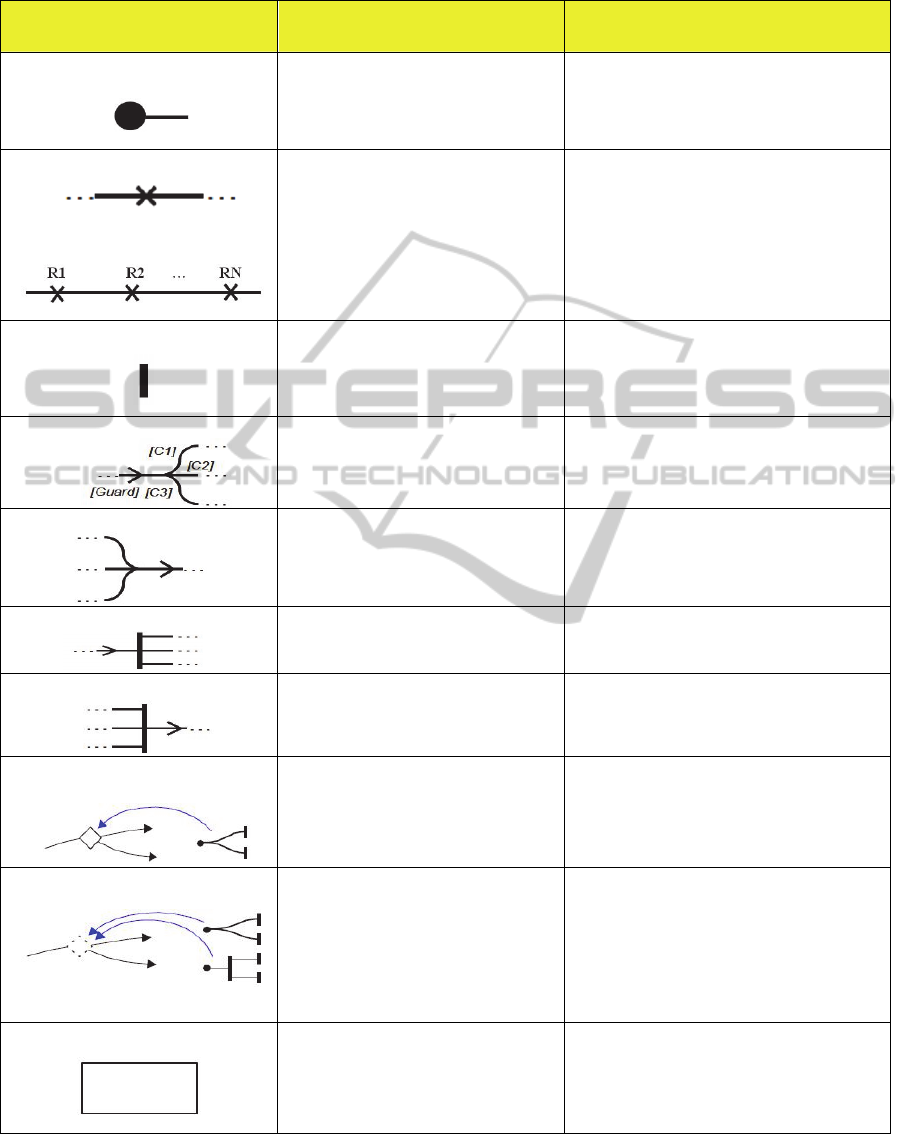

Table 1: Mapping from UCM specifications to Maude strategy.

Elements of the UCM notation Elements of the UCM description Maude Strategy Language

StartPoint



Begin of the path. Formally, a start point is

specified in terms of:

 Preconditions that need to be satisfied to

enable the triggering of the path, and/or



A set of possible triggering events.

CRL



Start



… Ed

Conf

=> Conf

if Prec

… Prec

Responsibility

Sequenceofresponsibilities

A path describes a sequence of responsibilities

that need to be executed by system components

in response to a given triggering event.

Formally, a responsibility is defined in terms of:

 A responsibility label, which gives a

textual description of the responsibility, and

 A responsibility identifier, which allows

uniquely identifying a responsibility in a UCM

model.



RespID



: Conf

=> Conf

strat sequence : @ Configuration .

sd sequence ≔ RL

; RL

; …; RL

EndPoint

End of the path. Formally, an end bar is

specified in terms of:

 Postconditions that must hold after the

execution of the path, and

 A set of possible resulting events.

CRL



End



Conf

=>Conf

…Er

ifPstc

…Pstc

OR‐fork



Is used to show a point along a path where

alternative branches may be followed. Each

branch is associated with a distinct path segment.

strat OR

Fork

: @ Configuration .

sd OR

Fork

≔

; ( CRL

orelse CRL

… orelse RL

) .

OR‐join

Captures the merge of two or more incoming

path segments into a single one without

requiring any synchronization or interaction

between the incoming path segments.

strat OR

Join

: @ Configuration .

sd OR

Join

≔



CRL



orelse CRL



…orelseRL







;RL



.

AND‐fork

Is used to illustrate a point along a path where a

single path segment forks into two or more

concurrent path segments.

strat AND

Fork

: @ Configuration .

sd AND

Fork

≔ RL

; (RL

…

) .

AND‐join

Is used to illustrate a point along a path where

several concurrent path segments synchronize

together and result a single path segment.

strat AND

Join

: @ Configuration .

sd AND

Join

≔



…



; RL

N+1

StaticStub

Stub is a mechanism for path abstraction, hence

enabling hierarchical decomposition of complex

maps.

Static stub can contain only one plug-in.

(smod Static-Stub-NAME is

strats ORFork Plug-in Static-Stub: @ Configuration .

Plug-in := ORFork .

Static-Stub := Plug-in .

endsm)

DynamicStub

May contain several plug-ins, whose selection

can be determined at run-time according to a

selection policy (often described with pre-

conditions).

(smod Dynamic-Stub-NAME is

strats OR

Fork

AND

Fork

: @ Configuration .

strats Plug-in1 Plug-in2 Static-Stub: @ Configuration .

Plug-in1 := OR

Fork

Plug-in2 := AND

Fork

Dynamic-Stub := Plug-in1 orelse Plug-in2

endsm)

Component

A component is an object associated to a part of

system. The different tasks located inside a

component are performed only by this

component.

(omod Composant-NAME is

…

endom)

ANovelFormalizationProcessforUseCaseMaps

309

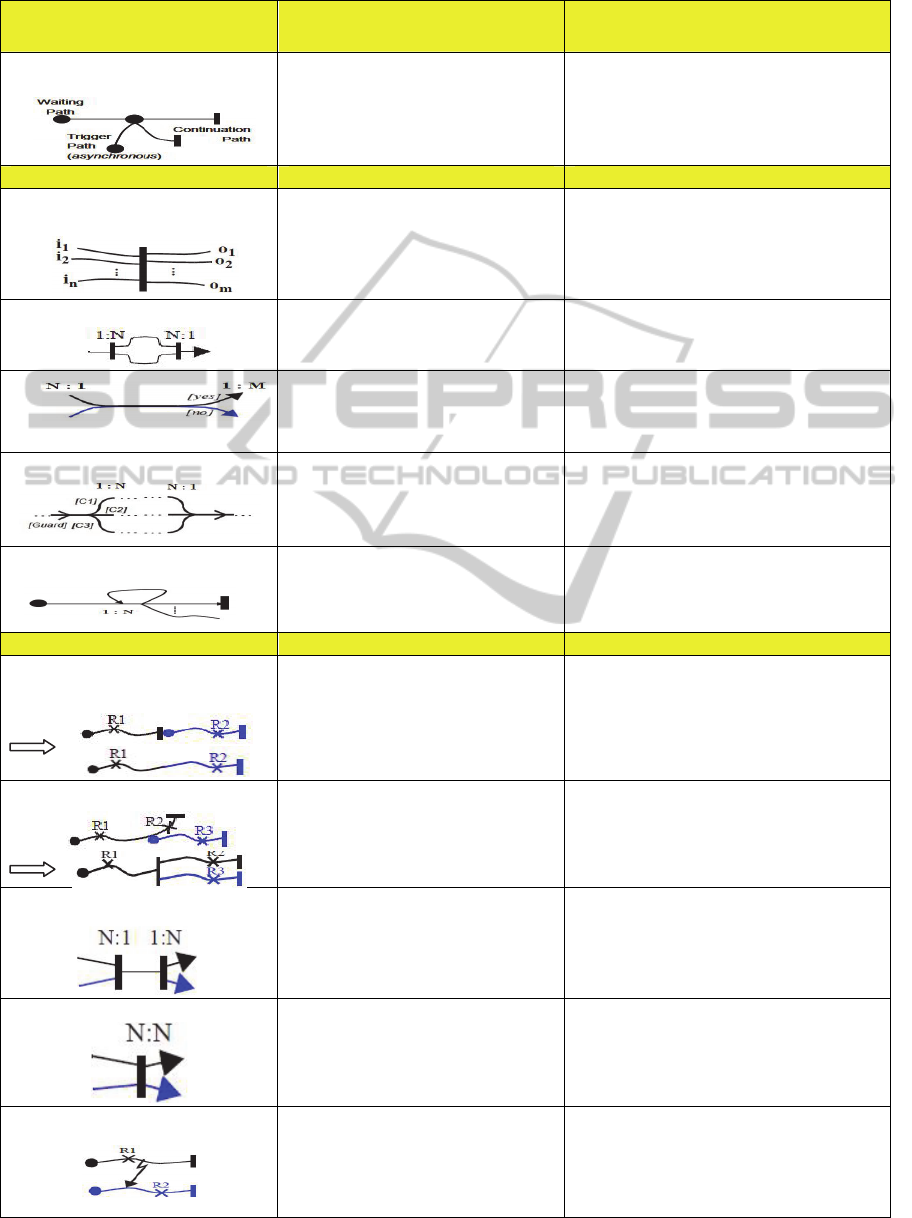

Table 1: Mapping from UCM specifications to Maude strategy (cont.).

Elements of the UCM notation Elements of the UCM description Maude Strategy Language

WaitingPlace

A Regular waiting place identifies a point along

the path at which the progression of a path is

blocked until a predefined unblocking (or

triggering) event occurs.

start Wait : @ Configuration .

sd Wait :=



TP ) ; WaitPlace ; CP .

Special cases Special cases description Maude Strategy Language

GenericVersionofAND‐Join/Fork

Can be used to illustrate cases where an arbitrary

number, say N, of incoming path segments need

to synchronize together to trigger the execution

of an arbitrary number, say M, of outgoing path

segments.

start VG : @ Configuration .

sdVG ∶

RL





…|RL



;RL



′





RL



′





…



RL



′



.

AND‐Fork/Join



AND-Fork with AND-Join.

start AND

ForkJoin

: @ Configuration .

sd AND

ForkJoin

≔AND

Fork

;RL

N+1

OR‐Join/fork

OR-Join with OR-Fork.

start OR

JoinFork

: @ Configuration .

sd OR

JoinFork

≔

Join

;



CRL

orelse CRL

… orelse RL



OR‐Fork/join

OR-Fork with OR-Join.

start OR

ForkJoin

: @ Configuration .

sd OR



≔OR



;RL



.

Loop

Loop can be modeled implicitly with OR-fork

and OR-join.

start Loop : @ Configuration .

sdLoop ∶

CRL







orelse CRL



…orelseRL



.

UCM interactions Description Maude Strategy Language

Triggeraftercompletingpathexecution

is used to illustrate cases where the completion

of the execution of a path triggers another path

that is waiting on a waiting place. The waiting

can either be a start point or a waiting place

along a path.

start TAE : @ Configuration .

sd TAE := RL

; RL

Such as:

: Conf

=> Conf

. RL

: Conf

=> Conf

and Conf

∩ Conf

≠ Ø

TriggerInPassing

is used to illustrate cases where a waiting place,

positioned either at the beginning (start point) or

along a path, is triggered by another path in an

asynchronous manner.

start TIP : @ Configuration .

sd TIP := AND

Fork

Rendezvous

This type of interactions is used to illustrate

cases where two, or more, paths synchronize

together to execute a certain path segment

(sequence of responsibilities) before returning to

the execution of their own respective path.

start RendezVous : @ Configuration .

sdRendezVous ≔ AND



;







…

RL





.

Synchronize

This type of interactions is used to illustrate

cases where two, or more, paths synchronize

together and then return to the execution of their

own respective path.

startSynchronize:@Configuration.

sdSynchronize ≔





…





;







…

RL





.

Abort

Is used to illustrate cases where the execution of

a path interrupts the execution of another. Top

path aborts bottom path after R1.

start Abort : @ Configuration .

sd Abor

≔





|RL





.

Such as:

: Conf

=> Conf

. RL

: Conf

=> Conf

and Conf

∩ Conf

≠ Ø

Waiting Place

KMIS2012-InternationalConferenceonKnowledgeManagementandInformationSharing

310
