Rehabilitation through Brain Computer Interfaces

Classification and Feedback Study

Arnau Espinosa

, Rupert Ortner

, Danut Irimia

and Christoph Guger

g.tec Guger Technologies OG, Sierningstrasse 14, Schiedlberg, Austria

Faculty of Electrical Engineering, Technical University of Iasi, Iasi, Romania

Keywords: BCI, EEG, Stroke Rehabilitation, Feedback, 3D Virtual Reality.

Abstract: A Brain-Computer Interface (BCI) is a tool for reading and interpreting signals recorded directly from the

user’s brain. Most brain-computer interfaces (BCI) are based on one of three types of electroencephalogram

(EEG) signals: P300s, steady-state visually evoked potentials (SSVEPs), and event-related

desynchronization (ERD). EEG is typically recorded non-invasively using active or passive electrodes

mounted on the human scalp. In recent years, a variety of different BCIs for communication and control

applications were developed. A quite new and promising idea is to utilize BCIs as a tool for stroke

rehabilitation. The BCI detects the user's movement intention and provides online feedback to train the

affected parts of the body to restore effective movement. This publication tries to optimize current BCI-

strategies for stroke rehabilitation using immersive 3-D virtual reality feedback (VRFB). Other work has

continued to show that higher density electrode systems can reveal subtleties of brain dynamics that are not

obvious with fewer electrodes. Hence, we used a larger electrode montage than typical BCI studies.

1 INTRODUCTION

Brain - Computer Interfaces (BCI) allow new

communication channels using different mental

states. In a typical BCI, a user performs voluntary

mental tasks. Each task produces distinct patterns of

electrical activity in the electroencephalogram

(EEG). Using monitoring systems and on-line signal

processing software, automates tools can identify

which mental tasks a user performed at specific

times. Most modern BCIs rely in one of three types

of mental tasks, which are associated with different

types of brain activity:

Imagined movement, which produces event-

related desynchronization (ERD) dominant over

central electrode sites (Guger, 2003 and Neuper,

2009);

Attention to oscillating visual stimuli, which

produces steady-state visually evoked potentials

(SSVEP) dominant over occipital sites (Friman,

2007);

Attention to transient stimuli, which produces the

P300 event-related potential dominant over parietal

and occipital sites (Guger, 2009 and Townsend,

2012).

In the last few years, several publications provide

evidence that using MI-based BCIs can induce

neural plasticity and thus serve as an important tool

to enhance motor rehabilitation for stroke patients.

Ang et al. (Ang, 2009) reported higher 2-month

post-rehabilitation gain for patients using a BCI-

driven robotic rehabilitation tool compared to a

control group, but without significant results.

Recently, Shindo et al. (Shindo, 2011) tested the

effectiveness of neurorehabilitation training when

using a BCI for controlling online feedback from a

hand-orthosis. Also here, the conclusion promises

increased rehabilitation results. Grosse-Wentrup et

al. deliver a good overview about the state of the art

on this research topic (Grosse, 2011).

On MI-based BCI, neurofeedback plays a crucial

role to optimize the user’s performance (Neuper,

2010). Feedback must reflect the user’s task in an

appropriate way: for example, when using the BCI

for motor rehabilitation, the feedback should be

similar to the motor activity.

In this study, two different feedback strategies

that can be used for a rehabilitation task are

evaluated. During two sessions, the participants

were asked to perform MI of either the right or left

hand (in random order) as dictated by a visual

paradigm. The first feedback strategy shows the

692

Espinosa A., Ortner R., Irimia D. and Guger C..

Rehabilitation through Brain Computer Interfaces - Classiﬁcation and Feedback Study.

DOI: 10.5220/0004183906920697

In Proceedings of the 4th International Joint Conference on Computational Intelligence (SSCN-2012), pages 692-697

ISBN: 978-989-8565-33-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

hands of an avatar in a 3-D Virtual Reality Feedback

environment (VRFB, see section II for more details).

Either the left or the right hand of the avatar moves

according to the MI. For comparison, a popular

strategy (bFB, e.g. in Guger, 2003) was used. Here

the feedback entails the movement of a bar on the

computer screen. This bar always starts in the

middle of the screen and extends either to the left or

right side of the screen, according to the classified

motor imagination. Nine subjects did recordings

with 63 EEG channels. Two subjects did the same

session with using 63 and 27 channels (See Figs. 1

and 2). For these two persons using 63 and 27 we

evaluated the difference in accuracy.

Recently, Neuper and colleagues compared

different BCI feedback strategies (Neuper, 2011).

There, the realistic feedback consisted of a hand

grasping a target, and the bar feedback was similar

to the present study. While Neuper used only three

bipolar channels for the classification, the present

study used a common spatial patterns (CSP)

approach that takes advantage of the high number of

EEG channels.

2 METHODS

2.1 Common Spatial Patterns

The method of CSP is known for discrimination of

two motor imagery tasks (Blankertz, 2008) and was

first used for extracting abnormal components from

the clinical EEG (Koles, 1991). By applying the

simultaneous diagonalization of two covariance

matrices, one is able to construct new time series

that maximize the variance for one task, while

minimizing it for the other one.

Given N channels of EEG for each left and right

trial, the CSP method gives an N x N projection

matrix. This matrix is a set of subject-dependent

spatial patterns, which reflect the specific activation

of cortical areas during hand movement imagination.

With the projection matrix W, the decomposition of

a trial X is described by:

WXZ 

(1)

This transformation projects the variance of X

onto the rows of Z and results in N new time series.

The columns of W

-1

are a set of CSPs and can be

considered time-invariant EEG source distributions.

Due to the definition of W, the variance for a left

movement imagination is largest in the first row of Z

and decreases with the increasing number of the

subsequent rows. The opposite occurs for a trial with

right motor imagery. For classification of the left

and right trials, the variances have to be extracted as

reliable features of the newly designed N time series.

However, it is not necessary to calculate the

variances of all N time series. The method provides

a dimensionality reduction of the EEG. Mueller-

Gerking and colleagues (

Mueller, 1999) showed that

the optimal number of common spatial patterns is

four. Following their results, after building the

projection matrix W from an artifact corrected

training set X

, only the first and last two rows (p=4)

of W are used to process new input data X. Then the

variance (VAR

) of the resulting four time series is

calculated for a time window T. After normalizing

and log-transforming, four feature vectors are

obtained.



















log

VAR

(2)

With these four features a linear discriminant

analysis (LDA) classification is done to categorize

the movement either as left-hand or right-hand.

2.2 Data Processing

EEG data were recorded over 63 positions (see Fig.

1) or 27 channels (see Fig. 2) of the motor cortex,

using active electrodes (g.LADYbird, g.tec medical

engineering GmbH, Austria). A multichannel EEG-

amplifier was used (g.HIamp, g.tec medical

engineering GmbH) to record the data with a

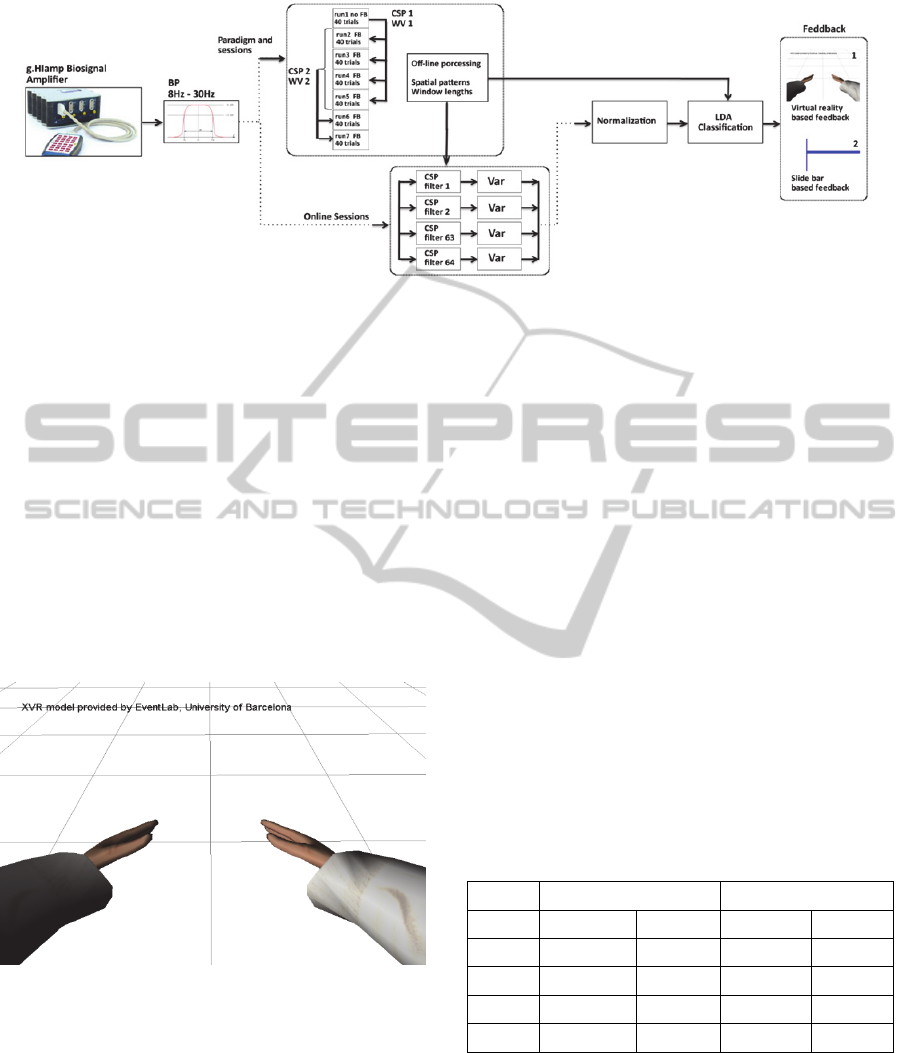

sampling frequency of 256 Hz. The workflow model

is shown in Fig 3. The sampled data went into a

bandpass filter (Butterworth, 5th order) before the

four spatial filters were applied. The variance was

computed for a moving window of one second.

Normalization is done according to Eq. (2). Finally,

the LDA classification drives the feedback block of

the paradigm.

2.3 Paradigm and Sessions

Before the tests started, the healthy users (all male

between 25 and 30 years old; all right handed) were

trained on motor imagery tasks until their

performance was stable. After that, the two sessions

with different feedback were executed. The

workflow can be seen in the middle of Fig. 3. Each

session consisted of seven runs; each run included

20 trials for left-hand movement and 20 trials for

right-hand movement in a randomized order. The

RehabilitationthroughBrainComputerInterfaces-ClassificationandFeedbackStudy

693

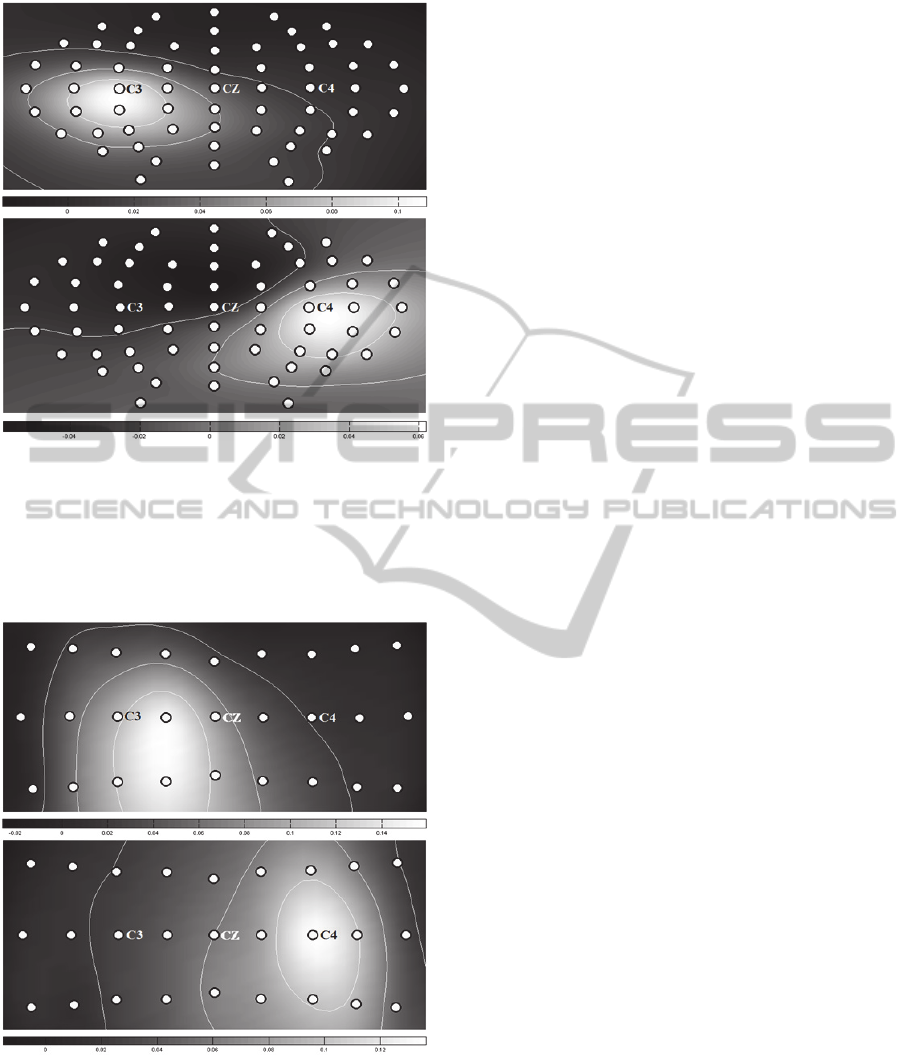

Figure 1: Spatial patterns for S1 during VRFB runs 2, 3, 4

and 5. The upper panel shows the first spatial filter that

sets higher weights to electrodes around the region of C3.

The lower panel is the last spatial pattern that sets more

weight to the region around C4. The single small spots

show the 63 used electrode positions. C3, Cz and C4 are

marked separately.

Figure 2: Spatial patterns for S1, during the same run as in

Fig. 1. This time only 27 channels were used for

computation. The single spots again show the electrode

positions.

first run (run1) was performed without giving any

feedback. The resulting data were visually inspected,

and trials containing artifacts were manually

rejected. These data were used to compute a first set

of spatial filters (CSP1) and a classifier (WV1).

With this first set of spatial filters and classifier,

another four runs (run2, run3, run4, run5) were

performed while giving online feedback to the user.

The merged data of these four runs (run 2, 3, 4 and

5) were used again to set up a second set of spatial

filters (CSP2) and a classifier (WV2) that used a

higher number of trials and was more accurate.

Finally, to test the online accuracy during the

feedback sessions, two more runs (run 6, run 7;

merged data: run 6 and 7) were done.

Each trial lasted eight seconds, between each

trial there was a random intertrial interval between

0.5s and 1.5s. After two seconds, a beep directed the

user to the upcoming cue. The cue-phase, during

which the subject was told to perform either an

imagination of the left or right hand, started at 3s

and stopped at 4.25s. The end of the cue-phase was

marked by a second beep. The feedback-phase

started at 4.25s and lasted until the end of the trial

(8s). The user was asked to perform the MI from the

beginning of the cue-phase until the end of the

feedback-phase.

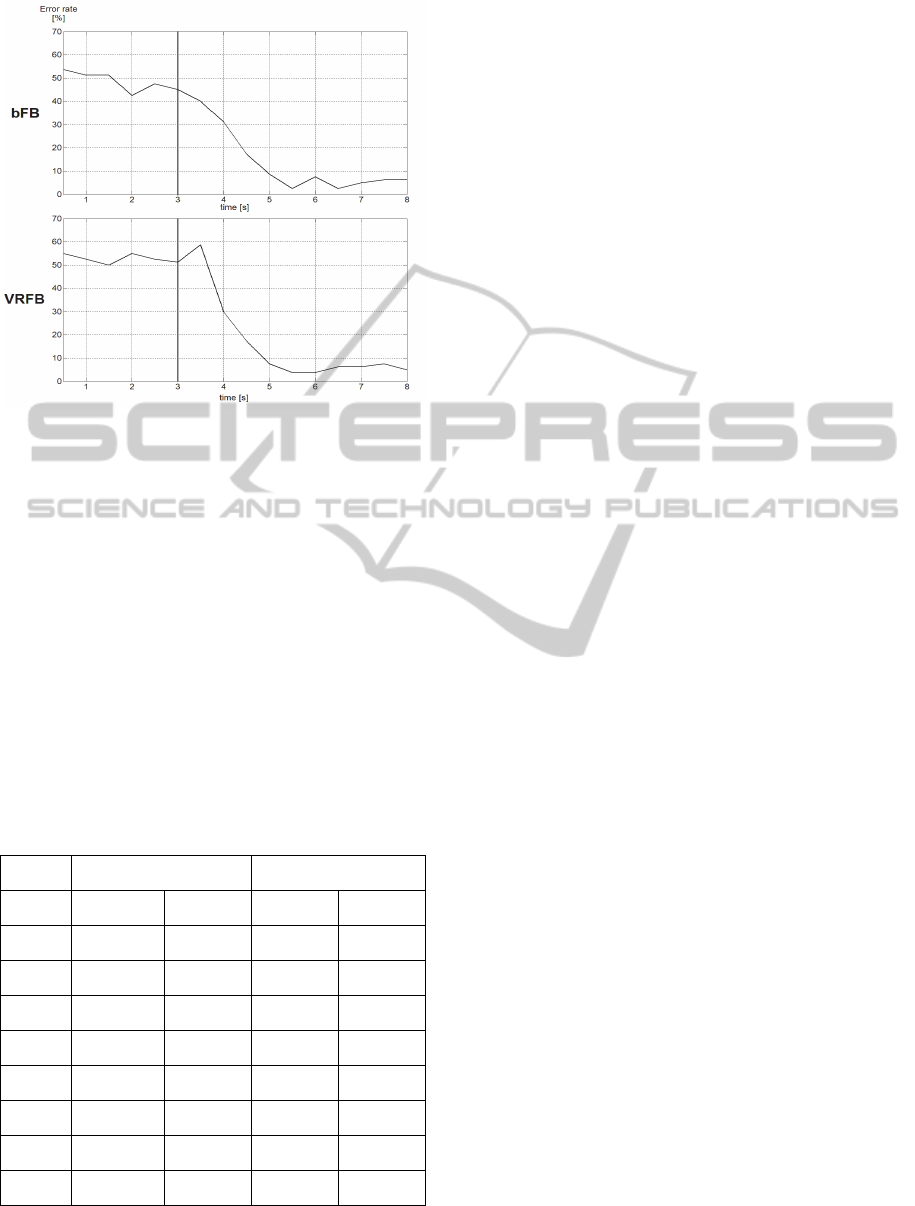

Comparing the presented cue and the classified

movement, an error rate can be calculated. The error

rate, as displayed in Table 1, is calculated by

applying CSP2 and WV2 onto the merged datasets

run 6 and 7. The classifier and the errors are

calculated every half a second. For every such

calculation, the classifier was applied to the features

and the classification result compared to the cue,

resulting in the error rate that was averaged over all

trials.

2.4 Feedback Strategies

Feedback strategy number one (bar feedback; bFB)

is quite common for motor imagery tasks. A bar

begins in the middle of the computer screen and

expands either to the left or the right of the screen. If

a left-hand movement is detected, the bar grows to

the left; for a right-hand movement, it extends to the

right side. The length of the bar is proportional to the

classified LDA-distance. During the cue phase, in

addition to the bFB, a red arrow points to the left or

to the right side of the screen, indicating to the user

which MI he or she should perform.

Within the virtual reality feedback (VRFB) task,

a virtual reality research system (g.VRsys, g.tec

medical engineering GmbH, Austria) is used. The

user sits in front of a 3D-PowerWall wearing shutter

glasses. The size of the PowerWall is 3.2m x 2.45m,

and the distance between PowerWall and user is

IJCCI2012-InternationalJointConferenceonComputationalIntelligence

694

Figure 3: Workflow of the model. The biosignal amplifier records the data that is bandpass-filtered between 8 Hz and 30

Hz. Four CSPs are applied, and the variance within a moving window T of one second is computed. The LDA classifier is

then applied to the normalized variances. The output of the classifier drives the feedback block that gives feedback

according to the chosen session.

about 1.5m. The user sees the left and right hands of

an avatar from a subjective point of view (see Fig.

4). The only movement the avatar performs is the

continuous opening and closing of either the left or

the right hand. No modulation of the speed of the

movement is done. During the cue-phase (from

second 3 until second 4.25 of the experiment), the

user needs to know which MI has to be performed.

In the VRFB task, the opening/closing of one of the

hands provides this information. After second 4.25,

a second beep appears, and the observed movement

of the avatar is the feedback to the performed MI.

Figure 4: Virtual reality feedback. During the feedback

session, the fingers of either the left or the right hand close

and open according to the classified movement.

3 RESULTS

Table 1 summarizes the results from the three

subjects. For each session, the averaged error rate

over all trials and over the single time-steps starting

from 3.5s until 8s is shown. These values reflect the

accuracy resulting from applying CSP2 and WV2 to

the data of runs 6 and 7, and show the online

accuracy that the users experienced during these

runs. The number in parentheses shows the

minimum error for the single time-steps. For S1 and

S2 the error rate was recorded twice: once with all

63 channels and again when cutting out 27 channels

(positions are shown in Fig. 2). This reflects of

course only an estimated error rate that the user

would have experienced if only the subset of 27

electrodes would have been used. For S3 only the 27

channels were recorded. In three out of four sessions

the error rate increased as the number of electrodes

was reduced, but in one session, it increased from

14.8% up to 19.8% (S1, VFRB). The minimum error

rate increased in three sessions and stayed constant

in one of them (S1, bFB).

Table 1: Results from the six sessions. The first number in

each cell shows the mean error rate beginning from 3.5

seconds until 8 seconds. The number in parenthesis shows

the minimum error rate within this time.

bFB

VRFB

Subject

27ch

63ch

27ch

63ch

12.8 (2.5)

12.75 (2.5)

14.8 (5)

19.8 (4.5)

20.8 (11.25) 19.9 (5.0)

25 (12.5)

19.2 (5.9)

S3 25.0 (8.0) 21.8 (10.0)

mean

19.5 (7.25)

16.3 (3.75)

20.5 (10.1)

19.5 (5.2)

Fig. 5 shows an example of the error rate from

S1 during the two sessions that used all 63 channels

for classification. The black line at three seconds

indicates the onset of the cue. The error rate before

the cue is about 50 percent and then drops below ten

percent for both sessions. It stays below ten percent

from second 5.5 until the end of the trial, showing

the good control the subject had.

RehabilitationthroughBrainComputerInterfaces-ClassificationandFeedbackStudy

695

Figure 5: Error rate from the two feedback runs for S1.

The vertical bar indicates the cue onset.

Table 2 summarizes the accuracy results of the

seven subjects using all 63 channels. The average

and min error rate has been calculated in the same

way as the Table 1. The results show a significant

performance variance between subjects. In three out

of seven subjects, the error rate increased with the

VRFB, but overall, the bFB yielded worse results

compared to the virtual reality (S1, S2, S4 and S6).

Better results are under 5% error in 3 subjects (S2,

S6 and S7).

Table 2: Accuracy of 7 subjects using the 63 channel

system. The first number shows the mean error rate, and

the second number shows the minimum error rate. The

accuracy has been calculated using data trials beginning

from 3.5 seconds until 8 seconds.

bFB VRFB

Subject Mean Err. Min. Err. Mean Err. Min Err.

S1 42.30% 33.80% 37.30% 31.30%

S2 5.50% 0% 3.20% 0%

S3 35.50% 20% 37% 25%

S4 45.70% 37.50% 30.70% 25%

S5 5.20% 2.50% 14.10% 5%

S6 17% 11.30% 5% 1.30%

S7 3.90% 1.30% 4.60% 0%

mean 22.16% 15.20% 18.84% 12.51%

4 CONCLUSIONS

This study compared two different feedback

strategies for performing MI for stroke

rehabilitation. The VRFB provided realistic

feedback that was similar to the imagined

movements. Hence, we expected this strategy would

lead to better classification. This hypothesis was not

consistent with the results. In fact, performance was

slightly worse with the VRFB in comparison to the

bFB sessions. After the sessions, subjects said that it

was quite disturbing when the classifier did a

misclassification and hence the “wrong” hand

moved during the VRFB session. We propose that

this mismatch between expected and actual feedback

was primarily responsible for both this cognitive

dissonance and worse performance. In future

studies, we will test to give only feedback when the

correct hand is classified.

The BCI performs better using 63 EEG-channels

instead of 27. This result should encourage the use

of larger montages when practical. Furthermore, the

comparison of the spatial patterns shows that

electrodes that are mounted over the motor cortex

and near C3 and C4 (which are present in the 63 and

27 channels configurations) are the most important.

Also, positions that are not part of the 27 channel-

configuration play an important role for

classification.

The results we obtained with 64 electrodes

encourage us to test 128 EEG-channel montages in

future work. Also, the current study shows results

achieved by healthy users only. A future goal will be

to utilize the lessons learned here for rehabilitation

of patients suffering stroke.

ACKNOWLEDGEMENTS

The authors gratefully acknowledge the funding by

the European Commission under Better and

BrainAble projects.

REFERENCES

Ang, K. K., Guan, C., Chua, K. S. G., Ang, B. T., Kuah,

C., Wang, C., 2009. A clinical study of motor imagery-

based brain-computer interface for upper limb robotic

rehabilitation. Conf Proc IEEE Eng Med Biol Soc.,

vol. 2009, pp. 5981-4.

Blankertz, B., Tomioka, R., Lemm, S., Kawanabe, M. and

Müller, K.-R., 2008. Optimizing Spatial Filters for

IJCCI2012-InternationalJointConferenceonComputationalIntelligence

696

Robust EEG Single-Trial Analysis. IEEE Signal

Processing Magazine, vol. 41.

Friman, O., Volosyak, I. and Gräser, A., 2007. Multiple

channel detection of steady-state visual evoked

potentials for brain-computer interfaces. IEEE Trans.

Biomed. Engng., vol. 54, pp. 742-750.

Guger, C., Edlinger, G., Harkam, W., Niedermayer, I. and

Pfurtscheller, G., 2003. How many people are able to

operate an EEG-based brain-computer interface.

IEEE Trans. Neural Systems and Rehab. Engng., vol.

11, pp. 145-147.

Guger, C., Daban, S., Sellers, E., Holzner, C., Krausz, G.,

Carabalona, R., Gramatica, F. and Edlinger, G., 2009.

How many people are able to control a P300-based

brain-computer interface (BCI)?. Neuroscience

Letters, 462(1), pp. 94-98.

Grosse-Wentrup, M., Mattia, D., and Oweiss, K., 2011.

Using brain–computer interfaces to induce neural

plasticity and restore function. J Neural Eng., vol. 8,

025004.

Koles, Z., 1991. The quantitative extraction and

topographic mapping of the abnormal components in

the clinical EEG. Electroencephalogr. Clin.

Neurophysiol., vol. 79(6), pp. 440-447.

Mueller-Gerking, J., Pfurtscheller, G., and Flyvbjerg, H.,

1999. Designing optimal spatial filters for single-trial

EEG classification in a movement task. Clin

Neurophysiol, vol. 110, pp. 787-798.

Neuper, C., Scherer, R., Wriessnegger, S. and

Pfurtscheller, G., 2009. Motor imagery and action

observation: modulation of sensorimotor brain

rhythms during mental control of a brain-computer

interface, Clin Neurophysiol., vol. 120(2), pp. 239-47.

Neuper, C. and Pfurtscheller, G., 2010. “Neurofeedback

Training for BCI Control”, in Brain–Computer

Interfaces, Revolutionizing Human-Computer

Interaction, Graimann, B., Allison, B. Z. and

Pfurtscheller, G., Eds. Berlin-Heidelberg: Springer,

pp. 65-78.

Shindo, K., Kawashima, K., Ushiba, J., Ota, N., Ito, M.,

Ota, T., 2011. Effects of neurofeedback training with

an electroencephalogram-based brain-computer

interface for hand paralysis in patients with chronic

stroke: a preliminary case series study. J Rehabil

Med, vol. 43(10), pp. 951-957.

Townsend, G., LaPallo, B. K., Boulay, C. B., Krusienski,

D. J., Frye, G. E., Hauser, C.K., Schwartz, N. E.,

Vaughan, T. M., Wolpaw, J. R., Sellers, E. W.. Clin

Neurophysiol. Vol. Jul;121(7):1109-20. Epub 2010

Mar 26.

RehabilitationthroughBrainComputerInterfaces-ClassificationandFeedbackStudy

697
