A Goal-based Method for Automatic Generation of Analytic Needs

Ben Abdallah Mounira, Zaaboub Haddar Nahla and Ben-Abdallah Hanene

MIR@CL Laboratory, University of Sfax, Tunisia

{Mounira.Benabdallah, Nahla.Haddar, Hanene.Benabdallah}@fsegs.rnu.tn

Keywords: Analytical Requirements Generation, Goal Requirements Language (Grl), Uml Modeling.

Abstract: In this paper, we are interested in the requirements engineering of decision support systems. In particular, we

propose a method, called Analytic Requirements Generation Method (ARGeM), for automatic generation of

analytic requirements. Our method meets the strategic goals of the enterprise and produces loadable DW

schemas. It begins with modeling the goals of the enterprise and uses the UML IS modeling artifacts to

generate automatically a complete set of candidate analytic needs. These needs are, subsequently validated by

the decision makers who are thus directly involved in the specification process. Once validated, needs

contribute to the design of the DW.

1 INTRODUCTION

For decision making, analytic needs that must be

satisfied by the system's data warehouse (DW) are

specified during the analysis phase. As one of the

early stages of system development, this phase

implies major problems, if it is inaccurate or

incomplete and does not meet the entire user’s needs.

Thus, it should attract special attention and must be

fully supported by effective methods.

On the other hand, several surveys indicate that a

significant percentage of DWs fail to achieve the

business goals or are spectacular failures. One reason

for this is that the requirements analysis is typically

overlooked in real projects (Giorgini et al., 2008).

Thus, this stage should be based on a goal oriented

framework for requirements engineering as the DW

aims at providing adequate information to support

decision making and to achieve the goals of the

organization.

Moreover, existing approaches to decision system

development, such as (Golfarelli et al., 1998) (Moody

et al., 2000) (Giorgini 2008) works, always consider

that the information system (IS) of the enterprise is

already computerized and operational for a large

period. Therefore, these approaches often encounter

some problems such as the lack of source schemas.

Moreover, the lack of a decision support system

aligned with the IS since its implementation, can

threaten its survival. To remedy these problems, it is

important to have a decision support built at the same

time as the IS and constantly aligned with it.

This work proposes a method, called Analytic

Requirements Generation Method (ARGeM for

short), for automatic generation of analytic

requirements that meet the strategic goals of the

enterprise and produce loadable DW schemas. Our

method begins with modeling the goals of the

enterprise and uses the UML IS modeling artifacts to

generate automatically a complete set of candidate

analytic needs. (The use of UML is due to the fact

that this language is a defacto standard for IS

modeling). These needs are, subsequently validated

by the decision makers who are thus directly involved

in the specification process. Once validated, these

needs contribute to the DW design.

In the following, Section 2 gives a state of the art

of works on the analytic requirements engineering.

Section 3 presents our approach to generate analytic

needs. The last Section concludes this work and

discusses its prospects.

2 RELATED WORKS ON

ANALYTIC REQUIREMENTS

ENGINEERING

Although most DW design methods claim that there

must be a phase devoted to analyze the requirements

of an organization (Golfarelli et al., 1998) (Kimball

2002) (Lujan-Mora et al., 2006), this phase does not

generate the same interest in both types of DW design

approaches: bottom-up and top-down. Indeed,

150

Mounira B., Nahla Z. and Ben-abdallah H.

A Goal-based Method for Automatic Generation of Analytic Needs.

DOI: 10.5220/0004462201500156

In Proceedings of the Second International Symposium on Business Modeling and Software Design (BMSD 2012), pages 150-156

ISBN: 978-989-8565-26-6

bottom-up approaches start from a detailed analysis of

the data sources (Golfarelli et al., 1998) (Moody et al.,

2000). Analytical needs are expressed directly by the

designer who must select relevant blocks of data to

decision making and determine their structuring

according to the multidimensional model (Golfarelli

et al., 1998) (Moody et al., 2000) (Cabibbo et al.,

1998) (Prat et al, 2006).

Therefore, these approaches assume that decision

makers have a good knowledge about the models of

operational data, and a perfect understanding of the

structures of the data source. Thus, they marginalize

the analysis phase of the OLAP requirements in a

decision system design. Therefore, the DW may not

satisfy all its future users, and may, therefore,

probably fail (Giorgini et al., 2008). In addition, all

these approaches produce multidimensional schemas

regardless of the needs of the decision makers. Thus,

the produced schemas are far from covering the goals

of the organization.

Unlike bottom-up approaches, top-down ones

start by determining information needs of the DW

users. These approaches collect and specify the user

requirements using different formalisms: goal based

models, UML use cases, query languages or decision

oriented models. The problem of matching user

requirements with the available data sources is treated

only a posteriori.

Most goal based approaches are essentially

founded on the conceptual framework i* (Giorgini et

al., 2008) (Zepeda et al., 2008) (Franch et al., 2011).

Requirements’ specification is carried out manually

from diagrams modeling the enterprise and its goals.

Thus, these approaches may overlook some

requirements as they may specify needs not covered

by the sources. Moreover, they do not directly involve

the decision maker. Besides, i* is not a standard and

does not provide all the concepts necessary for

modeling purposes. So, it requires specific training

and tools that support it in order to be used.

The use case (UC) based approaches adopt the

UCs of UML to represent the analytic needs (Luján-

Mora 2006) (Shiefer et al., 2002). Thus, because of

the absence of a precise oriented decision syntax for

enouncing UC actions, it becomes very difficult, to

identify potential decision elements from the

specification. Moreover, the fact that the UML does

not model the organization goals, using UC cannot

guarantee the coverage of all enterprise goals.

The query based approaches are the most used in

literature (Romero et al., 2006) (Bargui et al., 2008),

because queries expressed in natural language or

pseudo language are easy to understand by decision

makers. However, the non-exploitation of the source

information impedes obtaining, from the beginning,

an optimal set of analytic needs.

In the decision based approaches, needs are

specified using decision concepts expressed in a given

formalism (Kimball 2002) (Golfarelli et al., 1998).

Although the models used by these approaches are

characterized by their decision orientation, they

remain difficult to understand by decision makers

who lack design expertise. Moreover, the fact that

there is no well-defined framework for defining goals,

the specified needs do not guarantee the achievement

of these goals.

The overview presented above on top-down

approaches reveals two important criticisms. First,

none of the presented methods propose joint modeling

of the DW and the IS. This may impede the alignment

of the DW to the IS which in turn may produce

unloadable schemas. In addition, it does not guarentee

the completeness of the analytic needs. Second,

specifying needs without linking them to their goals

may not lead to the achievement of the expected

goals.

To remedy these problems, we propose an

analysis method called ARGeM (Analytic

Requirements Generation Method) for automatic

generation of analytic requirements that meet the

strategic goals of the enterprise and produce loadable

DW schemas. Our method begins with modeling the

goals of the enterprise and uses the UML IS modeling

artifacts to generate automatically a complete set of

candidate analytic needs. The aligned modeling of the

DW and the IS facilitates the co-evolution of both

systems. Another advantage of our method is that it

involves directly the decision makers in the

specification of their needs by validating the

generated requirements.

3 GOAL DRIVEN ANALYTIC

REQUIREMENTS GENERATION

METHOD

ARGeM consists of three steps (cf. Figure1): i) GRL

model construction, ii) analytic element identification

and iii) analytic requirements generation. In the

following sub-sections, we detail these steps.

3.1 Construction of the GRL Model

Since achieving the qualitative goals of an enterprise

is the main purpose behind modeling a DW, it is

obvious to begin with determining these goals and

taking them as a start point for deriving any analytic

A Goal-based Method for Automatic Generation of Analytic Needs

151

needs. Thus, the first step in our approach is to

construct automatically a model representing the

qualitative goals of the enterprise. As a pre-condition

for this step, we suppose the existence of a business

strategy definition for the enterprise, represented with

one of the current models such as the ISO

1 model.

This document, which defines all the strategic goals

of the enterprise, usually exists since the

establishment of an enterprise requires its presence.

We also consider the use case model of the UML IS

modeling documentation which gives the

functionalities of the IS that helps to reach the

strategic goals.

Figure1: The steps of ARGeM.

The product of the first step is a goal model

represented with the standard goal requirements

language GRL (ITU-T, 2008). With this language, it

is possible to represent both functional (low level)

goals and their performing tasks, and qualitative (high

level) goals that the former tend to meet.

Furthermore, the functional goals of the enterprise

are realized by its IS. Their specification is part of the

SI design. Indeed, the UC model represents these

goals as UCs and scenarios. Thus, it is possible to

transform these latter into functional goals and tasks

in the GRL model. Subsequently, this model will be

International Organization for Standardization. http://www.iso.ch

completed by the high level goals and their

dependencies with all other model elements basing on

the business strategy model (BSM) and decision

makers directives.

To ensure the generation of the goals from the UC

model, we are inspired from the works of (Vicente

2009) (Cysneiros et al., 2003). Basing on these works,

we define three rules for transforming the UC

concepts into GRL.

Rule1: Transformation of UML Actors

Each UML actor can be transformed into a GRL

actor that has the same name. A

generalization/specialization relationship between

two UML actors becomes an inclusion relationship

between the two corresponding GRL actors.

In UML, UCs can be classified into three types:

business, support and decision ones (Morley et al.,

2008). A business UC describes a business activity

while a support UC manages a system resource that

is necessary for a business activity. A decision UC

provides useful information for decision making.

This classification is not standard in UML but can be

easily carried out by stereotyping all UCs with one

of the three stereotypes: “business”, “support” or

“decision”.

UCs are described through nominal and

alternative scenarios. In GRL, the goals of an

enterprise are of two types: hard and soft. A hard

goal is a low level goal that represents a state or a

condition that the stakeholders would like to achieve

in the enterprise. While a soft goal is a high level

one and describes qualitative aspects rather than

functional ones. The GRL goals are achieved by

executing a set of activities called tasks (ITU-T

2008).

Rule2: Transformation of UCs

Business UCs become hard goals. The scenarios of a

UC are potential tasks composing the corresponding

hard goal. By contrast, a support UC becomes a

GRL resource representing a physical or an

information entity.

Rule 3: Transformation of Relationships

between Actors and UCs

The communication relationship between an actor

and a UC results in the placement of the

corresponding goal in the GRL actor generated from

the UML one.

Applying these three rules produces a GRL

model containing all the elements modeling the

enterprise goals except the soft ones. To complete

Identify analysis

subjects

Identify analysis

axes + indicators

Generate hard

goals +tasks

Identify analysis

levels

Generate analytic

requirements

Construct GRL

model

Validate analysis

subjects

Validate analysis

axes +indicators

validate

analysis levels

validate analytic

requirements

Compl ete GRL

model

Decision makerARGe m

IS UC model

IS analysis mode l

IS conceptual model

GRL model

constructio

Analytic

element

identification

Analytic

requirements

generation

Generated analytic

requirements

Business strategy

model

GRL model

Second International Symposium on Business Modeling and Software Design

152

Figure 2: Extract of the GRL model (d) constructed from a UC model ((a) and (b)) and a BSM (c) from the "online sales".

this model, the soft goals specified in the BSMare

automatically copied in the GRL one. Then, the

missing relationships between soft and hard goals

are added by the decision maker.

Figure 2 shows an extract of the GRL model (d)

constructed from a UC model ((a) and (b)) and a

BSM(c) from the "online sales" domain.

Since the analytic needs aim to analyze

information from the IS in order to achieve the

stated goals, we must identify the analytic elements

from the IS (analysis subjects, analysis axes,

indicators) that contribute to formulate these needs.

To do this, in the second step of our method, we start

from the UML IS modeling artifacts and the GRL

model built in the first step. The relationship

between the goals of the enterprise and the system

functionalities made by the above defined three rules

is used to identify these elements.

3.2 Identification of Analytic Elements

This step aims to identify the elements contributing

to formulate analytic needs in terms of subjects,

indicators, axes and the analysis levels.

3.2.1 Identification of Analysis Subjects

An analysis subject is an activity of the target

functional system in order to achieve the company

goals. Thus :

RS: each hard goal contributing to satisfy a soft

goal is a potential analysis subject.

This rule is justified by the fact that a subject to

be analyzed represents business missions. These

latter are supported by business UCs. On the other

hand, generating subjects (indirectly) from UCs

guarantees the loading of these subjects from the

source. From the GRL model of Fig 2, the rule RS

identifies the subjects "Ordering", "Fulfillment",

"Billing" and "Payment".

3.2.2 Identification of Analysis Indicators and

Axes

Recall that a subject is formed of indicators and is

analyzed from different perspectives called analysis

axes representing the observing and the recording

context of the indicators. Therefore, the

identification of the indicators and the axes of an

analysis subject which amounts to analyzing the

corresponding business UC. This analysis takes into

consideration all the artifacts related to the UC. In

particular, we focus on the interaction diagrams (ID)

describing the scenarios of the UC and on the class

diagram. Since an ID describes the communication

between objects that participate in the execution of

the UC, this communication serves to identify the

potential axes and indicators of the subject. Then,

using the class diagram, we consolidate the

identified elements and we determine the analysis

levels of each axis.

To identify the analysis axes, we define the

following rule:

RA: In the ID describing the scenario of creation

of a business object corresponding to a subject S, let

A the set of business objects created during this

Customer

Supplie

Buyer

Accounting

Payment

<<Business>>

Billing

<<Business>>

Payer

Ordering

<<Business>>

Fulfillment

<<Business>>

Manage product

<<Support>>

Manage customer

<<Support>>

Sell er

(a)

(d)

UC : Ordering

Nominal

scenarios

create order

Alternatif

scenarios

modify orde r

cancel order

validate order

tre at order

(b)

(c)

Strategic goals of the business

strategy model

Nee ds Sati sfacti on

Secure payment

Good Customer satisfaction

Profit maximization

Transformat i o n

Transformation

A Goal-based Method for Automatic Generation of Analytic Needs

153

Figure 3: Identification of subject classes, analysis axes and indicators of the « Ordering » subject.

scenario. A business object that is involved in the

scenario but does not belong to A is a potential axis

for S. In fact, such an object provides required

information for creating the objects of A. Moreover,

a date parameter of a message having as destination

an object belonging to A is a potential temporal axis

for S.

It is rather interesting to mention here that a

scenario of creation of a business object is easy to

identify in UML because this language provides a

different notation for the creation message.

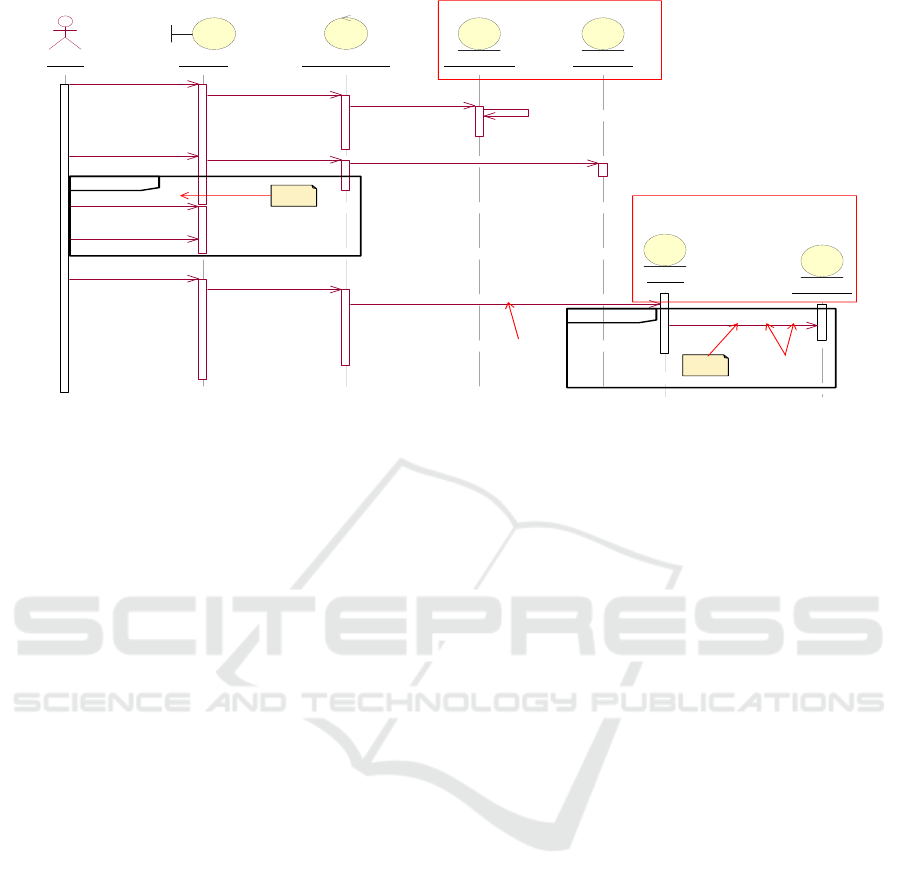

Fig 3 illustrates the application of rule RA on the

sequence diagram formalizing the scenario "Create

order" of the "Ordering" UC. The business objects of

type "Order" and "OrderItem" created in this

scenario correspond to the "Ordering" subject. The

business objects of type "Customer" and "Product"

correspond to the analysis axes of this subject. The

parameter "date" of the message "create" sent to the

object "Order" represents a temporal axis for the

analysis subject.

We identify indicators by defining the following

rule:

RI: in the ID of the creation scenario of a

business object corresponding to a subject S, a

numerical parameter of a message having as

destination an object corresponding to S and which

does not refer to an axis represents a potential

indicator for S. Indeed, such a parameter will be

used in the creation of the destination object.

In the sequence diagram of Fig 3, RI produces

the indicators "qty" and “price” for the subject

"Ordering".

Identification of subjects within business UCs

and IDs is more accurate than within class diagrams

because pure structural information such as attribute

types and multiplicity of relationships is not

sufficient to decide of the relevance of a class as

being a subject.

In contrast, functional information, provided by

UCs, and dynamic information of IDs are more

efficient for the subject classes’ detection. Indeed, a

subject class constitutes a central class around which

all interactions take place. Thus, it is easy to identify

such a class in a business UC and in an ID.

To consolidate the results provided by rules RS,

RA and RI, and to identify the analysis levels of each

axis, we use the UML class diagram. To do this, we

partition this diagram into clusters. Each cluster

contains all classes representing a single analysis

subject and all classes that are related to it directly or

indirectly. Thus, we obtain as many clusters as

analysis subjects. The goal of clustering is to

facilitate the consolidation phase and, subsequently,

to identify the analysis levels.

Recall, first, a primary rule of consistency

between the class diagram and IDs: all

communication between objects in a system must be

supported by static relationships between their

classes. Thus, regarding this rule, all classes in a

cluster that are directly connected to those

corresponding to the analysis subject correspond to

axes.

In addition, to consolidate indicators, we define

the following rule:

RI’: an indicator m identified for a subject S is an

attribute of a class corresponding to S.

Figure 4 illustrates the consolidation of the

: Buyer

: OrderUI

: OrderController

all : Customer all : Product

: Order

: OrderItem

authenticates(idcus,pw)

cus::search(idcus,pw)

createOrder ()

createOrder()

all::getProducts()

selectProduct(p[i])

enter(qty[i], price[i])

validate(cus, p, q, price)

create(date, cus, p, q, price)

createItem(p[i],qty[i], price[i])

{nouveau}

validate(cus, p, q, price)

Business objects ofanalysis axe s

Temporalaxe

Business objects ofanalysis subje ct

Analysis

Indicator

Loop[1<i<n]

Loop [1<i<n]

p[i] isa

product

p[i] is a

product

Second International Symposium on Business Modeling and Software Design

154

indicators "qty" and “price” as attributes of the class

"OrderItem" by applying the rule RI’ in the class

cluster of the "Ordering" analysis subject.

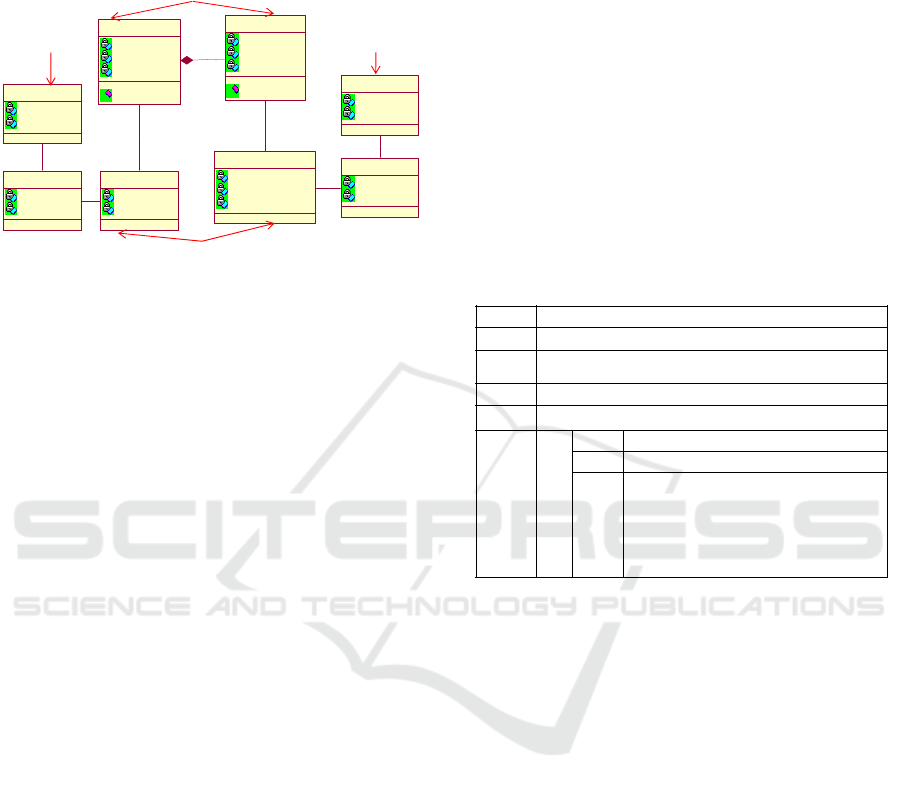

Figure 4: Identification of analysis levels of the product and the

customer axes in the “Order” cluster.

3.2.3 Identification of Analysis Levels

Since a subject is analyzed according to different

axes, each of which has one o many levels, then,

these levels correspond to the attributes of the class

axis and those of all classes that are related to it.

Moreover, since the levels of an axis are generally

non- numerical, we must examine the types of

identified attributes.

In addition, during the OLAP process, data are

usually analyzed starting from a low level detail to

the most detailed one. To formulate analytic needs

according to the OLAP process, ie, requirements that

analyze a subject according to different levels of

axes starting from the lowest to the most detailed

one, it is crucial to determine the order of each level

in an axis. So, to identify analysis levels, we define

two rules RN1 and RN2.

RN1: in a cluster, each class directly or

indirectly connected to a class axis is a potential

level for this axis. This level has the same range as

the number of relationships that separates the class

level to class axis. The name of this level is the same

as the attribute playing the identifier role in the class

level.

RN2: each non-numerical attribute of a class

axis (class level) is a potential level for this axis

(level). In particular, the levels of a temporal axis are

the attributes composing a date such as year, month,

and day. The decision maker can also add his own

temporal levels.

Since our method does not automatically

distinguish between a descriptive attribute and a

level attribute, we expect to the decision maker to

make this distinction.

In Fig 4, RN1 identifies, for example, the levels

"sub-category" and "category" for the axis

"Product". RN2 generates, for example, the analysis

levels "id" and "name" of the axis "Customer".

3.3 Analytic Requirement Generation

For the specification of analytic requirements, we

propose to use the template and the syntax proposed

in (Bargui et al., 2008) as a means used by decision

maker to express his needs. This template is

instantiated with the analytic elements identified in

the previous phase.

Figure 5 shows the analytic requirement of

analyzing the performance of the "ordering" process

for an online selling enterprise in order to maximize

the profit.

Figure 5: Extract of the generated analytic requirements for the

process “Ordering”.

4 CONCLUSIONS

In this paper, we proposed an analysis method for

automatic generation of analytic requirements which

meet the strategic goals of the enterprise and

produce loadable DW schemas. Our method begins

with modeling the goals of the enterprise and uses

the UML IS modeling artifacts to generate

automatically a complete set of candidate analytic

needs.

The novelty of our method is the aligned

modeling of the DW and the IS which facilitates the

co-evolution of both systems. Another advantage of

our method is that it involves directly the decision

makers in the specification of their needs by

validating the generated requirements.

As future work, we are examining how we can

extract multidimensional concepts from generated

requirements.
