Facial Affect Recognition for Cognitive-behavioural Therapy

Maher Ben Moussa

, Nadia Magnenat-Thalmann

, Dimitri Konstantas

MIRALab /

Institute of Services Science, University of Geneva, Route de Drize 7, Carouge, Switzerland

Juan J. Santamaría

, Fernando Fernández–Aranda

, Susana Jiménez-Murcia

Department of Psychiatry, University Hospital of Bellvitge-IDIBELL, and Ciber Fisisologia Obesidad y Nutricion

(CIBEROBN), Instituto Salud Carlos III, Barcelona, Spain

Keywords: Cognitive-behavioural Therapy, Facial Affect Recognition, Affective Computing, Health.

Abstract: In this paper we present facial affect recognition specifically designed and developed for clinical use in

Cognitive-Behavioural Therapy. We describe our hybrid approach for facial affect recognition that

combines geometric and appearance based features of the face. For geometric features we have developed a

robust Active Shape Model based facial point tracking system for real-time use in clinical environments.

Gabor wavelets are employed to extract the appearance-based features from appearance changes of the face

skin. Further, we present an evaluation of our approach and we describe the systems integration with serious

games that are being used for mental disorder therapy.

1 INTRODUCTION

Cognitive-Behavioural Therapy (CBT) is the

evidence-based treatment of choice of several

mental disorders and addictive behaviours

(Fernandez-Aranda et al, 2008) (Jimenez-Murcia et

al, 2007). However, there is a lack of effective

strategies and adequate psychotherapy tools to

remediate some shared dysfunctional emotional

regulatory processes and disinhibited personality

traits in impulse related disorders (Alvarez-Moya et

al, 2009) (Fernandez-Aranda et al, 2006). This had

led us to consider new approaches based on serious

games for patient treatment. In the scope of the EU

initiative Playmancer a videogame prototype (Fig 1)

for treating specific mental disorders (namely eating

disorders and impulse control disorders) has been

developed by the company Serious Games

Interactive. It is being applied at the Department of

Psychiatry (University Hospital of Bellvitge,

Barcelona, Spain) for mental disorders (mainly

eating disorders and behavioural addictions) and

introduces the player to an interactive scenario

(named Islands), where the final goal is to increase

emotional self-control skills in patients and control

over their general impulsive behaviours.

Figure 1: Playmancer video game.

Next to the keyboard and mouse, which are the

regular game control components, the videogame is

being influenced by physiological signals and affect

recognition components. The physiological signals

are measured by a stationary measurement system

from MobiHealth B.V that measures and processes

the signals: galvanic skin, oxygen saturation, heart

rate and heart rate variation, temperature, breathing

frequency signal processing. The patient’s affect can

be measured by the facial, the speech-based or the

physiological affect recognition component. These

three components can also be combined to provide a

single fused output to the therapeutic video game.

From these three components, this paper covers

Magnenat-Thalmann N., Santamaría J., Moussa M., Konstantas D., Fernández–Aranda F. and Jiménez-Murcia S. (2012).

Facial Affect Recognition for Cognitive-behavioural Therapy.

In Proceedings of the Sixth International Symposium on e-Health Services and Technologies and the Third International Conference on Green IT

Solutions, pages 64-68

DOI: 10.5220/0004474200640068

 SciTePress

mainly the facial affect recognition component and

its integration into the Playmancer system. In the

next section, we will begin with an explanation of

the related concepts and previous work that has been

undertaken in the area of facial affect recognition. In

Section 3 we present our implementation. In section

4, we evaluate our system. Section 5 describes the

clinical application of the system. Finally, we

include our paper and discuss the limitations and

future work in section 6.

2 BACKGROUND

Facial affect recognition usually involves several

steps. Firstly, the faces are detected and extracted

from static images or video input, followed by the

extraction of the features from these faces. The

resulting facial features are analysed and used to

classify the affective state of a person. For facial

extraction there are several notable approaches.

However, (Viola and Jones, 2004) is the most

commonly used facial detection system. For facial

feature extraction we can distinguish between two

types of facial features: geometric features and

appearance-based features. Geometric features

represent the shape of the facial components (such

as mouth, nose, eyes, etc) and the locations of these

facial points (corners of mouth, nose, eyes, etc)

(Cohen et al, 2003). Appearance-based features

represent the appearance changes of the face skin

(wrinkles, furrows, etc), such as in (Bartlett, 2003)

where Gabor-wavelets are employed to extract the

features. There are different approaches of geometric

feature extraction. Some approaches employ

variations of the optical flow algorithm (Tian et al

2005), some use observation models (Patras and

Pantic, 2005) and others employ Active Shape

Models (ASM) or Active Appearance Models

(AAM) (Cootes and Taylor, 2004)(Matthews and

Baker, 2004)(Stegmann, 2000). Different machine

learning techniques have been employed to classify

facial actions and human affect on static frames as

well on the temporal features of facial motion. This

includes Bayesian Networks (Cohen et al, 2003).

Support Vector Machines (SVM) (Ford, 2002),

Hidden Markov Models (HMM) (Bartlett, 2003) and

even rule-based classifiers (Cohn et al, 2004).

3 SYSTEM OVERVIEW

Recent research involving eating disorders patients

and pathological gamblers (Vanderlinden et al,

2004) (Ledgerwood, 2006) showed that anger is one

of the emotions most commonly described as

"triggering" factors of linked impulsive behaviour’s

(binging, going out to gamble, etc.), while

understanding and attaining a calm disposition is

often a clinical goal for emotion regulation.

For the Playmancer video game, it was assumed

that three basic emotions (one positive, one negative

and one neutral) should be sufficient for the target

population at this point (Fernandez-Aranda et al,

2012). The choice has been made to recognize the

emotions joy, anger and neutral. Based on this

assumption, a facial affect recognition system has

been developed that integrates geometric and

appearance-based facial feature extraction and

employs SVMs for classification of emotions.

3.1 Geometrical Feature Extraction

Given video input, our facial tracker detects and

tracks the facial points over time. We employ the

Active Shape Model (ASM) to extract the shape

information of the face in a video sequence. ASM,

which was introduced by (Cootes and Taylor, 2004),

is an algorithm that matches a set of shape points to

an image constrained by the statistical model of the

shape. A shape is represented as

=(



,



,…,



,



,



,…,



) where n is the

number of points. The shape’s statistical model

allows linear shape variation. This means that a

shape s can be expressed as a base shape s

plus a

linear combination of N shape vectors s

=



∑













where the coefﬁcients =(



,…,



)



are the

shape parameters and s

are orthonormal

eigenvectors. Furthermore, on each shape Procrustes

alignment (Cootes and Taylor, 2004) is employed to

estimate the base shape s

. This algorithm removes

rigid body distortions such as translation, rotation

and scaling.

The detection and the tracking using ASM

involves several steps. In the initialisation stage, a

Viola & Jones based face detection (Viola and

Jones, 2004) and feature detection (eyes, nose and

mouth) (Castrillón et al, 2007) is performed on the

video frame. The ASM shape is aligned with respect

to the position of the detected facial features. After

the alignment, the shape is fitted iteratively to the

face, where for every model point the best match (by

taking gradients into consideration) within a small

image patch around the location of the

corresponding point is searched for with respect to

Facial Affect Recognition for Cognitive-behavioural Therapy

the shape parameter constraints. Our approach is

based on (Jia 2010) where instead of using one

gradient vector along one direction, two gradient

vectors along two orthogonal directions are used.

This means more flexibility of the shape. During the

tracking, in each new frame the shape of the

previous frame is used for the fitting. In each frame,

the eyes and the nose are also tracked using the

template matching technique to ensure the accuracy

of the shape fitting. In case of lower accuracy, the

ASM shape is automatically reinitialised.

Figure 2: Geometrical points detection and tracking.

To improve the results of the tracking in the

clinical experiment, we have compiled our own

database to train the ASM algorithm. Our database

consists of images we recorded in the clinical

experiment room with its usual lighting condition

(Kostoulas et al, 2010).

From the resulting ASM, 17 facial points are

extracted as shown in Figure 2. Using these facial

points, the feature vector  of 9 elements is

composed as shown in Table 1. We have chosen to

use only 9 features because we have mainly selected

those features most visible and most relevant to the

chosen emotions according to Ekman’s FACS

definitions. Further all the features are relative to the

calibration frame where the face should be in a

neutral position.

Table 1: Feature vector.

LeftEyeInnerCorner

– LeftEyesbrowCenter

LeftEyeInnerCorner

– LeftEyesbrowInnerCorner

RightEyeInnerCorner

– RightEyesbrowCenter

RightEyeInnerCorner

– RightEyesbrowInnerCorner

LeftEyeBottom

– LeftEyeTop

RightEyeBottom

– RightEyeTop

MouthBottom

– MouthTop

MouthCenter

– MouthTop

MouthRight

– MouthLeft

3.2 Appearance-based Feature

Extraction

Although different appearance-based features can be

extracted, we have chosen to mainly use the brow

furrow because it is one of the most relevant features

when distinguishing between positive and negative

emotions.

Figure 3: Gabor filter based feature extraction.

In our approach we combine 4 orientations (0, 2,

4, and 6) of Gabor wavelets that we employ on the

upper face image patch as shown in Figure 3. The

patch is subtracted by its own pixels mean and a

brow furrow patch is extracted from that image. The

L2 norm of the brow furrow patch then becomes

element v

of feature vector .

3.3 Training and Classification

Using features vector , support vector machines

(SVM) are trained to recognize emotions. Because

our recorded database (Kostoulas et al, 2010) does

not contain posed emotions, we have chosen to train

our system using the Cohn-Kanade database (Lucey

et al, 2010). Using the ASM-annotations that are

available for the Cohn-Kanade database, we have

trained our SVMs for affect recognition. This means

that our training data is not dependent on the

accuracy of the ASM tracker on a certain database

and therefore it should perform well on other

databases. Other emotions (sadness, fear, surprise)

have been tagged neural.

Furthermore, although there are different studies

where temporal data is being used for affect

classification, we have chosen to focus on frame-

based classification instead of temporal. Temporal

classification requires the detection of the different

stages of a facial expression (onset, apex and offset)

and would only work well on a database. In a real

life scenario facial tracking fails sometimes in case

of quick movements or head rotations. However, we

still consider the temporal aspect by relating the

accuracy of the detection of an emotion to its

occurrence in a window of time.

4 TECHNICAL EVALUATION

We have tested our system using the Cohn-Kanade

database. According the database manual, we have

identified 42 samples of anger, 65 samples of joy

and 38 samples of neutral.

EHST/ICGREEN 2012

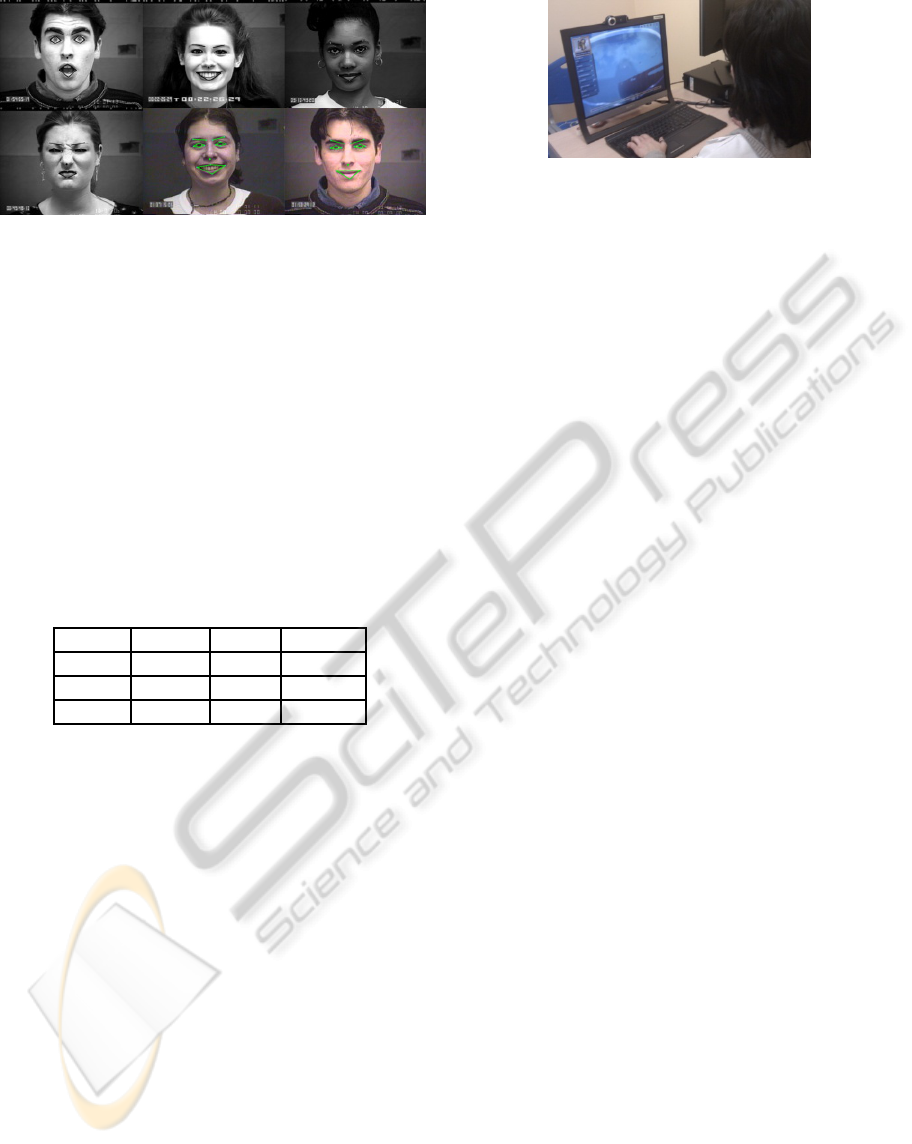

Figure 4: ASM with Cohn-Kanade database.

Figure 4 shows the tracking results on Cohn-

Kanade database images and Table 2 shows the

tracking confusion matrix of our software on this

database. The table shows that neutral is well

detected. Anger and Joy are detected 73.81% /

78.46% of the times correctly. The results are

satisfying. However, it has to be said that we expect

to have higher accuracy in the clinical setup because

of the better calibration stage and because of the

same quality of videos (Cohn-Kanade database

consists of images with different qualities).

Furthermore, fusion with other affect recognition

modalities will also increase the accuracy.

Table 2: The confusion matrix for the affect recognition.

Anger Joy Neutral

Anger 73.81 11.9 14.28

Joy 4.62 78.46 16.92

Neutral 0 10.53 89.47

5 CLINICAL SETUP

Controlled prospective longitudinal clinical studies

using the software have been going on for some time

(Fernandez-Aranda et al, 2012) (Jimenez-Murcia et

al, 2009). The Playmancer video game is being used

as an additional therapeutic tool (combined with

usual therapy), with consecutively admitted

outpatients. Up to now, over 30 impulsive spectrum

disorder patients (eating disorders and pathological

gamblers) have been recruited. Besides usability

scores of over 85% in patients, promising results are

being obtained in case-control studies. Upcoming

medical papers will explain these results in more

detail.

The procedure goes as follows: During the initial

session, the therapist explains the rationale behind

the study and the affect recognition to the patient

during 20 minutes. At the beginning of each session,

the affect recognition components are calibrated

Figure 5: Subject playing the therapeutic game.

with the patients. For the facial affect recognition

component a neutral, joy and anger expression is

recorded and used later on for recognition. By

knowing the patient specific maximum and

minimum value of the features (especially the

appearance-based feature), the affect recognition

rate can be improved significantly.

6 CONCLUSIONS & DISCUSSION

In this paper we have described our approach for

affect recognition intended for a Cognitive-

Behavioural Therapy. We developed an affect

recognition component that employs active shape

models to extract the geometric features. We have

chosen to add one appearance-based feature to

improve the recognition rate. Support Vector

Machines (SVM) have been employed for affect

recognition and have been trained and evaluated

with the Cohn-Kanade database. Further

experiments fusing different affect recognition

components are being conducted to improve the

results. Clinical experiments using the software are

being conducted the results of which will be part of

future publications.

ACKNOWLEDGEMENTS

The research has been funded by the European

research projects PlayMancer (FP7-ICT-215839-

2007), 3DLife NoE (IST-FP7 247688) and the Swiss

National Science Foundation project AerialCrowds

(CRSI20-122696).

REFERENCES

Moore, R., Lopes, J., 1999. Paper templates. In

TEMPLATE’06, 1st International Conference on

Template Production. SciTePress.

Smith, J., 1998. The book, The publishing company.

London, 2

edition.

Facial Affect Recognition for Cognitive-behavioural Therapy

Fernandez-Aranda, F., Nunez, A. et al. 2008. Internet-

Based Cognitive-Behavioral Therapy for Bulimia

Nervosa: A Controlled Study. Cyberpsychol Behav.

12.

Jimenez-Murcia S, A.-M. E., Granero R, et al.,2007,

Cognitive-behavioral group treatment for pathological

gambling: analysis of effectiveness and predictors of

therapy outcome. Psychotherapy Research, 17(5), 544

– 552.

Alvarez-Moya, E. M., Jimenez-Murcia, S., Moragas, L.,

Gomez-Pena, M., Aymami, M. N., Ochoa, C., et al.,

2009, Executive functioning among female

pathological gambling and bulimia nervosa patients:

preliminary findings. J Int Neuropsychol Soc, 15(2),

302-306.

Fernandez-Aranda, F., Jimenez-Murcia, S., Alvarez-

Moya, E. M., Granero, R., Vallejo, J., & Bulik, C. M.,

2006, Impulse control disorders in eating disorders:

clinical and therapeutic implications. Compr

Psychiatry, 47(6), 482-488.

Viola, P. and Jones, M. J., 2004, Robust Real-Time Face

Detection, International Journal of Computer Vision,

vol. 57, no. 2, pp. 137-154

Cohen, I., Sebe, N., Garg, A., Chen, L. S., and Huanga, T.

S., 2003, Facial expression recognition from video

sequences: temporal and static modeling, Computer

Vision and Image Understanding, vol. 91, no. 1-2, pp.

160-187

Bartlett, M. S., Littlewort, G., Frank, M., Lainscsek, C.,

Fasel, I., and Movellan, J., 2006, Fully Automatic

Facial Action Recognition in Spontaneous Behavior,

in 7th International Conference on Automatic Face

and Gesture Recognition (FGR06), pp. 223-230

Tian, Y.-li, Kanade, T., and Cohn, J. F., 2005, Facial

Expression Analysis, Handbook of Face Recognition,

vol. 3, no. 5, pp. 247-275

Patras, I. abd Pantic, M., 2005, Tracking deformable

motion, International Conference on Systems, Man

and Cybernetics, IEEE, vol.2, no., pp.1066-1071

Cootes, T. and Taylor, C., 2004, Statistical models of

appearance for computer vision, Technical report,

Imaging Science and Biomedical Engineering,

University of Manchester

Matthews, I. and Baker, S., 2004, Active appearance

models revisited, International Journal of Computer

Vision, 60(2):135–164

Stegmann, M. B., 2000, Active Appearance Models:

Theory, Extensions and Cases

Ford, G., 2002, Fully automatic coding of basic

expressions from video, Technical Report INC-

MPLab-TR-2002.03, Machine Perception Lab,

Institute for Neural Computation, University of

California, San Diego

Cohn, J. F., Reed, L. I., Ambadar, Z., and Moriyama, T.,

2004, Automatic analysis and recognition of brow

actions and head motion in spontaneous facial

behavior, in IEEE International Conference on

Systems, Man and Cybernetics (IEEE Cat.

No.04CH37583), vol. 1, pp. 610-616.

Vanderlinden, J., Dalle Grave, R., Fernandez, F.,

Vandereycken, W., Pieters, G., & Noorduin, C., 2004.

Which factors do provoke binge eating? An

exploratory study in eating disorder patients. Eat

Weight Disord, 9(4), 300-305

Ledgerwood, D. M., & Petry, N. M., 2006, Psychological

experience of gambling and subtypes of pathological

gamblers. Psychiatry Res, 144(1), 17-27.

Castrillón, M., Déniz, O., Guerra, C., and Hernández, M.,

2007, ENCARA2: Real-time detection of multiple

faces at different resolutions in video streams, Journal

of Visual Communication and Image Representation,

vol. 18, no. 2, pp. 130–140

Jia, P., 2010, 2D Statistical Models, Technical Report of

Vision Open Working Group, 2st Edition, Oct 21

Jia, P., Audio-visual based HMI for an Intelligent

Wheelchair. PhD thesis, University of Essex, 2010

Kostoulas T. et al., 2010, The PlayMancer Database: A

Multimodal Affect Database in Support of Research

and Development Activities in Serious Game

Environment, in Proceedings of the Seventh

International Conference on Language Resources and

Evaluation (LREC 2010), Valetta, Malta

Lucey, P., Cohn, J. F., Kanade, T., Saragih, J., Ambadar,

Z., and Matthews, I., 2010, The Extended Cohn-

Kanade Dataset (CK+): A complete dataset for action

unit and emotion-specified expression, in 2010 IEEE

Computer Society Conference on Computer Vision

and Pattern Recognition - Workshops, pp. 94-101

Jiménez-Murcia S, Fernández-Aranda F, Kalapanidas E,

Konstantas D, Ganchev T, Kocsis O, Lam T,

Santamaría JJ, Raguin T, Breiteneder C, Kaufmann H,

Davarakis C., 2009, Playmancer project: a serious

videogame as an additional therapy tool for eating and

impulse control disorders. Stud Health Technol

Inform,144:163-6.

Fernández-Aranda F, Jiménez-Murcia S, Santamaría JJ,

Gunnard K, Soto A, Kalapanidas E, Bults R,

Davarakis C, Ganchev T, Granero R, Konstantas D,

Kostoulas T, Lam T, Lucas M, Masuet-aumatell C,

Ben Moussa M, Nielsen J & Penelo E., 2012,Video

games as a complementary therapy tool in mental

disorders: PlayMancer, a European multicentre study,

Journal of Mental Health

EHST/ICGREEN 2012
