Multiple Hypotheses Multiple Levels Object Tracking

Ronan Sicre

1,2

and Henri Nicolas

LaBRI, University of Bordeaux, 351 Cours de la Liberation, 33405 Talence Cedex, France

MIRANE SAS, 16 Rue du 8 mai 1945, 33150 Cenon, France

Keywords:

Object Tracking, Motion Detection.

Abstract:

This paper presents an object tracking system. Our goal is to create a real-time object tracker that can handle

occlusions, track multiple objects that are rigid or deformable, and on indoor or outdoor sequences. This

system is composed of two main modules: motion detection and object tracking. Motion detection is achieved

using an improved Gaussian mixture model. Based on multiple hypothesis of object appearance, tracking is

achieved on various levels. The core of this module uses regions local and global information to match these

regions over the frame sequence. Then higher level instances are used to handle uncertainty, such as miss-

matches, objects disappearance, and occlusions. Finally, merges and splits are detected for further occlusions

detection.

1 INTRODUCTION

Object tracking is an important task in the computer

vision ﬁeld. There are two main steps in object

tracking: interest moving object detection and track-

ing these objects from frame to frame. Then anal-

ysis can determine the objects behaviors. Thus, ob-

ject tracking is used in various applications, such

as: motion-based recognition, automated surveil-

lance, trafﬁc monitoring, human computer interac-

tion, etc.

Tracking can be deﬁned as estimating the trajec-

tory of an object in the image, i.e. assigning consis-

tent labels to each tracked objects in the frames of

a video. The tracking process often provides object

size, orientation, area, or shape.

The main difﬁculties of tracking are: loss of in-

formation due to the 2D nature of the data, noises,

complex object motion, non-rigid objects, occlusions,

illumination changes, and real-time requirements.

To select a relevant method, we have to an-

swer various questions: What type of object do we

track? What model can efﬁciently detect these ob-

jects? What representation should be used for track-

ing? What information do we require for further anal-

ysis?

We are interested in tracking any object: de-

formable or non-deformable objects. We can use

a pixel-based background model to detect motion.

Tracking can be achieved by matching regions fea-

tures that are likely to remain stable from one frame

to the next, such as color, size, surface area, etc. We

want to precisely detect objects shape and contours,

for further behavior analysis in a shopping setting

(Sicre and Nicolas, 2010) for example.

2 PREVIOUS WORK

This section presents motion detection and object

tracking. For an overview of the ﬁeld the reader can

refer to (Hu et al., 2004), (Yilmaz et al., 2006), and

(Moeslund et al., 2006).

2.1 Motion Detection

The aim in this phase is to distinguish the moving ob-

jects from the background. Most motion detection

techniques use a background model. Depending on

the type of model used, we can classify methods. The

model can be pixel based, local, or global.

Pixel based models associate to each pixel of an

image a value or an intensity function that gives the

appearance of the background. Local models use the

neighborhood of a pixel instead of the pixel itself to

calculate the similarity measurement. Global meth-

ods use the entire image at each moment to build a

model of the entire background.

In our study, we chose a pixel based model that

offers a good compromise between quality and speed.

355

Sicre R. and Nicolas H..

Multiple Hypotheses Multiple Levels Object Tracking.

DOI: 10.5220/0004183103550360

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 355-360

ISBN: 978-989-8565-48-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2.2 Object Tracking

Once moving regions are detected, the following step

is to track these regions from one frame to another.

Tracking can be based on regions, contours, features

or a model (Yilmaz et al., 2006).

Region based tracking identiﬁes connected re-

gions corresponding to each object in the scene, de-

scribes and matches them. Active contour uses the

shape of the detected regions to match them from one

frame to another. Feature-based tracking does not aim

at tracking an object as one entity. We do look here for

distinctive features that can be local or global. Model

based tracking can be done in various ways: articu-

lated skeleton, 2-D contours, 3-D volumes. For each

new image, detected regions are compared to models

previously built.

In this paper, we propose an object tracking

method based on regions and regions features. More

recent tracking system are presented in (Zhang et al.,

2012), (Yang and Nevatia, 2012), and (Pinho and

Tavares, 2009).

3 MOTION DETECTION

Motion detection uses a pixel based model of the

background. We use a method based on the Gaus-

sian mixture model (GMM) ﬁrst introduced in (Stauf-

fer and Grimson, 2002). The GMM is composed of

a mixture of weighted Gaussian densities, which al-

lows the color distribution of a given pixel to be multi-

modal. Such a model is robust against illumination

changes.

Weight ω, mean µ, and covariance Σ are the pa-

rameters of the GMM that are updated dynamically

over time. The following equation deﬁnes the proba-

bility density function P of occurrence of a color u at

the pixel coordinate s, at time t, in the image sequence

P(I(s,t) = u) =

∑

i=1

i,s,t

N(I(s,t),µ

i,s,t

,Σ

i,s,t

) (1)

Where N(I(s,t),µ

i,s,t

,Σ

i,s,t

) is the i-th Gaussian

model and ω

i,s,t

its weight. The covariance matrix

i,s,t

is assumed to be diagonal, with σ

i,s,t

as its diag-

onal elements. k is the number of Gaussian distribu-

tions.

For each pixel value, I(s,t), the ﬁrst step is to

calculate the closest Gaussian. If the pixel value

is within T

deviation of the Gaussian mean, then

parameters of the matched distribution are updated.

Otherwise, a new Gaussian with mean I(s,t), a large

initial variance, and a small initial weight is created to

replace the existing Gaussian with the lower weight.

Once Gaussians are updated, weights are normal-

ized and distributions are ordered based on the value

i,s,t

/σ

i,s,t

As proposed in (Zivkovic and van der Heijden,

2006), we improve the GMM by adapting the num-

ber of selected Gaussian densities. To select the most

reliable densities, we modify the calculation of their

weights. The weight is decreased when a density is

not observed for a certain amount of time.

i,t

= ω

i,t−1

+ α(M

i,t

− ω

i,t−1

) − α c

(2)

Where α is the learning rate and M

i,t

is equal to 1

for the matched distribution and 0 for the others. c

is a scalar representing the prior evidence.

Pixels that are matched with any of the selected

distributions are labeled as foreground. Otherwise,

pixels belong to the background. We note that the

model is updated at every frame.

This method remains sensible to shadows. Thus,

we use a shadow detection algorithm. Shadows detec-

tion requires a model that can separate chromatic and

brightness components. We use a model that is com-

patible with the mixture model (KaewTraKulPong

and Bowden, 2001). We compare foreground pixels

against current background model. If the differences

in chromatic and brightness are within some thresh-

olds, pixels are considered as shadows. We calculate

the brightness distortion a and color distortion c as

follow:

a = argmin

(I(s,t) − zE)

and c = ||I(s,t) − aE||

(3)

Where E is a position vector at the RGB mean of

the pixel background and I(s,t) is the pixel value at

position s and time t. A foreground pixel is consid-

ered as a shadow if a is within T

standard deviations

and τ < c < 1. Where τ is the brightness threshold.

Finally, we modify the updating process to better

handle objects stopping in the scene. With the current

model, stopped people starts disappearing, because

they become part of the background. We modify the

updating process for the distributions parameters, i.e.

we do not update the model on areas that are consid-

ered as belonging to a tracked object. Tracked objects

are deﬁned in the next section.

We introduce F

s,t

that is a binary image represent-

ing these tracked objects. F

s,t

is a ﬁltered foreground

image where regions that were tracked for several

frames, or objects, are displayed. Pixels covered by

an object have value 1 while the others have value 0.

We modify the distribution parameters updating equa-

tions:

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

356

i,t

= ω

i,t−1

+ (1 − F

s,t

)(α(M

i,t

− ω

i,t−1

) − α c

)

= µ

t−1

+ (1 − F

s,t

)(ρ(I(s,t) − µ

t−1

)

= σ

t−1

+ (1 − F

s,t

)ρ((I(s,t) − µ

)

(I(s,t) − µ

) − σ

t−1

)

(4)

Where ρ = α η(I

s,t

|µ

,σ

). Once shadows are de-

tected and erased, morphological ﬁlters are ﬁnally ap-

plied on this result to reduce noises, ﬁll holes, and

improve regions shape.

4 OBJECT TRACKING

Based on the motion detection, we want to match the

detected connected regions, or blobs, over the frame

sequence.

After presenting our problematic, the ﬁrst step is

to merge regions, so these regions better match actual

persons. Then we match detected regions from two

consecutive frames. These matched regions are then

used to build and maintained an object list. Objects

are higher level instances that correspond to regions

that are tracked for several frames. In our application,

one object should correspond to one person or more

than one when an occlusion occurs. Finally, object

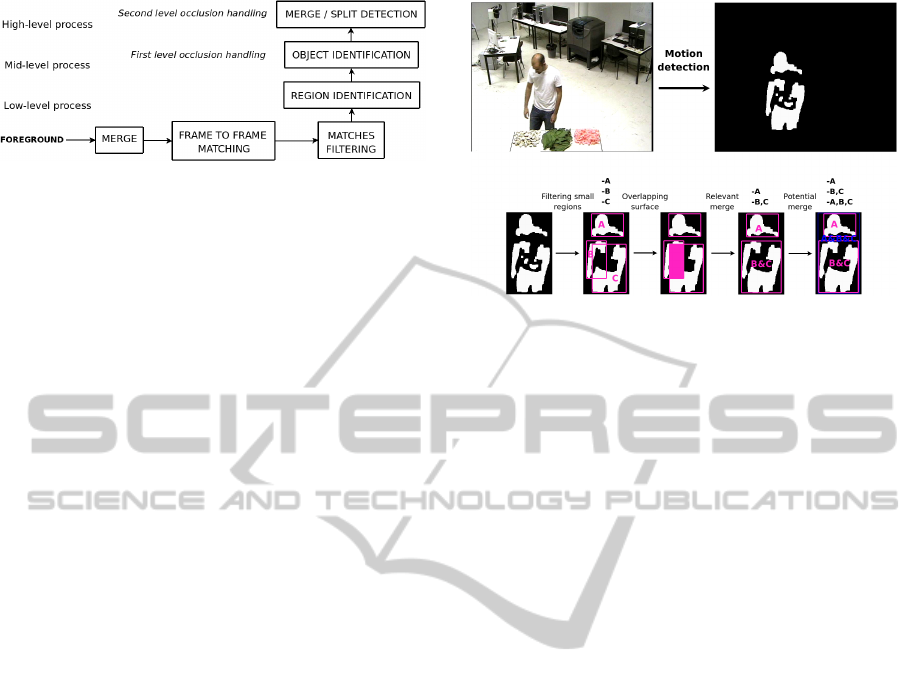

merge and split are detected to solve occlusions. Fig-

ure 1 shows the functional diagram of the system.

4.1 Multiple Hypotheses

In practice, a detected object, or person, can be cov-

ered by several disconnected regions, because the al-

gorithm misses part of the person, see ﬁgure 2. Thus,

we assume that a detected region can be:

• a part of a person

• an entire person

• a group of people

Therefore our system is complex and has to cope

with many cases.

4.2 Merging Regions

After ﬁltering out small regions, there are two sep-

arated part in the merging process. First, relevant

merges are made. These merges are detected when

two regions bounding boxes overlap with a surface

area greater than a given value. After this process,

regions better match actual persons.

Then potential merges are considered. These

merges are less reliable and are detected when two

regions bounding boxes a slightly overlapping, when

regions are closed one to another, or when regions are

located in the same vertical axis. In fact, we assume

that a person is signiﬁcantly taller than wide. We note

that this ratio depends on each person and on the cam-

era view point. Therefore, when several regions cover

a person, they should be closed one to another and

relatively in the same vertical axis.

The two types of merge have different effects on

the matching process. When two regions are reliably

merged, the two original regions become one merged

region. However, when two regions are potentially

merged, the two original regions are kept in the region

list and a new merged region is generated. Since we

are not sure about the reliability of these merges, we

use the following matching process to decide whether

merging is relevant or not. Figure 2 shows an example

of reliable and potential merge.

4.3 Frame to Frame Matching

In order to match regions, we ﬁrst build a descrip-

tor for each of them. The descriptor is composed of

the region gravity centre position, size, position of the

bounding box centre, surface area, and ﬁrst and sec-

ond order color moments.

We note that all these measurements allow us to

match regions of different size and shape. Therefore,

the selection of such feature is consistent with our hy-

potheses.

The regions’ matching is achieved by using a de-

scriptor matching algorithm, similar to (Matas et al.,

2004). We deﬁne two sets, or list, of regions descrip-

tors S

and S

. S

corresponds to the previous frame

and S

to the current one. Two regions with descrip-

tors x ∈ S

and y ∈ S

are matched if and only if x is

the most similar descriptor to y and vice-versa, i.e.

∀y

∈ S

\y : sim(x,y) > sim(x,y

) and

∀x

∈ S

\x : sim(y,x) > sim(y,x

)

(5)

Where sim is the asymmetric similarity measure

deﬁned below. To calculate sim, each component of

the descriptor is treated independently. The similar-

ity between the i-th component of x and y is equal to

1 if y i-th component is the closest measurement to

x i-th component. Otherwise, the similarity is equal

to 0. Closest measurements have smaller Euclidean

distance.

sim

(x,y) = 1 i f ∀y

∈ S

,sim

(x,y) ≥ sim

(x,y

)

0 otherwise

(6)

The overall similarity measure is deﬁned as fol-

lows

sim(x,y) =

∑

i=1

sim

(x,y) (7)

MultipleHypothesesMultipleLevelsObjectTracking

357

Figure 1: Diagram of the proposed object tracking method.

Where n is the dimension of the descriptor and ω

the weight of the i-th measurement. We choose to give

the same weight ω

= 1 to each measurement of the

descriptor. The calculation of sim(y, x) is analogous

with the roles of S

and S

interchanged.

An interesting property of this calculation is that

the inﬂuence of any single measurement is limited to

1. Another major property of this algorithm is that

measurements of different orders of magnitude can ﬁt

together in the descriptor and are easily handled.

4.4 Matches Filtering and Regions

Identiﬁcation

Once the matching process is achieved, we have cou-

ples of matched regions. We ﬁrst ﬁlter these matches:

we remove under-regions, i.e. regions that are a part

of other matched regions. Then, we test matched re-

gions for relevant merging.

The next step is to identify regions. Regions re-

ceive the identiﬁcation of the region they are matched

with, in the previous frame. If this region is not iden-

tiﬁed, we create an identity for the matched region.

4.5 Objects Identiﬁcation

However, we need to achieve matching on several lev-

els to handle the uncertainty. We use objects to repre-

sent tracked regions. These identiﬁed objects use ex-

tra temporal information. We compare each matched

region with the list of tracked objects. There are two

main cases:

- A matched region corresponds to an object and

this object is corresponding to only one region. The

region is used to update objects information, such as

its location, size, surface, color, etc.

- No object is corresponding to a matched region;

this region can be a new object entering the scene or

an old object that was lost, due to an occlusion for ex-

ample. To retrieve an object after a miss-detection

or an occlusion, we reiterate the matching process.

However, we modify the descriptor by only keeping

the measurements that are invariant to displacement.

If the region is matched to an inactive object, we may

Figure 2: Diagram representing the merging process. After

ﬁltering, we have three regions A, B, and C. B and C are

reliably merged. Then, A and BC are potentially merged

(blue bounding box).

have encountered an occlusion. Otherwise, a new ob-

ject is created and ﬁlled with the region’s information.

4.6 Merges - Splits Detection

We note that when an object disappears, during an oc-

clusion for example, as soon as this object reappears,

our method can not ﬁnd a match to the detected re-

gion. Therefore, the algorithm tries to ﬁnd a match

with an old object, as presented in the previous sec-

tion. This process already solves most occlusions.

However, some cases can be more complex and

then splits and merges offer us another clue to identify

occlusions.

Merge Detection. Several regions are merging when

these regions are considered as different identiﬁed re-

gions in the previous frames and then become one

single region at the current frame. For example, two

regions are tracked A, B and a region C = A, B rep-

resenting the potential merge of these two regions is

matched at the current frame. Then a merge just oc-

cur.

Split Detection. A region is splitting into several re-

gions when a tracked region is not matched at the

current frame and only its under-regions are matched.

For example, one potentially merged region C = A,B

is not tracked anymore and two under-regions are

matched at the current frame: A and B.

Occlusion Detection. We use several measurements

to deﬁne the consistency of these splits and merges.

First, we ﬁlter out small objects that can not corre-

spond to an entire person. Then, when a merge, or

split, occur we calculate if the concerned object(s)

was (were) tracked for a certain amount of time.

In fact, these events do not last for a long pe-

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

358

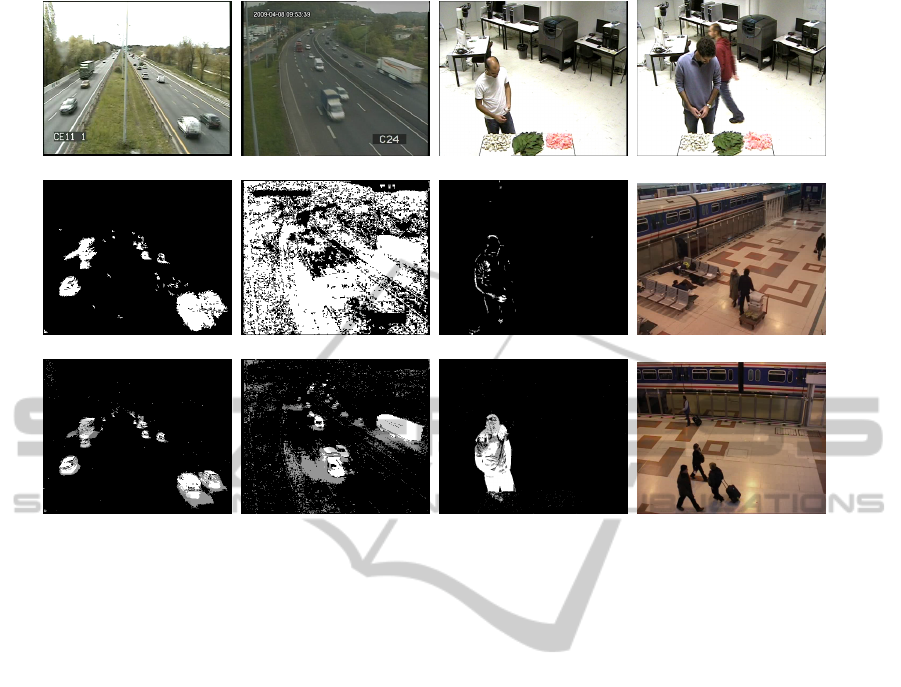

Figure 3: The three left columns present motion detection results. The original frame is on the ﬁrst row, the GMM on the

second, and the improved GMM (with shadow detection in grey) on the third. These results are obtained from V1, V2, and

LAB videos. The last column shows occlusion sequences from LAB and PETS datasets.

riod of time when they occur on a single person

that splits into several parts and merge back into one

piece. Moreover, when two tracked people meet, they

are usually tracked for a certain time before the en-

counter. Finally, we calculate the amount of time be-

tween the merge and the split. Based on these mea-

surements we can detect occlusions.

5 RESULTS

We ﬁrst present some motion detection results. Figure

3 shows three images from three different sequences

and the detection results for GMM and iGMM. The

two ﬁrst columns show that shadows detection im-

proves the detection results. The third column shows

the detection of a stopped person. iGMM detects

properly stopped objects where GMM fails to detect

them. Further evaluation of this method is presented

in (Sicre and Nicolas, 2011).

Then, we compare our method with four tracking

algorithms from OpenCV. These algorithm are com-

monly used and cover the main current tracking meth-

ods: a connected component with Kalmann Filter-

ing (CC) method, a mean-shift tracker initialized us-

ing motion detection (MS), a particle ﬁltering method

using mean-shift weight (MSPF) (Korhonen et al.,

2005), and a combined CC tracker with particle ﬁl-

tering to solve collisions (CCMSPF).

We ﬁrst compare these trackers on partial and

complete occlusion sequences, see table 1. We use

our dataset showing shopping scenarios and videos

from PETS 2006 (Pet, 2013). The number of occlu-

sions correctly handled on the total number of occlu-

sions are presented in table 1. We note that tests are

achieved on more occlusions sequences for our tech-

nique. In fact, the other methods require a longer ini-

tialization phase. It is therefore not possible to com-

pare results on several videos because the other meth-

ods do not track the objects fast enough.

We ﬁnally achieve the task of counting cars for

trafﬁc monitoring purposes, see table 1. We count

only objects that are tracked for at least 30 frames.

Based on the same detection, we test the various

tracking algorithms. Our method outperforms the

other methods on this task and is the second fastest

method, see table 1.

6 CONCLUSIONS

This paper presents our tracking algorithm. The

method is based on several hypotheses of the mov-

ing objects appearances. We match moving regions

MultipleHypothesesMultipleLevelsObjectTracking

359

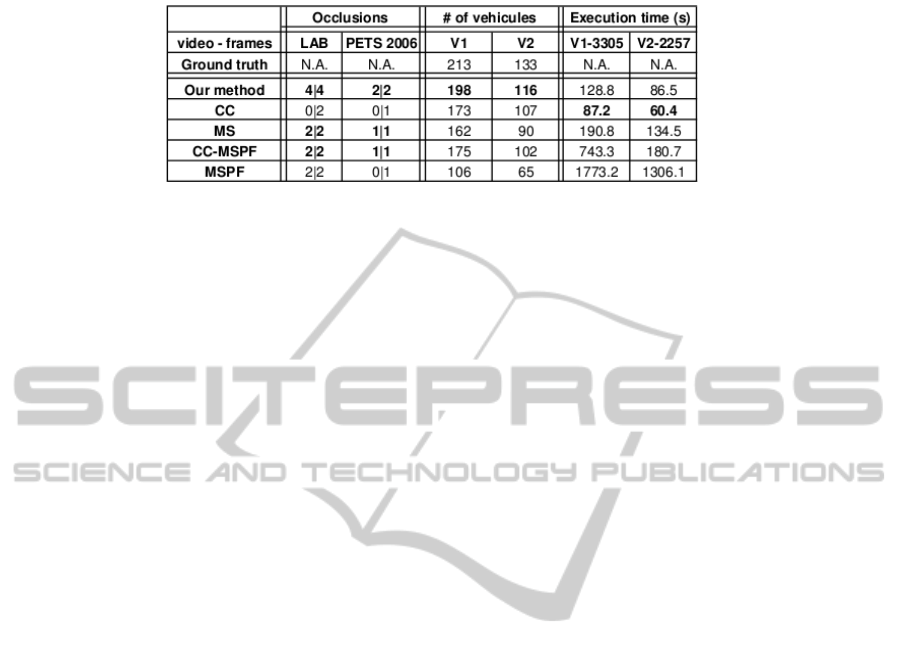

Table 1: Table relating the evaluation of several tracking algorithm on the task of counting vehicles and handling occlusions.

on several levels to cope with uncertainty and we de-

tect splits and merges to detect occlusions.

We compare our method with other tracking

method such as connected components, mean-shift,

particle ﬁltering, and a combination of connected

components and particle ﬁltering to manage occlu-

sions.

The proposed method can track more than a dozen

objects simultaneously. We track various types of

objects: deformable, non-deformable, with different

sizes. Tracking works indoors or outdoors and han-

dles various occlusions sequences. Finally, our sys-

tem can be used for real-time applications.

ACKNOWLEDGEMENTS

ADACIS sarl and CETE sud-ouest provided the trafﬁc

sequences.

REFERENCES

(2013). PETS: Performance Evaluation of Tracking and

Surveillance.

Hu, W., Tan, T., Wang, L., and Maybank, S. (2004). A

survey on visual surveillance of object motion and be-

haviors. Systems, Man and Cybernetics, Part C, IEEE

Transactions on, 34(3):334–352.

KaewTraKulPong, P. and Bowden, R. (2001). An im-

proved adaptive background mixture model for real-

time tracking with shadow detection. In Proc. Euro-

pean Workshop Advanced Video Based Surveillance

Systems, volume 1. Citeseer.

Korhonen, T., Pertil, P., and Visa, A. (2005). Particle ﬁlter-

ing in high clutter environment. In Proceedings of the

2005 Finnish Signal Processing Symposium. FINSIG.

Matas, J., Chum, O., Urban, M., and Pajdla, T. (2004).

Robust wide-baseline stereo from maximally stable

extremal regions. Image and Vision Computing,

22(10):761–767.

Moeslund, T. B., Hilton, A., and Krger, V. (2006). A sur-

vey of advances in vision-based human motion cap-

ture and analysis. Computer Vision and Image Under-

standing, 104(2-3):90 – 126.

Pinho, R. and Tavares, J. (2009). Tracking features in image

sequences with kalman ﬁltering, global optimization,

mahalanobis distance and a management model.

Sicre, R. and Nicolas, H. (2010). Human behaviour analy-

sis and event recognition at a point of sale. In IEEE,

editor, Proceedings of PSIVT PSIVT.

Sicre, R. and Nicolas, H. (2011). Improved gaussian mix-

ture model for the task of object tracking. In Com-

puter Analysis of Images and Patterns, pages 389–

396. Springer.

Stauffer, C. and Grimson, W. (2002). Adaptive background

mixture models for real-time tracking. In Computer

Vision and Pattern Recognition, 1999. IEEE Com-

puter Society Conference on., volume 2.

Yang, B. and Nevatia, R. (2012). An online learned crf

model for multi-target tracking. In Computer Vision

and Pattern Recognition (CVPR), 2012 IEEE Confer-

ence on, pages 2034–2041. IEEE.

Yilmaz, A., Javed, O., and Shah, M. (2006). Object track-

ing: A survey. Acm Computing Surveys (CSUR),

38(4):13.

Zhang, T., Ghanem, B., Liu, S., and Ahuja, N. (2012).

Robust visual tracking via multi-task sparse learning.

In Computer Vision and Pattern Recognition (CVPR),

2012 IEEE Conference on, pages 2042–2049. IEEE.

Zivkovic, Z. and van der Heijden, F. (2006). Efﬁcient adap-

tive density estimation per image pixel for the task of

background subtraction. Pattern recognition letters,

27(7):773–780.

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

360
