Assessing Against IEC 80001-1

Silvana Togneri MacMahon

, Fergal Mc Caffery

, Sherman Eagles

, Frank Keenan

Marion Lepmets

and Alain Renault

Regulated Software Research Group, Department of Computing & Mathematics, Dundalk Institute of Technology & Lero

Dundalk Co. Louth, Dundalk, Ireland

SoftwareCPR, Saint Paul, MN 55114, U.S.A.

Public Research Centre Henri Tudor, Luxembourg, Luxembourg

Keywords: IEC 80001-1, ISO/IEC 15504 – Process Assessment, Service Management, ISO/IEC 20000-1, TIPA, ITIL.

Abstract: Medical devices are designed and produced subject to various standards. These standards are recognized by

the regulatory authorities within the region in which they are going to be marketed. Traditionally medical

devices were placed on a proprietary network; however emergent technology is increasingly seeing medical

devices being included on to the general hospital IT network. The incorporation of a medical device into an

IT network can introduce risks which can impact the safety, effectiveness & security of the medical device.

80001-1: Application of Risk Management for IT networks incorporating Medical Devices addresses the

risk that healthcare can be compromised when a medical device is incorporated into an IT network. In order

to address these risks, an assessment of the network against IEC 80001-1 must be performed. To perform an

assessment which is compliant with ISO/IEC 15504-2 of an IT network against IEC 80001-1, a process

assessment model is required. This paper examines how a process assessment model could be developed to

assess against IEC 80001-1.

1 INTRODUCTION

IEC 80001-1 (IEC, 2010) “represents a catalyst for a

new level of IT and clinical technology cooperation

to ensure network changes don’t negatively impact

biomedical systems” (Cooper et al., 2011) . When a

medical device is incorporated into an IT network, a

medical device network is established. Medical

Devices are subject to regulations as prescribed by

the various regulatory authorities of the regions in

which the device is to be marketed. When a medical

device is incorporated into an IT network which

contains other IT components, this creates a new

system in which the medical device has not been

validated. New hazards may emerge that are directly

related to the interaction of the networked

components that were not considered when the

device was being designed and validated (Cooper et

al., 2011). Prior to the introduction of IEC 80001-1,

no standard addressed the risks of incorporating a

medical device into an IT network. IEC 80001-1

extends the definition of harm and identifies three

main areas of risk – safety, effectiveness and (Data

& System) security. IEC 80001-1 takes a life cycle

approach to risk management. This paper examines

how a Process Assessment Model (PAM) (which is

compliant ISO/IEC 15504-2 Information technology

- Process assessment (ISO/IEC, 2003) ) may be

developed to be used to assess against IEC 80001-1.

The remainder of this paper examines the

requirements contained in IEC 80001-1 and how

IEC 80001-1 is related to ISO/IEC 20000-1

Information technology - Service management

(ISO/IEC, 2011). ISO/IEC 15504 is examined in

terms of its requirements for the development of

process models. Finally the paper focuses on how

current PAMs (which comply with ISO/IEC 15504-

2) were developed to assess against service

management standards and examines how these

methods could be used to develop PAMs to assess

against IEC 80001-1.

305

Togneri MacMahon S., Mc Caffery F., Eagles S., Keenan F., Lepmets M. and Renault A..

Assessing Against IEC 80001-1.

DOI: 10.5220/0004184103050308

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2013), pages 305-308

ISBN: 978-989-8565-37-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 IEC 80001-1- APPLICATION

OF RISK MANAGEMENT

FOR IT-NETWORKS

INCORPORATING MEDICAL

DEVICES

IEC 80001-1 identifies 3 main areas of risk – safety,

effectiveness & (Data & System) security. IEC

80001-1 covers the entire life cycle of the medical

IT network, incorporating the principle that a risk

management process should be implemented not

only when creating a medical device network or but

also when removing, maintaining or

changing/modifying equipment on a medical device

network. IEC 80001-1 uses a risk based approach

based on the approach as outlined within ISO 14971

Application of risk management to medical devices

(ISO, 2007) .

In order to address the variety of approaches to

risk management among Responsible Organisations

(RO), IEC 80001-1 outlines the specific roles,

responsibilities and activities that must be performed

with regard to the risk management of the

incorporation of medical devices into IT networks.

The standard is addressed to ROs, Medical Device

Manufacturers (MDM) and to the providers of other

information technology. An RO is defined within the

standard as “an entity responsible for the use and

maintenance of a Medical IT network”. IEC 80001-1

recognizes that the overall responsibility for the

Medical IT network belongs to the RO. The RO

must establish a risk management policy for the

incorporation of medical devices into an IT network

and must appoint a medical IT risk manager. The

risk manager must maintain the risk management

file which must contain sufficient documentation as

to support the risk management activities required

by IEC 80001-1.

Life cycle risk management must be performed

in a way that allows the RO to support effective

healthcare delivery. When making changes to or

performing maintenance activities on medical

devices, ROs must follow strictly formal approaches

directly involving the manufacturer of the device.

This establishes an on-going relationship between

the RO and the device manufacturer which continues

for the entire life cycle of the medical IT network. In

this context, we review in the next section the

relationship between IEC 80001-1 and the generic

Service Management standard ISO/IEC 20000-1.

3 RELATIONSHIP BETWEEN

IEC 80001-1 AND ISO/IEC

20000-1

Annex D of IEC 80001-1 examines the relationship

between ISO/IEC 20000-1 (and ISO/IEC 20000-2),

highlighting the processes that are common to both

such as Change Management or Release

Management. Annex D also highlights a number of

areas within the 2 standards where the terminology

differs but the underlying process areas are the same.

For example, what is referred to as “Risk

Management Process” in IEC 80001-1 appears as

“Security Risk Assessment Practices” within

ISO/IEC 20000. Due to the common life cycle

approach, the concepts of Service Management as

described in ISO/IEC 20000-1 and ISO/IEC 20000-2

(ISO/IEC, 2005) have been examined for their ability

to meet the requirements outlined in IEC 80001-1

(IEC, 2010) .

4 ISO/IEC 20000 – SERVICE

MANAGEMENT STANDARDS

ISO/IEC 20000-1 requires “an integrated process

approach” when the service provider “plans,

establishes, implements, operates, monitors, reviews,

maintains and improves a service management

system (SMS)”. In order to follow this integrated

process approach, ISO/IEC 20000 promotes a “Plan,

Do, Check, Act” procedure. The “Plan” phase

involves establishing, documenting and agreeing the

SMS policies plans and objectives. The “Do” phase

involves implementing and operating the SMS. The

“Check” phase involves monitoring, measuring and

reviewing the SMS to ensure that it meets the agreed

policies and objectives. The “Act” phase involves

taking actions to continually improve the

performance of the SMS (ISO/IEC, 2011). :

ISO/IEC 20000-2 (ISO/IEC, 2005) describes the

best practices for Service Management within the

scope of ISO/IEC 20000-1. Guidance is provided on

the 5 process categories identified in Part 1 of the

standards namely Service Delivery Processes,

Control Processes, Release Processes, Resolution

Processes and Relationship Processes. ISO/IEC

20000-4(ISO/IEC, 2010a) ISO/IEC 20000-4 provides

the Process Reference Model (PRM) for IT Service

Management based on the requirements of ISO/IEC

20000-1.

Best practices for Service Management are also

outlined within the Information Technology

HEALTHINF2013-InternationalConferenceonHealthInformatics

306

Infrastructure Library (ITIL) (Cartlidge et al., 2007).

ITIL was developed in the United Kingdom at the

end of the 1980’s. ITIL has become the world wide

“de facto” standard for IT Service Management

(Barafort et al., 2009) and is now owned by the

Cabinet Office . ITILv3 consists of 5 publications

which cover – Service Strategy, Service Design,

Service Transition, Service Operation and Continual

Service Improvement.

As both ISO/IEC 20000-4 and ITIL deal with a

life cycle approach to Service Management, they are

very similar standards. The relationship between

ITILv3 and ISO/IEC 20000 is close - to the extent

that ISO/IEC 20000 has become known as the “ITIL

standard”. In the latest version of the standard

ISO/IEC 20000-1:2011, there have been steps taken

to ensure that ISO/IEC 20000 is more closely aligned

with ITILv3 (Dugmore and Taylor, 2008) .

5 ISO/IEC 15504 AND THE

DEVELOPMENT OF PROCESS

ASSESSMENT MODELS

ISO/IEC 15504-2 defines the requirements for

performing process assessment as a basis for use in

process improvement and capability determination.

ISO/IEC 15504-2 defines a measurement framework

for the process capability and defines the

requirements for performing an assessment. It also

defines requirements for building PRMs, building

PAMs and verifying conformity of process models

and of process assessment. Process assessment is

viewed on the basis of a two dimensional model

containing both a process dimension and a capability

dimension. The process dimension is provided by

reference to an external PRM in which processes are

characterized in terms of their purpose and their

outcomes. Further guidelines for process description

are outlined in ISO/IEC TR 24774:2010 (ISO/IEC,

2010b) . The capability dimension is based on 6

capability levels. The achievement of these

capability levels is based on the achievement of the

associated process attributes.

In order to perform an assessment which is

compliant with ISO/IEC 15504-2, a PAM is

required. ISO/IEC 15504-5 (ISO/IEC, 2006)

provides an exemplar PAM which can be used to

perform an assessment compliant with the

requirements defined in ISO/IEC 15504-2. The

PAM extends the PRM process definitions by

including a measurement framework.

Process assessment contains 2 aspects, capability

determination and process improvement. Once

process capability has assessed the current state of a

set of processes (against a target capability level

determined in advance of the assessment), the results

of the assessment are then analysed to determine the

strengths, weaknesses, opportunities and threats in

the process context and process improvement can be

undertaken on this basis.

6 THE DEVELOPMENT OF

A PROCESS ASSESSMENT

MODEL TO ASSESS AGAINST

IEC 80001-1

In order to perform an assessment against IEC

80001-1, our research to date has focused on

investigating how other ISO/IEC 15504-2 compliant

process models have been developed to assess

against other similar standards. Given the

relationship between IEC 80001-1 and ISO/IEC

20000-1, we have investigated how the PAM for this

standard was developed. We also investigated how

the TIPA PAM was developed. We discovered that

the TIPA framework which was developed by Public

Research Centre Henri Tudor can be used to assess

against both ISO/IEC 20000 and ITIL. The TIPA

PAM which is used to assess against ITIL continues

to be updated to assess against the latest versions of

ITIL. It should be noted that the TIPA PAM which

was developed to assess against ISO/IEC 20000 is

no longer being updated but is being further

developed in JTC1 ISO/IEC SC7 under the title

ISO/IEC 15504-8.

In developing the TIPA PAM for ITIL and the

TIPA PAM for ISO/IEC 20000, the TIPA

transformation process was used. The TIPA

transformation process was developed to address the

fact that while ISO/IEC 15504 provides a detailed

description of the process assessment approach and

provides an exemplar PAM in ISO/IEC 15504-5,

there is no guidance to support the transformation

from the input (domain requirements) to the output

(process model). This gap was identified by Barafort

et al. (Barafort et al., 2008) and the TIPA

transformation process was developed as a means to

develop ISO/IEC 15504-2 compliant PAMs using

goal driven requirement engineering techniques.

Due to the similarities between ISO/IEC 20000

and IEC 80001-1., it is clear that using the TIPA

transformation process; a process assessment model

could be built to assess medical IT networks against

IEC 80001-1

AssessingAgainstIEC80001-1

307

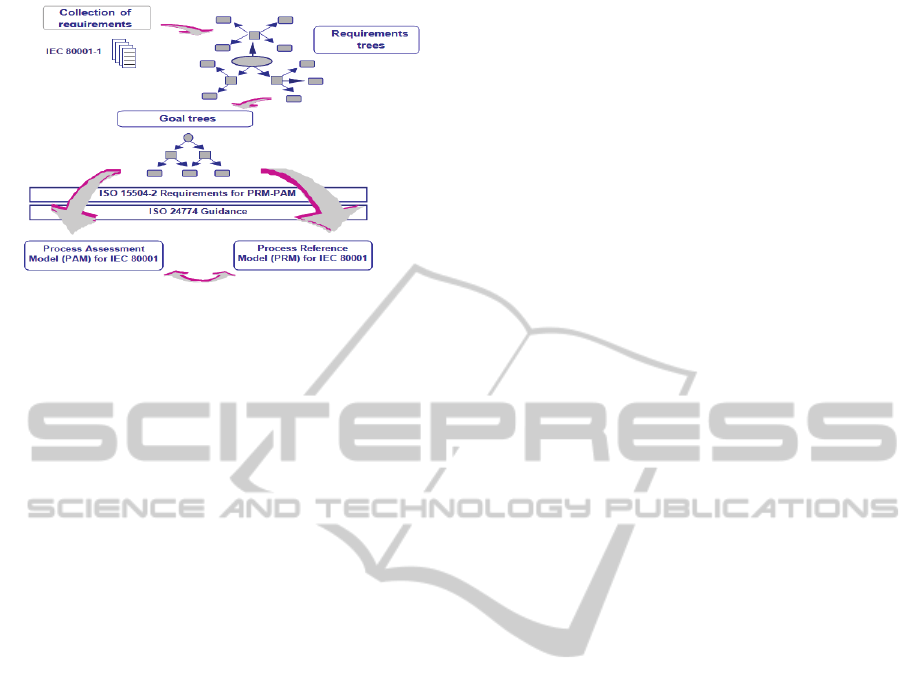

Figure 1: Shows how the TIPA transformation process

may be used to create a PRM and PAM to assess medical

IT networks against IEC 80001-1.

7 CONCLUSIONS AND FUTURE

WORK

It is proposed that a PAM could be developed, using

the TIPA transformation process, to assess against

IEC 80001-1. Future research will focus on the

development of a PRM and PAM based on the TIPA

transformation process. Each process will be

validated by industry experts and amended

according to the consensus. Once the PRM and

PAM have been fully developed, the model will then

be validated through trials.

ACKNOWLEDGEMENTS

This research is supported by the Science

Foundation Ireland (SFI) Stokes Lectureship

Programme, grant number 07/SK/I1299, the SFI

Principal Investigator Programme, grant number

08/IN.1/I2030 (the funding of this project was

awarded by Science Foundation Ireland under a co-

funding initiative by the Irish Government and

European Regional Development Fund), and

supported in part by Lero - the Irish Software

Engineering Research Centre (http://www.lero.ie)

grant 10/CE/I1855.

ITIL® is a registered trade mark of the Cabinet

Office. TIPA® is a Registered Trade Mark of the

CRP Henri Tudor

REFERENCES

Barafort, B., Betry, V., Cortina, S., Picard, M., St Jean,

M., Renault, A., Valdés, O. & Tudor, P. R. C. H. 2009.

ITSM Process Assessment Supporting ITIL : Using

TIPA to Assess and Improve your Processes with ISO

15504 and Prepare for ISO 20000 Certification,

Zaltbommel, Netherlands, Van Haren.

Barafort, B., Renault, A., Picard, M. & Cortina, S. 2008. A

transformation process for building PRMs and PAMs

based on a collection of requirements – Example with

ISO/IEC 20000. SPICE Nuremberg, Germany.

Cartlidge, A., Hanna, A., Rudd, C., Macfarlane, I.,

Windebank, J. & Rance, S. 2007. An introductory

Overview of ITILv3. The UK Chapter of the itSMF.

Cooper, T., David, Y. & Eagles, S. 2011. Getting Started

with IEC 80001: Essential Information for Healthcare

Providers Managing Medical IT-Networks, AAMI.

Dugmore, J. & Taylor, S. 2008. ITILv3 and ISO/IEC

20000 - Alignment White Paper - March 2008. Best

Management Practice for IT Service Management

[Online]. [Accessed 02/01/2012].

IEC 2010. IEC 80001-1 - Application of Risk

Management for IT-Networks incorporating Medical

Devices - Part 1: Roles, responsibilities and activities.

Geneva, Switzerland: International Electrotechnical

Commission.

ISO 2007. ISO 14971:2007 - Medical Devices -

Application of Risk to Medical Devices. Geneva,

Switzerland: International Organisation for

Standardization.

ISO/IEC 2003. ISO/IEC 15504-2:2003 - Software

engineering — Process assessment — Part 2:

Performing an assessment. Geneva, Switzerland.

ISO/IEC 2005. ISO/IEC 20000-2:2005 - Information

technology -- Service management -- Part 2: Code of

Practice. Geneva, Switzerland.

ISO/IEC 2006. ISO/IEC 15504-5 - Information

technology — Process Assessment — Part 5: An

exemplar Process Assessment Model. Geneva,

Switzerland.

ISO/IEC 2010a. ISO/IEC TR 20000-4:2010 - Information

technology — Service management - Part 4: Process

reference model. Geneva, Switzerland.

ISO/IEC 2010b. ISO/IEC TR 24774:2010 - Systems and

software engineering — Life cycle management —

Guidelines for process description. Geneva,

Switzerland.

ISO/IEC 2011. ISO/IEC 20000-1:2011 - Information

technology —Service management Part 1: Service

management system requirements. Geneva,

Switzerland.

HEALTHINF2013-InternationalConferenceonHealthInformatics

308
