Secure UHF Tags with Strong Cryptography

Development of ISO/IEC 18000-63 Compatible Secure RFID Tags

and Presentation of First Results

Walter Hinz, Klaus Finkenzeller and Martin Seysen

Giesecke & Devrient GmbH, Prinzregentenstrasse 159, 81677, Munich, Germany

Keywords: UHF Tag, Public Key Cryptosystem, Rabin, Montgomery.

Abstract: This paper presents a concept for an UHF tag supporting cryptographically strong authentication which is

based on the Rabin-Montgomery public key cryptosystem in accordance with the framework of ISO/IEC

29167-1. It uses an easily computable long integer square operation for the public key encryption of a tag ID

record. Only a legitimate interrogator who is in possession of the private key can decrypt this message and

retrieve the authentic tag ID. A working prototype based on a standard FPGA is shown which demonstrates

the feasibility of the proposed cryptographic function.

1 INTRODUCTION

Backscatter-coupled RFID systems are being used in

a large number of applications such as logistics,

supply chain, warehouse management, retail stores,

and similar applications.

Backscatter-coupled RFID systems are mainly

operated in the UHF frequency ranges 868 MHz

(Europe) and 915 MHz (USA, Asia). These UHF-

RFID Systems are primarily covered by the standard

(ISO/IEC 18000-6, 2010).

The majority of the applications mentioned

above operate according to ISO/IEC 18000-6

Type_C (ISO/IEC 18000-6C will be published as

Part -63 in the future (ISO/IEC FDIS 18000-63))

which describes the physical characteristics and pro-

tocol behaviour of the so called “Electronic Product

Code”, the EPC. This standard is designed for the

fast detection of huge numbers of transponders in

the field at the same time, and for a small amount of

data to be transferred between an interrogator and a

tag.

A typical transponder is field-powered and uses

modulated backscatter signals to transmit data back

to the interrogator. The operating range of these pas-

sive (or field-powered) transponders is mainly lim-

ited by the ability to get sufficient power from the

field into the transponder in order to operate the sili-

con chip. Typical maximum operating distances of

such passive transponders are between 3 and 10 m.

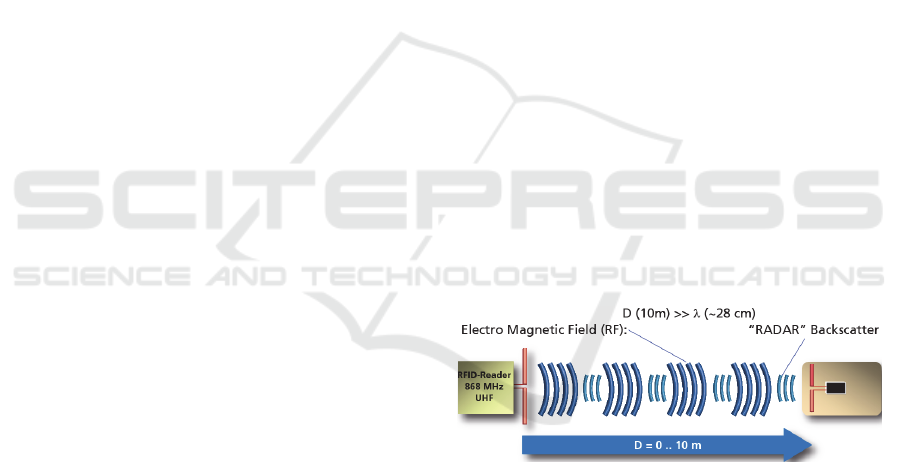

Figure 1: Principle of UHF RFID.

Another class of transponder uses an on-board

battery to supply the silicon chip with energy. The

operating range of these battery assisted passive

(BAP) tags is mainly limited by the interrogator’s

ability to receive and detect the modulated backscat-

ter signal from the transponder, in addition to its

own high-power signal. Typical maximum operating

distances of BAP transponders are up to 25 m.

Despite of these range limitations, there are real

time locating systems (RTLS), which are able to

detect a locally powered transponder from a distance

of 100 m and above. These systems are much more

sensitive than RFID readers, because they do not

suffer from the strong signal carrier emitted at the

same antenna, as an interrogator does.

With special equipment like communication re-

ceivers and high gain directional antennas, there is

always the possibility to eavesdrop a communication

between an UHF-RFID interrogator and a tran-

sponder from a considerable distance up to several

hundreds of meters.

Hinz W., Finkenzeller K. and Seysen M..

Secure UHF Tags with Strong Cryptography - Development of ISO/IEC 18000-63 Compatible Secure RFID Tags and Presentation of First Results.

DOI: 10.5220/0004194800050013

In Proceedings of the 2nd International Conference on Sensor Networks (SENSORNETS-2013), pages 5-13

ISBN: 978-989-8565-45-7

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

In many cases it is not desirable that an object or

subject carrying an RFID tag can be identified or

tracked, either with a standard RFID interrogator or

by eavesdropping the communication between the

tag and an interrogator. For example, whenever the

tag is associated with a person, privacy rules apply.

Furthermore, it could be possible to transmit strong

backscatter signals with forged information which

superimpose the original data sent by the tag.

Therefore, it is desirable to have a secure variant

of RFID, where cryptographic functions allow only

a legitimate interrogator to identify a tag, to impede

eavesdropping and to prevent the infiltration of false

information.

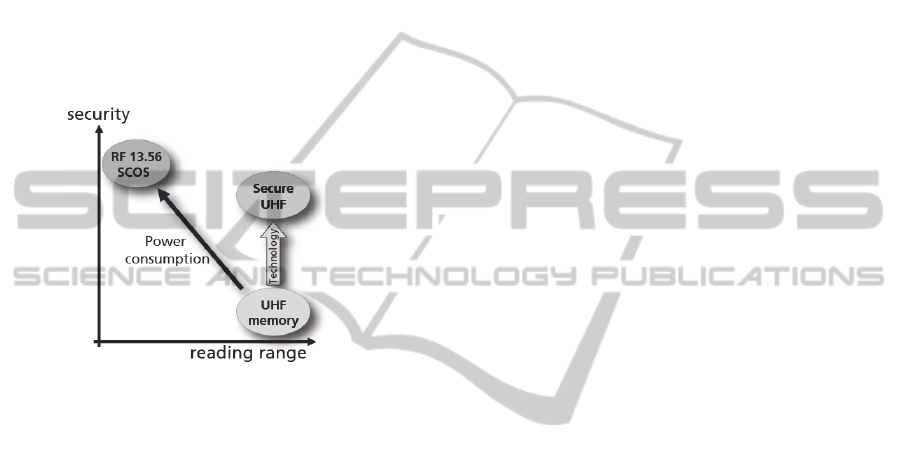

Figure 2: Technology leap with Secure UHF.

For inductively coupled RFID devices, mainly

operated in the 13.56 MHz RF frequency range,

cryptographic functions and even complex smart

card operating systems (SCOS) are available for

nearly one and a half decades now. Inductively cou-

pled RFID devices however are operated close to the

reader, typically at a distance of up to 10 cm. Due to

the strong coupling between the reader and the tag’s

antenna inductive RFID systems have sufficient

power to operate complex microprocessors even

with cryptographic co-processors. UHF RFID tags

on the other hand have to be operated with about 10

to 100 times less power. Therefore, UHF RFID tags

in the past provided no cryptographic security at all

(Finkenzeller, 2012).

Over the years however, silicon technology con-

tinuously improved, resulting in ever-decreasing

power consumption. In the recent years a point has

been reached, where cryptographic functions on

UHF RFID tags seem to become feasible. For that

reason, ISO/IEC JTC1/SC31 has recently started

standardisation activities to provide crypto suites for

future UHF RFID tags. The results will be published

in a new standard series ISO/IEC 29167 with differ-

ent parts, which are currently available in first work-

ing drafts (WD).

In the remainder of this paper a concept for a se-

cure UHF tag with strong cryptography will be pre-

sented in section 2. As the required protocol exten-

sion is not yet available, a first prototype working

with currently defined standards, and first results are

shown in sections 3 and 4.

It is paramount that the secure RFID tag shall be

fully compatible with ISO/IEC 18000-6, such that

interrogators conforming to this standard can be con-

tinued to be used. The proposed protocol is designed

along the command structure which is currently be-

ing discussed in the context of security suites in

ISO/IEC WD 29167.

Especially because suitable interrogators are not

yet available, a preliminary workaround protocol

had to be used to achieve first results.

2 PROTOCOL CONCEPT FOR A

SECURE RFID TAG

2.1 General Concept

In accordance with WD 29167-1 we developed a

secure protocol for authentication and identification

of a tag by use of the Authenticate command as de-

fined in the working draft. Within this framework

we defined a specific format for the payload field. In

the following the content of this payload is ex-

plained.

The authentication protocol comprises the en-

cryption of a message by the tag containing the tag’s

identification information. In order to guarantee the

freshness of the encrypted message, random num-

bers originating both from the interrogator and the

tag are also included. Because the confidentiality of

a key stored in the tag cannot be assured, it is neces-

sary to employ a public key cryptosystem with the

public key stored in the tag(s) and the private key on

the interrogator side.

In the following, the particular cryptosystem and

the format of the plaintext message is explained. In

the context of public key cryptosystems the message

is considered as a long integer number M, which

constitutes the payload field as defined in WD

29167-1.

2.2 The Rabin Cryptosystem

For the authentication part we used the Rabin public

key cryptosystem which is based on the modular

multiplication of long integers (Rabin, 1979). A step

by step explanation of the algorithm can be found in

(Menezes et al., 1997).

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks

A proof that breaking a particular encryption

scheme is as difficult as solving a computational

problem which is believed to be difficult, is a desir-

able property. The Rabin public key encryption

scheme was the first example of provable security,

because the problem of breaking it is computational-

ly equivalent to factoring.

In order to generate a public key and the corre-

sponding private key, two random and distinct

primes p and q of roughly the same size need to be

generated. To keep the decryption algorithm simple,

we assume that these primes satisfy the congruence

condition

3 qp )4(mod

(1)

Here p and q together constitute the private key

while the product





(2)

is the public key.

The plaintexts in the Rabin encryption scheme

are the integers 0 < M < n. The ciphertext C corre-

sponding to M is defined as the square of the long

number M modulo n

nMC mod



(3)

Rabin decryption thus means taking the modular

square root of cipher text C,

nCM mod

(4)

In the general case there is no efficient algorithm

to find M. For a modulus n = p q, with p and q

prime, the following roots can be determined:

pCm

mod (5)

qCm

mod (6)

By virtue of the congruence condition (1) the two

roots are given by

pCm

mod

1



(7)

qCm

mod

1



(8)

By means of the extended Euclidian algorithm it

is possible to determine integers y

and y

which

satisfy the equation

1



 qypy

(9)

Finally four roots of C, namely +r, -r, +s, and -s,

can be calculated by application of the Chinese Re-

mainder Theorem as

nmqympyr

pqqp

mod)( 





(10)







(11)

nmqympys

pqqp

mod)( 











(12)

sns







(13)

Which one of the four roots (±r, ±s) is the de-

sired clear text message M has to be determined by

searching for a specific characteristic, such as an

embedded checksum or other redundant information.

2.3 Montgomery Multiplication

Modular reduction as in equation (3) is usually quite

cumbersome to calculate for a microprocessor with

low capabilities, because of the division involved.

The paper (Montgomery, 1985) proposes an alterna-

tive computation scheme which requires only multi-

plication. The cost of multiplication is much less

than that of division, especially if a hardware multi-

plier is available.

Consider a residue R where R is a power of 2

and an odd modulus

 2 . In other words, R

a power of 2 which is larger than n. Usually k is a

multiple of the word size w of the processor per-

forming the hardware multiplication. For a suitable

R one calculates

nRMC mod

12* 



(14)

Without the cost for squaring M, the quantity C

can be computed with (k/w)

+ O(k/w) multiplica-

tions of w-bit numbers, and without any divisions,

see (Montgomery, 1985) for details. Squaring M

costs 0.5(k/w)

+ O(k/w) more multiplications, so

that in total we need 1.5(k/w)

+ O(k/w) multiplica-

tions of w-bit numbers.

One should be aware that C*≠ C, and before we

can proceed with calculating the roots, we have to

undo the effect of the Montgomery multiplication

nRRMnRCC mod)(mod

12* 



(15)

The final calculation needs, apart from approxi-

mately the double length operands, just one conven-

tional modular reduction, but this is made on the

host system connected to the interrogator where

computing power and space requirements should not

pose any problem.

If the modulus n is chosen to satisfy the condi-

tion

)2(mod1

2/k

n 

(16)

which means that about one half of the least signifi-

cant bits of n (except for the last one) are zeroes,

about one third of the necessary multiplications to

evaluate equation (14) can be saved.

SecureUHFTagswithStrongCryptography-DevelopmentofISO/IEC18000-63CompatibleSecureRFIDTagsand

PresentationofFirstResults

Figure 3: Identification message (before MIX).

Unlike modular reduction the Montgomery mul-

tiplication method does not guarantee that the result

in equation (14) is actually smaller than the modulus

n, therefore a final reduction step may be necessary

which causes high computational load and leaks side

channel information due to different timing with and

without reduction. The probability for a modulus

overflow in equation (14) can be significantly re-

duced by choosing the residual exponent k a bit larg-

er than actually required. In practical terms one se-

lects the exponent as k ≈ log

n + d where d is a se-

curity parameter, so that k is a multiple of the tag

microprocessor hardware multiplier’s word length.

In our example we chose n = 1024 and d = 64 for

a 16



16 multiplier unit, giving k = 1088 and R = 2

2.4 The Identification Message

The most important part of the identification mes-

sage is the unique tag ID. In order to preserve its

authenticity it is digitally signed before it is person-

alised into the tag during production. The signature

method is out of scope for these considerations;

however, for practical purposes one would choose

an appropriate Elliptic Curve Cryptosystem (ECC),

because the size has to fit into the tag authentication

message.

With the parameters chosen, the authentication

message has a size of 128 bytes. To resolve the am-

biguity of the four possible square roots two bytes

are reserved for a checksum and the most significant

byte must contain 0x00. Only the root with the cor-

rect checksum will be processed by the interrogator.

This leaves 125 bytes for the actual ID content.

As discussed earlier we need some random bytes

to guarantee the freshness of the encrypted ID mes-

sage and to prevent the recycling of an eavesdropped

ID record. We chose 10 random bytes to be contrib-

uted by the interrogator and another 10 bytes con-

tributed by the tag.

After these considerations 105 bytes remain for

the ID information. To gain flexibility in the size of

the individual elements of the signed tag ID these

are TLV (tag-length-value) encoded. If the ID in-

formation does not fill the whole space available, the

tag will insert the necessary amount of fresh random

data in order to provide the required total of 128

bytes.

Figure

3 shows the composition of the identifica-

tion message described so far. If we used this ID

message for encryption there would be some risk of

leaking information, because to a large extent (the n

bytes signed tag ID) these data are static. The intro-

duction of a MIX function neutralises this problem,

because it interleaves static and dynamic compo-

nents.

The following C-like pseudo code describes the

operation of the MIX function:

for (i=0;;++i) {

get 5 bytes from signed ID; if out

of data, get random bytes;

if (i == 10) break;

get 1 byte from reader challenge;

get 5 bytes from signed ID; if out

of data, get random bytes;

get 1 byte random as tag challenge;

}

append checksum;

append 0x00;

2.5 Overall Message Flow

The overall message flow for a secure tag authenti-

cation is as follows:

First the interrogator generates a 10 byte random

challenge and sends it to the tag.

Then the tag processes the identification record

as described above, mixing the interrogator chal-

lenge into the message and encrypting it according

to the Ramon-Montgomery scheme. The result is

backscattered to the tag.

The interrogator has to decrypt the message and

find the correct root out of the four presented by the

algorithm. Then it has to roll back the effects of the

MIX function and check whether the returned inter-

rogator challenge is identical to the one sent. This

approves that the tag is in possession of the public

key.

Afterwards the interrogator investigates the

signed ID record. If the signature can be verified

with the public ECC key, the tag is identified and

authenticated. The tag challenge can be preserved

for further processing, as it can authenticate the in-

terrogator to the tag.

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks

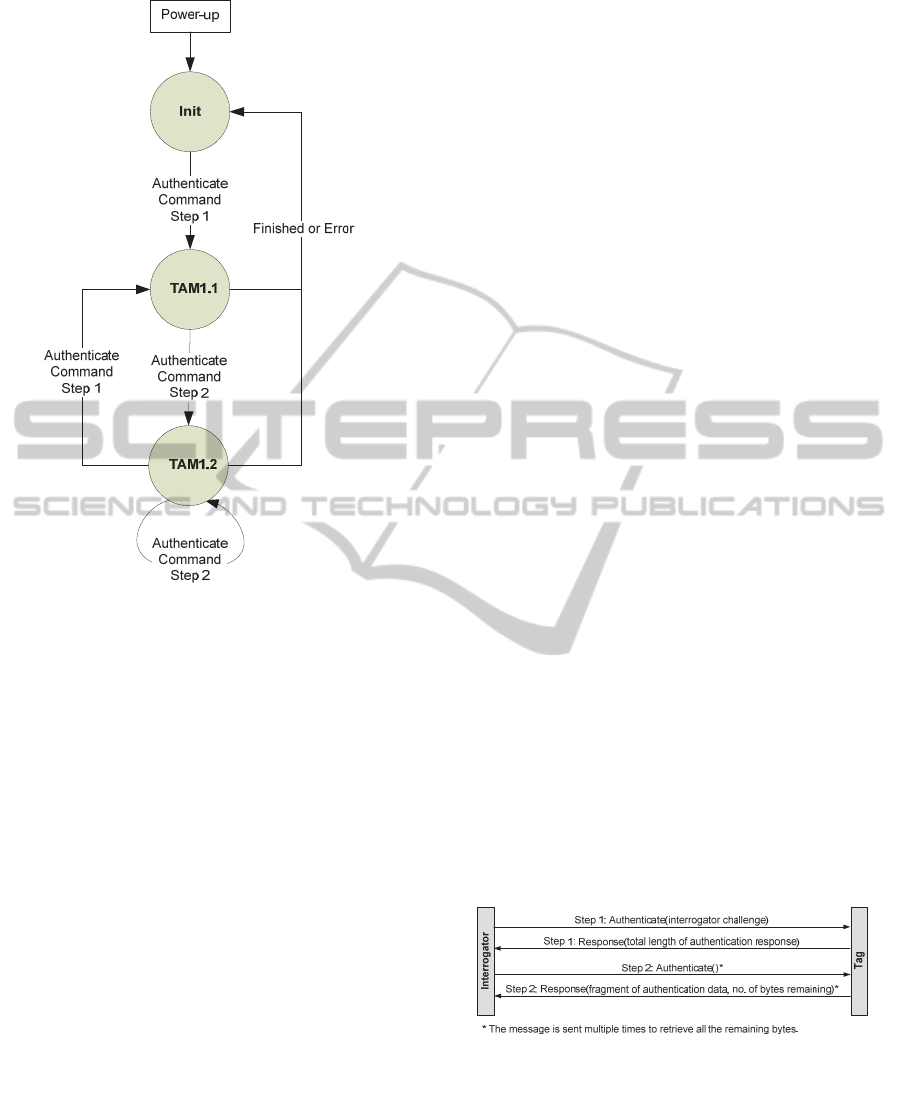

Figure 4: Tag state diagram.

2.5.1 Tag State Diagram

The logical process flow as developed above is now

embedded into the framework as defined in WD

29167-1. In accordance with the working draft the

tag can assume the states as depicted in figure 4.

A sequence of Authenticate commands needs to

be sent to the tag to complete a full tag authentica-

tion protocol. For a successful authentication the

entire sequence needs to be executed successfully.

The crypto suite state transitions triggered by the

authentication payloads are summarized in the next

subsection below. State transitions and tag responses

are according to the payloads of the Authenticate

command sent by the interrogator.

The processing of the Authenticate command

may include generation of an authentication crypto-

gram that will be returned in the tag’s response; the

tag may also return some buffered data. Because the

authentication protocol produces the output data

consecutively in the correct order, it is advantageous

to split the response in small pieces and to return

these pieces in parallel to the ongoing calculation.

After power-up the tag transitions to the ‘Init’

state. Once the tag receives an Authenticate com-

mand with payload for step 1, it processes the com-

mand, sends the response and transitions to TAM1.1

expecting an Authenticate command with payload

for step 2. When the tag receives the first Authenti-

cate command for step 2, it processes the command,

sends the response and remains in TAM1.2 as long

as there are authentication data bytes remaining to

be sent. In TAM1.2 the interrogator sends as many

Authenticate commands as required to fetch the

entire authentication data produced by the tag.

The interrogator indicates the length of the au-

thentication cryptogram in the payload of the Au-

thenticate command for step 1. The tag indicates the

number of bytes still available to fetch in the pay-

load of the response message.

Whenever the tag receives an Authenticate

command with payload for step 1, it resets all varia-

bles, transitions to TAM1.1 and starts processing the

command. The tag transitions to Init state once it has

sent out the last fragment of authentication crypto-

gram.

In case of failure during one of the steps of the

protocol, the crypto suite transitions to the ‘Init’

state.

When Rabin-Montgomery encryption and I/O

are overlapping in the tag there can be a couple of

short response packets from the tag, the exact behav-

iour being dependent on tag firmware optimization.

In any case, the final packet carries a success status

word in its payload or an error indicator, if applica-

ble.

2.5.2 Tag Authentication

The sequence of exchanged messages for tag authen-

tication is depicted in figure 5. The first message

includes a random challenge generated by the inter-

rogator and sent to the tag. The tag response is an

encrypted message that only the legitimate interro-

gator can decrypt, since it possesses the necessary

private key.

Figure 5: Message exchange for tag authentication.

In Step 1, the interrogator challenge is delivered

to the tag. This message is used to request the tag to

perform authentication. The response to this mes-

sage returns only the number of bytes to expect. In

Step 2, the interrogator retrieves the data fragments

by chaining further Authenticate commands and

responses. Once the interrogator has fetched the en-

SecureUHFTagswithStrongCryptography-DevelopmentofISO/IEC18000-63CompatibleSecureRFIDTagsand

PresentationofFirstResults

tire authentication record it is able to authenticate

the tag.

If the tag receives a message that is not formatted

as described in the following section it shall respond

with an error code and transition to ‘Init’ state.

2.5.3 Authentication Command

The authentication is performed in two distinct

steps. In step 1 of the Authenticate command the

interrogator sends a 10 byte random challenge to the

tag as indicated in the specification of the cipher.

As the tag cannot process the authentication

within the response timeout, it answers with a mes-

sage indicating the expected size of the Ramon-

Montgomery encrypted cipher test. The tag assumes

state TAM1.1 and begins the calculation of the ci-

pher.

In order to fetch the result, the interrogator issues

step 2 of the Authenticate command after some

time. The tag assumes state TAM1.2 and responds

with the first fragment of the resulting message, to-

gether with an indication of the number of bytes

missing. The size of the fragment returned is deter-

mined by the progress of message calculation and

the maximum which can be transferred in a single

message.

If there are message bytes remaining in the tag,

the interrogator waits a while and then repeats Au-

thenticate for step 2 until the response from the tag

indicates that the message is complete and that no

more data is available from the tag. Now the interro-

gator begins with message processing.

2.6 Tag Life Cycle and Key

Management

We will now briefly discuss aspects of the tag’s life

cycle, the key management, and the roles involved.

In figure

6 we can see the System Integrator and the

Tag Issuer shown as different roles. In this scenario

the System Integrator owns the asymmetric key pair

, K

(the RAMON encryption and decryption

keys), marked with blue and red colour, respectively

(in b/w print these keys show up as grey and dark

grey). The System Integrator hands over the public

key K

to the Tag Issuer.

Now the Tag Issuer produces a couple of tags

with uniquely generated tag IDs and signs them with

its private signature key K

. The signature key pair

is marked with light yellow colour (or light grey).

Note that the generation of tag ID signatures is op-

tional. In each tag the Tag Issuer stores the (signed)

tag ID and the Ramon encryption key K

. No secret

key needs to be stored in the tag.

In addition the Tag Issuer gives the signature

verification key K

and a list of (signed) tag IDs to

the System Integrator. Now the System Integrator

can verify the authenticity of this ID list.

The System Integrator sets up Interrogator sites

with a secure store containing the tag IDs and the

private RAMON decryption key KD. Thus the Inter-

rogator can decrypt the RAMON messages, identify

the tag and eventually authenticate it if the signature

matches.

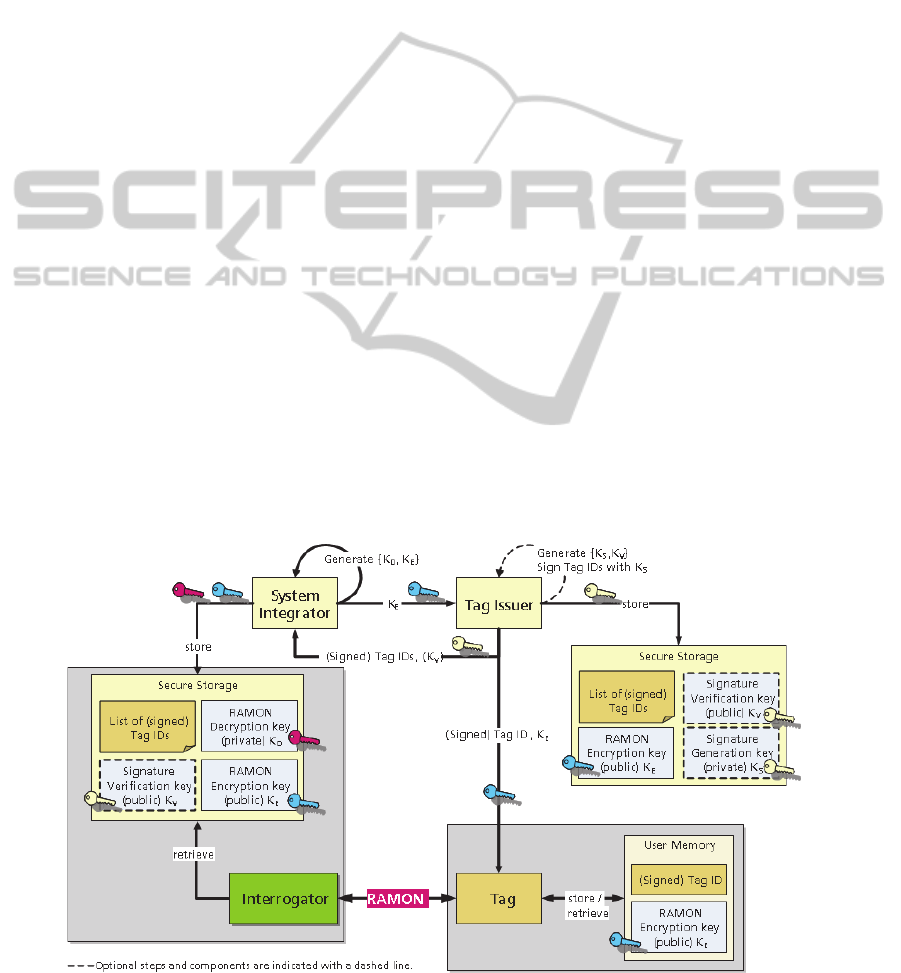

Figure 6: Tag Life Cycle and Key Management.

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks

3 PRELIMINARY PROTOTYPE

The authentication protocol specified so far requires

modified tags which support the secure authentica-

tion procedure, but it also requires UHF interroga-

tors which implement the Authenticate command

that is still in the standardisation process. However,

such an interrogator is currently not available.

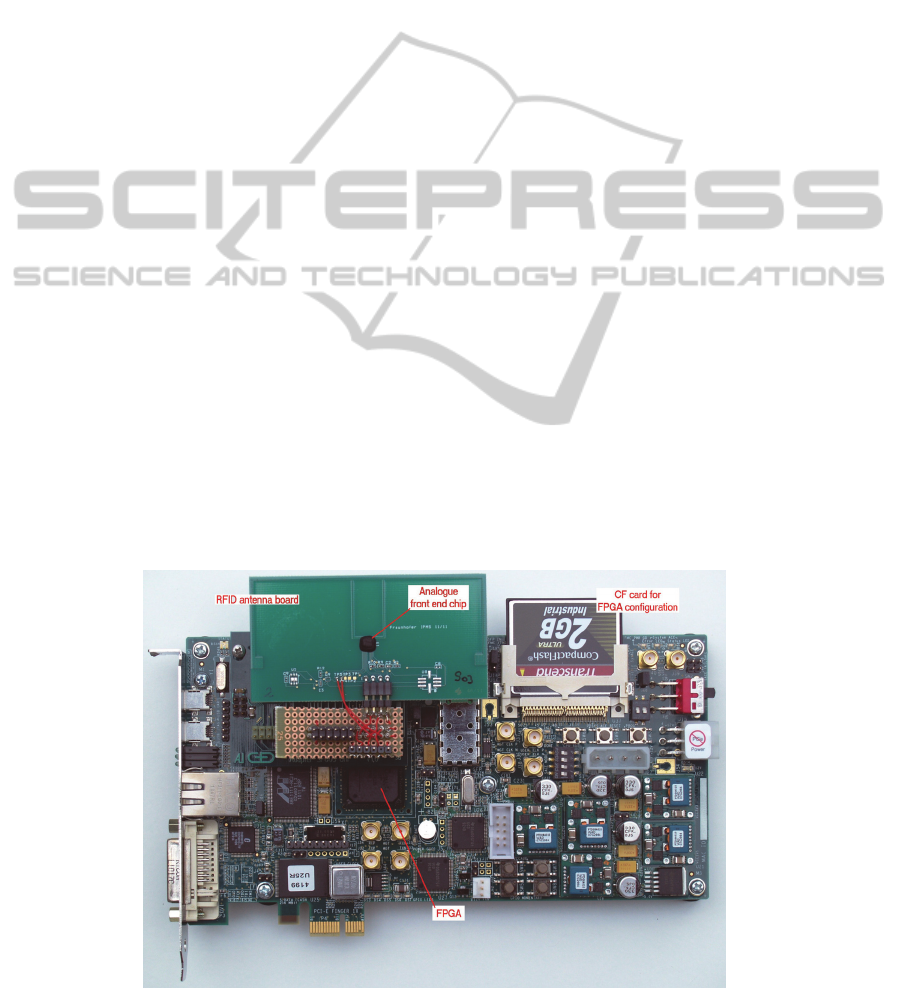

For that reason it is necessary to emulate the be-

haviour of the secure UHF tag on hardware which is

compatible with the current ISO/IEC 18000-6 Type

C standard and use commands which are available in

this standard.

In order to achieve maximum flexibility in the

implementation of cryptographic functions we de-

cided to extend a standard state machine controlled

UHF tag with a microprocessor. Both units are

closely coupled with shared volatile memory which

permits the microcontroller to receive messages via

the UHF channel and to return responses.

3.1 Hardware Description

In order to provide a smooth migration path we

started with an already existing standard UHF tag.

This device, when mounted on a PCB, can com-

municate its digital data stream to an external device

and can backscatter the data received from that de-

vice. Thus the function of the former UHF tag is

reduced to an analogue front end (AFE).

The switch from autonomous mode of the tag to

AFE mode is made by means of a command se-

quence sent to the tag’s state machine from the at-

tached device via an I²C bus specially provided for

that purpose.

The attached device is represented by a Spartan 6

FPGA which is located on a suitable evaluation

board where the connections to the external world

are provided. The whole setup is shown in figure

Within the FPGA the state machine for an

ISO/IEC 18000-6 Type C compliant tag is replicat-

ed, but with some modifications which facilitate the

implementation of the secure functions presented in

this paper

In the FPGA prototype all memory is provided as

non-persistent RAM.

3.2 Add-ons for Security Functions

The additional processing elements represented in

the FPGA comprise a Texas Instruments MSP430X

compatible CPU together with a couple of periph-

erals which are also compatible with the original

peripherals to some extent. The most important one

of these peripherals for our purpose is a hardware

multiplier capable of calculating a 32 bit result of a



16 bit integer multiplication within one clock

cycle. By using the multiply-add mode of this multi-

plication unit it is possible to implement the long

integer arithmetic functions required for Public Key

cryptography in a very efficient way.

Another valuable peripheral for strong cryptog-

raphy is an AES coprocessor capable of supporting

all the three standardised key sizes, i.e. 128, 129,

and 256 bits.

Other peripherals comprise a timer and a couple

of free programmable port bits. One of these bits is

used to generate serial output which can be dis

Figure 7: FPGA board and analogue front end.

SecureUHFTagswithStrongCryptography-DevelopmentofISO/IEC18000-63CompatibleSecureRFIDTagsand

PresentationofFirstResults

played in a terminal window on the controlling PC.

The microprocessor itself is controlled through a

special USB-to-I²C interface from a debugger run-

ning on the PC.

The MSP430X currently runs at a clock rate of

1,25 MHz which is significantly below the maxi-

mum speed for this processor architecture. The

speed was chosen to achieve command execution

performance close to that when a final tag design has

to operate in a power-limited environment.

3.3 Tag-CPU Communication

The tag (i.e. the part within the FPGA which is

based on the ISO/IEC 18000-6 Type C state ma-

chine) and the CPU are loosely coupled by means of

a common memory buffer of 128 16-bit words

which is within the address space of the tag’s state

machine. Specifically, it is located within the TID

(tag ID) memory bank.

The CPU can access (read and write) all the tag

memory by means of a special peripheral memory

access controller which also solves the task of arbi-

tration in case of conflicting access attempts. The

access rules are simple:

 After the CPU posted a request for a specific

address, it has to wait for an interrupt which

signals the access grant.

 If the tag tries to access the memory while the

CPU has access, it is delayed until the CPU is

done. This may sometimes lead to a timeout

on the tag’s air interface.

 In all other cases the tag state machine and the

CPU may run independently.

Whenever the tag writes to a specific address in-

to the TID bank, a specific interrupt is generated for

the CPU to signal that a command message was re-

ceived over the air interface. This mechanism facili-

tates the CPU to stay in a power-save sleep state

most of the time until it has to respond to an external

request.

3.4 Over the Air Data Transfer

As we saw above any data from outside the CPU has

to be passed across the communication buffer in the

TID bank. The ISO/IEC 18000-6 Type C standard

defines (sometimes optional) commands to serve

this purpose.

 For reading data from the communication buff-

er the Read and BlockRead commands are

available. The first reads a single 16 bit word

from a specific address while the latter trans-

fers a specified number of such words from

adjacent locations.

 For writing data from outside into the commu-

nication buffer the commands Write and

BlockWrite are provided in the standard.

There is an issue with BlockWrite though: as any

ISO/IEC 18000-6 Type C command has to be com-

pleted within 20 ms, this may be too short for writ-

ing to an extended number of E²PROM cells within

a single command. As standard tags normally use

this memory type, they often do not support Block-

Write, or only with a length of just a single word.

This situation is completely different for a RAM

buffer.

Our prototype is currently confined to use

BlockRead for reading from the tag and repeated

Write for writing to the tag.

3.5 The Transport Protocol

In the proposed preliminary setup any messages be-

tween the interrogator and the tag’s CPU have to be

passed through the shared memory. In order to fa-

cilitate this transfer the transport protocol T=1 which

is widely used in the smart card environment was

chosen.

Although this protocol introduces some over-

head, it provides a couple of useful features, like

consistency checking with repetition of messages if

necessary, buffer size negotiation, chaining of long

messages, and others.

3.6 The Application Protocol

The application protocol layer is also taken from the

smart card domain as specified in ISO/IEC 7816. In

this standard an application protocol data unit

(APDU) comprises a class byte, an instruction byte,

two parameter bytes, an optional length specification

followed by the indicated number of data bytes, and

eventually an optional specification of the expected

response size. This makes up a command message.

Response messages comprise the response data,

if any, followed by a two-byte status word.

In the ISO/IEC 7816 paradigm the smart card or

secure token or, in our case, the secure UHF tag al-

ways takes the role of a server while the interroga-

tor, or rather the device which controls the interroga-

tor, takes the role of a client. Thus, during a message

sequence, the secure UHF tag receives a command

APDU, processes the command, and eventually re-

turns a response APDU.

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks

3.7 Secure Messaging

Within the authentication method as proposed for WD

29167-1 in a previous section, the confidential and

authentic exchange of arbitrary data is not envisaged.

However, in some applications it is desirable to

communicate in a secure manner which is known as

secure messaging. Basically there are two stages of

secure messaging which can be applied separately or

combined.

 Message Authentication: this ensures the in-

tegrity of a message, No one other than the

originator can generate or alter such a message

after a message authentication code (“MAC”)

is attached to the message, nor can the origina-

tor deny his authorship. The MAC is calculat-

ed over that part of the message which is to be

secured.

 Message Encryption; this ensures the confi-

dentiality of a message. Only the originator

and the receiver of the message can see its

clear content.

As mentioned, both security mechanisms can be

combined. In that case the state of the art requires

applying the encryption first and message authenti-

cation afterwards.

For both security mechanisms a number of cryp-

tographic algorithms are available. In our prototype

we used AES-CBC-128 for the encryption and AES-

CMAC- 128 for message authentication. This choice

was based on the availability of coprocessor support

for the AES crypto-primitive.

4 RESULTS

With the FPGA setup we were able to execute a se-

cure authentication test suite comprising a Rabin-

Montgomery authentication of the tag, followed by

an AES based mutual authentication, writing a data

record with secure messaging (encrypted and au-

thenticated), and then securely reading back the data

just written.

With the microprocessor running at a clock rate

of 1.25 MHz we obtained satisfactory results.

Thanks to the integrated multiplication unit the Rab-

in-Montgomery authentication with a modulus of

1024 bit size was performed within 134 ms. This

does not include the time required to transmit the

result to the interrogator which takes more than

330 ms. The buffer determines if the components

involved require the authentication message to be

split into at least two fragments, which adds to the

communication times. However, we do not expect to

have buffers big enough to transfer the whole mes-

sage within a single block.

The performance of the secure messaging tests

was less satisfactory. This was due to the fact that a

BlockWrite command with sufficient data length

was neither supported by our AFE nor by the UHF

reader firmware. Therefore, we had to fall back to an

appropriate number of Write commands which im-

posed a considerable time overhead. Thanks to the

AES coprocessor, the AES-based encryptions were

calculated with considerable performance as ex-

pected,. However, overall execution times were

dominated by the communication.

5 CONCLUSIONS

As we expect the standardisation to take some time

we will continue to experiment with setups based on

the shared memory approach taken with the FPGA.

For further evaluations and estimations on power

consumption and operating range the FPGA should

be replaced with an ASIC implementing basically

the same functionality.

After the completion of ISO/IEC WD 29167 as a

standard and the availability of compatible readers we

will continue to implement this technology in order to

enhance the performance of secure UHF tags.

REFERENCES

Finkenzeller, Klaus, 2012: RFID Handbuch (RFID

Handbook), Hanser Verlag, Munich, 6th edition, ISBN

978-3446429925, http://rfid-handbook.de

ISO/IEC 18000-6, 2010: Information technology - Radio

frequency identification for item management - Part 6:

Parameters for air interface communications at 860

MHz to 960 MHz, International Organization for

Standardization, Geneva, Switzerland

ISO/IEC FDIS 18000-63, 2012: Information technology -

Radio frequency identification for item management -

Part 63: Parameters for air interface communications

at 860 MHz to 960 MHz Type C, International Or-

ganization for Standardization, Geneva, Switzerland.

Mendezes, Alfred J., van Oorschot, Paul C., Vanstone,

Scott A., 1997: Handbook of Applied Cryptography,

CRC Press, Inc., NewYork, ISBN 0-8493-8523-7.

Montgomery, Peter L: 1985. Modular Multiplication with-

out Trial Division. In Math. Computation, Vol. 44,

1985, p. 519–521.

Rabin, Michael O., 1979: Digitalized Signatures and Public-

Key Functions as Intractable as Factorization. In MIT-

LCS-TR 212, MIT Laboratory for Computer Science,

January 1979.

SecureUHFTagswithStrongCryptography-DevelopmentofISO/IEC18000-63CompatibleSecureRFIDTagsand

PresentationofFirstResults
