Cyclic-type Polling Models with Preparation Times

N. Perel

, J. L. Dorsman

2,3

and M. Vlasiou

2,3

Department of Statistics and Operations Research, Tel Aviv University, Tel Aviv, Israel

Department of Mathematics and Computer Science, Eindhoven University of Technology, Eindhoven, The Netherlands

Probability and Stochastic Networks, Centum Wiskunde & Informatica, Amsterdam, The Netherlands

Keywords:

Layered Queuing Networks, Polling Systems, Queuing Theory.

Abstract:

We consider a system consisting of a server serving in sequence a ﬁxed number of stations. At each station

there is an inﬁnite queue of customers that have to undergo a preparation phase before being served. This

model is connected to layered queuing networks, to an extension of polling systems, and surprisingly to

random graphs. We are interested in the waiting time of the server. The waiting time of the server satisﬁes a

Lindley-type equation of a non-standard form. We give a sufﬁcient condition for the existence of a limiting

waiting time distribution in the general case, and assuming preparation times are exponentially distributed,

we describe in depth the resulting Markov chain. We provide detailed computations for a special case and

extensive numerical results investigating the effect of the system’s parameters to the performance of the server.

1 INTRODUCTION

We study a model that involves one server polling

multiple stations. The server visits N stations in a

cyclic order, serving one customer at a time. At each

station there is an inﬁnite queue of customers that

needs service. Before being served by the server,

a customer must ﬁrst undergo a preparation phase.

Thus the server, after having ﬁnished serving a cus-

tomer at one station, may have to wait for the prepa-

ration phase of the customer at the next station to be

completed. Immediately after the server concludes

his service at some station, another customer from the

inﬁnite queue begins his preparation phase there. Our

goal is to analyse the transient, as well as the long-run,

probabilistic behaviour of this system by quantifying

the waiting time of the server, which is directly con-

nected to the system’s efﬁciency and throughput.

This model ﬁnds wide applications in enterprise

systems, for example when the order of service of

the customers is important. A typical operating strat-

egy in healthcare clinics is to have a specialist rotate

among several stations. The preparation phase rep-

resents the preliminary service a patient typically re-

ceives from an assistant or a nurse. The model, how-

ever, originates from warehousing. It was introduced

in (Park et al., 2003), who consider a storage facility

with bi-directional carousels, where a picker serves

in turns the carousels. The preparation phase repre-

sents the rotation time the carousel needs to bring the

item to the origin, while the service time is the ac-

tual picking time. The authors study the case of two

carousels under speciﬁc assumptions. Later on, this

special case for two stations has been further analysed

under general distributional assumptions in (Vlasiou,

2006). The model we consider in this paper gener-

alises this work from two stations to multiple stations.

This extension leads to signiﬁcant challenges in anal-

ysis, but provides valuable managerial insights. Little

work has been done on multiple-carousel warehouse

systems. Multiple-carousel problems differ intrinsi-

cally from single-carousel problems in a number of

ways. Such systems tend to be more complicated.

The system cannot be viewed as a number of indepen-

dently operating carousels (McGinnis et al., 1986),

since the two separate carousels interact by means of

the picker that is assigned to them. Almost all stud-

ies involving systems with more than two carousels

resort to simulation; see (Litvak and Vlasiou, 2010)

for a complete literature review. This paper offers the

ﬁrst analytic results for such systems.

This system can also be viewed as an extension

of a 1-limited polling-type system; cf. (Boxma and

Groenendijk, 1988; Eisenberg, 1979; van Vuuren and

Winands, 2007). In general, polling models have at-

tracted a lot of attention in the literature; see e.g.

(Boon et al., 2011; Takagi, 1986; Yechiali, 1993),

and the extensive references therein. Limited polling

212

Perel N., Dorsman J. and Vlasiou M..

Cyclic-type Polling Models with Preparation Times.

DOI: 10.5220/0004206500140023

In Proceedings of the 2nd International Conference on Operations Research and Enterprise Systems (ICORES-2013), pages 14-23

ISBN: 978-989-8565-40-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

systems are notoriously difﬁcult to analyse as the

k-limited service discipline does not satisfy the so-

called branching property; see (Resing, 1993). In our

case, we have the added difﬁculty of an additional

preparation phase before service. Traditional approx-

imation methods seem to be of little help. For exam-

ple, heavy trafﬁc approximations for polling systems

seem to be mainly suitable for the study of charac-

teristics of the customers, as is typical in the polling

literature, rather than the server, as is our case here;

cf. (van der Mei, 2007). Here, we assume that there

are always waiting customers in front of each station.

Therefore, the analysis of the model is parallel to the

study of the server of a polling-type system, in which

each of the queues is overloaded. As such, heavy traf-

ﬁc diffusion approximations cannot be utilised for this

system, since we consider a system that is overloaded,

rather than critically loaded, while ﬂuid approxima-

tions are equally not straightforward due to the addi-

tional preparation phase.

This model is a layered network in which a server,

while executing a service, may request a higher-layer

service and wait for it to be completed. Layered queu-

ing networks occur naturally in all kinds of informa-

tion and e-commerce systems, grid systems, and real-

time systems such as telecom switches; see (Franks

et al., 2009) and references therein for an overview.

Layered queues are characterised by simultaneous or

separate phases where entities are no longer classiﬁed

in the traditional roles of “servers” and “customers”,

but may have also a dual role of being either a server

to other entities (of lower layers) or a customer to

higher-layer entities. Think of a peer-to-peer network,

where users are both customers when downloading a

ﬁle, but also servers to users who download their ﬁles.

For our system, one may view the preparation time

of a customer as a ﬁrst phase of service. The ser-

vice station (lower layer) acts in this case as a server.

However, the second phase of service (the actual op-

eration) does not necessarily follow immediately. The

service station might have to ‘wait’ for the server to

ﬁnish working on other stations. At this stage, the

service stations act as customers waiting to be served

by the higher layer, the server. Thus, we see that

each service station acts both as a ‘server’ (preparing

the customer) and as a ‘customer’ (waiting until the

server completes his tasks in the previous stations).

This model leads to a Lindley-type equation,

which for two stations leads to the equation (in its

steady-state form) as W



B − A − W



. Here, B

denotes the preparation time, A denotes service time

and W is the waiting time of the server. The dif-

ference from the original (Lindley, 1952) equation

is the minus sign in front of W at the right-hand

side of the equation, which in Lindley’s equation is

a plus. Lindley’s equation describes the waiting time

of a customer in a single-server queue. It is one of

the fundamental and best-studied equations in queu-

ing theory. For a detailed study on Lindley’s equa-

tion we refer to (Asmussen, 2003; Cohen, 1982) and

the references therein. The implications of this “mi-

nor” difference in sign are rather far-reaching, since

even for two stations, in the particular case we study

in this paper, Lindley’s equation has a simple solu-

tion, while for our equation it is probably not pos-

sible to derive an explicit expression without making

some additional assumptions. In the applied probabil-

ity literature, there has been considerable interest in

the class of Markov chains described by the recursion

n+1

= g(W

). An important result is the duality

theory by (Asmussen and Sigman, 1996), relating the

steady-state distribution to a ruin probability associ-

ated with a risk process. See also (Borovkov, 1998)

and (Kalashnikov, 2002). However, duality does not

hold in our case, as our function is non-increasing in

its main argument. This fact produces some surpris-

ing results when analysing the equation.

We study the waiting time of the server for this

model. The waiting time satisﬁes the Lindley-type re-

cursion (2), which surprisingly emerges when study-

ing maximum weight independent sets in sparse ran-

dom graphs. Speciﬁcally, consider an n-node sparse

random (potentially regular) graph and let the nodes

of the graph be equipped with nonnegative weights,

independently generated according to some common

distribution. Rather than only the size of the max-

imum independent set, consider also the maximum

weight of an independent set. (Gamarnik et al., 2006)

show that for certain weight distributions, a limiting

result can be proven both for the maximum indepen-

dent set and the maximum weight independent set.

What is crucial in this computation is recursion (2);

cf. (Gamarnik et al., 2006, Eq. (3)). This recursion

provides another surprising link between queuing the-

ory and random graphs.

At a glance, other than the analytical results, the

major insights we gain for this system are summarised

as follows. First, we observe that variability in prepa-

ration times has a greater inﬂuence on the system than

that of service times. In the healthcare setting, one

could summarise it as follows: it pays more to have

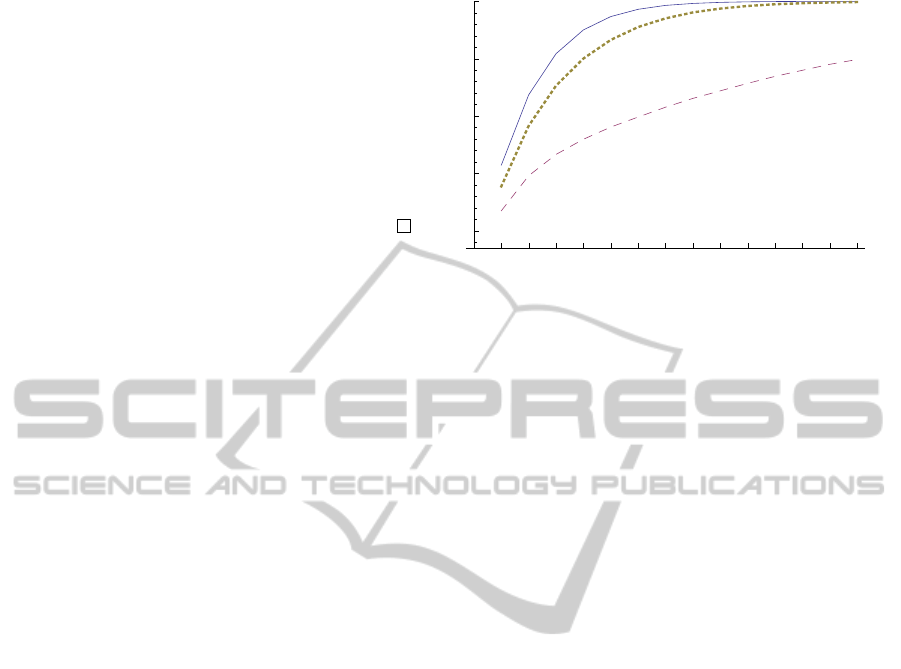

a reliable nurse than a reliable specialist. See Fig-

ure 1 for an illustration. Second, a small variability of

preparation times actually improves the performance

of the server, in the sense that he waits less frequently;

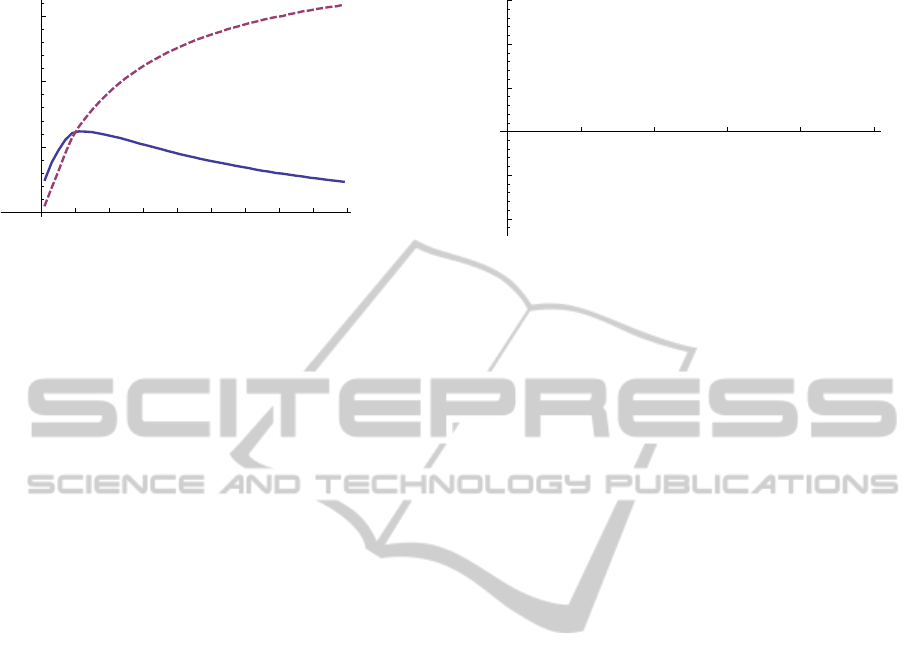

cf. Figure 2. However, it also decreases the through-

put. Thus, the system’s designer may wish to consider

how to balance these conﬂicting goals. Next, when

Cyclic-typePollingModelswithPreparationTimes

213

deciding how many stations to assign to a server, the

shape of the distribution plays a role. However, in

general, when preparation times are smaller than ser-

vice times and when the preparation times variability

is low, only few stations per server (about 5 or 6) al-

ready come close to the optimal throughput. The last

insight we gain is of mathematical nature. We ob-

serve that as the number of stations goes to inﬁnity,

the waiting times of the server become uncorrelated.

We additionally provide an analytic lower bound on

the throughput for the general case and an empirical

upper bound. Both bounds are easy to compute, con-

verge exponentially to the true throughput as N goes

to inﬁnity, and are tight in some cases. Thus we get

quick and accurate estimates on the system’s perfor-

mance. For a discussion, see Section 4.

The rest of the paper is organised as follows: the

general model is presented in the next section where

we also give a sufﬁcient condition for the existence

of a limiting waiting-time distribution. Under the as-

sumption that preparation times are exponential, we

study the transient behaviour of the waiting time in

Section 3 and provide the transition matrix of the un-

derlying Markov chain. We conclude in Section 4

with insights to the effect of all parameters to the sys-

tem’s performance and gives the main conclusions.

2 GENERAL MODEL

We assume that there are N ≥ 2 identical stations op-

erated by a single server. The system operates as

follows. Before being served by the server, a cus-

tomer must ﬁrst undergo a preparation phase (not in-

volving the server). Thus the server, after having ﬁn-

ished serving a customer at one station, may have to

wait for the preparation phase of the customer at the

next station to be completed. Immediately after the

server concludes his service at some station, another

customer from the queue begins his preparation phase

there while the server moves to the next station. We

are interested in the waiting time of the server. Let B

denote the preparation time for the n-th customer and

let A

be the time the server spends on this customer.

Then the waiting times W

of the server satisfy

n+1



n+1

−

∑

i=n−N+2

−

∑

i=n−N+2



. (1)

We assume that each sequence {A

}

n≥1

and {B

}

n≥1

is comprised of independent, identically distributed

(i.i.d) nonnegative random variables with ﬁnite

means, and the sequences are mutually independent.

Moreover, for all n ≥ 1, A

) have a general distri-

bution function F

), density function f

( f

) and

Laplace-Stieltjes Transform (LST) α(s) = E



−sA



(β(s) = E



−sB



). Eq. (1) can be written as

n+1



n+1

−

∑

i=n−N+2



, (2)

where X

n+1

= B

n+1

−

∑

i=n−N+2

. Note that {X

}

are identically distributed for n ≥ N according to a

random variable X , but are not independent. They

are only independent with a N − 1-lag. For exam-

ple, {X

, X

2N−1

, X

3N−2

, X

4N−3

,...} are indepen-

dent. We also deﬁne R

to be the residual prepa-

ration time in station (n + j) mod N at the moment

the server is available for the n-th time, n ≥ 1, j =

1,...,N − 2. Clearly, R

N−1

= B

n+N−1

and R

= W

Note that we distinguish between stations and visits.

Since the server attends the stations in a cyclic or-

der, starting the n-th visit is equivalent to visiting sta-

tion j = n mod N for the d

e-th time. The process

,...,R

N−2

) is a Markov chain, of which

the evolution is given by

n+1



−W

− A



n+1



j+1

−W

− A



for j = 1,2,...,N − 2.

Last, we assume that P(X ≤ 0) > 0, omitting the sub-

script when we consider a generic random variable.

2.1 Existence of a Limiting Waiting

Time Distribution

Recall that X

n+1

= B

n+1

−

∑

i=n−N+2

, so that

N+1

,... are identically distributed. Note that the

stochastic process {W

} is a (possibly delayed) re-

generative process with regeneration times {n : W

n+1

= ... = W

n+N−2

= 0}. Moreover, note that this

process is aperiodic. Let j be any regeneration time

after t = N − 1. Furthermore, let τ = inf{n : n >

0,W

= W

j+1

= . . . = W

j+N−2

= W

j+n

= W

j+n+1

... = W

j+n+N−2

= 0}, so that τ can be interpreted as

the time between two regeneration moments. In the

Appendix, we show that the mean cycle length E[τ]

is ﬁnite, which implies by standard theory on regen-

erative processes that the limiting distribution of the

waiting time exists and the waiting-time process con-

verges to it (see e.g. (Asmussen, 2003, Cor. VI.1.5

and Thm. VII.3.6)).

3 TRANSIENT ANALYSIS

For the sequel, we assume that preparation times are

exponentially distributed with rate µ. Note that the

analysis can extend to phase-type preparation times,

ICORES2013-InternationalConferenceonOperationsResearchandEnterpriseSystems

214

but at the cost of more cumbersome expressions. Fur-

thermore, little insight is added by such an extension.

We ﬁrst show that the waiting time (has an atom

at zero and), provided that it is positive, is also ex-

ponentially distributed with rate µ. We then com-

pute the atom at zero by computing the transition

matrix of the underlying Markov chain. We show

that the matrix has a nice structure that can be ex-

ploited for numerical computations. Particularly for

three stations, we provide further analytic results.

We compute the steady-state distribution, and give

closed-form expressions for the covariance between

two waiting times and for the mean time between

two zero waiting times, both for the transient and the

steady-state cases.

3.1 The Behaviour of W

n+1

We show that P(W

n+1

> x | W

n+1

> 0) = e

−µx

, for all

n ≥ 0. We prove this claim for n ≥ N − 1 (for 1 ≤ n ≤

N −2 it is done in a similar way). In order to calculate

P(W

n+1

> x), we ﬁrst calculate it conditioned on the

last N − 1 waiting times. We get, for all n ≥ N − 1,

P(W

n+1

> x|W

= w

,...,W

n−N+2

= w

n−N+2

)

= P(B

n+1

∑

i=n−N+2

∑

i=n−N+2

+ x)

∞

···

∞

−µ(

∑

i=n−N+2

)+x)

n−N+2

)...dF

)

= (α(µ))

N−1

exp{−µ(

∑

i=n−N+2

+ x)}, (3)

where we deﬁned α(µ) = E



−µA



. Thus, (3) implies

that

P(W

n+1

> x |

∑

i=n−N+2

= 0) = (α(µ))

N−1

−µx

From (3) we also get that

P(W

n+1

> x|W

n+1

> 0,W

= w

,...,

n−N+2

= w

n−N+2

)

P(W

n+1

> x | W

= w

,...,W

n−N+2

= w

n−N+2

)

P(W

n+1

> 0 | W

= w

,...,W

n−N+2

= w

n−N+2

)

(α(µ))

N−1

exp{−µ(

∑

i=n−N+2

+ x)}

(α(µ))

N−1

exp{−µ(

∑

i=n−N+2

)}

= e

−µx

meaning that, given W

n+1

> 0, W

n+1

is not

affected by the previous N − 1 waiting times

n−1

,...,W

n−N+2

. A direct conclusion is that

P(W

n+1

> x|W

n+1

> 0) = e

−µx

and thus, for x > 0,

P(W

n+1

> x) = P(W

n+1

> x | W

n+1

> 0)P(W

n+1

> 0)

+ P(W

n+1

> x | W

n+1

= 0)P(W

n+1

= 0)

= e

−µx

P(W

n+1

> 0). (4)

That is, the distribution of W

is a mixture of a mass at

zero and the exponential distribution with rate µ. The

same argument can be applied in a similar manner for

W , the limit of W

as n → ∞. That is, P(W > x) =

−µx

P(W > 0). We now calculate P(W

n+1

> 0) for all

n, and P(W > 0). In order to do that, we will deﬁne

a Markov chain and calculate its one-step transition

probability matrix. A detailed analysis is presented in

the next section.

3.1.1 Construction of a Markov Chain

Recall that the process (W

,...,R

N−2

) is a

Markov chain and deﬁne the auxiliary 0-1 random

variables F

= I(W

> 0) and G

= I(R

> 0), j =

1,...,N − 2. That is, F

= 0 if, at the moment the

server starts his n-th visit to a station, the customer

there completed his preparation process, so that the

server does not have to wait. Otherwise, F

= 1. In

the same way, G

= 0 if, at the moment the server

starts his n-th visit to a station, the customer at station

(n + j) mod N has completed the preparation process,

and G

= 1 otherwise.

Due to the memoryless property of the prepara-

tion times, the process (F

,...,G

N−2

) is a Markov

chain on {0,1}

N−1

. Thus, the state space consists of

N−1

states, where each state describes the residual

preparation time in each station (positive or zero) at

the moment the server enters a station for his overall

n-th visit. The only station that does not appear in this

description is the station the server has just left, since

the residual preparation time there is always B (or, in

other words, G

N−1

= 1 for all n). Let P be the one-

step transition probability matrix of the Markov chain

,...,G

N−2

), where the states are lexicograph-

ically ordered, so that the ﬁrst state is (0,0,...,0,0),

the second one is (0,0,...,0,1), and so on, where the

last state is (1, 1, . . . , 1, 1). For a state i ∈ {0,1}

N−1

we denote its coordinates by (i

,...,i

N−2

). Below,

we describe how to construct the matrix P.

Theorem 1. The transition matrix P is described as

follows. For a state i ∈ {0,1}

N−1

, deﬁne T (i) = {r :

i,r

> 0} and k =

∑

N−2

r=0

. For j ∈ T (i) also deﬁne

m =

∑

N−2

r=0

and d = k − m. If F

= 0, then

i, j

(

α(mµ) if d = −1,

∑

d+1

l=0



d+1



(−1)

α((m + l)µ) if d > −1.

For F

= 1, we have

i, j

(

α(mµ)

m+1

if d = 0,

∑

l=0





(−1)

α((m+l)µ)

m+l+1

if d > 0.

For all other values of d, P

i, j

= 0.

Cyclic-typePollingModelswithPreparationTimes

215

Proof. For each state i ∈ {0,1}

N−1

, we derive the

possible target states, namely T (i), as follows: move

all 0’s (except the ﬁrst one if F

= 0) one po-

sition to the left and take all possible combina-

tions for the other positions. This sums up to ei-

ther 2

or 2

k+1

possible states, depending on the

value of F

. For example, for N = 4, assume

the chain is in state (0,1,0), then T [(0, 1, 0)] =

{(0,0,0),(0,0,1),(1,0,0),(1,0,1)}.

Assume F

= 0, meaning that at the current state,

the server starts serving immediately upon entering

the station.

• If d = −1, then all stations that had a positive resid-

ual preparation time in state i, will still have a pos-

itive residual preparation time in state j. In addi-

tion, the preparation time in the station the server

has just left did not end as well. As d = −1 implies

m = k + 1, this transition occurs when during the

service time A, k + 1 = m independent exponential

preparation times with rate µ were not completed.

Therefore,

i, j

∞

−mµy

(y) = α(mµ).

• When d > −1, exactly k + 1 − m = d + 1 prepara-

tion times have ended during a service time A, and

the other m did not. Thus,

i, j

∞

y=0

(1 − e

−µy

)

d+1

−mµy

(y)

d+1

∑

l=0



d + 1



(−1)

α((m + l)µ).

We now consider the case where F

= 1, imply-

ing that the preparation in the station the server had

just entered did not ﬁnish, and thus an exponential

preparation time B remains. Note that when F

= 1,

d = k − m is nonnegative.

• The case d = 0 means that (i) all stations with a pos-

itive residual preparation time in state i, will still

have a positive residual preparation time in state

j, and (ii) the preparation time in the station that

the server has just left also did not end. Namely,

this transition occurs when during the preparation

time B and service time A, k = m independent expo-

nential preparation times with rate µ were not com-

pleted. Therefore,

i, j

−mµ(x+y)

µe

−µx

dxdF

(y) =

α(mµ)

m + 1

• When d > 0, exactly k − m = d out of k prepara-

tions have been completed during the time A + B,

implying that

i, j

∞

y=0

∞

x=0

(1 − e

−µ(x+y)

)

k−m

−mµ(x+y)

µe

−µx

dxdF

(y)

∑

l=0





(−1)

α((m + l)µ)

m + l + 1

Once the matrix P is computed, we can ﬁnd the

distribution of W

for all n ≥ 1, which is given in (4).

Therefore, we need P(W

> 0).

Let π

denote the distribution vector on all the

N−1

possible states at the moment the server starts

his n-th visit. Recall that the states are lexicographi-

cally ordered. We may assume that the Markov chain

starts at time 1 from has an initial distribution vec-

tor π

= (0,0,...,0,0,1), meaning that at the mo-

ment the server enters the ﬁrst station, in all sta-

tions the preparation has not been completed yet, and

therefore the Markov chain at that moment is in state

(1,1,...,1,1). Now, P(W

> 0) is the sum of the last

N−2

elements of the vector π

n−1

. Furthermore,

we can also ﬁnd the distribution of W (which is the

limiting distribution of W

), by solving the equation

πP = π, and by summing the last 2

N−2

elements of π

(all the states that start with 1), we get P(W > 0).

Next we present a detailed analysis for the case

with N = 3 stations. We again consider exponentially

distributed preparation times, although the analysis

can evidently extend to phase-type distributions.

3.2 Analysis for N = 3 Stations

For N = 3, the evolution of the Markov process

) is given by

n+1

= (R

−W

−A

)

, R

n+1

= (B

n+2

−W

−A

)

where W

is the waiting time of the server at his n-th

entrance to a station, and R

is the residual prepara-

tion time in the following station. Clearly, the residual

preparation time in the station that was just left by the

server is B. We assume that the preparation time in

each station is exponentially distributed with param-

eter µ. We calculate the limiting distribution (W,R)

of the Markov chain and the (transient) distribution

of W

. We also derive the covariance Cov[W

n+k

and the distribution function of the number of vis-

its between two successive zero waiting times of the

server. Observe that these are not necessarily two re-

generative points. We ﬁrst need to derive the transi-

tion probabilities of the Markov chain.

As described in Section 3.1.1, there are only four

3−1

) relevant states in the corresponding Markov

chain. Deﬁne π = (π

(0,0)

,π

(0,1)

,π

(1,0)

,π

(1,1)

) to be

ICORES2013-InternationalConferenceonOperationsResearchandEnterpriseSystems

216

the stationary probabilities vector of the states {(0,0),

(0,1), (1,0), (1,1)}. Let P

(i, j),(k,l)

be the one-step tran-

sition probabilities, i.e.

(i, j),(k,l)

= P(F

n+1

= k,G

n+1

= l|F

= i, G

= j),

for i, j,k,l = 0, 1. By Theorem 1 we get that P is given

P =







1 − α(µ) α(µ) 0 0

1 − 2α(µ) +α(2µ) α(µ) − α(2µ) α(µ) − α(2µ) α(2µ)

1 −

α(µ)

α(µ) 0 0

1 − α(µ) +

α(2µ)

α(µ) −

α(2µ)

α(µ) −

α(2µ)







Thus, we obtain the limiting distribution

(0,0)

12−6α

(µ)−12α(µ)+4α(µ)α(2µ)+α

(µ)α(2µ)+8α(2µ)

12+6α

(µ)+α

(µ)α(2µ)+8α(2µ)

(0,1)

4α(µ)(3−α(2µ))

12+6α

(µ)+α

(µ)α(2µ)+8α(2µ)

(1,0)

2α(µ)(α(µ)α(2µ)+6α(µ)−6α(2µ))

12+6α

(µ)+α

(µ)α(2µ)+8α(2µ)

(1,1)

12α(µ)α(2µ)

12+6α

(µ)+α

(µ)α(2µ)+8α(2µ)

To obtain the transient distribution and the covari-

ance function, let π

= (0,0,0,1) be the initial vector

of the Markov chain (F

). Then, for all x ≥ 0

P(W

> x) = e

−µx



(n−1)

[4,3] + P

(n−1)

[4,4]



with P[i, j] the element in row i and column j. Now,

Cov[W

n+k

] = E[W

n+k

] − E[W

]E[W

n+k

Since W

∼ exp(µ), we have for all k ≥ 0,

E[W

n+k

] = E[W

n+k

> 0]P(W

n+k

> 0)

P(W

n+k

> 0).

To calculate E[W

n+k

], we note that

E[W

n+k

] = E[W

n+k

> 0,W

n+k

> 0]

P(W

> 0,W

n+k

> 0),

where

E[W

n+k

> 0,W

n+k

> 0]

∞

w=0

wE[W

n+k

> 0,W

> w]µe

−µw

∞

w=0

µe

−µw

dw =

and

P(W

n+k

> 0,W

> 0)

= P(W

n+k

> 0|W

> 0)P(W

> 0)

= P(W

> 0)(P(W

n+k

> 0|W

> 0, R

= 0)

P(R

= 0|W

> 0)

+ P(W

n+k

> 0|W

> 0, R

> 0)P(R

> 0|W

> 0))



(k)

[3,3] + P

(k)

[3,4]



(n−1)

[4,3]



(k)

[4,3] + P

(k)

[4,4]



(n−1)

[4,4].

Therefore,

E[W

n+k

] =



(k)

[3,3]+ P

(k)

[3,4]



(n−1)

[4,3]



(k)

[4,3]+ P

(k)

[4,4]



(n−1)

[4,4]



. (5)

Finally,

Cov[W

n+k

] = E[W

n+k

]

−

P(W

> 0)P(W

n+k

> 0),

with E[W

n+k

] given in (5).

Last, we compute the distribution and expectation

of visits between two consecutive zero waiting times.

Suppose that W

= 0 and deﬁne for all n ≥ 1 the ran-

dom variable C

:=C

, describing the length from

the moment that W

= 0 until the next time that the

server’s waiting time is zero. In other words,

= inf{k : W

n+k

= 0 | W

= 0}.

The results are summarised in the following theorem.

Theorem 2. The distribution of C

is given by

P(C

= 1) = 1 −

(n−1)

[4,2]

(n−1)

[4,1]+ P

(n−1)

[4,2]

α(µ), (6)

P(C

= 2) =

(n−1)

[4,2]

(n−1)

[4,1]+ P

(n−1)

[4,2]

α(µ)



1 −

α(2µ)



P(C

= k) =

(n−1)

[4,2]

(n−1)

[4,1]+ P

(n−1)

[4,2]

α(µ)



α(2µ)



α(2µ)



k−3



1 −

α(2µ)



, k ≥ 3.

Moreover,

E[C

] = 1 +

(n−1)

[4,2]

(n−1)

[4,1]+ P

(n−1)

[4,2]

α(µ)



6 + α(2µ)

6 − 2α(2µ)



. (7)

Proof. For k = 1, we have that

P(C

= 1) = P(W

n+1

= 0|W

= 0)·

= P(W

n+1

= 0|W

= 0,R

= 0)P(R

= 0|W

= 0)

+ P(W

n+1

= 0|W

= 0,R

> 0)P(R

> 0|W

= 0)

= (P[1,1]+ P[1, 2]) ·

(n−1)

[4,1]

P(W

= 0)

+ (P[2,1] + P[2,2]) ·

(n−1)

[4,2]

P(W

= 0)

(n−1)

[4,1]

P(W

= 0)

+ (1 − α(µ)) ·

(n−1)

[4,2]

P(W

= 0)

= 1 − α(µ)

(n−1)

[4,2]

(n−1)

[4,1]+ P

(n−1)

[4,2]

Cyclic-typePollingModelswithPreparationTimes

217

The results for

P(C

= i)

= P(W

n+i

= 0,W

n+i−1

> 0, . . . ,W

n+1

> 0|W

= 0)

with i > 1, follow by expanding this expression into

P(W

n+1

> 0|W

= 0) as well as probabilities of the

form P(W

j+2

> 0|W

j+1

> 0,W

= 0) and P(W

j+2

0|W

j+1

> 0,W

> 0). Similar to the derivations above,

these probabilities can be computed by using the

Markov chain formulation of the previous section.

The proof of (7) is straightforward.

4 INSIGHTS

In the previous sections, we gave closed-form expres-

sions for exponentially distributed preparation times.

Here, we obtain general insights into the behaviour

of the model by simulation on a larger range of pa-

rameter settings. We vary, among other, the num-

ber of stations and the distributions of the preparation

and service times. We focus on the effect of the ﬁrst

two moments of preparation and service times to the

throughput. For their distributions, we choose phase-

type distributions based on two-moment-ﬁt approxi-

mations commonly used in literature, see e.g. (Tijms,

1994, p. 358–360). We discuss several interesting

conclusions based on the simulation results.

Variability of Preparation and Service Times.

When controlling the system, the variability of the

preparation times seems to play a larger role than

the variability of the service time. This is because

the server’s waiting-time process is much more sen-

sitive to the former than to the latter. See e.g. Fig-

ure 1, where the throughput θ is plotted versus the

number of queues N. We observe the throughput

for various variability settings for both time compo-

nents. We ﬁx the means at E[A] = E[B] = 1, and

consider the exponential distribution, i.e. E[A

] =

E[B

] = 2 (solid curve), and two different phase-

type distributions with highly variable service times

only, i.e. E[A

] = 10, E[B

] = 2 (dotted curve) and

highly variable preparation times only, i.e. E[A

] =

2,E[B

] = 10 (dashed curve). Although the variabil-

ity of preparation times and service times are var-

ied in similar ways, the dotted curve nears the solid

curve as N grows larger much faster than the dashed

curve. Therefore, predictability of the preparation

times seems to be much more important than that of

the service times. This is to be expected; when we ob-

serve (1) we see that as the number of stations tends

to inﬁnity, the squared coefﬁcient of variation of the

sum of service times at the right-hand side of (1) goes

0.6

0.7

0.8

0.9

1.0

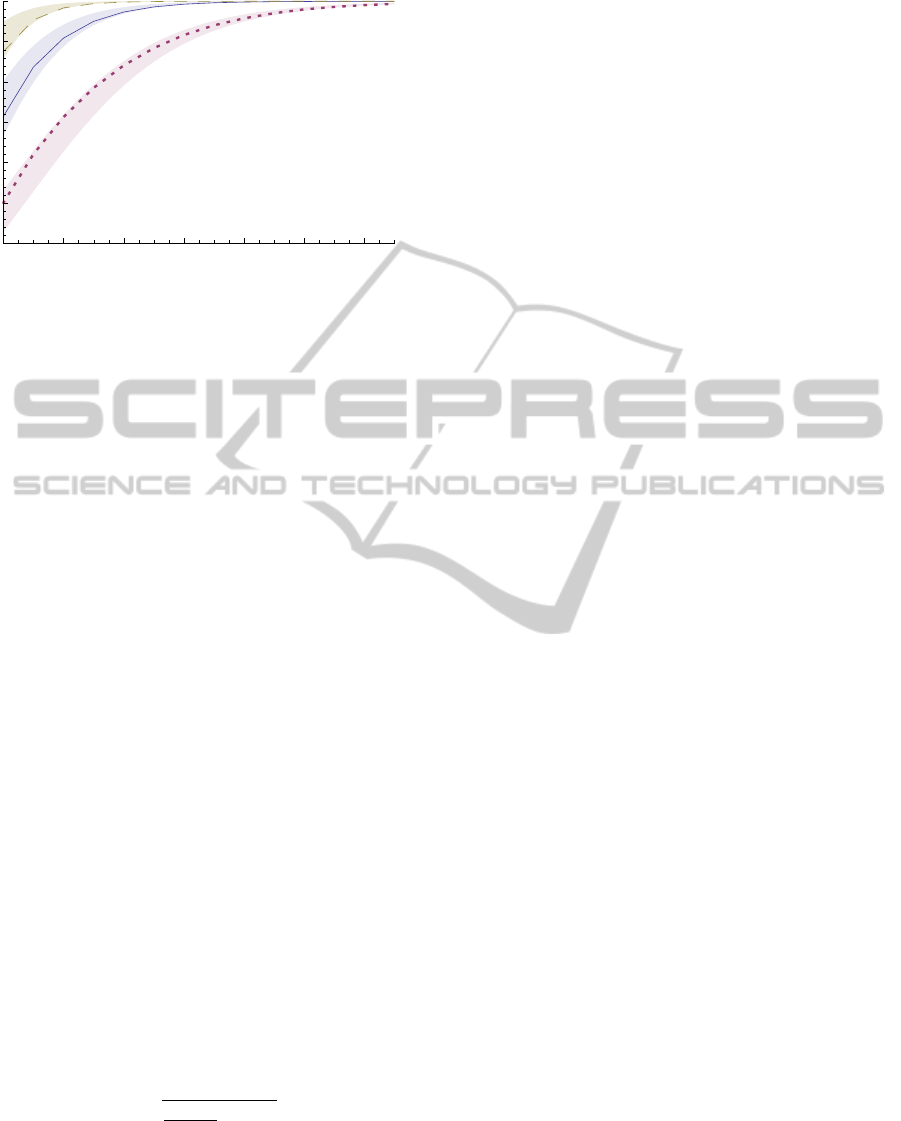

Figure 1: Throughput vs. the number of stations for

standard-exponential preparation and service times (solid),

highly variable service times (dotted) and highly variable

preparation times (dashed).

to zero, and thus the effect of the sum of the service

times is minimal.

In other words, it is more important that one has

a reliable assistant than a reliable server, in partic-

ular for large systems. In the carousel setting, this

is more or less guaranteed; although the prepara-

tion times (i.e. rotation times) depend on the pick-

ing strategy followed, they are bounded by the length

of the carousel and as such exhibit small variabil-

ity. Whether the picker is robotic (small variability)

or human, does inﬂuence the system, but not as dra-

matically as the preparation times do. The inﬂuence

of variable service times decreases very fast as the

number of stations increases, even for highly variable

service times. The inﬂuence of variable preparation

times decreases too but so slowly that it converges to

the benchmark case only at inﬁnity. It is natural to ex-

pect that as N tends to inﬁnity preparation times be-

come less important. One expects that the preparation

will almost surely have expired after serving a very

large number of stations and that the total throughput

will simply equal the rate of service.

This statement is reinforced by Figure 2, where

the mean time between two zero waiting times is plot-

ted versus the second moment of the preparation time

B (solid curve) or that of the service time A (dashed

curve). It is assumed that N = 4 and E[A] = E[B] = 1

throughout for both of these lines. For the ﬁrst curve,

the service times A are taken to be exponentially dis-

tributed, while for the second, the preparation times

B are taken to be exponentially distributed. From

Figure 2, it is apparent that the mean time between

two zero waiting times increases (i.e. the frequency

of zero waiting times decreases) as the service times

becomes more variable. However, mostly the oppo-

site is observed for the preparation times. Although

the expected waiting time increases in the variabil-

ICORES2013-InternationalConferenceonOperationsResearchandEnterpriseSystems

218

E@A

Dor E@B

1.10

1.15

1.20

E@CD

Figure 2: Mean time between two zero waiting times vs.

E[B

] (solid) and E[A

] (dashed).

ity of the preparation times by Figure 1, apparently

the mean time between two zero waiting times now

decreases anomalously. From this, we conclude that

the server’s waiting time process behaves more and

more erratically as the variability of the preparation

times increases and seems to be more resistent against

highly variable service times. Again, this effect may

be explained by the nature of the waiting time (see

(1)), which is expressed in terms of one preparation

time, but a sum of service times. The squared coefﬁ-

cient of variation of the sum goes to zero.

In summary, we can say that variability of prepa-

ration times, as long as it is small, improves the per-

formance of the server, in the sense that he waits

less frequently, while variability of service times al-

ways improves the performance of the server in the

same sense. However, both scenarios decrease the

throughput of the system – although waiting times

occur less frequently under some variability, when

they occur they tend to be longer, thus decreasing

the total throughput. Simulation results show about

a 10% decrease in throughput under common scenar-

ios when ranging the preparation time variability (i.e.

the worst case) from a deterministic to an exponential.

Nonetheless, in some service systems this may be an

advantage, as it gives the opportunity to perform an

additional task (e.g. administration).

Correlations. In general, this system has an inter-

esting correlation structure. In Figure 3 we plot the

correlation between two waiting times of lag k against

the lag for exponential preparation and service times

with rates 1 and 10 respectively. As we see in Fig-

ure 3, correlations exhibit a periodic structure, which

is natural as it corresponds to a return to the ﬁrst sta-

tion. Moreover, as time goes to inﬁnity, the waiting

times become uncorrelated, which is again a natural

conclusion, as the process is ergodic. As shown in

Section 2.1, there exists a unique limiting distribution

and the system converges to it, thus as time (or the

-0.10

-0.05

0.05

0.10

0.15

Corr@W

, W

n+k

Figure 3: Correlations exhibit periodicity.

number of stations for that matter) goes to inﬁnity, the

system converges to steady-state regardless of the ini-

tial state. Thus, the correlation between waiting times

goes to zero because the system loses its memory due

to ergodicity. Although the convergence to zero corre-

lations is expected, the way this happens is intriguing.

One may expect some form of periodicity, but it is not

clear why the ﬁrst cycle looks different than the rest

or why correlations should be forming alternatingly

convex and concave loops after the ﬁrst cycle.

Number of Stations to be Assigned to a Server.

One of the important management decisions to be

made is the number of stations to be assigned to a

server. Think of the warehouse example given ear-

lier. The more carousels assigned to the picker, the

better his utilisation. However, the utilisation of each

carousel decreases. We wish to understand this in-

terplay. An important measure to be taken into ac-

count is the throughput of the system. Note that the

throughput is linearly related to the fraction of time

the server is operating, since service is completed at

rate E[B]

−1

whenever the server is not forced to wait.

The number of stations to be assigned to a server in

order to reach near-optimal throughput depends very

much on the distributions of the preparation time B

and the service time A. This effect is observed in Fig-

ure 1, where we see that for highly variable prepara-

tion times (dashed line), the throughput increases for

every additional station assigned to the server. Evi-

dently, it will converge to the rate of service, but this

convergence is very slow. On the other hand, variabil-

ity in the service times inﬂuences the system, but the

convergence follows more or less the pattern of the

exponential case.

When all distributions are exponential, it is evi-

dent that the only quantity that matters in the determi-

nation of the throughput is r = E[A]/E[B]. In order to

determine the optimal number of stations to assign to

a server, we plot in Figure 4 the throughput θ versus

the number of stations N for three cases of r, namely

Cyclic-typePollingModelswithPreparationTimes

219

0.4

0.5

0.6

0.7

0.8

0.9

1.0

Figure 4: Throughput vs. the number of stations for small

(dashed), moderate (solid), and large preparation times

(dotted).

for r = 2 (top curve), r = 1 (solid curve), and r = 0.5

(dotted curve). In all three cases, the underlying dis-

tributions are exponential. What we observe is that

when r ≥ 1, i.e. the top two curves, the throughput

converges fast, and little beneﬁt is added by assign-

ing one more station to the server. This is to be ex-

pected, as in this case the mean service time is not

smaller than the mean preparation time, and so the

server rarely has to wait. In other words, he works

at almost full capacity, and thus convergence to the

maximum service rate (equal to 1 in all scenarios), is

fast. However, when r < 1, the convergence is very

slow. We conclude that the shape of the distribution

plays a role, but in general for r > 1 and low vari-

ability in preparation times will, only few stations per

server (say about 5 or 6) are needed to already come

close to the maximum throughput.

A Rough Estimate. In Figure 4 we also plot a

rough ﬁrst-order upper bound and an analytic lower

bound of the throughput that we derive as follows.

The throughput θ of the system is equal to the number

of customers N served per cycle over the cycle length,

which is N(E[W ] + E[A]). Thus,

θ = (E[W ] + E[A])

−1

A ﬁrst-order approximation of θ can be produced by

estimating E[W ] in the denominator with the mean

residual preparation time multiplied with a rough es-

timate that the server has to wait, i.e. P(B > A

+···+

N−1

). Then, for exponential preparation times B,

N−1

(µ)

+ E[A]

We observe that this expression is a lower bound

of the throughput, since the actual probability a server

has to wait is P(B > A

+ · · · + A

N−1

and thus smaller. We also observe empirically, that

N+1

provides an upper bound of the throughput in

the scenarios we examined. Observe that the analytic

lower bound becomes tighter as r increases, while the

empirical upper bound provides a better estimate for

small values of r. As a result, the system’s designer

can have a quick, easy, and accurate bound on the

throughput for all parameter settings.

Our ﬁnal observation is that since

is a lower

bound, and Figure 4 suggests that

N+1

is an upper

bound, we also observe that both θ and

converge

as N goes to inﬁnity exponentially fast (analytically)

to the maximum service rate with the correct (light-

tail asymptotics) rate logα(µ). As such, these bounds

are provably useful.

REFERENCES

Asmussen, S. (2003). Applied Probability and Queues.

Springer Verlag.

Asmussen, S. and Sigman, K. (1996). Monotone stochastic

recursions and their duals. Probability in the Engi-

neering and Informational Sciences, 10(1):1–20.

Boon, M. A. A., Van der Mei, R. D., and Winands, E.

M. M. (2011). Applications of polling systems. Sur-

veys in Operations Research and Management Sci-

ence, 16(2):67–82.

Borovkov, A. A. (1998). Ergodicity and Stability of

Stochastic Processes. Wiley Series in Probability and

Statistics. John Wiley & Sons Ltd., Chichester.

Boxma, O. J. and Groenendijk, W. P. (1988). Two queues

with alternating service and switching times. In

Boxma, O. J. and Syski, R., editors, Queueing The-

ory and its Applications (Liber Amicorum for J. W.

Cohen), pages 261–282. Amsterdam: North-Holland.

Cohen, J. W. (1982). The Single Server Queue. North-

Holland Publishing Co., Amsterdam.

Eisenberg, M. (1979). Two queues with alternating service.

SIAM Journal on Applied Mathematics, 36:287–303.

Franks, G., Al-Omari, T., Woodside, M., Das, O., and De-

risavi, S. (2009). Enhanced modeling and solution of

layered queuing networks. IEEE Transactions on Soft-

ware Engineering, 35:148–161.

Gamarnik, D., Nowicki, T., and Swirszcz, G. (2006). Maxi-

mum weight independent sets and matchings in sparse

random graphs. Exact results using the local weak

convergence method. Random Structures & Algo-

rithms, 28(1):76–106.

Kalashnikov, V. (2002). Stability bounds for queueing mod-

els in terms of weighted metrics. In Suhov, Y., edi-

tor, Analytic Methods in Applied Probability, volume

207 of American Mathematical Society Translations

Ser. 2, pages 77–90. American Mathematical Society,

Providence, RI.

Lindley, D. V. (1952). The theory of queues with a sin-

gle server. In Mathematical Proceedings of the Cam-

bridge Philosophical Society, volume 48, pages 277–

289.

ICORES2013-InternationalConferenceonOperationsResearchandEnterpriseSystems

220

Litvak, N. and Vlasiou, M. (2010). A survey on perfor-

mance analysis of warehouse carousel systems. Sta-

tistica Neerlandica, 64(4):401–447.

McGinnis, L. F., Han, M. H., and White, J. A. (1986).

Analysis of rotary rack operations. In White, J., ed-

itor, Proceedings of the 7th International Conference

on Automation in Warehousing, pages 165–171, San

Francisco, California. Springer.

Park, B. C., Park, J. Y., and Foley, R. D. (2003). Carousel

system performance. Journal of Applied Probability,

40(3):602–612.

Resing, J. A. C. (1993). Polling systems and multitype

branching processes. Queueing Systems. Theory and

Applications, 13(4):409–426.

Takagi, H. (1986). Analysis of polling systems. MIT press.

Tijms, H. C. (1994). Stochastic Models: an Algorithmic

Approach. Wiley, Chichester.

van der Mei, R. D. (2007). Towards a unifying the-

ory on branching-type polling systems in heavy traf-

ﬁc. Queueing Systems. Theory and Applications,

57(1):29–46.

van Vuuren, M. and Winands, E. M. M. (2007). Iterative

approximation of k-limited polling systems. Queueing

Systems. Theory and Applications, 55(3):161–178.

Vlasiou, M. (2006). Lindley-type Recursions. PhD thesis,

Eindhoven University of Technology, Eindhoven, The

Netherlands.

Yechiali, U. (1993). Analysis and control of polling sys-

tems. In Donatiello, L. and Nelson, R., editors, Perfor-

mance Evaluation of Computer and Communication

Systems, Joint Tutorial Papers of Performance ’93 and

Sigmetrics ’93, volume 729, pages 630–650, London,

UK. Springer Berlin / Heidelberg.

APPENDIX

To prove that the mean cycle length E[τ] is ﬁnite, ob-

serve that for any n ≥ N − 1, we have

P(τ > n) = P(

j+n

i= j+1

N−2

∑

k=0

i+k

> 0

)

≤ P(

j+n

i= j+N−1

N−2

∑

k=0

i+k

> 0

Due to (2) and the fact that waiting times are nonneg-

ative, X

is stochastically larger than W

. Thus,

P(τ > n) ≤ P(

j+n

i= j+N−1

N−2

∑

k=0

i+k

> 0

)

≤ P(

N−1

i=1

N−2

∑

k=0

j+i(N−1)+k

> 0

)

= P(

N−2

∑

k=0

j+N−1+k

> 0)

N−1

, (8)

where the second equality follows from the fact that

the process {X

} exhibits no auto-correlation for lag

N − 1 or more. Additionally, we have that

N−2

∑

k=0

j+N−1+k

> 0) ≤ 1 − P(

N−2

k=0

j+N−1+k

≤ 0

)

= 1 − P(X

j+N−1

≤ 0)P(X

j+N

≤ 0|X

j+N−1

≤ 0) · . . .

... · P(X

j+2N−3

≤ 0|

N−3

k=0

j+N−1+k

≤ 0

)

≤ 1 − P(X ≤ 0)

N−1

< 1. (9)

The second to last inequality holds since the process

} exhibits positive auto-correlation with a lag up

to N − 2. This implies that Cov[1

≤0}

n−k

≤0}

] >

0 for any n > 0 and 0 < k ≤ N − 2, so that P(X

≤

0|X

n−k

≤ 0) > P(X ≤ 0). The last inequality follows

from the assumption that P(X ≤ 0) > 0. Finally, from

(8) we have that

E[τ] ≤

N−2

∑

n=0

P(τ > n) +

∞

∑

n=N−1

P(τ > n)

≤ N − 1 +

∞

∑

n=0

N−2

∑

k=0

j+(N−1)+k

> 0)

N−1

≤ N − 1 +

∞

∑

n=0

N−2

∑

k=0

j+(N−1)+k

> 0)

= N − 1 + (1 − P(

N−2

∑

k=0

j+(N−1)+k

> 0))

−1

< ∞,

where the last inequality follows from (9).

Cyclic-typePollingModelswithPreparationTimes

221
