Design of an Intelligent Middleware for Flexible Sensor

Configuration in M2M Systems

Niels Reijers

, Kwei-Jay Lin

1,2

, Yu-Chung Wang

, Chi-Sheng Shih

and Jane Y. Hsu

Intel-NTU Connected Context Computing Center, National Taiwan University, Taipei, Taiwan

Department of Electrical Engineering and Computer Science, University of California, Irvine, Irvine, CA, U.S.A.

Keywords: Wireless Sensor Networks, Machine-to-Machine, Middleware, Virtual Machine, Configuration, Policy,

Profile.

Abstract: Most current sensor network applications are built for fixed sensor platforms with a specific wireless

network support, building on top of a lightweight OS or even directly on the hardware, and writing

applications in an imperative way and from each local node’s perspective. This results in software that

supports only a specific set of sensors, and difficult to be ported to other platforms. Such software is not

acceptable in machine-to-machine (M2M) systems where applications must run on platforms that are inter-

operatable and may evolve with time. In this paper we present a project on building intelligent middleware

for M2M. The middleware is designed to perform automatic sensor identification, node configuration,

application upgrade, and system re-configuration. It allows system developers to specify the application

behavior at a higher level, instead of telling each sensor node what to do. A prototype design is presented, as

well as the status of our current implementation.

1 INTRODUCTION

Most sensor network projects report that deploying

and maintaining a working system is still very hard.

(Gluhak et al., 2011) Many applications are single-

purpose systems designed for homogeneous sensor

platforms using specific network protocols. The

hardware has a fixed set of sensors, and the

applications cannot be easily ported to other

platforms. The separation of design abstractions

between the low-level hardware and high-level

applications has not been as successful in sensor-

based systems as that for server-based systems, not

to mention making them dynamically adaptable and

evolvable to new services, and new environments.

Except for low level building blocks, there is very

little reuse from one project to another.

It is clear that there is a need for better

middleware support to ease the deployment of

machine-to-machine (M2M) applications (Mottola

and Picco, 2011). The goal of our research is to

build flexible middleware support so that developers

and users of an M2M system do not need to be

constrained by which and how sensors have been

deployed in a target environment. The built-in

intelligence from the middleware can dynamically

perform sensor detection, device selection, system

configuration, software deployment, and system re-

configuration. Like the transition from low-level

coding to high-level programming on top of of a

general purpose OS and an optimising compiler, we

would like to make M2M programming as platform-

independent as possible using simple, high-level

primitives instead of the node-centric programming.

The main contribution of our project is to support

intelligent mapping from a high-level flow based

program (FBP) to self-identified, context-specific

sensors in a target environment. The automatic

mapping capability in the middleware allows an

application developer to specify simply what types

of sensors are needed rather than which sensors are

used. Such a flexibility is important in order for the

same application logic to be adopted by different

users at their individual homes or offices with a

dynamic, evolving set of heterogeneous sensors.

We present an initial prototype of WuKong,

showing its overall architecture, the main

middleware components, and basic system size. We

have also designed capabilities such as a user policy

framework and quality management framework for

applications.

Reijers N., Lin K., Wang Y., Shih C. and Hsu J..

Design of an Intelligent Middleware for Flexible Sensor Conﬁguration in M2M Systems.

DOI: 10.5220/0004207600410046

In Proceedings of the 2nd International Conference on Sensor Networks (SENSORNETS-2013), pages 41-46

ISBN: 978-989-8565-45-7

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 PROJECT OVERVIEW

To achieve our goals for flexible M2M deployment,

we define three orthogonal frameworks:

1. Sensor profile framework: to enable the

handling of heterogeneous sensor nodes, and for

high-level, logical abstraction of sensor capabilities.

2. User policy framework: to allow user-friendly

specification of application execution objectives,

and context-dependent management of system

performance.

3. System progression framework: to facilitate in-

situ software upgrade for dynamically, progressive

reconfiguration.

We envision that future M2M systems will have

many heterogeneous sensor and actuator nodes, as

well as one or more, more powerful gateway nodes

for connecting the devices to the outside world. All

nodes are connected by wireless technologies such

as Zigbee, ZWave and Wifi. One of the gateway

nodes will take on the role of configuration and

management decision maker, referred as the Master,

and will be responsible for making deployment

decisions and configuring the sensor nodes.

The user runs an M2M application by submitting

it to the Master. The Master will then start a

discovery phase. Each node is loaded with a device

profile, identifying its capabilities and

characteristics, which the Master can access and

configure using the profile framework.

Many M2M applications are heavily influenced

by user preferences and system context, since users

and objects are often mobile and have changing

needs under different situations. For example, a

smart home should provide different room

temperatures and ambient lighting levels depending

on the activity inside of each room. In our

envisioned design, users will be able to specify some

application policy by using a friendly tool or

language. The Master will be informed of the user

policy and use this information in the configuration

decision process for setting up sensors.

Finally, in most M2M applications that are

deployed for an extensive lifetime, the Master will

need to configure, reconfigure and upgrade software

on sensor devices constantly. The management

decisions will be made by an optimization engine

residing on the Master and may be reviewed

periodically or on user request. Reconfiguration

decisions will be made based on factors such as

sensor profiles, user policy, context knowledge,

application history, and real time status, allowing an

application to respond to changing conditions.

The part of our middleware running on the nodes,

called NanoKong, will provide platform independent

access at two different levels. First, the profile

framework allows the resources, including sensors

and software functions, in the network to be

discovered by the Master and to communicate with

each other through a well defined protocol where the

underlying implementation is hidden from the client.

Second, NanoKong includes a small Java virtual

machine, which will allow us to add application

specific behaviour to the functionality already

present on the device.

Applications will therefore run in a mix of native

code and Java byte code. Obviously the tradeoff here

is speed for flexibility. In applications where most of

the functionality can be achieved by connecting the

resources already present in the network, the

application will be running in native code for most

of the time, but Java is still used to configure the

application. If the application requires processing for

which no native support is found, additional Java

byte code will be loaded on some devices.

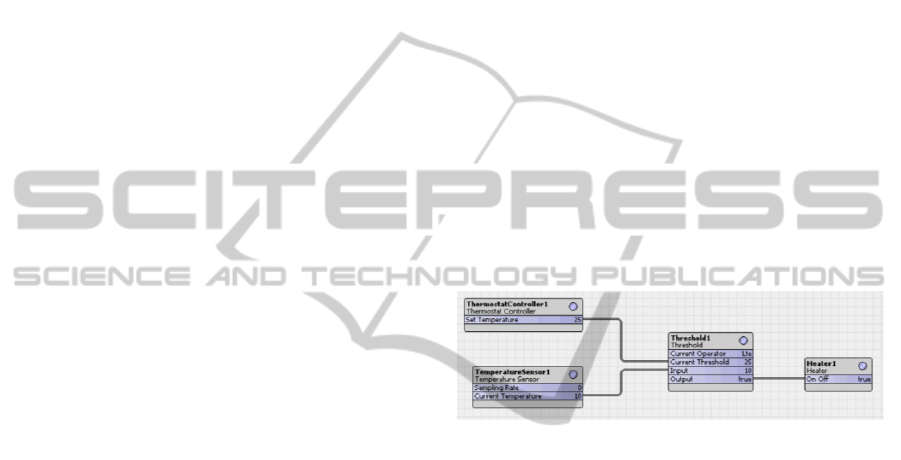

Figure 1: A simple sensor application FBP.

3 M2M FLOW BASED

PROGRAMMING

Applications in WuKong are developed using a form

of flow based programming (FBP). We believe FBP

is a suitable model because M2M applications are

typically defined by the flow of information between

components, as opposed to traditional applications

that tend to be more focused on the processing of

information. Also, M2M applications are by

definition distributed, and the difficulty of managing

the communication between devices is one of the

main obstacles in M2M development. Using FBP as

a programming model allows the application

programmer to focus on defining the abstract flow of

information in the application, while the resulting

FBP program will contain all necessary information

to let the framework manage the low level details to

physically implement this flow.

The developer constructs an application by

selecting logical components from a library.

Eventually, each component will be realized in

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks

practice by a physical sensor or some software

running on a device. The decision on how to realize

the functionality described by the FBP components

will be made by Master at the time of deployment,

but not during FBP construction.

Components in FBP expose their external

interface through a set of properties. These can be

connected using links to create the dataflow in the

application. Only properties with matching data

types can be connected in FBP.

For example, Figure 1 shows the FBP for a

simple scenario to turn on a heater if the temperature

drops below a certain value. Besides the temperature

sensor and heater, the Thermostat Controller is used

by the user to set the desired temperature. This could

be a physical remote control or a software program,

as long as it conforms to the definition of a

Thermostat Controller in our component library.

Finally, there is a Threshold, a simple software

component, which will output true or false,

depending on the desired and measured

temperatures, thus turning the heater on or off.

The components an FBP programmer can use to

compose the application are defined in a component

library in the WuKong framework. Currently, it

includes only a basic set of components for

commonly-used sensor hardware and functional

elements. In addition to these predefined

components, a programmer will be able to add

custom components containing functions specific to

the application if no support is present in the library.

3.1 Links

Since the focus of M2M applications is on the flow

of information between components, we believe the

links between components should be richer than

simple point-to-point connections. WuKong will

allow the programmer to specify a variety of options

on these links, including:

 conversions: to convert one unit into another,

 filters: to only propagating “interesting” values

(for example exceeding some threshold),

 reliability constraints: to indicate whether best-

effort delivery is good enough, or a more

complex error handling must be employed,

 or inserting custom code to do transformations

for which no pre-defined support is available.

4 PROFILE FRAMEWORK

While the FBP defines the logical view of the

application, the WuKong profile framework tracks

the physical resources available in the network and

manages the communication between them. The two

main concepts in the profile framework are

WuClasses and WuObjects. They are related, but not

identical, to classes and objects in traditional object

oriented programming.

Table 1: WuClass Types.

Usage Language Type

Hardware access C Hardware

Common processing components C/Java Software

Application specific processing Java Software

WuObjects are the main units of processing in an

application and are hosted on the nodes. The

framework has four main responsibilities:

1. Allow the Master to discover which WuClasses

and WuObjects are available in the NanoKong on a

sensor node;

2. Load WuClasses implemented in Java byte

code and create new WuObject instances on a node;

3. Trigger executions within WuObjects, either

periodically or as a result of changing inputs;

4. Propagate changes between linked properties of

the WuObjects, which may be hosted locally, or on a

remote node.

Externally, an WuClass exposes a number of

properties describing, and allowing access to, the

resource represented by the class. For example the

On/Off property of the Heater class is a boolean

read-write property. WuClasses are also used to

implement various forms of processing. For example

the Threshold has three inputs: an operator, a

threshold and a current value, and a boolean output

indicating if the current value exceeds the threshold.

Besides the properties, WuClasses also export a

single update() method which implements the class’

behaviour. This function will be called by the profile

framework

a) when the value of any property changes, or

b) at fixed intervals, if a sampling rate is set.

Typically, sensors will be triggered at fixed

intervals, while actuators like a Heater will be

triggered by changes to their input properties.

The properties of an WuObject are managed by

the profile framework in a common property store.

The framework provides functions for an WuObject

to access its data from within the update() method.

This allows the framework to monitor the changes

an object makes to its properties and propagate them

to connected destination WuObjects if necessary.

DesignofanIntelligentMiddlewareforFlexibleSensorConfigurationinM2MSystems

4.1 WuClass Types

As mentioned before, WuClasses can be

implemented either in C (called native WuClasses),

in Java (called virtual WuClasses), and they can

represent either processing or hardware. We can

distinguish three main groups (shown in Table 1):

1 Hardware Access. WuClasses representing the

hardware are implemented in C. Each device will

receive a custom built NanoKong which includes the

native WuClasses for the hardware present. At

startup, an instance is created for each piece of

hardware present. For example, a temperature sensor

device will have a built-in Temperature Sensor

WuObject.

2 Common Processing Components. In addition to

allowing access to hardware resources, WuClasses

are also used to implement common operators, such

as math and logic operators, the threshold class, etc.

In contrast to the hardware WuClasses, software

classes will not create any instances at startup, but

the Master will use the profile framework to create

instances when the application is deployed. These

classes be implemented in both C and Java. Many

resource rich nodes may be loaded with native

versions of commonly used processing classes to

allow for more efficient processing. At the same

time, there will be a library of Java implementations

that can be deployed if no native implementation is

available.

3 Application Specific Processing. Finally, there

may be some application specific processing that is

not included in the standard library of components.

For these cases, the developer can add custom

WuClasses using Java.

4.2 Property Propagation

The profile framework not only is in charge of

running WuObjects and storing their data, but also

manages the communication between WuObjects,

which may be on different nodes. Since the

properties are managed by the profile framework, it

can monitor changes and propagate them to

connected WuObjects. For example, in a home

automation scenario, the Temperature Sensor

WuObject is connected to a Threshold WuObject.

The profile framework will periodically call the

Temperature Sensor’s update() method to take a new

measurement. After taking the measurement, the

update() method will use the functions provided by

the framework to update its Current Temperature

property. The framework will notice the value has

changed, and take care of propagating the new value

to the Threshold object’s Input property, which may

be hosted on another node. This in turn will trigger

the Threshold’s update() function, causing it to

recompute the value of it Output property, etc.

5 COMPILATION AND MAPPING

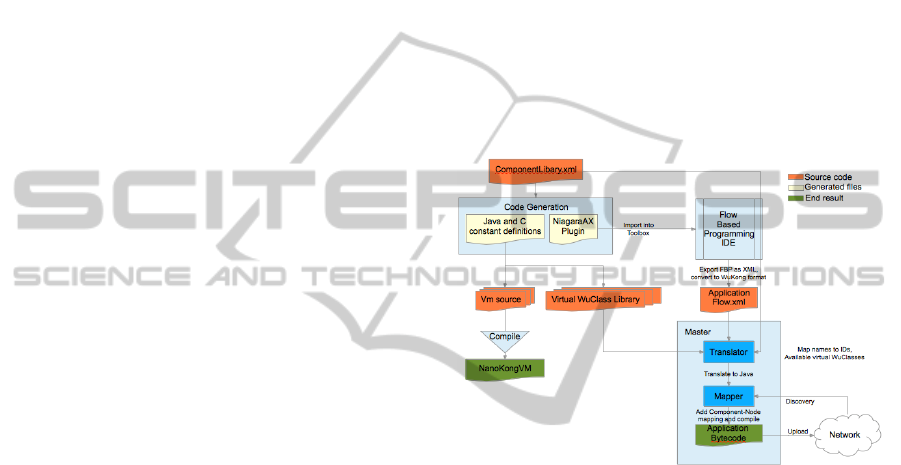

Figure 2 shows an outline of the application build

process. The left part represent the NanoKong VM

and the library of virtual WuClasses, both parts of

the WuKong infrastructure that will be loaded onto

the nodes and Master respectively. The right part

shows the compilation process from the application

being drawn in the IDE to the Java byte code to be

uploaded to the nodes in the network.

Figure 2: WuKong application build process.

The FBP is exported by the IDE as XML. The

Master then generates a Java file, possibly including

virtual WuClasses from the library, and wirelessly

uploads the compiled byte code to the nodes.

The generated Java code consist of three major

parts, two of which are independent of how the

application is mapped to physical resources. First,

there is a table describing the links between the

components in the FBP. Second, some initialisation

code is generated for each component to create the

instances of software WuClasses and set parameters

such as the operator of the Threshold component in

our example scenario.

The third part is a table that maps each

WuObject to a particular node in the network. To

create this table, the Master first starts a discovery

phase and asks every node in the network for a list

of its WuObject instances and supported WuClasses.

The Master will then map each hardware component

in the program to an existing WuObject. For each

software component, the Master will look for the

corresponding WuClass. If no native class is found,

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks

a Java version will be included it in the application.

The mapping can have a large impact on the

performance of the application. Developing

intelligent mapping protocols will be an important

focus in our future work. In our simple home

automation scenario, the periodic sampling will

create significantly more traffic between the

temperature sensor and the threshold components,

compared to the link between the threshold and the

heater. Thus, the threshold component should be

hosted close to the temperature sensor, preferably on

the same node.

Also, while in our current implementation there

is a one-on-one relationship between the FBP

components and the WuClasses, they are two

different concepts. Since components in the FBP

represent only the logical behaviour of the

application, in future versions, a more intelligent

implementation may decide to merge several FBP

components into a single WuClass or a single FBP

component may be translated into several

WuClasses if this leads to a more efficient

implementation.

Table 2: NanoKong VM code size.

Type Component Bytes

VM Core JVM 5604

VM Communication (ZWave+Zigbee) 7564

VM Profile Framework 4244

VM Native Profiles 632

VM String operations and IO 4580

VM Compiled total 20824

Appl. Home automation application 413

Appl. Threshold WuClass (C / Java) 199 / 330

6 IMPLEMENTATION

We have implemented a prototype WuKong

framework, based on a modified version of

NanoVM (Harbaum, 2005), running on the Arduino

platform. We have extended NanoVM by adding

support for both Zigbee and Z-Wave, adding support

for wirelessly uploading a new Java byte code

image, and finally of course our profile framework.

Table 2 shows a breakdown of the size of various

components in NanoKong. The total size of the VM

is currently about 20KB, which allows it to fit onto

many of the current sensor platforms.

We compiled the example scenario shown in

Figure 2. When a native implementation of the

Threshold component is available, meaning no

Virtual WuClass had to be included, the resulting

size of the Java byte code is 413 bytes.

Finally we examined the sizes of both native and

virtual Threshold WuClass. The native

implementation is 199 bytes, while the Java version

is slightly larger at 330 bytes. This confirms our idea

that all but the most resource constrained nodes

could be equipped with a basic set of commonly

used processing WuClasses to boost performance,

and that for classes that are not included in

NanoKong, a virtual version can be downloaded.

Figure 3 shows the C implementation of the a

boolean ‘not’ WuClass. The wuclass_bool_not struct

contains all the information the profile framework

needs to manage instances of the class: the global id,

a pointer to the update() function and an array

defining the properties. In the update() function, we

can see how the framework is used to first read the

input, and then update the output property. Of the

code in Figure 3, the top half is generated from the

component definition, and only the update function

needs to be hand written. Virtual WuClasses, not

shown here, follow a similar pattern in Java.

7 RELATED WORK

There are projects that have addressed some parts of

our goals. LooCI (Hughes et al., 2012) is the closest

to our project by building a reconfigurable

component infrastructure. The LooCI component

model supports interoperability and dynamic

binding. However, it considers component selection

to be higher-level services outside of its core

functionality. ADAE (Chang and Bonnet, 2010)

configures, and at runtime dynamically reconfigures,

the network according to a policy describing the

desired data quality, including fallback options

which the system may use in case the ideal situation

cannot be achieved. However, a skilled engineer is

needed to translate a user’s requirements into the

constraint optimisation problem for ADAE.

There have been several projects which have

developed virtual machines for very resource

constrained devices, either using general purpose

languages like Python or Java (Brouwers et al.,

2009); (Aslam et al., 2008); (Harbaum, 2005), or

specialised for WSN (Levis and Culler, 2002);

(Müller et al., 2007). These technologies allow the

application to be developed in a higher level

language on heterogeneous networks. However,

applications are still written in an imperative way,

and from the node’s perspective.

Very different approaches are taken by Agilla

(Fok et al., 2005) and MagnetOS (Liu et al., 2005).

In Agilla programs consist of software agents that

DesignofanIntelligentMiddlewareforFlexibleSensorConfigurationinM2MSystems

uint8_t wuclass_bool_not_properties[] = {WKPF_PROPERTY_TYPE_BOOLEAN+WKPF_PROPERTY_ACCESS_READ // INPUT

WKPF_PROPERTY_TYPE_BOOLEAN+WKPF_PROPERTY_ACCESS_WRITE // OUTPUT

};

wkpf_wuclass_definition wuclass_bool_not = {WKPF_WUCLASS_BOOL_NOT, // WuClass id

wuclass_boolean_not_update, // Update function pointer

2, // Number of properties

wuclass_boolean_not_properties // Property datatypes

};

void wuclass_bool_not_update(wkpf_local_wuobject *wuobject) {

bool input;

wkpf_read_property_boolean(wuobject, WKPF_PROPERTY_BOOLEAN_NOT_INPUT_VALUE, &input);

wkpf_write_property_boolean(wuobject, WKPF_PROPERTY_BOOLEAN_NOT_OUTPUT_VALUE, !input);

}

Figure 3: Native implementation of an WuClass for a boolean “not” operator.

can move around autonomously in the network.

While this allows some behaviours to be expressed

in a natural way, the paradigm is very different from

conventional languages, and the assembly-like

instruction set makes it hard to use. Cornell’s

MagnetOS is interesting because it proposes a novel

programming model which allows the user to write

the application as a single Java application, which is

then automatically partitioned and deployed to

minimise energy consumption. However, it requires

significantly more computing power on nodes.

8 CONCLUSIONS

In this paper we have presented the design of an

intelligent middleware, WuKong, for M2M-based

systems. The WuKong middleware provides

platform-independent access to heterogeneous

resources at two different levels. First, the profile

framework allows the resources in the network to be

discovered by Master and to communicate with each

other through a well defined link protocol. In

addition, the middleware includes a small JVM,

which will allow developers to dynamically add

application specific behaviour to the functionality

already present in the sensor hardware.

A working prototype of the WuKong middleware

has been developed, including the profile

framework. The prototype is able to compile an

application, described as a high level flow based

programm, map the logical components to physical

nodes, and wirelessly deploy and run the application.

ACKNOWLEDGEMENTS

This research was partially supported by National

Science Council of Taiwan, National Taiwan

University and Intel Corporation under Grants NSC

100-2911-I-002-001, and 101R70501.

REFERENCES

Chang, M., Bonnet, P., 2010. Meeting Ecologists’

Requirements with Adaptive Data Acquisition. In

Proceedings of the 8th ACM Conference on Embedded

Networked Sensor Systems

Levis, P., Culler, D., 2002. Maté a tiny virtual machine for

sensor networks. In Proceedings of the 10th

international conference on Architectural support for

programming languages and operating systems

Müller, R., Alonso, G., Kossmann, D., 2007. A virtual

machine for sensor networks. In Proceedings of the

2nd ACM SIGOPS/EuroSys European Conference on

Computer Systems

Brouwers, N., Langendoen, K., Corke, P., 2009.

Darjeeling, a feature-rich VM for the resource poor. In

Proceedings of the 7th ACM Conference on Embedded

Networked Sensor Systems

Aslam, F., Schindelhauer, C., Ernst, G., Spyra, D., Meyer,

J., Zalloom, M., 2008. Introducing TakaTuka: a Java

virtual machine for motes. In Proc. of the 6th ACM

Conference on Embedded Networked Sensor Systems

Harbaum, T., 2005. NanoVM http://www.harbaum.org/

till/nanovm/index.shtml

Hughes, D. et al., "LooCI: The Loosely-coupled

Component Infrastructure," 11th IEEE Symposium on

Network Computing and Applications (NCA), pp.236-

243, Aug. 2012

Fok, C.-L.., Roman, G.-C., Chenyang, L., 2005. Rapid

Development and Flexible Deployment of Adaptive

Wireless Sensor Network Applications. In

Proceedings of the 25th IEEE International

Conference on Distributed Computing Systems

Liu, H., Roeder, T., Walsh, K., Barr, R., Sirer, E. G., 2005.

Design and implementation of a single system image

operating system for ad hoc networks. In Proceedings

of the 3rd international conference on Mobile systems,

applications, and services

Gluhak, A., Krco, S., Nati, M., Pfisterer, D., Mitton, N.,

Razafindralambo, T., 2011. A Survey on Facilities for

Experimental Internet of Things Research. In IEEE

Communications Magazine, Vol. 49, no. 11, Nov. 2011

Mottola, L., Picco, G. P., 2011. Programming Wireless

Sensor Networks: Fundamental Concepts and State of

the Art. In ACM Computing Surveys, volume 43, issue

3, April 2011

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks
