Situation Awareness-Oriented Alarm Visualizations: A next Step in
HSC Environments
Rosa Romero-Gómez, David Díez, Paloma Díaz and Ignacio Aedo
DEI-Interactive Systems Lab, Computer Science Department, Universidad Carlos III de Madrid, Leganés, Madrid, Spain
Keywords: Alarm Visualization, Situation Awareness, Human Supervisory Control.
Abstract: Due to their effective capability to fix the attention of control room operators to such conditions that require
some kind of response, alarm visualizations have become key control artifacts in Human Supervisory
Control environments. Nevertheless, the increasing complexity and interconnectivity of controlled processes
highlights the necessity of new control artifacts that support both identification and diagnosis tasks. In this
line of work, this paper posits the need of redesigning alarm visualizations in order to assist not only the
real-time detection of failures but also the achievement of Situation Awareness by control room operators.
Based on dynamic interaction and exploration capabilities, this new design perspective for alarm
visualizations may improve the operator’s ability to diagnose the causes of abnormal situations.
1 INTRODUCTION
Human Supervisory Control (HSC) is defined as
“the process by which a human operator
intermittently interacts with a computer, receiving
feedback from and providing commands to a
controlled process or task environment” (Sheridan,
1992, p. 1). Due to their capability to assist control
room operators, alarm visualizations have been
characterized as key control artifacts in HSC
environments (Sheridan, 1992; Endsley et al., 2003;
Ivergard and Hunt, 2009). Alarm visualizations refer
to “the method(s) by which alarm coding and
messages are presented to control room operators”
(ISA, 2009, p. 50).
The primary objective of alarm visualization is to
warn the operator about a condition that develops
when the controlled process significantly deviates
from the normal acceptable mode of operation (see
Fig.1). However, effective alarm systems must be
conceived not only to support the identification of
failures but also to assist the diagnosis of the
situation (Niwa and Hollnagel, 2001); understanding
diagnosis as the act or process of deciding the nature
of the operating condition by examination
(Rasmussen, 1993). Accordingly, the next design
challenge of alarm visualization should be to assist
this thinking process.
The analyses of recent problems in HSC
environments shows that the ability of control room
operators for acquiring Situation Awareness (SA) is
a major factor in failures propagation (Endsley et al.,
2003; Greitzer et al., 2008). With increasing
complexity and interconnectivity of the controlled
processes, the scope and complexity of HSC
continues to grow, in particular, the amounts and
typologies of information that control room
operators must process in quasi-real time (Greitzer et
al., 2008), hampering the achievement of SA.

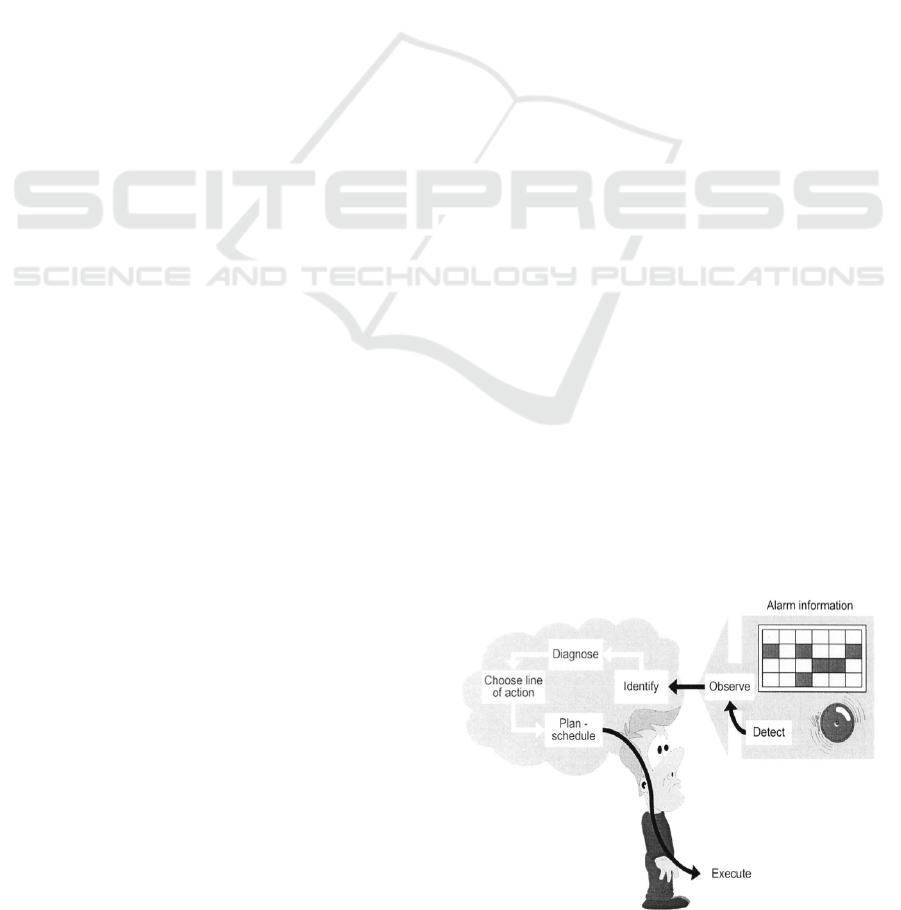

Figure 1: Alarm processing paradigm according to the
primary purpose of an alarm system (Niwa and Hollnagel,
2001).
483
Romero-Gómez R., Díez D., Díaz P. and Aedo I..
Situation Awareness-Oriented Alarm Visualizations: A next Step in HSC Environments.
DOI: 10.5220/0004208504830488
In Proceedings of the International Conference on Computer Graphics Theory and Applications and International Conference on Information
Visualization Theory and Applications (IVAPP-2013), pages 483-488
ISBN: 978-989-8565-46-4
Copyright
c
2013 SCITEPRESS (Science and Technology Publications, Lda.)
This paper posits the need of redesigning alarm
visualizations in order to assist not only the real-time
detection of failures but also the achievement of SA
by control room operators. Based on dynamic
interaction and exploration capabilities, such SA-
oriented alarm visualization may overcome human
information processing limitations and, therefore,
improve the ability of control room operators to
diagnose the causes of abnormal situations.
This position paper first gives an overview of the
SA and how visualization relates to it. In order to
identify design limitations in current alarm
visualizations, the next section reviews prior work
on alarm-visualization design research. Afterwards,
underpinned by design principles related to SA,
alarm management, and visualization, a set of design
considerations and conclusions are provided for
further discussion.
2 THEORETICAL
BACKGROUND
As aforementioned, it has been widely established
that SA is a contributing factor to many accidents
and incidents in a variety of HSC contexts.
However, defining exactly what constitutes SA has
been a challenging task because of the complexity
on characterizing the construct in terms of a set of
psychological processes (Greitzer et al., 2008).
Rousseau, Tremblay, and Breton (Rousseau et
al., 2004) performed a systematic classification of 26
SA definitions in the literature. These definitions can
be classified in two main classes corresponding to
what is now a generally accepted duality of SA as a
state or a process. On the one hand, Mica Endsley
has supplied the most highly recognized descriptive
model of SA. This definition refers to SA as “the
perception of elements in the environment within a
volume of time and space, the comprehension of
their meaning, and the projection of their status in
the near future” (Endsley et al., 2003, p. 13).
Accordingly, Endsley describes this concept as a
state of knowledge and the associated process as
situation assessment. On the other hand, Dekker and
Lutzhoft (Dekker and Lutzhoft, 2004) take issue
with the empiricist view of SA that consider SA as a
label for a range of cognitive processes or
processing activities. They describe SA as an
intrinsic feature of the functional relationship
between the environment and the person. This
approach is highly related to current ideas about
sensemaking as an active strategy for dealing with a
complex world. Sensemaking is the cyclical process
in which humans collect information, examine,
organize and categorize that information, isolate
dimensions of interest, and use the results to solve
problems, make decisions, take action, or
communicate findings (Klein et al., 2006).
This latter SA perspective is consistent with
current ideas about sensemaking as the research path
of visualization. According to Stuart Card (Card et
al., 1999), the era of pure visualization is over.
Leaving aside communication purposes, the goal of
visualization should be insight or, more particularly,
sensemaking. Visualization can enhance the
sensemaking cycle by reducing search; enhancing
the recognition of patterns; supporting the easy
perceptual inference of relationship; allowing for the
perceptual monitoring of a large number of potential
events; enabling the exploration of a space of
parameter values; and providing means for
evaluating various hypotheses (Card et al., 1999;
Thomas and Cook, 2005).
3 ALARM VISUALIZATIONS
DRAWBACKS
So far, alarm-visualization design research has
mainly been focused on developing presentation-
oriented alarm visualizations instead of reinforcing
the analytical strengths naturally gained by the
visualization itself. In particular, past research
performed by Mattiason (Mattiasson, 1999),
Tuszynski (Tuszynski et al., 2002), Bullemer
(Bullemer et al., 2011) and Mikkelsen (Mikkelsen et
al., 2011) highlights deficiencies related to: (1) the
lack of visual scalability - the capability of
visualization tools to display large datasets, in terms
of the number of individual elements and data
dimensions (Eick and Karr, 2002); (2) information
integration - the capability of visualization tools to
integrate heterogeneous information spaces into a
single analytic environment (Thomas and Cook,
2005); and (3) support for pattern extraction tasks -
the capability of visualization tools to organize data
by structural relationships such as space and time
(Thomas and Cook, 2005).
Regarding to visual scalability deficiencies,
alarm visualizations have the potential problem of
alarm flooding during large disturbances. Alarm
flood is a situation where the alarm activations occur
so rapidly that the operator is “flooded” by them
(Rothenberg, 2009) so the most important alarms are
difficult to locate by control room operators.
IVAPP2013-InternationalConferenceonInformationVisualizationTheoryandApplications
484

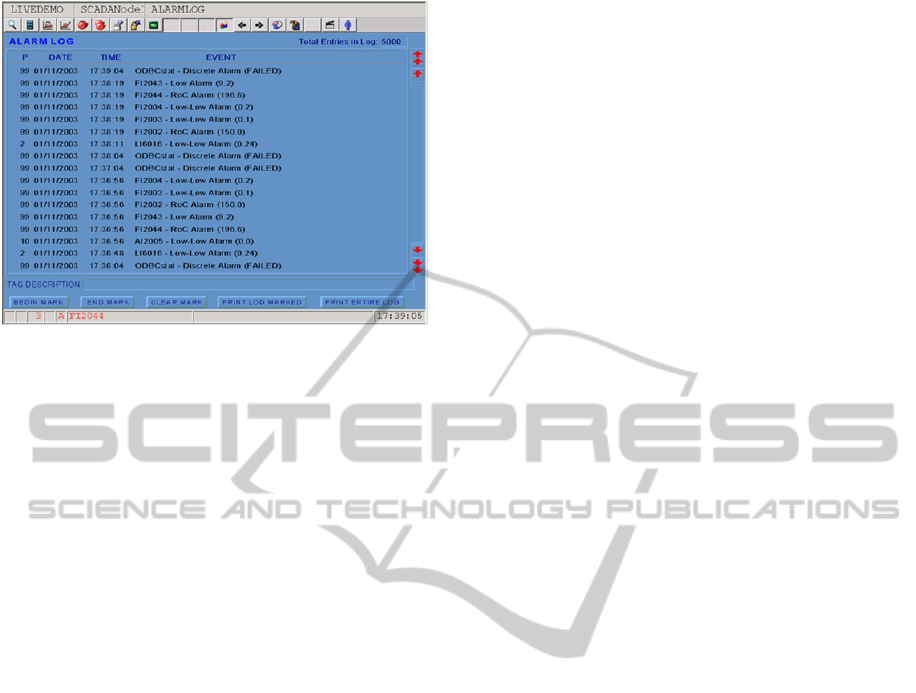

Figure 2: Alarm messages list from a typical SCADA
