Blood Vessel Characterization in Colonoscopy Images to Improve Polyp

Localization

Joan M. N´u˜nez, Jorge Bernal, Javier S´anchez and Fernando Vilari˜no

Dept. of Comp. Science, Comp. Vision Center, Ediﬁci O - UAB, 08193 Bellaterra, Spain

Keywords:

Colonoscopy, Blood Vessel, Linear Features, Valley Detection.

Abstract:

This paper presents an approach to mitigate the contribution of blood vessels to the energy image used at differ-

ent tasks of automatic colonoscopy image analysis. This goal is achieved by introducing a characterization of

endoluminal scene objects which allows us to differentiate between the trace of 2-dimensional visual objects,

such as vessels, and shades from 3-dimensional visual objects, such as folds. The proposed characterization is

based on the inﬂuence that the object shape has in the resulting visual feature, and it leads to the development

of a blood vessel attenuation algorithm. A database consisting of manually labelled masks was built in order

to test the performance of our method, which shows an encouraging success in blood vessel mitigation while

keeping other structures intact. Moreover, by extending our method to the only available polyp localization

algorithm tested on a public database, blood vessel mitigation proved to have a positive inﬂuence on the overall

performance.

1 INTRODUCTION

Colorectal cancer ranks in the third place in incidence

and it is the fourth most common cause of cancer

death worldwide (Segnan et al., 2011), with about

143.460 new cases expected in 2012 by the most re-

cent estimates of the American Cancer Society for the

number of colorectal cancer cases in the United States

only (American Cancer Society, 2012) Based on de-

mographic trends, the annual incidence is expected to

increase by nearly 80% to 2.2 million cases over the

next two decades and most of this increase will oc-

cur in the less developed regions of the world. For-

tunately, experience in Europe -where colorectal can-

cer is the second leading cause of cancer deaths with

approximately 435.000 new cases diagnosed yearly-

has shown that systematic early detection and treat-

ment has the potential to improve control of the dis-

ease (Segnan et al., 2011).

Colon cancer’s survival rate depends on the stage

it is detected on, decreasing from rates higher than

95% in the ﬁrst stages to rates lower than 35% in

stages IV and V (Tresca, A., 2010); hence the im-

portance of detecting it on its early stages by us-

ing screening techniques, such as colonoscopy (Has-

singer et al., 2010). Colonoscopy is a procedure used

to see inside the colon and rectum, which has become

the gold standard to also detect and treat inﬂamed tis-

sue, ulcers, and abnormal growths among others.

During the last decades there is a trend to de-

velop intelligent systems that can provide additional

information to medical procedures. Those systems

aim to decrease the number of missdetections by pro-

viding intelligent support to clinical staff. Some ex-

amples include KARDIO (Bratko et al., 1990), (de-

veloped to interpret electrocardiograms) or systems

that aid on breast cancer detection (Wei et al., 2011)

or colonoscopy (Bernal et al., 2011). As depicted

on the last reference cited there are several possible

domains of application of an intelligent system for

colonoscopy, whether it is used as a tool to assist

in the diagnosis or as a way to measure objectively

the quality of the intervention. Nearly all the exist-

ing methods need of an identiﬁcation of the elements

that appear on the endoluminal scene: lumen, wrin-

kles and folds, blood vessels, polyps, fecal content

and specular highlights (see Figure 1).

In this paper we will introduce a method for

colonoscopy images which will allow us to separate

information referring to blood vessels from scene ob-

jects related to the shape of the intestinal wall. By

means of our approach we are able to make a differ-

ence between 2-dimensional objects, like blood ves-

sels, and 3-dimensional objects, such as folds and

polyps. We follow the lines depicted in (Bernal et al.,

2012) which pointed out the use of energy images,

162

M. Núñez J., Bernal J., Sánchez J. and Vilariño F..

Blood Vessel Characterization in Colonoscopy Images to Improve Polyp Localization.

DOI: 10.5220/0004211601620171

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 162-171

ISBN: 978-989-8565-47-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

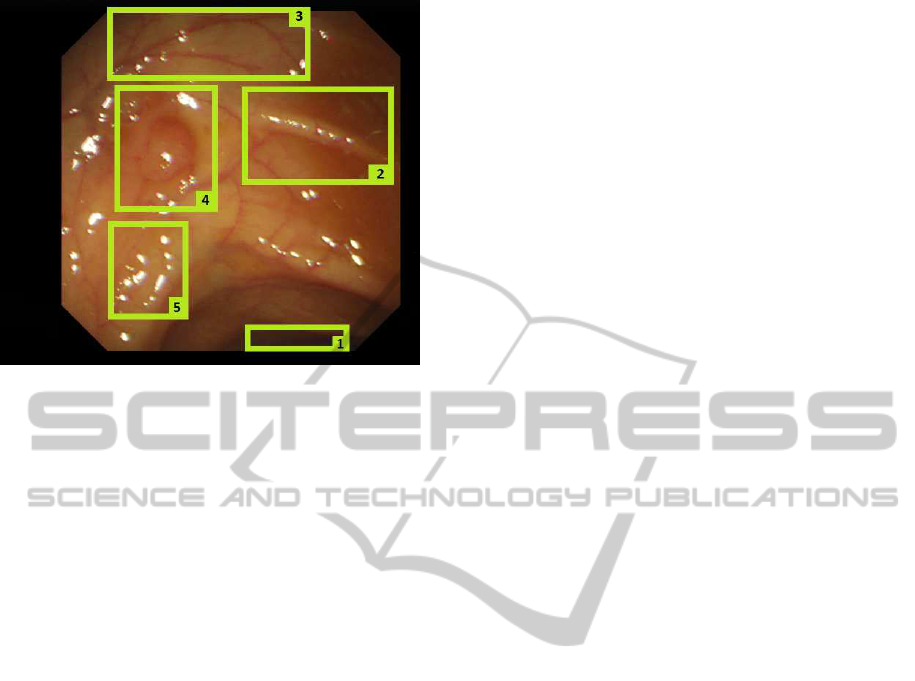

Figure 1: Graphical example of a typical endoluminal scene

from a colonoscopy video: 1) Lumen; 2) Wrinkles and

folds; 3) Blood vessels; 4) A polyp; 5) Specular highlights.

particularly the output of a valley detector, to make a

ﬁrst approach to endoluminalscene object boundaries

detection. We provide a solution to mitigate the effect

of blood vessels on an energy image, which shows to

be useful to provide a more complete scene descrip-

tion and helps to improve the performance of current

polyp localization algorithms.

The structure of the paper is as follows: in Section

2 we present some ideas from other papers that have

inspired our work. In Section 3 we present our blood

vessels mitigation algorithm. In Section 4 we present

our experimental setup and show results of applying

our blood vessels mitigation method in colonoscopy

images. Finally in Section 5 we show the main con-

clusions that we extract from our work and present

some future research lines.

2 RELATED WORK

As mentioned in Section 1, there are several biblio-

graphic references devoted to the description of ele-

ments of the endoluminal scene. Regarding the scope

of this paper, we can divide the published works into

two different areas, namely: 1) Image enhancement

and preprocessing; and 2) Polyp localization.

There are several types of artifacts that are associ-

ated to colonoscopy video, which fundamentally con-

sists of color phantoms and specular highlights. Color

phantoms are caused by a temporal misalignment of

the color channels implied by the use of monochrome

CCD cameras in colonoscopy, which means that RGB

components are taken at different times and causes

a worsening on the quality that must be improved

(Arnold et al., 2011; Dahyot et al., 2008). Specular

highlights appear on the intestinal surface as an ef-

fect of frontal illumination, causing the apparition of

highly saturated regions in the image. There are sev-

eral approaches to detect and restore the surface be-

low the specular highlights (Arnold et al., 2010; Imai

et al., 2011).

Polyp localization concentrates the great major-

ity of the bibliography devoted to intelligent systems

for colonoscopy, which could be divided into shape-

based polyp localization (Bernal et al., 2012; Zhu

and Liang, 2010) and texture-based polyp localiza-

tion (Ameling et al., 2009; Tjoa and Krishnan, 2003),

only to mention a few. One relevant issue, which has

not received enough attention, relates to the impact of

the different elements of the endoluminal scene -such

as folds, wrinkles and vessels- in the overall perfor-

mance of thepolyp localization methods. Particularly,

up to our knowledge,thereis no existing work that has

paid attention to the role of blood vessels in polyp lo-

calization, and therefore, there is no concrete bibliog-

raphy about vessel detection in colonoscopy videos.

However, many different methods have been used

to provide a segmentation of blood vessels in two-

dimensional images. Most of them have been

tested in retinal or angiography images. Despite

the wide variability of enhancement steps and seg-

mentation methods they are usually separated in two

big groups: pixel-based methods and tracking-based

methods (Mendonca and Campilho, 2006).

• Pixel-based methods include different approaches

such as kernel-based methods, model-based tech-

niques, classiﬁer-based methods or morphology-

based strategies. Kernel-based methods make use

of a convolution operator with a particular ker-

nel designed according to a model. The aim of

the convolution is usually to extract vessel bor-

ders or centerlines. A matched ﬁlter approach

based on Gaussian kernels is used in some meth-

ods to model the cross-section of a blood ves-

sel (Chaudhuri et al., 1989; Hoover et al., 2000).

These methods use Gaussian-shaped templates in

different orientations and scales to identify vessel

proﬁles. An example of model-based technique

(Jiang et al., 2003) proposed a knowledge-guided

adaptive thresholding framework where binariza-

tion is used to generate object hypotheses. Those

hypotheses are only accepted if they pass a ver-

iﬁcation procedure. Classiﬁer-based methods in-

tend to assign each pixel in the image to the ves-

sel or non-vessel class. In this group we ﬁnd what

the authors called a primitive-based method (Staal

et al., 2004). In this method a ridge detection is

performed as a ﬁrst step to achieve a segmenta-

BloodVesselCharacterizationinColonoscopyImagestoImprovePolypLocalization

163

tion of the image. Afterwards, that information is

considered to classify regions and pixels. In some

examples a bayesian classiﬁer is used after com-

puting feature vectors obtained by Wavelet Gabor

responses (Soareset al., 2006) or a neural network

is used after computing a feature vector based on

moment invariants-based features (Mar´ın et al.,

2011). Morphology-based techniques use mor-

phological operators to take advantage of shape

characteristics of blood vessels. Morphological

operators are usually combined with other tech-

niques. Other authors used the extraction of ves-

sel centerlines combined with local information

as the vessel length is followed by an iterative

vessel ﬁlling phase based on morphological ﬁl-

ters (Mendonca and Campilho, 2006). Mathe-

matical morphology can also be combined with

curvature evaluation to differentiate vessels from

other structures (Zana and Klein, 2001).

• Tracking-based methods aim to obtain the vascu-

lature structure using local information to follow

vessel centerlines. Tracking techniques trace ves-

sels from selected starting points which usually

correspond to well known anatomical structures.

At each point a neighborhood is evaluated to de-

cide whether they are vessel candidate pixels re-

garding some kind of local information. The pro-

cess ﬁnishes when the pixels evaluated are con-

sidered to be end points. Other approaches that

can be included in this category are based on de-

formable or snake models. This techniques place

an active contour model near the aimed contour

and evolve it iteratively to ﬁt the desired object

(Espona et al., 2007).

Many methods using techniques in different cat-

egories can also be found. For instance, some ap-

proaches combine a classiﬁcation based on support

vector machine followed by a tracking stage based on

the Hessian matrix (Xu and Luo, 2010).

In our case the novelty of our approach lies in

the consideration of the presence of blood vessels

in polyp localization. Our proposal is based on the

only available method of automatic polyp localization

tested on a public database (Bernal et al., 2012). That

work only assesses the inﬂuence of specular reﬂec-

tions in the endoluminal scene in polyp localization

performance. We intend to improve that approach by

considering also the inﬂuence of blood vessels.

3 METHODOLOGY

Blood vessels appear in 2-dimensional images as

piecewise linear connected components. Unlike other

image types, such as retinal images, the vascular

structure in colonoscopy images is not connected in

a fully tree-like way nor a single-root tree. The con-

sequence of this is that spatial heuristics such as those

mentioned above are not helpful in this case. There-

fore, considering the previous deﬁnition, intensity

valleys in a monochromatic image are a good start-

ing point to detect the vascular structure, as conﬁrmed

by the existing related works. However, it becomes an

overlybroad model in the case of colonoscopy images

since the endoluminal scene is made up of several ob-

jects of different nature. The problem with this simple

blood vessel model is that it also matches other visual

components of the endoluminal scene like boundaries

of specular highlights, shades, bubble edges, colon

wall folds or polyp contours.

In order to separate vessel information from the

remaining anatomical structures we propose the fol-

lowing scheming consisting of three different stages,

namely: 1) Image preprocessing; 2) Valley detection

and 3) Vessel mitigation.

3.1 Pre-processing

Our image preprocessing consists of two different

stages: obtaining images from interlaced video and

specular highlights detection and inpainting.

Interlaced video frame consists of two sub-ﬁelds

taken in sequence, each sequentially scanned at odd

and even lines of the image sensor (De Haan and

Bellers, 1998). In order to digitalize interlaced video

the two frames must be combined into a single frame

which leads to various undesired visual defects. To

avoid that problem we just select the odd frame from

each pair of frames and resize it to match the original

image proportions.

The method we use for specular highlights de-

tection and inpainting has already been presented

(Arnold et al., 2010), which has two different mod-

ules: the ﬁrst one uses color balance adaptative

thresholds to determine the parts of specular high-

lights that present too high intensity to be part of non-

specular image content, that is, the saturated pixels

on the image. The second module reﬁnes the previ-

ous specular highlight detection by including pixels

nearby to saturated regions of the image that appear

to be either shadows of the original artifacts or cor-

respond to the less intense parts of the specular high-

lights in the image. The specular highlights inpaint-

ing is performed on two levels. In the ﬁrst level the

image is modiﬁed by replacing all detected specular

highlights by the centroid colour of the pixels within

a certain distance range of the outline. In the second

level a weighted mask is used to combine the modi-

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

164

(a) (b) (c)

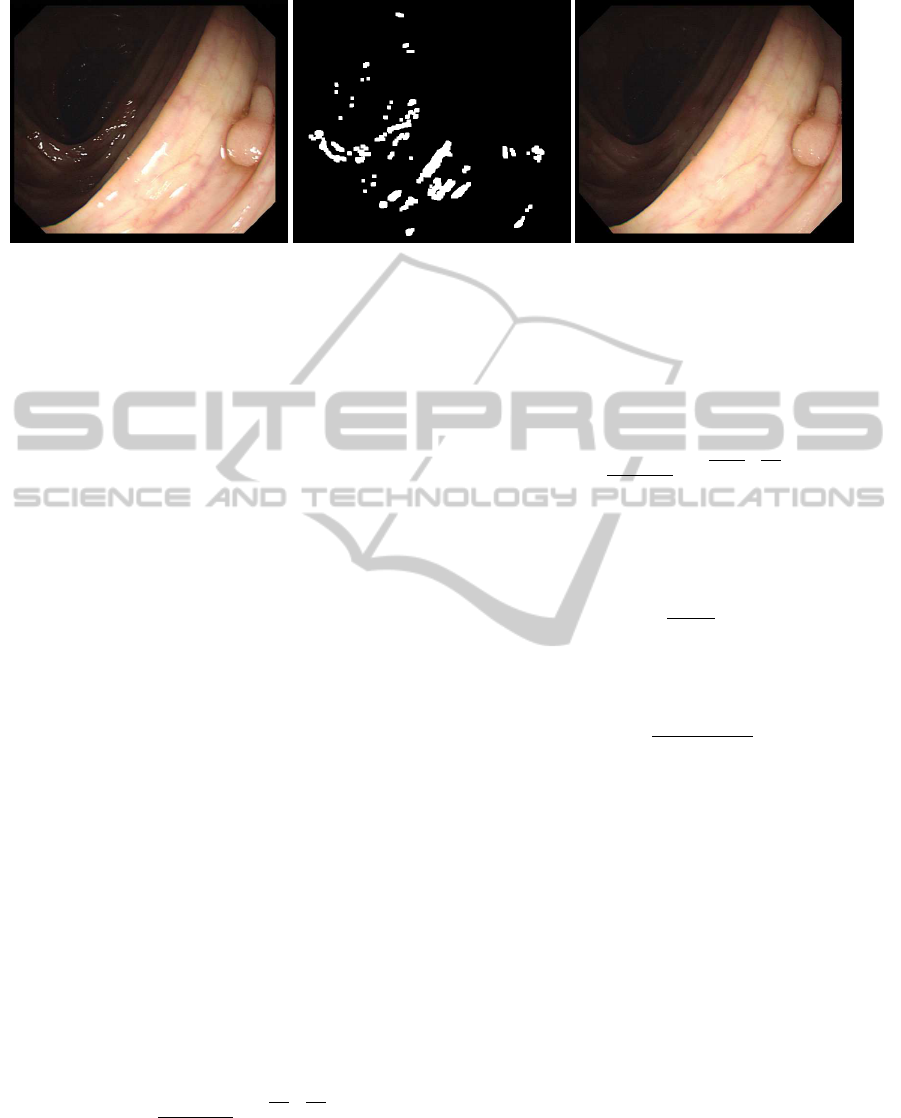

Figure 2: (a) Original image. (b) Specular highlights mask. (c) Output image.

ﬁed image with the original one in a way such pixels

inside the specular highlight receive their value from

the modiﬁed image and pixels far from the highlight

have their original value unaltered.

An example of specular highlight detection and

inpainting can be seen in Figure 2.

3.2 Valley Detection

Our basic blood vessel model states that blood ves-

sels appear as valleys in monochromatic images.

Observation of colonoscopy images in RGB color

space shows that the green component is the one

that provides greater contrast between vessels and

background, which agrees with the generalized idea

regarding retinal images (Mendonca and Campilho,

2006). Therefore, the valley detection stage will have

as input the preprocessed green component. Since

vessels are described as piecewise linear connected

components, different linear feature detectors appear

as suitable candidates (Papari and Petkov, 2011).

Among those detectors, we selected to use matched

ﬁlters. It does not imply it to be the only possible so-

lution, considering that designing a valley detector is

not the aim of this preliminary study.

Blood vessels appear as darker line segments due

to its lower reﬂectance with respect to colon walls. It

prompted us to design our ﬁlter templates based on

second derivatives of anisotropic Gaussian kernels.

The kernel values are deﬁned by the oriented Gaus-

sian function described by:

(σ

,σ

),θ

(2π)σ

−



˜x

2σ

˜y

2σ



(1)

where (σ

, σ

) are the scales in the correspondingaxis

and θ is the rotation angle of the ﬁlter. ˜x and ˜y are the

coordinates given by the rotation angle. Hence they

are deﬁned as:

˜x = xcosθ + ysinθ

˜y = xsinθ− ycosθ

(2)

As we use anisotropic Gaussians with σ = σ

2σ

the Gaussian function results in:

σ,θ

(2π)2σ

−



˜x

2(2σ)

˜y

2σ



(3)

Therefore, since we are modelling blood vessel

proﬁles with second derivatives of anisotropic Gaus-

sian kernels, the kernel will be deﬁned as:

∂

˜y

σ,θ

˜y

− 1

σ,θ

(4)

We apply a normalization so that the geometry of

the valleys is priorized:

σ,θ

k∂

˜y

σ,θ

∗ Ik

k∂

˜y

σ,θ

kkIk

(5)

where k · k stands for the L

integral norm and ∗ de-

noting the convolution operator.

The kernels are applied for 8 equally distributed

orientations and scales σ = [2, 4, 6], which cover all

vessels width in our test dataset. It all means we have

24 output images, each of them corresponding to a

determined orientation and scale. Hence, the output

valleys

must be a combination of all of them, deﬁned

as follows:

valleys

= max

i, j



,θ



(6)

Prior to the valley detection method described

above, structure preserving diffusion (Gil et al., 2009)

is applied in order to remove image surface irregular-

ities while preserving image structure. The output of

this stage, I

valleys

, is a gray level image in which the

higher the value of a pixel, the higher the chances of

that pixel to be part of a valley. See Figures 3(a), 3(b)

and 3(c) for an example of the process described so

far.

BloodVesselCharacterizationinColonoscopyImagestoImprovePolypLocalization

165

(a) (b) (c)

(d) (e) (f)

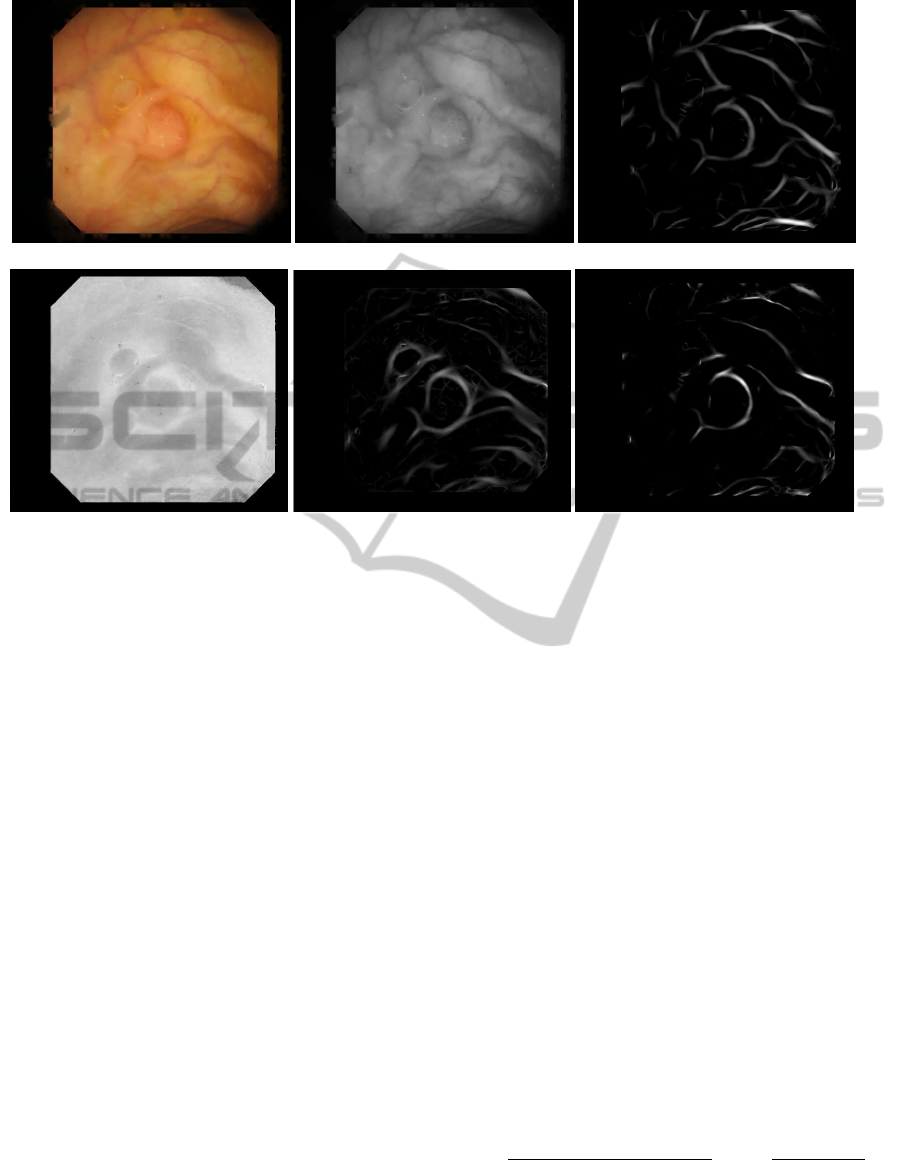

Figure 3: (a) Image after highlight removal. (b) Green component. (c) Valley energy image. (d) Saturation (HSV space). (e)

Shadings energy image. (f) Final output energy image.

3.3 Vessel Mitigation

With regard to intensity values, both blood vessels

and shadings from folds and wrinkles appear as elon-

gated regions which are darker than intestinal walls in

the background. Previous work showed that shadings

from all the endoluminal structures can be approxi-

mated by the Phong’s model (Bernal et al., 2012),

which includes ambient, diffused and specular com-

ponents. Specular reﬂections have a spectral distri-

bution nearly the same as the incident light but the

diffuse component depends also on the object proper-

ties (Shafer, 1985). The ambient component is a non-

directional source that groups environmental inter-

reﬂections (Blinn, 1977). The resulting color of a

given region in the endoluminal scene will depend on

the orientation of the light source, which is coupled

to the camera with its same orientation. In that sense,

the dark areas created by folds are never oriented to

the light source, and thus the nature of their color is

conditioned by this orientation. Local variations of

surface orientation in folds affect to the components

in a different way. Specular reﬂection contribution

decreases more quickly than the diffuse component

in regions not oriented to the camera. Besides, since

the diffuse component depends on the surface reﬂec-

tive properties and the surface orientations, regions

which are not oriented to the camera, such as parts

of folds and wrinkles, will appear as more saturated

in color. In these regions the contribution of the spec-

ular component is lower, and the diffuse component

will contribute to a higher saturation in color. Con-

versely, blood vessels are ﬂat visual features that can

be found in regions with any kind of orientation so

that the nature of their color is not affected differently

than the surrounding areas.

These considerations about the nature of the ob-

jects in the endoluminal scene based on its illumi-

nation led us to explore HSV color space (Joblove

and Greenberg, 1978), since it decouples the inten-

sity of the image -which conveys no discriminative

power between vessels and shadings- from its chro-

matic components. In HSV space H, S and V stand

for hue, saturation and value, respectively. Hue is as-

sociated with the dominant wavelength in the color

spectrum. Saturation refers to the amount of white

light mixed with that dominant wavelength and it is

deﬁned as:

S =

max(r, g, b) − min(r, g, b)

max(r, g, b)

= 1−

min(r, g, b)

max(r, g, b)

(7)

Assuming that colon wall properties remain un-

changed at folds and wrinkles, the different color they

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

166

show is to be related exclusivelyto changes in the illu-

minant contribution. Therefore, fold/wrinkle regions

will have higher levels of saturation than the neigh-

bouring colon wall regions. An exhaustive test on

our test dataset conﬁrmed that color-saturation levels

in vessel regions appear to be systematically closer

to the levels of the adjoining background intestinal

walls (see an example in Figure 3(d)). Consequently,

fold/wrinkle regions can be described as piecewise

linear connected regions in the saturation component

image. An energy image describing the presence of

folds and wrinkles in the scene, I

shadings

, can be com-

puted using the techniques exposedin Section 3.2 tak-

ing the complementary of saturation as input. Figure

3(e) shows an example of this result. The ﬁnal output

image,I

out

, (see Figure 3(f)) will be computed as:

out

(x, y) = I

valleys

(x, y)I

shadings

(x, y) (8)

This resulting image is expected to enhance shad-

ings from folds, wrinkles and polyps while mitigating

blood vessels.

4 EXPERIMENTAL RESULTS

4.1 Experimental Setup

One of the problems when testing the performance

of an algorithm is that validation should be done on

a consistent database. Sadly it is very difﬁcult to

ﬁnd any online database with data from colonoscopy

video, as they are usually conﬁdential. Neverthe-

less, a public dataset from colonoscopy video has

been made available recently (Machine Vision Group,

CVC, 2012). This dataset consists of 380 imagesfrom

15 different colonoscopy videos. Each frame con-

tains a polyp but the authors have focus on showing as

many different polyp appearances as possible. From

now on, we will referred to this dataset as the CVC-

ColonDB.

As we are interested on blood vessels mitigation

we selected and annotated a subdataset of 29 images

following as a criterion the presence of blood vessels.

Blood vessels have been labelled manually by experts

in order to create blood vessels masks. This dataset

will be referred as the Vessel Dataset. An example of

our Vessel Dataset can be seen in Figure 4.

Several experiments were developed to assess

quantitatively the performance of our method on mit-

igating blood vessels. More speciﬁcally, we want to

compare the energy corresponding to blood vessels in

both the valley energy image and the valley energy

image after blood vessel mitigation.

(a) (b)

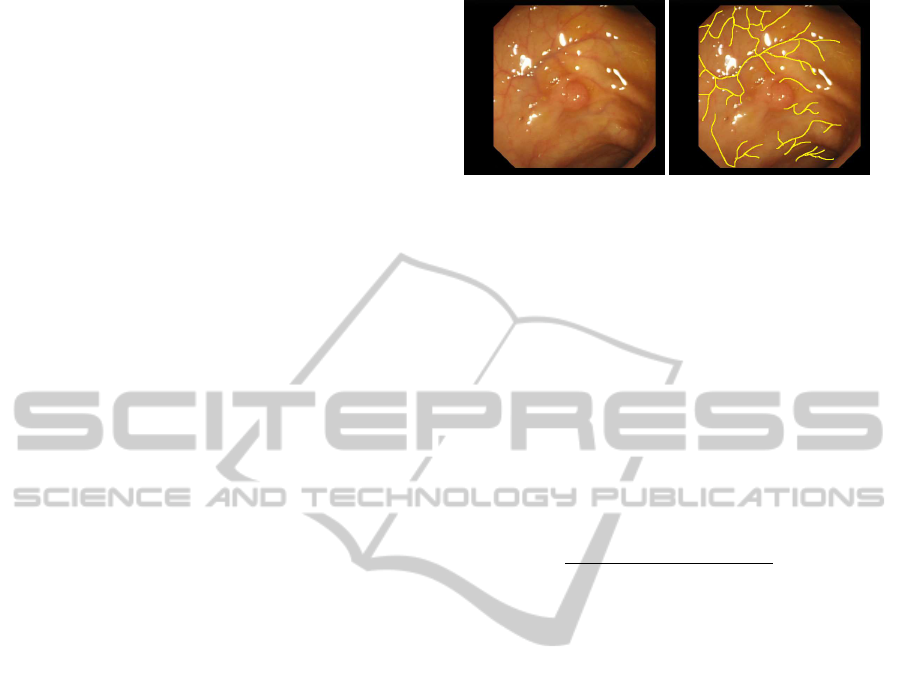

Figure 4: Example of Vessel Dataset: (a) Original image.

(b) Blood vessels mask superimposed on the original image.

As our vessel masks have been created only as de-

scriptors of its trace without any width information,

we dilated the masks of blood vessels using morpho-

logical operators to provide us with a region of blood

vessel inﬂuence. It allows us to separate the energy

in blood vessel regions from the energy in non-vessel

regions. Given L

as the vessel mask and ⊕ as the

dilation operator, vessel energy, E

, in the considered

energy image I is deﬁned in 9.

∑

(x,y)∈I

I(x, y)(L

⊕ S

)(x, y)

∑

(x,y)∈I

I(x, y)

∗ 100 (9)

Consequently, the total energy in an image, E

total

will satisfy:

total

= E

+ E

= 100; (10)

which describes the balancing of energy between ves-

sels and non-vessels as a percentage of contribution.

4.2 Vessel Mitigation

The proposed metrics have been computed for both

the valley energy images and the valley energy im-

ages after vessel energy removal. Figure 5(a) shows

performance metric for each image in the whole

Vessel Dataset already introduced. The ﬁgure allows

us to verify the decrease of energy in areas previously

identiﬁed as blood vessels as well as the variability of

that decrease. The decrease of energy referred to ves-

sels depends on the content of visual objects on the

image. Images which had a high degree of vascular

content prior to our processing and no folds interfer-

ing with them suffer an important decrease. Never-

theless, images whose vascular content was low or its

trace is close or strongly crossed by folds do not show

remarkable differences in terms of vessel energy, as

expected. An example of both situations can be seen

in Figure 6. First row in the ﬁgure shows an example

where the input image has a large amount of vascular

BloodVesselCharacterizationinColonoscopyImagestoImprovePolypLocalization

167

(a) (b)

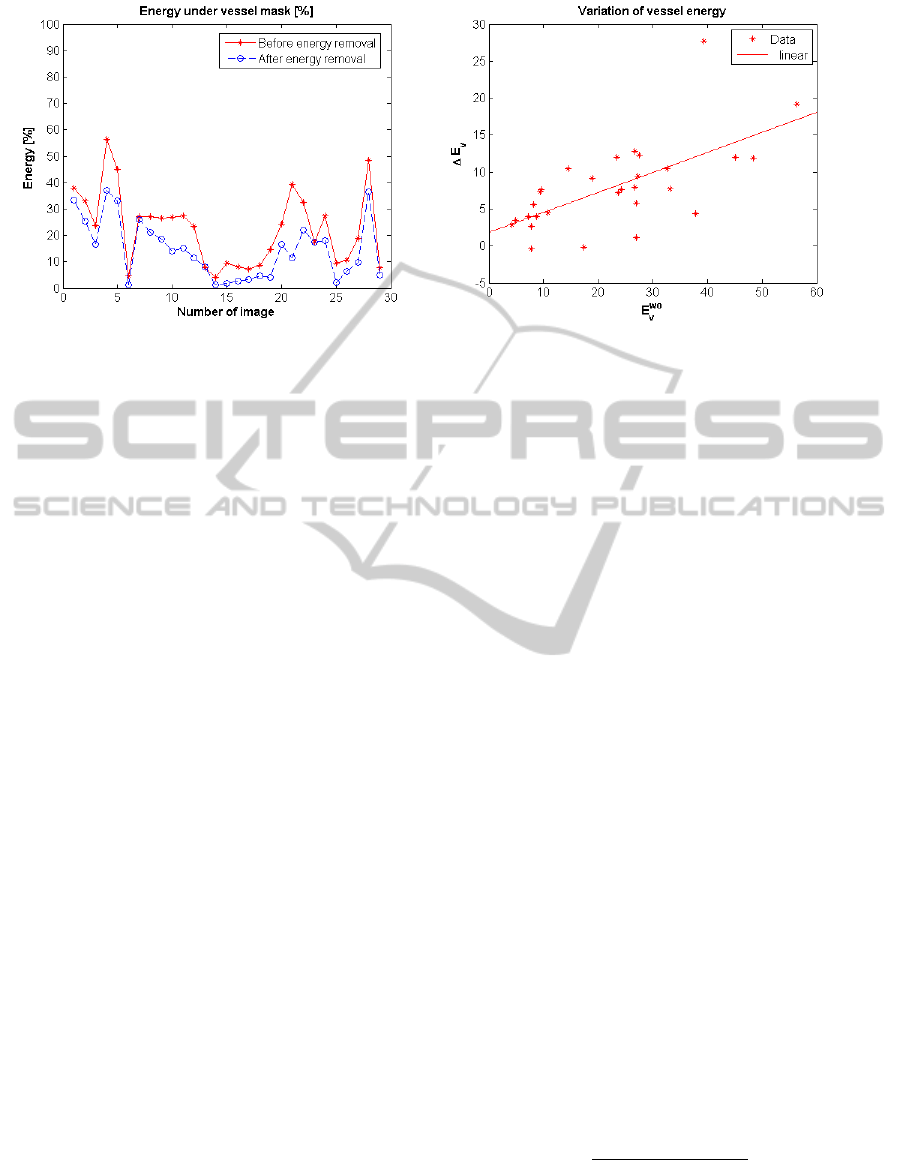

Figure 5: (a) Energy under vessel mask for each image. (b) Variation of vessel energy regarding vessel energy at input.

content in a clear surface not interfered with shades

or folds. The example in the second row contains few

vascular content and many clear folds. For this rea-

son, folds and shades keep most of the image energy

after vessel detection and vessel energy removal has

less impact. Figure 5(b) plots the variation of energy

under vessel masks regarding the energy under ves-

sel mask prior to our removal step. The increase of

energy, ∆E

, is deﬁned so that a positive value corre-

sponds to vessel energy decrease:

∆E

= E

− E

(11)

where E

is the energy image without vessel mitiga-

tion and E

is the energy image with vessel mitiga-

tion. We can see that the energy decrease is related

to the energy at the beginning of the process (Pear-

son correlation coeﬁcient of 0.65). The results re-

garding energy in non-vessel regions are the comple-

mentary of the ones presented in Figure 5(a) as stated

in Equation 10. Therefore, we can also afﬁrm that

regions which has been manually identiﬁed as non-

vessels does not suffer substantial energy decrease.

4.3 Application to Polyp Localization

As mentioned in Section 1, our objective is to pro-

vide a ﬁrst approximation of a blood vessels charac-

terization. This characterization could be useful to

provide a better scene description, but it also shows

to provide relevant information for some other appli-

cations such as helping in polyp localization. There

are several approaches to polyp localization and some

of them have been introduced in Section 2. In this

section we will measure how the characterization of

blood vessels could be useful to improve the only cur-

rent available results on polyp localization that are

obtained in a public database, already introduced as

CVC-ColonDB database (Bernal et al., 2012). In our

case, we will use the output of our processing scheme

as the depth of valleys image, and we will measure

the accumulation of energy by using the SA-DOVA

descriptor. SA-DOVA descriptor deﬁnes an accumu-

lation image by using data from the depth of valleys

image. The value for each pixel is calculated in the

following way: a series of sectors centered on each

pixel accumulate, for each direction, the maxima of

the depth of valleys image. Therefore, the accumula-

tion value is computed as:

Acc(x) =

α=2π

α=0

max

r∈[R

min

max

]

radii

(α)dα (12)

where E

radii

is equal to:

radii

(α) = E(x+ r ∗ (cos(α),sin(α))) (13)

where R

min

and R

max

are the minimum and maximum

radii of the sectors used to generate the accumulation

image and E the energy image. Our hypothesis is that

by identifying which parts of the energy image corre-

spond to blood vessels information we could be able

to mitigate their effect and check if the energy inside

and outside the polyp changes. The metric that we

will use in this experiments is:

∑

(x,y)∈I

I(x, y)L

(x, y)

∑

(x,y)∈I

I(x, y)

∗ 100 (14)

where L

is the polyp mask from the Polyp Dataset.

We measure the percentage of energy inside the polyp

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

168

(a) (b) (c)

(d) (e) (f)

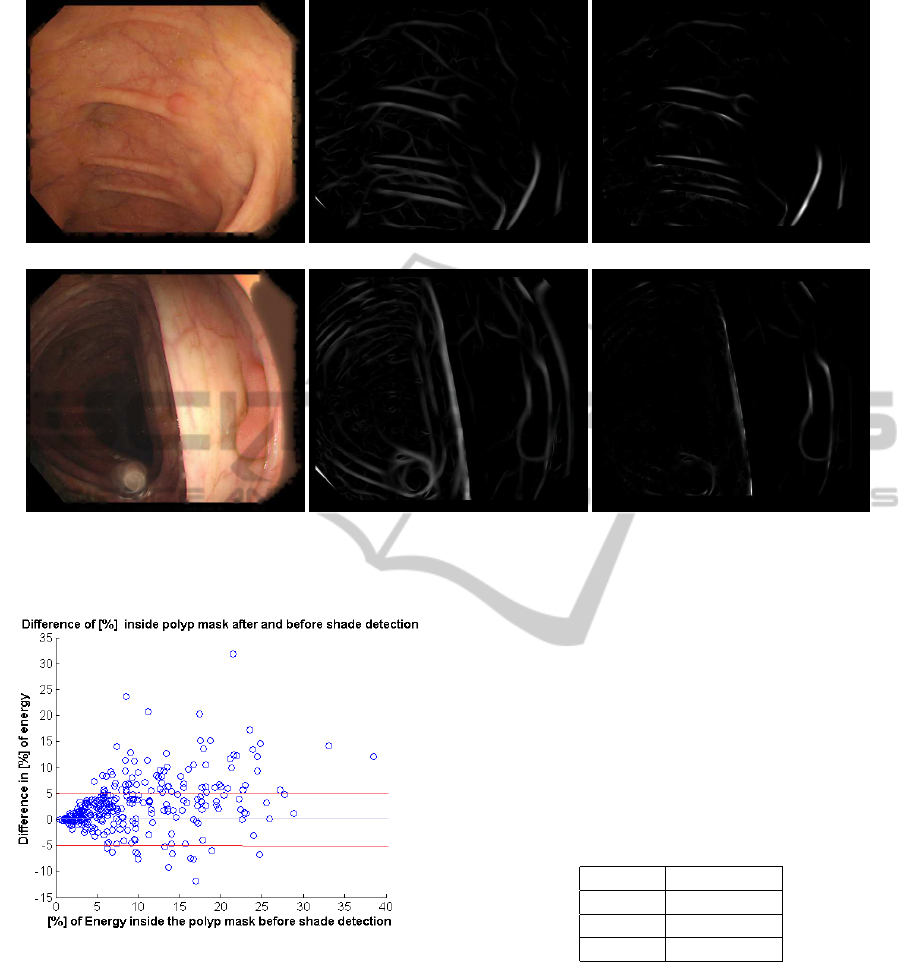

Figure 6: Example 1: (a) Input image. (b) Valley energy image. (c) Energy image after energy removal). Example 2: (d)

Input image. (e) Valley energy image. (f) Energy image after energy removal.

Figure 7: Difference of percentage of energy under polyp

mask before and after blood vessel energy mitigation.

mask whereas the energy outside the polyp will be the

complementary. We expect that a polyp localization

decision scheme based on the amount of energy con-

centrated on some area of the image will beneﬁt from

a blood vessel mitigation system which reduces the

presence of vessel energy. We measure the increment

of energy inside the polyp mask as:

∆E

= E

− E

(15)

where E

stands for the energy image without vessel

mitigation and E

stands for the energy image with

vessel mitigation. That difference of energy, ∆E

, re-

ferrer to E

is plotted in Figure 7. Table 1 shows

that we improvethe amount of energy inside the polyp

mask in a large majority of images (217). This is true

even considering that an increase or decrease lower

than a 5% can be assumed as not signiﬁcant (74 im-

proved images).

Table 1: Difference of percentage of energy under polyp

mask with and without blood vessel mitigation.

∆E

# of images

> 0 217

> 5% 74

< −5% 13

To conclude with this section, we will show the di-

rect impact that blood vessels mitigation has on polyp

localization. In this case we will use the same polyp

localization criteria than the one depicted in (Bernal

et al., 2012), that is, measuring if the maxima of the

accumulation image is placed inside the polyp mask.

We can see a comparison between the results before

and after applying our blood vessel energy mitigation

in Table 2.

As we can see fromTable 2, by applyingour blood

vessel mitigation algorithm the maxima of the accu-

mulation image is placed inside the polyp mask in 47

BloodVesselCharacterizationinColonoscopyImagestoImprovePolypLocalization

169

(a) (b) (c) (d) (e)

(f) (g) (h) (i) (j)

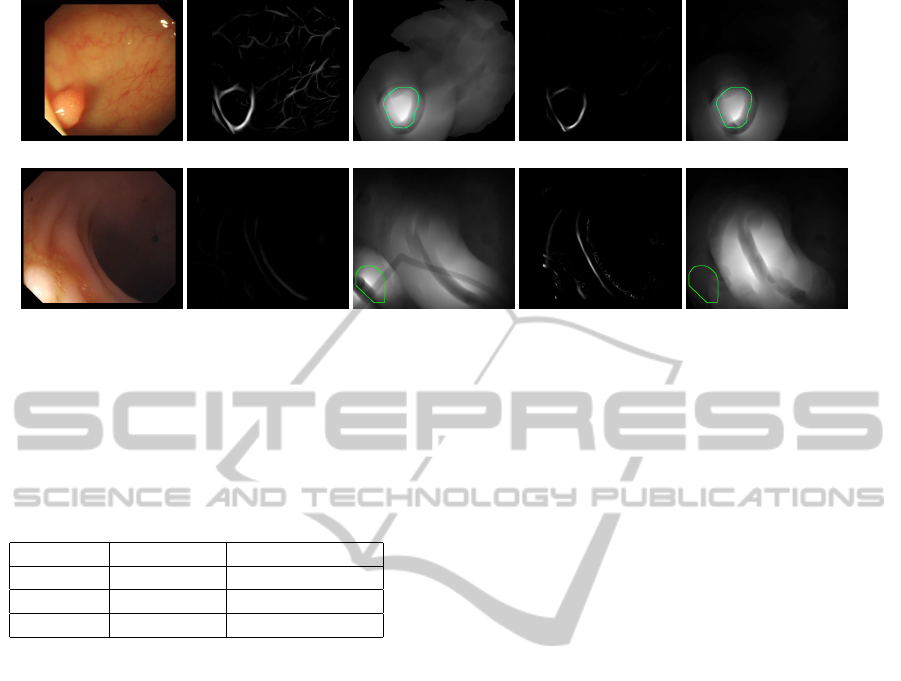

Figure 8: Example 1: (a) Original images. (b) Energy image before shade detection. (c) Accumulation image before shade

detection. (d) Energy image after shade detection. (e) Accumulation image after shade detection (polyp region marked in

green). Example 2: (f) Original images. (g) Energy image before shade detection. (h) Accumulation image before shade

detection. (i) Energy image after shade detection. (j) Accumulation image after shade detection (polyp region marked in

green).

Table 2: Polyp localization results (placing accumulation

maxima inside polyp mask): comparing results using vessel

mitigation with no vessel mitigation.

# of images Polyp Dataset %

improved 47 15.67%

worse 8 2.67%

same 245 81.67%

more images (15.67%), the results were worse for 8

(2.67%), and no modiﬁcation took place for 245 im-

ages (81.67%). This preliminary study shows that

blood vessel mitigation can be a key part in the im-

provement of a polyp localization scheme, as it does

have an impact on direct polyp localization results.

Finally we show in Figure 8 some qualitative results

of the comparison of the accumulation images before

and after applying our processing scheme. The ﬁrst

row shows a positive example, where the percentage

of energy inside the polyp grows after applying vessel

mitigation whereas the second row shows a negative

example.

5 CONCLUSIONS

In this paper we introduced a characterization for

blood vessels which allowed us to model them differ-

ently than other objects in a endoluminal scene, more

speciﬁcally folds and wrinkles. We presented a pro-

cedure for mitigating blood vessels which consists of

three stages: 1) Image preprocessing, to correct arti-

facts from the original image such as specular high-

lights; 2) Valley detection, to provide a ﬁrst charac-

terization of the objects in the image, and 3) Valley

mitigation as a novel method which aims to discrim-

inate between objects that have shades from objects

that do not have them, such as blood vessels.

Our experiments show an encouraging trend, in-

dicating that there is a decrease of energy on blood

vessel areas. Quantitative results suggest that our

method is able to achieve vessel mitigation success-

fully and that mitigation is more important on im-

ages with more blood vessel content. Our procedure

was used to improve the only existing polyp localiza-

tion method that has been tested in a public database.

As expected, the polyp localization decision scheme

-based on the amount of energy concentrated on some

area- beneﬁted from a blood vessel mitigation system

which reduces the presence of vessel energy. This is

the ﬁrst time that the impact of blood vessels in polyp

localization has been measured quantitatively, prov-

ing that their presence makes it harder to identify 3-

dimensional objects such as polyps.

Regarding future work, vessel characterization

should be validated on a bigger manually labelled

dataset. It should also involve the consideration of

the superposition of blood vessels and other elements

in the endoluminal scene. The appearance of vessels

in folds must prompt us to add more information to

the improved characterization presented in this work.

ACKNOWLEDGEMENTS

This work was supported in part by the Spanish

Gov. grants TIN2012-33116, MICINN TIN2009-

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

170

10435 and Consolider 2010 MIPRCV (CSD2007-

00018), and the UAB grants 471-01-2/2010 and 471-

01-3/2008.

REFERENCES

Ameling, S. et al. (2009). Texture-based polyp detection in

colonoscopy. Bildverarbeitung f¨ur die Medizin 2009,

pages 346–350.

American Cancer Society (2012). What are the key statis-

tics about colorectal cancer? [Online; accessed 7-

September-2012].

Arnold, M. et al. (2010). Automatic segmentation and in-

painting of specular highlights for endoscopic imag-

ing. Journal on Image and Video Processing, 2010:9.

Arnold, M. et al. (2011). Quality Improvement of En-

doscopy Videos. In Proceedings of the 8th IASTED

International Conference on Biomedical Engineering,

Insbruck, Austria.

Bernal, J. et al. (2011). Colonoscopy Book 1: Towards In-

telligent Systems for Colonoscopy. In-Tech.

Bernal, J. et al. (2012). Towards automatic polyp detection

with a polyp appearance model. Pattern Recognition,

45(9):3166 – 3182.

Blinn, J. (1977). Models of light reﬂection for computer

synthesized pictures. In ACM SIGGRAPH Computer

Graphics, volume 11, pages 192–198. ACM.

Bratko, I. et al. (1990). KARDIO: a study in deep and qual-

itative knowledge for expert systems. MIT Press.

Chaudhuri, S. et al. (1989). Detection of blood vessels in

retinal images using two-dimensional matched ﬁlters.

IEEE Transactions on medical imaging, 8(3):263–

269.

Dahyot, R., Vilari˜no, F., and Lacey, G. (2008). Improving

the quality of color colonoscopy videos. Journal on

Image and Video Processing, 2008:1–7.

De Haan, G. and Bellers, E. (1998). Deinterlacing-an

overview. Proceedings of the IEEE, 86(9):1839–1857.

Espona, L. et al. (2007). A snake for retinal vessel segmen-

tation. Pattern Recognition and Image Analysis, pages

178–185.

Gil, D. et al. (2009). Structure-preserving smoothing of

biomedical images. In Computer Analysis of Images

and Patterns, pages 427–434. Springer.

Hassinger, J. et al. (2010). Effectiveness of a Multimedia-

Based Educational Intervention for Improving Colon

Cancer Literacy in Screening Colonoscopy Patients.

Diseases of the Colon & Rectum, 53(9):1301.

Hoover, A. et al. (2000). Locating blood vessels in retinal

images by piecewise threshold probing of a matched

ﬁlter response. Medical Imaging, IEEE Transactions

on, 19(3):203–210.

Imai, Y. et al. (2011). Estimation of multiple illuminants

based on specular highlight detection. Computational

Color Imaging, pages 85–98.

Jiang, X. et al. (2003). Adaptive local thresholding by

veriﬁcation-based multithreshold probing with appli-

cation to vessel detection in retinal images. Pattern

Analysis and Machine Intelligence, IEEE Transac-

tions on, 25(1):131–137.

Joblove, G. and Greenberg, D. (1978). Color spaces

for computer graphics. ACM SIGGRAPH Computer

Graphics, 12(3):20–25.

Machine Vision Group, CVC (2012). Cvc-colondb: A

database for assessment of polyp detection. [Online;

accessed 24-July-2012].

Mar´ın, D. et al. (2011). A new supervised method for blood

vessel segmentation in retinal images by using gray-

level and moment invariants-based features. Medical

Imaging, IEEE Transactions on, 30(1):146–158.

Mendonca, A. and Campilho, A. (2006). Segmentation of

retinal blood vessels by combining the detection of

centerlines and morphological reconstruction. Med-

ical Imaging, IEEE Transactions on, 25(9):1200–

1213.

Papari, G. and Petkov, N. (2011). Edge and line oriented

contour detection: State of the art. Image and Vision

Computing, 29(2-3):79–103.

Segnan, N. et al. (2011). European guidelines for quality

assurance in colorectal cancer screening and diagno-

sis. Luxembourg: Publications Ofﬁce of the European

Union.

Shafer, S. (1985). Using color to separate reﬂection compo-

nents. Color Research & Application, 10(4):210–218.

Soares, J. et al. (2006). Retinal vessel segmentation using

the 2-d gabor wavelet and supervised classiﬁcation.

Medical Imaging, IEEE Transactions on, 25(9):1214–

1222.

Staal, J. et al. (2004). Ridge-based vessel segmentation in

color images of the retina. Medical Imaging, IEEE

Transactions on, 23(4):501–509.

Tjoa, M. and Krishnan, S. (2003). Feature extraction for the

analysis of colon status from the endoscopic images.

BioMedical Engineering OnLine, 2(9):1–17.

Tresca, A. (2010). The Stages of Colon and Rectal Cancer.

New York Times (About.com), page 1.

Wei, J. et al. (2011). Computer-aided detection of breast

masses: Four-view strategy for screening mammogra-

phy. Medical Physics, 38:1867.

Xu, L. and Luo, S. (2010). A novel method for blood vessel

detection from retinal images. BioMedical Engineer-

ing OnLine, 9(1):14.

Zana, F. and Klein, J. (2001). Segmentation of vessel-like

patterns using mathematical morphology and curva-

ture evaluation. Image Processing, IEEE Transactions

on, 10(7):1010–1019.

Zhu, H. and Liang, Z. (2010). Improved Curvature Estima-

tion for Shape Analysis in Computer-Aided Detection

of Colonic Polyps. Beijing, China, page 19.

BloodVesselCharacterizationinColonoscopyImagestoImprovePolypLocalization

171
