Detecting Focal Regions using Superpixels

Richard Lowe and Mark Nixon

CSPC Group, University of Southampton, Burgess Rd, Southampton, U.K.

Keywords:

Superpixel, Focus Region, Light Field.

Abstract:

We introduce a new method that can automatically determine regions of focus within an image. The focus

is determined by generating Content-Driven Superpixels and subsequently exploiting consistency properties

of scale-space. These superpixels can be analysed to produce the focal image regions. In our new analysis,

Light-Field Photography provides an efﬁcient method to test our algorithm in a controlled manner. An image

taken with a light-ﬁeld camera can be viewed from different perspectives and focal planes, and so by manually

modifying the focal plane we can determine if the extracted focal areas are correctly extracted. We show

improved results of our new approach compared with some prior techniques and demonstrate the advantages

that our new approach can accrue.

1 INTRODUCTION

The ability to focus is implicit in image formation. In

photography, there are passive and active approaches

to achieve image autofocus wherein the image clar-

ity depends on optical parameters. Passive autofocus

approaches analyse local image contrast as part of a

feedback mechanism driving the lens motor whereas

active approaches aim to sense distance to derive fo-

cus capability. As such, we can enjoy clear pho-

tographs which can usually be acquired with the ob-

ject of interest in sharp focus.

In contrast to the plethora of approaches for im-

age autofocus, there are few approaches which can be

applied to analyse an image to determine the regions

which are in sharp focus. One such approach, the Sum

Modiﬁed Laplacian (Nayar and Nakagawa, 1994),

was designed to analyse shape from focus using the

relative differences in contrast at differing image res-

olutions. More recent works are concerned with the

extraction of edge information (Tai and Brown, 2009)

as the edges contain more high frequency informa-

tion. Another method uses Gabor wavelets (Chen and

Bovik, 2009) that are tuned to detect high frequency

image components. Other methods (Liu et al., 2008;

Kovacs and Sziranyi, 2007; Levin, 2007) attempt to

model a blur kernel and use convolution to inverse

the blurring process. These algorithms are actually

de-blurring algorithms and have a different intention

(to remove blurring) but operate in a similar way.

The method we choose to compare with is the

Sum Modiﬁed Laplacian as it is well-established. We

also compare with approaches described in (Levin,

2007) and (Liu et al., 2008), though these methods

require the tuning of several parameters. They also

rely on feedback from human vision to determine if

the result is ‘correct’. As these rely on sharpness of

edge information, they are also sensitive to noise.

We introduce a new approach that can be applied

to explicitly extract focal regions of a single image

without choice of parameters. By exploiting the com-

bined properties of the scale-space and superpixels,

it is possible to extract uniform regions in scale and

therefore determine the most likely regions of image

focus.

Superpixels are a way of altering the representa-

tion of an image. They replace the grid of equally

sized pixels with unequal regions that are unique

to each image; aiding the description of image ob-

jects. As superpixels have the property of shape, they

can convey local information about the image. Intu-

itively, this also improves speed of further process-

ing as superpixels signiﬁcantly reduce the number of

pixels. We use Content-Driven Superpixels (Lowe

and Nixon, 2011) since, unlike many superpixel al-

gorithms, they are designed to produce an unspeciﬁed

number of superpixels that are consistent in colour but

not size. Using this in conjunction with a scale-space

representation yields a set of superpixels that are uni-

form with respect to colour across multiple scales.

The distribution of superpixels through scale can be

used to infer where the image has been affected by

smoothing and therefore where the image is in focus

as illustrated in Figure 1.

264

Lowe R. and Nixon M..

Detecting Focal Regions using Superpixels.

DOI: 10.5220/0004212102640270

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 264-270

ISBN: 978-989-8565-47-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

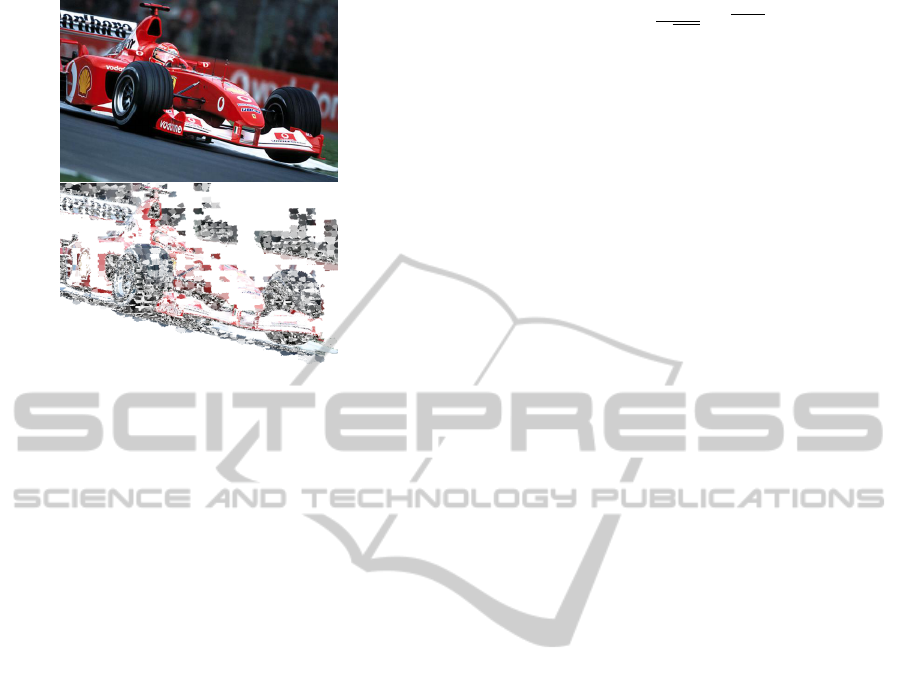

Figure 1: Determining focused areas of an image using su-

perpixels.

With conventional images it is difﬁcult to ascer-

tain, other than with human vision, whether image

focus has been correctly localised. For a principled

analysis of focus detection, we use Light Field Pho-

tography (LFP) to validate our approach as it provides

a controlled environment with which to vary the focal

plane in an image. Our results can show precisely that

as image focus varies, the extracted focus regions of

the image correspond to that change.

The paper is arranged as follows: ﬁrstly, scale-

space is introduced. Content-Driven Superpixels are

then described and extended into 3D in order to anal-

yse scale-space. Subsequently, Light Field Photogra-

phy is described as the method with which to generate

the test images to analyse performance. The mecha-

nism of focus detection is then described, followed by

a presentation and discussion of the results.

2 SCALE-SPACE

Developed by Witkin (Witkin, 1983), scale-space is

a one-parameter family of derived images that suc-

cessively smoothes an image, removing more high-

frequency features with each scale. Among other

things, it has been used in detecting scale-invariant

edges (Bergholm, 1987), as a basis for the popular

SIFT and SURF operators, and also saliency (Kadir

and Brady, 2001). Edges are deemed to be more

signiﬁcant if they persist for several scales whereas

saliency is more signiﬁcant if it persists over few

scales. To generate the scale-space, the new images

need to be derived by convolving the image with a

Gaussian ﬁlter, given in Equation 1, where t denotes

the scale.

g(x, y, t) =

√

2πt

(−

)

(1)

The choice of t is based on a logarithmic sam-

pling. To efﬁciently construct the scale-space, t is

chosen such that the difference between scales is

maximised without losing detail. Equation 2 pro-

vides a method of selecting t (Lindeberg, 1994). τ

is the transformation of the image as a function of

the smoothing parameter t and A is a free parame-

ter. This motives the choice of sampling to be t =

{1, 4, 16, 64, 256}, the use of which causes the loga-

rithmic sampling to produce a linear increase in value

for A and therefore a linear difference between scales.

τ(t) = A logt (2)

The scale-space is then collapsed into a single vol-

ume, successive two-dimensional slices represent in-

creasing levels of detail.

We can infer from the scale-space that if a spatial

region is consistent over all scales then smoothing has

had little effect. Therefore this region contains little

high frequency information and is more likely to be

out of focus.

3 CONTENT-DRIVEN

SUPERPIXELS

Content-Driven Superpixels (CDS) (Lowe and Nixon,

2011) is a new approach designed to allow superpixel

coverage to express the underlying structure of an im-

age. An image will contain as many superpixels as

needed and is not controlled by initialisation param-

eters. As such, it is an appropriate way of exploring

how the scale-space changes with increased smooth-

ing, without imposing supervised initialisation.

The CDS approach is designed to grow superpixel

regions, splitting them as they become more complex

in order to retain colour uniformity. Extending this

to consider the scale-space means that the superpixels

will represent uniform colour in scale and in space.

The distribution will describe the underlying structure

of the scale-space and this information can be anal-

ysed to determine the focal regions. These superpix-

els shall be referred to as supervoxels as they occupy

a third dimension, despite the fact that this third di-

mension is not spatial.

3.1 Extending the Algorithm to 3D

Fortunately, as CDS is a combination of standard

spatial computer vision techniques, each sub-process

can be separately transposed into 3D. The two main

DetectingFocalRegionsusingSuperpixels

265

mechanisms: ‘Distance Transform’ and ‘Active Con-

tours without Edges’ are ideally suited for 3D.

3.1.1 Distance Transform

Supervoxel growth is achieved using a distance trans-

form of every supervoxel. This transforms each su-

pervoxel S such that a set of voxels at locations i, j, k

within the supervoxel display the distance D to the

background (in this case, the region in which super-

voxels have yet to form). Supervoxel edges therefore

have a distance of one from the background. A binary

volume V is used to calculate the distance transform

where True denotes that a supervoxel covers this point

in the volume and False otherwise. The background

is therefore all the False points. The same volume is

used to individually grow each supervoxel.

The Distance Transform in 3D transforms a vol-

ume such that the volume displays the distance D

of each voxel at location (i, j, k)to the nearest back-

ground location (x, y, z). This is given in Equation 3.

D = min

x,y,z: V (x,y,z)=False

(i −x)

+ ( j −y)

+ (k −z)

(3)

This growth occurs at each iteration t. The growth

of the supervoxel S is given in Equation 4.

<t+1>

= S

<t>

∪{(x, y, z) : D(x, y, z) = 1} (4)

3.1.2 Active Contours without Edges

Active Contours Without Edges (ACWE) (Chan and

Vese, 2001; Chan et al., 2000) aims to partition an im-

age into two regions of constant intensities of distinct

values. These values form the positive and negative

parts of a signed distance function, Ω

. Equation 5

describes the force F that iteratively updates the dis-

tance function. For example F is large and negative

for a particular pixel if it is currently labelled as pos-

itive and is distinct from the mean of the region that

it is contained in. F is small for a pixel if it is similar

to the mean of the region it is contained in. By iter-

atively updating the distance function of each pixel,

the boundary between the positive and negative re-

gions moves. Each voxel therefore becomes part of

the region it best matches.

The new supervoxels, C

, are taken to be the

positive and negative parts of the newly formed dis-

tance function, Ω

. To use this algorithm with super-

voxels it is necessary to deﬁne Ω(x, y, z) as a vector

that contains a set of all the voxels within the super-

voxel.

F(x, y, z) =

Ω

∑

i=1

(x, y, z) −u

dxdydz

−

Ω

∑

i=1

(x, y, z) −v

dxdydz

(5)

The segmentation criterion of either region u, v is

given as the average of the means (u

, v

) of each of

the N colour channels V

of the volume V ; shown in

Equation 6. Supervoxel division occurs if there is a

signiﬁcant difference between any of the colour chan-

nels.

Ω

(x, y, z)dxdydz

Ω

Ω(x, y, z)dxdydz

, ∀Ω

(x, y, z) > 0 (6)

Ω

(x, y, z)dxdydz

Ω

Ω(x, y, z)dxdydz

, ∀Ω

(x, y, z) ≤ 0

ACWE still requires the separation of a supervoxel

into two regions u, v, but these regions now occupy

a 3D signed distance function Ω

(x, y, z). The two

regions C

are given in Equation 7.

= {(x, y, z) : Ω

(x, y, z) > 0} (7)

= {(x, y, z) : Ω

(x, y, z) ≤ 0}

3.2 Applying CDS to Focus Detection

Firstly, images are converted into a set of 3D scale-

space representations using the values of t deﬁned in

Section 2. By using scale-space for superpixels, the

aim is to produce superpixels that have context over

scale; scale-persistent superpixels are more likely to

be stable whereas scale-varying superpixels are more

likely to be in feature-rich areas of the image.

By grouping regions of scale-space, it is possible

to gain information about the nature of that region of

the image. The idea is that superpixels that exist in

the low detail area of the scale-space are less likely to

contribute the high-frequency content present in the

focused region of the original volume. A set of super-

voxels is initialised in the least-detailed layer of the

scale-space. This is done such that as the supervoxels

grow through more complex layers of the space, they

increase in number. Initialising in the most complex

layer would require more supervoxels than necessary

to represent the least complex layer.

To reveal the parts of the image, as the volume

being analysed is smoothed, the most smoothed layer

will contain the least information. The focus is de-

termined as the lowest detail layer t

min

in which the

supervoxel still exists. Therefore the supervoxels that

exist in the ﬁrst layer have the lowest focus value. Su-

pervoxels that exist solely in the highest layer have

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

266

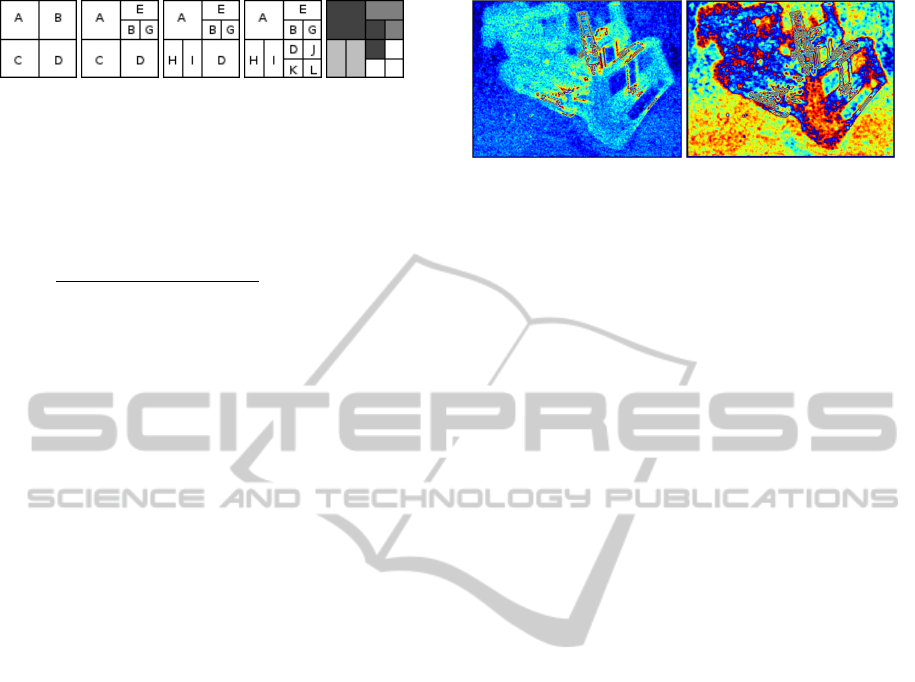

(a) t = 0 (b) t = 1 (c) t = 2 (d) t = 3 (e) Result

Figure 2: Illustrating how focus is determined.

the maximum focus value. This is shown in Equa-

tion 8. The focus measure F for a supervoxel s is

controlled by the ﬁrst layer t in which that supervoxel

exists. T

max

is the number of layers in the image.

F(s) =

max

−min{t : s(x, y,t) > 0}

;(x, y) ∈I, 0 ≤t < T

max

(8)

A hypothetical example is given in Figure 2,

which shows four layers of the same volume, where

each labelled region represents a supervoxel. Multiple

layers can contain the same supervoxel, for example

region A which exists for all layers, but the minimum

layer is t = 0. Each subﬁgure is given with the layer

t in the volume it represents. Figure 2(d) shows the

least smoothed layer, ie. the original image.

As region A remains constant, no change in space

or scale has been detected and can be considered out

of focus. Regions A,B,C,D are therefore given a focus

value of F(s) = 0.25. Next E,G have a focus of 0.5

as they ﬁrst exist in layer t = 1, and regions H,I have

a focus value of 0.75. Regions J,K,L are therefore the

most likely to be in focus, with F(s) = 1. Figure 2(e)

shows this graphically, where brightness indicates a

higher focus value. Each location in space shows the

highest focus value at that point. For example in the

case of regions C,H,I, even though they occupy the

same spatial location, the focus values of H and I are

given as the result as they have the higher focus value.

4 SUM MODIFIED LAPLACIAN

As a comparative approach, an established method

of analysing focus is the Sum Modiﬁed Laplacian

(SML). The focus is derived from the image I at levels

spaced by a step ∆s.

ML(x, y) = |2I(x, y) −I(x −∆s, y) −I(x + ∆s, y)|

+|2I(x, y) −I(x, y −∆s) −I(x, y + ∆s)| (9)

The focus measure (Equation 10) at (i, j) is evalu-

ated as the neighbourhood (of size N) sum of the mod-

iﬁed Laplacian (Equation 9) which exceed a threshold

T . The step size can be varied to locate different tex-

ture sizes.

F(i, j) =

i+N

∑

x=i−N

j+N

∑

y= j−N

ML(x, y)|ML(x, y) ≥ T (10)

(a) N = 2 (b) N = 4

Figure 3: Showing the same image using different values

for N in SML. The red areas depict distinctly different areas

of focus in each image.

This is problematic as it will only select textures

of a chosen size and will be affected by the size of the

neighbourhood. This makes using the algorithm as a

focus measure subject to human opinion and insight.

The results of focus detection in Figure 3 show that

the quality of the result relies on selection of appro-

priate parameter values, and the selection of those pa-

rameters relies on human visual analysis. This prop-

erty is not a problem if one is comparing images gen-

erated using the same parameters.

In contrast, our new approach can inherently lo-

cate scale-varying regions without parameterisation

or supervision. CDS also is region based, thereby se-

lecting regions of interest which is more useful than

individual pixels.

5 GENERATING THE TEST

IMAGES

Light Field Photography (LFP)(Levoy and Hanrahan,

1996) is continuing to gather interest. LFP is cur-

rently achieved (Wilburn et al., 2005) using either an

array of cameras or a single camera moved through

a 2D array. A capture method using a single expo-

sure (Ng et al., 2005; Adelson and Wang, 1992) is

now being developed commercially. By considering

an image as a 2D slice of a 4D function, new views

of the same scene can be obtained by extracting dif-

ferent slices. This is exploited in several ways, the

relevant one in this case being the ability to refocus a

light-ﬁeld after it has been taken.

We use this ability is used to generate controlled

test images. This allows a principled analysis of fo-

cus, this being the ﬁrst time such a test procedure has

been achieved. A series of images are chosen from

a light-ﬁeld that focus on a different section of the

scene, thereby allowing the efﬁcacy of focus detec-

tion to be measured. An example series of images is

given in Figure 4 which shows ability of LFP to focus

on foreground and background objects.

DetectingFocalRegionsusingSuperpixels

267

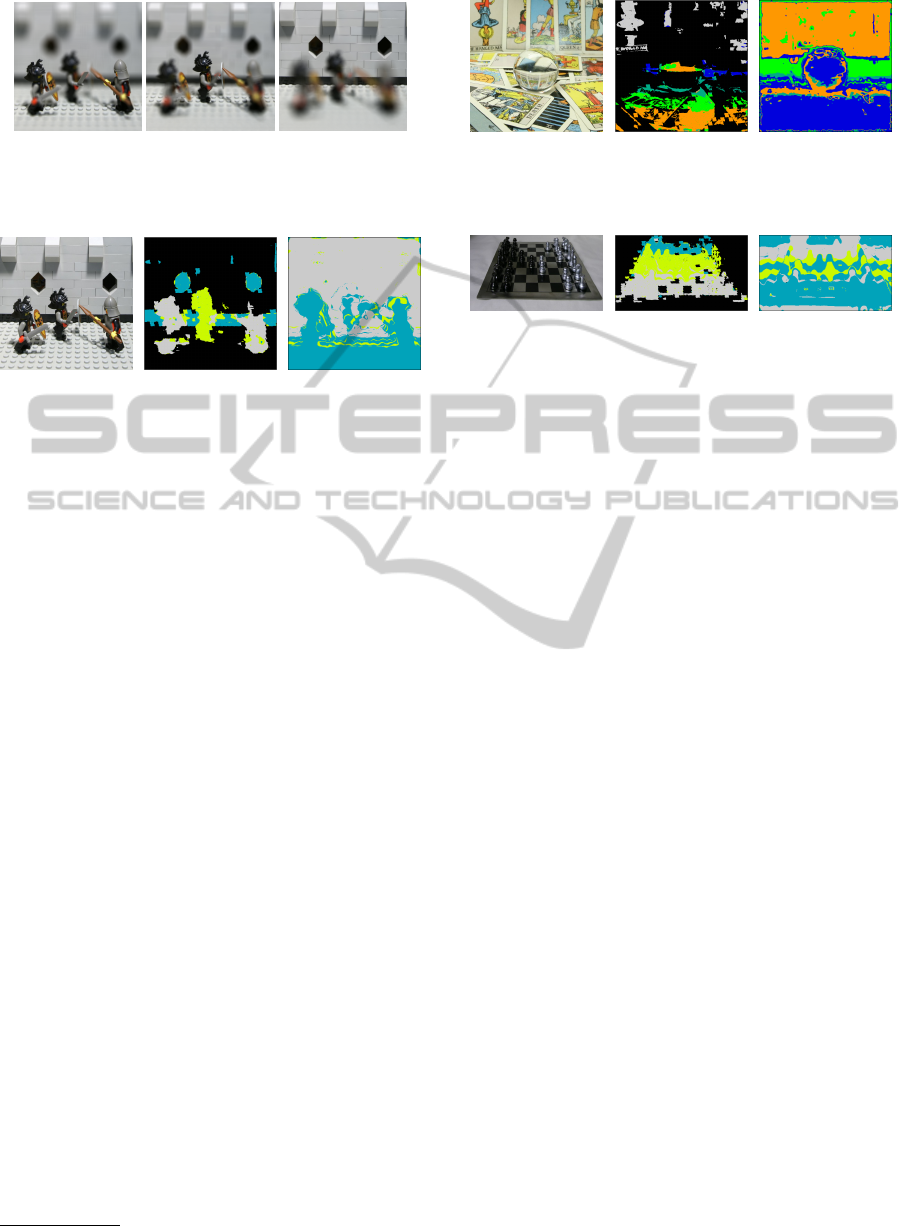

(a) near (b) middle (c) far

Figure 4: Illustrating the effect of change of focus on a light-

ﬁeld.

(a) Reference image (b) The labelled focus

response of each image

Figure 5: Result on the lego image.

6 RESULTS

6.1 Light-ﬁeld Experiments

We evaluate our algorithm using the controlled im-

ages derived from light ﬁelds. There are two ways of

analysing the quality of the results. Firstly, the ‘fo-

cus response’, where the supervoxels are drawn on

the image as an alpha layer to show which parts are

in focus. This response is then used in conjunction

with the depth information of the light ﬁeld to deter-

mine which depths of the image are extracted as ‘in

focus’. This can then be used to label the image with

the corresponding depths. The images in this section

are taken from light-ﬁeld images available through the

Stanford Computer Graphics Laboratory

. All SML

images are generated using T = 1 and ∆S = 1 which

retains the highest proportion of high-frequency in-

formation.

Figure 5 shows the result on the lego image in Fig-

ure 4. Figure 5(a) shows the image totally in focus for

reference. Figure 5(b) shows the focus of each image

as the focal depth changes. The coloured labels corre-

spond to the focus of different images, and so here the

change in focus through the image can be observed by

areas of the image being occupied by distinct bands of

colour. Grey corresponds to image 0, green to image

1 and blue to image 2. Black regions were not la-

belled as in focus in any image. CDS clearly shows

the change in focus in the image, whereas SML in-

http://lightﬁeld.stanford.edu/

(a) Reference image (b) The labelled focus

response of each image

Figure 6: Result on the image containing tarot cards.

(a) Reference image (b) The labelled focus

response of each image

Figure 7: Result for the chess image.

correctly misses the central ﬁgure and mis-labels the

background.

Figure 6 shows the response to a light-ﬁeld image

containing tarot cards. The CDS response is shown

in Figure 6(b) where the objects at each depth belong

to different image labels when the object was in fo-

cus. Orange corresponds to image 0; green to image

1; cyan to image 2; blue to image 3 and grey to image

4. Here, the SML response shows no clear distinction

between the images, and the bands present in the CDS

response are missing. There is also signiﬁcantly more

noise, as most of the pixels are labelled as being in

focus, whereas CDS shows clear regions of no focus

at all.

The image in Figure 7 again shows a clear tran-

sition from foreground to background as the focus of

the image changes. In the CDS response there is once

again a clear separation of each response, SML can-

not correctly distinguish the focus as the focal depth

changes. CDS can determine which parts of the im-

age is background whereas SML cannot.

6.2 Image Experiments

Figure 8 compares the result from CDS with three

other techniques. The brightness of the result denotes

how focused that area is. It is difﬁcult to compare

with other approaches as only the classiﬁcation result

is available and their techniques are not yet evaluated

using LFP. However, we detect largely the same re-

gions as both. There is some inclusion of the back-

ground, however this is at a lower focus value to the

cyclist. The CDS approach requires no tuning which

is implicit in all other techniques. CDS clearly detects

the focused cyclist well.

The algorithm has also been applied to several

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

268

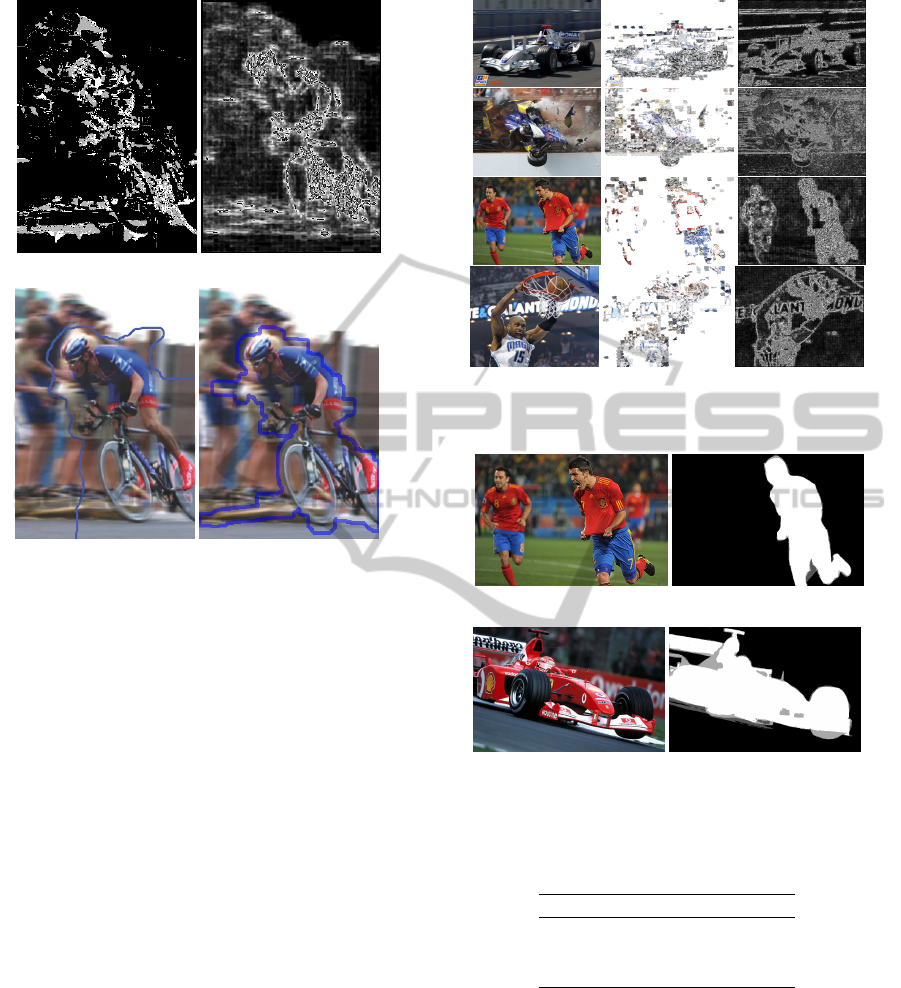

(a) CDS (b) SML

Figure 8: Comparing CDS with other techniques.

sports images shown in Figure 9. Motorsport images

are particularly suited to illustrating the ability to ex-

tract focused regions since the images produced con-

tain large amounts of motion blur. Note that neither

technique extracts regions of uniform colour. This is

because, inherently, contrast does not change in uni-

form regions.

There are notable differences between CDS and

SML. Firstly, SML does a much better job of extract-

ing the basketball image. However in the car images,

SML detects areas of erroneous focus in the back-

ground that are attributed to strong edge information.

As CDS does not rely on edge information to detect

focus, these regions are not detected in our new ap-

proach.

Table 1 compares the two images in Figure 10 for

both SML and CDS by calculating the fraction of the

output that is contained within the ground truth. The

ground truth was derived by averaging the response

of ﬁve different human ‘labelers’. The ‘labelers’ were

instructed to highlight the regions of the image which

appeared to be in sharp focus. This implies that some

uniform areas are manually labelled to be in sharp fo-

cus whereas these areas are detected by neither SML

nor CDS. It shows that while SML can sometimes

have a better response, it is highly dependent on the

input parameters to the algorithm; the results can vary

(a) Original (b) CDS (c) SML

Figure 9: Sports images.

(a) Football image (b) Ground truth

Figure 10: Test images used to compare SML and CDS.

Table 1: Results on two images to show the percentage of

the response that corresponds with a ground truth.

Technique Football Car

CDS 0.49 0.60

SML Min 0.21 0.40

SML Max 0.43 0.74

by as much as 50%. CDS performs as well as the best

SML result without supervision or manual interven-

tion. An analysis by human ‘labelers’ also introduces

some confusion as in the football image one player is

not labelled however it is detected by both algorithms

as shown in Figure 9.

DetectingFocalRegionsusingSuperpixels

269

7 DISCUSSION

Any image can contain both focused and unfocused

regions. There is no way to test the validity of a focus

detection algorithm without a reliable metric which

can quantify focus accuracy. By using the depth in-

formation from the light ﬁeld we have shown that it is

possible to show that the focal response corresponds

to a speciﬁc image depth and that this depth changes

consistently with image focus.

Essentially, CDS highlights the parts of the image

that are in focus but also are more likely to contain

high-frequency information. As CDS creates new su-

perpixels on detecting image variation, there will be

some constant colour areas of the image that do not

change signiﬁcantly with blurring. The result will be

that these regions are not marked as in focus. While

other methods can extract points of focus within the

image, these methods rely on tuning of the algorithm

parameters. As we have shown, the results on SML

can vary by as much as 50% depending on the se-

lection of adequate parameters. In addition, as these

are edge based techniques, they also rely on the ab-

sence of noisy edges in the image. CDS negates this

by considering regions within the image, as there is

an inherent averaging within ACWE.

This paper has described the ﬁrst application of

superpixels in conjunction with scale-space. Apply-

ing CDS to the task of focus detection gives a result

which has been shown to correspond accurately to the

focal regions of the image. Crucially, it is unsuper-

vised and as such gives an unbiased representation of

the focus within an image, which can be demonstrated

by using the unique properties of Light Field Photog-

raphy.

REFERENCES

Adelson, E. H. and Wang, J. Y. A. (1992). Single lens

stereo with a plenoptic camera. IEEE Transactions on

Pattern Analysis and Machine Intelligence, 14(2):99–

106.

Bergholm, F. (1987). Edge Focusing. IEEE TPAMI,

9(6):726–741.

Chan, T., Sandberg, B., and Vese, L. (2000). Active

Contours without Edges for Vector-Valued Images.

Visual Communication and Image Representation,

11(2):130.

Chan, T. F. and Vese, L. A. (2001). Active Contours Without

Edges. IEEE Trans. Image Processing, 10(2).

Chen, M.-J. and Bovik, A. C. (2009). No-reference image

blur assessment using multiscale gradient. In Quality

of Multimedia Experience, 2009. QoMEx 2009. Inter-

national Workshop on, pages 70–74.

Kadir, T. and Brady, M. (2001). Saliency, Scale and Image

Description. IJCV, 45(2):83–105.

Kovacs, L. and Sziranyi, T. (2007). Focus area extraction

by blind deconvolution for deﬁning regions of inter-

est. Pattern Analysis and Machine Intelligence, IEEE

Transactions on, 29(6):1080–1085.

Levin, A. (2007). Blind motion deblurring using image

statistics. Advances in Neural Information Processing

Systems, 19:841.

Levoy, M. and Hanrahan, P. (1996). Light ﬁeld rendering.

In Proc. Conf. on Computer Graphics and Interactive

Techniques, pages 31–42.

Lindeberg, T. (1994). Scale-space theory: A basic tool for

analyzing structures at different scales. Journal of Ap-

plied Statistics, 21(1):225–270.

Liu, R., Li, Z., and Jia, J. (2008). Image partial blur de-

tection and classiﬁcation. In Computer Vision and

Pattern Recognition, 2008. CVPR 2008. IEEE Con-

ference on, pages 1–8.

Lowe, R. and Nixon, M. (2011). Evolving Content-Driven

Superpixels for Accurate Image Representation. In

Proc. ISVC2011, volume 6938 of Lecture Notes in

Computer Science, pages 192–201. Springer-Verlag.

Nayar, S. K. and Nakagawa, Y. (1994). Shape from fo-

cus. Pattern Analysis and Machine Intelligence, IEEE

Transactions on, 16(8):824–831.

Ng, R., Levoy, M., Br

edif, M., Duval, G., Horowitz, M., and

Hanrahan, P. (2005). Light ﬁeld photography with a

hand-held plenoptic camera. Computer Science Tech-

nical Report CSTR, 2.

Tai, Y.-W. and Brown, M. S. (2009). Single image defo-

cus map estimation using local contrast prior. In Im-

age Processing (ICIP), 2009 16th IEEE International

Conference on, pages 1797–1800.

Wilburn, B., Joshi, N., Vaish, V., Talvala, E. V., Antunez, E.,

Barth, A., Adams, A., Horowitz, M., and Levoy, M.

(2005). High performance imaging using large camera

arrays. ACM Transactions on Graphics, 24(3):765–

776.

Witkin, A. (1983). Scale-space ﬁltering. Intl. Joint Conf.

Art. Intell., 2:1019–1022.

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

270
