Data Visualisation and Statistical Analysis within the Decision

Making Process

Jamie Mahoney

Centre for Educational Research and Development, University of Lincoln, Lincoln, U.K.

Keywords:

Data Visualisation, Statistical Analysis.

Abstract:

Large amounts of data are collected and stored within universities, but little is done to reuse this data to

support decision making processes. This paper discusses the use of data visualisation and statistical analysis

as methods of making sense of the collected data, analysing it to assess the effects of historical institutional

decisions and discusses the use of such techniques to aid decision making processes.

1 INTRODUCTION

Within institutions such as universities, large amounts

of data are produced and consumed during the course

of an academic year. However, the data is not fully

utilised or explored; often it is neglected, becomes

useless and, in time, becomes nothing more than data

dumps (Keim, 2002). Take, for instance, collections

of data associated with awards (programmes of study

for a degree) offered by a university. Data is collected

and stored relating to the details of each award, the

constituent modules (individual units of study) that

make up the award, students and staff associated with

the award, examinations and assessments for each

award as well as numerous other data sources. Very

little is done with this data, other than to repackage it

into various formats for student handbooks or valida-

tion exercises, for example.

With such a large amount of data being collected

and stored, manual textual exploration of the datamay

be insufﬁcient in order to explore the data in a use-

ful and meaningful manner (Keim, 2002; Gilbert and

Auber, 2010). Visualisation tools and methods are

progressively being used in a variety of situations, in

order to explore and explain large amounts of data

(Bastian et al., 2009; Bertschi et al., 2011). Through

data visualisation, this large amount of data can be

analysed more fully, in order to exploit the data being

stored and to progress through the data-information-

knowledge continuum (Masud et al., 2010), turning

silos of data into useful information and from there,

into knowledge. By visualising and analysing the

vast amounts of data collected by institutions such as

universities, the impact of previous decisions can be

seen; these same principles can then be applied proac-

tively, to visualise and assess the potential impact that

certain decisions may have.

This paper documents the process of utilising data

visualisation methods and the statistics associated

with the visualisations in order to make sense of his-

torical data sets. Having shown how these visuali-

sation methods and statistics make sense of, and re-

ﬂect changes in, the past, similar concepts could then

be explored in order to assess the impact of possible

future changes, thus improving the decision making

process (Robertson, 1990).

2 DATA VISUALISATION

In order to show the extent to which data visualisa-

tion and analysis is useful within the institution, data

was only collected from existing data sources that are

available to staff in a variety of formats. Working in

this manner has two beneﬁts to the investigative pro-

cess. Firstly, less time is spent working on ways to

collect the data from other sources that are disparate

and in formats that are difﬁcult to work with. Sec-

ondly, this is data that is accessible to members of

staff at the institution, with very little work required.

By using this data, the focus remains on how data that

the institution already has at its disposal can be used,

rather than focusing on methods of collating disparate

data sources.

2.1 Description of Data

Sufﬁcient data was available through the reporting

system for seven academic years (1st Sep - 31st Aug),

starting with the academic year 2006 - 2007 through

to 2012 - 2013. At the time of writing, reliable data

489

Mahoney J..

Data Visualisation and Statistical Analysis within the Decision Making Process.

DOI: 10.5220/0004212604890494

In Proceedings of the International Conference on Computer Graphics Theory and Applications and International Conference on Information

Visualization Theory and Applications (IVAPP-2013), pages 489-494

ISBN: 978-989-8565-46-4

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

(in sufﬁcient quantity) was only available one year

in advance. For each academic year, data was col-

lected relating to each award (degree course) offered

by the university, the modules (or units) that make up

these awards, along with the faculties or departments

that were responsible for the delivery of each module.

With the introduction of new awards and old awards

being phased out, the amount of data collected dif-

fers from year to year. The amount of data collected

varies from 13,000 rows in 2006/07 to 27,000 rows

for 2012/13, with student numbers varying between

9,600 and 11,700. Each row is representative of the

relationship between one award and one module, i.e

one award made up of ten modules would be repre-

sented by ten rows.

2.2 Data Visualisation Principles

Each of the data visualisations have been created

based on principles taken from ‘The Visual Display

of Quantitative Information’ (Tufte, 2001). Based on

this, successful data visualisations should:

1. Show the data.

2. Make those viewing the visualisation think about

the data, rather than the design of the visualisation

or the technology used to construct it.

3. Avoid distorting the data.

4. Present a large amount of data in a small space.

5. Make large datasets coherent and easier to under-

stand.

6. Allow and encourage the comparison of different

pieces of information.

7. Allow the data to be viewed at several levels of

detail (or granularity).

8. Serve a clear purpose, be that description, explo-

ration, tabulation or decoration.

9. Allow the close integration of the visualisation

with a statistical or verbal description.

2.3 Initial Visualisations

In order to show the scale of relationships between

elements of the data, a network-graph visualisation

showing relationships between modules of study was

created for each of the academic years present in the

data.

Within the graphs, each module delivered by the

university is represented by a node. For each pair of

modules that are delivered on the same award an edge

is formed between the corresponding pair of nodes.

Further to this, groups of edges that represent the de-

livery of modules on the same course are then colour

coded. Each node was also labelled with its mod-

ule code identiﬁer, in order to convey more meaning

through the visualisation. By doing so, the depth of

the data being represented is better reﬂected in the vi-

sualisation of the data. Figure 1 shows a small section

of one of these visualisations.

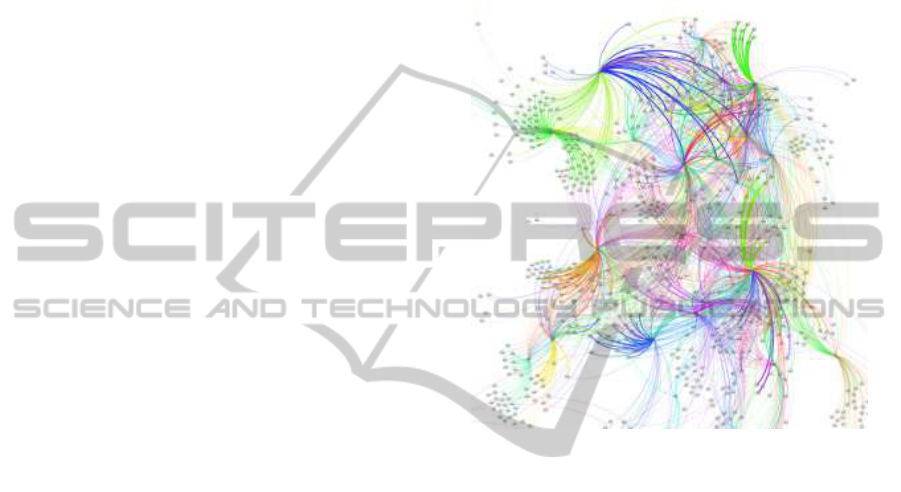

Figure 1: Part of an initial network visualization, showing

the relationships between modules of study.

With the amount of data being represented in the

visualisations, it becomes hard to show individual re-

lationships between modules, but the overall pattern

of relationships across the university becomes evi-

dent. Whilst these particular visualisations in their

current state provide little use within decision making

processes, theyserve as a method of showingthe scale

and complexity of the data being worked with. An un-

derstanding and knowledge of the scale and complex-

ity of the data would still be useful for those work-

ing with it and making changes to the provision of

courses.

These initial visualisations did, however, provide

insight into possible reﬁnements of the data being

used and also which areas to focus on in future vi-

sualisation work.

Taking a highly-granular view of the data, shows

the scale of relationships across the university as a

whole. In practice, modules may share more in com-

mon that just the awards they are delivered on, this is

something that would need to be explored fully in fur-

ther work. Whilst showing the relationships between

modules, the visualisations also show the potential for

adverse effects when changes are made to a module.

IVAPP2013-InternationalConferenceonInformationVisualizationTheoryandApplications

490

It is likely that some awards rely heavily on one mod-

ule for delivering a key learning outcome. Making an

alteration to a module may have no consequences for

four of the ﬁve awards it is delivered on, but may have

serious consequences for the ﬁfth.

Reducing the granularity of the data, it would also

be useful to see links between the awards offered

by the university and further to this, between depart-

ments and colleges within the institution. This would

also improve the process of being able to view the

visualisation as a whole - the scale of the original vi-

sualisations make it difﬁcult to read the node labels

whilst viewing the visualisation in its entirety. Cre-

ating visualisations of differing granularity would al-

low the user to view the data from a highly-abstracted

level and ‘zoom in’ as required.

2.4 Reﬁnement of Data and Scope of

Follow-up Visualizations

Through the creation of the exploratory data visual-

isations, it became apparent that a potential major

audience for these data visualisations would be cur-

riculum planners within the university. Presenting the

data in this way makes it more usable; although the

data was already available, data availability does not

necessarily equate to data usability (Burkhard, 2005).

In terms of reﬁnement of the data being used, only

awards and modules that are active (recruiting stu-

dents) and full-time have been included in the follow-

ing work. By reﬁning the data, the complexity of the

main body of courses delivered at the university can

be shown more clearly; the clear portrayal of complex

data is a desired outcome, in order to make data visu-

alisation a useful tool in the decision making process

(Tufte, 2001).

2.5 Visualising Relationships between

Awards

Reﬁning the data as discussed previously, and query-

ing the data as to show the relationships between each

award, greatly reduced the amount of nodes and edges

in each network. Table 1, below, summarises the

amount of edges and nodes for each network.

In a similar fashion to the original visualisations,

each node is representative of an award offered at

the university. Each node is labelled with the unique

award code, rather than the full degree title in order to

reduce clutter in the image.

Adding the magnitude of the relationships also

helps to clarify the relationship between the awards,

by adding detail (Tufte, 1990). These magnitudes

are based solely on the amount of modules that each

Table 1: Quantities of entities represented in network visu-

alisations.

Academic Year Nodes Edges

2006 - 2007 28 26

2007 - 2008 38 29

2008 - 2009 34 17

2009 - 2010 37 15

2010 - 2011 50 36

2011 - 2012 74 53

2012 - 2013 63 41

pair of awards have in common. To add further de-

tail to the visualisations, the nodes in the network are

grouped by their owning departments, and the links

between nodes colour coded in order to represent the

different departments within the institution.

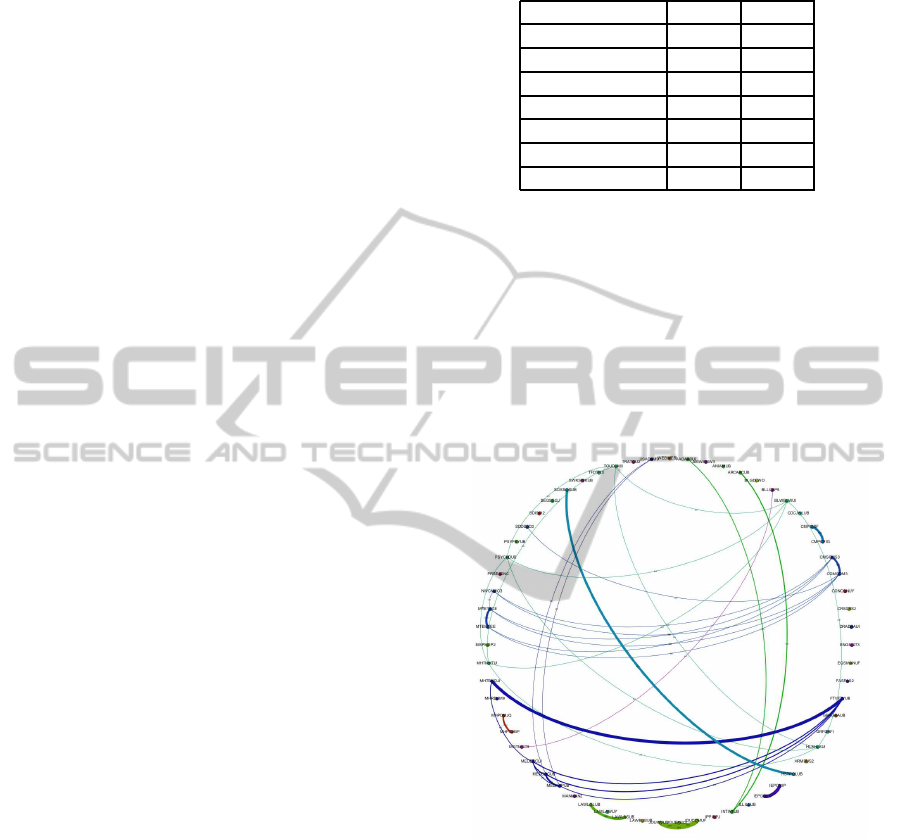

Figure 2 is a visualisation showing relation-

ships between awards offered at the university, with

weighted and colour-coded edges. Edges are also

labelled, showing a numerical representation of the

amount of links between awards.

Figure 2: An example of a circular network layout showing

relationships between awards.

These visualisations could be viewed in chrono-

logical order, to show the changing relationships be-

tween awards as the structure of the university and the

awards that it offers to students change over time.

3 STATISTICAL ANALYSIS OF

NETWORK GRAPHS

This section deals with the use of statistical analysis

to aid the understanding of data presented in data vi-

sualisations. As the visualisations have been network

DataVisualisationandStatisticalAnalysiswithintheDecisionMakingProcess

491

graphs, deﬁnitions of various statistical measures are

outlined and applied to this speciﬁc context and then

the results explored.

3.1 Deﬁnitions

There are many ﬁgures and statistics that can be

derived from network graphs, taking these generic

deﬁnitions and applying them to the domain of the

data being visualised, the following deﬁnitions can be

used:

• Mean Weighted Degree of Nodes - The mean

amount of modules shared between that award

and other awards.

• Graph Density - The amount of connections per

award when compared to the total amount of

awards in the network.

• Modularity - A higher modularity suggests that

awards are very highly connected with speciﬁc

other awards, but have very few connections to

other awards in the network. A very high modu-

larity would suggest that a group of awards shared

a lot of modules between themselves.

3.2 Mean Weighted Degree of Nodes

Plotting the mean weighted degree (see Figure 3),

shows a changing trend over the past seven years.

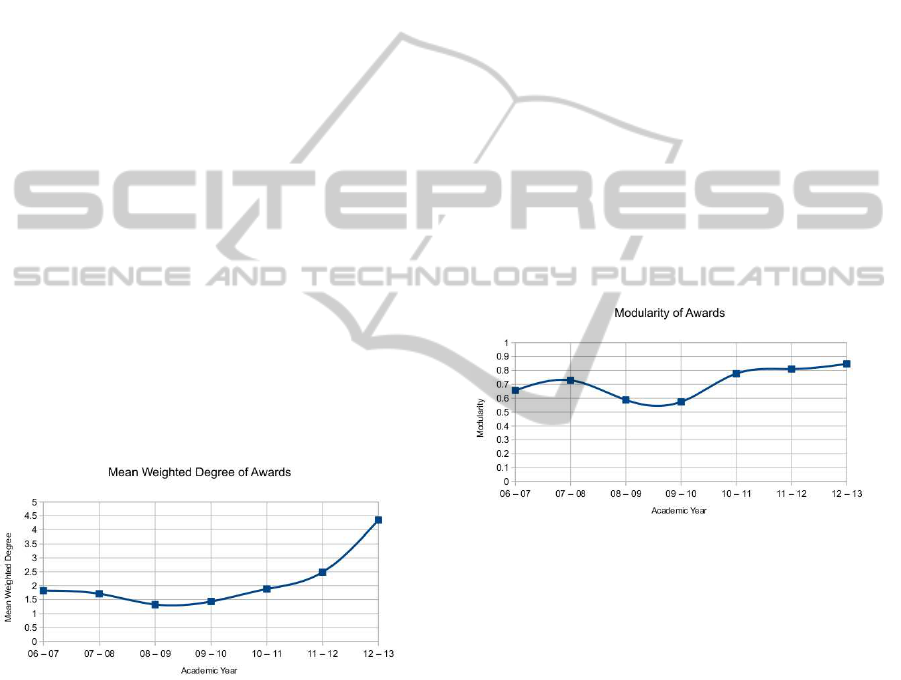

Figure 3: Mean weighted degree of awards, shown over the

course of seven academic years.

Figure 3 shows a deﬁnite drop in the mean

weighted degree of awards from the 2007/08 aca-

demic year to 2008/09. This shows the mean

amount of links between awards dropping consider-

ably (around 22 percent). Combining this data with

information relating to changes in the university, it

becomes apparent that this drop in the mean weighted

degree occurs when the university began to reorgan-

ise the delivery of degree awards. Prior to 2007, an

academic year consisted of 120 points of study bro-

ken down into 12 or 24 point modules, depending on

whether the module was delivered over a single or

two semesters. From 2007, a new system was intro-

duced, in a phased process, where new students would

take 120 points of study, broken down into 15 and 30

points modules. As a standard, full-time degree takes

three years to complete, there was a two year period

where both forms of study were being undertaken by

different cohorts of students.

From the highest point on the ﬁrst portion of the

graph, to this point in the new weighting, there is an

increase of over 36 percent in the amount of joins be-

tween awards offered at the university. This shows

that (assuming an increase in mean weighted degree is

good in terms of curriculum design) the provision has

been improved through the restructuring of awards

during the alteration of module weightings.

3.3 Network Modularity

Another statistical measure that appears to have been

heavily inﬂuenced by changes in the structure of the

university is the modularity of the awards, shown in

Figure 4.

Figure 4: Modularity of awards, shown over the course of

seven academic years.

A high modularity value shows that the awards are

forming into self-contained clusters, with connections

predominantlywithin the cluster, and few connections

to other clusters or outliers. As shown in Figure 4, the

modularity of awards in 2006 - 2007 was relatively

high, this ﬁgure continues to rise, before dropping

for two consecutive years as the weighting of mod-

ules at the university goes through a period of change.

As the change is fully implemented, the modularity

rises signiﬁcantly and continues to rise from 2010 -

2011 through to 2012 - 2013. This would suggest

that (though not necessarily the case) either by design

or good fortune, the awards offered at the university

are starting to form into more easily-identiﬁed self-

contained groups, perhaps areas of specialism. This

point is interesting to note, as the institution has gone

through a period of change, in terms of how depart-

ments within the university are organised.

There is, however, an issue with using network

IVAPP2013-InternationalConferenceonInformationVisualizationTheoryandApplications

492

modularity as a standalone indicator, primarily due

to there being a ‘resolution threshold’, beneath which

smaller clusterings of nodes become ‘invisible’ (For-

tunato and Barth´elemy, 2007; Kumpula et al., 2007).

Combining multiple statistical indicators in order to

get a richer and more reliable indication of the state

of the network is discussed in a later sub-section.

3.4 Network Graph Density

The density of the network shows the mean amount

of connections between nodes as a proportion of the

maximum amount of connections available, with val-

ues ranging between 0 and 1. A value of 1, or a ‘com-

plete graph’ shows that each node in the network is

connected toevery other node; witha value of 0 show-

ing no connections at all between nodes.

In this context, neither a value of 0 or 1 would

be desirable, further work would be required in order

to determine, if possible, an ideal value of range of

values.

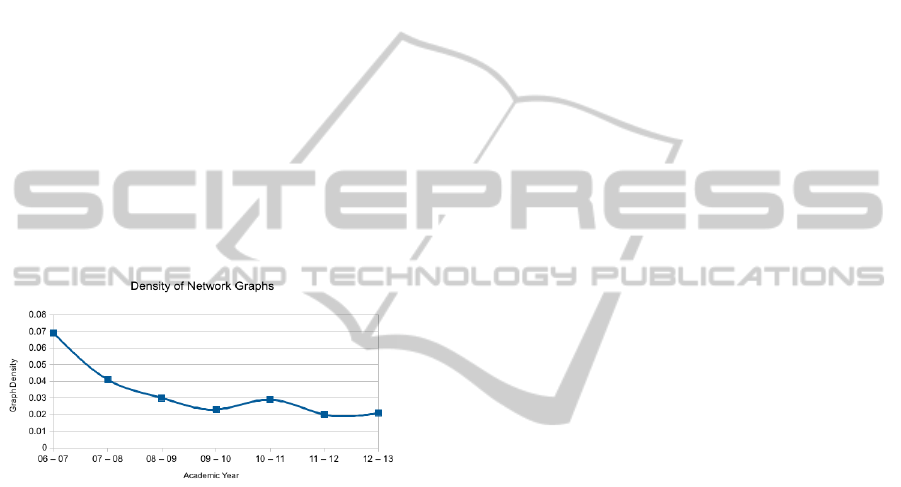

Figure 5: The density of award networks, shown over the

course of seven academic years.

Figure 5 shows a dramatic decrease in graph den-

sity from the academic year 2006 - 2007 to 2007-2008

before an eventual decrease over the next ﬁve aca-

demic years. It has become evident that this statis-

tical measure is perhaps not best suited for use as an

indicator when considering the relationships between

awards, but may be better suited to networks where

relationships are more extensive, i.e. the original vi-

sualisations showing module relationships. The intro-

duction of one or two new awards would have a fairly

substantial impact on the density of the awards graph

and may misrepresent the true effects of introducing

the new awards.

3.5 Combining Statistical Measures

Whilst the statistical measures discussed previously

are useful indicators of the effects of changes to the

provision of degrees and the structure of the institu-

tion, combining the measures may help to provide a

fuller understanding of the potential impact of deci-

sions made in the future.

Take for instance, a situation in which the impact

of making decision X is being assessed. By show-

ing the altered data in network form and analysing

the statistics, the impact can be judged. For example,

if the changes were to result in an increase in mod-

ularity, yet a decrease in the mean weighted degree,

then this would suggest that, whilst distinct groups of

awards or modules were being formed, they are quite

likely to be forming small, highly separated clusters.

This could then be used to help determineif the course

of action being decided upon may produce positive

and desired results.

3.6 Evaluation of Statistical Analysis

A selection of statistical measures of network graphs

have been highlighted and contextualised. These have

been explored in more detail, and changes in the in-

stitution used to explain clear changes in the trends

being shown in the statistics. This demonstrates that

these metrics can be used to show the impact that

changes to the institution can have on these ﬁgures.

This suggests that these same principles can be used

proactively in the decision-making process to show

the resulting impact of various potential decisions.

4 CONCLUSIONS AND FURTHER

WORK

Through the process of exploring large and com-

plex data sets, it has been shown that data visualisa-

tions are a useful tool in improving understanding of

data. These initial exploratory data visualisations also

prove useful in helping to determine potential uses

and users of data visualisations in later work.

By reﬁning the data in order to focus on the as-

sumed requirements of those expected to use the vi-

sualisations, the scale of data being presented is re-

duced somewhat, resulting in clearer visualisations.

However, this is not always beneﬁcial as some sta-

tistical measures become distorted or almost useless

when used on data with a low level of granularity.

The full extent of relationships between modules

and awards would have to be explored in order to

show users a true representation. It would be inappro-

priate to use representations of incomplete data to aid

in decisions. By collecting more data relating to each

aspect of these awards and modules that can be used

to link them, an application can be builtthat allows the

data to be interacted with during the decision making

process, showing the impact of potential alterations to

DataVisualisationandStatisticalAnalysiswithintheDecisionMakingProcess

493

individual elements. This application would allow the

user to view the data being presented at varying lev-

els of granularity, similar to the ways in which some

of the data has been presented in this paper. By do-

ing so and allowing the user to change the structure

of the data that is presented to them, the various ef-

fects of making seemingly small changes to the pro-

vision of education within the university can be easily

displayed. By doing so, the decision making process

could be made more efﬁcient and effective. A case-

study approach would allow the evaluationof both the

proposed interactive visualisations and the statistical

analysis. The monitoring and assessment of ongoing

business processes plays an important role in the con-

tinuity of organisations (Rinderle et al., 2006); the in-

tegration of data visualisation and statistical analysis

into the decision making process would help the pro-

cess of reviewing and assessing the impact of deci-

sions made within the institution.

ACKNOWLEDGEMENTS

The work described in this paper was carried out as

part of a JISC-funded project, under the ‘Course Data:

Making the Most of Course Information’funding call.

REFERENCES

Bastian, M., Heymann, S., and Jacomy, M. (2009). Gephi:

An open source software for exploring and manipu-

lating networks. International AAAI Conference on

Weblogs and Social Media.

Bertschi, S., Bresciani, S., Crawford, T., R, G., Kienreich,

W., Lindner, M., Sabol, V., and Moere, A. (2011).

What is knowledge visualization? perspectives on an

emerging discipline. 15th International Conference

on Information Visualization, pages 329–336.

Burkhard, R. (2005). Knowledge Visualization: The Use of

Complementary Visual Representations for the Trans-

fer of Knowledge – A Model, a Framework, and Four

New Approaches. PhD thesis, Swiss Federal Institute

of Technology (ETH Zurich).

Fortunato, S. and Barth´elemy, M. (2007). Resolution limit

in community detection. Proceedings of the National

Academy of Sciences of the United States of America,

104(1):36–41.

Gilbert, F. and Auber, D. (2010). From database to graph

visualization. 14th International Conference Informa-

tion Visualization, pages 128–133.

Keim, D. (2002). Information visualization and visual

data mining. IEEE Transactions on Visualization and

Computer Graphics, 7(1):1–8.

Kumpula, J., Saram¨aki, J., Kaski, K., and Kertesz, J. (2007).

Limited resolution in complex network community

detection with potts model approach. The European

Physics Journal B, 56(1):41–45.

Masud, L., Valsecchi, F., and Ciuccarellia, P. (2010). From

data to knowledge - visualizations as transformation

processes within the data - information - knowledge

continuum. 14th International Conference Informa-

tion Visualization, pages 445 – 499.

Rinderle, S., Bobrik, R., Reichert, M., and Bauer, T.

(2006). Business process visualizaiton - use cases,

challenges, solutions. Proceedings of the Eighth Inter-

national Conference on Enterprise Information Sys-

tems (ICEIS’06): Information System Analysis and

Speciﬁcation, pages 204 – 211.

Robertson, P. (1990). A methodology for scientiﬁc data vi-

sualisation : Choosing representations based on a nat-

ural scene paradigm. Proceedings of the First IEEE

Conference on Visulaisation, pages 114–123.

Tufte, E. R. (1990). Envisioning Information. Graphic Press

USA.

Tufte, E. R. (2001). The Visual Display of Quantitative In-

formation. Graphic Press USA, 2nd edition.

IVAPP2013-InternationalConferenceonInformationVisualizationTheoryandApplications

494
