Generating Co-occurring Facial Nonmanual Signals in Synthesized

American Sign Language

Jerry Schnepp

, Rosalee Wolfe

, John C. McDonald

and Jorge Toro

College of Technology, Bowling Green State University, Bowling Green, OH, U.S.A.

School of Computing, DePaul University, 243 S. Wabash Ave., Chicago, IL, U.S.A.

Department of Computer Science, Worchester Polytechnic Institute, 100 Institute Road, Worcester, MA, U.S.A.

Keywords: Avatar Technology, Virtual Agents, Facial Animation, Accessibility Technology for People who are Deaf,

American Sign Language.

Abstract: Translating between English and American Sign Language (ASL) requires an avatar to display synthesized

ASL. Essential to the language are nonmanual signals that appear on the face. In the past, these have posed

a difficult challenge for signing avatars. Previous systems were hampered by an inability to portray

simultaneously-occurring nonmanual signals on the face. This paper presents a method designed for

supporting co-occurring nonmanual signals in ASL. Animations produced by the new system were tested

with 40 members of the Deaf community in the United States. Participants identified all of the nonmanual

signals even when they co-occurred. Co-occurring question nonmanuals and affect information were

distinguishable, which is particularly promising because the two processes move an avatar’s brows in a

competing manner. This brings the state of the art one step closer to the goal of an automatic English-to-

ASL translator.

1 INTRODUCTION

Members of the Deaf community in the United

States do not have access to spoken language and

prefer American Sign Language (ASL) to English.

Further, they do not have effective access to written

English because those born deaf have an average

reading skill at or below the fourth-grade level

(Erting, 1992). ASL is an independent natural

language in its own right, and is as different from

English as any other spoken language. Because it is

a natural language, lexical items change form based

on the context of their usage, just as English verbs

change form depending on how they are used. For

this reason, video-based technology is inadequate for

English-to-ASL translation as it lacks the flexibility

needed to dynamically modify and combine multiple

linguistic elements. A better approach is the

synthesis of ASL as 3D animation via a computer-

generated signing avatar.

The language of ASL is not limited to the hands,

but also encompasses a signer’s facial expression,

eye gaze, and posture. These parts of the language

are called nonmanual signals. Section 2 describes

facial nonmanual signals, which are essential to

forming grammatically correct sentences. Section 3

explores the challenges of portraying multiple

nonmanual signals and Section 4 lists related work.

Section 5 outlines a new approach; section 6 covers

implementation details and section 7 reports on an

empirical test of the new approach. Results and

discussion appear in sections 8 and 9 respectively.

2 FACIAL NONMANUAL

SIGNALS

Facial nonmanual signals can appear in every aspect

of ASL (Liddell, 2003). Some nonmanual signals

operate at the lexical level and are essential to a

sign’s meaning. Others carry adjectival or adverbial

information. For example, the nonmanual OO

indicates a small object, while CHA designates a

large object. Figure 1 shows pictures of these

nonmanuals demonstrated by our signing avatar.

Another set of nonmanual signals operate at the

clause or sentence level. For example, raised brows

can indicate yes/no questions and lowered brows can

indicate WH-type (who, what, when, where, and

how) questions. Figure 2 demonstrates the difference

407

Schnepp J., Wolfe R., McDonald J. and Toro J..

Generating Co-occurring Facial Nonmanual Signals in Synthesized American Sign Language.

DOI: 10.5220/0004217004070416

In Proceedings of the International Conference on Computer Graphics Theory and Applications and International Conference on Information

Visualization Theory and Applications (GRAPP-2013), pages 407-416

ISBN: 978-989-8565-46-4

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

between a neutral face and one indicating a yes/no

question. With the addition of the Yes/No-

nonmanual signal, a simple statement such as “You

are home” becomes the question, “Are you home?”

In fact, it is not possible to ask a question without

the inclusion of either the Yes/No- or WH-question

nonmanuals.

Nonmanual OO,

indicating a small size

Nonmanual CHA,

indicating a large size

Figure 1: Nonmanual signals indicating size.

Statement Yes/no question

Figure 2: Sentence-level nonmanuals.

Affect is another type of facial expression which

conveys meaning and often occurs in conjunction

with signing. Deaf signers use their faces to convey

emotions (Weast, 2008). Figure 3 demonstrates how

a face can convey affect and a WH-question

simultaneously.

Challenges arise when nonmanual signals co-

occur. Multiple nonmanual signals often influence

the face simultaneously.

If a cheerful person asks a yes/no question about

a small cup of coffee, this will combine happy affect

with the Yes/No-question nonmanual and the small

nonmanual OO.

The Yes/no question and the happy affect will

influence the brows, and the happy affect and small

nonmanual OO will influence the lower face.

Further, each signal has its own start time and

duration.

The happy affect would continue throughout,

with the Yes/No signal appearing well before the

small nonmanual.

WH-question

combined with happy

WH-question

combined with angry

Figure 3: Co-occurrence.

3 SYNTHESIS CHALLENGES

For translation purposes, a video recording of ASL

will suffice only when the text is fixed and will

never change. However, video lacks the necessary

flexibility to create new sentences. Attempting to

splice together a sentence from previously-recorded

video will result in unacceptably choppy transitions.

A more effective alternative is to use an avatar to

synthesize sentences. Signing avatars are

implemented as 3D computer animation, and facial

movements are handled either by morphing between

fixed facial poses, or by using a muscle based

approach (Parke and Waters, 1996).

ASL synthesis places unique requirements on an

animation system which differ from those of the film

industry. Since the avatar needs to respond to

spontaneous speech, its facial expressions must be

highly flexible and dynamic. Compare this to motion

picture animation, where expressions are scripted for

a scene, and then printed to film.

This brings us to a second and, for this

discussion, even more critical requirement. Given

the co-occurring nature of nonmanual signals, any

signing avatar must take into account multiple

simultaneous linguistic processes. Such a system

must combine different types of expressions and

facilitate the ways in which those expressions will

interact.

No currently-available animation system

completely fulfils these requirements. For example,

the animation technique of simple morphing allows

an animator to pre-model a selection of facial poses,

and then choose one of these poses for each key

frame in the animation. The system then blends

between poses to make the face move. This method

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

408

allows for only one pre-modelled facial pose at a

time, which is extremely limiting in sign synthesis.

Consider portraying a question involving a happy

person asking about a small cup of coffee. This has

three simultaneously occurring facial processes: the

question nonmanual, the small size nonmanual and

the happy affect. If the animator has modelled each

of these separately, then a morphing system is forced

to choose only one of them and ignore the other two,

resulting in a failure to communicate the intended

message.

Attempting to mitigate this issue by pre-

combining poses lacks flexibility and is labour

intensive to the point of impracticality. There are six

basic facial poses for emotion (Ekman and Friesen,

1978) and at least fifty-three nonmanual signals

which can co-occur (Bridges and Metzger, 1996).

Trying to model all combinations would result in

hundreds of facial poses. In addition, the timing of

these combinations would suffer the same problems

of flexibility associated with using video recordings.

Maskable morphing attempts to address the

inflexibility problem by subdividing the face into

regions such as Eyes, Eyebrows, Eyelids, Mouth,

Nose, and allows the animator to choose a distinct

pose for each region. This is an improvement but the

“choose one only” problem now migrates to

individual facial features, and thus it still does not

support simultaneous processes that affect the same

facial feature. For example, both the nonmanual OO

and the emotions of joy and anger influence the

mouth.

The technique of muscle-based animation more

closely simulates the interconnected properties of

facial anatomy by specifying how the movement of

bones and muscles affect the skin (Magnenat-

Thalmann, Primeau and Thalmann, 1987) (Kalra,

Mangili, Magnenat-Thalmann and Thalmann, 1991).

If two different expressions use the same muscle,

their combined effect will pull on the skin in a

natural way. However, managing and coordinating

all of these muscle movements have a tendency to

become overwhelming.

Timing is the main problem. Co-occurring facial

linguistic processes will generally not have the same

start and end times. Some processes may be present

for a single word, others for a phrase, and others for

an entire sentence. Errors in timing can change the

meaning of the sentence. For example, both the

affect anger and the WH-question nonmanual

involve lowering the brows. If the timing is not

correct, the WH-question nonmanual can be

mistaken for anger (Weast, 2008). Errors in timing

can also cause an avatar to seem unnatural and

robotic, which can distract from the intended

communication. This is analogous to the way that

poor speech synthesis is distracting and requires

more hearing effort (Warner, Wolff and Hoffman,

2006).

4 RELATED WORK

Several active research efforts around the world

have a shared goal of building avatars to portray sign

language. Their intended applications include

tutoring deaf children, providing better accessibility

to government documents and broadcast media, and

facilitating transactions with service providers. This

section examines their approaches to generating

facial nonmanual signals.

Very early efforts focused exclusively on the

manual aspects of the language only (Lee and Kunii,

1993; Zhao et al., 2000; Grieve-Smith 2002). Some

acknowledge the need for nonmanual signals but

have not yet implemented them for all facial features

(Karpouzis, Caridakis, Fotinea and Efthimiou,

2007). Others have incorporated facial expressions

as single morph targets. This has been done using

traditional key-frame animation (Huenerfauth, 2011)

and motion capture (Gibet, Courty, Duarte and Le

Naour, 2011).

The European Union has sponsored several

research efforts, starting with VisiCast in 2000,

continuing with eSIGN in 2002 and currently,

DictaSign (Elliott, Glauert and Kennaway, 2004;

Efthimiou et al., 2009). One of the results of these

efforts is the Signing Gesture Markup Language

(SiGML), an XML-compliant specification for sign-

language animation (Elliott et al., 2007). SiGML

relies on HamNoSys as the underlying

representation for manuals (Hanke, 2004), but

introduces a set of facial nonmanual specifications,

including head orientation, eye gaze, brows, eyelids,

nose, and mouth and its implementation uses the

maskable morphing approach for synthesis.

However, there is no consensus on how best to

specify facial nonmanual signals, particularly for the

mouth, and other research groups have either

developed their own custom specification

(Lombardo, Battaglino, Damiaro and Nunnari, 2011)

or are using an earlier annotation system such as

Signwriting (Krnoul, 2010). Further, none of these

efforts have yet specified an approach to generating

co-occurring facial nonmanual signals.

Recent efforts have begun exploring alternatives

to morphs and maskable morphs by exploiting the

muscle based approach (López-Colino and Colás,

2012). However this work has not addressed

portraying co-occurring nonmanual signals.

There is consensus that animating the face is an

extremely difficult problem. Consider the sentence,

"What size coffee would you like?” signed happily.

GeneratingCo-occurringFacialNonmanualSignalsinSynthesizedAmericanSignLanguage

409

In a conventional system based solely on facial

features, the brow would need to be lowered to

indicate a WH-question, but happiness requires an

upward movement of the brows. How much should

the brows be raised to indicate this? Raise them too

little and the face will not appear happy. Raise them

too much and the face is no longer asking a WH-

question. This type of manual intervention makes

automatic synthesis difficult to the point of

impracticality.

Given the challenges, it is not surprising that the

previously-published empirical evaluation of

synthesized nonmanual signals yielded mixed

results. Huenerfauth (2011) reports that only

animations containing emotion affected perception

at a statistically significant level. Deaf participants

did not comprehend any portrayals of nonmanual

signals in the synthesized ASL.

5 A NEW APPROACH

Findings from linguistics yield fresh insight into the

challenge of representing co-occurrences. ASL

linguists have developed a useful strategy for

annotating them.

Figure 4 demonstrates a sample

annotation for the question, “Do you want a small

coffee?” The lines indicate the timing and duration

of the nonmanual signals. Nonmanual signals co-

occur wherever the lines overlap

Figure 4: Linguistic annotation for the sentence

“Do you want a small coffee?”

Using this notation as a metaphor makes it

possible to express timing of co-occurring signals.

The key is to view ASL synthesis as linguistic

processes, rather than a series of facial poses.

Linguistic processes can provide the timing and

control for underlying muscle movements. This new

approach creates a mapping of linguistic processes

to anatomical movements which facilitates the

flexibility and subtleties required for timing.

In the new approach, each linguistic process has

its own track analogous to the timing lines in

Figure

4. Each track contains blocks of time-based

information. Each block has a label, a start time, an

end time, as well as a collection of subordinate

geometry blocks as outlined in Table 1.

Geometry blocks describe low-level joint

transformations necessary to animate the avatar and

can contain animation keys or a static pose.

Linguistic tracks contain linguistic blocks which

contain intensity and timing information that

controls the geometry blocks. Additionally,

linguistic blocks can contain intensity curves that

control the onset and intensity of a pose to facilitate

the requisite subtlety. The effect of each joint

transformation is weighted by the curve values to

vary the degree to which each pose is expressed.

Table 1: Representation Structure.

High Level Tracks

Linguistic:

syntax

gloss (manuals)

lexical modifier

Extralinguistic:

affect

mouthing

Syntax Block

Label

Start time and duration

Intensity curve

Geometry block

Gloss Block

Label

Start time and duration

Geometry block

Lexical Modifier Block

Label

Start time and

duration

Intensity curve

Viseme(s)

Label

Geometry block

Affect Block

Label

Start time and

duration

Intensity curve

Geometry block

Mouthing Block

Label

Start time

End time

Curve

Viseme(s)

Label

Geometry block

Overlapping blocks in multiple linguistic tracks

simultaneously influence the face. To implement co-

occurrence, for each joint or landmark, keys are

gathered from the relevant tracks. A matrix M is

computed by combining the weighted

transformations from each track at the current time

per (1) and the new transformation M is applied to

the joint.

M =

∏









(1)

This representation does not simply store

animation data as a collection of keys, but organizes

them into linguistic processes. This facilitates a

natural mapping to a user interface. Figure 5 shows

how the main interface of our ASL synthesizer

reflects the annotation system that linguists use to

analyse ASL sentences. In the interface, linguistic

tracks are labelled on the left, and block labels refer

to the linguistic information they contain.

To create a sentence, a linguist or artist types the

glosses (English equivalences) for a sentence. The

synthesizer automatically creates an initial draft of

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

410

the animation and displays the linguistic blocks in

the interface. Based on the animation’s appearance,

a linguist can shift or time-stretch any block and edit

its internals by using its context-sensitive menu.

After making desired adjustments, the linguist can

rebuild the sentence, view the updated animation

and repeat the process as necessary. We continually

mine the editing data because it provides insights for

improving the initial step of automatic synthesis.

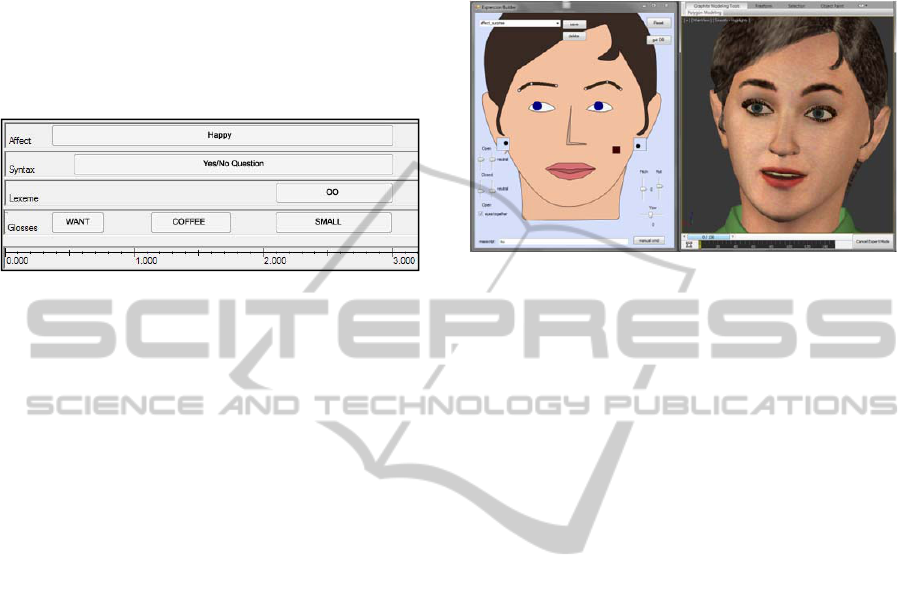

Figure 5: Screen shot of ASL synthesizer interface, for the

sentence, “Do you want a small coffee?”.

Thus, the interface is not presenting the

animation data as adjustments to a virtual anatomy.

Rather, the interface allows researchers to focus on

the linguistic aspects of the language instead of the

geometric details of the animation. They can

describe sentences in the familiar terms of linguistic

processes such as “The Yes/No-question nonmanual

begins halfway through the first sign and finishes at

the end of the sentence.”

This approach helps manage the complexity of

ASL synthesis. It is useful for linguists, because the

animation-specific technology is abstracted. What is

presented to the linguist is an interface of linguistic

constructs, instead of numerical animation data. The

complexity of 3D facial animation is hidden;

although it is available through the context-sensitive

menus should a researcher want to access it.

6 IMPLEMENTATION DETAILS

The synthesis program contains a library of facial

poses. To speed the creation of the initial library, we

set up an “Expression Builder” which has a user

interface similar to (Miranda et al., 2012). Figure 6

shows the Expression Builder interface on the left.

On the upper part of the face, the interface controls

correspond to landmarks that are constrained to

move along the surface of a virtual skull.

For the mouth, we began with the landmarks

specified in the MPEG-4 standard (Pandžić, and

Forchheimer, 2003), but artists found that working

with them directly was only partially satisfactory.

Artists found it time-consuming to create the

necessary nonmanual signals because jaw

movements interfered with them, and the resulting

animations were not deemed satisfactory by our

Deaf informants.

Figure 6: The Expression Builder Interface.

We addressed the problem by creating an oral

sphincter that simulates the inward and downward

motion at the corners of the mouth which occurs as

the jaw drops. This technique automatically

integrated the jaw movement with the mouth, and

artists found the task of creating the nonmanual

signals much easier.

For forehead wrinkling, we needed to

incorporate the effects of both raising and furrowing

the brows. We created two textures, one depicting

horizontal lines caused by raised brows, and one

depicting furrowed brows. Sometimes these effects

can occur simultaneously and even asymmetrically.

To support these possibilities, we created visibility

masks that are generated dynamically in real-time

based on the position of the landmarks in the brows.

When the landmarks are in neutral position, the

masks are transparent and the textures are invisible.

Raising a landmark causes the horizontal texture to

become visible near it. Similarly when a landmark is

lowered or moved inward, the furrow texture

becomes visible in the vicinity of the landmark.

Figure 7 contains schematics of the textures and a

rendered example demonstrating simultaneous and

asymmetric brow configurations.

The interfaces for the Expression Builder and for the

ASL Synthesizer were developed in Microsoft

Visual Studio, and currently utilize a commercially-

available animation package as a geometry engine.

Further details of the implementation can be found

in (Schnepp, 2012).

7 EVALUATION

Sign synthesis has an analogue to speech synthesis:

the correct phonemes must be created as a precursor

GeneratingCo-occurringFacialNonmanualSignalsinSynthesizedAmericanSignLanguage

411

to attempting to synthesize entire paragraphs. Thus

we focused our evaluation exclusively on short

phrases and simple sentences. If we can ascertain

that simple language constructs are understandable

and acceptable to Deaf viewers, we can then use

them as a basis for building more complex

constructs in future efforts.

Figure 7: Sketches of the raised and furrowed textures and

a rendered image of model with the textures.

We wanted to evaluate whether affect would still

be perceptible even when there were other,

simultaneously-occurring nonmanual signals that

could potentially interfere. For first part of our

study, we created two pairs of sentences. Each pair

consisted of one sentence with happy affect and one

sentence with angry affect. The first pair combined

the WH-question nonmanual with each of these

emotions. The second pair combined the CHA

(large) nonmanual with the same two emotions.

We also wanted to assess the perceptibility of

grammatical nonmanual signals in isolation from

emotion, and to focus on evaluating the effect of

nonmanual markers on the perception of size. We

created a phrase that contained a manual sign that

indicated a medium size, but then synthesized three

variations -- one with an OO (small) nonmanual

signal, one with a neutral face, and one with the

CHA (large) nonmanual signal. Other than the

nonmanual, the animations were identical. We could

then ask participants to tell us the size of the object

in the animation.

7.1 Test Considerations

We evaluated for clarity in three ways. The first

method was a coarse measure, which was to simply

ask participants to repeat what they saw in the test

animation. This has the potential to uncover major

problems. For example, if the animation displays a

question but the participant responds by signing a

statement, then the question nonmanual was not

perceived. The second method was to ask questions

about the content conveyed through nonmanual

signals. For example, if an animation involved a cup

of coffee we could ask about the cup’s size. The

third and final method was to ask the participant to

rate the animation’s clarity.

To address acceptability, we asked participants

to “Tell us what we can do to improve the

animation.” From the responses, we gained both

quantitative and qualitative data. A high number of

negative responses would indicate a lower level of

acceptability. The open-ended question also elicited

suggestions for improvement, which are an

invaluable resource for refinements.

When testing with members of the Deaf

community, the same considerations need to be

taken into account as when testing in a foreign

language. Thus everything -- the informed consent,

the instructions, the questionnaires, the test

instruments -- must be in ASL. To avoid possible

bias due to geographic location, we wanted a

significant portion of the participants to come from

regions other than our local area. To facilitate this

we used SignQUOTE, a remote testing software

package designed specifically for Deaf communities.

A previous study found no significant variations

between the responses elicited in face-to-face testing

and responses elicited via remote testing with

SignQUOTE (Schnepp et al., 2011).

7.2 Procedure

Twenty people participated in a face-to-face setting

at Deaf Nation Expo in Palatine Illinois, while

another twenty were recruited through Deaf

community websites and tested remotely using

SignQUOTE. All participants self-identified as

members of the Deaf community and stated that

ASL is their preferred language. In total, 40 people

participated.

Participants viewed animations of synthesized

ASL utterances (see http://asl.cs.depaul.edu/co-

occuring) and answered questions pertaining to

sentence content and clarity. Each participant

viewed individual animations one at a time and was

given the option to review the animation as many

times as desired. When the participant was ready to

proceed, the facilitator asked four questions:

1. The first question asked the participant to sign

the animation.

2. The second question asked the participant to

judge some feature of the animation as shown in

Table 2. Participants indicated their responses

on a five-point Likert scale.

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

412

3. The third question asked the participant to use a

five-point Likert scale to rate the clarity of the

animation.

4. Finally, the last question asked the participant to

offer suggestions to improve the animation.

Table 2: Test animations.

Test animation English Translation

Feature rated

by participant

WH + Happy

How many books do

you want? (Happy)

Emotion

WH + Angry

How many books do

you want? (Angry)

Emotion

CHA + Happy

A large coffee.

(Happy)

Emotion

CHA + Angry

A large coffee.

(Angry)

Emotion

OO + Medium

sign

A regular coffee

(small nonmanual)

Size

No nonmanual +

Medium sign

A regular coffee

(no nonmanual)

Size

CHA + Medium

sign

A regular coffee

(large nonmanual)

Size

The face-to-face environment consisted of a

table with a flat-panel monitor in front of the

participant. On either side of the participant sat a

Deaf facilitator, and a hearing note taker. Across

from the participant sat a certified ASL interpreter

who voiced all of the participant’s responses.

The remote testing sessions followed an identical

structure while automating the roles of facilitator

and note taker. Namely, instructions were presented

by pre-recorded video of a signing (human)

facilitator and answers were recorded using a

clickable interface for scale elements and webcam

recordings for open-ended answers.

Once all remote testing sessions were complete,

a certified ASL interpreter viewed the collection of

webcam video recordings and voiced the

participant’s responses. The audio of the

interpretations was recorded and transcribed as text

for analysis.

8 RESULTS

In response to the first question, every participant

repeated the utterance correctly for each animation.

This included all of the processes that occur on the

face.

For the second question, we used the Mann-

Whitney statistic to analyze the responses to the

paired sets of sentences. For the pair combining the

WH-question nonmanual with happiness and anger,

the Mann-Whitney test showed a significant

difference (z = -6.1, p = 1.06 x 10

-9

< .0001). The

second pair combining the CHA nonmanual with

happiness and anger yielded similar results

(z = -6.83, p = 8.66 x 10

-12

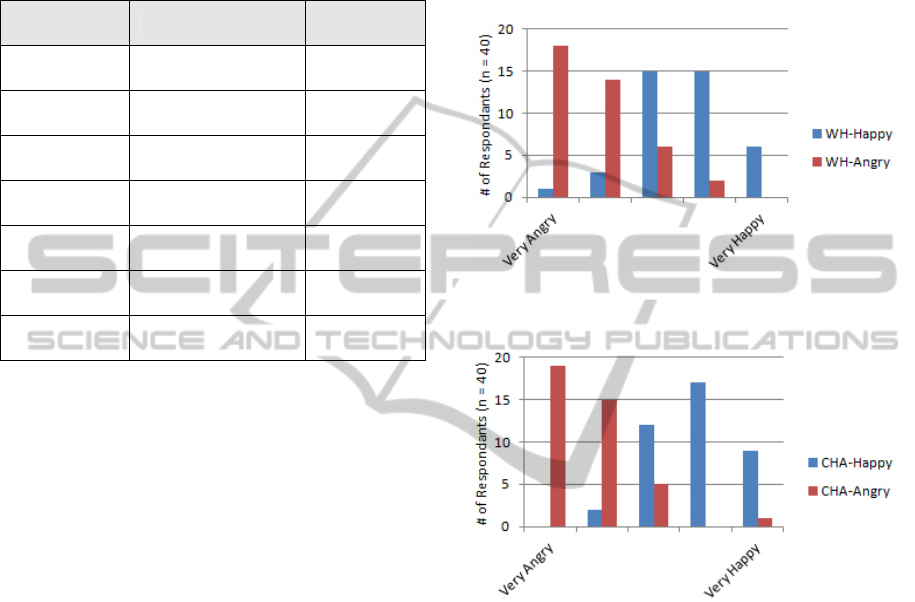

< .0001). Figure 8 shows

the distribution of the participants’ ratings for the

first pair of sentences and

Figure 9 shows the ratings

for the second pair.

Figure 8: Perception of emotion in the presence of a WH-

question nonmanual signal.

Figure 9: Perception of emotion in the presence of a CHA

nonmanual signal.

Figure 10 and Figure 11 show the results of

perceived size in the three animations that differed

only in the portrayed nonmanual signal.

Figure 10

displays the responses to the animation showing the

OO (small) nonmanual compared to the animation

with a neutral face. The Mann-Whitney statistic (z =

-3.75, p < .000179) indicates a significant difference.

Figure 11 shows the responses for the neutral face

versus the CHA (large) nonmanual. As with the first

case, the differences in the responses are significant

(z = -3.51, p < .000452).

Figure 12 shows the participant’s ratings of

clarity. In each case, the majority of participants

rated the animation as either ‘clear’ or ‘very clear’.

Table 3 shows a tabulation of the responses to

the open-ended question, “What can we do to

improve the animation?” The categories are a)

suggestions for improvement, b) no comment or

GeneratingCo-occurringFacialNonmanualSignalsinSynthesizedAmericanSignLanguage

413

positive comments (“she looks fine”).

Representative suggestions for improvement were

“You always need an expression”, “When there's no

expression, I'm not really sure,” and “She shouldn’t

be so crabby.”

Figure 10: Perception of size (small vs. no nonmanual).

Figure 11: Perception of size (large vs. no nonmanual).

Figure 12: Clarity Results.

Table 3: Responses to open-ended questions.

ASL Animation

Suggestions

for

improvement

“Fine” or no

comment

WH + Happy 23 17

WH + Angry 32 8

CHA + Happy 16 24

CHA + Angry 23 17

OO + Medium sign 15 25

Neutral + Medium sign 21 19

CHA + Medium sign 22 18

9 DISCUSSION

The first concern was whether an individual

nonmanual signal produced by this system actually

conveys its intended meaning. When participants

viewed two animations identical except for a size

nonmanual, they perceived the size of the object

according to the nonmanual signal. The Mann-

Whitney scores demonstrate a significant difference

in perception when the size nonmanual occurs.

The second concern was whether affect would be

perceived even in the presence of co-occurring

nonmanual signals that could interfere with its

portrayal. The Mann-Whitney statistics demonstrate

that participants were able to perceive affect even in

the presence of co-occurring nonmanuals. Further,

when asked to repeat animations that involved both

affect and another nonmanual, participants

consistently signed all nonmanuals present in the

animations, including size and question nonmanuals.

Participants correctly identified both the emotional

state of the avatar and the meaning of the co-

occurring nonmanual signals.

The third concern was whether the WH-question

nonmanual would be distinguishable from affect.

Both anger and the WH-nonmanual lower and

furrow the brows. Improperly produced, a WH-

nonmanual can be mistaken for anger and vice-

versa. But this did not happen in the study.

Participants repeating animations depicting a

question always signed back the proper form of the

question. The Mann-Whitney statistics also

demonstrate that they easily perceived the intended

emotion. This last case is particularly interesting

because happy affect and the WH-question

nonmanual move the brows in opposite directions.

Still, participants could discern both the emotional

state of the avatar, and that the sentence being

signed was a WH-question.

When viewing animations produced by our

approach, participants accurately repeated each

sentence with all included nonmanuals 100% of the

time. This is interesting because there were no

manual (hand) indications that a sentence was a

question; the only indication was on the face. Still,

participants all signed the questions accurately,

including the intended nonmanuals.

These results are in contrast to (Huenerfauth,

2011), whose animations elicited a significant effect

only when portraying affect: no linguistic

nonmanual had a significant effect. Further, his

approach was only capable of portraying one process

on the face at a time. Our approach can express

simultaneous processes, and the study data show that

each of the simultaneous processes is recognizable.

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

414

Thus, the results for this new method promise a

significant advance in portraying ASL.

Finally, in every case a majority of participants

rated the animation as either ‘clear’ or ‘very clear’.

Clarity ratings tended to be highest when nonmanual

signals and manual signs reinforced each other.

Although the one animation lacking an appropriate

nonmanual signal was deemed relatively

understandable, participants were in consensus that

the animations were clearer when a nonmanual

signal was present. To quote one participant, “You

always need an expression.”

10 CONCLUSIONS

The use of linguistic abstractions as a basis for

creating animations of ASL is a promising technique

for portraying nonmanuals that are recognizable to

members of the Deaf community. While this

approach undoubtedly requires extension and

revision, it is a step toward the automatic generation

of ASL. In addition to being an essential component

of an automatic English-to-ASL translator, an avatar

signing correct ASL would be a valuable resource

for interpreter training. When interpreting students

learn ASL, recognition skills lag far behind

production skills (Rudser, 1988). Software

incorporating a signing avatar capable of correct

ASL would provide a valuable resource for

practicing recognition. Another application would be

to support Deaf bilingual, bi-cultural (“bi-bi”)

educational settings where ASL is used in preference

to manually-signed English (Hermans, Ormel,

Knoors and Verhoeven, 2008).

The underlying representation itself can support

collaboration between ASL linguists and avatar

researchers for exploring linguistic theories due to

the direct analogue to linguistic annotation.

Researchers can quickly make animations to test and

refine hypotheses.

The number of suggestions for improvement

from the study indicates there is more work to be

done before the animations reach full acceptability.

We are analyzing the qualitative feedback to

determine next steps

Going forward, we plan to develop and evaluate

additional nonmanual signals and follow up with

more rigorous testing. The current study only tested

the co-occurrence of two simultaneous signals.

Three or more co-occurring signals often combine in

signed discourse, and the system should be tested as

to its scalability in terms of the number of co-

occurring signals.

ACKNOWLEDGEMENTS

We would like to thank Brianne DeKing for her help

and expertise. She provided invaluable insight into

the language of ASL. Brent Shiver was essential to

the testing sessions and to the development and

testing of SignQUOTE. We would also like to thank

Dr. Christian Vogler for his mentoring as we wrote

this paper.

REFERENCES

Bridges, B. and Metzger, M., 1996. Deaf Tend Your: Non-

Manual Signals in American Sign Language. Silver

Spring, MD: Calliope Press.

Efthimiou, E., Fotinea, S.-E., Vogler, C., Hanke, T.,

Glauert, J., Bowden, R., Braffort, A., Collet, C.

Maragos, P. and Segouat, J., 2009. Sign language

recognition, generation and modeling: A research

effort with applications in deaf communication. In:

UAHCI '09, Proceedings of the 5th International

Conference on Universal Access in Human-Computer

Interaction. Addressing Diversity. San Diego,

California, 19-24 July 2009. Berlin, Germany:

Springer-Verlag.

Ekman, P. and Friesen, W., 1978. Facial Action Coding

System. Palo Alto, CA: Consulting Psychologist Press.

Elliott, R., Glauert, J. and Kennaway, J., 2004. A

framework for non-manual gestures in a synthetic

signing system. In: CWUAAT 04, Proceedings of the

Second Cambridge Workshop on Universal Access

and Assistive Technology. Cambridge, UK, 22-24

March 2004.

Elliott, R., Glauert, J., Kennaway, J., Marshall, I. and

Safar, E., 2007. Linguistic modelling and language-

processing technologies for avatar-based sign

language presentation. Universal Access in the

Information Society, 6(4) pp.375-391.

Erting, E., 1992. Why can’t Sam read? Sign Language

Studies. 75(2), pp. 97-112.

Gibet, S., Courty, N., Duarte, K. and Le Naour, T.,

2011.The signcom system for data- driven animation

of interactive virtual signers: Methodology and

evaluation. ACM Transactions on interactive

intelligent systems. 1 (1), 1-26.

Grieve-Smith, A., 2002. SignSynth: A sign language

synthesis application using Web3D and Perl. In: I

Wachsmuth and T Sowa, eds. Gesture and Sign

Language in Human-Computer Interaction. Lecture

Notes in Computer Science. 2298/2002 Berlin,

Germany: Springer-Verlag. pp. 37-53.

Hanke, T., 2004. HamNoSys -- Representing sign

language data in language resources and language

processing contexts. In: LREC 2004: Fourth

International Conference on Language Resources and

Evaluation Representation and Processing of Sign

Languages Workshop. Lisbon, Portugal, 24–30 May

GeneratingCo-occurringFacialNonmanualSignalsinSynthesizedAmericanSignLanguage

415

2004. Paris: European Language Resources

Association.

Hermans, D., Ormel, E., Knoors, H. and Verhoeven, L.,

2008. The relationship between the reading and

signing skills of deaf children in bilingual education

programs. Journal of Deaf Studies and Deaf

Education, 13(4), pp. 518-530.

Huenerfauth, M., Lu, P. and Rosenberg, A., 2011.

Evaluating importance of facial expression in

American Sign Language and pidgin signed English

animations. In: ASSETS’11: Proceedings of the 13th

International ACM SIGACCESS Conference on

Computers and Accessibility. Dundee, UK, 22 – 24

October 2011. New York, NY: ACM.

Kalra P., Mangili A., Magnenat-Thalmann N. and

Thalmann D., 1991. SMILE: A Multilayered Facial

Animation System, In: IFIP WG 5.10: Proceedings of

International Federation of Information

Processing.Tokyo, Japan, 8-12 April 1991. Berlin,

Germany: Springer.

Karpouzis, K., Caridakis, G., Fotinea, S.-E. and

Efthimiou, E., 2007. Educational resources and

implementation of a Greek sign language synthesis

architecture. Computers & Education. 49(1), pp. 54-

74.

Krnoul, Z., 2010. Correlation analysis of facial features

and sign gestures. In: ICSP 2010: Proceedings of the

2010 IEEE 10

International Conference on Signal

Processing. Beijing, China, 24–28 October 2010.

Washington, DC: IEEE.

Lee, J. and Kunii, T., 1993. Computer animated visual

translation from natural language to sign language.

The Journal of visualization and computer animation.

4(2), pp. 63-68.

Liddell, S., 2003. Grammar, Gesture, And Meaning in

American Sign Language. Cambridge, UK: Cambridge

University Press.

Lombardo, V., Battaglino, C., Damiario, R. and Nunnari,

F., 2011. A avatar–based interface for Italian Sign

Language. In: CISIS 2011: Proceedings of the 2011

International Conference on Complex, Intelligent, and

Software Intensive Systems. Seoul, Korea, 30 June – 2

July 2011. Washington, DC: IEEE.

López-Colino, F. and Colás, J., 2012. Spanish Sign

Language synthesis system. Journal of Visual

Languages and Computing. 23(3), pp. 121-136.

Magnenat-Thalmann, N., Primeau, E. and Thalmann, D.,

1987. Abstract Muscle Action Procedures for Human

Face Animation. The Visual Computer. 3(5), pp. 290-

297.

Miranda, J.C., Alvarez, X., Orvalho, J., Gutierrez, D.,

Sousa, A. and Orvalho, V., 2012. Sketch express: A

sketching interface for facial animation. Computers &

Graphics, 36(6) , pp. 585-595.

Pandžić, I. and Forchheimer, R., 2003. MPEG-4 Facial

Animation: The Standard, Implementation And

Applications. Hoboken, NJ: Wiley.

Parke, F. and Waters, K., 1996. Computer Facial

Animation. Wellesley, MA: A.K. Peters.

Rudser, S., 1988. Sign language instruction and its

implications for the Deaf. In: M. Strong, ed. 1988.

Language Learning and Deafness. New York:

Cambridge University Press, pp. 99-112.

Schnepp, J., Wolfe, R., Shiver, B., McDonald, J. and Toro,

J., 2011. SignQUOTE: A remote testing facility for

eliciting signed qualitative feedback. In SLTAT 2011:

Proceedings of the Second International Workshop on

Sign Language Translation and Avatar Technology.

Dundee, UK, 23 October 2011. Dundee: University of

Dundee.

Schnepp, J. 2012. A representation of selected nonmanual

signals in American Sign Language. Ph.D. DePaul

University.

Weast, T., 2008. Questions in American Sign Language: A

quantitative analysis of raised and lowered eyebrows.

Ph.D. The University of Texas, Arlington.

Werner, S., Wolff, M. and Hoffman, R., 2006.

Pronunciation variant selection for spontaneous speech

synthesis: Listening effort as a quality parameter. In:

IEEE ICASSP, Proceedings of the IEEE International

Conference on Acoustics, Speech and Signal

Processing. Toulouse, France, 14-19 May 2006.

Washington, DC: IEEE.

Zhao, L., Kipper, K., Schuler, W., Vogler, C. and Palmer,

M., 2000. A machine translation system from English

to American Sign Language. In: J.S. White, ed. 2000.

Envisioning Machine Translation in the Information

Age. Lecture Notes in Computer Science. 1934/2000

Berlin, Germany: Springer-Verlag. pp. 191-193.

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

416
