Real-time Video-based View Interpolation of Soccer Events using

Depth-selective Plane Sweeping

Patrik Goorts, Cosmin Ancuti, Maarten Dumont, Sammy Rogmans and Philippe Bekaert

Hasselt University, Expertise Centre for Digital Media, Wetenschapspark 2, 3590 Diepenbeek, Belgium

Keywords:

Sports Broadcasting, View Interpolation, Plane Sweep, Virtual Viewpoint, Real-time Processing.

Abstract:

In this paper we present a novel technique to synthesize virtual camera viewpoints for soccer events. Our

real-time video-based rendering technique does not require a precise estimation of the scene geometry. We

initially segment the dynamic parts of the scene to consequently estimate a depth map of the ﬁltered foreground

regions using a plane sweep strategy. The depth map is indicatively segmented to depth information per

player. A consecutive plane sweep is used, where the depth sweep is limited to the depth range of each player

individually, effectively removing major ghosting artifacts, such as third legs or ghost players. The background

and shadows are interpolated independently. For maximum performance our technique is implemented using a

combination of NVIDIA’s shaders language Cg and NVIDIA’s general purpose computing framework CUDA.

The rendered results of an actual soccer game demonstrate the usability and accuracy of our framework.

1 INTRODUCTION

Nowadays, the demand for high-quality footage of

sport events is higher than ever. Current caption sys-

tems therefore deliver high deﬁnition video in real-

time. However, the viewpoints of these traditional

systems are in general limited to the position of the

physical cameras. In order to provide additional novel

views from arbitrary positions in the scene, we de-

velop a method that is able to synthesize virtual views

in real-time. Compared with the traditional acqui-

sition systems, our technique has the advantage to

provide additional important features such as creat-

ing pleasant looking camera transitions, time freezing

and interaction to the end users.

Our technique is a fully automatic real-time video-

based method that generates images of virtual cam-

era viewpoints, roughly placed in between physical

cameras being demonstrated for a real soccer game.

Video- and Image-based rendering techniques (IBR)

represent a powerful alternative to geometry-based

techniques to generate novel views. In contrast to ac-

curately modeling the geometry, IBR techniques al-

low to visualize 3D environments using only the in-

formation of the captured images.

Our proposed method uses cameras with a ﬁxed

position in a semi-wide baseline setup, which is larger

than a typical interpolation setup. In our framework,

the dynamic parts (players) are ﬁrst segmented and

consequently rendered independent from the back-

ground. Since we target a fast technique, a depth

map of the ﬁltered foreground regions is calculated

using a plane sweep strategy. This initial depth map

is employed to estimate the depth range of every

player. Finally, the foreground is rendered using a

depth-selective plane sweep, thus limiting the player-

dependent depth range based on the previously calcu-

lated depth range of the foreground objects. This will

provide a detailed depth map of every player without

disturbing artifacts, while respecting its global depth.

This novel interpolated image of the foreground is

then merged with the interpolated background.

All algorithms are implemented using a combina-

tion of NVIDIA’s Cg shader language and NVIDIA’s

general purpose computing framework CUDA and

exploiting it’s interoperability. This combination

allows for maximum performance by using the

strengths of both frameworks and hiding the weak-

nesses (Rogmans et al., 2009b).

To demonstrate our method, we obtained video

streams from a real soccer match using computer

vision cameras placed approximately 1 meter apart

from each other. Thanks to commodity graphics hard-

ware and our parallel algorithmic approach, the in-

terpolated view is obtained in real-time. The results

show high-quality interpolation without typical inter-

polation artifacts, such as extra limbs, ghost players,

distorted parallax effects or warping errors.

131

Goorts P., Ancuti C., Dumont M., Rogmans S. and Bekaert P..

Real-time Video-based View Interpolation of Soccer Events using Depth-selective Plane Sweeping.

DOI: 10.5220/0004217301310137

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 131-137

ISBN: 978-989-8565-48-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

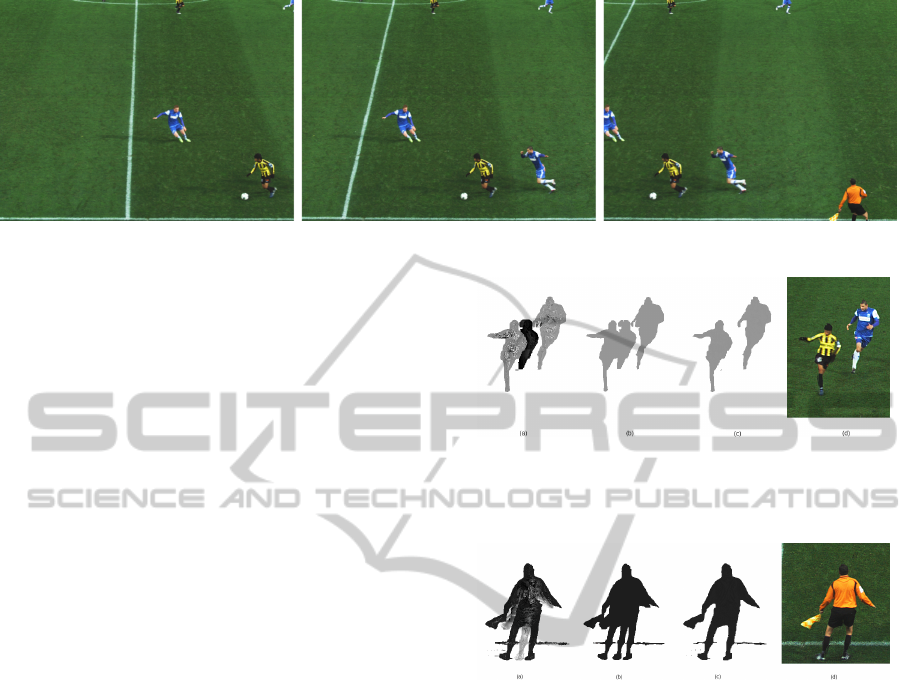

Figure 1: Examples of input images on positions 0, 1, 6 and 7.

In Section 2, we will discuss the context of our

work using related work. In Section 3, a detailed

description of our setup is given. The prerendering

phase of the method is elaborated in Section 4 and the

real-time rendering phase in Section 5. Finally, the

results are presented in Section 6, together with the

conclusions in Section 7.

2 RELATED WORK

To generate novel views, the existing methods are

divided in two main classes: geometry-based ren-

dering techniques and image-based rendering (IBR)

techniques. When using geometry, the scene is re-

constructed as a collection of 3D models. Visual hull

(Matusik et al., 2000; Miller et al., 2005), photo hull

(Kutulakos and Seitz, 2000) and space carving (Seitz

and Dyer, 1999) are the most known strategies of this

approach.

Some attempts transfer the studio-based recon-

struction techniques for the outdoor sport events. One

of these examples is the Eye vision system (eye, 2001)

used to record the Super Bowl 2001 described in the

work of Kanade et al. (Kanade et al., 1997). They

used thirty motorized camera heads slaved to a single

manually controlled camera to produce sweep shots

with visible jumps between viewpoints. The frame-

work of Hilton et al.(Hilton et al., 2011) reconstructs

a 3D scene proxy at each frame starting with a vol-

umetric reconstruction followed by a view-dependent

reﬁnement using information from multiple views.

On the other hand, image-based rendering tech-

niques aim to visualize 3D scenes and objects in

a realistic way by replacing the geometry and sur-

face properties only with images. In contrast with

geometry-based rendering techniques, IBR methods

are more robust requiring more simpler and inexpen-

sive setups. The most known approach is the gen-

eration of depth maps for small baseline setups us-

ing stereo matching (Seitz et al., 2006; Zitnick et al.,

2004) and plane sweeping (Yang et al., 2004; Dumont

et al., 2009), including depth-selective sweeping for

two views (Rogmans et al., 2009a). Our method also

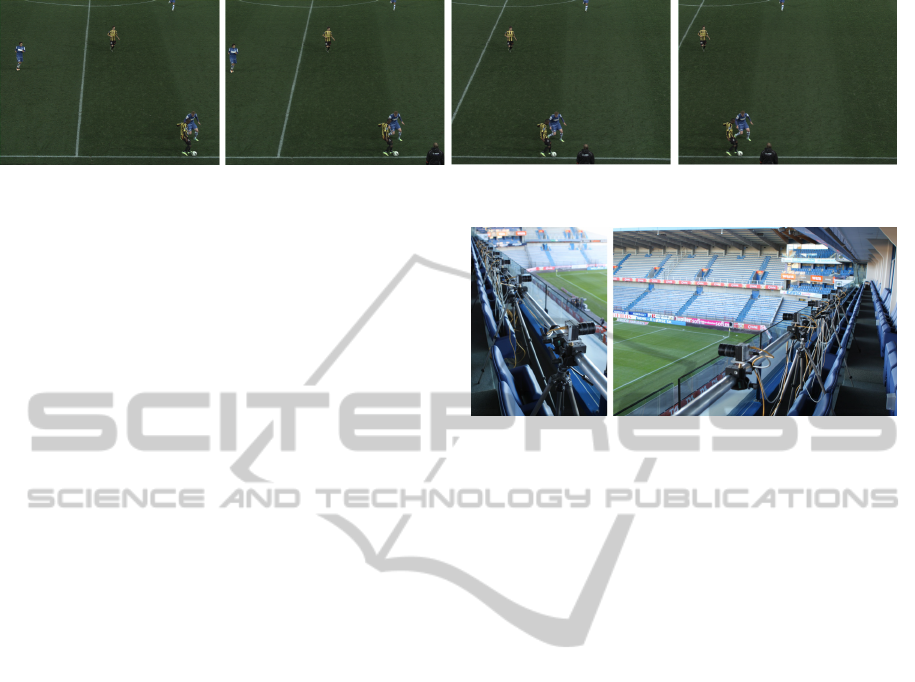

Figure 2: Overview of the camera setup. The setup consists

of 8 computer vision cameras with 25mm lenses placed 1

meter apart from each other.

belongs in the latter category of rendering techniques.

There have been several view interpolation sys-

tems that have been designed for soccer games. iView

(Grau et al., 2007), commercialized by Red Bee Me-

dia(red, 2001), uses a narrow baseline camera setup

and billboards or visual hulls to generate novel view-

points of the soccer players. Shadow is synthetically

applied to the result. However, some serious arti-

facts are reported when using the proposed methods,

e.g. ghosting, ﬂickering, missing limbs and blurred

images.

Ohta et al.(Ohta et al., 2007) developed a tech-

nique that processes a simpliﬁed 3D model built on

billboards. Hayashi and Saito (Hayashi and Saito,

2006; Inamoto and Saito, 2007) employ as well a bill-

board representation of dynamic regions while the in-

terpolation is performed by estimating the projective

geometry among different views. A similar method

has been proposed recently by Germann et al. (Ger-

mann et al., 2010) that estimate the 2D pose using

a database of silhouettes. Based on the pose and

segmentation, the articulated billboard model is op-

timized in order to compensate for errors. Different

than our approach, this technique requires manual in-

tervention.

3 FRAMEWORK SETUP

To generate input video streams for our method, we

created a setup consisting of an array of 8 Basler

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

132

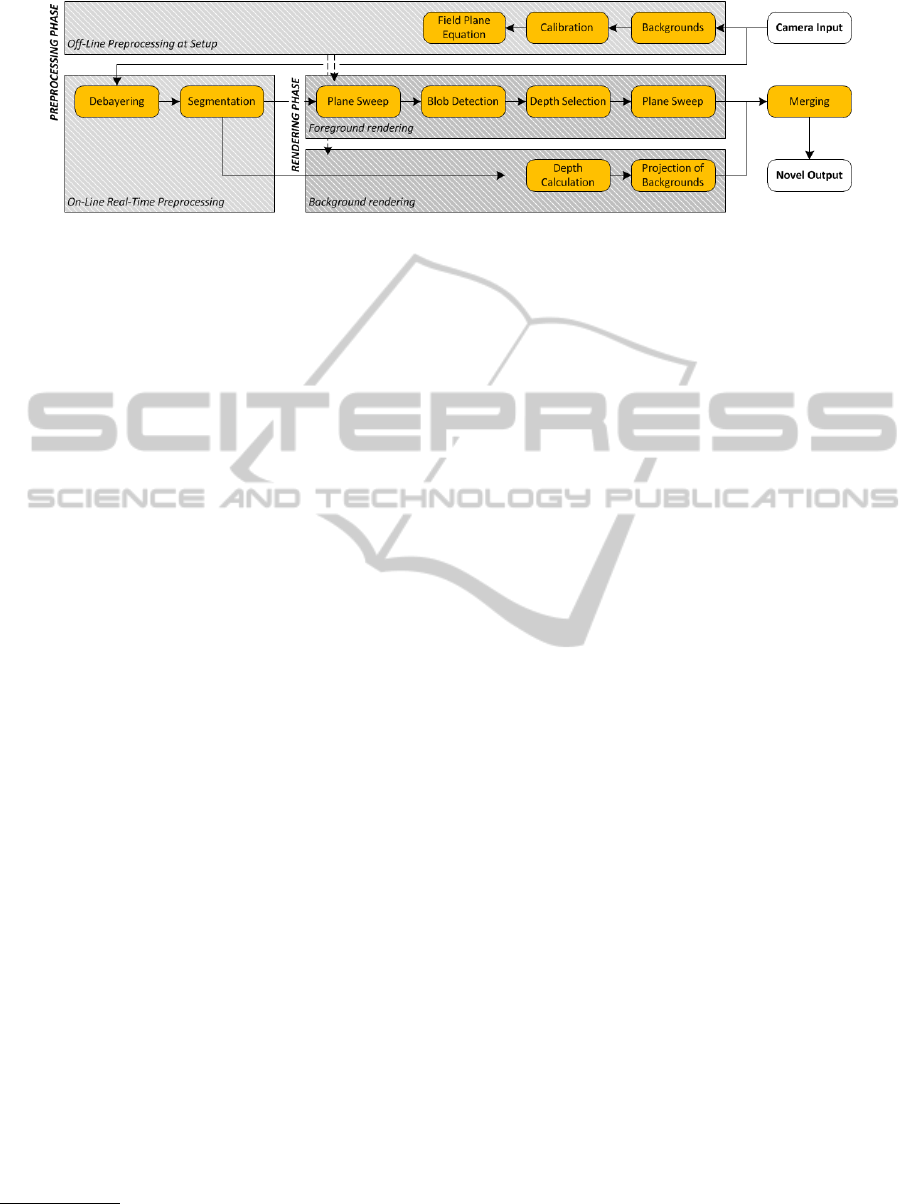

Figure 3: Overview of our method. There are two phases: a preprocessing phase, including calibration and background

extraction, and a real-time rendering phase, where the foreground and the background are rendered independently.

avA1600-50gc

computer vision cameras with 25mm

lenses. The cameras are placed approximately 1 me-

ter from each other, while the distance to the ﬁeld is

approximately 20 meters (see Figure 2). The cameras

are triggered externally to provide global synchro-

nization between the image streams. To provide high-

quality results, the recording was done at 30 images

per second with a resolution of 1600 × 1200. Figure

1 shows some example input images.

The raw images captured by the cameras C

are

transmitted to a rendering computer using a 10 Giga-

bit Ethernet connection. The rendering computer al-

lows to choose the location of a virtual camera C

that,

as will be described in the following, is processed in

real-time. To acquire real-time processing, the com-

puter is equipped with an NVIDIA GeForce GTX 580

running at 1544 MHz.

An overview of our method is shown in Figure 3.

The method consists of two main phases: a prepro-

cessing and a real-time rendering phase. These main

tasks are discussed in the subsequent sections.

4 PREPROCESSING PHASE

In the ﬁrst step of our technique the camera posi-

tions are calibrated. This step is performed based

on SIFT (Lowe, 2004) local feature points that are

detected in the scene to generate camera correspon-

dences. First, SIFT features are extracted from all in-

put images C

. Next, these features are matched be-

tween pairs of cameras using the k-d tree algorithm

that searches similar features based on their clos-

est distance. The pairwise correspondences are then

tracked across multiple cameras using a graph-based

search algorithm. The ﬁltered matches are then used

to calculate the position, orientation and the intrinsic

parameters of the cameras based on the well-known

techniques of Svoboda et al. (Svoboda et al., 2005).

http://www.baslerweb.com/products/

aviator.html?model=204

This method consists of hole-ﬁlling to deal with oc-

clusions and a bundle adjustment with RANSAC. The

invalid matches from the previous steps are removed

based on the RANSAC procedure.

Moreover, we calculate the position, represented

as a plane equation, of the ﬁeld. In our strategy this

equation is acquired by manually selecting several

matches (about 10 matches) on the ﬁeld across all

camera images C

and using these matches to trian-

gulate 3D points on the ﬁeld. More correspondences,

sparsely spreaded over the ﬁeld, result in a more ac-

curate estimation of the ﬁeld. Afterwards, standard

plane ﬁtting is used to acquire the plane equation

(Hartley and Zisserman, 2003), usable as a geomet-

ric representation of the ﬁeld.

Furthermore, in this preprocessing step, back-

grounds B

are calculated using a per-pixel median

ﬁlter. In order to provide a robust background gener-

ation, approximately 30 images are captured at a rate

of 2 frames per minute right before the actual record-

ing. When the lighting changes in the scene, it might

be required to repeat this procedure during the pro-

cessing using a subset of the captured images.

5 REAL-TIME RENDERING

PHASE

Our real-time rendering phase consists of four parts:

frame preprocessing, background rendering, fore-

ground rendering and merging.

5.1 Frame Preprocessing

When running the setup, every acquired frame must

be preprocessed before the actual rendering step.

These steps include debayering and segmentation.

Firstly, the raw input images C

(i ∈ [1, N]) need

to be debayered. The cameras provide raw images,

where every pixel only contains the value of one

color channel. The color is deﬁned by the speciﬁc

Real-timeVideo-basedViewInterpolationofSoccerEventsusingDepth-selectivePlaneSweeping

133

color pattern used in the camera sensor, i.e. the Bayer

pattern. The values of the other color channels of

the pixel are interpolated using the surrounding pixel

values. This is done by uploading the raw image

to the GPU and applying the AHD method of Hi-

rakawa and Parks (Hirakawa and Parks, 2005), coded

in NVIDIA’s shader language Cg. By using our own

GPU implementation of debayering, we avoid uncon-

trolled and lower quality processing on camera hard-

ware, reduce the amount of camera-computer data

copying with a factor three, and therefore increase the

arithmetic intensity of the GPU by making the results

locally available for the subsequent algorithms.

Secondly, the debayered images C

are segmented

on the GPU using the backgrounds B

of the pre-

rendering step. To provide real-time processing, the

segmentation is processed on a pixel basis and uses

thresholds τ

, τ

, with τ

> τ











1 : τ

< kc

− b

1 : τ

≥ kc

− b

k ≥ τ

and cos(

) ≤ τ

0 : kc

− b

k < τ

0 : τ

≥ kc

− b

k ≥ τ

and cos(

) > τ

(1)

with s

= S

(x, y), c

= C

(x, y) and b

= B

(x, y),

for all pixels (x, y).

is the angle between the fore-

ground and background color. We measure the dif-

ference between the foreground and background pix-

els. When the difference is large (larger than τ

), the

pixel is considered as foreground. If the difference

is small (smaller than τ

), the pixel is considered as

background. When the difference is in between these

thresholds, we consider the vector angle between the

colors and apply the threshold τ

. Finally, the seg-

mentation is enhanced with an erosion and dilation

step to reduce small segmentation errors caused by

noise in the input streams (Yang and Welch, 2002).

The thresholds should be chosen such that the

foreground objects, like players and the ball, are con-

sidered as foreground, but the shadows are considered

as background. The shadows are in essence a darker

background, while foregrounds do not correlate with

the background, thus allowing the use of thresholds.

We do not consider shadow as foreground to re-

duce interpolation artifacts caused by mismatches in

shadow regions. Shadows are located on the back-

ground, thus eliminating the need for separate inter-

polation; the shadows are interpolated together with

the background.

After these preprocessing steps, the background

and foreground F

of the virtual view are rendered

independently.

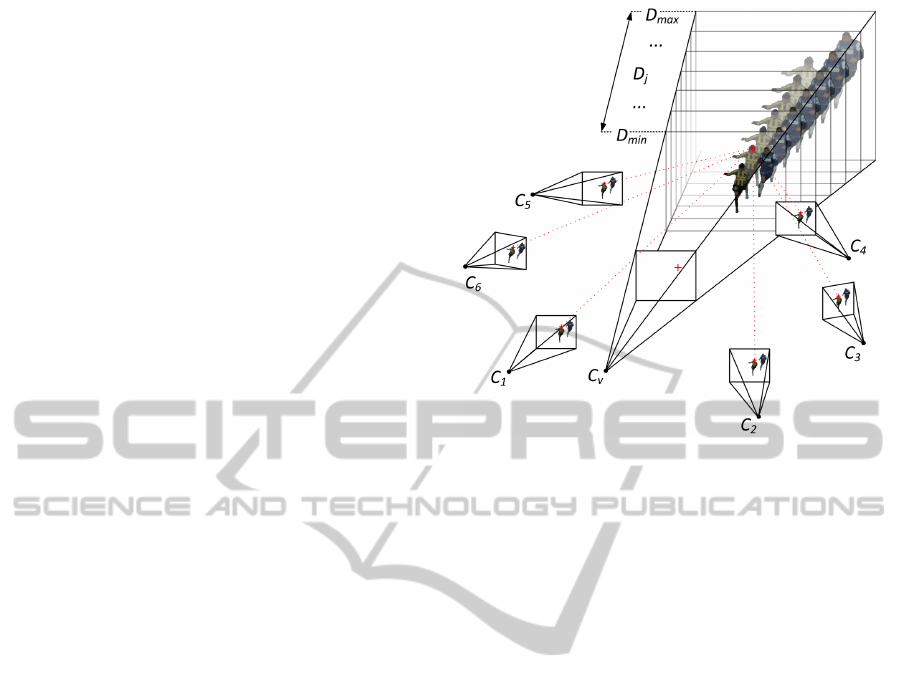

Figure 4: Principle of plane sweeping. The space before the

virtual camera C

is discretized in planes. For every depth

, every pixel of the virtual view is deprojected on this

plane and back projected on every input camera C

− C

Using these color values, a cost error ε can be calculated,

thus deriving the optimal depth for that virtual pixel.

5.2 Background Rendering

To generate the background B

of the virtual image,

we take the input images C

and replace the fore-

ground pixels with the values from the background

images B

, according to the segmentation. This will

preserve the shadows of the objects, while removing

foreground pixels which can cause artifacts.

These generated frame backgrounds are then pro-

jected and blended on the plane as determined in the

preprocessing phase. The projection is dependent of

the parameters of the input cameras and the parame-

ters of the current virtual view and should be repeated

for every frame.

5.3 Initial Plane Sweeping

The foreground F

is rendered in three passes. First, a

global plane sweep is performed to generate a crude

depth map and segmentation of the virtual viewpoint.

Our plane sweep is an adopted and modiﬁed version

of the well-known method from Yang et al. (Yang

et al., 2003). The world before the virtual camera

is divided in M planes of depths D

∈ [D

min

, D

max

parallel to the virtual image plane, as can be seen in

Figure 4. For every plane, every pixel v(x, y) of the

virtual camera image is deprojected on this plane, re-

projected on the input images and the error ε is calcu-

lated per pixel and per depth plane using the sum of

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

134

squared differences (SSD):

ε =

∑

i=1

kγ −C

with γ =

∑

i=1

(2)

where γ is the average of the reprojected pixels and

is the i

input image of total N. When a reprojected

pixel falls outside the segmentation mask, the error

ε for that depth is set to inﬁnity. This will guaran-

tee consistency with the segmentation. The resulting

depth d

for a virtual pixel is the depth plane on depth

with the lowest error ε for that virtual pixel, and

the color is the average γ of the corresponding pixels

in the input images. When every ε is inﬁnity, the pixel

in the virtual image is considered as background. The

calculation of the depth map and the resulting color

image can efﬁciently be implemented using Cg on

graphics hardware by exploiting the projective tex-

turing capabilities, resulting in real-time processing

(Dumont et al., 2009).

5.4 Depth Selection

After the initial plane sweep, we select a depth range

per player visible in the virtual view. The depth map

is split up in unconnected blobs of pixels. These rep-

resent an independent player or a group of players.

This is achieved using a parallel region growing al-

gorithm created for CUDA (Ziegler and Rasmusson,

2010). Initially, every pixel is assigned an unique

label. Next, we assign one thread per pixel. Every

thread will compare the label of its neighboring pix-

els with its own label and will assign the lowest of

the two to itself. Neighboring pixels that originate

from the background are ignored. This process is re-

peated until no more changes are made. Now every

foreground pixel has a label that is the same as ev-

ery other connected pixel. Pixels with the same label

form one distinct blob or foreground object. Every

detected object is then ﬁlled with the median of the

depth values of that object. This depth represents the

global depth d

of the player (or group of players) in

that foreground object. CUDA is used to harness the

utilization of a user-managed cache, allowing more

efﬁcient memory management than can be obtained

by normal texture lookups (Goorts et al., 2009). By

exploiting the interoperability of Cg and CUDA, no

performance penalty is perceived.

5.5 Depth-selective Plane Sweeping

Finally, this ﬁltered depth map is used in a second

“depth-selective plane sweep”, extending the stereo

principle of Rogmans et al. (Rogmans et al., 2009a).

While sweeping over the range of depth values D

∈

min

, D

max

], only values within a certain fraction α

of the depths d

calculated in the previous step are

accepted if the following expression is satisﬁed:

− d

< α(D

max

− D

min

) (3)

Depths that are not accepted are explicitly as-

signed an error ε of inﬁnity. If every error is inﬁnity,

the virtual pixel will be considered as background, re-

moving artifacts caused by mismatching.

This assures a detailed depth map of the player,

while respecting its global depth. Extra limbs and

other ghosting artifacts are ﬁltered out using this

method. Indeed, these arise from errors in the match-

ing process of the ﬁrst plane sweep. For example,

the left leg of one player is matched to his right leg,

resulting in a third leg in the virtual view (this can be

seen in Figure 7 (a)). However, the depth of this ghost

leg is distinct from the depth of the correct pixels of

the player. Using our method, this depth is ﬁltered out

and the ghost leg is considered as background. Small

artifacts due to errors in the reprojection are reduced

by limiting the depth range per player, thus obtaining

a high quality depth map without large errors in the

individual depth values.

While the former method will remove many arti-

facts, some artifacts can not be eliminated. Errors in

the matching process can result in the manifestation

of ghost players, i.e. when one player of one camera

image matches to another player in another camera.

However, in our experiments this rarely happens due

to our segmentation constraints. The depth ﬁltering

will not eliminate these artifacts, because these are

disconnected from other desirable blobs of players.

Therefore, we also consider the depth of the back-

ground and remove every pixel where the depth devi-

ates more than a certain range β from the depth of the

background on that pixel. Because the background

is a plane and the foreground is related to the back-

ground, this method will effectively ﬁlter out extreme

mismatches in the foreground.

5.6 Merging

The rendering of the foreground F

and background

are then merged using the segmentation obtained

from the second plane sweep. To generate a pleasant-

looking result, the borders of the foreground are

slightly feathered and blended with the background.

6 RESULTS

Figure 5 shows interpolated views of a frozen frame.

Figures 6, 7 and 8 show some detailed results of our

Real-timeVideo-basedViewInterpolationofSoccerEventsusingDepth-selectivePlaneSweeping

135

Figure 5: Final results of the method for a frozen frame. The positions are 0.5, 3.5 and 6.5.

method for different scenes. Figure 6a, 7a and 8a

show the resulting depth map of normal plane sweep-

ing. These depth maps contain signiﬁcant noise and

artifacts, which reduce the quality of the ﬁnal results.

The ﬁrst ﬁltering process applied in our strategy

consists of ﬁltering the depth values per connected

blobs of pixels, as explained in Subsection 5.3. We

ﬁxed the parameters of the method for every result on

0.01 for α and 0.2 for β. Figure 6b and 7b show the

depth map after foreground object detection and cal-

culating the median per object. Notice that only the

depth values are altered and artifacts (like a ghost leg

in Figure 7b) are still present. However, these artifacts

now have a very different depth value than the origi-

nal value. The ﬁnal depth maps and the results after

the depth-selective plane sweep are shown in Figure

6c-d and 7c-d. Notice that after the ﬁltering stage the

results are sharp and no visible artifacts are present.

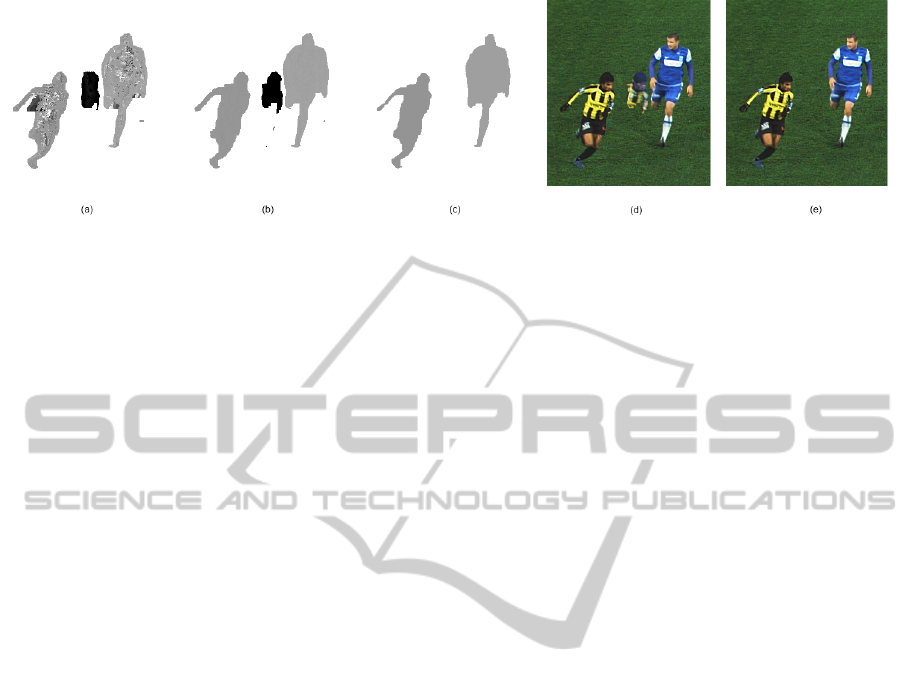

Figure 8a and 8e show artifacts that can not be

removed with this ﬁltering strategy. Here, an arti-

fact is visible in between the two players and is not

ﬁltered out after the second plane sweep, as can be

seen in Figure 8b. When we use the depth informa-

tion (Figure 8c) of the background and remove every

blob where the depth value differs too much, we are

able to remove these artifacts also, as can be seen in

Figure 8d.

By using depth ﬁltering, we effectively remove

large artifacts. The small artifacts, such as wrong col-

ors by reprojection errors, are removed due to the high

quality depth map obtained by the depth-selective

plane sweep.

7 CONCLUSIONS

In this paper, we presented a new method to acquire

interpolated views from a soccer game for physical

cameras in a semi-wide baseline setup. We ﬁrstly es-

timate the depth of every player and then reﬁne this

depth, which allows the generation of a high quality

interpolated view of the players. The background and

Figure 6: Detail of the method: (a) Depth map of stan-

dard plane sweep. (b) Filtered depth. (c) Depth map of the

depth-selective plane sweep. The artifacts are effectively

removed. (d) Final merged result.

Figure 7: Detail of the method: (a) Depth map of standard

plane sweep. (b) Filtered depth. (c) Depth map of the depth-

selective plane sweep. The ghost leg and other artifacts are

effectively removed. (d) Final merged result.

shadows are generated separately using a geometry-

based interpolation. The main advantage of our tech-

nique is that the entire pipeline is implemented using

graphics hardware, which allows real-time processing

and interpolation. A one-time camera calibration and

background generation step is required at setup.

The results show that the method yields high-

quality results without disturbing ghosting artifacts,

parallax errors, etc., which most image-based algo-

rithms suffer from.

ACKNOWLEDGEMENTS

Patrik Goorts would like to thank the IWT for its PhD

specialization bursary.

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

136

Figure 8: Detail of the method: (a) Depth map of standard plane sweep. (b) Filtered depth map after the depth-selective plane

sweep. Not all artifacts are removed. The depth of the artifact differs a lot from the depth of the background. (c) Depth after

the depth-selective plane sweep after the removal of the artifact. (d) Result without ﬁltering using the background depth. (e)

Result with ﬁltering using the background depth.

REFERENCES

(2001). 3d graphics systems by red bee media. http://

redbeemedia.com/html/live-graphic.html.

(2001). Eye vision at the super bowl. http://

www.ri.cmu.edu/events/sb35/tksuperbowl.html.

Dumont, M., Rogmans, S., Maesen, S., and Bekaert, P.

(2009). Optimized two-party video chat with restored

eye contact using graphics hardware. e-Business and

Telecommunications, pages 358–372.

Germann, M., Hornung, A., Keiser, R., Ziegler, R.,

urmlin, S., and Gross, M. (2010). Articulated bill-

boards for video-based rendering.

Goorts, P., Rogmans, S., and Bekaert, P. (2009). Opti-

mal Data Distribution for Versatile Finite Impulse Re-

sponse Filtering on Next-Generation Graphics Hard-

ware using CUDA . In Proc. of The Fifteenth

Intl. Conference on Parallel and Distributed Systems,

pages 300–307.

Grau, O., Hilton, A., Kilner, J., Miller, G., Sargeant, T., and

Starck, J. (2007). A Free-Viewpoint Video System for

Visualization of Sport Scenes. SMPTE motion imag-

ing journal, 116(5/6):213.

Hartley, R. and Zisserman, A. (2003). Multiple view geom-

etry in computer vision, volume 2. Cambridge Univ

Press.

Hayashi, K. and Saito, H. (2006). Synthesizing Free-

Viewpoing Images from Multiple View Videos in Soc-

cer Stadium. In Intl. Conf. on Computer Graphics,

Imaging and Visualisation, pages 220–225.

Hilton, A., Guillemaut, J., Kilner, J., Grau, O., and Thomas,

G. (2011). 3d-tv production from conventional cam-

eras for sports broadcast. IEEE Transactions on

Broadcasting, (99):1–1.

Hirakawa, K. and Parks, T. (2005). Adaptive homogeneity-

directed demosaicing algorithm. Image Processing,

IEEE Transactions on, 14(3):360–369.

Inamoto, N. and Saito, H. (2007). Virtual viewpoint re-

play for a soccer match by view interpolation from

multiple cameras. IEEE Transactions on Multimedia,

9(6):1155–1166.

Kanade, T., Rander, P., and Narayanan, P. (1997). Virtu-

alized reality: Constructing virtual worlds from real

scenes. Multimedia, IEEE, 4(1):34–47.

Kutulakos, K. and Seitz, S. (2000). A theory of shape

by space carving. Intl. Journal of Computer Vision,

38(3):199–218.

Lowe, D. (2004). Distinctive image features from scale-

invariant keypoints. Intl. journal of computer vision,

60(2):91–110.

Matusik, W., Buehler, C., Raskar, R., Gortler, S., and

McMillan, L. (2000). Image-based visual hulls.

Miller, G., Hilton, A., and Starck, J. (2005). Interactive

free-viewpoint video.

Ohta, Y., Kitahara, I., Kameda, Y., Ishikawa, H., and

Koyama, T. (2007). Live 3D Video in Soccer Stadium.

Intl. Journal of Computer Vision, 75(1):173–187.

Rogmans, S., Dumont, M., Cuypers, T., Lafruit, G., and

Bekaert, P. (2009a). Complexity reduction of real-

time depth scanning on graphics hardware.

Rogmans, S., Dumont, M., Lafruit, G., and Bekaert, P.

(2009b). Migrating real-time depth image-based ren-

dering from traditional to next-gen gpgpu.

Seitz, S., Curless, B., Diebel, J., Scharstein, D., and

Szeliski, R. (2006). A comparison and evaluation of

multi-view stereo reconstruction algorithms.

Seitz, S. and Dyer, C. (1999). Photorealistic scene recon-

struction by voxel coloring. Intl. Journal of Computer

Vision, 35(2):151–173.

Svoboda, T., Martinec, D., and Pajdla, T. (2005). A conve-

nient multicamera self-calibration for virtual environ-

ments. Presence: Teleoperators & Virtual Environ-

ments, 14(4):407–422.

Yang, R., Pollefeys, M., Yang, H., and Welch, G. (2004). A

uniﬁed approach to real-time, multi-resolution, multi-

baseline 2d view synthesis and 3d depth estimation

using commodity graphics hardware. Intl. Journal of

Image and Graphics, 4(4):627–651.

Yang, R. and Welch, G. (2002). Fast image segmentation

and smoothing using commodity graphics hardware.

Journal of graphics tools, 7(4):91–100.

Yang, R., Welch, G., and Bishop, G. (2003). Real-time

consensus-based scene reconstruction using commod-

ity graphics hardware.

Ziegler, G. and Rasmusson, A. (2010). Efﬁcient volume

segmentation on the gpu.

Zitnick, C., Kang, S., Uyttendaele, M., Winder, S., and

Szeliski, R. (2004). High-quality video view interpo-

lation using a layered representation.

Real-timeVideo-basedViewInterpolationofSoccerEventsusingDepth-selectivePlaneSweeping

137
