Autonomous Aquatic Agents

A. Calce, P. Mojiri Forooshani, A. Speers, K. Watters, T. Young and M. Jenkin

Computer Science and Engineering, York University, Toronto, Canada

Keywords:

Autonomous Aquatic Agents.

Abstract:

Constructing a collection of autonomous agents requires the development of appropriate experimental hard-

ware platforms. Here we describe the process of re-purposing inexpensive radio-controlled (RC) electric

motorboat as autonomous surface craft. Standard electronics components are used to interface with the RC

boat electronics, and the vessels are augmented with GPS, vision, and a tilt-compensated compass to provide

the necessary onboard sensing capabilities to enable point-to-point and target-based control of the vehicle. A

ROS-based control and sensing infrastructure is used to operate the vehicles on-board while 802.11n com-

munication provides communication off-board. Vessels have been operated successfully in both the pool and

ocean environment.

1 INTRODUCTION

Unmanned surface vessels (USVs) have undergone a

rapid growth over the last ﬁve years and we are now

beginning to see devices in a range of different appli-

cations. Autonomous Surface Craft (ASC), also re-

ferred to as Unmanned Surface Vessels (USVs), have

been developed for civil, military and research pur-

poses. Proposed applications for autonomous sur-

face vessels for civil applications include automated

bathymetry, coastal surveillance, water sampling, and

environmentalmonitoring (Caccia, 2006). Of particu-

lar importance is the ability of an ASC to operate as a

mobile relay point between radio frequency transmis-

sions in air and acoustic transmission undersea. In

this role they can be deployed as part of a cooperative

heterogeneous team including AUVs (Autonomous

Underwater Vessels). This fact is a key point in many

military applications (Manley, 2008). Other Military

applications include harbour security, mine sweeping

and various military missions(Manley, 2008; Caccia,

2006; Bertram, 2008).

Although a number of autonomous watercraft

projects exist, much of the technical details associated

with these projects is not well recorded and individ-

ual projects must often start again from scratch. Here

we describe efforts to utilize standard tools from the

RC and hobby electronics community to construct a

ﬂeet of autonomous surface vessels that expose ROS,

a standard robot middleware (Quigley et al., 2009)

to external users. The basic structures used in this

project can be easily adapted to other applications and

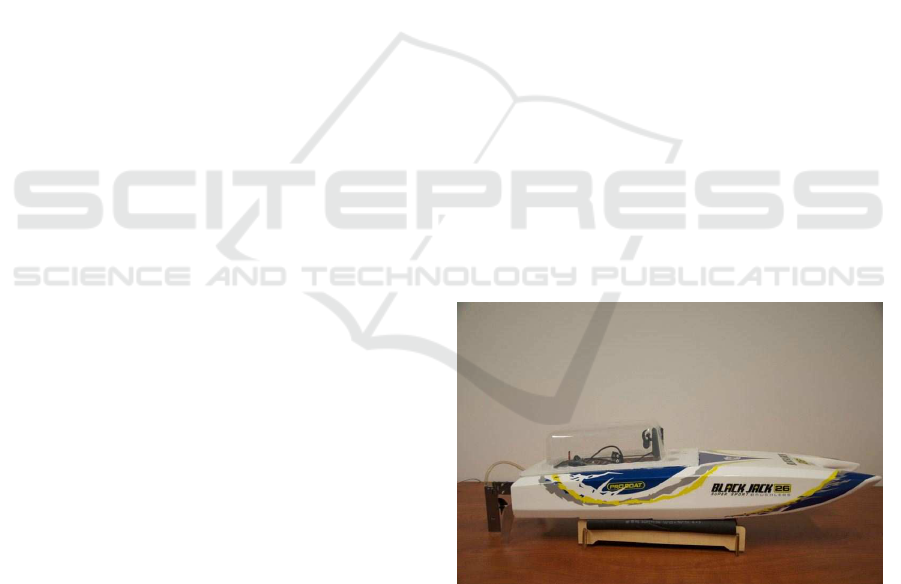

Figure 1: The “minnow”. The autonomous service ves-

sel is constructed from a modiﬁed RC motorboat, and has

been augmented with onboard electronics and sensors. An

802.11g network connection provides offboard communi-

cation.

the basic electronic components used are “standard”

devices that are easily sourced.

2 VESSEL DESIGN

A basic design question in the development of any

autonomous system is the size of the device. Size,

measured in volume or mass, provides a range of con-

straints related to power, locomotive strategies, on-

board sensor capabilities, onboard computation, com-

munication opportunities and the like. This con-

straint is especially true in the development of an au-

372

Calce A., Mojiri Forooshani P., Speers A., Watters K., Young T. and Jenkin M..

Autonomous Aquatic Agents.

DOI: 10.5220/0004220003720375

In Proceedings of the 5th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2013), pages 372-375

ISBN: 978-989-8565-38-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

tonomous surface vessel based on an RC platform.

RC vessels are typically small, designed to be eas-

ily portable and with relatively short operational pe-

riods (typically under an hour, and often signiﬁcantly

less). On the plus side, RC vessels typically avoid

regulatory issues associated with operating a “human

sized” vessel autonomously. One critical question in

terms of the re-purposing of RC vessels is the na-

ture of the vessel power plant. RC watercraft are

developed with electrical systems for onboard con-

trol and communication, and are available with elec-

tric, gasoline and nitrox drive systems. Each of these

drive alternatives come with their own capabilities

and constraints. Electrical powered systems are emis-

sion free and thus are easily deployed in indoor swim-

ming pools, but they lack the extended range and

maximum power output associated with gasoline and

nitrox power plants. (A properly tuned nitrox boat

can exceed 80 kilometers an hour in terms of speed.)

Fortunately the basic control mechanisms remain un-

changed over the various power plants, but the choice

of plant type has a signiﬁcant impact on maximum

speed, available test environments and operational pe-

riod.

For this project the “Blackjack 26” platform was

chosen. The Blackjack 26 is a “ready to run” 26”

ﬁberglass catamaran RC vessel powered by a single

propeller and equipped with a single rudder (see Fig-

ure 1). The vessel is powered by a 1500 RPM brush-

less DC motor and utilizes a standard RC servo mo-

tor to provide positional control over the rudder. The

boat comes equipped with a water-cooled 45A pro-

grammable Electronic Speed Controller (ESC) that

provides control over the drive motor, power to the

servomotor, and exposes itself to control circuitry as

a standard servomotor. As shipped the vessel con-

tains a pair of 7.2V sub-C battery packs that provide

power for both the motors and the associated electron-

ics. Normally the vessel is controlled by a remote ra-

dio controller, but this device was removed prior to

re-purposing the vehicle.

The robot operating system (ROS) has emerged

as the de-facto standard in terms of middleware for

research robots. Rather than attempting to develop a

custom software environment for the vehicle as much

as possible of the software developed for the vehicle

leverages existing ROS infrastructure. This choice en-

abled the project to leverage a signiﬁcant open source

code base but lead to a number of design decisions

in terms of hardware and software infrastructure, as

detailed later in this paper.

2.1 Electromechanical Issues

A surface vessel like the Blackjack 26 is essentially

a two degree-of-freedom (DOF) device. There is a

rudder and throttle, both of which are controlled by

5V signal lines. The necessary control signal to these

two inputs is provided by a radio receiver in the stock

RC boat. A key step in re-purposing the vessel as an

ASC is providing computer control of these two de-

grees of freedom. We chose to use an Arduino micro-

controller to provide this interface. The Arduino (µC)

was chosen for a number of reasons related to ease of

use, ability to provide the necessary control interface

to the underlying hardware, and also the existence of

an Arduino ROS package that allows ROS nodes to

be executed on the Arduino directly and to be made

visible to standard ROS nodes operating elsewhere.

The Arduino microcontroller provides an inter-

face to a tilt-compensated compass and provides ref-

erence voltages and PWM control signals to the rud-

der servo and the ESC controlling the throttle. The

Arduino also providespower to the rudder servo. Nor-

mal power from the drive system provides power to

the ESC. The Arduino is connected via USB to an on-

board BeagleBoard SBC which provides higher-level

control as well as providing power to the Arduino.

Each of the motor controllers onboard the robot

requires a reference ground and a 5V control line.

These are easily mapped to the Arduino’s digital out

and reference lines.

Although the use of the Rosserial package greatly

simpliﬁes integrating low-level control of an actuator

into a collection of ROS nodes, it is not without its

limitations. The existing version of the library limits

the number of publishers and subscribers on the Ar-

duino. Nor are all primitive types supported in mes-

sages that can be passed. Furthermore, the connection

between the Arduino and its host computer is via a

USB connection, and this places limits on how much,

and how quickly, data can be passed from code run-

ning on the Arduino and that running on the host de-

vice. (For example, sending long string messages is

not to be encouraged given the limited 280 byte buffer

size available.)

2.2 Computation

The limited volume and mass characteristics of the

Blackjack 26 places extreme constraints in terms of

potential onboard computation. Furthermore, the de-

cision to build a ROS-compatable device requires that

the onboard computer run some version of Linux. Al-

though a number of small form factor devices meet

all of these requirements, the decision was made

AutonomousAquaticAgents

373

to proceed with a BeagleBoard MX platform. The

beneﬁts of using a BeagleBoard have been demon-

strated against several other platforms small form fac-

tor boards (see (Watters et al., 2011)). The Beagle-

Board runs a quasi-standard version of Linux, pro-

vides a reasonable number of input and output ports –

including onboard video – and is reasonably inexpen-

sive. Furthermore, it supports a number of different

power inputs, including being able to be powered by

a USB power source.

The BeagleBoard was conﬁgured to run Ubuntu

Linux and Robot Operating System (ROS) (Quigley

et al., 2009). When on, the BeagleBoard serves as

a link between the base station computer (when in-

structions are sent to, or information is requested from

the robot) and the low level systems of the robot

through an 802.11g connection. The control of the

robot’s single servo, electronic speed controller, and

3D HMC6343 magnetometer compass is delegated to

the Arduino which is connected to the BeagleBoard

via a USB connection. Connected directly to the

BeagleBoard are on-board camera and GPS modules.

Any commands to alter the motion of the robot are ei-

ther generated on the Beagleboard or received by the

BeagleBoard and directed to the Arduino Uno. The

camera selected for use on the robot was a Logitech

Quick Cam Pro for notebooks. This camera provides

images up to 2.0Mpixel at 5fps and is UVC compliant

(allowingfor simple interfacing within the Ubuntu en-

vironment). The GPS selected was the BU-353 USB

GPS Navigation Receiver that connects to the Bea-

gleBoard through an RS232 connection which prop-

agates the GPS data in NMEA format to the Beagle-

Board.

The process of conﬁguring a BeagleBoard to run

ROS was not without its difﬁculties. The operating

system most fully supported on the BeagleBoard fam-

ily of single board computers is Angstrom, and initial

development relied on this OS. ROS is not ofﬁcially

supported on the Angstrom OS, and efforts to compile

ROS for the Angstrom-BeagleBoard combination did

not lead to a robust ROS environment on the platform.

In order to provide a supported OS for ROS, a

stripped-down version of Ubuntu ARM was deployed

on the BeagleBoard. This provided a rather straight-

forward installation of the majority of the ROS en-

vironment and its associated support libraries. ROS

Electric Base and Ubuntu 11.04(Natty Narwhal) were

used as these were the most “cutting edge” compati-

ble versions for the BeagelBoard platform at the time.

2.3 Sensing

Given the experimentalnature of the vessel being con-

structed a wide range of different sensors have been

built into the vehicle including GPS, video and a com-

pass.

GPS. A ROS GPS node interfaces with the BU-

353 USB GPS Navigation Receiver, parsing the data

stream (in NMEA 0813 V2.2 format). Currently the

node parses only the GPS system ﬁx data (

GPGGA).

These strings contain information on the latitude, lon-

gitude and altitude as well as associated data on ﬁx

quality and time of ﬁx. The parsed latitude / longitude

data is converted into a +/− degree with positive val-

ues going North (Latitdue) and East (Longitude). The

latitude and longitude are encapsulated in a custom

gps message and are available to the rest of the sys-

tem. If the GPS ﬁx quality is zero an error latitude /

longitude value are returned.

Front Facing Video Cameras. A USB Quick-

Cam Logitech webcam with 640x480 resolution is

mounted onboard the vessel. This video source can

be used both by a remote user to teleoperate the vehi-

cle, as well as by ROS software to control the robot

using visual landmarks. Given the Linux nature of the

onboard computation and the use of ROS, the process

of capturing video onboard the robot is accomplished

using the standard Video4Linux library and images

are transferred as a single ROS sensor msgs::Image

message. Other nodes, including nodes off-board the

vehicle can subscribe to this published image stream.

Tilt-compensated Compass. Although consider-

ably more expensive than their non-tilt-compensated

counterpart, a tilt-compensated compass is essential

on a surface vessel where wave action will ensure that

the vehicle is rarely horizontal. Few tilt-compensated

compasses exist with a USB interface, and thus it was

necessary to decode the signal from the device in or-

der to capture the vessel pitch, roll and yaw. Given

the existence of the Arduino onboard the vessel to

control the actuators, the Arduino was purposed to

monitor the compass as well. The minnow publishes

vesselStatus

message that contains the current

commanded position of the rudder and throttle along

with its pitch, roll and yaw. This custom message

is deﬁned on the Arduino and its deﬁnition is prop-

agated to the rest of the ROS network through the

Rosserial node deﬁnition.

In addition to these sensors, the onboard computer

is equipped with an 802.11g wireless card to enable

communication with an off-board controller.

ICAART2013-InternationalConferenceonAgentsandArtificialIntelligence

374

2.4 Robot Control

Controlling software for the minnowrobot is provided

in ROS. In order to ensure the widest possible interop-

erability of the ROS nodes across platforms, wherever

possible the ROS nodes have been implemented in

Python. This choice reduced development time sub-

stantively on the minnow robots as the time required

to compile ROS code on the BeagleBoard is not in-

signiﬁcant. Note that the other alternative – cross

compiling on a host machine – requires the presence

of an appropriate host machine to be deployed along

with the robot platforms.

2.5 Vehicle Testing

The minnow USV’s performed well in several pool

trials as well as open water trials off the coast of Ho-

letown, Barbados in January 2012. During these trials

several things became apparent. First, the hull was

able to take on the extra payload and run quite efﬁ-

ciently. At 20% throttle the boat was able to navigate

fairly choppy waters and outpace human swimmers.

A straightforward PID controller was constructed in

ROS to provide bearing following. One issue that we

expected to take considerable time during the ﬁeld tri-

als was tuning this PID controller for the open water

conditions. Surprisingly, the tuning of the PID con-

troller is less critical in open water as opposed to a

pool or pond setting as the rough surface acts to damp

the system making changes in rudder position take

time to accumulate into the overall vehicle trajectory.

In all, the vehicle was successfully tele-operated vi-

sually and commanded to follow a compass heading

during several trials both controlling the rudder posi-

tion directly as well as controlling the compass head-

ing through the PID “Helmsman” controller.

3 DISCUSSION AND FUTURE

WORK

During the trials the need for a heart-beat (still-alive)

signal was made evident. The initial prototype would

maintain it’s last command until completion, received

another command or until it ran out of power. This

command structure would become problematic if the

boat for any reason lost contact with the base station

due to driving too far away from “home” or due to

a wave blocking the signal. This latter problem was

experienced during heavy swells where the minnow

“lost sight” of the 802.11 base station. Modifying

the ROS command structure to require a heart-beat in

the command structure allows for the boat to return to

some default action (i.e. set the throttle to zero) when

communication is lost.

On a more forward-looking theme the use of ROS

as the core software architecture running the boat

makes this project very expandable. We are looking

forward to both leveraging the work of others on this

platform (through the use of ROS nodes) as well as

using multiple vehicles to perform a common task.

In particular, ongoing work is exploring coordinated

operation between a larger surface vehicle Eddy (a

Clearpath King Fisher) and a ﬂeet of minnow-class

robots. Eddy is equipped with a differential GPS sys-

tem as well as a long range radio communications

channel. This would enable the rest of the ﬂeet (com-

prising of the cheaper minnows) to relay communica-

tions through the larger surface vehicle and perform

longer range missions as well as beneﬁt from more

accurate positioning through the larger craft.

It is also anticipated that we will be performing

joint actions with the AUV Kroy (Dudek et al., 2007).

In these experiments we anticipate having one (or

more) surface vehicles performing functions from the

surface (perhaps ﬁnding places of interest for environ-

mental modelling or surveying) with the large King-

ﬁsher tracking visual targets on Kroy and command-

ing Kroy’s actions.

REFERENCES

Bertram, V. (2008). Unmanned surface vehicles - a survey.

Technical report, Skibsteknisk Selskab, Copenhagen,

Denmark.

Caccia, M. (2006). Autonomous surface craft: prototypes

and basic research issues. In Control and Automation,

pages 1–6.

Dudek, G., Giguere, P., Prahacs, C., Saunderson, S., Sat-

tar, J., Torres-Mendez, L.-A., Jenkin, M., German, A.,

Hogue, A., Ripsman, A., Zacher, J., Milios, E., Liu,

H., and Zhang, P. (2007). AQUA: An amphibious au-

tonomous robot. IEEE Comptuer, pages 48–53.

Manley, J. E. (2008). Unmanned surface vehicles, 15 years

of development. In Oceans, pages 1–4.

Quigley, M., Gerkey, B., Conley, K., Faust, J., Foote, T.,

Leibs, J., Berger, E., Wheeler, R., and Ng, A. Y.

(2009). ROS: an open-source robot operating system.

In Proc. of the Open-Source Software Workshop at the

International Conference on Robotics and Automation

(ICRA).

Watters, K., Minwalla, C., Liscombe, M., Lio, H., Thomas,

P., Hornsey, R. I., Ellis, K., and Jennings, S. (2011).

Characterization of an optical collision avoidance sen-

sor. In IEEE CCECE.

AutonomousAquaticAgents

375
