A Model-driven Process for Data Transformation

of Heterogeneous Data

ıfa Nakouri and Nadia Essoussi

LARODEC Laboratory, University of Tunis, Tunis, Tunisia

Keywords:

Model Driven Engineering, Data Format Transformation, Heterogeneous Data.

Abstract:

In this paper, a model-driven approach to transform data format is provided. Original data is extracted from

heterogeneous sources and is initially presented in a generic format called the public view format. Our ap-

proach includes a complete process of data transformation starting with data in public view format and ending

with generating different kinds of formats (Excel, XML, HTML, etc.). There are three main stages in the pro-

posed model-driven process: the input ﬁle injection which inserts the public view’s data in their corresponding

model, the model-to-model transformation to bridge between the public view’s model and the output ﬁle’s

model and ﬁnally the output ﬁle extraction to extract the output ﬁle from its corresponding model. Experimen-

tal results show that a model-driven approach for data transformation outperforms a code-centric approach in

terms of execution time and automation rate.

1 INTRODUCTION

The growing diversity of the current systems and plat-

forms makes it more and more challenging to have re-

liable and maintainable software systems. Moreover,

third generation languages become not able enough

to handle such a perpetual and fast evolution. This

makes necessary to ﬁnd a way to extract and present

information in a meaningful way in order to make

smart and fast decisions. Therefore, business intelli-

gence (BI) tools are used to organize the data and then

simplify the decision making process. The main issue

with such decisional platforms is that they are used for

reporting and analytical purposes regarding existing

information systems which most of them are legacy

and heterogeneous. A business intelligence system

is mainly fed from several heterogeneous distributed

data sources (MySQL, postgreSQL, SQLserver, ﬂat

ﬁles, etc.). Thus, the input data can be in different

formats (Excel, XML, CSV, etc.). However, a good

organization and structuring of data requires that all

data have the same format even if it is extracted from

different sources.

Model Driven Engineering (MDE) is an emerging

software engineering methodology which focuses on

creating models and transformations between them so

that the whole development process becomes model

driven. Using an MDE approach is convenient since

it increases the value of models and allows han-

dling speciﬁcations and requirements of systems from

higher levels of abstraction. One of the most impor-

tant objectives of software engineering is to address

this platform complexity and the inability of third-

generation languages to alleviate this complexity and

express domain concepts effectively. MDE affords

many techniques that help developers to build in the

large more efﬁcient, reliable and maintainable soft-

ware systems.

This work was elaborated in the context of a cus-

tomized business intelligence system that is used in-

ter alia to evaluate the quality of a company projects’.

This BI platform is used for reporting and analysis

of existing data and support systems which most of

them are legacy and heterogeneous. The main objec-

tive of this system is to have a single and uniﬁed ar-

chitecture for reporting to develop more customized

and relevant quality report. In this system, external

data sources are not directly used for reporting due

to security measures. Instead, a set of public views

(PV) is used. We note that a public view is basi-

cally a SQL view. Each public view is the result

of the mapping of different original data. Later, the

generated public views are used for reports genera-

tion. Thus, the public view’s data is exploited to gen-

erate reports of all kinds of formats (Excel, HTML,

XML, etc.). A model-driven approach might be an

interesting solution for the heterogeneity issue since

we carry out data format transformation in a generic

way, using models and model transformations at dif-

ferent levels of abstraction. Nevertheless, even with

177

Nakouri H. and Essoussi N..

A Model-driven Process for Data Transformation of Heterogeneous Data.

DOI: 10.5220/0004221901770181

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 177-181

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

the success of many model-driven approaches within

the researchers’ community, there is still a somehow

mystery regarding the efﬁciency of model-driven so-

lutions by the industrials’ community. Despite the

availability of a plenty of MDE standard approaches

and tools, model-driven applications are not as much

developed as expected in software engineering indus-

try.

The objective of the paper is twofold. First, we

propose a basic version of a model-driven process for

data format transformation to handle the systems het-

erogeneity issue. This process involves the different

stages to transform data starting from a public view

ﬁle format and resulting in other output ﬁle formats.

In this work, we use the concept of public view model

to denote a generic model of any type of data format

(e.g. text, Excel, CSV, XML, etc.). The public view

data corresponds to the result set of the SQL view

query. This solution is about a complete automated

process handling data format transformation. Then,

we evaluate the proposed model-driven approach for

data transformation to a code-centric one. Second,

we show that it is possible to use model-driven en-

gineering techniques for a real software engineering

case such as data format transformation.

The rest of the paper is organized as follows. Sec-

tion 2 details the three stages of the proposed ap-

proach and presents an example of a model-driven

transformation from the public view format to the Ex-

cel format. Section 3 presents experimental results.

2 USING AN MDE APPROACH

FOR DATA FORMAT

TRANSFORMATION

In the context of our work, we precisely mean by data

transformation, the data format transformation such

as the Excel, CSV, HTML or XML formats. Then,

we propose to apply a model-driven approach to the

data transformation problem. Our approach was inte-

grated in an existing reporting system where the gen-

eration of different types of reports (Excel, HTML,

XML, etc.) is needed, starting from public views’

data (in the CSV format). A public view consists

of a stored query referencing real database tables and

it is accessed as a virtual database table. The public

view data corresponds to the result set of a SQL view

query. In fact, there exist multiple heterogeneous data

sources. These data sources can not be immediately

accessed for security purposes. Besides, not all the

available data is needed to generate reports. For this

purpose, public views are used to store only relevant

PV Metamodel

Public

View

PV Model

conformsTo

RepresentationOf

Injection

Output Metamodel

Output Model

conformsTo

Model

Transformation

Excel

HTML

Extraction

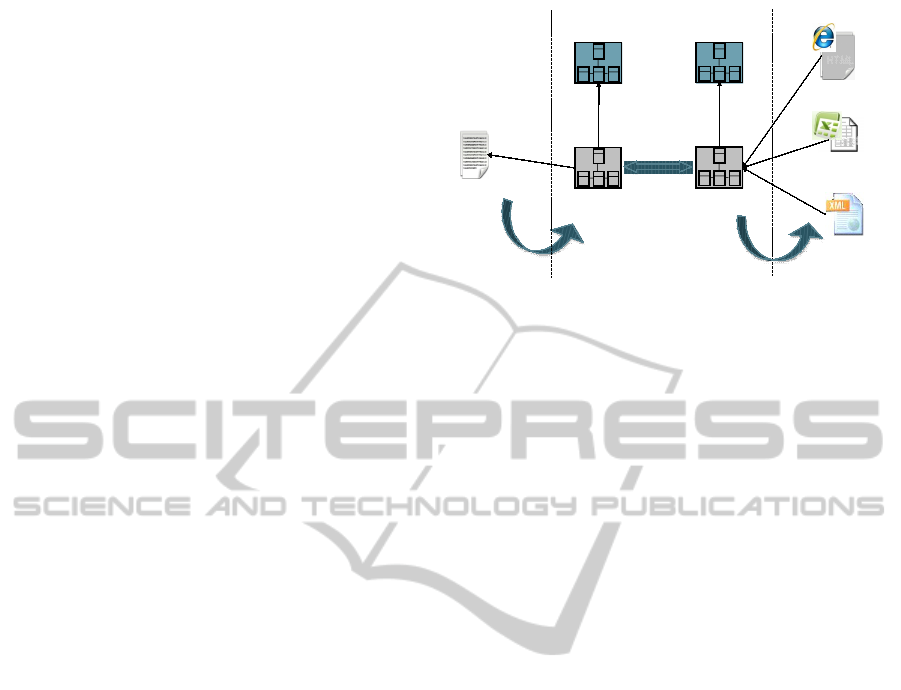

Input File Injection Model-To-Model Transformation

Output Files Extraction

RepresentationOf

Figure 1: The data transformation process.

data for reports generation. At a latter stage, the pub-

lic view data is used to generate different other for-

mats such as Excel, HTML or XML which are ulti-

mately used for reports generation, OLAP analysis,

etc. In the context of our work, the point is to start

from the public view’s data and generate other for-

mats (Excel, HTML, XML) containing exactly the

same original data, using only models and model

transformations. Thereby, we propose to model the

public view layer in a model-centric way. Actually,

we point to have a metamodel for both the public view

format and the output ﬁles formats and then man-

age transformations between them in order to auto-

mate the process. Accordingly, we suggest to per-

form a complete data transformation process driven

by models. During this process’s development, four

main features should be considered: the source of our

process (the public view input ﬁle), the targets of our

process (Excel, HTML, XML output ﬁles, etc.), the

metamodels of both source and targets of the process

and transformations between models. Figure 1 shows

an overview of our model-driven process for the data

transformation issue. It consists on three stages that

are detailed below.

2.1 Input File Injection

The ﬁrst stage of our model-driven process is the in-

jection of the public view data in the associated pub-

lic view model. First, we write the concrete syntax

(grammar) of the public view data and then bridge

it with the MDE technical space. A technical space

ezivin, 2005) aims at representing different tech-

nologies at a higher level of abstraction which may

allow capturing similarities and differences and even-

tually ﬁnd a possibility of integration. To achieve the

injection phase, we use the Xtext approach (Efftinge

and Vlter, 2006) to allow the integration between the

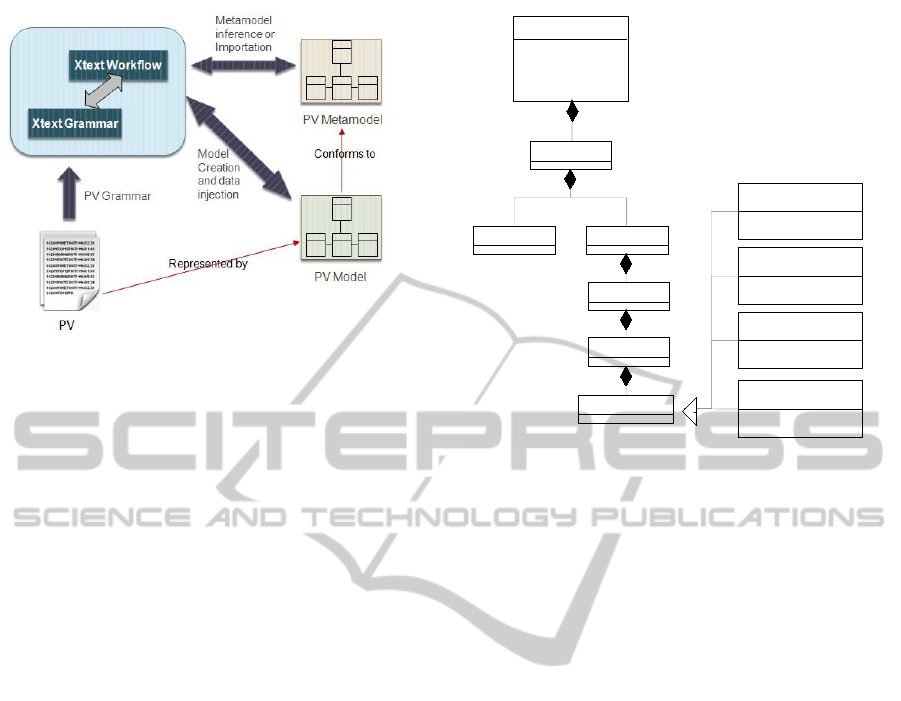

two environments. In Figure 2, we present a descrip-

tion of the injection steps:

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

178

Figure 2: Data Injection with Xtext.

• Given a public view PV, we develop its corre-

sponding Xtext grammar ﬁle. In the grammar ﬁle,

we describe the exact structure of the data. In

our case, the public view’s grammar corresponds

to the CSV’s grammar and then we describe the

CSV’s format structure (i.e. a set of columns de-

limited by a separator).

• The public view metamodel in the ecore format

is either imported if it already exists or inferred

by the Xtext workﬂow. Ecore is the model and

metamodel representation format used in EMF.

• Finally a public view model conforming to the

public view metamodel and containing the public

view data is generated.

2.2 Model-to-Model Transformation

At this stage the public view’s data are injected in

the public view’s model. To obtain the wanted out-

put ﬁle, we have to carry out a serial of model-to-

model transformations ﬁrst. The transformations are

precisely between metamodels (the public view meta-

model and the output formats metamodels). Thus,

any public view’s model (corresponding to the public

view’s metamodel) can be transformed to any output

model (corresponding to an output metamodel such

as those of Excel or XML). To deﬁne these model-to-

model transformations, we use the Atlas Transforma-

tion Language (ATL) (Allilaire et al., 2006), a com-

ponent of the AMMA platform (B

ezivin et al., 2007).

2.3 Output Files Extraction

In the AMMA platform, XML is considered as a tech-

nical space with standard projectors: either injectors

to the MDE technical space or extractors from the

MDE technical space (Sun et al., 2008). In our case,

Public View

Name: String

Path: String

Delimeter: String

Table

Column Row

Cell

Data

Value Type

String Type

Value: String

Integer Type

Value: Integer

Boolean Type

Value: Boolean

Boolean Type

Value: Boolean

* *

Figure 3: The public view metamodel.

we are only interested by the XML extractors to al-

low the extraction of the output ﬁles from their asso-

ciated models. In what follows, we detail an exam-

ple of a transformation from a public view format to

Excel format. To carry out this transformation, we

should ﬁrst inject the public view ﬁle’s content in the

public view’s model as shown in the details of the

injection phase of the process (Figure 2). Then, we

should deﬁne the different metamodels that will be

used (the public view and the Excel metamodels in

this example). Given that in our example the initial

public view’s data is in the CSV format, we deﬁne the

public view’s metamodel as a generic text ﬁle which

data is organized in rows and columns and delimited

by a given delimiter (see Figure 3). The Excel and

XML metamodels have been already deﬁned in pre-

vious works (Jouault et al., 2006) and we were pretty

inspired by these works. Figure 4 shows an overview

of the publicView-to-Excel model transformation. On

the left side, we have the MDE technical space with

the three levels of abstraction. The highest one (M3)

corresponds to the ecore metametamodel, then in the

second level (M2), we have our created metamodels

(public view, Excel and XML) that conform to the

ecore metametamodel and ﬁnally in the bottom-level

(M1) we ﬁnd the public view, Excel and XML mod-

els which are instantiations (examples) of their related

metamodels. Accordingly all the models correspond

to their corresponding metamodels. On the right side

of Figure 4, we have the XML technical space and it

is also composed of three levels of abstraction. The

highest level (M3) corresponds to the XMLSchema

metametamodel. In the second one (M2), we have

the spreadSheetML metamodel. Finally, the lowest

AModel-drivenProcessforDataTransformationofHeterogeneousData

179

Ecore

Public View

Metamodel

Excel

Metamodel

XML

Metamodel

Public View

Model

Excel

Model

XML

Model

MDE Technical Space

PublicView2Excel.atl Excel2XML.atl

Microsoft Excel

Technical Space

XML Schema

Spreadsheet ML

XML Document

XML Extraction

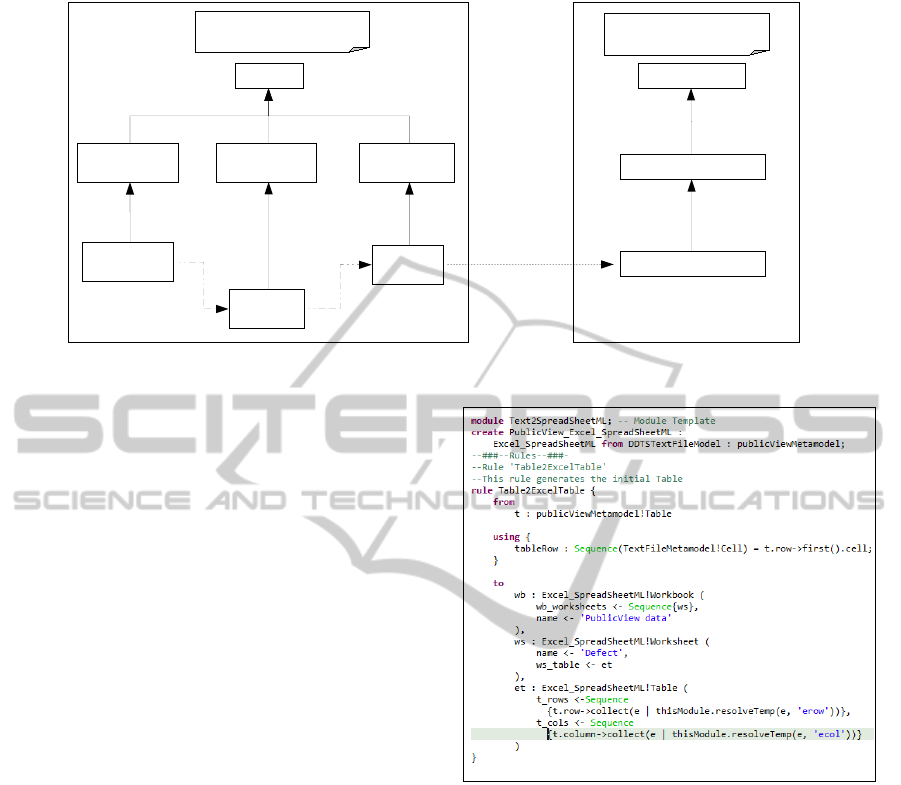

Figure 4: Public view to Excel Transformation.

level of abstraction corresponds to the XML docu-

ment which is written in the spreadSheetML language

and it can be viewed as an Excel document (Jouault

et al., 2006). We integrated the XML metamodels in

this transformation because it is not possible to ex-

tract an Excel ﬁle directly from an Excel model. Actu-

ally, all the possible extractors are of XML types and

given that Excel is an XML-like language (with the

Spreadsheet format) we can perform this extraction.

Therefore, to generate the output Excel ﬁle, we should

ﬁrst perform a model transformation from public view

to Excel (via the ATL transformation language, see

Figure 5). This ﬁrst necessary transformation is a

model-to-model one and it consists in transforming

the data contained in the public model into the Ex-

cel model. Thus, the result of this transformation is

an Excel model containing all the public view’s data.

As a second step, we need the usage of a projector

and precisely an extractor in order to extract the Ex-

cel ﬁle. Here, the projector consists in a transforma-

tion from Excel to XML (via the ATL transformation

language and the predeﬁned XML extractor). There-

fore, we need a transformation from the Excel model

to an XML model. The result of this transformation is

an XML model containing all the Excel model data.

Then, we perform an Excel ﬁle Extraction and it aims

at extracting each of the elements composing the in-

put XML model into an output XML ﬁle. No model-

to-model Transformation is required for this. We just

need an XML extractor. At the end of the extraction

step, all the necessary information stored in the public

view ﬁle should be correctly formatted into the Excel

format.

Other types of data format transformation can also

be completed such as transforming the view’s data

format to the XML and HTML format in a model-

centric way. Given that HTML is also an XML-

Figure 5: A part of the ATL code from public view to Excel

model transformation. The input of the model is the public

view metamodel and the output is the Excel metamodel.

like language, we carry out the transformation exactly

like the PublicView-to-Excel one but we should de-

ﬁne HTML metamodel and model instead of the Ex-

cel ones. As for the PublicView-to-XML transforma-

tion, it is much simpler because we just need the XML

metamodel and model used for both model-to-model

transformation and XML ﬁle extraction.

3 EXPERIMENTS

In the context of our work, we generated a com-

plete working prototype for data format transfor-

mation using a model-driven approach. We vali-

dated the performance of our model-driven solution

by carrying out a complete case study and we ob-

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

180

tained the expected results of the output formatted

data ﬁles (Excel, HTML an XML formats). We also

compared a model-centric approach to a classic one

namely object-oriented approach (i.e. code-centric

approach). We carried out this comparison based

on average time execution and average automation

rate. This experiment has been performed using the

IBM’s Eclipse Modeling Framework (EMF) (Budin-

sky et al., 2003) as modeling environment and the At-

las Transformation Language (ATL) (Allilaire et al.,

2006) for model Transformations and tools interop-

erability performance. This latter is a sub-project

of Atlas Model Management Architecture platform

(AMMA) (B

ezivin et al., 2007). We also used the

Xtext framework (Efftinge and Vlter, 2006) to allow

the integration between the text and model environ-

ments.

Evaluation is based on transformation from the

public view format to Excel, XML and HTML data

formats. Basically, the public view contains data

from four projects upcoming from different external

sources. Transformations from public view format to

Excel, HTML and XML formats are performed using

the proposed data transformation model and the exist-

ing object-oriented model. Table 1 shows the outper-

formance of the a model-driven approach in terms of

execution time and automation rate. Execution time

is computed as the average time of transformation be-

tween the public view format and the three other out-

put formats. Average execution time of format trans-

formation indicated in Table 1 shows that a the pro-

posed model-driven approach is faster than an object-

oriented one. Besides, data transformation using the

proposed model is entirely automatic unlike the exist-

ing object-oriented model. The code-centric approach

does not allow a complete automatic process and re-

peated revision of the code is required. With a the

transformation model, data is accurately transformed

from the public view format to Excel, XML or HTML

format without confusion regarding the data type or

semantic. Whereas, with the existing object-oriented

system, data is not always as well formatted and by

hand rectiﬁcations are necessary. The average au-

tomation rate is computed by dividing the number of

data columns that were rectiﬁed by the total number

or data columns of the source projects altogether.

Table 1: Accuracy rate and time execution.

Model-oriented Object-oriented

Execution time (s) 10 40

Automation Rate % 100 80

4 CONCLUSIONS

In this paper, we presented a model-driven approach

to handle the problem of systems heterogeneity and

proposed a model-driven process for data format

transformation. Managing data semantics hetero-

geneity is not yet part of the proposed model-driven

process. Handling different data semantic from exter-

nal data sources can be considered in future works.

We faced the challenge to prove that it is possible to

apply current model-driven approaches to real indus-

trial case studies as we showed in the data transforma-

tion example. Experiments show that a model-driven

approach of data transformation reduces the domain-

speciﬁc dependency. Nevertheless, the success of

a model-driven approach is intimately related to the

choice of the most relevant MDE approach and tools

regarding the complexity of the application. MDE af-

fords strong approaches namely Model Driven Archi-

tecture (MDA) and Software Factories (SF). Nonethe-

less, the main drawback of MDE is the lack of reliable

and sufﬁcient tool support. These tools are still in

perpetual development and more stable releases are

needed. The unsteady criteria of the current MDE

tools can be a huge handicap for the validity and cred-

ibility of MDE applications especially for high-scaled

systems.

REFERENCES

Allilaire, F., Bzivin, J., Jouault, F., and Kurtev, I. (2006). I.:

Atl eclipse support for model transformation. In In:

Proc. of the Eclipse Technology eXchange Workshop

(eTX) at ECOOP.

ezivin, J. (2005). Model driven engineering: An emerging

technical space. In GTTSE, pages 36–64.

ezivin, J., Jouault, F., and Touzet, D. (2007). An intro-

duction to the atlas model management architecture.,

technical report, lina. Technical report.

Budinsky, F., Brodsky, S. A., and Merks, E. (2003). Eclipse

Modeling Framework. Pearson Education.

Efftinge, S. and Vlter, M. (2006). oAW xText: A framework

for textual DSLs. In Workshop on Modeling Sympo-

sium at Eclipse Summit.

Jouault, F., B

ezivin, J., and Team, A. (2006). Km3: a dsl for

metamodel speciﬁcation. In In proc. of 8th FMOODS,

LNCS 4037, pages 171–185. Springer.

Sun, Y., Demirezen, Z., Jouault, F., Tairas, R., and Gray, J.

(2008). A model engineering approach to tool inter-

operability. In SLE, pages 178–187.

AModel-drivenProcessforDataTransformationofHeterogeneousData

181
