Contextualisation of ABAC Attributes through a Generic XACML

Functionality Extension Mechanism

Brecht Claerhout

, Kristof De Schepper

, David Pérez del Rey

and Anca Bucur

Custodix, Kortrijksesteenweg 214, 9830 Sint-Martens-Latem, Belgium

Grupo de Informática Biomédica, Dept. Inteligencia Artificial, Facultad de Informática

Universidad Politécnica de Madrid, Campus de Montegancedo S/N, 28660 Boadilla del Monte, Madrid, Spain

Phillips Research, Healthcare Information Management, High Tech Campus 34, 5656 AE Eindhoven, The Netherlands

Keywords: Contextual Attributes, Contextual Roles, ABAC, XACML, Context Aware Policies, Extension Mechanism,

Integrate Project, Breast Cancer.

Abstract: Authorisation solutions that exist today offer a broad range of functionality for defining complex access

control policies. A common requirement that is not covered by these solutions is dynamically instantiated

contexts in collaborative environments. This requirement is one of the research topics of the EU funded

INTEGRATE project. This paper will focus on the solution proposed for the INTEGRATE project which is

XACML based. The approach taken to make XACML context aware, is to enrich the XACML specification

using a contextual extension through a generic mechanism, without changing the XACML language itself.

This contextual extension operates on the XACML requests with ultimate goal to simplify the management

of context aware policies.

1 INTRODUCTION

Several solutions have been proposed for defining

and enforcing complex access control (AC) policies,

such as for example XACML (OASIS, 2005),

PERMIS (Chadwick et al., 2008), PONDER

(Damianou et al., 2001), Cassandra (Becker and

Sewell, 2004), etc. Although these solutions offer a

broad range of functionality; still they logically

cannot cover all specific demands of specialised

application domains.

A common requirement of access management in

collaborative environments is to be able to define

default AC policies for dynamically instantiated

contexts. A context instance defines the environment

in which AC requests should be evaluated, e.g. a

specific organisation in a wider cross-organisation

collaboration. In some cases, one desires that

instances of a context are governed by a set of

"default" AC policies (rather than have their own

specific policies). Typically this happens when

context instances represent dynamic collaborations

(e.g. Virtual Organisations (VOs) (Foster et al.,

2001)).

In this paper, usage of contexts and context

instances is further illustrated in the domain of Role

Based Access Control (RBAC). In RBAC access

decisions are made based on the role (e.g.

investigator, administrator, etc.) the user has. The

permissions to perform certain operations are

assigned to specific roles. Usually it suffices to

define roles for a user in a global context, however

in some situations it is required to introduce roles

that are specific to a given context (called contextual

roles). The policies linked to these contextual roles

are the same for each context but their scope is

limited to each instance of the context. It is clear that

when writing policies for contextual roles one does

not want to define a policy for each role in each

instance of a context.

2 BACKGROUND

The work described in this paper is the result of

research within the INTEGRATE project

(INTEGRATE, 2012). INTEGRATE is part of the

FP7 framework funded by the European

Commission and aims to develop innovative

infrastructures to enable data and knowledge sharing

and to foster large-scale collaboration in biomedical

Claerhout B., De Schepper K., Pérez del Rey D. and Bucur A..

Contextualisation of ABAC Attributes through a Generic XACML Functionality Extension Mechanism.

DOI: 10.5220/0004224700520057

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2013), pages 52-57

ISBN: 978-989-8565-37-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

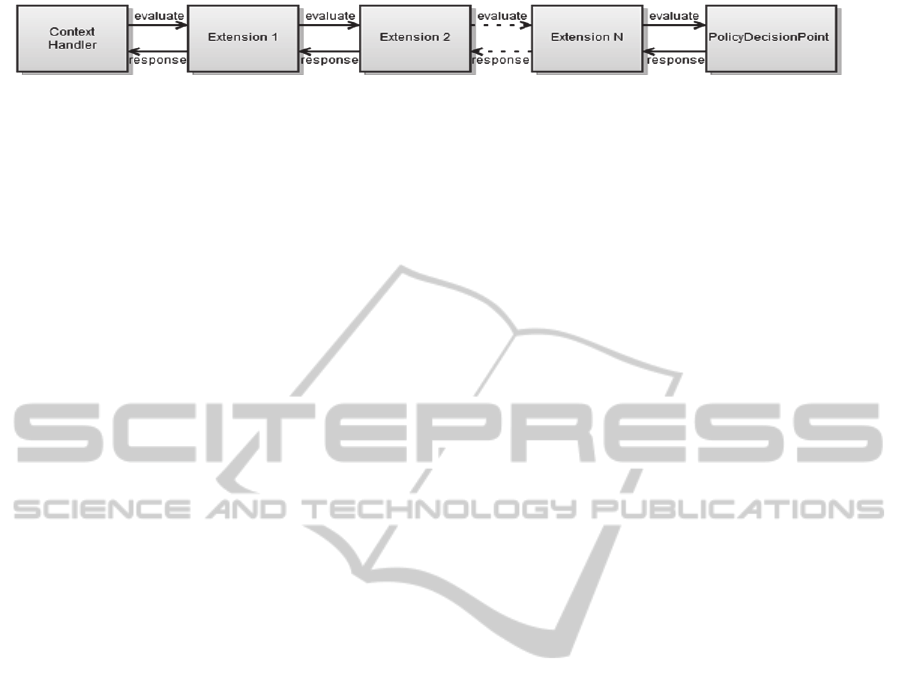

Figure 1: Pluggable extension handler pipeline.

research. After a thoroughly evaluation of the access

control requirements in INTEGRATE it was decided

to use XACML as authorisation solution. In this

paper the proposed solution therefore focuses on

XACML.

2.1 XACML

Attribute-Based Access Control (ABAC) presents an

access control model inherently capable of meeting

many of the “modern” access control demands (e.g.

data dependent access policies, environment

dependent policies, etc.). In ABAC, attributes that

are associated with a user, action or resource serve

as inputs to the decision of whether a given user may

access a given resource in a particular way.

The eXtensible Access Control Markup

Language (XACML) (OASIS, 2005) implements

ABAC. It is a XML based declarative access control

policy language defining both a policy, decision

request and decision response language. XACML

contains several profiles for supporting RBAC,

multiple resources, hierarchical resource, etc.

Although it offers a wide-range functional solution

for access control, it lacks support for the problem of

contextualisation.

2.2 Solution through Management

Tools

A straightforward solution for contextualisation in

XACML would be shifting the responsibilities to the

policy authoring tools. This basically means that for

each context instance separate policy files would

need to be generated, e.g. from templates describing

the default context policies. Although this approach

seems easy to implement at first sight, it suffers

from the inherent issues associated with all “auto-

generating” solutions (be it for configurations or

source code). Every change requires many policies

to be rewritten (regenerated) and possibly

redistributed. Furthermore, synchronisation becomes

a big issue when one wants to allow exceptions in

auto-generated policies (“manual” additions). For

this reasons, this solution is not the most favourable

for large scale environments such as INTEGRATE.

3 CONTEXTUAL ATTRIBUTES

3.1 Extending XACML Functionality

The main approach taken to enrich the XACML

functionality with contextual attributes is not to

make changes in the core XACML specification,

such that no modifications are needed to the

standard XACML access control decision

mechanism (meaning standard XACML Policy

Decision Points (PDP) can be used in

implementations). Instead, the XACML requests are

enhanced using a generic extension mechanism, in a

way that extensions to the XACML specification can

easily be added or be removed without needing to

touch the core of the policy language and XACML

compliant decision engines (see Figure 1). Extension

handlers are placed in a pipeline between the context

handler (strictly speaking the extensions are part of

the context handler) and the PDP. An extension

handler gets as input an XACML request from

another extension handler or the context handler;

subsequently transforms this request; and finally

feeds the transformed request to the next extension

or the PDP engine (last stage in the pipeline). This

mechanism has previously been successfully applied

for automatically translating attributes between

different security contexts and semantically

expanding them (Ciuciu et al. 2011).

3.2 Contextualisation Extension

The contextualisation extension handler proposed,

splits up an incoming XACML request (containing

possible multiple contexts and context instances in

the attributes) in multiple single-context requests.

More specifically, for each different context instance

that is included in the original XACML request, a

separate new context-specific XACML request is

generated (see Figure 2). These context-specific

requests are sent separately to the PDP engine for

evaluation. By splitting up the requests, the PDP

engine can provide an access decision for each

context instance using manageable context-specific

policies. The XACML responses containing the

context-specific access decisions are sent back to the

contextualisation extension handler where a global

ContextualisationofABACAttributesthroughaGenericXACMLFunctionalityExtensionMechanism

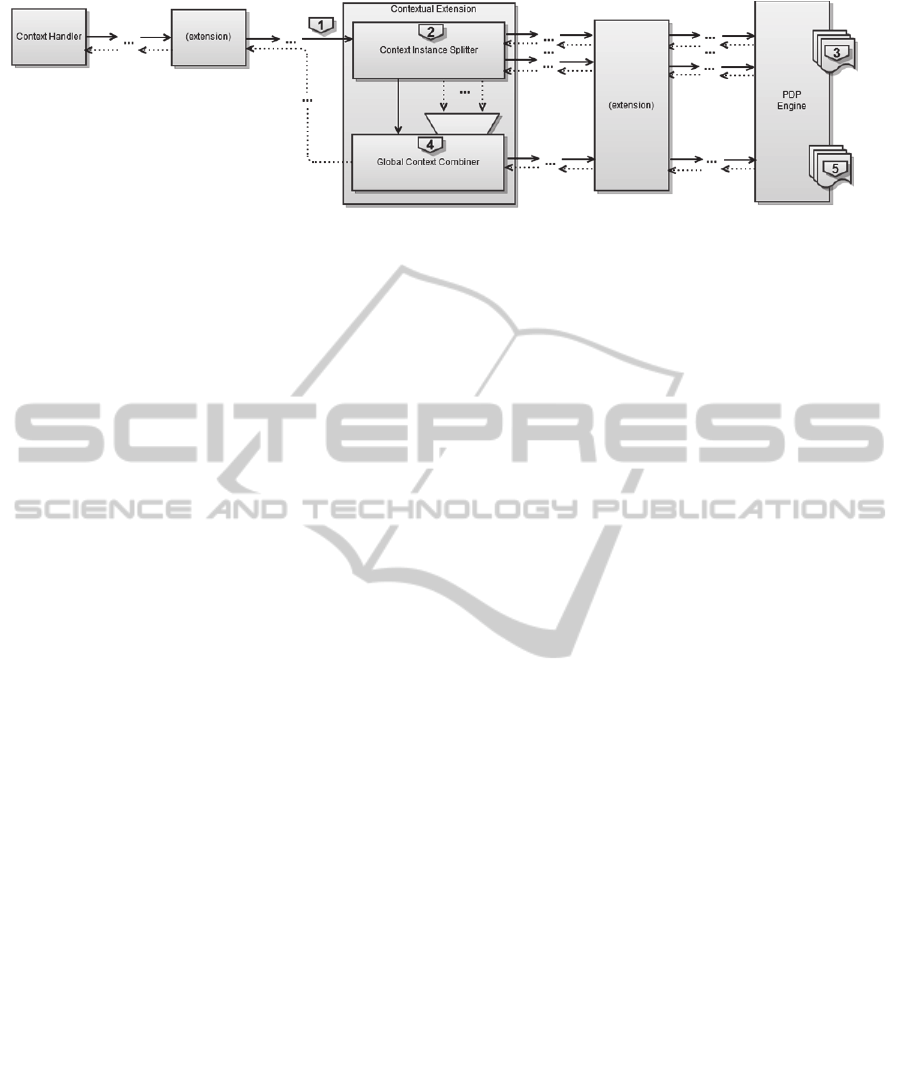

Figure 2: Contextual extension flow.

(no context specific) XACML request is generated.

This request is then sent back to the PDP engine

which evaluates the request, making use of defined

global policies. The access decision is finally

returned to the extension handler and is passed back

to the access control requestor as final outcome of

the original request.

3.2.1 Incoming XACML Request

To contextualise attributes of a user and mark the

resources he/she wishes to access that are context-

specific, a special attribute syntax is defined in the

incoming XACML request that is recognizable by

the contextual extension handler.

The example below shows how a contextual role

attribute of a user is included in a request as an

XACML subject attribute with attribute id “role”

and a special formatted attribute string value

containing the role, the context and the context

instance:

For including the global context roles of a user in the

request, this special formatting is not needed,

because these roles are relevant for each of the

contexts. In this case, the attribute value is only the

role itself.

To illustrate the inclusion of contextual roles in

more detail, an example is given in the domain of

trial screening. A user called “John doe” can have

different roles within different trials, e.g. a user can

have the role of “clinical staff” over all trials (global

context), the role of “investigator” in his own trial A

(context trial A) and the role of “principal

investigator” in another trial B (context trial B).

These three roles of John are provided as subject

attributes, as shown in Example 1.

Example 1: Context roles of a user in an incoming

XACML request (pseudo-code).

To indicate that a resource is context-specific, an

extra predefined attribute is included in the

corresponding XACML resource object with the

attribute id “context" and a special formatted

attribute string value containing a reference to the

context and context instance:

Note that a resource can belong to more than one

instance of the same context. In Example 2, the user

John Doe wants to access three resources named

EHR001 in the trial context of trial A and trial B

(multiple context instances), EHR002 in the trial

context of trial B and EHR003 in the global context.

Example 2: Context(s) of resources in an incoming

XACML request (pseudo-code).

3.2.2 Context-specific Requests

When a new XACML request enters the

contextualisation extension handler, an inventory is

made of all context and context instance included in



att id="role">



[context role]@[context]:[context instance]

/att>



<Subject>

<att id="name">John Doe</att>

<att id="role">investigator@trial:A</att>

<att id="role">principal investigator@trial:B</att>

<att id="role">clinical staff</att>

</Subject>

...

</Request>

att id="context"> 

[context]:[context instance]

</att>



...

<att id="context">trial:A</att>

<att id="context">trial:B</att>

</Resource>

<att id="context">trial:B</att>

</Resource>

</Resource>

HEALTHINF2013-InternationalConferenceonHealthInformatics

this request. For each different context instance

found, a new context-specific XACML request is

generated.

For the context-specific role attributes in the

example, this means that the role attribute of the

original request is copied to the corresponding

context-specific request. During this copying the

context instance part is stripped from the role

attribute value (this enables the generation of

context-specific policies, see further). Non context-

specific attributes are copied to each of the requests

(so that they are available during contextual policy

evaluation in each of the context instances).

Each context-specific resource object and the

underlying resource attributes defined in the

incoming request are copied to one or more of the

corresponding context-specific requests, depending

on the context instance(s) that is included in the

context attribute value(s) of this resource (a resource

can have more than one context/context instance).

The context resource attribute(s) itself is omitted

during the copying, because it is not relevant for

evaluation. Non context-specific resources are not

copied to a request, these will be used later in the

global request (see further).

Finally in each generated context-specific

request the corresponding context and context

instance are added as environment attributes. This

allows easy definition of policies concerning certain

contexts or context instances. Other environment

and action attributes in the original request are again

copied to all context-specific requests.

Example 3 gives the result of splitting the

incoming request attributes of the given above

examples.

Example 3: Splitted context-specific XACML requests

(pseudo-code).

3.2.3 Context-specific Policies

After the request is split in multiple context-specific

requests, these requests are sent to the PDP engine

for evaluation. Because of this split up, the

management and creation of context-aware policies

is simplified. Generating policies for a context

and/or context instance can be easily done in various

ways, e.g. through the XACML “target”

specification. Example 4 shows how to target a trial

context (targeting all trial instances).

Example 5 gives the XACML code that needs to be

specified to write a policy that targets a context

instance trial A.

Example 4: Context target (all instances).

Example 5: Context instance target.

Example 6 illustrates how a policy (or rule)

could be written dealing with the access rights tied

to a specific contextual attribute across instances

(the role from the example in this case). Note that

the attribute annotation “@[context]” (in the

example, the “trail” context) facilitates policy

authoring and review. It indicates that this is a

contextual attribute and will thus be evaluated on a

“per instance basis”.

The examples illustrate that the presented

mechanism for enhancing XACML with contextual

attributes allows policies to be written in structured

and manageable way.

Example 6: Contextual role rule.



...

principalinvestigator@trial

</att>

<att id="role">clinical

staff</att>

</Subject>

...

<Res>

</Res>

<Res>

</Res>

...

<Env>

<att id="context">trial</att>

trial:B</att>

...



...

investigator@trial</att>

<att id="role">clinical

staff</att>

</Subject>

...

<Res>

</Res>

...

<Env>

<att id="context">trial</att>

trial:A</att>

</Env>

...



Splitrequest@trailA Splitrequest@trailB







<AttValue>trial</AttValue>



</EnvMatch>



</Environment></Environments>



/Target>



<AttValue>trial:A</AttValue>



<EnvAttDesignator AttId=

"contextinstance"/>



</EnvMatch>



</Environment></Environments>



/Target>



<SubjectMatch MatchId="string-equal"

principalinvestigator@trial

</AttValue>

</SubjectMatch>

</Subject></Subjects>

ContextualisationofABACAttributesthroughaGenericXACMLFunctionalityExtensionMechanism

3.2.4 Global Request

The access control decisions for the different

context-specific requests are sent back to the

contextual extension handler. In the handler a new

XACML request (global request) is generated based

on the original access control request. This global

request additionally contains the contextual access

decision results for each resource.

To include the access results of the context-

specific resources in this global request, one or more

resource attributes “contextResult” are added for

each resource. The attribute value has a special

formatted string:

Example 7 gives the generated request for the above

example. This request is sent again to the PDP for

evaluation.

This second evaluation, which includes the

“contextResult” responses, allows “global” policies

to be written that rely on the result(s) of the context-

specific resources or override them (i.e. there is total

freedom in combination algorithm).

Example 8

shows how a rule could incorporate such a

contextual result.

Example 7: Global request.

Example 8: Global policy.

Note that in the special case where a resource

belongs to more than one context instance of the

same context, both a “permit” and “deny” for the

same context could be present. Although this seems

contradictory at first, it allows decision combination

to be specified in the XACML policies and thus

gives total freedom to policy writers.

Finally, the resulting XACML response,

containing the access result for each resource is sent

back to the contextualisation extension handler. The

handler in its turn will return this response as

outcome to “calling” handler.

4 CONCLUSIONS

In this paper the problem of contextualisation of

ABAC attributes through a generic XACML

functionality extension mechanism is described.

Today’s prominent access control solutions do not

provide sufficient support for the contextualization

of attributes. The solution that was proposed, is

based on ABAC/XACML because the relevance in

the INTEGRATE project.

The approach that was taken to enrich XACML

with contextual attributes is not to change the

specification of XACML itself but provide a generic

flexible extension mechanism compatible with the

standard XACML core specification.

The contextual extension handler described,

splits up a request containing different contexts to

multiple context-specific requests. After evaluation

of these requests, a global request is created which

in his turn is evaluated by the PDP. The advantage

of this extension is that policies can be written

specific for one context without making these

policies very complex.

ACKNOWLEDGEMENTS

This project/study is partially funded by the

European Commission under the 7th Framework

Programme (FP7-ICT-2009-6-270253).

REFERENCES

OASIS, 2005, ‘XACML: eXtensible Access Control

Markup Language’, Version 2.0, Available from:

<http://docs.oasis-open.org/xacml/2.0/access_control-

xacml-2.0-core-spec-os.pdf>. [16 July 2012]

Chadwick, D, Zhao, G, Otenko, S, Laborde, R, Su, L, Anh

Nguyen, T, 2008, ‘PERMIS: a modular authorization



att id="contextResult">



[Resource AC Decision]@[context]

/att>



...

<att id="role">clinical staff</att>

</Subject>

...

<Res>

<att id="contextResult">permit@trial</att>

<att id="contextResult">deny@trial</att>

</Res>

<Res>

<att id="contextResult">permit@trial</att>

</Res>

<Res>

</Res>

...

</Env>

...



...

<AttValue>permit@trial</AttValue>

<SubjAttDesignator

AttId="contextResult"/>

</Apply>

</Condition>



</Rule>

...



HEALTHINF2013-InternationalConferenceonHealthInformatics

infrastructure’, Concurrency and Computation:

Practice and Experience, vol. 20, no. 11, pp. 1341-

1357

Damianou, N, Dulay, N, Lupu, E, Sloman, M, 2001, ‘The

Ponder Policy Specification Language’, POLICY

2001 Proceedings of the International Workshop on

Policies for Distributed Systems and Networks, pp. 18-

Moritz, Y, Becker, PS, 2004, ‘Cassandra: Distributed

Access Control Policies with Tunable Expressiveness,

Policies for Distributed Systems and Networks’,

POLICY 2004 Proceedings of the Fifth IEEE

International Workshop, pp. 159 – 168

Ciuciu, I, Claerhout, B, Schilders, L, and Meersman, R,

2011, ‘Ontology-Based Matching of Security

Attributes for Personal Data Access in e-Health’,

OTM’11, vol. 2, pp. 605-616

INTEGRATE, 2012, ‘INTEGRATE: Driving Excellence

in Integrative Cancer Research’, Available from:

<http://www.fp7-integrate.eu/>. [16 July 2012]

Foster, I, Kesselman, C, Tuecke, S, 2001, ‘The Anatomy

of the Grid: Enabling Scalable Virtual Organizations’,

International Journal of Supercomputer Applications,

vol. 15, no. 3, pp. 200-222

ContextualisationofABACAttributesthroughaGenericXACMLFunctionalityExtensionMechanism
