Radial Basis Function Neural-fuzzy Model for Microarray Signature

Identification

Julio De Alejandro Montalvo

, George Panoutsos

, Mahdi Mahfouf

and James W. Catto

The University of Sheffield, Dept. of Automatic Control and Systems Engineering, Sheffield, U.K.

The University of Sheffield, Academic Urology Unit, Sheffield, U.K.

Keywords: Feature-selection, Neural-fuzzy, Fuzzy Logic, Radial-Basis-Function (RBF), Microarray, Bladder Cancer.

Abstract: This paper introduces a Fuzzy entropy-based method for the problem of feature selection. For the first time

Fuzzy-Entropy is used to directly link the relative input relevance of a Radial-Basis-Function Neural-Fuzzy

modelling structure. This embedded feature selection method uses the model performance as a criterion for

the feature selection. The resulting model maintains its simplicity and transparency in the form of a

linguistic Fuzzy-Logic rule-base. The proposed methodology is validated using a real biomedical case-

study, which concerns the signature selection for the identification of the stage of bladder cancer. The

signature selection and predictive modelling results are compared to previous research work on the same

dataset, and it is shown that the RBF-NF model outperforms the previous modelling attempts by achieving

high predictive accuracy (>90%). The model is shown to maintain its good performance even when using

just 10 genes in the gene based signature.

1 INTRODUCTION

One of the biggest challenges in cancer research is

the accurate early classification of tumours. This

classification can reflect the stage of a tumour and

may be achieved via a number of information

sources, including clinical and radiological data and

potentially, biochemical or molecular tests.

However, limitations in the accuracy of these data

have led to the search for more robust biomarkers

such as gene expression data. One method for high

throughput, global profiling of gene expression is

the microarray. In this paper we investigate the

ability for genetic data stage bladder cancer reliably.

A reliable predictor capable of accurate

classification at an early stage of the cancer would

avoid unnecessary treatment and also save costs.

In recent years the study of microarrays has

become more popular. Microarrays are chips that

contain thousands of probes. These probes mirror

the RNA or DNA sequence for individual genome

locations. The expression or content of that

corresponding genome structure can be measured by

the abundance of binding to that probe. Microarrays

have been used in a number of different contexts in

human cancer.

Currently one of the most promising roles is as

disease biomarkers that may be used to predict

tumour stage and subsequent outcomes. Microarray

data analysis is challenging due to the large size of

these datasets(100s to 10,000 of probe values) and

their imbalance with samples size (most series have

less than 100 samples). This presents a challenging

Systems Engineering classification and

identification problem (high dimensionality, low

number of samples). If accurate predictive models

(wrapper methods) are built from the available gene

data along with results from cancer biopsies and

other clinical tests, one can then try to understand

how the various genes and tests relate to cancer, and

try to develop multi-dimensional patient prognostic

maps that are capable of mapping cancer malignancy

based on a minimum amount of data/tests.

The main challenges in this type of research are:

 The uncertainty of the data

 Model generalisation issues

 Identification of relevant genes/clinical markers

 Link model-based research findings with medical

expertise

To address the problem of high number of input

features, feature selection algorithms have become

indispensable components of the learning process.

Feature selection is the process of detecting the

134

De Alejandro Montalvo J., Panoutsos G., Mahfouf M. and Catto J..

Radial Basis Function Neural-fuzzy Model for Microarray Signature Identiﬁcation.

DOI: 10.5220/0004226801340139

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2013), pages 134-139

ISBN: 978-989-8565-35-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

relevant features and discarding the irrelevant ones.

There are three categories for feature selection:

filters, wrappers and embedded methods.

Statistical regression methods perform poorly

when there are multiple interconnected variables and

in the presence of contaminating data (Burke,

Goodman et al., 1997). Filter and wrapper methods

could be used in combination with Soft Computing

(SC) techniques (i.e. Fuzzy Logic, Neural-Fuzzy

Systems) to eliminate irrelevant genes at an early

stage. The combination of SC with other

computational techniques offers significant

advantages in terms of imprecision tolerance and

systems interpretability, and has proven to be an

effective method performing equally or better than

Support Vector Machines (SVM) or ‘K Nearest

Neighbourhood’, which are very popular methods

for gene expressions classification (Pal et al., 2007).

In this paper, a new embedded SC feature

selection method is introduced based on Fuzzy

Logic (FL) and a Radial-Basis-Function (RBF)

Neural-Fuzzy (NF) computational structure. The

presented methodology offers a feature selection that

takes place during the model-training phase, whilst

maintaining the system simplicity and

interpretability. This is achieved by taking advantage

of the Fuzzy Entropy measure (Al-Sharhan et al.,

2001). Hybrid Neural-Fuzzy Logic models combine

the learning ability of Neural Systems and the

interpretability of Fuzzy Systems, they can

automatically generate and adjust the membership

functions and linguistic rules directly from the data.

The presented method is a combination of Fuzzy C-

Means and RBF-NF function; it is an embedded

method as it trains the model while it performs the

input selection. As a pre-input selection the t-test

statistical method was used to reduce the large initial

dataset. This is a popular pre-processing step in

microarray gene selection, aiming at removing the

irrelevant to the process genes. The proposed

methodology, uses a variant of the the Levenberg-

Marquardt algorithm for the model’s parametric

optimisation. The method is suitable for handling

large datasets, and because of the ‘IF-THEN’

linguistic rules it helps the clinicians to understand

how the model behaves.

The remainder of the paper is organised in four

more sections as follows: 2. Radial Basis Function

Neural-Fuzzy System: in this section a description of

the modelling and data-mining structure is

presented. 3. Fuzzy Entropy-Based Feature

Selection: this is a detailed description of the new

feature selection method 4. Gene Signature

Selection: the new method is successfully applied to

a bladder cancer literature dataset to predict the

stage of the cancer, and finally, section 5:

Conclusion and Future work.

2 RADIAL BASIS FUNCTION

NEURAL-FUZZY SYSTEM

2.1 Clustering

The data-mining workflow consists of three stages,

the first of which is Fuzzy C-means (FCM)

clustering for the creation of the initial rule-base.

This rule-base is then ‘translated’ into a Radial-

Basis-Function Neural-Fuzzy structure, and is

finally parametrically optimised via the Levenberg-

Marquardt function-minimisation algorithm. The

FCM method (Dunn, 1973) is frequently used in

pattern recognition but the main reason to use it is

because after Fuzzy C-Means is applied to a data it

can be used directly as initial values of an RBF

Model. FCM is based on minimisation of the

following objective function:































,1∞

(1)

Where m is any real number greater than 1, u

is the

degree of membership of x

in the cluster j, x

is the

ith of d-dimensional measured data, c

is the d-

dimension centre of the cluster, and ||*|| is any norm

expressing the similarity between any measured data

and the centre.

2.2 RBF-Based Neural-fuzzy System

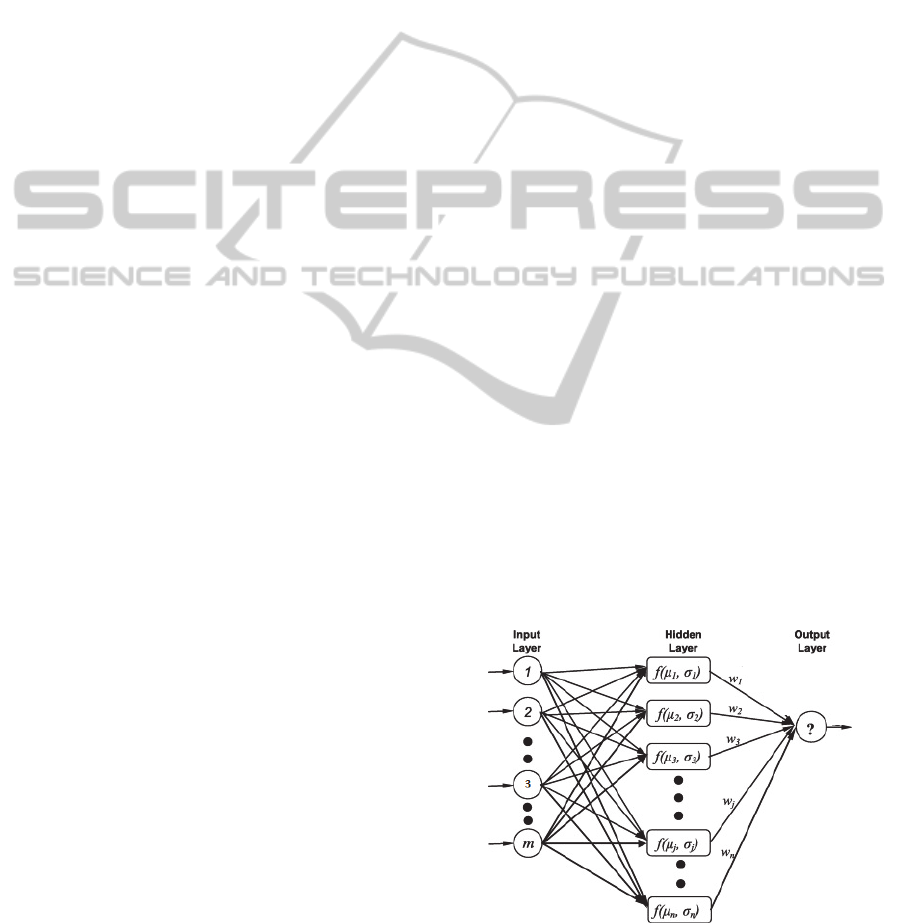

Figure 1: RBF Layers of NF model.

The second stage consists of applying the method

proposed in (Panoutsos and Mahfouf, 2010). This

RadialBasisFunctionNeural-fuzzyModelforMicroarraySignatureIdentification

135

method uses an RBF function to describe a Neural-

Fuzzy system. Figure 1 show the structure of the

RBF-NF model, where the input, rule-base (hidden

layer) and output layers can be identified. The

presented system can then be parametrically

optimised via a suitable function minimisation

algorithm.

2.3 Levenberg-Marquardt

Optimisation

The Levenberg-Marquardt (LM) algorithm is an

iterative technique that locates the minimum of a

multivariate function that is expressed as the sum of

squares of non-linear real-valued functions

(Levenberg, 1944). In this paper the RMSE between

the training data and the model predicted data is

used as the cost function to be minimised. The

presented data-mining workflow provides an

efficient and fast method for capturing numerical

data-based information and converting it to a

linguistic knowledge-base with a predictive

capability.

The next section describes how the RBF-NF

structure is exploited along with Fuzzy-|Entropy

measures to identify relevant to the process features.

3 FUZZY ENTROPY-BASED

FEATURE SELECTION

The presented method is based on two Fuzzy Logic

features: The Fuzzy Entropy and the Tagaki-

Sugeno-Kang (TSK) type (Takagi and Sugeno,

1985) of output layer for a NF system. Fuzzy-

Entropy is a measure of ‘fuzziness’, it allows the

quantification of how ‘fuzzy’ a value is when the

Fuzzy Inference System (FIS) is used.The TSK

output layer of an RBF-NF model is a linear

combination of its inputs (polynomial).The

hypothesis is that during model training, the values

of the output weights w

, for each rule, will increase

(absolute value) for the inputs (genes) that are more

‘influential’ in (contribute to) the model predictions.

One could analyse how the output weights change

on every training iteration, hence determine the

relevance of the corresponding inputs. This

relationship in terms of entropy strength is relative

to the genes, is measurable, and may be used to rank

the genes for a particular rule in the rule-base. In the

algorithmic process proposed here, the model is

trained for ‘N’ iterations, while at ‘n’ iterations

(n<N) the training can be ‘paused’ and the model

can be reviewed in terms of the gene ranking order.

Not all the rules in the rule-base contribute with

the same amount to the FIS. This is subject to the

‘input space’ of a particular gene. Therefore, the

ranking order that may be established as a result of

examining a single TSK rule is only relevant if the

corresponding rule has a high contribution to the

overall rule-base. This contribution can be

established via the use of Fuzzy-Entropy (FE), as a

measure of ‘fuzziness’. The FE is calculated for each

individual rule, and then a numerical ‘index’ is

developed to ‘adjust’ the significance of the ranking

of each individual rule. Finally, the overall ranking

of the genes is calculated by using the FE-adjusted

gene output weights.

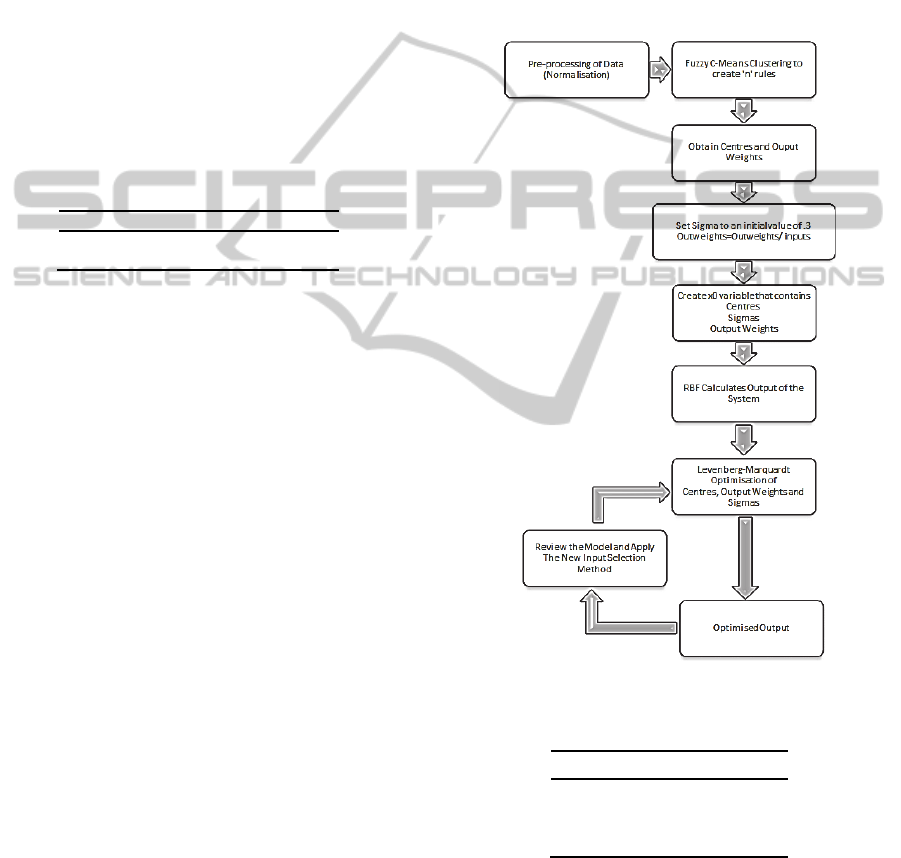

In terms of the algorithmic process, Figure 2

summarises the gene feature selection. The first step

is to rank the output weights by rule in descending

order. The top ‘n’ genes are then selected and this

information is passed on to the following step (this

numerical threshold is process specific). The Fuzzy-

Entropy is then calculated for each model prediction.

The fuzzy entropy is defined using the concept of

membership function. In 1972, De Luca and Termini

defined Fuzzy Entropy Based on Shannon’s

functions and they introduced a set of properties for

which Fuzzy Entropy should satisfy them (Al-

Sharhan et al., 2001).









log









1



log



1











(2)

Where:





,   ,

  ,





 

Once the entropy is calculated, Eq. 3 is applied.

The ‘B’ index reflects the significance of a gene

within a certain rule. The value of B is obtained for

each gene in all the rules.





/



∗

(3)

The output weight is adjusted by the significance of

a particular rule (proportional to the membership

degree, inversely proportional to the ‘fuzziness’).

After the rule-adjusted significance per gene is

calculated a new ranking order is then compiled.

The work presented in this paper is the first

report, to our knowledge, of a Fuzzy-Entropy

scheme applied to a RBF-NF modelling structure.

The resulting ranking of the genes directly

relates to their performance in the modelling

structure, is an iterative procedure – that can be

BIOINFORMATICS2013-InternationalConferenceonBioinformaticsModels,MethodsandAlgorithms

136

repeated a number of times as required – and

provides a fast workflow to establish gene signatures

from microarray data.

The dataset consists in 22,283 genes and 90

samples from the analysis of the Affymetrix Chip

U133A Human Gene-chip. This study aims at

predicting the ‘Cancer Stage’.

4 GENE SIGNATURE

SELECTION

The case-study presented in this paper is focused on

the prediction of Bladder Cancer Stage using a

dataset from a previous study made by Sanchez-

Carbayo (Sanchez-Carbayo et al., 2006).

Table 1: Cancer stages.

Value Stage

0 PTA,PT1

PT2, PT3A, PT3B, PT4, PT4A

A common staging system uses numbers to

indicate the stage of the cancer as shown in Table 1.

The cancer Stage values were ‘encoded’ to 0 and

1 according to Table 1. Stages encoded as ‘0’ are

often referred to as ‘Non-Aggressive’, and the ones

encodes as ‘1’ as ‘Aggressive’.

4.1 Data Pre-processing

Prior to any modelling work the dataset is

normalised in order to eliminate the high variances

between the gene’s intensities (quantile

normalisation). After normalisation, the student’s

distribution t-test is used as an initial gene-filter.

Based on the p-values the genes from the

Sanchez-Carbayo dataset were reduced from the

original 22243 genes down to a set of 500 genes.

4.2 Radial-Basis-Function Linguistic

Modelling

The RBF-NF model was then developed as

described in Section 2. The methodology was

applied to the Sanchez-Carbayo Dataset, to reduce

the number of genes. As previously discussed the

Sanchez-Carbayo dataset consists of 90 patients and

22283 genes. A pre-selection of the genes was made

using the top 500 genes as selected with the t-test.

After this preliminary gene selection (pre-filtering)

the entropy (



 (Eq, 2) is calculated based on the

membership function (



. The median of the 



and

the 



is calculated, a second threshold is

established for both parameters (for 



>.5 and for





<.4) then the Eq. 3 is applied. The first gene

signature was developed with 250 genes. This

number of genes was selected to compare the

resulting modelling performance to the Sanchez-

Carbayo results. The results are shown in Table 2.

The classification functions of Specificity,

Sensitivity and Accuracy are used as measures of

performance (Braga-Neto and Dougherty, 2004).

The resulting model consisted of 10 rules only.

Figure 2: RBF-NF fuzzy entropy feature selection.

Table 2: RBF input selection 250 genes.

Training Testing

Specificity 100% 100%

Sensitivity 100% 93%

Accuracy 100% 96%

The data samples were randomly separated into

‘Training’ and ‘Testing’ datasets. The training set is

only used to train the model. The testing dataset is

only used after the model training is finished in

order to test the generalisation performance of the

RadialBasisFunctionNeural-fuzzyModelforMicroarraySignatureIdentification

137

model (i.e. on ‘unseen’ by the model data), as a form

of cross-validation.

The study from Sanchez-Carbayo on the same

data-set used the popular (for microarray data

analysis) method of support vector machines (SVM)

to predict the tumour stage with 250 genes.

Table 3: Results Sanchez-Carbayo and RBF.

Sanchez-Carbayo RBF Input Selection

Accuracy 89% 96%

The results show that the two resulting models

have a similar level of performance, using the exact

same number of genes; however the RBF-NF

method shows a slightly improved accuracy (+7%)

as compared to the SVM model. On the second

modelling attempt, in order to further examine the

presented methodology, the RBF-NF model was

compared to the Martin Lauss publication (Lauss et

al., 2010). They used 201 genes for the prediction of

the stage of cancer, based on a different dataset.

Tables 4 and 5 summarise the RBF-NF modelling

results and the Lauss results (SVM).

Table 4: 201 Genes – RBF-NF.

Training Testing

Specificity 90% 100%

Sensitivity 100% 100%

Accuracy 98% 100%

Table 5: Results comparison: Lauss vs. RBF-NF.

Martin Lauss RBF Input Selection

Accuracy 87% 100%

A third and final model was created, with just 10

genes, to investigate the generalisation performance

of the methodology with a very low number of

genres. Table 6 summarises the resulting model.

Table 6: RBF-NF input selection: 10 Genes.

Training Testing

Specificity 90% 93%

Sensitivity 96% 93%

Accuracy 95% 93%

As suggested by this table, a performance drop is

observed, as compared to the 201 and 250 gene

models, however one can say that the performance

of the model did not decrease significantly and it

still outperforms the previously developed more

complex models presented in (Sanchez-Carbayo et

al., 2006); (Lauss et al., 2010). Apart from the gene

signature identification (10 genes) the modelling

structure presented in this paper maintains a

transparent Fuzzy Logic-type linguistic rule-base.

Figure 3 shows a sample of the rule-base describing

the behaviour of the model. For simplicity, just two

rules are shown (one for ‘low stage’ and one for

‘high stage’) for five out of the 10 genes in the gene

signature. Two of the linguistic IF-THEN rules that

describe the model are shown below to demonstrate

the transparency (interpretability) of the modelling

method.

Rule 9:

IF: Gene RPS6 is Medium and

Gene PHB is Medium and

Gene

LRP1 is Medium and

Gene CCND2 is Medium and

Gene

SERP1 is Medium

THEN the Cancer Stage is Non-Aggressive

Rule 5:

IF: Gene RPS6 is Medium-High and

Gene PHB is Medium-High and

Gene

LRP1 is Medium-High and

Gene CCND2 is Medium-High and

Gene SERP1 is Medium-High

THEN the Cancer Stage is Aggressive

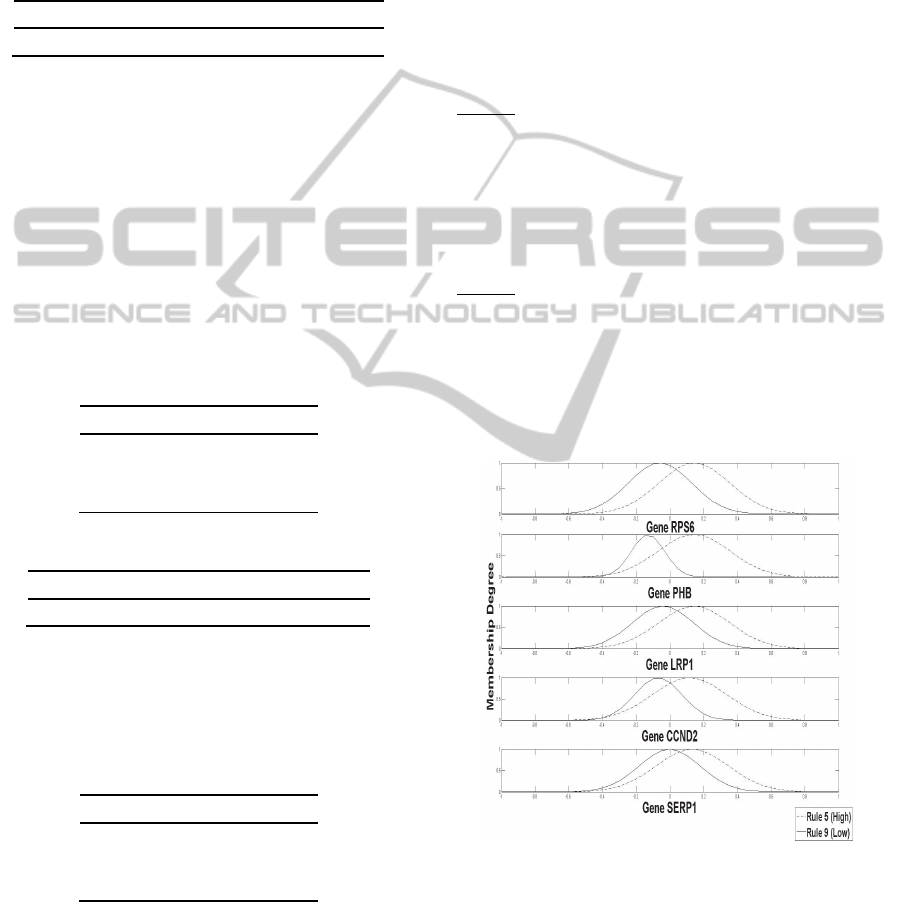

Figure 3: Neural-fuzzy rules.

Table 8 shows the 10 top ranked genes. The 10-

gene signature has been confirmed from clinicians

that is medically relevant; for example, genes

RAPIB, CCND2 and SERP1 are known to be linked

to bladder cancer. The corresponding numerical

values of the linguistic hedges ‘high’, ‘medium’ etc.

are determined by the optimisation algorithm via the

BIOINFORMATICS2013-InternationalConferenceonBioinformaticsModels,MethodsandAlgorithms

138

training data-set. The linguistic interpretation of the

normalised gene intensity is shown in Table 7.

Table 7: Gene range.

Gene Intensity Range

Very Low -1 to -0.72

Low -0.71 to -0.44

Low Medium -0.43 to -0.16

Medium -0.15 to 0.12

Medium High 0.13 to 0.4

High 0.5 to 0.68

Very High 0.69 to 1

Table 8: 10-Gene signature.

Gene Symbol Gene Title

RPL34 ribosomal protein L34

RPS6 ribosomal protein S6

PRKAR1A

protein kinase, cAMP-dependent, regulatory, type

I, alpha (tissue specific extinguisher 1)

CSRP1 cysteine and glycine-rich protein 1

PHB prohibitin

LRP1

low density lipoprotein

receptor-related protein 1

DAZAP2 DAZ associated protein 2

RAP1B RAP1B, member of RAS oncogene family

CCND2 cyclin D2

SERP1 stress-associated endoplasmic reticulum protein 1

5 CONCLUSIONS

This paper introduces a feature selection algorithm

based on Fuzzy entropy and a RBF Neural-Fuzzy

structure that links directly the fuzzy entropy to the

relative significance of the inputs of the model. This

significance measure is used to rank the inputs of the

model via an iterative algorithm. The proposed

methodology has successfully been applied to the

case study of bladder cancer prediction with respect

to the ‘stage’ of the tumour. Compared to previous

modelling attempts (Sanchez-Carbayo et al., 2006);

(Lauss et al., 2010) based on SVM, the RBF-NF

input selection method shows improved performance

in the same datasets. The attractiveness of this

method is on the transparency that the rule-base

exhibits and the good generalisation performance

(even with just 10 genes) as compared to previous

modelling attempts on the same dataset (250 and

201 genes). The rule-base’s transparency and

interpretability, can aid the clinicians to directly

interrogate the resulting model (human-centric

system) and examine how the model uses individual

genes and their intensity to provide predictions on

the stage of bladder cancer. Further work should

focus on predicting other cancer-related markers

towards a more comprehensive predictive model.

The biggest challenge though is presented in the

generalisation ability of such data-driven models as

identified by other research results too. Models that

are trained based on a specific patient cohort should

be tested against data from other cohorts to establish

the developed models’ generalisation performance

and predictive robustness.

REFERENCES

Al-Sharhan, S., F. Karray, et al. (2001). Fuzzy entropy: A

brief survey, Melbourne.

Braga-Neto, U. M. and E. R. Dougherty (2004). "Is cross-

validation valid for small-sample microarray

classification?" BIOINFORMATICS 20(3): 374-380.

Burke, H. B., P. H. Goodman, et al. (1997). "Artificial

neural networks improve the accuracy of cancer

survival prediction." Cancer 79(4): 857-862.

Dunn, J. C. (1973). "A Fuzzy Relative of the ISODATA

Process and Its Use in Detecting Compact Well-

Separated Clusters." Cybernetics and Systems 3(3):

32-57.

Lauss, M., M. Ringnér, et al. (2010). "Prediction of stage,

grade, and survival in bladder cancer using genome-

wide expression data: a validation study." Clinical

Cancer Research 16(17): 4421-4433.

Levenberg, K. (1944). "A method for the solution of

certain non-linear problems in least squares." The

Quarterly of Applied Mathematics 2(2): 164-168.

Pal, N. R., K. Aguan, et al. (2007). "Discovering

biomarkers from gene expression data for predicting

cancer subgroups using neural networks and relational

fuzzy clustering." BMC Bioinformatics 8(1): 5-5.

Panoutsos, G. and M. Mahfouf (2010). "A neural-fuzzy

modelling framework based on granular computing:

Concepts and applications." Fuzzy Sets and Systems

161(21): 2808-2830.

Sanchez-Carbayo, M., N. D. Socci, et al. (2006).

"Defining molecular profiles of poor outcome in

patients with invasive bladder cancer using

oligonucleotide microarrays." Journal of Clinical

Oncology 24(5): 778-789.

Takagi, T. and M. Sugeno (1985). "Fuzzy identification of

systems and its applications to modeling and control."

IEEE Transactions on Systems, Man and Cybernetics

15(1): 116-132.

RadialBasisFunctionNeural-fuzzyModelforMicroarraySignatureIdentification

139
