Pedestrian Tracking based on 3D Head Point Detection

Zhongchuan Zhang and Fernand Cohen

Electrical and Computer Engineering Department, Drexel University, 3141 Chestnut Street, 19104, Philadelphia, U.S.A.

Keywords: Pedestrian Tracking, Overhead Camera, Head Detection, 3d Position Estimation, Facial Image Capture.

Abstract: In this paper, we introduce a 3D pedestrian tracking method based on 3D head point detection in indoor

environment, such as train stations, airports, shopping malls and hotel lobbies where the ground can be non-

flat. We also show that our approach is effective and efficient in capturing close-up facial images using pan-

tilt-zoom (PTZ) cameras. We use two horizontally displaced overhead cameras to track pedestrians by

estimating the accurate 3D position of their heads. The 3D head point is then tracked using common

assumptions on motion direction and velocity. Our method is able to track pedestrians in 3D space no matter

if the pedestrian is walking on a planar or a non-planar surface. Moreover, we make no assumption about

the pedestrians’ heights, nor do we have to generate the full disparity map of the scene. The tracking system

architecture allows for a real time capturing of high quality facial images by guiding PTZ cameras. The

approach is tested using a publicly available visual surveillance simulation test bed.

1 INTRODUCTION

With the prevalence of video surveillance, face

recognition and tracking is drawing more attention

and is pursued more rigorously. Usually, a high

resolution frontal view facial image is required by

most face recognition systems. Accurate 3D tracking

of a head is fundamental in capturing close-up facial

images. Our camera system architecture consists of a

stereo overhead camera set that helps a distributed

set of PTZ cameras in effectively and efficiently

capturing close-up facial images.

Most existing tracking method uses one side

view camera, which cannot handle well occlusions

between people. To resolve this problem, multiple

side view cameras are used. Orwell et al. (1999)

model the connected foreground blobs in multiple

views using colour histograms and then the blobs are

used to match and track objects. Khan and Shah

(2009) use a planar homography constraint that

combines foreground likelihood information from

different views to resolve occlusions and determine

regions on scene planes that are occupied by people.

Similar to our approach, Eshel and Moses (2008)

focus on tracking people’s head. They derive

homograghy matrices at different height to align

frames from different views and detect 2D patches

of a person using intensity correlation at various

heights. The highest patch is regarded as the head

patch. However, the thresholds of intensity

correlation are set manually for each sequence and

the method doesn’t work on non-planar surface. To

localize targets more accurately, more side view

cameras are needed. This, in turn, increases the

computation and data transmission.

Overhead cameras, which are usually deployed

in indoor environment, have their own advantages.

An overhead (perpendicular) view is less likely to be

occluded compared with a side view where almost

no person is viewed by him/herself. Bellotto et al.

(2009) use only one overhead camera to localize a

person, where the centroid of the foreground blob is

taken as the ground position. The method is not

accurate especially when people are close to the

camera and walk around the boundaries of the field

of view (FOV). Oosterhout et al. (2011) detect 3D

head positions in highly crowded situations by

matching a sphere crust template on the foreground

regions of the depth map and then track those using

Kalman filters. Boltes and Seyfried (2012) present to

build the perspective height field from stereo images

which are represented by a pyramid of ellipses. A

person is then tracked using the centre of the second

ellipse from the head downward.

In this paper, we use two identical horizontally

displaced overhead cameras to estimate the 3D

position of the pedestrian’s head. For each extracted

foreground blob a segment that passes through the

382

Zhang Z. and Cohen F..

Pedestrian Tracking based on 3D Head Point Detection.

DOI: 10.5220/0004232203820385

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 382-385

ISBN: 978-989-8565-48-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

head top is estimated and the disparity of each point

on the segment is computed. The 3D head point is

determined as the centre of points with largest

disparity. To track the pedestrians over time, the

pedestrian velocity is used to estimate their next

locations. Our approach has several advantages over

what is out there: 1) there is no assumption made

about people’s heights to localize the 3D head point;

2) it does not constrained the walking platform to be

flat or planar; 3) lower computation and data

transmission load when compared to using several

side view cameras; 4) no full disparity map of the

scene is needed unlike other methods using stereo

vision; 5) better scalability.

2 PEDESTRIAN LOCALIZATION

Our proposed approach is based on the following

assumptions, which are the general cases in real

world: a) people in the scene are upright; b) the head

top is the highest part of a person; c) a human body

is symmetrically distributed around an axis, the

central vertical axis; d) this axis intersects a person

at the ground point and highest point. We define the

highest point as the 3D head point which is usually

the centre of the head top from an overhead view.

2.1 Potential Head Top Segment

Detection

A potential head top segment containing head top

points is estimated only for each foreground blob in

the left images. The blobs are extracted using

background subtraction which is done using HSV

rather than RGB colour space to remove the shadow.

Figure 1 shows the geometric relationship when

an image of a person is taken by an overhead camera

S. A person is modeled as a cylinder with the central

vertical axis l. π is the plane perpendicularly

intersecting l at the ground point G. If the ground is

flat, π is the ground plane since the person is upright.

Otherwise π is a hypothetical plane. The optical

axisOS







is vertical with O in plane π. The perspective

projection of l lies on the lineOG







. Thus with the

assumption d), the highest head top point lies on OG







as well. And the shadow area A, the projected area

of the person on plane π, is divided into two halves

byOG







. The point C as the centroid of A should be

also on OG







which is denoted as OC







for later use. F is

the furthest point defined as

  argmax

∈,∈











(1)

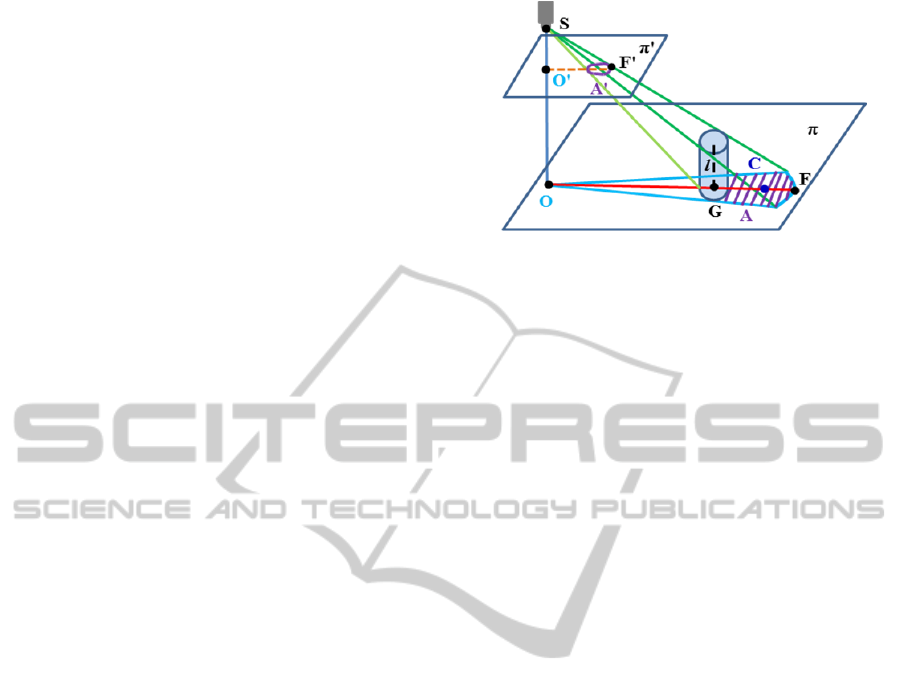

Figure 1: Determination of the potential head top segment.

From assumptions a) and b) we can safely argue that

a part of projected head top points lies on the

segment 



no matter if the walking platform is flat.

Plane π' (in figure 1) is the image plane of camera S

and A' is the image of A, i.e. foreground blob of a

person. F' is the furthest point on the image plane,

similarly to equation (1), defined as

′  argmax

∈,∈







′′





(2)

where C' (not denoted in figure 1 because of the

limited space) is the centroid of A' and O' the image

center. So ′′



is the potential head top segment in

the image plane, with head top pixels on it.

2.2 3D Head Position Estimation

The 3D head point is the highest point of a person.

With the detected potential head top segment,

locating the 3D head point reduces to finding the

centre of points on the segment which are closest to

the cameras and thus have the largest disparity.

To calculate the disparity of each point on the

potential head top segment, its corresponding point

needs to be established from the synchronized right

image. For each pixel on the segment from left

image, we compare the RGB values of an N*N

region about the point (the template) with a series of

the same size regions extracted from the right image

(the samples). The centre of each sample, the

candidate matching point, has the same row number

as the pixel in the left image, since the left and right

camera are aligned horizontally. The pixel on the

segment is descripted as an N*N*3 vector  ,

containing the RGB values of all pixels in the

template, and the candidate pixel is described as the

same size vector . The similarity of the two vectors

is evaluated by the Euclidean Distance(ED) 



, 



between them. A corresponding point of the point on

the potential head top segment is established if

1   ∙ 2

(3)

PedestrianTrackingbasedon3DHeadPointDetection

383

where 1 is the closest distance, 2 the second-

closest distance and  the distance ratio (typically

0.8). The disparity of the point on the segment

is computed from the image coordinate difference of

the two matching pixels.

To get more accurate 3D position, we estimate

the sub-pixel disparity by considering the minimum

ED that satisfies (3) and the two neighbouring ED

values instead of just taking the point of the

minimum ED as the matching point. We fit a

parabola to the three values and analytically solve

for the minimum to get the sub-pixel correction.

The centre of the pixels with the largest rounded

disparity instead of only the pixel with largest

disparity on the potential head top segment is

determined as the head point. Thus both the disparity

and the position of the head point have sub-pixel

resolution, making the localization of the 3D head

point more robust and accurate. With the head point

in the image and its disparity (not rounded), the 3D

head position can be computed by triangulation.

3 PEDESTRIAN TRACKING

Once the 3D positions of pedestrians, denoted as the

3D head points, are obtained in each frame, they are

tracked by assuming constant moving direction and

velocity within two consecutive frames. The position

of a person is predicted at the next time interval and

a search is implemented in a neighbourhood around

the predicted point. The position of the person is

then updated by the estimated 3D head point that is

nearest to the predicted point. If no head point is

found in the search area, the person’s location is

updated using the predicted one. The person is

deleted if not found over certain extend period of

time. Similarly, if an object is not associated with

any object in the previous frame over some frame

intervals, it is regarded as a new target.

4 EXPERIMENTS

We test our approach using a publicly available

visual surveillance simulation test bed, ObjectVideo

Virtual Video. Two virtual scenes of the train station

concourse are created, one with flat ground and the

other with a small bump, whose cross section is a

trapezoid, added on the flat ground. Seven people

walk in an area of about 180*160 inches, which is an

average crowded scene: the blobs of people don’t

merge in the overhead view.

The ceiling is 348 inches high from the flat part

of the ground. Two identical synchronized cameras

are installed on the ceiling with perpendicular views.

The baseline is 40 inches. The frame rate is 15

frames per second and the frame size is 640*480

pixels. A PTZ camera is installed on the wall in both

scenes with the resolution 320*240 pixels and the

height 160 inches. We let a group of people walk on

the planar ground and then let the same group walk

on the non-planar ground using the same paths.

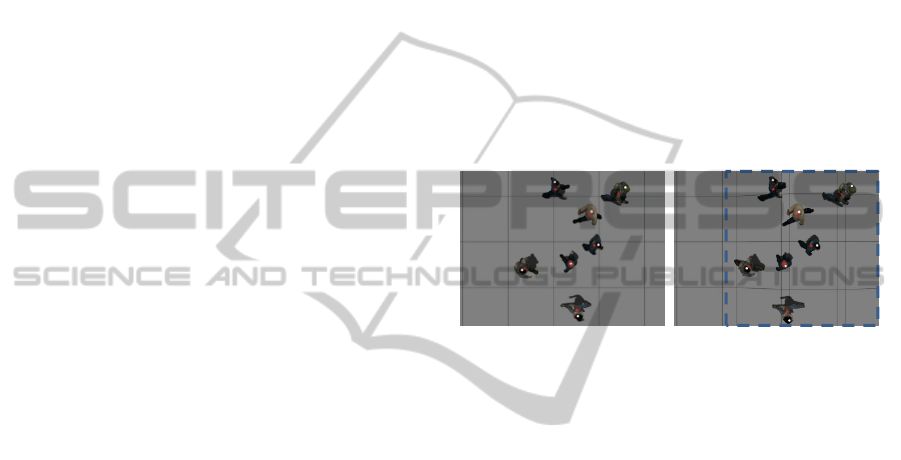

The images in figure 2 are captured by the left

camera when people walk on the planar and non-

planar ground, respectively. The foreground

centroids and the detected head points are marked as

in red and white. The detected head points are very

close to the head top centres in both scenes. The

dashed line square shows the bump area.

(a) Planar ground (b) Non-planar ground

Figure 2: The frames captured by the left camera with

people walking on the planar and non-planar ground.

The estimated 3D tracks are projected to the X-Y

plane and Z plane (height) separately. The X-Y

plane tracking results are shown in figures 3, where

the solid lines are the ground truth and the dashed

lines the estimated trajectories. The square is the

FOV centre. The number at the one end of each

trajectory denotes its object ID. The trajectories are

very close to the ground truth. Since the bump

changes people’s speeds, the tracks in the two scenes

are a little different though the same paths are set.

The Z plane tracking results are not shown

because of limit space. The errors of Z and X-Y

plane values in the two scenes are tabulated in table

1. The 3D head position errors can result from the

two reasons: a) the estimated potential head top

segment is slightly off the head top centre due to

pedestrians’ movement which makes the foreground

blob not perfectly symmetrical about the line from

image centre to blob centre; b) robust corresponding

points (in section 2.2) are not found on the head top

part of the segment or are not established correctly.

b) can cause relatively big error in both X-Y and Z

plane yet rarely happens. The ellipse in figure 3(b)

highlights the relatively big errors due to reason b).

The main errors are caused by reason a) instead and

are usually smaller than the head radius(see table 1).

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

384

(a) Planar ground (b) Non-planar ground

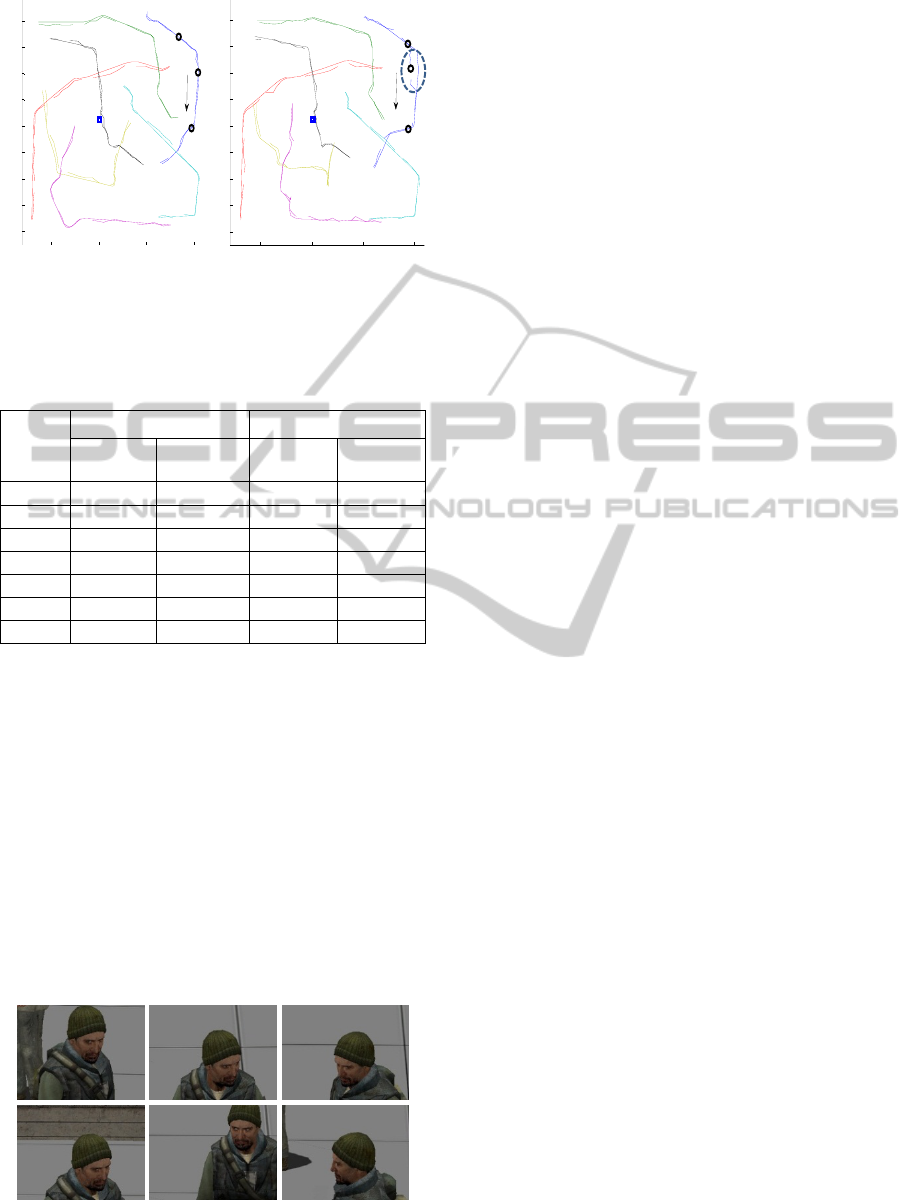

Figure 3: X-Y plane tracking results when people walking

on the planar and non-planar ground.

Table 1: The errors of the estimated tracks with planar and

non-planar ground (error unit: inch, and 1 inch=2.54 cm).

Object

Planar ground Non-planar ground

X-Y

errors

Z errors

X-Y

errors

Z errors

1.35 1.13 1.44 1.14

1.87 1.48 1.47

1.43

1.07 1.24 0.94 1.21

1.70 1.70 1.64 1.46

1.29 1.03 2.43

2.06

1.88 1.02 1.90 1.53

1.04 1.24 1.49 1.20

With accurately estimated 3D head positions, the

PTZ camera on the wall is guided to capture close-

up facial images. Figure 4 shows the capturing

results in the scene with planar (1

row) and non-

planar ground (2

row). The images in the first and

second row from left to right are captured when

person 5 arrives at the locations marked by the

circles in figures 3(a) and (b). The arrows show the

walking directions. Our method is very effective in

capturing close-up facial image, with almost all the

captured faces around the image centre. Even for the

point inside the ellipse in figure 3(b) where both X-

Y and Z plane errors are relatively big, the whole

face is still captured (middle image in the 2

row).

Figure 4: The close-up facial images captured in the scene

with planar and non-planar ground.

5 CONCLUSIONS

We present an approach based on 3D head point

detection to track people in an average crowded

indoor environment using two overhead cameras.

Our mainly contribution is to use the perspective

projection to find the potential head top segment and

then establish the highest point on the segment to

detect the 3D head point. This makes our method

work well for accurate 3D tracking without

assuming the heights of people, without the

constraint that the ground is flat or planar, and

without using full disparity map that is

computationally expensive. Thus our method is well

suited for capturing close-up facial image. The

experiments show that the average error of the

estimated X-Y and Z plane values of the 3D head

point is usually smaller than 2 inches and high

quality close-up facial images are captured.

In the future we plan to investigate a global

matching method to obtain more accurate and robust

disparity along the potential head top segment, thus

improving on the 3D head point localization. And

we intend to extend our method to very crowded

scenes where the foreground blobs of people from

the overhead view may merge.

REFERENCES

Bellotto, N., Sommerlade, E., Benfold, B., Bibby, C.,

Reid, I., Roth, D., Fernandez, C. Gool, L. V. and

Gonzalez, J., 2009. A distributed camera system for

multi-resolution surveillance. In ACM/IEEE

International Conference on Distributed Smart

Cameras, 2009.

Boltes, M. and Seyfried, A., 2012. Collecting pedestrian

trajectories. Neurocomputing, [online] Available at<

http://dx.doi.org/10.1016/j.neucom.2012.01.036>.

Eshel, R. and Moses, Y., 2008. Homography based

multiple camera detection and tracking of people in a

dense crowd. In IEEE Conference on Computer Vision

and Pattern Recognition. Anchorage, Alaska, USA 24-

26 June, 2008, pp. 1-8.

Khan, S.M. and Shah, M., 2009. Tracking multiple

occluding people by localizing on multiple scene

planes, IEEE Transactions on Pattern Analysis and

Machine Intelligence, 31 (3), pp. 505–519.

Oosterhout, T. van, Bakkes, S. and Kröse, B., 2011. Head

detection in stereo data for people counting and

segmentation. In International Conference on

Computer Vision Theory and Applications, 2011.

Orwell, J., Massey, S., Remagnino, P., Greenhill, D. and

G. Jones, 1999. A Multi-agent framework for visual

surveillance. In IEEE International lst Conference on

Image Processing, 1999.

0 50 100 150

-240

-220

-200

-180

-160

-140

-120

-100

-80
