Learning Advanced TFBS Models from Chip-Seq Data

diChIPMunk: Effective Construction of Dinucleotide Positional Weight Matrices

Ivan V. Kulakovskiy

1,2

, Victor G. Levitsky

3,4

, Dmitry G. Oschepkov

, Ilya E. Vorontsov

2,5

and Vsevolod J. Makeev

2,6,7

Laboratory of Bioinformatics and Systems Biology, Engelhardt Institute of Molecular Biology,

Russian Academy of Sciences, Vavilov str. 32, Moscow, 119991, GSP-1, Russia

Department of Computational Systems Biology, Vavilov Institute of General Genetics, Russian Academy of Sciences,

Gubkina str. 3, Moscow, 119991, Russia

Laboratory of Molecular Genetics Systems, Institute of Cytology and Genetics of the Siberian Division of Russian

Academy of Sciences, Lavrentiev Prospect 6, Novosibirsk, 630090, Russia

Faculty of Natural Sciences, Novosibirsk State University, Pirogova str. 2, Novosibirsk, 630090, Russia

Yandex Data Analysis School, Data Analysis Department, Moscow Institute of Physics and Technology,

Leo Tolstoy Str. 16, Moscow, 119021, Russia

State Research Institute of Genetics and Selection of Industrial Microorganisms,

1st Dorozhny proezd, 1 Moscow, 117545, Russia

Moscow Institute of Physics and Technology, Institutskii per. 9, Dolgoprudny, 141700, Moscow Region, Russia

Keywords: Motif Discovery, Transcription Factor Binding Sites, TFBS Models, Positional Weight Matrices, PWM,

ChIP-Seq, Dinucleotide Composition.

Abstract: Identification and consequent analysis of DNA sequence motifs recognized by transcription factors is an

important component in studying transcriptional regulation in higher eukaryotes. In particular, motif

discovery methods are applied to construct transcription factor binding sites (TFBSs) models. The TFBS

models are then used for prediction of putative binding sites in genomic regions of interest. The most

popular TFBS model is a positional weight matrix (PWM). The PWM is usually constructed from

nucleotide positional frequencies estimated from a gapless multiple local alignments of experimentally

identified TFBS sequences. Modern high-throughput experiments, like ChIP-Seq, provide enough data for

careful training of more advanced models having more parameters. Until now, the majority of existing tools

for TFBS prediction in ChIP-Seq data still rely on PWMs with independent positions. This is partly

explained with only marginal improvement of specificity and sensitivity of TFBS recognition for advanced

models over those based on traditional PWMs if trained on ChIP-Seq data. Here we present a novel

computational tool, diChIPMunk (http://autosome.ru/dichipmunk/), which can construct dinucleotide

PWMs accounting for neighboring nucleotide correlations in input sequences. diChIPMunk retains

advantages of the published ChIPMunk algorithm, including usage of ChIP-Seq peak shape and overall

computational efficiency. Using public ChIP-Seq data for several TFs we show that carefully trained

dinucleotide PWMs perform significantly better as compared to PWMs based on mononucleotide

frequencies.

1 INTRODUCTION

Our understanding of transcription regulation

mechanisms in higher eukaryotes is far from

complete. One of the most studied mechanisms is

driven by transcription factors (TFs) recognizing

specific sites at DNA. Modern high-throughput

methods allow detecting tens of thousands of DNA

segments that are bound by particular protein in

particular conditions. With the wet-lab supplying an

immense amount of data special computational tools

are required to detect text patterns (also called as

DNA motifs) that correspond to binding sites (BSs)

of TFs under consideration. The current stage of

experimental technologies requires motif discovery

in silico for accurate identification of TF binding

pattern from any type of experimental data. The

146

V. Kulakovskiy I., G. Levitsky V., G. Oschepkov D., E. Vorontsov I. and J. Makeev V..

Learning Advanced TFBS Models from Chip-Seq Data - diChIPMunk: Effective Construction of Dinucleotide Positional Weight Matrices.

DOI: 10.5220/0004238201460150

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2013), pages 146-150

ISBN: 978-989-8565-35-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

TFBS models produced during this step can be

consequently applied for computational prediction of

TFBSs in genomic regions of interest. The most

popular model, a positional weight matrix (PWM), is

inferred directly from a gapless local multiple

alignment of sequences of TF-bound DNA regions

(Stormo, 2000). The elements of the matrix (the

positional weights) at individual motif positions are

assumed independent. Till now many methods to

detect DNA motifs in ChIP-Seq data were published

(Thomas-Chollier et al., 2012, Suppl. table 1) but

most of them were based on simple mononucleotide

PWMs. Recent attempts to use ChIP-Seq data to

construct more complex models (e.g. TPD, Bi et al.,

2011) resulted in TFBS recognition quality that was

not significantly better comparing to simple PWMs

with independent positional weights.

There is a specific family of TFBS models with

non-independent positional weights that take into

account correlations of nucleotides occupying

neighboring positions within TFBSs. This

correlation agrees well with the role of neighboring

nucleotides in formation of DNA structure

(SantaLucia and Hicks, 2004). PWM based on

dinucleotide statistics is the most straightforward of

models that take into account interaction of

neighboring nucleotides. Previously it has been

shown that the dinucleotide PWMs perform

significantly better than classic mononucleotide

PWMs if a training set of sequences is large enough

(Gershenzon et al., 2005) and (Levitsky et al., 2007).

Moreover, experiments with protein-binding

microarrays were successfully explained by

producing TFBS models that take into account

frequencies of neighboring dinucleotides (Zhao et

al., 2012). So it appears fruitful to try a similar

approach for analysis of ChIP-Seq data, which also

provides enough information to gather a sufficiently

large training set.

As a starting point we adopted ChIPMunk

algorithm as a state of the art tool that performed

well in our own (Kulakovskiy et al., 2010) and

several independent benchmark studies (Ma et al.,

2012) and (Kuttippurathu et al., 2011). The

advantage of ChIPMunk is that it takes into account

ChIP-Seq base coverage data (the shape of reads

pileup that points to probable locations of binding

sites under ChIP-Seq peaks). In this study we

present a novel tool, diChIPMunk, which produces a

dinucleotide PWM (diPWM defining a Markov

order 1 model of TFBS motif) that incorporates

information on dependencies between nucleotides in

neighboring alignment positions. We show how the

dinucleotide PWMs can be included into the

ChIPMunk algorithm framework. We also show

results of tests demonstrating that usage of

dinucleotide PWMs significantly improves TFBS

recognition quality in ChIP-Seq data.

2 METHODS

diChIPMunk algorithm is constructed on top of a

subsampling-based greedy optimization procedure.

A random starting diPWM and a corresponding

gapless multiple local alignment are optimized on a

random subset of the initial sequence set (taking the

best diPWM hits from each sequence). The obtained

diPWM is then reoptimized on the full sequence set.

Greedy PWM optimization converges rather

quickly, the described two-step optimization

procedure allows further improvement of

convergence speed and offers a simple solution for

the classic problem of getting stuck at a local

optimum. Thus the algorithm core is almost the

same as in ChIPMunk (Kulakovskiy et al., 2010).

Neighboring positions in the diPWM are not

independent since each single nucleotide is included

in two overlapping dinucleotides. diChIPMunk

converts all sequences from mono- to dinucleotide

alphabet of 16 letters where each letter represents a

dinucleotide (AA, AC, AG, .., TT). For example,

AACC sequence is written as A-A-C-C in

nucleotides and AA-AC-CC in dinucleotides. The

tricky point here is that all sequences over ACGT-

letter alphabet constitute only a subset of all

sequence over AA-to-TT-alphabet since the second

nucleotide of the first dinucleotide must be the same

as the first nucleotide of the second dinucleotide and

so on. I.e. dinucleotide sequence AC-CG

unambiguously maps to nucleotide sequence A-C-G,

but there is no ACGT-alphabet counterpart for

dinucleotide sequence AC-AG.

2.1 KDIDIC

To search for an optimal diPWM diChIPMunk tests

each putative gapless multiple local alignment if it

contains highly conservative dinucleotide columns

(i.e. with the dinucleotide distribution far from

uniform having some highly prevalent

dinucleotides). In ChIPMunk the Kullback Discrete

Information Content was used to make a criterion

for the alignment optimality. With the sequences

written in dinucleotide alphabet a similar measure

can be used to estimate alignment quality for

dinucleotides (Kullback Dinucleotide Discrete

Information Content, KDIDIC):

LearningAdvancedTFBSModelsfromChip-SeqData-diChIPMunk:EffectiveConstructionofDinucleotidePositional

WeightMatrices

147

KDIDIC    

,

!N!

∈



AA,..TT









,











∈AA,..TT





(1)

Here



is the letter in dinucleotide alphabet; q



is the

background frequency of



; j is the position within

gapless local multiple alignment; x



is the

frequency of dinucleotide



in j-th column of the

alignment; l is the length (the width) of the

alignment and N is the total number of aligned

sequences. The alignment with the maximal

KDIDIC value is considered optimal.

This measure has a maximum for some

alignment over all possible sequences written in 16

letter dinucleotide alphabet. We are interested in a

subset of sequences that can be mapped to sequences

written in 4-letter ACGT-letter alphabet.

Equation (1) is used by diChIPMunk to provide an

easy-to-compute estimation of the deviation of

dinucleotide frequencies in a given alignment from a

given background dinucleotide distribution q



KDIDIC-optimal dinucleotide model from

diChIPMunk should perform stably better than

mononucleotide PWM. This is confirmed by our

tests presented in the Results section below.

2.2 Estimating Alignment Width

To estimate the optimal length of the aligned

segments of TFBS sequences, the alignment width,

and the corresponding diPWM length diChIPMunk

uses an heuristic procedure that locates the longest

strong motif in a given lengths range. The motif is

called strong if the first and the last columns of the

corresponding alignment have KDIDIC no less than

a predefined threshold. The threshold value was

arbitrary selected as equal to KDIDIC calculated for

a column missing 2 arbitrary dinucleotide letters and

having frequencies of all 14 remaining dinucleotides

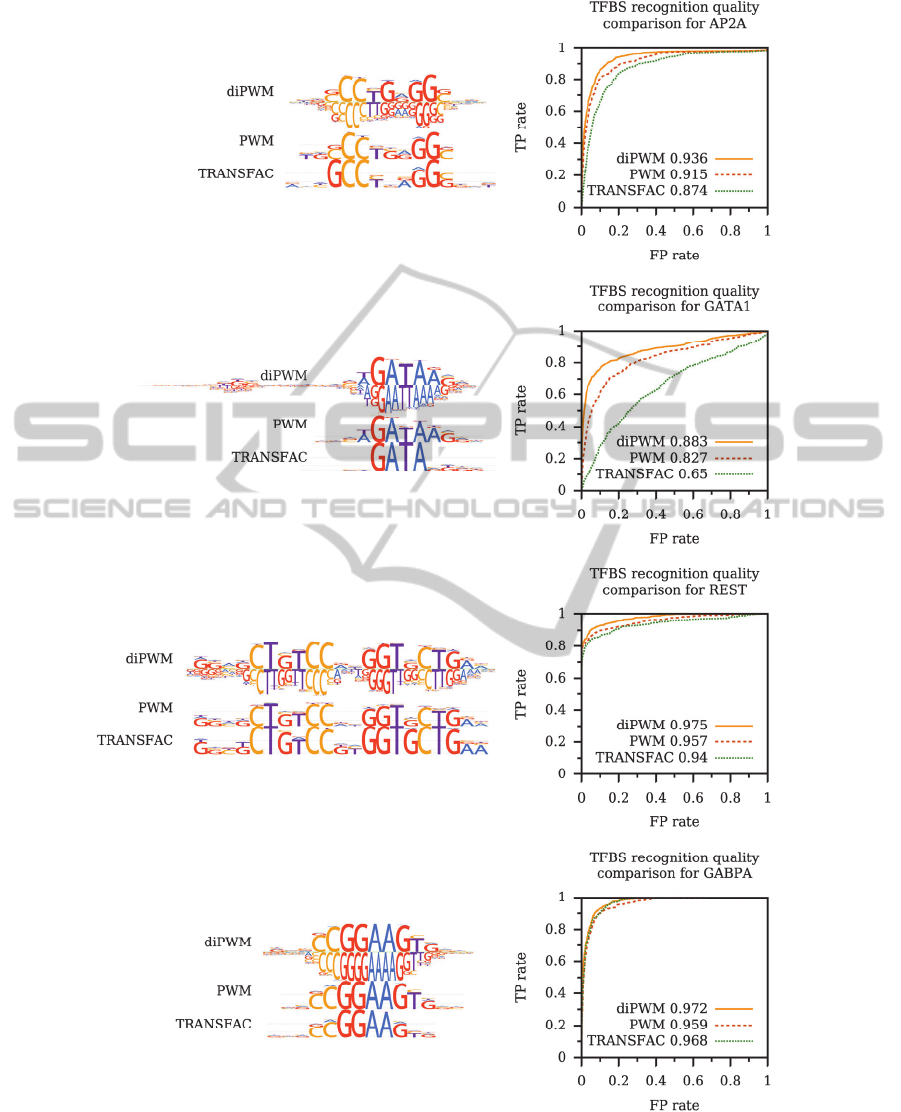

uniformly distributed. The procedure yielded motif

lengths comparable to those of mononucleotide

ChIPMunk (see examples in Figure 1).

2.3 Benchmarking Datasets

We used ChIP-Seq data from ENCODE: data for

AP2A, GATA1 TFs (Yale ChIP-Seq, base coverage

profile available) and REST, GABPA TFs

(HudsonAlpha ChIP-Seq, no base coverage data).

The datasets were taken from the HOCOMOCO

database (Kulakovskiy et al., 2012). For each dataset

the subset of top 1000 peaks was taken and sorted

according to peak height value. 500 peaks with even

ranks were used for motif discovery. 500 peaks with

odd ranks were used as an independent positive

control set consisting of sequences not involved in

construction of TFBS models. The datasets used for

TFBS model construction and independent positive

control datasets are available on the diChIPMunk

website.

2.4 Benchmarking Procedure

For each TF we compared three models. The longest

PWM from TRANSFAC (Matys et al., 2006)

database was used as a baseline for comparison. If

several models with the same width were presented

in TRANSFAC we selected the one constructed

from the largest set of binding sites. Two other

TFBS models were PWM obtained by the

ChIPMunk algorithm and diPWM obtained by

diChIPMunk algorithm. Local nucleotide

(dinucleotide) composition was used by ChIPMunk

(diChIPMunk) as a background model for motif

discovery on ChIP-Seq without base coverage data

(REST and GABP TFs). Motif lengths range was set

as 10 to 25bps. The overall benchmarking procedure

was similar to that presented in (Kulakovskiy et al.,

2012).

True Positive (TP) rate was estimated from the

number of sequences from the independent control

set having PWM hits scoring no less than the

threshold. For a full spectrum of TP rates for each

TFBS model we then estimated a set of

corresponding score thresholds. For each threshold

we computed P-value which represented the fraction

of all DNA segments that are recognized as binding

sites by the model (see Section 2.5). P-value can be

interpreted as the probability to obtain a score no

less than the threshold in a particular position of a

random DNA sequence. To estimate P-values for

mono- and diPWMs we have used an approach from

(Touzet and Varre, 2007) reimplemented in

MACRO-APE (http://autosome.ru/dimacroape/).

Thus we can estimate the False Positive (FP) rate

as the probability to find at least one PWM hit with a

score no less than the threshold in a random double-

strand DNA segment of a fixed length L:

FP  1‐



1‐

‐value











(2)

Here L is selected as the median sequence length

estimated from the independent control set, l is the

PWM length and the PWM hits are assumed to be

independent with their total number complying

compound Poisson distribution.

Having a set of TP rates and FP estimates for

BIOINFORMATICS2013-InternationalConferenceonBioinformaticsModels,MethodsandAlgorithms

148

each model we plotted a ROC curve for each TF and

computed an area-under-curve (AUC) value that

allows comparing TFBS recognition quality.

3 RESULTS AND CONCLUSIONS

Figure 1 shows ROC curves comparing diPWMs

versus mononucleotide PWMs constructed from the

same ChIP-Seq data and existing TRANSFAC

PWMs. Motif LOGO representations are given.

AUC values are presented directly on graphs.

diPWMs clearly outperformed models based on

single nucleotide PWMs for all tested datasets (see

Figure 1). However, previously it was shown that

not all TFs profit from diPWMs (Levitsky, 2007) so

a more comprehensive study of various ChIP-Seq

datasets remains highly important.

We have estimated computational performance

of diChIPMunk versus its mononucleotide precursor

using 4 threads for Core i7 CPU. Since a

dinucleotide model has more parameters to train the

default number of starting random seeds and

subsampling runs is doubled for diChIPMunk. The

computationsl performance was acceptable (1 to 8

hours to train the diPWM including length

estimation; the absolute values for mononucleotide

models of ChIPMunk are 2 to 4 times better).

Dinucleotide models derived from ChIP-Seq data

performed significantly better than their

mononucleotide analogs in four independent ChIP-

Seq datasets. Dinucleotide models require more

computational power to be carefully trained, but it is

still possible even using a desktop computer. With

the increasing availability of different types of high-

throughput data we suspect the improved models

becoming widely used. The next step is open for

novel post-processing tools that would allow model

comparison and effective genome-scale prediction of

binding sites.

ACKNOWLEDGEMENTS

This work was supported by a Dynasty Foundation

Fellowship [to I.V.K.]; Russian Foundation for

Basic Research [12-04-32082 to I.V.K.] and [12-04-

01736-a to D.O.]; Presidium of the Russian

Academy of Sciences program in Cellular and

Molecular Biology.

REFERENCES

Stormo, G. D., (2000). DNA binding sites: representation

and discovery. Bioinformatics, 16(1):16-23.

Thomas-Chollier, M., Darbo, E., Herrmann, C., Defrance,

M., Thieffry, D., van Helden, J., (2012). A complete

workflow for the analysis of full-size ChIP-seq (and

similar) data sets using peak-motifs. Nat Protoc.,

7(8):1551-68.

Bi, Y., Kim, H., Gupta, R., Davuluri, R. V., (2011). Tree-

based position weight matrix approach to model

transcription factor binding site profiles. PLoS One.,

6(9):e24210.

SantaLucia., J. Jr., Hicks, D., (2004). The thermodynamics

of DNA structural motifs. Annu Rev Biophys Biomol

Struct., 33:415-40.

Gershenzon, N. I., Stormo, G. D., Ioshikhes, I. P., (2005).

Computational technique for improvement of the

position-weight matrices for the DNA/protein binding

sites. Nucleic Acids Res., 33(7):2290-301.

Levitsky, V. G., Ignatieva, E. V., Ananko, E. A., Turnaev,

I. I., Merkulova, T. I., Kolchanov, N. A., Hodgman, T.

C. (2007). Effective transcription factor binding site

prediction using a combination of optimization, a

genetic algorithm and discriminant analysis to capture

distant interactions. BMC Bioinformatics, 8:481.

Zhao, Y., Ruan, S., Pandey, M., Stormo, G. D. (2012).

Improved models for transcription factor binding site

identification using nonindependent interactions.

Genetics, 191(3):781-90.

Kulakovskiy, I. V., Boeva, V. A., Favorov, A. V.,

Makeev, V. J. (2010). Deep and wide digging for

binding motifs in ChIP-Seq data. Bioinformatics,

26(20):2622-3.

Kulakovskiy I. V., Medvedeva Y. A., Schaefer U.,

Kasianov A. S., Vorontsov I. E., Bajic V.B., Makeev

V. K., (2012) HOCOMOCO: a comprehensive

collection of human transcription factor binding sites

models. Nucleic Acids Res, in press.

Ma, X., Kulkarni, A., Zhang, Z., Xuan, Z., Serfling, R.,

Zhang, M. Q. (2012). A highly efficient and effective

motif discovery method for ChIP-seq/ChIP-chip data

using positional information. Nucleic Acids Res.,

40(7):e50.

Kuttippurathu, L., Hsing, M., Liu, Y., Schmidt, B.,

Maskell, D. L., Lee, K., He, A., Pu, W. T., Kong, S.

W., (2011). CompleteMOTIFs: DNA motif discovery

platform for transcription factor binding experiments.

Bioinformatics, 27(5):715-7.

Matys, V., Kel-Margoulis, O. V., Fricke, E., Liebich, I.,

Land, S., Barre-Dirrie, A., Reuter, I., Chekmenev, D.,

Krull, M., Hornischer, K., Voss, N., Stegmaier, P.,

Lewicki-Potapov, B., Saxel, H., Kel, A. E.,

Wingender, E., (2006). TRANSFAC and its module

TRANSCompel: transcriptional gene regulation in

eukaryotes. Nucleic Acids Res., 34(Database

issue):D108-10.

Touzet, H., Varré, J. S. (2007). Efficient and accurate P-

value computation for Position Weight Matrices.

Algorithms Mol Biol., 11;2:15.

LearningAdvancedTFBSModelsfromChip-SeqData-diChIPMunk:EffectiveConstructionofDinucleotidePositional

WeightMatrices

149

Figure 1: Comparison of TFBS recognition quality for mono- and dinucleotide PWMs obtained from ChIP-Seq data;

TRANSFAC PWM as the baseline model. ROC curves displaying True Positive rate (TP rate) versus False Positive rate

(FP rate) are shown on the right panels with the corresponding AUC (area-under-curve) values. Motif LOGO

representations are given on the left panels. Higher curves (and higher AUC values) correspond to models with better

recognition quality (i.e. higher TP rate for a fixed FP rate). It is notable, that diChIPMunk versus ChIPMunk comparison

shows AUC improvement comparable to that of ChIPMunk versus TRANSFAC.

BIOINFORMATICS2013-InternationalConferenceonBioinformaticsModels,MethodsandAlgorithms

150
