A New Approach for the Glottis Segmentation using Snakes

G. Andrade Miranda, N. Saenz-Lech

on, V. Osma-Ruiz and J. I. Godino-Llorente

Dep. de Ingenier

ıa de Circuitos y Sistemas, Universidad Polit

ecnica de Madrid,

Ctra. de Valencia km. 7, 28031 Madrid, Spain

Keywords:

Snakes, Gradient Vector Flow, Glottis Segmentation, Anisotropic Filter.

Abstract:

The present work describes a new methodology for the automatic detection of the glottal space from laryngeal

images based on active contour models (snakes). In order to obtain an appropriate image for the use of

snakes based techniques, the proposed algorithm combines a pre-processing stage including some traditional

techniques (thresholding and median ﬁlter) with more sophisticated ones such as anisotropic ﬁltering. The

value selected for the thresholding was ﬁxed to the 85% of the maximum peak of the image histogram, and

the anisotropic ﬁlter permits to distinguish two intensity levels, one corresponding to the background and the

other one to the foreground (glottis). The initialization carried out is based on the magnitude obtained using

the Gradient Vector Flow ﬁeld, ensuring an automatic process for the selection of the initial contour. The

performance of the algorithm is tested using the Pratt coefﬁcient and compared against a manual segmentation.

The results obtained suggest that this method provided results comparable with other techniques such as the

proposed in (Osma-Ruiz et al., 2008).

1 INTRODUCTION

Currently, there are many works concerning the prob-

lem of the automatic detection of the glottal space as

a prior step for the analysis of different phonation pa-

rameters. Roughly speaking, these works use two dif-

ferent approaches for the segmentation: region, and

model based approaches. In the ﬁrst one we ﬁnd

methods based on thresholded histograms and region

growing ((Mehta et al., 2011), (Yan et al., 2006)).

Within the model-based approaches are the ac-

tive contours, also known as snakes (Marendic et al.,

2001). The snakes are thin elastic bands which are

coupled appropriately to non-rigid and amorphous

contours. To do that, the snake is required to be placed

near the desired object (initialization), and then it

is guided by external forces of the image, and once

there, any additional development will not produce

any change (Acton and Ray, 2009).

The snake model is controlled by two kinds of

energies: external and internal. The external energy

ext

is generated by processing the image I(x, y), pro-

ducing a force that is used to drive the snake towards

features of interest. Whereas the internal energy E

int

serves to impose a piecewise smoothness constraint

(Kass et al., 1988). For simplicity the α(s) and β(s)

parameters weights are assumed to be uniform and

equal; α(s) = α = β(s) = β. The total energy of the

snake is obtained by the sum of the external and inter-

nal energies:

total

= E

ext

+ E

int

(1)

For the evolution process, the equation (1) must be

minimized to ﬁnd the minimum. In our case we use

the gradient descent rule to reduce the computational

load.

The rest of the work is organized as follows. Sec-

tion 2 develops the methodology implemented for the

glottis segmentation using snakes; pre-processing, ﬁl-

tering and external forces. Section 3, evaluates the

results obtained using the new approach, and section

4 presents some conclusions.

2 METHODOLOGY

The proposed method allows us to individualize the

glottis in laryngeal images following the scheme pre-

sented in Figure 1. The function of each block is de-

tailed next:

2.1 Pre-processing

Before we begin the pre-processing, it is necessary to

convert the original image (RGB) to a grey scale one

318

Andrade Miranda G., Saenz-Lechón N., Osma-Ruiz V. and I. Godino-Llorente J..

A New Approach for the Glottis Segmentation using Snakes.

DOI: 10.5220/0004238503180322

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing (BIOSIGNALS-2013), pages 318-322

ISBN: 978-989-8565-36-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

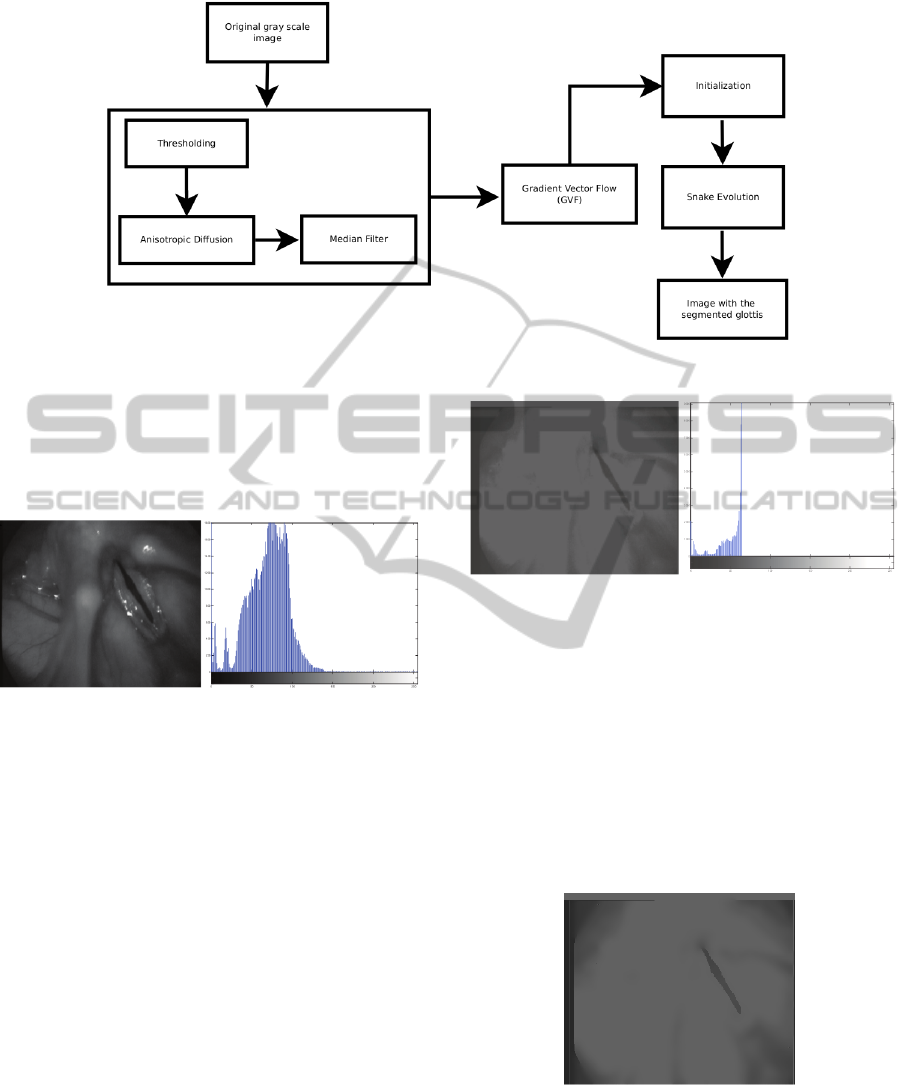

Figure 1: Diagram used for the glottis detection.

through a transformation according to the model YIQ

(Russ, 2002). After such conversion, the luminance Y,

is used to generate the new image in grey scale (see

Figure 2). The goal of the pre-processing is to soften

Figure 2: Laryngeal image in grey scale and its histogram.

the image and to highlight the pixels that correspond

to the glottis; in this way we can avoid the snake

to adjust to non desired characteristics. The pre-

processing block is formed by three stages: thresh-

olding, anisotropic diffusion and median ﬁlter.

The purpose of the thresholding stage is to reduce

the contrasts obtained in the images to facilitate the

job of the anisotropic ﬁlter. Based on the knowledge

that the glottis is always darker than the background

surrounding it, we can reassign the value of the pixels

that surpass a certain amount of intensity. The se-

lected threshold belongs to the 85% of the maximum

peak at the left. This threshold was chosen to reduce

as many dark pixels as possible not belonging to the

glottis, and to even out the intensity in the image’s

background. Figure 3 shows the image obtained with

its respective histogram.

Even after the thresholding step, some dark pixels

continue in the surrounding of the glottis (see Fig-

ure 3), which would cause that the snake converges

in wrong local minima. Therefore an extra smooth-

ing step is necessary to even out the grey tones in the

Figure 3: Thresholding and histogram of the Figure 2.

background and distinguish it from the glottis.

The objective of the anisotropic diffusion (Perona

and Malik, 1990) is to soften the regions delimited by

edges without affecting them, which permits us to dis-

tinguish the glottis from the background of the image.

Based on (Guti

errez-Arriola et al., 2010) we can get

the desired effect in all the pixels of the obtained im-

age during the thresholding stage. Figure 4 shows the

results when we apply the anisotropic diffusion after

the thresholding.

Figure 4: Anisotropic diffusion output.

A median ﬁlter replaces the grey value of a point

for a median of the grey levels of its vicinity. The

main goal of the median ﬁlter is to force the points

isolated with intensity values that are very different

from their neighbors (which in image processing is

ANewApproachfortheGlottisSegmentationusingSnakes

319

know as salt and pepper noise) to have values closer

to them. Figure 5 shows an example of an image

in which a salt and pepper noise appears after the

anisotropic diffusion and its respective output after

the median ﬁlter.

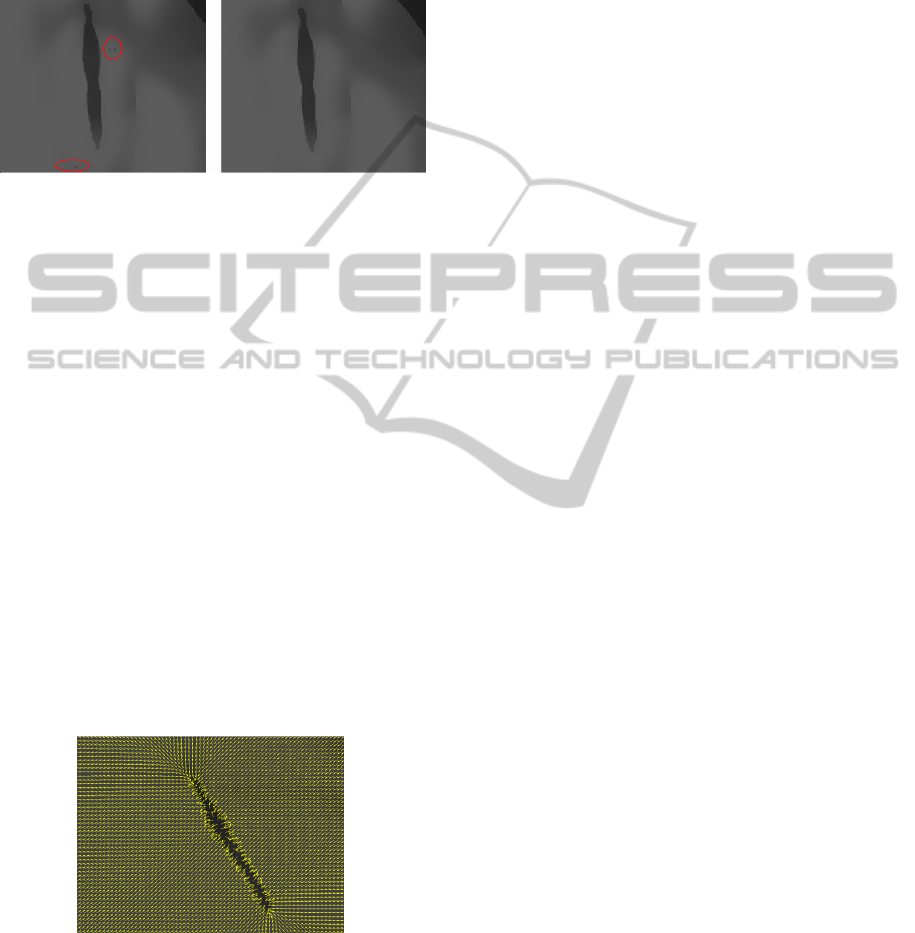

Figure 5: Anisotropic diffusion output with salt and pepper

noise and median ﬁlter output.

The pre-processing reduces drastically the number

and size of the local minima that don’t belong to the

glottis. Therefore, the problem is reduced only to seek

the local minima with the biggest area to initialize the

snake.

2.2 Gradient Vector Flow (GVF)

The external force GVF (Xu and Prince, 1998) is a

variable of the force proposed in (Kass et al., 1988).

The main idea of this force is to spread the vectors

generated by (Kass et al., 1988) to its neighbors, and

the neighbors at the same time to theirs. This process

is done interactively along each image pixel maintain-

ing the direction of the neighbor that generated it, and

reducing its module, as it gets farther away. The GVF

increases the range of the snake’s movement in the

image. The vector’s ﬁelds that are generated through

the GVF force, are used from the initialization pro-

cess and evolution of the snake (see Figure 6).

Figure 6: Vector ﬁeld generated by GVF forces.

2.3 Initialization

The initialization is based on focusing on the inverse

problem. In other words, what we pretend to do is to

estimate the external energy from the external force

GVF. The module of the vectors of the external force

indicates to us how close we are to the salient feature

of an image. Nevertheless, the module of the vec-

tor is not sufﬁcient if we want to ﬁnd the exact place

where the glottis is located, but it is very useful when

it comes to the initiation of the snake. Selecting a

value of the module depends on how close from the

glottis we want to initiate the snake. The experimen-

tation let us conclude that to avoid the noise produced

after the pre-processing stage, the best approach is an

initialization near the glottis. The procedure is based

on generating a mask with a value of 1 in those pix-

els that are over a threshold (0.09) and zero for the

remaining ones. Thereafter, we extract the borders of

the new obtained images, select the border with a big-

ger area, and ﬁnally we extract the coordinates corre-

sponding to this border to place the border over the

laryngeal image. Figure 7 summarizes the procedure

followed.

2.4 Snake Evolution

Once we determined the initial contour, we proceed

to the evolution of the snake using the lines of the

GVF ﬁeld. The number of iterations necessary for the

snake to reach the glottis is about 50; therefore this

value was used as the ending point of the iteration.

The Figure 8 shows the ﬁnal result of the segmenta-

tion.

3 EXPERIMENTAL RESULTS

The methodology described in the previous section

has been tested with 110 images, taken from 15

videos that were recorded by the ENT service of

the Gregorio Mara

non Hospital in Madrid using a

videostroboscopic equipment. All the images used

showed the vocal folds open.

To verify the validity of our system, we did two

different trials using the same database. In the ﬁrst

one we compared the algorithm proposed against a

manual segmentation. Meanwhile, in the second one

we compare with other automatic technique based

on the watershed transform (Osma-Ruiz et al., 2008)

against the same manual segmentation. Finally, both

outcomes are compared, and the feasibility of the

method proposed is discussed. The algorithm used

to compare the segmentations is the Pratt algorithm.

This algorithm calculates a ﬁgure of merit that mea-

sures the similarity between boundaries (Abdou and

Pratt, 1979). The Pratt algorithm gives values be-

tween 0 and 1, where 1 indicates that the two edges

are equal and 0 that there is no similarity at all.

BIOSIGNALS2013-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

320

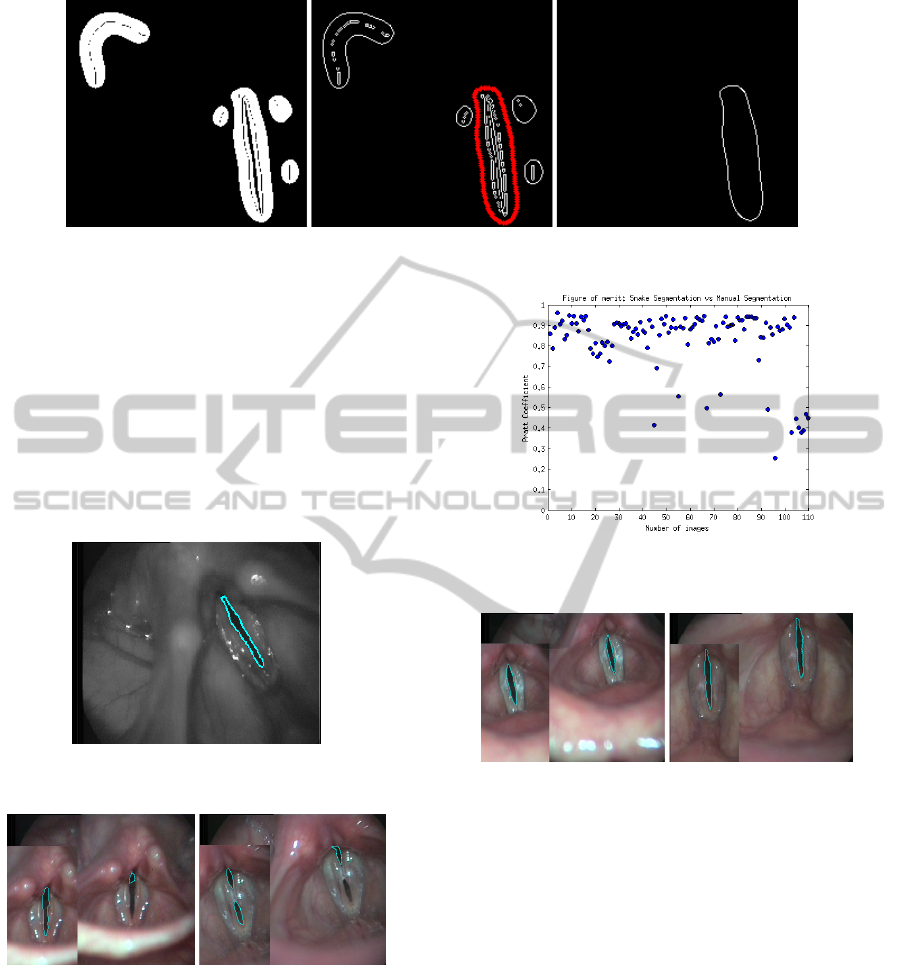

Figure 7: Initialization process.

While testing of the proposed method with the real

data, we obtained 11 images with values lower than

0.5. Most of the problems that leaded to such segmen-

tation errors were originated in the pre-processing

stage. Figure 9 shows two images wrongly seg-

mented. In the left part of each image we can observe

the manual segmentation. In both images the snake

only segmented a part of the glottis, this happens be-

cause the snake can not distinguish correctly between

the glottis and the background.

Figure 8: Final result of the segmentation.

Figure 9: Errors in the glottis detection.

The values obtained are summarized in Figure 10,

through a dispersion graphic that showed the differ-

ent values of the Pratt coefﬁcient obtained for the 110

images. The images with the highest values of the

coefﬁcient are showed in Figure 11, where we can

see that the difference between the manual and snake

segmentations are minimal.

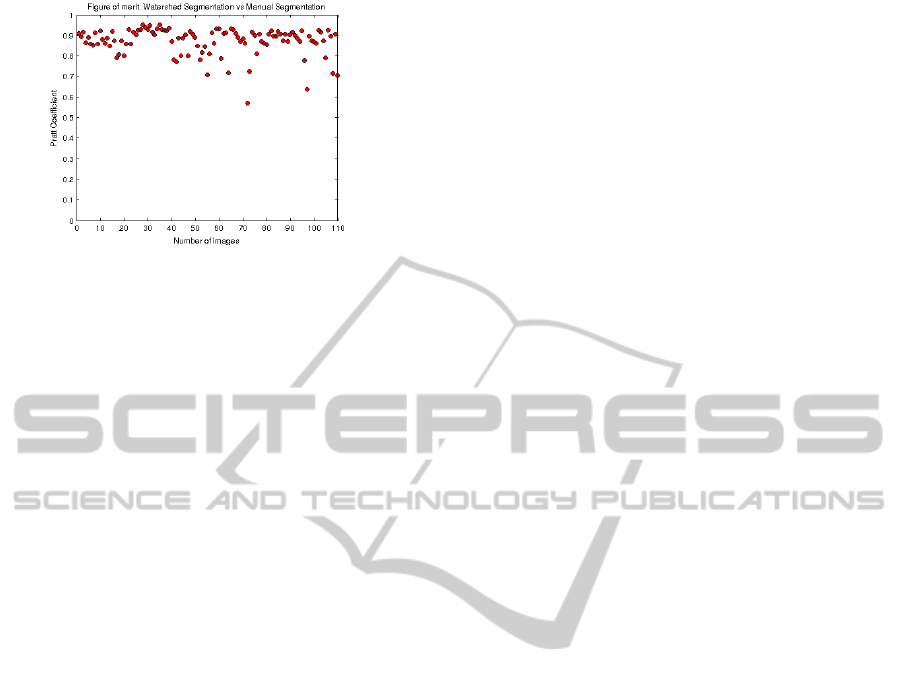

After testing the method based on the watershed

transform, we can observe that all the Pratt coefﬁ-

cients are higher than 0.5 (see Figure 12). Intuitively

Figure 10: Summary of the Pratt coefﬁcient obtained using

method proposed.

Figure 11: Images with the highest Pratt coefﬁcient.

we would think that the aforementioned method is

better than the proposed one. However this method

needs to adjust the merging cost threshold in 25%

of the images, whereas ours uses the same parame-

ters for all the images. Additionally, the watershed

method needs a second classiﬁcation stage to detect

the glottis among the rest of the objects present in the

image after the merging process. Our method avoids

the use of a classiﬁer due its pre-processing step, in

which the most of the objects have been deleted or re-

duced in size compared with the glottis. Therefore,

there is no need that the system will know the shape

of the glottis; identifying the object with the biggest

area is enough for a successful process.

ANewApproachfortheGlottisSegmentationusingSnakes

321

Figure 12: Summary of the Pratt coefﬁcient obtained using

method based on watershed transform (Osma-Ruiz et al.,

2008).

4 CONCLUSIONS

The present work proposes an alternative to the ex-

istent methods for the glottis segmentation in laryn-

geal images. Despite of the poor illumination in most

images, this methodology provided good results in

the majority of the tested images. Only 11 images

had Pratt coefﬁcients lower than 0.5. The errors in

the segmentation process are attributable to the pre-

processing stage that causes the glottis to lose de-

tails and to be confused with the background. This

in turn complicates the work of the snake that only

segmented part of the glottis which was not affected.

To resolve this inconvenience is necessary to ad-

just the parameters involved in the pre-processing for

each image that presented errors in the segmentation.

Other inconvenience presented in the method pro-

posed, its the hard dependence of the pre-processing.

All of the subsequent stages are closely related with

it. Therefore a wrong setting in the parameters in the

ﬁrst stage could affect the remaining.

One of the most important achievements reached

is the fact that we do not need to incur in heuristic cri-

teria as the mentioned in the previous work such as:

“the glottis is the darkest object in the image” or “the

glottis is always centered in the image”. We avoid

them, based on the fact that the glottis is always sur-

rounded by grey tones. Taking this account, we can

even out the pixels that belong to the background and

highlight the pixels that belong to the glottis. Lastly,

but not least important is the fact that the snake can be

used for tracking, whereupon the algorithm proposed

could be extended to real time videos.

The solution proposed is very promising even

more if we consider that can be extended to tracking

of the vocal fold in real time; however this algorithm

need to be tested in more different conditions in order

to ensure its generalization capabilities.

ACKNOWLEDGEMENTS

This research work has been ﬁnanced by the Span-

ish government through the project grant TEC2009-

14123-C04-02.

The authors would also thank the ENT service of the

Gregorio Mara

non Hospital for the acquisition of the

images.

REFERENCES

Abdou, I. E. and Pratt, W. K. (1979). Quantitative design

and evaluation of enhancement/thresholding edge de-

tectors. Proceedings of The IEEE, 67:753–763.

Acton, S. T. and Ray, N. (2009). Biomedical image anal-

ysis: Segmentation. Synthesis Lectures on Image,

Video, and Multimedia Processing, 4(1):1–108.

Guti

errez-Arriola, J., Osma-Ruiz, V., Godino-Llorente, J.,

aenz-Lech

on, N., Fraile, R., and no, J. A.-L. (2010).

Preprocesado avanzado de im

agenes lar

ıngeas para

mejorar la segmentaci

on del

Area glotal. In 1er Work-

shop de Tecnolog

ıas Multibiom

etricas para la iden-

tiﬁcaci

on de Personas, Las Palmas de Gran Canaria,

Espa

na.

Kass, M., Witkin, A., and Terzopoulos, D. (1988). Snakes:

Active contour models. INTERNATIONAL JOURNAL

OF COMPUTER VISION, 1(4):321–331.

Marendic, B., Galatsanos, N., and Bless, D. (2001). New

active contour algorithm for tracking vibrating vocal

folds. In Image Processing, 2001. Proceedings. 2001

International Conference on, volume 1, pages 397 –

400 vol.1.

Mehta, D. D., Deliyski, D. D., Quatieri, T. F., and Hill-

man, R. E. (2011). Automated measurement of vocal

fold vibratory asymmetry from high-speed videoen-

doscopy recordings. Speech, Language and Hearing

Research, 54(1):47 – 54.

Osma-Ruiz, V., Godino-Llorente, J. I., Senz-Lechn, N., and

Fraile, R. (2008). Segmentation of the glottal space

from laryngeal images using the watershed trans-

form. Computerized Medical Imaging and Graphics,

32(3):193 – 201.

Perona, P. and Malik, J. (1990). Scale-space and edge detec-

tion using anisotropic diffusion. IEEE Trans. Pattern

Anal. Mach. Intell., 12(7):629–639.

Russ, J. C. (2002). Image Processing Handbook, Fourth

Edition. CRC Press, Inc., Boca Raton, FL, USA, 4th

edition.

Xu, C. and Prince, J. L. (1998). Snakes, shapes, and gradi-

ent vector ﬂow. IEEE TRANSACTIONS ON IMAGE

PROCESSING, 7(3):359–369.

Yan, Y., Chen, X., and Bless, D. (2006). Automatic trac-

ing of vocal-fold motion from high-speed digital im-

ages. Biomedical Engineering, IEEE Transactions on,

53(7):1394 –1400.

BIOSIGNALS2013-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

322
