Hadoop-RINS

A Hadoop Accelerated Pipeline for Rapid Nonhuman Sequence Identification

Li Jiangyu

1,2

, Liu Yang

, Wang Xiaolei

, Mao Yiqing

, Wang Yumin

and Zhao Dongsheng

Institute of Health Service and Medical Information, Academy of Military Medical Sciences, Taiping Road, Beijing, China

Institute of Biotechnology, Academy of Military Medical Sciences, East Avenue, Beijing, China

Keywords: High-Throughput Sequencing, Metagenomics, RINS, Hadoop, MapReduce.

Abstract: Sequencing data increase rapidly in recent years with the development of high-throughput sequencing

technology. Using parallel computing to accelerate the computation is an important way to process the large

volume of sequence data. RINS is a pipeline used to identify nonhuman sequences in deep sequencing

datasets. It uses user-provided microbial reference genomes to reduce the number of reads to be processed

and improve the processing speed. But all of its steps run serially. As a result, the processing speed of RINS

slows down sharply as the sequencing data and reference genomes increase. In this article, we report a

pipeline that processes sequencing data parallel through Hadoop. By comparing the runtime using same

dataset, Hadoop-RINS is proved to be significantly faster than RINS with the same computation result.

1 INTRODUCTION

With the development of high throughput

sequencing technology, researches that focus on

sequencing data processing keep on increasing. As a

result, researches based on high-throughput

sequencing technology have advanced greatly in

recent years, such as Metagenomics and RNA-Seq.

Many human diseases are caused by pathogens,

which are difficult to detect with traditional

methods. High-throughput sequencing presents a

possible way to identify these pathogens (Kostic et

al., 2011). So researches on applications of pathogen

identification with high-throughput sequencing have

become a hot spot in sequencing data processing. At

present, a main topic in the application research is to

design pipelines for high-throughput sequencing

data processing. The main function of the pipelines

is to filter unrelated sequences and analyze

remaining reads.

There are two methods in the design of these

pipelines. The first method filters the sequencing

data by aligning them to different reference genomes

and maps the remaining reads to find the pathogens

in the sample. The second method assumes the

species of pathogens in the sample with prior

knowledge and processes the sequencing data by

aligning them to the genomes of assumed species,

and then uses the result to verify the assumption.

PathSeq (Kostic et al., 2011) is an example of the

first method. It aligns the sequencing data to human

genome and filters reads that are similar, and then

classifies the nonhuman reads by aligning them to

microbial genome database. PathSeq is very suitable

to discover unknown microbe. The second method is

used in RINS (Bhaduri et al., 2012). RINS aligns the

sequencing data to assumed reference genomes

which are based on prior knowledge, and filters out

the reads with similarity lower than given threshold,

then maps the remaining reads to human genome

and collects the reads unmapped for assembly,

finally extends the contigs using original sequencing

data and aligns contigs to the assumed reference

genomes to verify the assumption. RINS is suitable

to identify samples with prior knowledge of species.

Utilizing prior knowledge, we can reduce the

data scale and further reduce data processing time.

In cases when prior knowledge exists, RINS is

generally more effective than PathSeq. But RINS

follows an assume-verify diagram which means it

has to assume several times before the assumption

proves to be right. What’s more, the runtime of

RINS increases quickly with the increasing volume

of sequencing data. The pipeline of RINS is serial.

We can improve the processing speed of RINS by

parallelizing the pipeline. MapReduce is a suitable

model for our parallelization work.

296

Jiangyu L., Yang L., Xiaolei W., Yiqing M., Yumin W. and Dongsheng Z..

Hadoop-RINS - A Hadoop Accelerated Pipeline for Rapid Nonhuman Sequence Identiﬁcation.

DOI: 10.5220/0004239602960299

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2013), pages 296-299

ISBN: 978-989-8565-35-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 MAPREDUCE MODEL

MapReduce is the most popular programming model

for processing large data sets (Lei, 2011). It is

typically used to do distributed computing on

clusters of computers (Stephen, 2008). In the

MapReduce model, programs are divided into map

phase and reduce phase. During the map phase, data

are partitioned into several blocks and are processed

separately. In the reduce phase, data are collected.

There are several implementations of MapReduce

model. A popular implementation is Apache

Hadoop. Hadoop is an open-source software

framework that supports data-intensive distributed

applications. It can process large scale data

distributedly. As a result, it is the preferred choice

for many cloud computing applications.

Hadoop is widely used in high-throughput

sequencing data processing. It is used in PathSeq to

distribute sequencing data and process them in

parallel. Hadoop-BLAST (Nachankar and Arvind,

2011) uses Hadoop to efficiently distribute tasks and

reliably transmit data in sequence alignment process.

Cloud-MAQ (Talukder et al., 2010) makes MAQ

parallel and scalable through Hadoop and enhances

the performance of MAQ significantly.

3 METHODS

3.1 Workflow of RINS and Bottleneck

Analysis

The workflow of RINS is shown in Figure 1. The

first step is to check the sequencing data format and

divide the reads into k-mers. For FASTQ data, we

need to transform it to FASTA format first. The

second step is to map the k-mers to reference

genomes by running BLAT (Kent, 2002) and extract

reads with similarity scores higher than given

threshold. The third step is to compress the reads by

filtering the duplicate reads. The fourth step is to run

Bowtie to align reads to human genome and extract

unmapped reads. The fifth step is to assemble

contigs with Trinity (Grabherr et al., 2011). The last

step runs BLAST (Altschul et al., 1990) to map

nonhuman contigs to reference genomes and verify

the assumption. In the workflow only step 5 can't

run in parallel. We first ran RINS on our platform

and analysed the bottleneck using the runtime of

each step.

Server: eight servers running CentOS 6.2, each

with a quad-core 2.299 GHz AMD CPU and 4 GB

RAM.

Figure 1: Workflow of RINS.

Datasets: Human genome version hg19 which is

downloaded from UCSC. Virus genomes that were

downloaded from NCBI in Oct 2011 are used as

reference genomes. We use SRR073726 and

SRR073732 as the test data. SRR073726 is also used

in the original literature of RINS as test data. The

two datasets are paired-end reads and can be

downloaded from NCBI.

To eliminate the possible impact of differences

among the eight servers, we randomly selected four

servers to process the two datasets by RINS and

performed four tests. The runtime of each step is

listed in Table1 and Table 2.

Table 1: Runtime of each step in RINS (SRR073726).

Step

Runtime (sec)

test 1 test 2 test 3 test 4 avg.

step 1 1177 1169 1256 1228 1208

step 2 4602 4541 4634 4682 4615

step 3 204 134 164 179 170

step 4 179 158 193 225 189

step 5 569 648 620 585 606

step 6 4 5 4 4 4

total 6745 6655 6871 6903 6794

Table 2: Runtime of each step in RINS (SRR073732).

Step

Runtime (sec)

test 1 test 2 test 3 test 4 avg.

step 1 1140 1188 1244 1272 1211

step 2 6608 6707 6803 6826 6736

step 3 119 139 125 132 129

step 4 103 121 111 120 114

step 5 598 604 602 593 599

step 6 4 4 4 5 4

total 8572 8762 8889 8948 8793

In above result the most time-consuming steps of

RINS are step 2, step 1 and step 5, which account for

nearly 95% of the total runtime. These three steps

are the bottleneck of RINS. By reducing the runtime

of them we can improve the processing speed.

Hadoop-RINS-AHadoopAcceleratedPipelineforRapidNonhumanSequenceIdentification

297

3.2 Parallelization of RINS

After analysing the steps in RINS, we find that in the

first step data file is read from top to bottom in one

pass during the process of format transformation,

there is no need to parallelize the process. In step 5,

the original sequencing data and the entire filtered

nonhuman reads are needed to assemble contigs, it's

difficult to parallelize the process, but alignment in

this step can run in parallel. Inputs of the other steps

have low data coupling, so these steps are suitable

for parallelization. We use Hadoop to parallelize

these steps. The paralleled pipeline is called

Hadoop-RINS for short.

3.3 Pipeline of Hadoop-RINS

Pipeline of Hadoop-RINS is depicted in Figure 2. It

is implemented through the following steps.

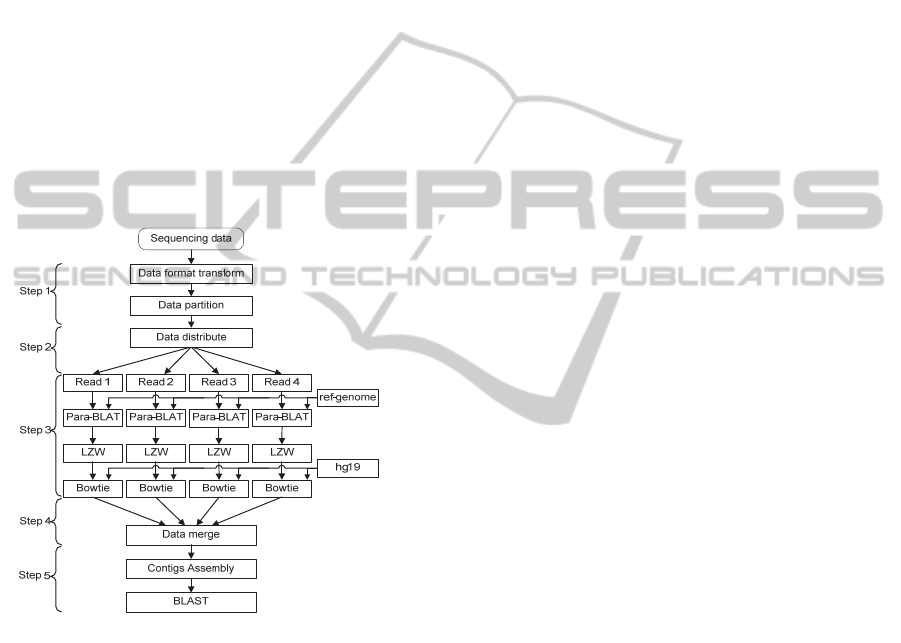

Figure 2: Pipeline of Hadoop-RINS.

1) Data Preprocessing: We write the data format

transformation and partition program with Perl. The

program runs on the master node of the Hadoop

cluster. We need to check the format of sequencing

data at first. The FASTA file is partitioned directly,

and the FASTQ file is partitioned during the data

format transformation. For paired-end data, the

mated two files should be cut at the same line to

avoid mismatch between the paired reads.

2) Data Distribution: In this step, all the partitioned

sequencing data files are distributed to the Hadoop

slave nodes. The number of task nodes is equal to

the partition number of sequencing data.

3) Map Phase: We use a script to execute the work

of map phase serially. The script runs on every slave

node of Hadoop. After the assigned data file is

copied to the node, the script divides the sequencing

data into k-mers. Then BLAT is used to map each k-

mers to the reference genomes. As BLAT is time-

consuming, we developed a parallel BLAT to make

the most of CPU. Then, we extract reads with higher

relevance score than the given threshold and use the

LZW(

Welch, 1984) algorithm to filter the duplicate

reads in the extracted data. At last, we align these

filtered reads to hg19 by Bowtie and reserve reads

that are not mapped.

4) Reduce Phase: We collect the results generated

in map phase to Hadoop master node, and merge

these nonhuman reads into a single file.

5) Final Result: A script is written to finish the

work in step 5 and step 6 of RINS. The merged data

file is assembled by Trinity, and then the contig file

is copied to the computing nodes. All the sequencing

data partitions distributed in data distribution are

aligned to these contigs by BLAT. We use the

alignment result to extend the contigs. Finally, we

merge all the alignment results from the computing

nodes into one file and run BLAST with nonhuman

reference genomes to find the origin of these contigs.

4 RESULTS

In order to evaluate the performance of Hadoop-

RINS, we designed four groups of experiments to

measure the runtime of Hadoop-RINS and RINS.

SRR073726 and SRR073732 were test data. The

first group ran RINS on single node. The second

group ran Hadoop-RINS on two nodes. The two

nodes were selected randomly from the cluster, and

one node was configured as master node and slave

node, the other was slave node. The third group ran

Hadoop-RINS on four nodes. We randomly select

four nodes in each test, and one node acted as master

node and slave node, the other three nodes were

slave nodes. The forth group ran Hadoop-RINS on

all eight nodes. One node was configured as master

node and slave node, and the other nodes were slave

node. For each dataset, test repeated four times.

Table 3 and Table 4 present the average runtime

for the two datasets respectively. Hadoop-RINS

achieves significant speedup compared with RINS.

For SRR073726 (SRR073732), Hadoop-RINS

running on 2-node cluster is about 3.58x (3.54x)

times faster than RINS, while processing speed on 4-

node cluster is about 4.88x (5.36x) times faster than

RINS and processing speed on 8-node cluster is

about 5.75x (6.34x) times faster than RINS.

BIOINFORMATICS2013-InternationalConferenceonBioinformaticsModels,MethodsandAlgorithms

298

Table 3: Runtime of four tests (SRR073726).

Test

Number

Runtime (sec)

RINS on

single node

2-node

cluster

4-node

cluster

8-node

cluster

test 1 6745 1889 1338 1152

test 2 6655 2059 1488 1222

test 3 6871 1856 1437 1134

test 4 6903 1797 1308 1215

avg. 6794 1900 1393 1181

Table 4: Runtime of four tests (SRR073732).

Test

Number

Runtime (sec)

RINS on

single node

2-node

cluster

4-node

cluster

8-node

cluster

test 1 8572 2571 1624 1392

test 2 8762 2563 1722 1429

test 3 8889 2409 1638 1317

test 4 8948 2381 1584 1405

avg. 8793 2481 1642 1386

Table 5 shows the runtime of each step in

Hadoop-RINS. The runtime of step 3 decreases

significantly as the number of computing nodes

increases. Due to partly paralleled, the runtime of

step 5 also decreases as the number of nodes

increases. While the runtime of file format

transformation and file segmentation changes little.

The runtime in file distribution increases with the

number of computing nodes. The runtime of step 4

seems inconsistent with the increase of nodes.

Table 5: Average runtime of each step in Hadoop-RINS

(SRR073726/SRR073732).

Step

Runtime (sec)

2 nodes 4 nodes 8 nodes

step 1 224/327 222/345 307/354

step 2 59/80 87/151 116/137

step 3 1368/1691 753/932 441/510

step 4 3/108 180/42 178/264

step 5 247/274 151/171 139/121

total 1901/2479 1393/1641 1181/1386

BLAT is the main bottleneck in RINS. We have

tried to run BLAT with divided data and the runtime

of Hadoop-RINS reduces greatly. From the runtime

of multi nodes cluster, we can see the speedup does

not increase remarkably with node number. That's

because the runtime of step 1 and step 2 does not

decrease with the increase of nodes. So the runtime

proportion increases with the number of nodes. For

the 8-node cluster, it can amount to 35.8%.

The inconsistence of step 4 is caused by the

differences of computing nodes. For some reason the

processing speed of one node is slower than others,

then Hadoop needs to wait until all nodes finish their

work, which increases the runtime of step 4. So in a

heterogeneous cluster, the runtime may be

influenced by the slowest node. Heterogeneous

environment is not recommended for Hadoop-RINS.

Compared with RINS, Hadoop-RINS running on

2-node cluster, 4-node cluster and 8-node cluster get

the same contigs as those of RINS. So Hadoop-

RINS has the same accuracy with RINS.

5 DISCUSSION

Processing speed is an important indicator in

pathogen detection. In this article, we analyze the

pipeline and runtime of RINS to find the bottleneck,

and then we use Hadoop to realize a parallel pipeline

to finish the main steps of RINS. In the future, we

will implement a sub-pipeline to analyze the filtered

data which can’t be mapped to reference genomes.

REFERENCES

Altschul, S. F. et al., 1990. Basic local alignment search

tool. J Molecular Biology. 215(3):403-410.

Bhaduri, A. et al., 2012. Rapid Identification of

Nonhuman Sequences in High Throughput Sequenc-

ing Data Set. Bioinformatics. 28(8):1174-1175.

Grabherr, M. G. et al., 2011. Full-length transcriptome

assembly from RNA-seq data without a reference

genome. Nature Biotechnology. 29(7):644-652.

Kent, W. J., 2002. BLAT--the BLAST-like alignment tool.

Genome research. 12(4): 656-664.

Kostic, A. D. et al., 2011. PathSeq: software to identify or

discover microbes by deep sequencing of human

tissue. Nature Biotechnology. 29(5):393-396.

Lei W. Y., 2011. Cloud-computing: the strategy and

practice of enterprise information construction.

http://blog.sina.com.cn/s/blog_6c5cffe30100p833.html.

Nachankar, V., Arvind, D., 2011. Hadoop-BLAST.

http://salsahpc.indiana.edu/csci-b649-2011/collection/

project1/report/group11_proj1_report.pdf.

Stephen S., 2008. Google spotlights data center inner

workings. http://news.cnet.com/8301-10784_3-99551

84-7.html.

Talukder, A. K. et al., 2010. Cloud-MAQ: the cloud-

enabled scalable whole genome reference Assembly

application. WOCN 2010.

Welch, T. A., 1984. A technique for high-performance

data compression. Computer. 17: 8-19.

Hadoop-RINS-AHadoopAcceleratedPipelineforRapidNonhumanSequenceIdentification

299
