TICE-Healthy

A Dynamic Extensible Personal Health Record

Pedro Catré

, Alcides Marques

, João Quintas

and Jorge Dias

Instituto Pedro Nunes, Coimbra, Portugal

University of Coimbra, Coimbra, Portugal

Keywords: Personal Health Record, Informal Healthcare, e-Health, Databases.

Abstract: This paper presents a system that enables the configuration of a Personal Health Record supporting informal

care services in a way that is extremely flexible and simple and allows the development of dynamic

extensions even in a production environment. With this system powering the Personal Health Record it is

possible to modify the repository’s data structure, clinical data viewer and business logic, adapting the

system to new requirements in a fast and easy manner without the need for redeploy.

1 INTRODUCTION

TICE-Healthy is a research and development project

supported by a consortium of 24 companies and

R&D institutions that aims to design and create

innovative e-health products. The first line of action

of this initiative is to create an information and

interaction channel for selling products and health

services, which will provide a Personal Health

Record (PHR) – a repository of clinical information

of an individual whose maintenance and updating

can be performed by himself or by his caregivers.

This PHR will have to satisfy the needs of

several service providers with evolving

requirements. Even though typical clinical data is

very standardized, this repository will also store data

for informal care services which are not uniform.

Moreover, there is a great overhead associated with

the change in requirements which usually force not

only revisions to the data access and business layers,

but also to the interface. The code produced in these

types of scenarios is repetitive; its development is

slow and potentially subject to many mistakes and

changes would not be directly applied in a

production environment as would be desirable.

To satisfy the requirements of the platform’s

healthcare management system we implemented a

module called TICE-GenericEntity that administers

entities and generates components to visualize and

manipulate entity records. Additionally, it allows the

creation from scratch and dynamic modification of

entire web applications for data visualization and

manipulation, with menus containing web

components, and it generates a REpresentational

State Transfer (REST) Create, Read, Update and

Delete (CRUD) Application Programming Interface

(API) for the clinical entities that are defined.

This paper presents a system that enables the

configuration of a PHR supporting informal care

services in a way that is flexible and simple and

allows the development of extensions even in a

production environment.

2 ARCHITECTURE

Any system seeking the extensibility described

needs mechanisms to save the settings of the clinical

entities that are created, which can include: the

mapping of entity attributes to database columns; the

properties of the attributes; the different web views

for inserting, updating, showing and listing entity

records; and the events and business rules to validate

submitted records and perform operations when

specific conditions are met. The decision was to

store all the entity configurations in a field of a

database table using the JavaScript Object Notation

format. This way it is possible to apply automatic

serialization, it is easy to manage versions of the

configurations as they evolve and allows good

performance given that a single database access is

required to acquire all the metadata pertaining to an

entity. Custom server-side rules are also stored in a

field of the database and compiled at runtime using

348

Catré P., Marques A., Quintas J. and Dias J..

TICE-Healthy - A Dynamic Extensible Personal Health Record.

DOI: 10.5220/0004244903480351

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2013), pages 348-351

ISBN: 978-989-8565-37-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

JBoss Drools business rules engine. The result of the

compilation is stored and it is only recompiled when

changes to the rules occur.

Figure 1 presents the logical organization of the

system.

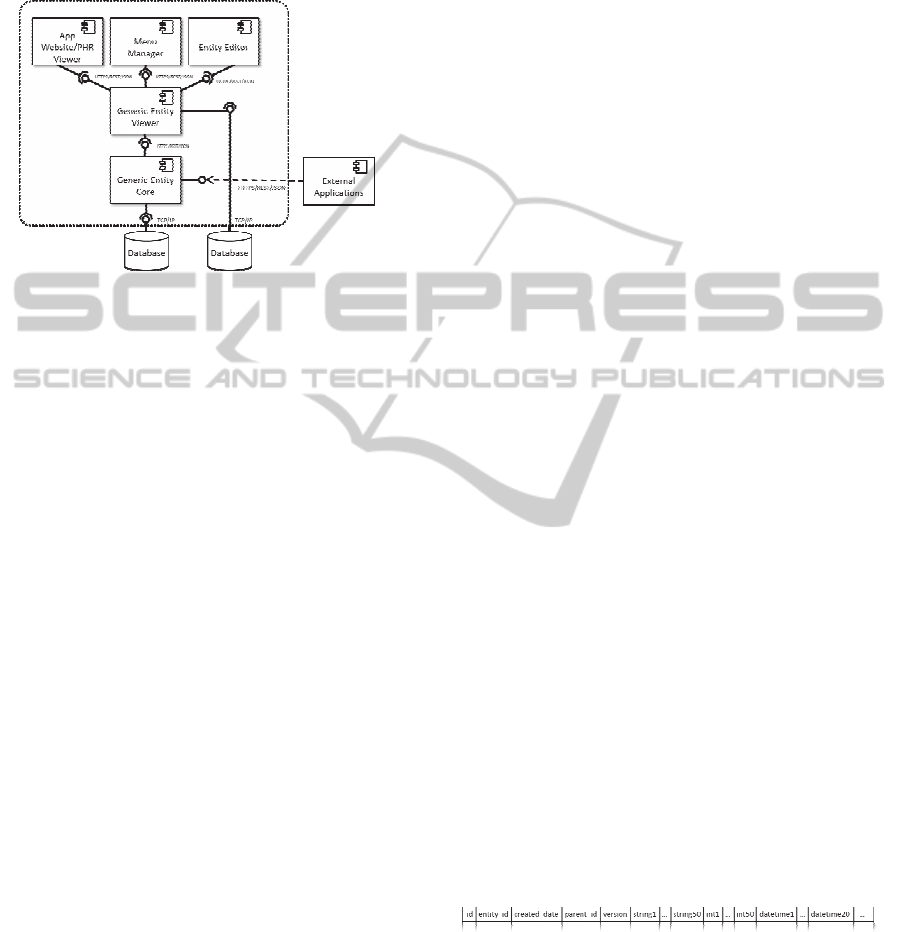

Figure 1: Overview of the system’s main components.

The figure identifies 5 major components:

 Core Module – is responsible for the storage and

provision of the entities’ configuration and records

to the viewer and external applications;

 Viewer Module – interprets the configuration

and creates the views;

 The Menu and Entity Manager – is a back-office

where system administrators can manage entities

and define which menus make up the PHR’s

website, what components (for example: forms, list

of records, charts of the data) appear in each menu,

how are the components related (for example editing

a record can cause an automatic update in a list of

records or a chart, or even trigger a health alert

message);

 Entity Editor – allows the creation of new

entities and editing of existing entities in a visual

manner;

 App Website (in this case the PHR Viewer) – is a

rendering of the configurations that were previously

described that uses client-side routing and

templating together with Asynchronous JavaScript

and XML (AJAX) requests to provide a comfortable

and rich user experience.

Note that the Menu Manager, Entity Editor and PHR

Viewer are client-side applications created using the

JavaScript framework Backbone. The Generic Entity

Core and Viewer are server side applications created

using the Java web framework Play. The databases

are implemented in PostgreSQL. Together, the 5

components presented allow a database schema to be

mapped to a user interface.

3 DATA STORAGE METHODS

In this section we will analyse four methods for

storing data in the repository and present the strategy

implemented by our system. The aim was to have a

flexible repository that handles new data types and

attributes without the need to change the physical

database schema, while still supporting efficient and

easy to construct ad-hoc queries to the data.

A classic approach is to use a text format like

Extensible Markup Language (XML) or JSON to

store the keys (entity’s attribute) and corresponding

values (Xie et al., 2010). This method would require

the database management system to support

Structured Query Language (SQL) over XML fields

in order to apply ad-hoc queries, which is an unusual

and costly operation.

Another approach frequently employed in

clinical scenarios and other cases where the number

of attributes, properties or parameters that can be

used to identify an entity is potentially unlimited, is

to use an Entity-Attribute-Value (EAV) model

(Gilchrist et al., 2011). An EAV design usually

involves a central table with three columns that

contain data referring to: the entity, the attribute and

the value of that attribute. While this approach

allows ad-hoc queries, they are not straightforward

and would typically require a resource consuming

transform/pivot operation.

Alternatively the system can use a flexible

schema strategy involving the dynamic creation of a

table with specific fields for each new entity that

needs to be defined. In this case the majority of

changes to entities would lead to Alter Table

operations which are usually blocking and can be

slow if the table is storing a lot of data.

Another solution we call Generic Table involves

the use of a sufficiently generic table with pre-

created columns of various types. For example a

table may contain 80 text fields, 20 integer fields

and so on, and there will be a mapping for each

entity specifying which columns it uses for its

attributes. An illustration of this approach is

presented in Figure 2.

Figure 2: Example of a generic table.

Using this technique all records corresponding to

each entity may be stored in the same table and we

avoid the runtime alteration of the data structure.

Microsoft SharePoint platform uses a similar

approach (Krause et al., 2010). The main

disadvantages of this solution is that it will result in

TICE-Healthy-ADynamicExtensiblePersonalHealthRecord

349

sparsely populated columns with many null values,

something that is not elegant and usually leads to a

waste of space, and ad-hoc queries become less

intuitive since the names of the database columns

will not correspond to the names of the entity

attributes.

TICE-GenericEntity supports the last two

strategies. By default it uses a Generic Table for

storage but the developer can also choose to create

and configure custom tables. Therefore, it is possible

to use our solution on top of a regular database

schema by adding a few specific configuration

columns to each table used by an entity.

4 PERFORMANCE TESTS

Since the solution presented in this paper is highly

configurable and flexible it was expected that it

would display a significantly lower performance

than static solutions. Therefore, it was important to

analyze whether the overhead of this solution would

have a manageable impact on the overall context of

a web application.

The goal of these tests was to compare the

performance of the solution developed against a

typical Object Relational Mapping (ORM)

implementation using the same web framework. For

that purpose we created two applications with the

Java web framework Play: one that used this

framework’s ORM mechanisms and another that

used our solution (TICE-GenericEntity).

The tool used for the tests was Apache JMeter

and the tests were executed with the following

configurations:

 With and without the use of cache mechanisms;

 With an empty database and a database

populated with 100.000 records created at random,

but equal for both applications being compared;

 In TICE-GenericEntity we used the system’s

generic table with 138 pre-created columns (30

strings, 14 booleans, 12 texts, 13 dates, 13 floats, 13

longs, 14 integers, 13 numbers, 12 reals and 4

times);

 With entity A composed of 5 attributes (3

strings, 1 integer and 1 text) and entity B with 15

attributes (8 strings, 2 integers, 1 text, 1 date, 1 float,

1 long and 1 time);

 Each test result is the average of 500 test runs.

In these tests we chose not to use concurrent

requests (multiple users) since the first tests showed

that this caused considerable deviations between

identical runs and it did not help in the comparison

of approaches.

4.1 Record Insertion and Retrieval

Figure 3 presents the average time needed for the

insertion of 50 records in the two applications being

compared, for both entities A and B. Since the test is

executed 500 times and each test inserts 50 records,

the database becomes increasingly populated. These

tests are executed in an originally empty database

and on a database that is initially populated with

100.000 records. We also performed the tests

caching the requests to the database for entity

configurations.

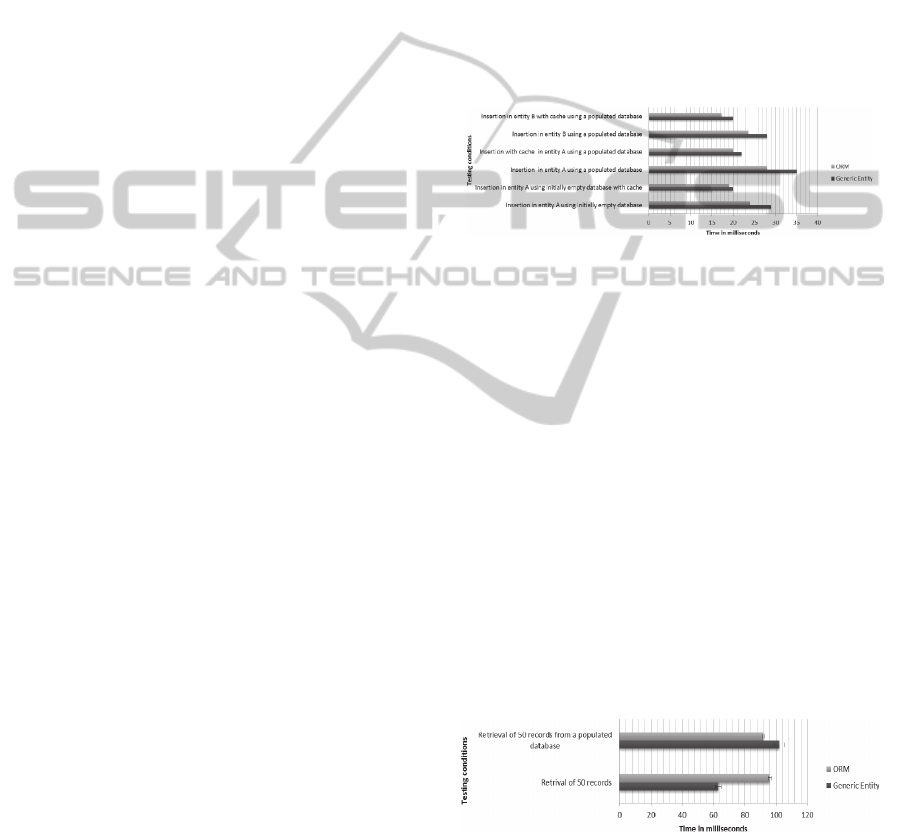

Figure 3: Comparison of the average time needed to insert

50 records.

The results obtained were surprising and better

than anticipated. It was expected that our approach

would be significantly slower since it had to

iteratively build the object to insert in the database

verifying each parameter received in the Hypertext

Transfer Protocol request against the attributes

defined in the configuration and also create the

insertion statement using a dynamic configuration.

According to the results these extra operations

exhibited very low overhead.

The tests using the extended entity B showed a

negligible impact. Therefore, the solution does not

appear to show limitations related to the number of

attributes defined in the entity.

Figure 4 presents the average time needed along

with the standard deviations for the retrieval of 50

records from the database.

Figure 4: Comparison of the average time needed to obtain

50 records.

Both applications show a low variance in their

response times. The results also indicate that TICE-

GenericEntity is slower running the tests on a

populated database. The difference is less than 10

milliseconds and it is due to the fact that the ORM

HEALTHINF2013-InternationalConferenceonHealthInformatics

350

based application does not have to retrieve as many

attributes (for example it does not have the

timestamp of creation or last update of the object)

and it does not order the results before returning

them, while by default TICE-GenericEntity orders

the results by timestamp of creation since it always

returns them paginated because of salability

requirements.

4.2 Form Generation

The purpose of these tests is to compare the average

time needed by TICE-GenericEntity to generate and

return an insertion form against the time needed for

a normal application to return the same form already

created. In other words, our solution will interpret

the configuration of an insertion view in order to

generate it while the ORM application will simply

return the same form (pre-created) as static content.

Figure 5 shows the results of the tests performed.

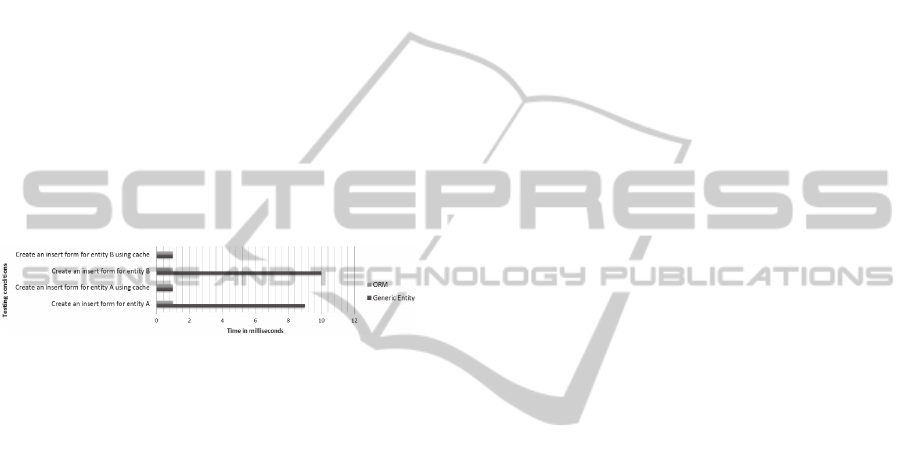

Figure 5: Comparison of the average time it takes to return

an insertion form.

In these tests the creation of the form is roughly

10 times slower than presenting a static form. Once

again this result was surprisingly positive given the

nature of the comparison. In fact, it was clear that

the solution that had to dynamically generate the

form would be slower and it is perfectly acceptable

for it to be 10 times slower since there are

mechanisms to mitigate this difference. Using cache

in both applications the results were, naturally,

identical.

5 DISCUSSION & CONCLUSIONS

As shown, despite its dynamism and flexibility our

solution does not display a great overhead when

compared with a traditional approach. Naturally, the

generation of views is slower than the simple return

of static content, but it is a relatively insignificant

overhead when taking into account factors such as

network latency. It is also import to state that the

applications comprising our solution are stateless so

it is simple to apply a load balancing pattern to scale

the system. Moreover, the tests revealed that using

cache mechanisms to mitigate the extra resource

usage is extremely effective.

In summary this paper presents a module that

enables the configuration of a PHR supporting

informal care services in a way that presents major

benefits for the entire TICE-Healthy initiative. With

this component powering the PHR it is possible to

modify the repository’s data structure without

redeploy and it is easy to make changes to the data

viewer and business logic with minimal coding.

In the future we will explore non-relational

alternatives for storing data that may prove to be

more flexible and perform better. Specifically,

migrating the system to such a data store might free

us from the limitations of having pre-created

columns. However, several concerns will have to be

addressed first, such as the security mechanisms

provided, the ability to execute ad-hoc queries and

the support for transactions.

ACKNOWLEDGEMENTS

The TICE.Healthy project is co-financed by the

European Community Fund through COMPETE -

Programa Operacional Factores de Competitividade.

REFERENCES

Gilchrist, J., Frize, M., Ennett, C. M. & Bariciak, E., 2011.

“Performance Evaluation of Various Storage Formats

for Clinical Data Repositories,” IEEE Transactions on

Instrumentation and Measurement, vol. 60, no. 10, pp.

3244–3252, viewed 5 March, 2012,

<http://ieeexplore.ieee.org/xpl/freeabs_all.jsp?arnumb

er=5738684>.

Krause, J., Langhirt, C., Sterff, A., Pehlke, B. & Doring,

M., 2010. SharePoint 2010 as a Development

Platform, Apress; 1 edition, p. 800, viewed 24

November, 2011, <http://www.amazon.com/

SharePoint-Development-Platform-Experts-Sharepoint

/dp/1430227060/ref=cm_cr_pr_product_top>.

Xie, L., Yu, C., Liu, L. & Yao, Z., 2010. “XML-based

Personal Health Record system,” 2010 3rd

International Conference on Biomedical Engineering

and Informatics, IEEE, pp. 2536–2540, viewed 24

October, 2011, <http://ieeexplore.ieee.org/xpl/

freeabs_all.jsp?arnumber=5639706>.

TICE-Healthy-ADynamicExtensiblePersonalHealthRecord

351
