MobileBIT

A Framework for Mobile Interaction Recording and Display

Michel Cˆanovas

, Hugo Silva

, Andr´e Lourenc¸o

1,2

and Ana Fred

Instituto de Telecomunicac¸˜oes, Instituto Superior T´ecnico, Avenida Rovisco Pais, 1, 1049-001 Lisboa, Portugal

Instituto Superior de Engenharia de Lisboa, Rua Conselheiro Em´ıdio Navarro, 1, 1959-007 Lisboa, Portugal

Keywords:

Android, Smartphone, ECG, Rapid Application Development.

Abstract:

The proliferation of mobile devices and smartphones, together with their built-in sensors and the ability to

easily connect to other peripherals using Bluetooth, is enabling new and promising signal processing appli-

cations. However, the development of mobile applications that use these features is still in the early days,

requiring advanced development skills. In our work, we propose a generic framework for rapid prototyping

in a mobile environment. The proposed framework enables real-time data acquisition, processing, recording,

communication and visualization. As proof of concept we present an application used for electrocardiographic

(ECG) signals monitoring.

1 INTRODUCTION

Nowadays, smartphones and tablets devices play a

fundamental role, enabling ubiquitous access to real-

time information in an always-on/always-connected

approach (Wan et al., 2009). However, application

development can be a thorough and time-consuming

process for researchers, which often falls out of the

scope of their core interests.

Considering this, the main motivation behind our

work is to create a tool that addresses real-time

biomedical signal acquisition, processing, recording,

communication and display, using mobile or web

platforms. Our ultimate purpose is to give biomed-

ical researchers, physicians, psychologists or other

health-related professionals, an intuitive tool to easily

develop mobile signal processing and communication

applications tailored to their needs. These can be used

in telemedicine and mobile monitoring of health, im-

proving quality of care and independent living (Wan

et al., 2009; Silva et al., 2011a; Silva et al., 2011b).

2 SYSTEM ARCHITECTURE

The architecture is arranged in layers decoupling the

presentation from the processing counterpart. It uses

the Model-View-Controller (MVC) architecture, as

proposed by Silva et al. (Silva et al., 2012). More-

over, the deﬁnition of the application is made by as-

sembling a network of functional blocks that runs on

top of a Workﬂow Manager (WFM). This network de-

ﬁnes the behavior of the application, in such a way

that each block performs a specialized task, including

data acquisition from a source, signal processing, and

display of results.

The WFM is the core of the framework. It deals

with the instantiation and control of a previously de-

signed system, described according to a structure de-

ﬁned in JSON. This structure uses a speciﬁcation,

called Data Processing Language, that is automati-

cally loaded and instantiated at runtime by the frame-

work. Figure 1 gives an overview of the architecture.

2.1 Functional Blocks

These are the operating units of the system; it is their

conﬁguration and combination that deﬁnes the ulti-

mate behavior of the end-user applications designed

with the proposed framework. All blocks must ex-

tend an abstract class, which includes methods to im-

plement the observer pattern (Cooper,2000) and other

convenient methods which give handle to the WFM.

The communication between blocks is made through

an event-based Message Passing Protocol using the

Android OS

Message.class

Conceptually, the framework uses three types of

blocks: a) the normal blocks, which take input data,

perform a speciﬁc task, and output results; b) the

366

Cânovas M., Silva H., Lourenço A. and Fred A..

MobileBIT - A Framework for Mobile Interaction Recording and Display.

DOI: 10.5220/0004247003660369

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2013), pages 366-369

ISBN: 978-989-8565-37-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

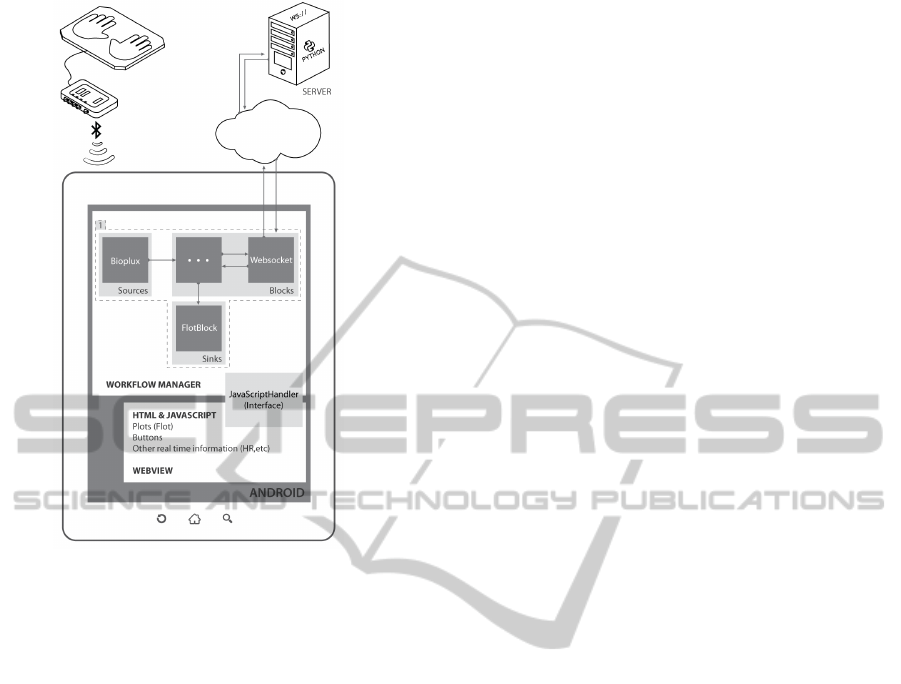

Figure 1: Architecture of our demo application, where

biosignals are acquired from an external hardware device,

displayed in a mobile device through a rich user interface,

and sent to a remote server for efﬁcient processing; the re-

sults of the processing stage is returned back to the phone

for presentation to the user.

Sources, which are a special type of blocks that only

have outputs; c) Sinks, that are a special type of block

which only have inputs. Our framework has the un-

derlying assumption that the functional blocks are

triggered by the output data produced by the Source

blocks, and thus, a normal system operational ﬂow

starts on the sources and generally ends on Sinks (as

part 1 of Figure 1).

All the information about the type, input/output

connections and conﬁguration of the blocks, which,

overall, characterize a realization of a system, is rep-

resented using a structure deﬁned according to the

Data Processing Language, which will be further de-

tailed in the next section.

2.2 Data Processing Language

The description of a system to be instantiated by the

WFM, is described using a JSON-based speciﬁcation

to which we called Data Processing Language (DPL).

It has a simple organization as follows:

{"<CLASS:LABEL>":

{"config": {"<PARAMETER>":"<VALUE>",...},

"in": {"<CHANNEL>":

"<CHANEL_LABEL>"|"<LABEL>/<CHANNEL>",...},

"out": {"<CHANNEL>":"<CHANNEL_LABEL>",...}

"<CLASS:LABEL>":...

}

This structure can be seen as a collection of

key/value pairs through which the blocks, that the

end-user application will use, are identiﬁed, and

their basic conﬁguration information is provided. As

long as there is a correspondence between the repre-

sented blocks (

CLASS

"<CLASS:LABEL>"

) and Java

classes (

CLASS.class

, in Java), the WFM will be

able to instantiate and build the deﬁned system in run-

time. This structure is not only easily read but can also

be written or edited very simply. Future work will be

focused on having this structure generated through a

visual programming tool and fed to the application

automatically.

2.3 Workﬂow Manager

The WFM is the core of the mobile framework, and

it manages the execution and interaction between the

different blocks. It contains a handle to every impor-

tant instance of the system, and it is through the WFM

instance that most of the others communicate.

The most demanding task performed by the WFM

is the initial network setup from the DPL structure.

As soon as the end-user application starts, a JSON

structure, following the speciﬁcation described in the

previous section, is fed to the WFM. Then, using a

the high performance JSON processing library, all

blocks are instantiated sequentially, conﬁgured, and

connected among themselves through their input and

output channels.

Once the whole system is assembled, all that re-

mains to be done is to trigger it, namely by starting

the sources. Then, the arrival of the data itself to the

input of the next block triggers its operation, and so

on. Finally, the processed data will arrive to a sink

which gets the ﬂow to an end. Sinks end the ﬂow ei-

ther by saving, streaming or displaying their input.

Usually, this action of starting the sources, is

triggered by an UI event. Since the UI is shown

through a Webview, which, in turn displays HTML

content, the native part of the application must be

able to exchange events with the Javascript side.

Hence, the

Webview

class provides a method called

addJavascriptInterface

, that binds a Java object

to Javascript. This object turns out to be the interface

between the Java (the native Android) and Javascript

(in the HTML page) worlds (further explanation con-

tinues on the next section).

The WFM communicates with this interface

(hereafter called

JSI

) through messages containing

MobileBIT-AFrameworkforMobileInteractionRecordingandDisplay

367

commands to be executed. For this reason, the WFM

has also the very important task, which is to parse and

execute these command messages. Likewise, since

the only way to the

JSI

is across the WFM, all data

that needs to be displayed to the user has to arrive to

the WFM to be correctly dispatched.

2.4 User Interface

The UI is, as in most applications, one of the most

important parts of the platform. It needs to be able not

only to accurately display the data to the user, but also

to get his inputs, all this in intuitive and aesthetical

ways (Tidwell, 2011).

Another concern taken into account in the design

of our framework was the uniﬁcation of the layout

of the platform, between the mobile or other clients.

This led to the use of the Android OS Webview com-

ponent, that enabled the interaction and display of

HTML content, which also allows the use of exactly

the same UI both on the mobile phone, and on a stan-

dard PC interface.

The presentation layer is decoupled from the pro-

cessing backbone. In the Android case, the Javascript

interface is conﬁgured to receivecommands from JSI;

in a client running in a browser, it is conﬁgured to re-

ceive commands from a Websocket.

The mechanism behind this versatility is hidden in

the script contained in the HTML ﬁle. This script is

responsible for the seamless behavior of the UI either

on the browser or in the Android: all the commands to

be executed by the JavaScript world are handled by an

object bound to the

JSI

instance in Android. So, if it

does not exist, it is created as a JS websocket, linking

the page in the browser directly to the server.

In order not to computationally overload the We-

bkit engine, responsible for rendering the HTML page

with the layout (as it does in the built in browser of

the OS) all the processing is done at the Java back-

end, before reaching the Webview, since, in addition,

we believe that, in Android, native methods are faster

and more efﬁcient than web scripts.

3 MobileBIT PROOF OF

CONCEPT: CardioWatch

To demonstrate the potential of our framework, a

demo application was built, entitled ”CardioWatch”.

The goal of this application is to show the subject

heartbeat, measured using a bioPLUX, biosignal ac-

quisition device connected to an 1 lead ECG sensor.

The acquisition unit is interfaced with the Android en-

vironment via Bluetooth. On the other end, there is

a remote server that performs the signal processing,

which is accessible over the web.

Inside the Android-powered device this is materi-

alized through a system composed by a sequence of

four blocks: a

BioPlux

, a

Websocket

, a

FlotBlock

and an

HTMLfield

, which are, respectively, the vir-

tual representation of: the acquisition device; the im-

plemented socket connection to the server; the ECG

line chart; and the heart rate (HR) numeric display.

The Data Processing Language structure, correspond-

ing to our application example, is the following:

{"BioPlux:Bio":{

"config":{"MACaddress":"12:34:56:78:9A:BC"},

"in":{},

"out":{"0":"ECG"}},

"Websocket:Wskt":{

"config":{"Port":"9999",

"Host_URL":"123.456.7.890"},

"in":{"0":"ECG"},

"out":{"0":"SV","1":"HR"}},

"FlotBlock:Flot":{

"config":{"FlotDiv_id":"graphHolder"},

"in":{"2":"SV"},

"out":{}},

"HTMLfield:HR":{

"config":{"FieldDiv_id":"hr"},

"in":{"0":"Wskt/1"},

"out":{}}

}

Here we can see how the connections between the

input (

) and output (

out

) channels of the blocks are

performed and also how the conﬁguration parameters

(ﬁelds under

config

) vary amongst the blocks. Each

block extends the abstract

Block

class, although they

perform very distinct tasks.

For instance, the BioPlux block implements meth-

ods for controlling a bioPLUX (Gamboa and Silva,

2007) device via Bluetooth. This device is connected

to a pair of electrodes that gathers the ECG signal

from the hands, at a conﬁgurable sampling frequency

that can go up to 1000Hz, and sends them to the An-

droid device, namely to the BioPlux block (which

ends up being a virtual image of the actual device).

The Websocket is a block that implements a full-

duplex single socket connection (Websocket, 2012)

over which messages can be sent/received to/from a

remote server. With this, the gathered signal can be

remotely ﬁltered, analyzed and returned along with

some of its features. In this demo case, at the server,

the signal is ﬁltered, downsampled, and the instant

heart rate is computed and retrieved. This function-

ality provides a rapid prototyping framework of com-

plex algorithms in a mobile environment, that other-

wise would require more time and effort to implement

using more traditional programming approaches.

At the mobile device, the Websocket block re-

HEALTHINF2013-InternationalConferenceonHealthInformatics

368

ceives the JSON message from the server, parses it,

and notiﬁes the FlotBlock and HTMLﬁeld blocks, to

present the data to the user interface, namely the real-

time, ﬁltered ECG signal and the heart rate. FlotBlock

owes its name to the Javascript library used for plot-

ting in jQuery, that produces graphical plots of arbi-

trary datasets on-the-ﬂy on the client-side(Flot, 2012).

The application connects automatically to the

server on start-up, and as soon as the start button is

pressed, the Android device connects to the bioPLUX

unit and starts to receive real time data. The bottom

panel displays the processed data, namely the ﬁltered

ECG signal trace, and the heart rate information.

4 CONCLUSIONS AND FUTURE

WORK

In this paper we presented a rapid application devel-

opment framework for mobile devices. It can be used

both for standalone or client/server applications.

The presented framework is based on a MVC

paradigm for rapid application development, that

cano be used by researchers and clinicians to facili-

tate the prototyping of mobile applications.

Alongside, we have devised a Data Processing

Language, that can be used to easily deﬁne the struc-

ture of the end-user application.

Furthermore, the UI of our mobile framework is

supported on web technologies, allowing easy con-

ﬁguration of the layout, look-and-feel, among other

aspects of the graphical interface with the user, which

is fundamental given the latest trends in mobile appli-

cation development.

The proposed architecture has undoubtable bene-

ﬁts, namely the ones arising from its versatility, due

to the fact that the user can deﬁne his application be-

havior by combining the different blocks, and reuse

the layout of a web UI.

Due to its sophistication, we assessed the per-

formance of our framework in terms of computation

times and message exchange robustness. The proﬁl-

ing done to the demo version shows that the system

components running in the native part of the Android

have sub-millisecond performance. Since this is a

real-time demo applications, and one that communi-

cates with a remote server through the web, most of

the time consumed in this communication.

In the overall, tests have shown that our frame-

work performs adequately for rapid prototyping of

mobile applications. The example application pre-

sented serves not only as a proof of concept but also

as way to demonstrate the potential of the platform.

The integration of the Websocket block to communi-

cate with a remote server, provides a testbed for func-

tionalities that can be supported by algorithms already

featured on the server toolbox.

ACKNOWLEDGEMENTS

This work was partially funded by the IT - Instituto de

Telecomunicac¸˜oes under the grant ”Android Biomet-

rics Platform”, by the Fundac¸˜ao para a Ciˆencia e Tec-

nologia (FCT) under grants SFRH/BD/65248/2009

and SFRH /PROTEC/49512/2009, whose support the

authors gratefully acknowledge. The authors also

thank the Institute for Systems and Technologies

of Information, Control and Communication (IN-

STICC), the graphic designer Andr´e Lista, Prof. Pe-

dro Oliveira, and the Instituto Superior de Educac¸˜ao e

Ciˆencias (ISEC), for their support to this work.

REFERENCES

Cooper, J. (2000). Java Design Patterns: A Tutorial.

Addison-Wesley.

Flot (2012). Flot. http://code.google.com/p/ﬂot/ (last ac-

cessed on 30/08/2012).

Gamboa, H. and Silva, H. (2007). bioPLUX wire-

less biosignal acquisition system. http://

www.bioplux.com/bioplux.

Silva, H., Lourenc¸o, A., and Paz, N. (2011a). Real-time

biosignal acquisition and telemedicine platform for

AAL based on Android OS. Proc INSTICC Inter-

national Living Usability Lab Workshop on AAL Lat-

est Solutions, Trends and Applications - AAL, Rome,

Italy.

Silva, H., Palma, S., and Gamboa, H. (2011b). AAL+: Con-

tinuous institutional and home care through wireless

biosignal monitoring systems. Handbook of Digital

Homecare, pages 115–142.

Silva, M., Guerreiro, T., Gonc¸alves, D., and Silva, H.

(2012). A web-based application to address individual

interests of children with autism spectrum disorders.

DSAI 2012: 4th International Conference on Software

Development for Enhancing Accessibility and Fight-

ing Info-exclusion, Douro, Portugal.

Tidwell, J. (2011). Designing Interfaces. O’Reilly Media,

second edition edition.

Wan, D., Mentzer, K., and Nash, R. (2009). Always on,

always connected how technology will transform the

future of chronic care. Technical report, Accenture.

Websocket (2012). Websocket. http://www.websocket.org/

(last accessed on 30/08/2012).

MobileBIT-AFrameworkforMobileInteractionRecordingandDisplay

369
