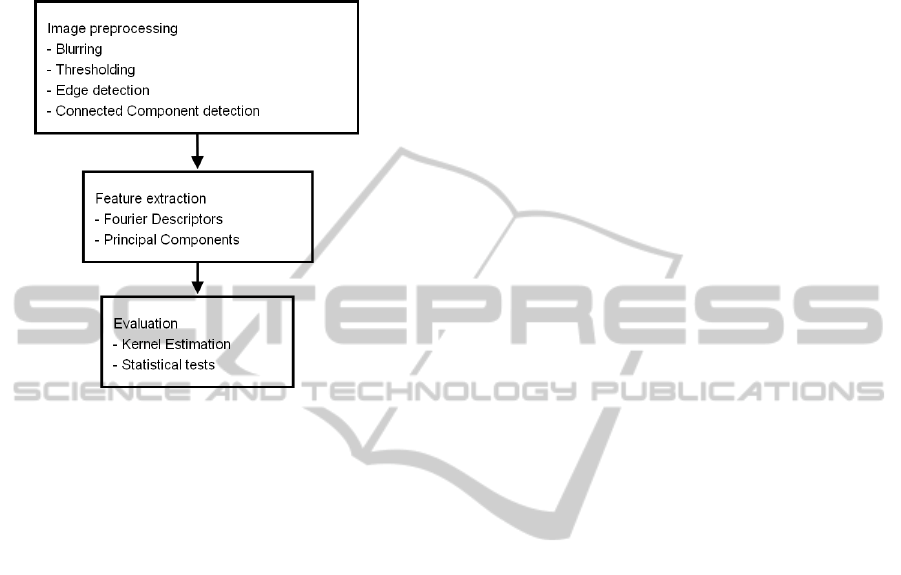

AgED provides three different views on the image
analysis pipeline: (i) The file system view lets the user
browse images in his file system. Furthermore, he can
label each image file with a class label. (ii) The shape
view allows for the inspection of each single shape
and associated EFDs that have been extracted from
the previously labeled image set. Note that one image
can contain several shapes. Also, the user can select
and deselect single shapes to be excluded from evalu-
ation. False positives and outliers can be removed this
way. (iii) In the evaluation view the probability den-
sities that have been calculated from the EFDs and its
Principal Components can be examined. In this view
the user can compare results and export the figures as
image files.
5 CONCLUSIONS
The results of this study showed that the automatic
and timely processing of high-resolution digital im-
age data for biological phenotype assessment appli-
cations is feasible. The AgED software toolkit fa-
cilitates and guides the preprocessing and allows the
browsing of the evaluation results. The applicabil-
ity of the AgED software tool has been exemplified
and validated on a real-world problem, that illustrates
some pitfalls diverse in severity. We have showed that
the AgED software deals effectively with these prob-
lems. While the presented image processing pipeline
readily scales to the automatic processing of a few
thousand images, the data evaluation step neverthe-
less demands some user interaction. We showed that
AgED reduces the time needed from the experimen-
tal setup to the deduction of the experiment’s result.
Furthermore, the extracted feature set as well as the
evaluation results are stored in a format that can be
adopted by other statistical software systems.
The software AgED can be downloaded from
http://sourceforge.net/projects/aged/. This repository
also comes with detailed instructions and examples.

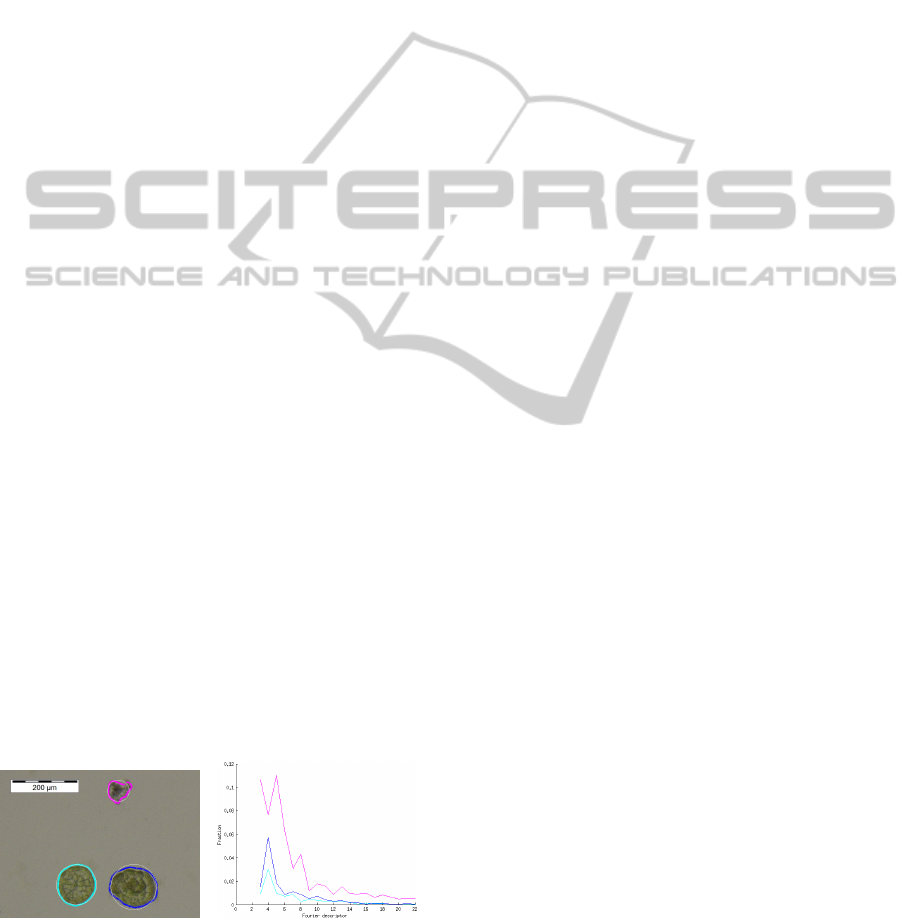

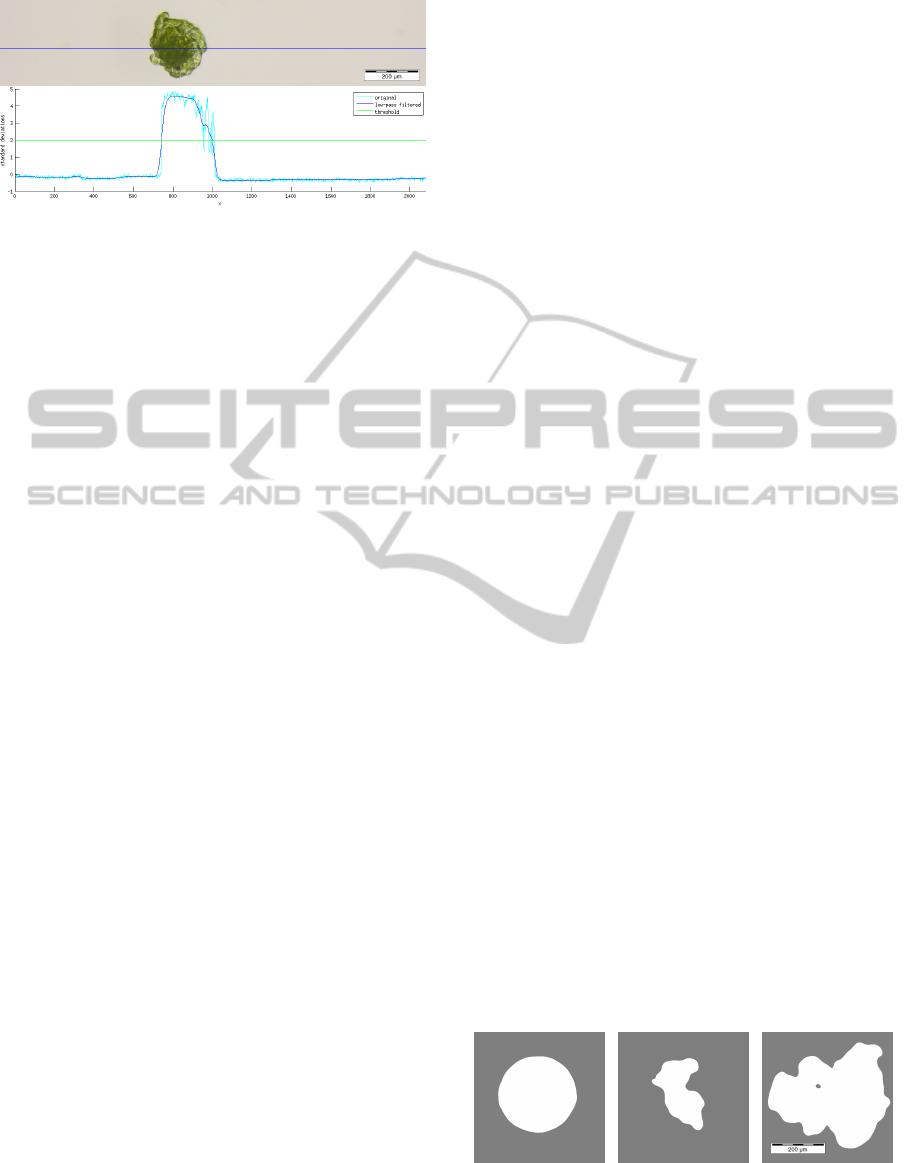

Figure 4: Three thalli of Coleochaete scutata and their out-
