Automated Planning for Pick-and-Place Robot

Yazmin S. Villegas-Hernandez and Federico Guedea-Elizalde

Design and Technology Innovation Center, Tecnologico de Monterrey, Monterrey, Mexico

Keywords:

Domain Language, Planner, Pick-and-Place Task, Automatic Assembly.

Abstract:

In this research was developed a language to describe a robot-based assembly. This language has an important

role in the generation of robot programs. To accomplish with the objective of automatic generation of robot

programs, it was developed a system, which consists on the next subsystems: a High-level-language Planner,

a Generic-level-language Parser and a Wrapper-generic-level language.

1 INTRODUCTION

The frequent changes in speciﬁcations, positions, di-

mensions, and assembly type of the products to as-

semble are the problem of many manufacture indus-

tries that use robots to do the work. To resolve this

problem, it is presented in this research an approach

to generate robot programs using planners. In order to

use this tool, it was developed a new domain language

to describe the assembly domain.

2 RELATED WORK

Automatic planning for production lines is a ma-

ture ﬁeld with basic research moving to implemen-

tation cases. Car maker industries have many ben-

eﬁts from the implementation of these planning tech-

niques. Even though, there are previous works related

with automatic planning systems as the work of Cho

et al., that describes the development of an automated

welding operation planning system for block assem-

bly in shipbuilding (K. Cho and Oh, 1999). Cho’s

system was divided in four modules that perform the

determination of welding postures, welding methods,

welding equipment and welding materials.

Another related work regarding of planning sys-

tems is the work of Zaho et al., where they present

an intelligent computer-aided assembly process plan-

ning system (ICAAPP) (Zhao and Masood, 1999) de-

veloped for generating an optimal assembly sequence

for mechanical parts. In the generation of assembly

sequences for any product, the critical problems to be

addressed include determining the base part, selection

of subassemblies, deﬁning all necessary constraints,

and ﬁnally quantifying and solving these constraints.

In the innovative artiﬁcial intelligence approach

of Rabemanantsoa et al. (Rabemanantsoa and Pierre,

1996) for generating assembly sequences on a con-

sortium of database emulating expert systems, a CAD

(Computer-aided design) analyser is used for shape

and feature recognition, data structure and modelling,

knowledge-based representation, and inference pro-

cessing throughout a set of heuristics and rules.

In the work of Xue an automatic grasp planning

system for service robots is presented(Z. Xue and

Dillmann, 1996). In this system the semantic infor-

mation is represented as shape primitives, which are

treated by the grasp planning as obstacles or must-

touch regions of the object to inﬂuence the resulting

grasps.

In the work of Xu et al. it was developed an as-

sembly planning and simulation system called Au-

toAssem(L. Xu and Yu, 2012). This system is to au-

tomate assembly planning for complex products such

as aircraft components. They focused in the assem-

bly sequence planning to generate plans from a CAD

model with manual interventions.

In general, all of these systems consist of a plan-

ning process, use assembly graphs to generate se-

quences of assembly, or use another method; but none

of these systems generate the code to program the

robots online to perform welding and pick-and-place

operations like the approach suggested in this paper.

3 AUTOMATIC PLANNER

SYSTEM

The aim of this research is to develop a system that

547

S. Villegas-Hernandez Y. and Guedea-Elizalde F..

Automated Planning for Pick-and-Place Robot.

DOI: 10.5220/0004263205470550

In Proceedings of the 5th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2013), pages 547-550

ISBN: 978-989-8565-39-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

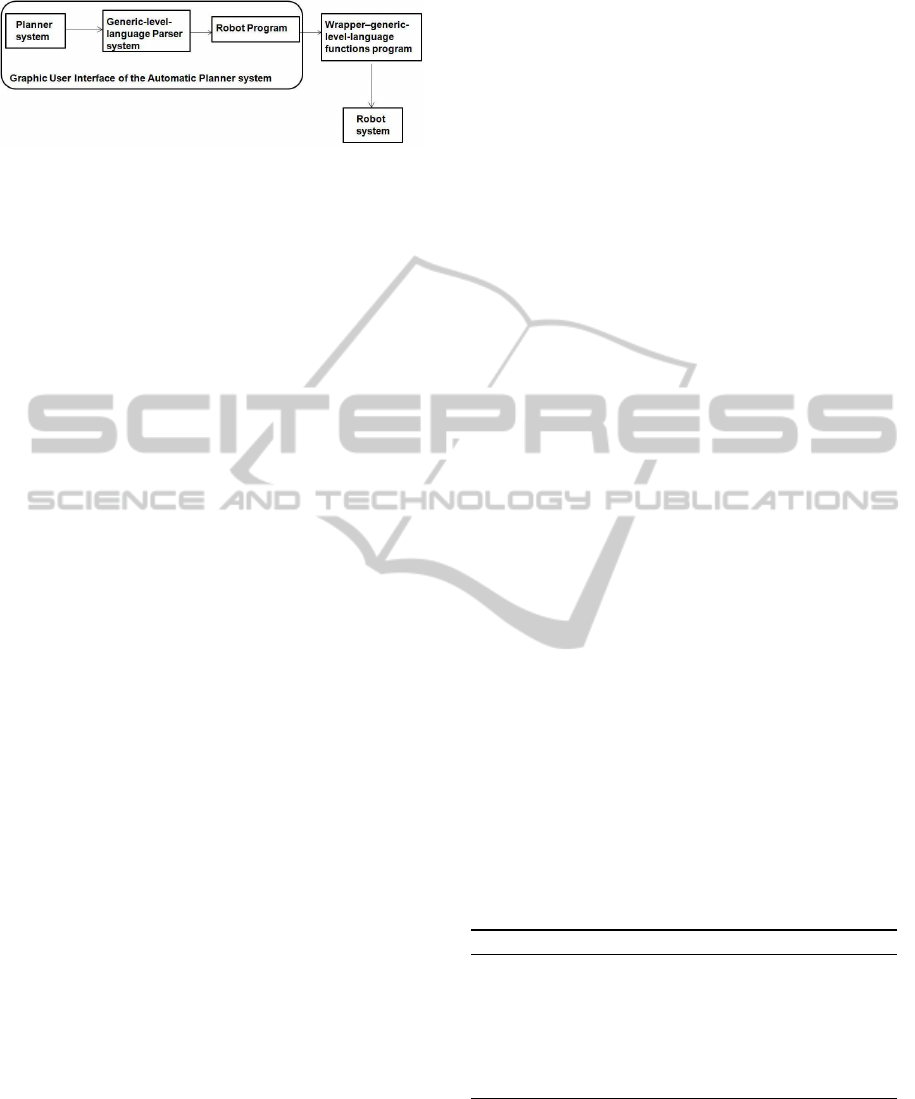

Figure 1: Automatic Planner System.

is capable of generating robot programs to assembly.

It was developed a system, which is shown in Figure

1 for this purpose, which is divided in the next sub-

systems: High-level-language Planner, Generic-level-

language Parser and Wrapper-generic-level-language.

This system produces a robot program written in

generic commands to do the assembly task.

3.1 High-level Planner

It was developed a language to describe the assembly

domain, in order to work with the Graphplan planner.

The language consists of propositions (to describe the

initial state) and operators (which are actions).

The planning process is deﬁned as a tuple < P, A,

, G >, where P is a set of propositions in a language

Σ, A is a set of actions, S

⊂ P is the initial state, and

G ⊂ P is the goal state.

For example, an action A, meaning to pick and

place an object should be written as: (PickAndPlace

robot container1 fastener1), where container1 is the

picking location and fastener1 is the placing posi-

tion.

An example of the language to describe the ini-

tial state, S

, is (have container1 tube1), which rep-

resents that the container1 has the tube1.

Following the same reasoning, it is possible to

describe an assembly goal G, as (assemblyCorner90

tube1 tube2) which represent a Corner joint with an

angle of 90

◦

using the tubes: tube1 and tube2.

Let Σ =< Pn, L,C > be a ﬁrst-order language

composed of a set of predicate names Pn =

{pn

, pn

, ..., pn

}, a set of literal constants

L = {l

, l

, ..., l

}, and a set of classes C =

, c

, ..., c

}. The function f

: L → C

associates each literal constant to a class (or object

type). Then the set of literals (or propositions) P =

, p

, ..., p

}, where p

= (pn

, l

....l

) is a list

involving constants and a predicate name. Also

P =

( ˆp

, ˆp

, ..., ˆp

) is deﬁned as a set of propositions,

where ˆp

= (pn

, l

....l

) is a list involving constants

and a predicate name too. Then we deﬁne the function

by:

: P →

∀p

= (pn

, l

, ..., l

), f

) = ˆp

ˆp

= (pn

, f

)... f

)).

This function is overload as:

: {P} → {

P} : ∀J ⊂ P, F

(J) = f

( j

), ∀ j

∈ J.

An example of a literal is (have container1 tube1) ,

where have is a predicate name while container1 and

tube1 are literal constants of the class container and

tube.

Given an action A = {Pre, Post} as a set of

two kind of propositions: preconditions and post-

conditions of the initial state, S

, where preconditions

are the requirements to be accomplished before ac-

tion, and the post-conditions are the description of the

state after action. The function F

is deﬁned as:

: {P} → {

∀a = {Pre, Post}, F

(a) = {F

(Pre), F

(Post)}.

Using these deﬁnitions, the planning problem can

be written in the proposed language with the form

(P), F

(A), F

, S

, F

(G)}. The high-level plan is

obtained by applying the actions A to the initial state

) to reach the goal F

(G). This high-level-

language plan will be parsed to obtain the robot pro-

gram.

3.2 Generic-level Parser

The generated high-level plan explained in the previ-

ous section, is the input to generic-level Parser. The

purpose of this subsystem is to act as intermediary be-

tween the Planner subsystem and the Robot system.

In order to accomplish this purpose, it was decided

to parse each high-level operation to produce generic-

level commands for the pick-and-place robot. This

parsing consists in recognizing a string (high-level-

operation) by dividing it into a set of symbols (or to-

kens) and analyzing each one of them against the de-

veloped grammar in this work.

Algorithm 1: ParseGenerator(E).

Require: A set of expressions E.

Ensure: Change every expression from high to generic level.

1: for e ∈ E, x ∈ instances o f e do

2: parsing: e(x)

3: Add e(x) to the robot program

4: end for

5:Compile robot program

Algorithm 1 provides a way to parse a set of high-

level-language expressions to generic-level-language

expressions. Step one retrieves every high-level-

language expression. Next, step two parses every ex-

pression from high to generic level. Then, step three

adds every parsed expression to the robot program.

ICAART2013-InternationalConferenceonAgentsandArtificialIntelligence

548

Finally, step four compiles the robot program with the

parsed expressions.

The grammar used for parsing consists in the fol-

lowing components (N,

∑

, P, S): nonterminal symbols

(N), terminal symbols (

∑

), production rules (P), and

a start symbol (S).

The nonterminal symbols that will be evaluated by

the semantic analyzer are: AddOp, PickPlace, Offsetx,

Offsety, Open, Close and Welding.

The terminal symbols are elementary symbols

of the language, and these symbols are a set of

terms that represent the high-level-language opera-

tions: EOF, NUMBER, BROPEN, BRCLOSE, OPS,

PARAM, COMMA, PICKANDPLACE, OFFSETX,

OFFSETY, OPEN, CLOSE, WELDING and WHITES-

PACE.

The production rules to do the parsing of some

expressions are shown in Table 1.

Table 1: List of grammar rules for this formal grammar.

AddOp -> (PickPlace)* (Offsetx)* (Offsety)*

(Open)* (Close)* (Welding)*

PickPlace -> PICKANDPLACE BROPEN

PARAM COMMA PARAM COMMA

PARAM COMMA PARAM BRCLOSE

Offsetx -> OFFSETX BROPEN PARAM

COMMA NUMBER BRCLOSE

Open -> OPEN BROPEN PARAM COMMA

PARAM BRCLOSE

The output of this parser is a program written in C-

Sharp-style for the CRS-F3 arm manipulator to pick-

and-place objects using the Generic-level-language-

commands of the developed class library. Figure 2 de-

picts the sentences (high-level-language commands)

that are parsed to generic-level language commands.

Each of these sentences is parsed by the ParseProgram

class in the same order as all them are written in the

plan generated by the planner.

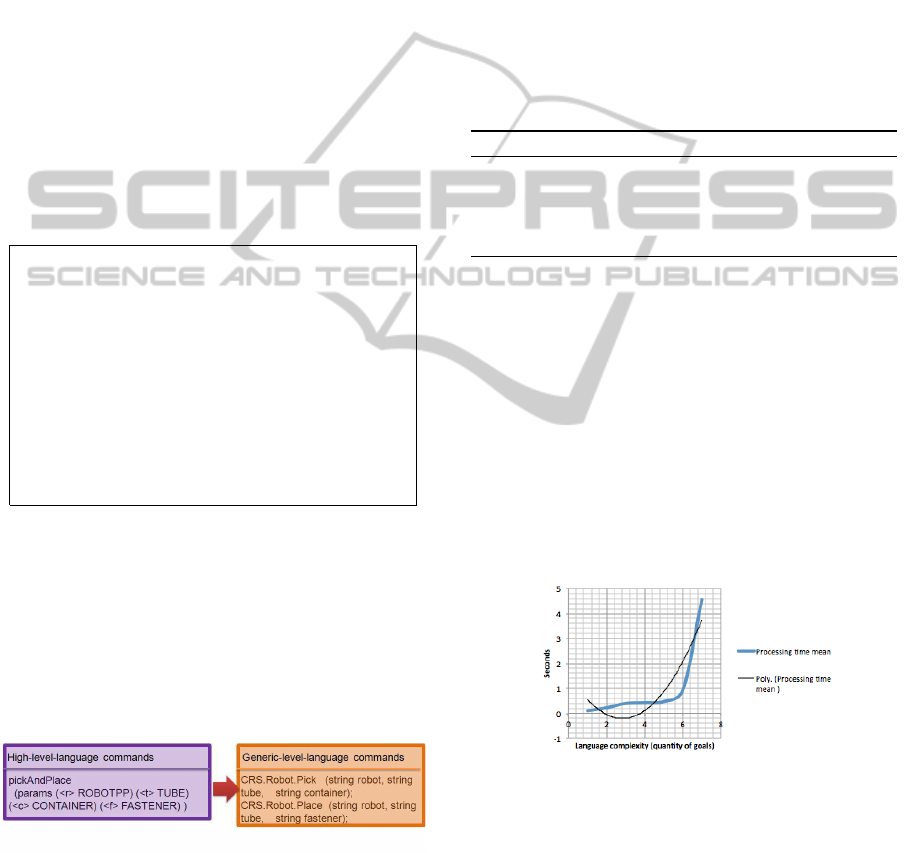

Figure 2: High-level-language commands parsed to

Generic-level-language commands.

3.3 Wrapper Program

In order to communicate the Parser subsystem with

the Robot system, it is used a Wrapper Program, in

order to execute the robot program.

The Wrapper-generic-level-language-functions

program consists in a set of wrapper methods written

in C ++ that uses the original functions of the CRS-F3

arm manipulator library, to make a set of generic

functions that have a standard form. These wrapper

methods are equivalent to the generic-level-language

methods in the Dynamic-Library-Link developed

in this research. Therefore, using this library it

will be able to do generic-robot programs, which

can be generated and executed using the developed

Graphic-User-Interface.

Algorithm 2 provides a way to execute each re-

quested action. Step one retrieves all actions re-

quested by the planner and step two executes them

all.

Algorithm 2: Wrapper(A).

Require: A set of action literals A.

Ensure: Do all requested actions

1: for a ∈ A, x ∈ instances of a do

2: execute a(x)

3: end for

4 EXPERIMENTAL RESULTS

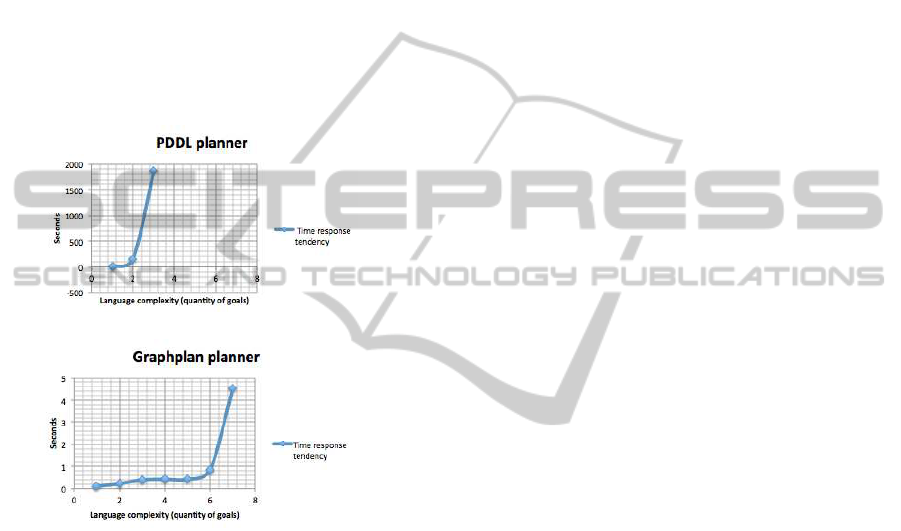

The processing time of the High-level-language Plan-

ner subsystem and the Generic-level-language Parser

subsystem was tested in order to know the behavior

of this factor. In this test, it was used the same initial

state and the number of goals were changed in order

to obtain the mathematical model of the processing

time. In Figure 3 it can be seen the processing time

is polynomial, i.e. when the number of goals increase

the processing time increase in a polynomial way.

Figure 3: Polynomial Processing Time.

4.1 Language Experimental Results

It was tested the developed language in both plan-

ners: Graphplan and PDDL Graphplan(Planning Do-

main Deﬁnition Language). The description of the

initial state of the environment was written in this de-

veloped language for both planners. So, it was de-

scribed the welding table, which includes the orien-

tation, size, and order sequence of the fasteners. In

AutomatedPlanningforPick-and-PlaceRobot

549

this research work, the released language describes

three joint types: corner, T, and butt. There is one dif-

ference between the language versions used in both

planners, which consists that the one used in PDDL

planner have the advantage of use numerical values

to variables, while the other planner it is not possi-

ble. Another difference between the planners is the

processing time, where the Graphplan planner is the

faster. Finally, the PDDL planner has as limit 3 goals,

because the planner run out of memory, while the

Graphplan planner has as limit 10 goals.

In Figure 4 is depicted the response time of both

planners. The response time of the Graphplan plan-

ner is lower than the PDDL planner. However, the

tendency of both planners is polynomial.

(a) PDDL planner time tendency

(b) Graphplan planner time tendency

Figure 4: Planner response times.

5 CONCLUSIONS

It was proposed the use of an assembly domain lan-

guage in combination with a parser in order to gener-

ate a robot program for pick-and-place tasks.

It was developed two versions of the developed

language (one for each planner used). The response

time of each language has a polynomial tendency.

The language version for graphplan planner has better

time results. So, it was decided to use the Graphplan

algorithm in the planner system.

It was concludedthat the system could accomplish

robot programs in seconds (if it has 10 or less goals).

Furthermore, it is possible to accomplish three joints

types: Corner, T, and But as goals.

ACKNOWLEDGEMENTS

This research was conducted in the Robotics Lab-

oratory at ITESM(Campus Monterrey). Villegas-

Hernandez’s research was partially supported by

ITESM and a fellowship from CONACyT.

REFERENCES

K. Cho, J. S. and Oh, J. (1999). An automated welding

operation planning system for block assembly in ship-

building. Production Economics.

L. Xu, C. Wang, Z. B. and Yu, J. (2012). Autoassem: An au-

tomated assembly planning system for complex prod-

ucts. IEEE Transactions on Industrial Informatics.

Rabemanantsoa, M. and Pierre, S. (1996). An artiﬁ-

cial intelligence approach for generating assembly se-

quences in cad/cam. Artiﬁcial Intelligence in Engi-

neering.

Z. Xue, A. Kasper, M. Z. and Dillmann, R. (1996). An

automatic grasp planning system for service robots.

Artiﬁcial Intelligence in Engineering.

Zhao, J. and Masood, S. (1999). An intelligent computer-

aided assembly process planning system. The Interna-

tional Journal of Advanced Manufacturing Technol-

ogy.

ICAART2013-InternationalConferenceonAgentsandArtificialIntelligence

550
