Platform-integrated Sensors and Personalized Sensing

in Smart Buildings

Milan Milenkovic

, Thanh Dang

, Ulf Hanebutte

and Yonghong Huang

Intel Labs, Intel Corporation, Oregon, U.S.A.

School of Engineering, Washington State University Vancouver, Washington, U.S.A.

Keywords:

Sensing Architecture, Platform-integrated Sensor, User-centric Sensing, Smart Buildings.

Abstract:

We propose, implement, and evaluate a pervasive sensing system that is capable of collecting data from sensors

that may surround a user in a given setting. Such systems will enable creation of new types of applications

that span across devices, users, and domains based on spatial, temporal, and social aggregations of sensor

data. Key innovation in our work is a sensing fabric that collects data from a variety of sensors and leverages

platform-integrated sensors, which are built into hosting devices, such as laptops and tablets. These sensors

can signiﬁcantly improve sensing in enterprise settings and they are comparatively inexpensive to manufacture,

deploy, and maintain. Our system embodies three key architectural principles: (1) support for a variety of

sensor types including platform-integrated sensors for pervasive sensing, (2) use of Internet protocols for

sensor connectivity, web technologies and programming model for application development, and (3) use a

hybrid sensor database design with a document-oriented component to improve ﬂexibility and performance.

We evaluate our implementation in real-world pilots for several months and 73 users. Our results demonstrate

that platform-integrated sensors can provide accurate sensing data, have negligible impact on operations of

a hosting platform, and that our architecture can provide sensing services across users and devices over a

sustained period of time.

1 INTRODUCTION

We envision a pervasive sensing system that is capa-

ble of collecting data from all available sensors that

may surround a user in any setting. The data sources

can come from a variety of devices including personal

mobile devices as well as sensors embedded in the en-

vironment. The data sources can also be in different

settings such as static sensors provided by building-

management systems (BMS), mobile sensors in mov-

ing vehicles with in-vehicle information system, or

public infrastructure in smart cities.

Our deﬁnition of sensors is very broad; it includes

not only all types of hardware sensors, but also soft-

ware sensors, sensing services, and people. Software

sensors are software programs (agents) that can cap-

ture and report some conditions of interest, such as

user presence detected via key clicks or mouse move-

ments. Sensing services refer to data provided by an

external source with programmatic interfaces. People

as sensors refers to users providing direct input, such

as comfort levels or preferences via dedicated end-

user interfaces, or social network platforms.

An additional sensing opportunity, surprisingly

not covered in published literature, is provided by

(IT) platform-integrated sensors, which are built into

personal computing devices such as laptops, phones,

and tablets. They offer many advantages over exist-

ing sensors in terms of cost, deployment, and person-

alization. Computing devices already have compu-

tation, storage and communication capabilities, and

can provide energy to attached sensors. Adding new

sensors to IT devices is comparatively inexpensive

as it requires adding only physical sensing probes or

capabilities. Hence, the manufacturing and deploy-

ment costs for adding sensors to computing devices

are small compared to standalone wireless embedded

sensors or dedicated sensors.

The challenge we are addressing is to integrate

data from all sensors including platform-integrated

sensors across devices, users, and domains. The in-

tegration will enable new types of applications that

cross-correlate data related to individuals. It will also

enable comprehensive understanding of contexts and

environments surrounding users. While much atten-

tion in the research community has been on design-

ing sensing systems for dedicated infrastructure (Turc

et al., 2010) or for network of standalone sensors (e.g.

Milenkovic M., Dang T., Hanebutte U. and Huang Y..

Platform-integrated Sensors and Personalized Sensing in Smart Buildings.

DOI: 10.5220/0004271300470052

In Proceedings of the 2nd International Conference on Sensor Networks (SENSORNETS-2013), pages 47-52

ISBN: 978-989-8565-45-7

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

participatory sensing (Campbell et al., 2008)), design-

ing sensing systems that span across dedicated infras-

tructures, mobile phones, and laptops, tablets has not

been seriously addressed to date.

In this paper, we propose, implement, and deploy

a sensing system that leverages platform-integrated

sensors as applied in smart buildings. The system in-

tegrates both hardware sensors and software sensors.

We have deployed the system in two real-world pilots

for an energy efﬁciency application in buildings. We

evaluate the system and show that platform-integrated

sensors can enable a large number of practical appli-

cations.

2 PLATFORM-INTEGRATED

SENSORS AND SENSING

ARCHITECTURE

In this section, we present our sensing architec-

ture that integrates cross-domain sensors including

platform-integrated sensors for smart buildings.

2.1 Platform-integrated Sensors

In our prototypes and pilot deployments, we make

considerable use of platform-integrated sensors as

practical enhancement to pervasive ambient sensing.

These are physical sensors (e.g. light, temperature

and humidity) that are integrated into common com-

puting devices including laptops, tablets, and phones.

Platform-integrated sensors have several advantages:

(1) low cost, (2) ease of installation, operation, and

management especially in corporate environments,

and (3) personalization.

Platform-integrated sensors can use the process-

ing power, connectivity, and energy supply of their

hosts. Therefore, adding new sensors to devices re-

quires adding only physical sensing capabilities (e.g.,

temperature sensors). Being essentially part of the

hosting computing device, they can be installed and

managed in an enterprise using existing IT processes

and infrastructure. In comparison, standalone wire-

less sensors often require a separate communication

infrastructure and may require frequent battery re-

placement. This makes them difﬁcult to install and

manage in commercial settings as there is no enter-

prise deployment processes or infrastructure to rely

on, in either IT or facilities management. Wired am-

bient sensors in enterprises are typically provided as

part of the BMS at the time of building commission-

ing. They tend to work only with the proprietary BMS

systems and are costly to add or reprogram.

One aspect of personalization with platform-

integrated sensors comes from the close proximity

between users and their personal devices. Users can

get real-time feedback about their own ambient con-

ditions, such as temperature and humidity where I am

right now as opposed to sensor data from remote or

standalone sensors. Other aspects of personalization

in our system include meta-data tagging for user as-

sociation and correlation across devices and domains.

These aspects are part of our implementation but are

not described in detail in this paper.

Having realized these advantages, the computer

industry is adding a variety of sensors to laptops, start-

ing with Ultrabooks in consumers and enterprise (In-

tel, 2011). Smart phones started with an earlier use

of sensors, but mostly to enhance user experience as-

pects. Platform-integrated sensors, where available,

have been used to support limited vertical applications

that do not make use of other sensors that may be sur-

rounding users.

We view platform-integrated sensors as a practi-

cal and cost-effective addition to, and not a substi-

tute for, existing sensing infrastructures. However,

existing sensing systems do not integrate platform-

integrated sensors well because they have several dis-

tinct characteristics and requirements including: ac-

curacy, intermittency, mobility and localization, user

experience, self-discovery, and security and privacy.

2.2 Sensing Architecture Overview

Our primary design objective is to acquire sensor data

from any source and across different sensing infras-

tructures, including wired and wireless standalone

sensors. The architecture is not limited to speciﬁc

types of communications links. Figure 1 shows an

overview of our sensing framework in smart buildings

with existing BMS.

We assume that sensor sources are IP-enabled and

can support the HTTP protocol in particular, directly

or via proxies. Gateways may be deployed to bridge

specialized sub-domains, such as ZigBee or 6LoW-

PAN sensor networks. One or more software pro-

grams called sensor agents monitor each IT device

or group of devices. A sensor agent can represent and

abstract a hardware sensor or a software sensor. The

agents report readings to a sensor database. In our

system, sensor data integration occurs at the database

level.

The key characteristic of our system that provides

cross-platform and cross-domain sensing capability;

It allows integration of sensor data across sensors,

devices, individual users. Sensor readings stored in

our database are tagged with metadata and identiﬁers.

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks

Building

Virtual (p2p) or

dedicated gateway

IT Sensor

Database

Gateway

Proxy

Gateway

Proxy

Gateway

Proxy

District

Visualization

personal, aggregated

Interface

Agent Agent Agent

BMS database

Agent Agent Agent

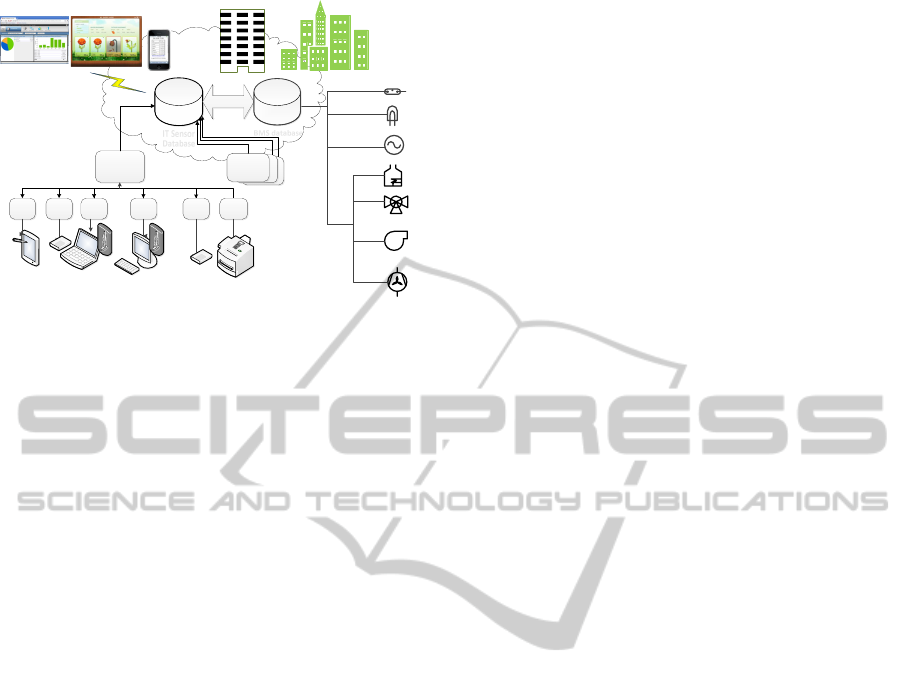

Figure 1: Sensing architecture for platform-integrated sen-

sors.

This allows our system to associate the sensor read-

ings with speciﬁc time and place of capture, as well as

information about originating devices, and attribution

to individual users. In this way, we can aggregate data

of interest, that is collected by a multitude of devices,

to a speciﬁc user. This is done by virtue of ownership

or temporal association. For example, close proxim-

ity can be determined while users are nearby sensors

embedded in the surrounding environment (domain),

such as ofﬁce, home, or car.

The sensor database provides an efﬁcient way to

query and aggregate data, and interact with other sys-

tems. We can perform analytics on individual data

and aggregated data. The database can respond to a

variety of programmed and ad-hoc queries to support

applications and visualizations in various levels of de-

tail. In addition, the sensor database also provides an

interface for other systems, such as BMS database as

shown in Figure 1, to exchange sensor and control in-

formation. Thus, it enables holistic building manage-

ment through coordinated behavior of all control sys-

tems. Currently various control systems in buildings,

such as IT and BMS, operate in isolation, resulting in

sub-optimal building management.

Figure 1 is conceptual in that it depicts sensors

in and around IT devices, such as laptops. In prac-

tice, we use a variety of sensors including software

and hardware sensors in laptops and other mobile de-

vices, as well as stand-alone sensors, such as power

meters, embedded in the environment. Our system

architecture and communication protocols are inten-

tionally designed to accommodate these and other

wired and wireless sensors, and aggregate data of in-

terest across all relevant sensors to users. Three im-

portant features of the architecture are (1) cross device

sensing using Representational State Transfer REST-

ful sensor agents, (2) decoupling sensor sources and

sensor database using publish-subscribe communica-

tion, and (3) providing ﬂexibility for changes by us-

ing a document-oriented (also referred to as noSQL)

database for sensor data storage. The following sec-

tions describe these features in detail.

2.2.1 RESTful Sensor Agents for Cross-device

Sensing

All our sensor agents implement a simple measure-

ment and actuation protocol called sMAP (Dawson-

Haggerty et al., 2010), that provides a RESTful web

service. The key features of a RESTful web ser-

vice that is applied in our architecture are: stateless,

cacheable, and uniform interface. The sensor agents

rely on HTTP-compatible communication with sen-

sors and actuators. This allows our sensors to report

data over Internet connections

Platform-integrated sensor agents convert hard-

ware and software sensor data into sMAP format and

send the data over the Internet to our sensor database.

Other types of hardware sensors may be interfaced

directly if properly formatted or through proxies and

protocol converters. People as sensor inputs, such as

direct observations, expressions of comfort and pref-

erences may be collected via dedicated end-user inter-

faces or with appropriate gateways from commonly

accessible texting and social networks.

In addition, researchers from the LoCal group at

the University of California Berkeley are using a com-

pletely different set of wireless ACme sensors (Jiang

et al., 2009) with microcontrollers that produce sMAP

formatted data directly and report them, via a net-

working gateway, to a similarly structured database.

This provides an independent conﬁrmation to our

claim of architectural capability to support different

types of sensors across different communication net-

works.

2.2.2 Publish-subscribe Communication

In order to decouple consumers and producers of data,

we use a publish-subscribe sensor reporting model. In

particular, we treat sensor sources as publishers and

consumers as subscribers. In this way, a variety of

building applications can be dynamically constructed

by having them subscribe to different data sources of

interest.

An interesting possibility availed by this approach

is that a sensor database can be implemented with-

out any knowledge or explicit assistance from sen-

sor agents. Namely, we create an universal receiver

process that subscribes to all sensors and deposits re-

ported data to the sensor database. This process com-

pletely decouples sensors from the sensor database,

thus allowing different database implementations to

Platform-integratedSensorsandPersonalizedSensinginSmartBuildings

be substituted at the server back-end side, without re-

conﬁguring the sensor source at the front-end side.

This kind of system ﬂexibility stands in stark con-

trast to traditional proprietary supervisory control and

data acquisition (SCADA) and BMS systems where

adding or even modifying a few sensory inputs to a

running system requires custom programming by spe-

cialized people resulting in very high end-user costs.

These systems generally assume a static conﬁguration

of wired sensors, which makes them brittle and un-

able to support mobile users with platform-integrated

sensors.

2.2.3 Document-oriented Sensor Database

On the server side, we use a variant of StreamFS (Or-

tiz, 2012) as a universal subscriber to all sensors to

handle sensor data streams and store sensor records

in the sensor database. In our view, key requirements

for the sensor database are high throughput, scalabil-

ity, and some ﬂexibility in data structure. In the cur-

rent implementation, we use MongoDB, a document-

oriented noSQL database (MongoDB, 2011) for sen-

sor data storage.

In document-oriented database, each data record

is stored as a document. In general, document-

oriented databases do not provide transactional ca-

pability with ACID (atomicity, consistency, isolation,

and durability) properties. This results in lower write

and little or no locking overhead, thus resulting in

higher read/write throughput than traditional transac-

tional and relational databases. The tradeoff is lack

of transactional and recovery capability, meaning that

some data records may be lost in case of system

crashes. This is generally not a problem for stream-

ing sensor data due to a large number and relatively

minor signiﬁcance of individual readings and post-

processing ability to approximate the missing read-

ings in a sequence. In addition, document-oriented

noSQL databases do not require ﬁxed formats and

pre-speciﬁed schema. Therefore, new attributes can

be added dynamically without affecting the whole

system. This ﬂexibility allows us to add new sen-

sors and change sensor data format with minimal ef-

fort. Nevertheless, we also use a relational database

to store associations, metadata, and to create analytic

reports for users and system operators. The access-

ing frequency for this database is much lower than

the sensor database.

2.3 Case Study: Eco-Sense Buildings

(ESB)

The initial use case of our platform-integrated sensing

architecture is eco-sense buildings (ESB). The proto-

type and end-user testing target is energy efﬁciency in

ofﬁce buildings. Our project goal is to expand the role

of IT to participate in increasing energy efﬁciency of

ofﬁce buildings, while improving comfort and safety

of their occupants. We are working with eco-system

partners worldwide towards meeting the most aggres-

sive energy target, net-positive energy buildings (GIE,

2011).

We choose buildings for both their opportunities

and challenges. Buildings are a major energy con-

sumer of energy. Today, buildings consume 42%

of total energy and 72% of electricity (OSC, 2011).

Given the increasing demand on energy and its im-

pacts on the environment, it is critical to achieve en-

ergy efﬁciency in buildings. Design-time energy op-

timization, while important, is static. To maintain ac-

tual desired operational efﬁciency throughout a build-

ing lifetime, a process of constant commissioning that

continuously monitors and adjusts the building’s op-

eration and control settings is necessary.

2.3.1 ESB Implementation

In our initial prototype, we focus on leveraging IT

infrastructure to measure personal energy consump-

tion and personal ambient conditions (i.e., tempera-

ture, light, and humidity wherever the user with the

instrumented laptop happens to be). The system in-

cludes sensor DB server, PC clients and other devices.

In the forthcoming end-user deployments, we plan to

use ofﬁce laptops with built-in ambient sensors. For

initial prototyping, we use an external sensor kit at-

tached to each laptop via an USB port (Figure 2). In

addition to platform-integrated sensors, we also ap-

ply soft sensors and commercial meters to monitor en-

ergy consumption of devices. All sensors and sensor

agents communicate with the database over existing

Ethernet and Wi-Fi infrastructure, thus, simplifying

provisioning and deployment.

For personal power and energy measurement, we

use a combination of custom-made software sensors

and commercial meters. We developed a software

sensor that is installed on a monitored platform. The

software agent accurately estimates the platform en-

ergy consumption (currently PCs and laptops) by

tracking occupancy of computer power states deﬁned

by EnergyStar (EnergyStar, 2011) and ECMA-383

(ECMA-383, 2011), such as short idle, long idle and

sleep. Taking into consideration battery status and

modeling the appropriate power draw, which can in-

crease by a factor of 2 − 3 when the battery charge

is low, provides the added accuracy. This allows us

to eliminate the need for dedicated hardware power

meters to measure PC power draw and energy con-

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks

sumption in real time.

We also measure energy of other devices such as

external monitors and printers at device and user lev-

els by using externally attached commercial energy

meters. These meters are network-enabled. They post

data using existing corporate intranet.

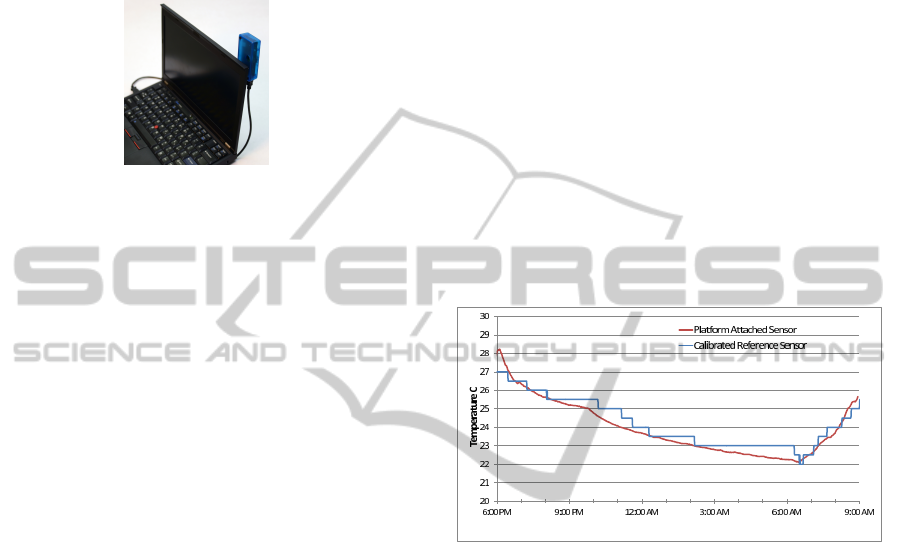

Figure 2: Platform-attached prototype sensor hub used in

our experiments.

3 EVALUATION

We have implemented and deployed the architecture

in two buildings with real ofﬁce users in France and

Japan for approximately three months. The building

in France has 5 ﬂoors with the total area of 27,146

square feet. The pilot site in Japan occupies a single

ﬂoor of 42,305 square feet in a multi-story commer-

cial building. There were 73 participants in total with

73 PCs and 21 printers instrumented with energy me-

ters. Each of the participant’s IT-supported client sys-

tem was supplemented with a prototyped platform-

integrated sensor. The sensor collected ambient data

including temperature, humidity, and light. Further-

more, a software energy sensor was installed in each

PC to monitor the PC energy consumption. A com-

mercial power meter was installed for each printer to

monitor its energy consumption. Raw sensing data

were collected every 30 seconds and stored in a sen-

sor database.

We analyze sensing data collected from sensors

that were attached to a platform (e.g., laptop) and a

reference standalone sensor that was placed nearby.

The reference sensors were calibrated by the National

Institute of Standards and Technology(NIST). The re-

sults and analysis are in Section 3.1.

To investigate whether the architecture is capable

to collect data over a large scale and for a long period

of time, we collected three months of data from 73 PC

users and 21 printers from two pilot sites. We remove

the outliers and perform the statistical analysis at in-

dividual and population levels. For ambient data, we

calculate the statistics, mean and standard deviation

(std), for each individual user.

3.1 Accuracy of Platform-integrated

Sensors

Figure 3 shows temperature proﬁles during off hours

in a real ofﬁce deployment. A sensor was attached

to a laptop at the upper right hand corner of the dis-

play lid. The laptop was placed on an ofﬁce desk.

The reference sensor was placed nearby. Both sen-

sors show the gradual temperature drop at night and

fast temperature rise in the morning. The statistical

analysis of this proﬁle yield for the reference sensor

24.28C + / − 1.35C and 24.04C + / − 1.56C for the

platform attached sensor, which is a relative differ-

ence in the mean of less than 1%. We can see that

the platform-integrated sensors follow the reference

sensor trending very closely. We ran similar tests

to evaluate our platform-integrated sensors with the

reference sensor on humidity and light, and obtained

similarly accurate results.

Figure 3: The accuracy of our platform-integrated sensor

prototype compared to a NIST calibrated reference sensor

on temperature during off hours in an ofﬁce deployment.

3.2 Pilot Data Analysis

We deployed our platform-integrated sensors to real-

world pilots to evaluate its feasibility in long-term

data collection for smart buildings. The sensors mon-

itor the ambient condition, including temperature, hu-

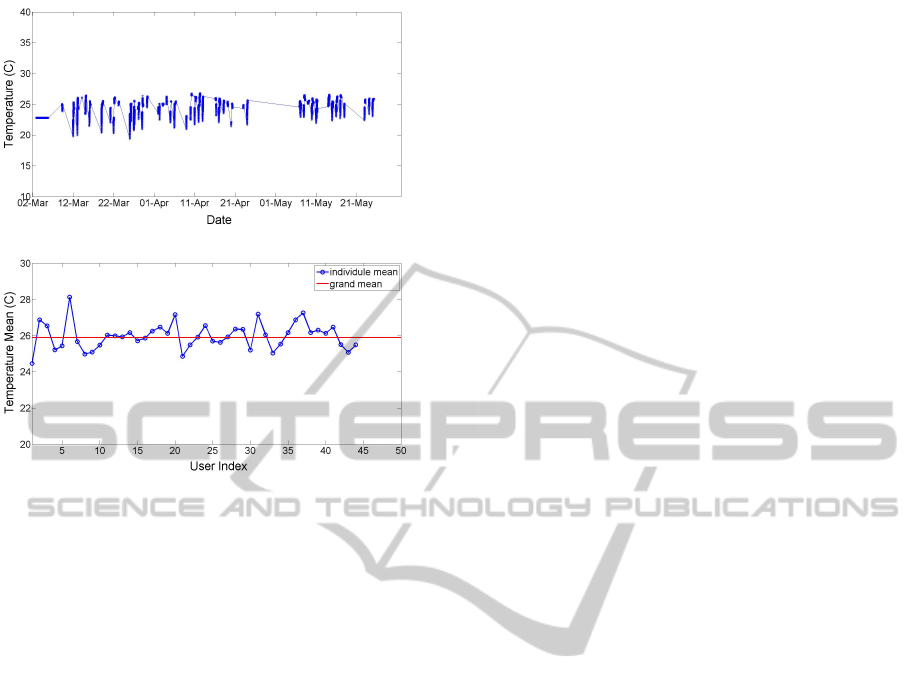

midity, and light. Figure 4 shows the temperature

data collected from the platform-integrated sensors

in one pilot. Figure 4(a) shows the temperature raw

data collected by the platform-integrated sensors for

one randomly selected user from March to May 2012.

There are small variations of temperature for each

day and across different days for this particular user.

The temperature for this user is at the range of 20C

to 27C, which is within the comfortable range. Fig-

ure 4(b) shows the statistics of the temperature data

for 45 users. The individual mean and the popula-

tion mean are shown. The grant mean temperature is

26C. We use similar approaches to validate the hu-

midity data and light data. These results demonstrate

Platform-integratedSensorsandPersonalizedSensinginSmartBuildings

(a)

(b)

Figure 4: The temperature data collected from the platform-

integrated sensors in one pilot. (a) The temperature data for

a randomly selected user. (b) The mean of the temperature

data for 45 users. The blue dot is the temperature mean for

an individual user and the red line is the grand mean across

all users.

that platform-integrated sensors are capable to collect

continuous ambient data including humidity, temper-

ature, and light over a long period of time for a large-

scale deployment. The data provide meaningful in-

formation for a building management system to adapt

building operations to improve energy efﬁciency and

user comfort in buildings.

4 SUMMARY

We have presented the case for platform-integrated

sensors as a component of pervasive sensing in of-

ﬁce buildings. We describe our sensing fabric that

supports cross-user and cross-device sensing. Three

key architectural principles in our implementation

are: (1) leveraging platform-integrated sensors for

personal sensing and crowd-sourcing (2) using of In-

ternet protocols for sensor connectivity, web tech-

nologies and programming model for application de-

velopment, and (3) using a hybrid sensor database

design with a document-oriented component to im-

prove maintenance ﬂexibility. Our experiments in

real-world pilots conﬁrm the accuracy, feasibility, and

applicability of the architecture in practice. Our work

is a step closer to realizing a vision of a pervasive

sensing system capable of collecting data from all

available sensors that may surround a user in any

setting. Our current work continues with person-

alizing user sensing experience and crowd-sourcing

(described elsewhere) and in addressing new require-

ments of platform-integrated sensors due to their dis-

tinct characteristics, including host-attachment con-

straints, mobility, and reporting intermittency.

ACKNOWLEDGEMENTS

Many people contributed to this work, including Scott

Shull, Mark Chang, Yves Aillerie, Sylvain Sauty,

Tomm Aldridge, and individual and corporate mem-

bers of the Positive-Energy consortium (GIE, 2011)

(Bouygues, Intel, Lexmark, Philips, Schneider Elec-

tric, Sodexo, Steelcase, Tenesol) and Oregon Sustain-

ability Center (OSC) (OSC, 2011).

REFERENCES

Campbell, A. T., Eisenman, S. B., Lane, N. D., Miluzzo,

E., Peterson, R. A., Lu, H., Zheng, X., Musolesi, M.,

Fodor, K., and Ahn, G.-S. (2008). The rise of people-

centric sensing. IEEE Internet Computing, 12(4):12–

21.

Dawson-Haggerty, S., Jiang, X., Tolle, G., Ortiz, J., and

Culler, D. (2010). smap: a simple measurement and

actuation proﬁle for physical information. In Proceed-

ings of the 8th ACM Conference on Embedded Net-

worked Sensor Systems, SenSys ’10, pages 197–210,

New York, NY, USA. ACM.

ECMA-383 (2011). Standard ecma-383: Measuring the en-

ergy consumption of personal computing products.

EnergyStar (2011). Energystar, http://www.energystar.gov/.

GIE (2011). Gie (consortium) eep, positive-energy chal-

lenge,, http://www.enjeu-energie-positive.com/.

Intel (2011). Ultrabook inspired by intel,

http://www.intel.com/ content/www/us/en/sponsors-

of-tomorrow/ultrabook.html?cid=sem117p8085.

Jiang, X., Dawson-Haggerty, S., Dutta, P., and Culler, D.

(2009). Design and implementation of a high-ﬁdelity

ac metering network. In Proceedings of the 2009 In-

ternational Conference on Information Processing in

Sensor Networks, IPSN ’09, pages 253–264, Wash-

ington, DC, USA. IEEE Computer Society.

MongoDB (2011). Mongodb, http://www.mongodb.org/.

Ortiz, J. (2012). Stream fs, http://streamfs.cs.berkeley.edu.

OSC (2011). Oregon sustainability center, http://

www.oregonsustainabilitycenter.org/.

Turc, T., Gligor, A., Dumitru, C., and Morar, A. (2010). De-

velopment of extensible virtual instruments for scada

applications. In Proceedings of the 2010 IEEE Inter-

national Conference on Automation, Quality and Test-

ing, Robotics (AQTR) - Volume 03, AQTR ’10, pages

1–5, Washington, DC, USA. IEEE Computer Society.

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks
