Plug-configure-Play Service-oriented Gateway

For Fast and Easy Sensor Network Application Development

Lin Wu

, YongJun Xu

, ChaoNong Xu

and Fei Wang

Institute of Computing Technology, Chinese Academy of Sciences, Beijing 100190, China

Department of Computer Science and Technology, China University of Petroleum-Beijing, Beijing 102249, China

Keywords: Sensor Networks, Plug-configure-Play, Resource-oriented, Gateway.

Abstract: Sensor Networks are typically designed for specific applications. We propose to transfer application-

specific tasks from internal sensor networks to external applications, and making sensor networks universal

infrastructure connected with gateways. This paper illustrates how we make the development of external

sensor network applications fast and easy through our elaborately-designed gateway. Our “smart” gateway

is resource-oriented other than just interconnects different networks transparently. It encapsulates the data,

capabilities and information of heterogeneous sensor networks to homogenous resources. Besides, the

gateway is plug-configure-play in the sense that it’s a common gateway for any type of sensor networks. A

universal program and information related with specific sensor networks are separated in the gateway, and

you can update the information (i.e., configuration) easily. In this paper, we realize and verify our ideas in

practice.

1 INTRODUCTION

Sensor network applications are typically tightly

coupled with certain sensor networks, such as:

Monitoring Heritage Buildings (Ceriotti et al.,

2009), Smart Logistics (Bijwaard et al., 2011),

Sensor Browser (Wan et al., 2012), etc.

Juntunen et al., (2006) divided sensor network

applications into two groups: external and internal

applications. We use these two terms in this paper to

refer to the applications on remote devices (PCs,

Mobile Phones, etc.) and sensor nodes respectively.

This paper focuses on the development of external

applications and we propose to transfer application

specific tasks from internal applications to external

applications. Internal applications are universal, only

responsible for simple tasks like sensing and

transmiting data to sink nodes.

As sensor networks are heterogeneous, it seems

that application developers must be experts about

them. To ease the workload of application

developers, we designed and implemented a

resource-oriented gateway. But another problem

arises: service-oriented gateways of sensor networks

are typically tightly coupled with certain types of

sensor networks like those in the previous literatures

(Mueller et al., 2007); (Bimschas et al., 2010). We

solve this problem by the plug-configure-play

gateway presented in this paper, which is a universal

one.

This paper is organized as follows. Section 2

describes two main features of our gateway: service-

oriented and plug-configure-play. Section 3 is about

the architure of our system. In section 4, we’ll

introduce the services our gateway provides. Section

5 describes the configuration of it to show that it’s

universal other than dedicated for limited types of

sensor networks. Section 6 describes the

development of an application with it. After that, we

compare our work with previous in section 7. At last,

we conclude our work in section 8.

2 MAIN FEATURES

2.1 Service-oriented

Our gateway is service-oriented other than just

transparently interconnects networks, making the

development of sensor network applications fast and

easy.

It encapsulates the data, capabilities and

information of heterogeneous sensor networks to

homogenous resources with universal resource

Wu L., Xu Y., Xu C. and Wang F..

Plug-conﬁgure-Play Service-oriented Gateway - For Fast and Easy Sensor Network Application Development.

DOI: 10.5220/0004271700530058

In Proceedings of the 2nd International Conference on Sensor Networks (SENSORNETS-2013), pages 53-58

ISBN: 978-989-8565-45-7

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

identifiers (URIs). And access of those resources is

service it provides to external applications through

friendly and uniform interfaces. These interfaces

include data pulling, subscription and control.

With data pulling interfaces, you can pull

resources identified with URIs in a HTTP-like way.

With subscription interfaces, you can subscribe

events (alarms, important data, status changes, etc.)

from specific nodes. When an event occurred at your

interested nodes, a notification message will be sent

to you indicating it. Compared with pulling data,

subscription is timely and resource saving. With

control interfaces, you can request actuators in

sensor networks to control the physical world. This

kind of interfaces is needed for a smarter

environment but rarely seen in litereatures.

With the resources encapsulated by our gateway,

external applicaion developers can spend most of

their time on innovation other than details of sensor

networks.

2.2 Plug-configure-Play

The plug-configure-play mechanism makes our

gateway universal.

“Plug-Configure-Play” is a variation of the term

“Plug and Play”. Like a plug and play device, you

can plug our gateway between sensor networks and

external applications, configure it and then it can

work for you. Our gateway consists of a program

and a database. The program interpretes messages

with the help of sensor network specific information

stored in database. The word “configure” means to

annotate sensor networks with such information, like

nodes’ names, locations, functions, sensor types, etc.

We make our gateway universal by separating

program and sensor network specific information.

It’s possible to implement a Plug and Play

gateway: sensor nodes can publish their information

to the gateway using SensorML (Mike and

Alexandre, 2007) or MoteML (Ali et al., 2011). But

we think this has some significant disadvantages in

terms of bandwidth consumption, flexibility, etc.

3 ARCHITECTURE

In this section, we’ll first give the overall

architecture of sensor network application

development and then show how our gateway works.

3.1 Overall Architecture

The proposed overall architecture of sensor network

application development is shown in Figure 2. The

“adapters” in this figure include sink nodes as they

also connect sensor networks to gateways. The size

of each layer represents that layer’s intelligence

level.

Take our smart home project for example, the

overall architure is like that in Figure 2. It is in fact

an instantiation of Figure 1.

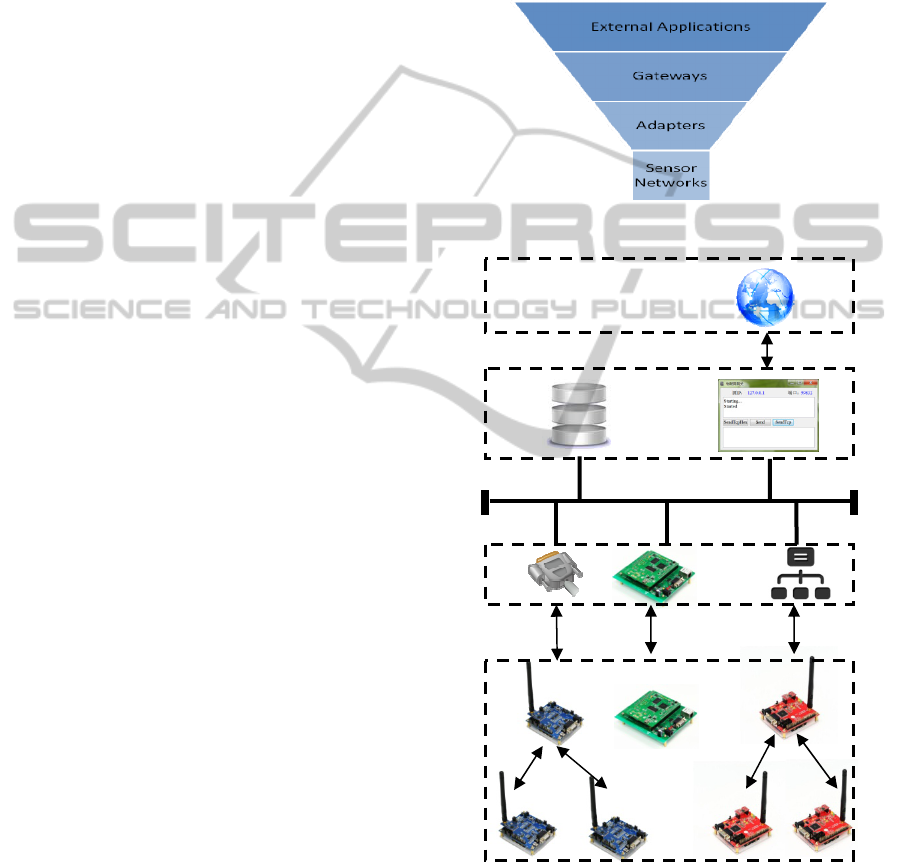

Figure 1: Proposed overall structure.

Figure 2: An implementation of overall architecture.

3.2 Gateway Architecture

The architecture of our gateway is illustrated in

Figure 3. From this figure, you can see how our

gateway works. Tasks of major components are

TCP/IP

RS232

Telne

Etherne

Adapter

Telne

ZigBee

External Applications

Gatewa

Sensor Networks

TCP/IP

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks

explained below:

 Database – Information about sensor networks

such as nodes IDs, sensors types and protocols are

stored in database. Users can configure the gateway

by updating related tables in the database.

 Packets Analyzer – Analyze the type of

received packet (data, query or control), and deliver

it to responsible components.

 Protocol Translator – Translate different

application layer protocols.

 Resource Manager – Encapsulate data,

capabilities and information of heterogeneous sensor

networks to homogenous resources, and provide

them to external applications.

 Publish/Subscribe Manager – Publish events to

external applications who subscribed them.

 External Applications Status Manager –

Manage status (active or not) of external

applications.

 Communication Scheduler – Schedule the

communication with sensor networks to smooth the

traffic

 Connectivity Manager – Record IPs and UDP

ports of sink nodes/adapters and IDs of active sensor

nodes connected with each of these sink

nodes/adapters.

4 SERVICES PROVIDED

In this section, we’ll introduce the services our

gateway provides to highlight its service-oriented

feature.

4.1 Connectivity

Our gateway supposes that sink nodes connecting

with it are all IP-enabled, and it can connect with

sensor networks with any kind of network protocols

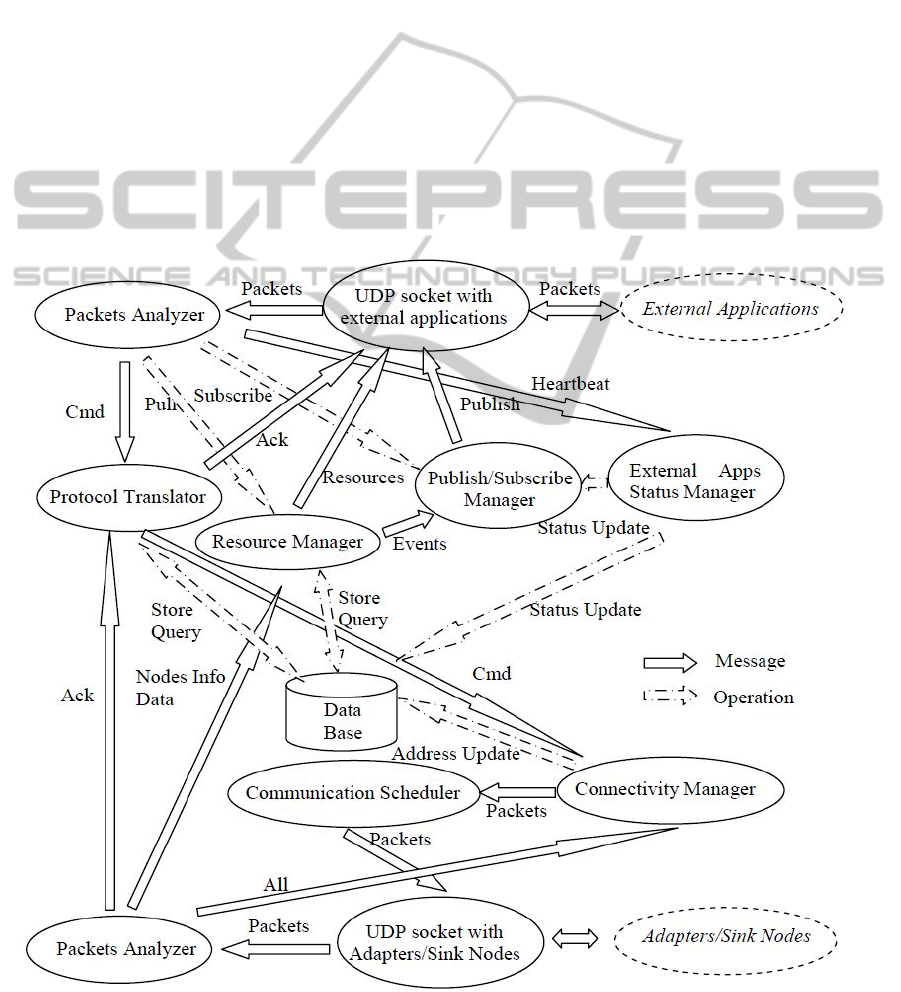

Figure 3: Gateway Architecture.

Plug-configure-PlayService-orientedGateway-ForFastandEasySensorNetworkApplicationDevelopment

(Ethernet, ZigBee, GPRS, etc.) with the help of

adapters. This greatly simplifies the design of its

connectivity function and makes it universal.

For the gateway, adapter is just a sink node

running the protocol shown in Table 1. For example,

one of the sink nodes we use works as a TCP server

and can’t send messages to the gateway

automatically. To connect it to our gateway, we

write a program, connecting to the sink node to read

data and send to the gateway. The gateway will then

look on this program as a sink.

Most of the gateways which have the function of

transport layer and application layer protocol

conversion we surveyed (Bimschas et al., 2010);

(Mueller et al., 2007) do the conversion themselves.

As a result, they usually can only work for sensor

networks running several specific kinds of protocols.

In contrast, we achieve the goal of a universal

gateway by transferring the task from gateway to

adapters.

The application layer protocol between gateway

and sink nodes/adapters is like that in Table 1. Table

2 is about the meaning of each item. Application

layer protocols of sensor networks don’t have to

comply with this, you can use a sink node or adapter

to translate messages from your sensor networks to

those compatible with this.

Table 1: Protocol with sensor networks.

Header Dest Src SN Len Type Payload Checksum

4.2 Data Pulling

The data and information of sensor networks are

encapsulated and identified by Universal Resource

Identifiers (URIs). Thus external applications can

request the resource of sensor networks in a clear

and easy way, independent of what the sensor

network is like. The data pulling interface is like the

request line of HTTP, as is shown below:

Get URI

This stytle of interface is easy to understand and

can facilitate the development of Web of Things

upon our gateway.

For example “Get node1/RealTime/query?

SensorName=Temperature+Humidity” means to get

the latest temperature and humidity value from

node1.

4.3 Subscription

The service of subscription is necessary for two

reasons: Firstly, external applications may expect to

be notified immediately when some events occur

(e.g., the window of a room is broken suddenly);

Secondly, information should be shared when

several external applications control the same sensor

network. The subscription interface is as below:

Event Watch NodeID

This tells the gateway that an external

application is interested in the events from the node

with ID/physical address NodeID. If an external

application wants to monitor the status of a window,

then it can watch the node monitoring this window.

When the window is broken, a notification will be

sent to the external application immediately.

4.4 Controlling the Physical World

External applications should make our environment

smarter by enabling it to interact with us. This brings

the need to control the physical world. Our gateway

provides such services:

Mac NodeID SN CmdType CmdName Params

For example:

Mac 5149012977665754 0 CmdNrm

LED_SetLightIntensity 20

This command requests the node with

ID/physical address 5149012977665754 to set the

light intensity of LED to 20. The sequence number

of this packet is 0.

5 CONFIGURATION

In our gateway, the program and sensor network

specific information are separated. The former is

universal, and the latter is stored in database. You

can deploy the program in your computer or other

smart devices, update the database (i.e. configuration)

if needed, and then the gateway can work. We list

some important kinds of configuration in this section

to show how we achieve the goal of universal

through our elaborate design.

5.1 Nodes Information Update

There are two tables in the database storing

information related with sensor nodes:

“NodeAddressMap” and “NodeSensorMap”.

“NodeAddressMap” stores information about

nodes in sensor networks such as names, physical

addresses and IPs (of nodes themselves or adapters).

“NodeSensorMap” stores the information about

sensors on nodes. It tells the program on gateway

how to interprete the ADC values in the messages

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks

from sensor nerworks.

5.2 Sensors Information Update

It’s impossible to put all types of sensors into

consideration when writing the program on gateway

as the number is too huge. To make our gateway

universal, users “tell” the gateway information about

sensors through configuration. Tables “TypeMap”

and “NodeSensorMap” store related information.

5.3 Control Types Update

You can “tell” the gateway what controls sensor

networks support through configuration. There are

three tables in the database storing information

related with this: “AvailableCmdQuery”,

“ParamInfo” and “CmdEncode”.

Table “AvailableCmdQuery” lists all the controls

available. Table “ParamInfo” lists parameters of all

coontrols one by one. Table “CmdEncode” lists the

codes of packet types and data types.

Our gateway converts the commands from

external applications to the messages understandable

by adapters/sink nodes with the help of these tables.

If your sensor network provides new types of

controls and you want to provide them to external

applications, then just insert values into these three

tables.

6 CASE STUDY

We’ve developed various applications with our

gateway. In this section, we take an Android

application as an example, see Figure 4.

Figure 4: Curtain Opening/Closing.

This application is used for opening/closing

curtains in the house. Commands are sent to our

gateway when swiping a finger. The code of this

application related with controlling curtains is listed

below:

udpSocket.connectToHost(GatewayIP,

GatewayPort);

udpSocket.write(“Get

Info/NodeAddressMap/NodeID/Query?NodeNa

me_like_’%curtain%’”);

udpSocket.waitForReadyRead();

nodeID=getNodeID(udpSocket.readAll()

);

udpSocket.write(“Event Watch

nodeID”);

udpSocket.write(“Mac nodeID SN

CmdNrm Switch_On”);

First of all, the program queries the gateway about

the ID of the node that controls the curtain. As nodes

have been anotated through configuration (see

section 5.1), database will tell the gateway which

node is controlling the curtain. Then the program

requests the gateway to make this node to turn on

the switch which will control the curtain.

The gateway can translate messages like “

Mac

nodeID SN CmdNrm Switch_On

” to those

compatiable with the application layer protocol in

Table 1. The table “CmdEncode” in database will tell

the gateway how to encode items in the message like

“CmdNrm” and “Switch_On”, and the table

“Protocols” in database will tell the gateway

positions of each item.

It should be noticed that, there may be more than

one person controlling the curtain at the same time.

So the program subscribes the events about this node.

When another one is controlling the curtain, the

change of curtain’s states (closed/opened) will be

sent to the program. Then it can tell the user through

GUI.

7 RELATED WORKS

In the literatures we surveyed, there are rarely

gateways offering interfaces for controlling the

physical world through sensor networks.

Some of the gateways are only for

interconnection (Emara et al., 2009); (Qian et al.,

2010). Those gateways connect networks with

different network protocols such as ZigBee, GPRS

and Ethernet transparently.

Some other gateways also have the service of

protocols translation, but they are usually designed

for specific kinds of sensor networks, such as the

gateway proposed by Mueller et al. (2007) and

Bimschas et al. (2010).

Juntunen et al. (2006) focused on the expandability

of internal sensor network applications. Information

about sensor nodes and services available are stored

in nodes and transmitted to gateway when service

Plug-configure-PlayService-orientedGateway-ForFastandEasySensorNetworkApplicationDevelopment

discovery request is flooded to all nodes. The service

discovery messages add extra transmission cost.

Besides, it brings extra workload for sensor nodes to

support the reply of service discovery messages.

The work of Jong-Wan et al., (2009) is the most

similar one. Their system composes of a main server

and several sensing servers connecting with different

sensor networks, which resemble our gateway and

adapters respectively. But in their system, most tasks

are completed by network-dependent sensing servers

other than main server. This means that most of the

tasks are left to users.

8 CONCLUSIONS

This paper has presented a plug-configure-play

service-oriented gateway, aiming to make it fast and

easy to develop various external sensor network

applications. The gateway encapsulates data,

capabilities and information of heterogeneous sensor

networks to homogenous resources. Access of those

resources is service it provides to external

applications through friendly and uniform interfaces

independent of types of sensor networks. The

gateway is not for specific kinds of sensor networks

or applications. Its feature of plug-configure-play is

achieved by separating the universal program and

sensor network specific information. It’s promising

in stimulating the emergence and prosperity of

external application markets.

ACKNOWLEDGEMENTS

This paper is supported in part by Important

National Science & Technology Specific Projects

under grant No.(2010ZX03006-002 ，

2010ZX03006-007), the National Basic Research

Program of China (973 Program) (No.

2011CB302803), and National Natural Science

Foundation of China (NSFC) under grant

No.(61173132,61003307). The authors alone are

responsible for the content of the paper.

REFERENCES

Ali, F., Feaster, Y., Wahba, S. K., & Hallstrom, J. O.

(2011). A metadata encoding for memory-constrained

devices. In Proceedings of the 49th Annual Southeast

Regional Conference, pages 191-196, Kennesaw,

Georgia.

Bijwaard, D. J. A., Kleunen, W. A. P. v., Havinga, P. J. M.,

Kleiboer, L., & Bijl, M. J. J. (2011). Industry: using

dynamic WSNs in smart logistics for fruits and

pharmacy. In Proceedings of the 9th ACM Conference

on Embedded Networked Sensor Systems (SenSys’11),

pages 218-231, Seattle, Washington, USA.

Bimschas, D., Hellbrück, H., Mietz, R., Pfisterer, D.,

Römer, K., Teubler, T. (2010). Middleware for smart

gateways connecting sensornets to the internet. In

Proceedings of the 5th International Workshop on

Middleware Tools, Services and Run-Time Support for

Sensor Networks (MidSens’10), pages 8-14, Bangalore,

India.

Ceriotti, M., Mottola, L., Picco, G. P., Murphy, A. L.,

Guna, S., Corra, M., Zanon, P. (2009). Monitoring

heritage buildings with wireless sensor networks: The

Torre Aquila deployment. In Proceedings of the 2009

International Conference on Information Processing

in Sensor Networks (IPSN’09), pages 277-288, San

Francisco, California, USA.

Emara, K. A., Abdeen, M., & Hashem, M. (2009). A

gateway-based framework for transparent

interconnection between WSN and IP network. In

EUROCON '09, pages 1775-1780, St.-Petersburg.

Jong-Wan, Y., Yong-ki, K., Choon-Sung, N., & Dong-Rye,

S. (2009). Sensor Network Middleware for Distributed

and Heterogeneous Environments. In International

Conference on New Trends in Information and Service

Science (NISS '09), pages 979-982, Beijing.

Juntunen, J. K., Kuorilehto, M., Kohvakka, M., Kaseva, V.

A., Hannikainen, M., & Hamalainen, T. D. (2006).

WSN API: Application Programming Interface for

Wireless Sensor Networks. In IEEE 17th International

Symposium on Personal, Indoor and Mobile Radio

Communications, pages 1-5, Helsinki.

Mike, B. and Alexandre R. (2007). OpenGIS Sensor

Model Language (SensorML). Retrieved September

13, 2012, from

http://www.opengeospatial.org/standards/sensorml

Mueller, R., Rellermeyer, J. S., Duller, M., & Alonso, G.

(2007). Demo: A Generic Platform for Sensor

Network Applications. In IEEE Internatonal

Conference on Mobile Adhoc and Sensor Systems

(MASS’2007), pages 1-3, Pisa.

Qian, Z., Ruicong, W., Qi, C., Yan, L., & Weijun, Q.

(2010). IOT Gateway: BridgingWireless Sensor

Networks into Internet of Things. In 2010 IEEE/IFIP

8th International Conference on the Embedded and

Ubiquitous Computing (EUC’2010), pages 347-352,

Hong Kong.

Wan, J., O'Grady, M. J., O' Hare, G. M. P. and Colakov, T.

(2012). Browsing the Sensor Web: Pervasive Access

for Wide-area Wireless Sensor Networks. In 1st

International Conference on Sensor Networks

(Sensornets'2012), Rome, Italy.

SENSORNETS2013-2ndInternationalConferenceonSensorNetworks
