Probabilistic View-based 3D Curve Skeleton Computation on the GPU

Jacek Kustra

1,3

, Andrei Jalba

and Alexandru Telea

Institute Johann Bernoulli, University of Groningen, Nijenborgh 9, Groningen, The Netherlands

Eindhoven University of Technology, Den Dolech 2, Eindhoven, The Netherlands

Philips Research, Eindhoven, The Netherlands

Keywords:

Curve Skeletons, Stereo Vision, Shape Reconstruction, GPU Image Processing.

Abstract:

Computing curve skeletons of 3D shapes is a challenging task. Recently, a high-potential technique for this

task was proposed, based on integrating medial information obtained from several 2D projections of a 3D

shape (Livesu et al., 2012). However effective, this technique is strongly inﬂuenced in terms of complexity by

the quality of a so-called skeleton probability volume, which encodes potential 3D curve-skeleton locations.

In this paper, we extend the above method to deliver a highly accurate and discriminative curve-skeleton

probability volume. For this, we analyze the error sources of the original technique, and propose improvements

in terms of accuracy, culling false positives, and speed. We show that our technique can deliver point-cloud

curve-skeletons which are close to the desired locations, even in the absence of complex postprocessing. We

demonstrate our technique on several 3D models.

1 INTRODUCTION

Curve skeletons are well-known 3D shape descriptors

with applications in computer vision, path planning,

robotics, shape matching, and computer animation.

A 3D object admits two types of skeletons: Surface

skeletons are 2D manifolds which contain the loci

of maximally-inscribed balls in a shape (Siddiqi and

Pizer, 2009). Curve skeletons are 1D curves which

are locally centered in the shape (Cornea et al., 2005).

Curve skeleton extraction has received increased

attention in the last years (Dey and Sun, 2006; Re-

niers et al., 2008; Jalba et al., 2012; Au et al., 2008;

Ma et al., 2012; Tagliasacchi et al., 2009; Cao et al.,

2010a; Tagliasacchi et al., 2012). All these meth-

ods work in object space, i.e. take as input a 3D

shape description coming as a voxel model, mesh, or

dense point cloud. Recently, Livesu et al. have pro-

posed a fundamentally different approach: They ex-

tract the curve skeleton from a set of 2D views of a

3D shape (Livesu et al., 2012). Key to this compu-

tation is the extraction of a volume which encodes, at

each 3D point inside the shape, the probability that the

curve-skeleton passes through that point. The curve-

skeleton is extracted from this volume using a set of

postprocessing techniques. This approach has the ma-

jor advantage that it requires only a set of 2D views

of the input shape, so it can be used when one does

not have a complete 3D shape model. However, this

method strongly depends on the quality of the skeletal

probability volume.

We present here an extension of the view-based

approach of Livesu et al., with the following contri-

butions. First, we propose a different way for com-

puting the curve-skeleton probability and represent-

ing it as a dense point cloud. On the one hand, this

eliminates a major part of the original proposal’s false

positives (i.e., locations where a curve-skeleton point

is suggested, but no such point actually exists), which

makes our probability better suited for further skele-

ton extraction. On the other hand, our point-cloud

model eliminates the need for a costly voxel repre-

sentation. Secondly, we propose a fast GPU imple-

mentation of the point cloud computation which also

delivers the skeleton probability with higher accuracy

than the original method. We demonstrate our tech-

nique on several complex 3D models.

The structure of this paper is as follows. Section 2

overviews related work on 3D curve skeleton extrac-

tion. Section 3 details the three steps of our frame-

work: extraction of accurate 2D view-based skeletons

(Sec. 3.1), a conservative stereo matching for extract-

ing 3D skeleton points from 2D view pairs, (Sec. 3.2),

and a sharpening step that delivers a point cloud nar-

rowly condensed along the curve skeleton (Sec. 3.3).

Section 4 presents several results and discusses our

237

Kustra J., Jalba A. and Telea A..

Probabilistic View-based 3D Curve Skeleton Computation on the GPU.

DOI: 10.5220/0004276502370246

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 237-246

ISBN: 978-989-8565-48-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

framework. Section 5 concludes the paper.

2 RELATED WORK

2.1 Preliminaries

Given a three-dimensional binary shape Ω ⊂ R

with

boundary ∂Ω, we ﬁrst deﬁne its distance transform

∂Ω

: Ω → R

∂Ω

(x ∈ Ω) = min

y∈∂Ω

∥x −y∥ (1)

The surface skeleton of Ω is next deﬁned as

∂Ω

= {x ∈ Ω|∃f

∈ ∂Ω,f

̸= f

∥x − f

∥ = ∥x − f

∥ = DT

∂Ω

(x)}, (2)

where f

and f

are two contact points with ∂Ω of

the maximally inscribed disc in Ω centered at x, also

called feature transform (FT) points (Strzodka and

Telea, 2004) or spoke vectors (Stolpner et al., 2009).

Here, the feature transform is deﬁned as

∂Ω

(x ∈ Ω) = argmin

y∈∂Ω

∥x − y∥. (3)

Note that FT

∂Ω

is multi-valued, as an inscribed ball

can have two, or more, contact points f. Note, also,

that the above deﬁnitions for the distance transform,

feature transform, and skeleton are also valid in the

case of a 2D shape Ω ∈ R

2.2 Object-space Curve Skeletonization

In contrast to the formal deﬁnition of surface skele-

tons (Eqn. 2), curve skeletons know several deﬁni-

tions in the literature. Earlier methods computed the

curve skeleton by thinning, or eroding, the input voxel

shape in the order of its distance transform, until a

connected voxel curve is left (Bai et al., 2007). Thin-

ning can also be used to compute so-called meso-

skeletons, i.e. a mix of surface skeletons and curve

skeletons (Liu et al., 2010). For mesh-based models,

a related technique collapses the input mesh along its

surface normals under various constraints required to

maintain its quality (Au et al., 2008). Hassouna et

al. present a variational technique which extracts the

skeleton by tracking salient nodes on the input shape

in a volumetric cost ﬁeld that encodes centrality (Has-

souna and Farag, 2009). Tagliassacchi et al. com-

pute curve skeletons as centers of point cloud projec-

tions on a cut plane found by optimizing for circular-

ity (Tagliasacchi et al., 2009). A good review of curve

skeletonization is given in (Cornea et al., 2007).

One of the ﬁrst formal deﬁnitions of curve skele-

tons is the locus of points x ∈ Ω which admit at least

two shortest paths, or geodesics, between their fea-

ture points (Dey and Sun, 2006; Prohaska and Hege,

2002). This deﬁnition has been used for mesh mod-

els (Dey and Sun, 2006) and voxel-based models (Re-

niers et al., 2008). Curve skeletons can also be ex-

tracted by collapsing a previously computed surface

skeleton towards its center using differents variants

of mean curvature ﬂow (Tagliasacchi et al., 2012;

Cao et al., 2010a; Telea and Jalba, 2012). Alterna-

tively, surface skeletons can be computed using a ball

shrinking method (Ma et al., 2012) and then select-

ing points which match the geodesic criterion (Jalba

et al., 2012). However, such approaches require one

to ﬁrst compute the more expensive surface skeleton.

2.3 View-based Curve Skeletonization

A quite different approach was recently proposed by

Livesu et al.: Noting that the 2D projection of a 3D

curve skeleton is close to the 2D skeleton of the pro-

jection, or view, of an input 3D shape, they extract

curve skeletons by merging 2D skeletal information

obtained from several views of the input shape Ω.

Given two such views C

and C

⊥

, whose up-vectors

are parallel and lines of sight are orthogonal, the sil-

houettes B

and B

⊥

of Ω are ﬁrst computed by orto-

graphic projection of the input shape. Secondly, the

2D skeletons S

∂B

and S

∂B

⊥

of these silhouettes are

computed. Next, stereo vision is used to reconstruct

the 3D skeleton: Point pairs p ∈ S

and p

⊥

∈ S

⊥

are

found by scanning each epipolar line, and then back-

projected into 3D to yield a potential curve-skeleton

point x

. The points x found in this way are accu-

mulated into a so-called probability volume V ⊂ R

which gives, at each spatial point, the likelihood to

have a curve-skeleton passing through that point.

The above method has several advantages com-

pared to earlier techniques. First, it can be used di-

rectly on shape views, rather than 3D shape models,

which makes it suitable for any model which can be

rendered in a 2D view, regardless of its representa-

tion (e.g. polygons, splats, points, lines, or textures).

Secondly, the method can be easily parallelized, as

view pairs are treated independently. However, this

method fundamentally relies on the fast computation

of a good probability volume which contains a correct

estimation of the curve skeleton location. This poses

the following requirements:

1. a reliable and accurate stereo vision correspon-

Here and next, we denote by italics (e.g., p) the 2D

projection of a 3D point p in a camera C

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

238

dence matching, i.e. ﬁnding the correct pairs of

points (p ∈ S

∂B

, p

⊥

∈ S

∂B

⊥

) which represent the

projection of the same curve skeleton point in the

view-pair (C

⊥

);

2. an accurate and efﬁcient representation of the

probability volume V for further processing.

Requirement (1) is not considered by Livesu et al.,

where all possible point-pairs along an epipolar line

are backprojected. This generates, as we shall see in

Sec. 3.2.2, a large amount of noise in the probabil-

ity volume V . Removing this noise requires four rel-

atively complex postprocessing steps in the original

proposal. Secondly, the probability volume V is rep-

resented as a voxel grid. This makes the method un-

necessarily inaccurate, relatively slow and hard to par-

allelize, and requires large amounts of memory, thus

contradicts requirement (2).

In the following, we present several enhancements

that make view-based skeleton extraction compatible

with requirements (1) and (2). This allows us to ex-

tract a high-accuracy probability volume for further

usage in curve skeleton computation or direct visual-

ization.

3 ACCURATE PROBABILITY

VOLUME COMPUTATION

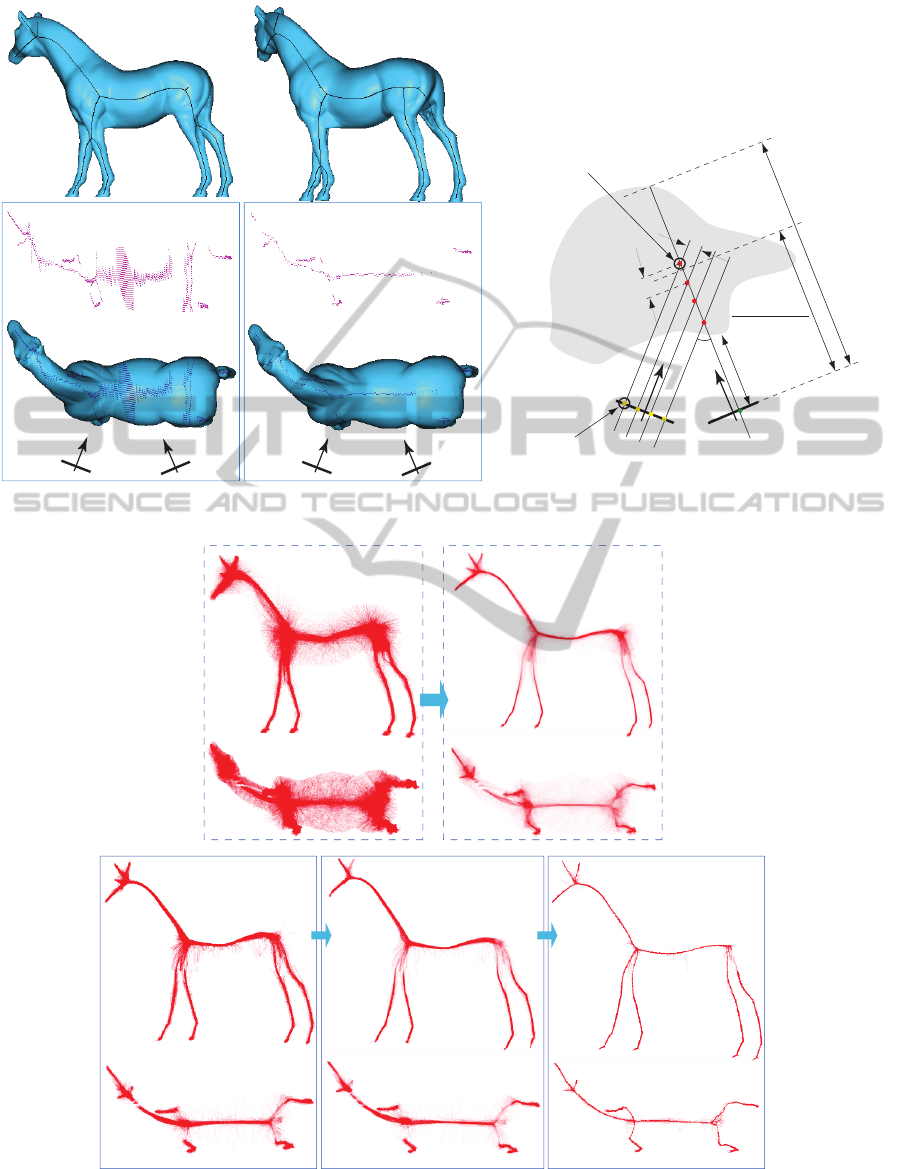

Our proposal has three steps (see also Fig. 1).

First, we extract regularized and subpixel-accuracy

2D skeletons from several views of the input shape

(Sec. 3.1). Next, we use additional view-based infor-

mation to infer a conservative set of correspondences

between points in such 2D skeleton pairs, backpro-

ject these in 3D, and record the obtained points as a

point cloud (Sec. 3.2). Finally, we apply an additional

sharpening step on the 3D point cloud, which directly

delivers a highly accurate curve-skeleton probability

(Sec. 3.3).

3.1 Robust 2D Skeletonization

Given a shape Ω and camera speciﬁcation C =

(o,v,u) described by its origin o, view direction v,

and up-vector u, we start by computing the silhou-

ette B of Ω by rendering the shape on the camera’s

view plane (u,v ×u). Next, we compute the so-called

salience 2D skeleton of B using the technique pre-

sented in (Telea, 2012a). The salience of a point p ∈ B

is deﬁned as

σ(p) =

ρ(p)

∂B

(p)

(4)

Here, DT

∂B

(p) is the 2D distance transform of the sil-

houette boundary ∂B and ρ(p) is the so-called skele-

ton importance

ρ(p) = max

∈FT

∂B

(p)

∥γ

∥ (5)

where FT

∂B

is the feature transform of the boundary

∂B, and γ

is the compact boundary fragment be-

tween two points a and b on ∂B. The importance ρ

increases monotonically from the endpoints (tips) of

the skeleton towards its center. Intuitively, ρ(p) as-

sociates, to each skeleton point p, the length of the

longest boundary arc (in pixels) subtended by its fea-

ture points. Upper thresholding ρ with a value ρ

will

thus remove both skeleton branches created by small

boundary wiggles and end-parts of important skeleton

branches caused e.g. by boundary corners. Figure 2

(top row) shows this effect for a silhouette B of a horse

model. For ρ

= 1, we get the full 2D skeleton, which

contains many spurious branches. For ρ

= 5, we get

the desired skeleton detail at the legs and head, but

still have several spurious branches around the rump

and neck. For ρ

= 30, we eliminate all spurious

branches, but also loose relevant portions of branches

corresponding to the legs. This is undesired, since, as

we shall later see, we need the important branches at

their full length to reconstruct a curve-skeleton reach-

ing into all shape protrusions.

In contrast, the salience metric σ (Eqn. 4) deliv-

ers a better result. As shown in (Telea, 2012a), σ

is high along the most important, or salient, skeleton

branches, and low elsewhere. Hence, we can thresh-

old σ to obtain the skeleton

∂B

= {p ∈ B|σ(p) > σ

} (6)

Equation 6 delivers a clean, regularized, skele-

ton whose spurious branches are eliminated, and

whose important branches extend all the way into the

shape’s protrusions. Figure 2 (bottom row) shows the

saliency-based regularization. For σ

= 0, we obtain

the same full skeleton as for ρ

= 1. Increasing σ

over a value of 0.05 practically removes all spurious

branches, but keeps the important ones un-pruned (see

zoom-ins). As such, we use the value σ

= 0.05 fur-

ther in our pipeline.

We further enhance the precision of the com-

puted skeleton by using the subpixel technique pre-

sented in (Strzodka and Telea, 2004). As such, skele-

ton points are stored as 2D ﬂoating-point coordinates

rather than integers. This will be important when per-

forming the 3D stereo reconstruction (Sec. 3.2.2).

3.2 Accurate Correspondence Matching

We ﬁnd potential 3D curve-skeleton points along the

same key idea of (Livesu et al., 2012): Given a cam-

ProbabilisticView-based3DCurveSkeletonComputationontheGPU

239

input 3D shape Ω

⊥

camera-pair

selection

silhouette

skeletonization

⊥

pair matching+culling

and 3D backprojection

silhouette and

depth culling

3D skeleton

sharpening

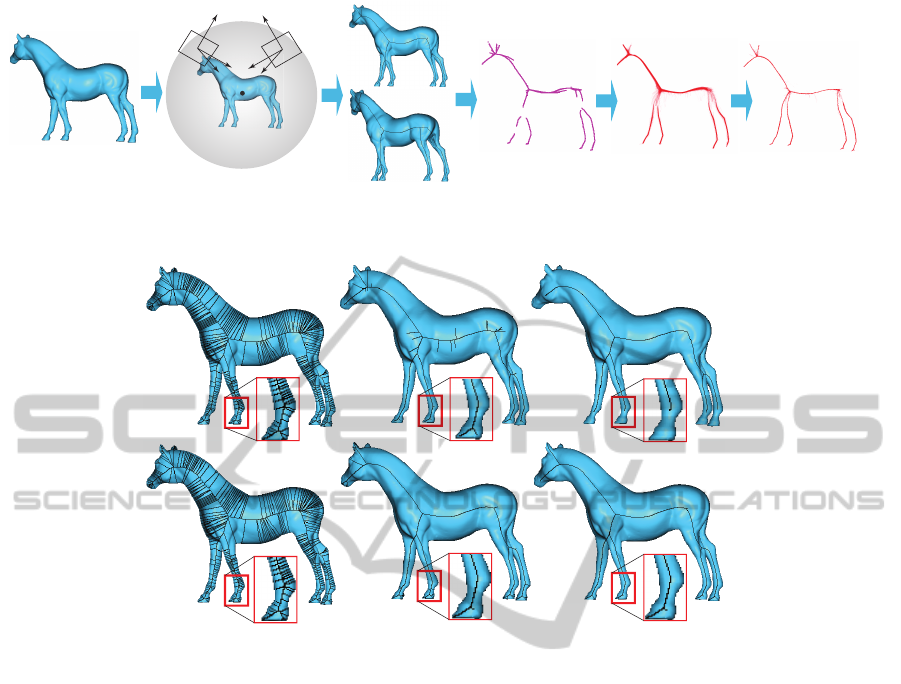

Figure 1: Curve-skeleton probability computational pipeline.

=0 σ

=0.05 σ

=0.1

=30

Figure 2: Skeleton regularization. Top row: Importance-based method (Telea and van Wijk, 2002) for three different threshold

values ρ

. Bottom row: Salience-based method (Telea, 2012a) for three different threshold values σ

era C = (o, v,u), where v points towards the object’s

origin, we construct a pair-camera C

⊥

= (o

⊥

)

which also points at the origin and so that the two up-

vectors u and u

⊥

are parallel. In this case, projected

points p in C correspond to projected points p

⊥

in C

⊥

located on the same horizontal scanline. Given such

a point-pair (p,p

⊥

), the generated 3D point x is com-

puted by triangulation, i.e. by solving

x = p + kv = p

⊥

+ k

⊥

(7)

where p and p

⊥

are the 3D locations, in their respec-

tive view planes, corresponding to p and p

⊥

respec-

tively, and k and k

⊥

are the distances between x and

the view planes of C and C

⊥

. Note that p and p

⊥

can

be immediately computed as we know the positions

of p and p

⊥

and the cameras’ positions, orientations,

and near plane locations.

3.2.1 Correspondence Problem

However, as well known in stereo vision, the suc-

cess of applying Eqn. 7 is fundamentally conditioned

by having the correct 2D points p and p

⊥

paired in

the two cameras. Let us analyze this issue in our

context: Consider that a scanline y intersects a 2D

skeleton shape in m points on the average. Hence,

we have m

possible point-pairs. These will gener-

ate m

points in the 3D reconstruction, whereas in

reality there are only at most m such points – that

is, if no occlusion is present. The excess of m

− m

points are false positives. Given N such camera-pairs

placed uniformly around the object in order to re-

construct its 3D curve skeleton, and considering a

camera viewplane of P × P pixels, we have in the

worst case O(N(m

− m)P) false-positive points in

the curve skeleton. The ratio of false-to-true posi-

tives is thus Π = O

(

N(m

− m)P)/(NmP)

)

= O(m).

In our measurements for a wide set of shapes, we no-

ticed that m = 5 on the average. Concretely, at an

image resolution of P

= 1024

pixels, and using the

setting N = 21 from Livesu et al., we thus get over

400K false-positive points generated in excess of the

NPm ≃ 100K true-positive skeleton points.

The above false-to-true-positive ratio Π is a con-

servative estimate: Given a rigid shape Ω, the 2D

skeleton of its silhouette can change considerably as

the silhouette changes, even when no self occlusions

occur. This, and additional self-occlusion effects, re-

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

240

duce the true-positive count and thus increases Π.

This ultimately creates substantial noise in the curve-

skeleton probability estimation, and thus makes an ac-

curate curve skeleton extraction more complex.

3.2.2 Pair-culling Heuristic

We reduce the false-to-true-positive ratio Π by using

additional information present in our cameras, as fol-

lows. Consider a point p on a scanline L in C and all

points L

⊥

= {p

⊥

} on the same scanline in C

⊥

(see

Fig. 3 e). The 3D reconstructions of all pairs (p, p

⊥

)

lie along the line p+ kv (Eqn. 7). Hence, if we had an

estimate of the depth k

est

between the correct recon-

struction and the viewplane of C, we could select the

best pair p

⊥

est

for p as

⊥

est

= argmin

⊥

est

∈L

⊥

est

− k| (8)

i.e. the point in C

⊥

which yields, together with p,

a depth closest to our estimate. We estimate k

est

as follows: When we draw the shape in C, we also

compute its nearest and furthest depth buffers Z

and

, by rendering the shape twice using the OpenGL

GL LESS and GL GREATER depth-comparison func-

tions respectively. Next, for each point p in the

viewplane of C, we set k

est

(p) + Z

(p)] (see

Fig. 3 e).

It is essential to note that our heuristic for k

est

not an attempt to ﬁnd the exact value of the depth

k. Indeed, if we could do this, we would not need

to apply Eqn. 8, as we could perform the 3D back-

projection using a single view. We use k

est

only as a

way to select the most likely point-pair for 3D recon-

struction. This is argumented as follows: First, we

note that the value k for the correct point-pair must

reside between Z

(p) and Z

(p) - indeed, the recon-

structed 3D point x must be inside the object’s hull.

Secondly, the curve skeleton is roughly situated in the

(local) middle of the object, thus its depth is close to

est

. Thirdly, we note that, when the angle between

the cameras’ vectors α = ∠(v,v

⊥

) decreases, then the

depths k

yielded by Eqn. 8 for a set of scanline-points

⊥

∈ L

⊥

get further apart. In detail, if the distance be-

tween two neighbor pixels in the scanline L

⊥

is δ, the

distance between their reconstructions using the same

point p in the other scanline L is ε = δ/ sin(α), see

Fig. 3 c. Hence, if we use a small α (under 90

deg

we get fewer depths k

close to k

est

, so we decrease

the probability that selecting the point whose depth is

closest to k

est

(Eqn. 8) will yield an incorrect point-

pair for the 3D reconstruction. In contrast, Livesu et

al. use α = 90

◦

, as this slightly simpliﬁes Eqn. 7.

Given that low α values reduce the likelihood to ob-

tain false pairs using our depth heuristic, we prefer

this, and set α = 20

◦

Figure 3 shows the results of using our depth-

based pairing heuristic. Images (a) and (b) show

the two skeletons S

∂B

and S

∂B

⊥

corresponding to the

two cameras C and C

⊥

respectively. The brute-force

many-to-many correspondence pairing yields 6046

three-dimensional points. As visible in Fig. 3 c,

these points are spread uniformly in depth along the

view directions of the two cameras. This is expected,

since 2D skeleton pixels are equally spaced in the im-

age plane. For clarity, we displayed here only those

points which pass the silhouette and depth-culling, i.e.

which are inside the object from any considered view

(see further Sec. 3.3). The displayed points in Fig. 3 c

are thus ﬁnal points in the curve-skeleton probability

volume delivered by many-to-many matching.

Figure 3 d shows the reconstructed 3D points

when we use our depth-based pair-culling. Since

we now only have one-to-one pairs, we obtain much

less points (721 vs 6046, see the explanations in

Sec. 3.2.1). Moreover, these points are located very

close to the actual curve skeleton, as shown by the

top view of the model.

Given our conservative point-pair selection, as

shown in Fig. 4, we generate much fewer curve-

skeleton points than if using many-to-many pairing.

Although this is highly desirable for obtaining an

accurate (false-positive-free) curve skeleton, it also

means that the curve skeleton will be sparser than

when using all possible pairs. To counteract this, we

simply use more view pairs N. In practice, setting

N ≃ 500 yields sufﬁciently dense curve skeletons (see

results in Sec. 4). An additional advantage of using

more views is that we do not need to carefully select

the optimal views for stereo reconstruction, in con-

trast to the original method, where such views are ob-

tained by performing a principal component analysis

(PCA) on both the 3D shape and its 2D projections.

We further reduce the number of tested point-pairs

(Eqn. 8) by scanning L from left to right (for p) and

⊥

from right to left (for p

⊥

), As such, 3D points

are generated in increasing order of their depth k, so

est

− k| ﬁrst decreases, then increases. Hence, we

stop the scan as soon as |k

est

− k| increases, which

gives an additional speed improvement.

3.3 Probability Sharpening

We collect the 3D points x (Eqn. 7) found by the

depth-based correspondence matching for a given

camera-pair (C,C

⊥

) in an unstructured point cloud

C S . As C rotates around the input shape, we keep

testing that the projections x of the accumulated

ProbabilisticView-based3DCurveSkeletonComputationontheGPU

241

d) pair culling: 721 pairs

a) first view (C)

b) second view (C

⊥

)

c) full pairing: 6046 pairs

C C

⊥

C C

⊥

scanline L

⊥

e) pair matching and triangulation

skeleton pixel

resolution

depth spread ε

scanline L

shape Ω

(p)

(p)+Z

(p)

reconstructed

point x

selected p

⊥

est

Figure 3: Correspondence matching for curve-skeleton reconstruction. A camera pair (a,b). Reconstructed 3D points when

using full pairing (c) and when using our depth-based pairing (d). Depth-based pairing and triangulation (e).

a) original density volume b) density volume (low opacity)

c) pair culling

d) depth culling

e) sharpening

2599632 points

242689 points258899 points 253081 points

2599632 points

Figure 4: Curve-skeleton probability point-cloud. (a) original method (Livesu et al., 2012). (b) Cloud in (a) displayed with

lower opacity. (c) Effect of depth-based pairing. (d) Effect of depth culling. (e) Effect of sharpening (see Sec. 3.3).

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

242

points x ∈ C S fall inside the silhouette B in C, as

well as within C’s depth range [Z

(x),Z

(x)]. Points

which do not pass these tests are eliminated from C S .

The depth test explained above comes atop the sil-

houette test which was already proposed by Livesu

et al.. Whereas the silhouette test constrains C S to

fall within the visual hull of our input shape, we con-

strain C S even further, namely to fall within the exact

shape. The difference is relevant for objects with cav-

ities, whose visual hull is larger than the object itself.

However closer to the true curve-skeleton than the

results presented by Livesu et al., our C S still shows

some spread around the location of the true curve

skeleton. This is due to two factors. First, consider

the inherent variability of 2D skeletons in views of a

3D object: The 2D skeleton is locally centered with

respect to the silhouette (or projection) of a 3D object

Ω. In areas where Ω has circular symmetry, the 2D

skeleton of the projected 3D object is indeed identi-

cal to the 2D projection of the true 3D curve skele-

ton, i.e., skeletonization and projection are commuta-

tive. However, this is not true in general for shapes

with other cross-sections. Moreover, self-occlusions,

in the case of concave objects, will generate 2D skele-

tons which have little in common with the projection

of the curve skeleton. It is important to stress that

this is not a problem caused by wrong correspondence

matching. Secondly, using a small α angle between

the camera pairs (Sec. 3.2.2), coupled with the inher-

ent resolution limitations of the image-based skele-

tons, introduces some depth estimation errors which

show up as spatial noise in the curve skeleton.

We further improve the sharpness of C S as fol-

lows. For each camera C which generates a silhouette

B, we move the points x ∈ C S parallel to the view

plane of C with a step equal to ∇DT

∂B

. Since ∇DT

∂B

points towards S

∂B

, this moves the curve-skeleton

points towards the 2D skeleton S

∂B

. Note that, in gen-

eral, ∇DT

∂B

is not zero along S

∂B

(Telea and van Wijk,

2002). Hence, to prevent points to drift along S

∂B

, and

thus create gaps in the curve skeleton, we disallow

moving points x which already project on S

∂B

. Note

also that this advection nevers move points outside Ω,

since S

∂B

is always inside any sihouette B of Ω. Since

the above process is done for all the viewpoints C, the

curve skeleton gets inﬂuenced by all the considered

views. This is an important difference with respect to

Livesu et al., where a 3D skeleton point is determined

only by two views.

Figure 4 shows the effect of our three improve-

ment steps: depth-based pairing (Sec. 3.2.2), depth

culling, and sharpening. All images show 3D point

clouds rendered with alpha blending. Figure 4 a

shows the cloud C S computed following the orig-

inal method of Livesu et al., that is, with many-

to-many correspondence matching along scanlines

(Sec. 3.2.1). Clearly, this cloud contains a huge

amount of points not even close to the actual curve

skeleton. If we decrease the alpha value in the visu-

alization, we see that this cloud, indeed, has a higher

density along the curve-skeleton (Fig. 4 b). We see

here also that naive thresholding of the density, which

is quite similar to decreasing the alpha value to obtain

Fig. 4 b from Fig. 4 a, creates problems: If a too low

threshold is used, the skeleton still stays thick; if a too

high threshold is used, the skeleton risks disconnec-

tions (see white gaps in the neck region in Fig. 4 b).

Eliminating the large amount of false positives

from the cloud shown in Fig. 4 a is very challeng-

ing. To do this, Livesu et al. apply an involved

post-processing pipeline: (1) voxelize the cloud into

a voting grid; (2) extract a maximized spanning tree

(MST) from the grid; (3) detect and prune perceptu-

ally salient tree branches; (4) collapse short branches;

(5) recover curve-skeleton loops lost by the MST; and

(6) smooth the resulting skeleton; for details we re-

fer to (Livesu et al., 2012). Although this is possi-

ble, as demonstrated by the results of Livesu et al.,

this post-processing is highly complex, delicate, and

time-consuming.

Fig. 4 c shows our curve-skeleton probability,

obtained with the center-based correspondence pair

culling (Sec. 3.2.2). The point cloud contains now

around ten times less points. Also, note that points

close to the true curve skeleton have been well de-

tected, i.e., we also have few false negatives. Apply-

ing the depth-based culling further removes a small

amount of false positives (Fig. 4 d vs Fig. 4 c). Fi-

nally, the density sharpening step effectively attracts

the curve-skeleton points towards the local skeleton

in each view, so the overall result is a sharpening of

the point cloud C S , i.e. a point density increase along

the true curve skeleton and a density decrease further

from the skeleton (Fig. 4 e).

4 DISCUSSION

Performance. We have implemented our method

C++ with OpenGL and CUDA and tested it on a 2.8

GHz MacBook Pro with an Nvidia GT 330M graph-

ics card. The main effort is spent in computing the

regularized 2D salience skeletons (Sec. 3.1). We efﬁ-

ciently implemented the computation of DT

∂B

, FT

∂B

ρ, and σ (Eqns. 1-4) using the method in (Cao et al.,

2010b), one of the fastest exact Euclidean distance-

and-feature transform techniques in existence (see our

ProbabilisticView-based3DCurveSkeletonComputationontheGPU

243

a) cow b) horse c) hound

d) spider

e) hand f) dino g) neptune h) rabbit

i) hippo j) scapula k) pig

l) armadillo m) bird n) rotor

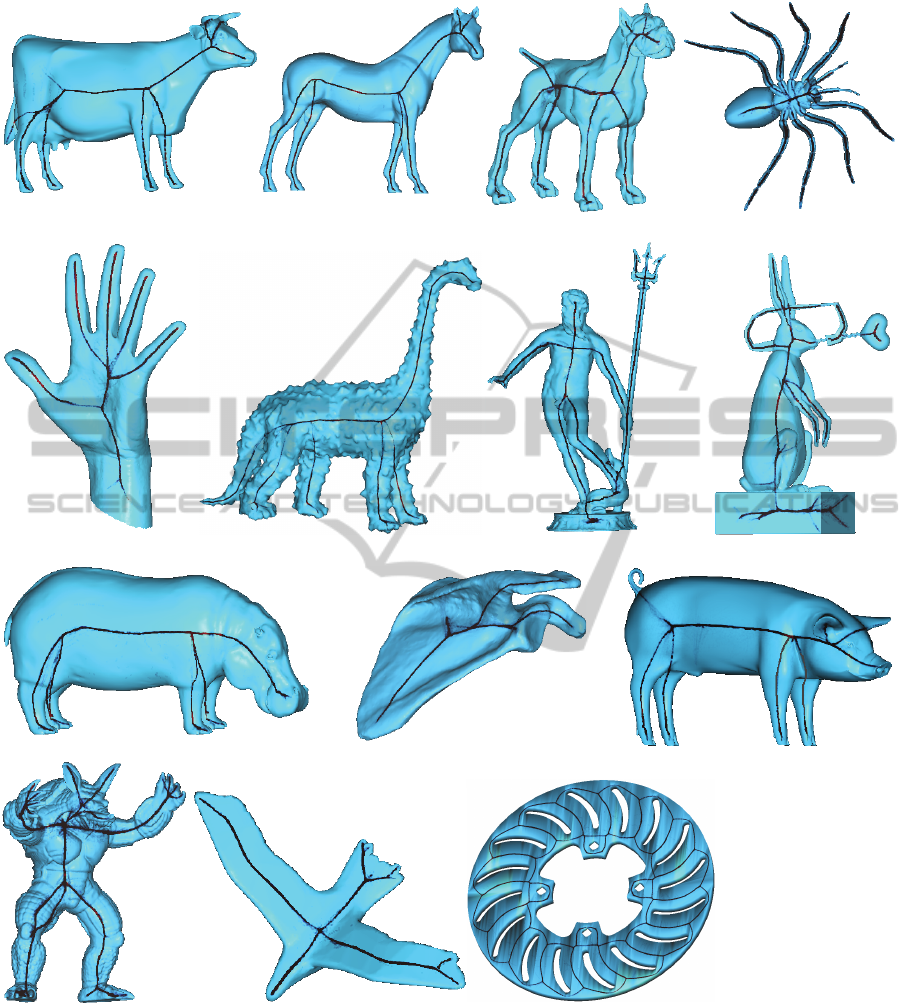

Figure 5: Curve-skeleton probability point-clouds for several models (see Sec. 4).

publicly available code at (Telea, 2012b)). The re-

maining steps of our pipeline are trivial to paral-

lelize, as points and camera views are treated inde-

pendently. Overall, our entire pipeline runs roughly

at 500 frames/second. Given that we use more views

than Livesu et al., i.e. roughly 500 vs 21, our CUDA-

based parallelization is essential, as it allows us to

achieve roughly the same timings as the method of

Livesu et al.

Parameters. All parameters of the method are ﬁxed

and independent on the input shape, i.e. skele-

ton saliency threshold σ

= 0.05 (Sec. 3.1), num-

ber of considered views uniformly distributed around

a sphere centered in the object center N = 500

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

244

a) b) c) d)

e) g)f)

Figure 6: Comparison with related methods: (a) our method; (b) (Livesu et al., 2012); (c) (Telea and Jalba, 2012); (d) (Au

et al., 2008); (e) (Dey and Sun, 2006); (f) (Jalba et al., 2012); (g) (Reniers et al., 2008) (see Sec. 4).

(Sec. 3.2.2), screen resolution P

= 1024

pixels

(Sec. 3.2.1), and angle between the camera-pair view

vectors α = 20

◦

(Sec. 3.2.2). Less views (N < 500)

will generate sparser-sampled curve skeletons, as dis-

cussed in Sec. 3.2.2. Decreasing the pixel resolution

generates slightly thicker point distributions in the

curve-skeleton cloud. This is expected, since we have

less and coarser-spaced 2D skeleton pixels, which

also implies higher depth estimation errors (Eqn. 7).

Decreasing α under roughly 5 degrees generates too

large inaccuracies in the depth estimation; increasing

it over roughly 30 degrees reduces the likelihood of

good correspondence pairing; hence, our setting of

α = 20

◦

Results. Figure 5 shows several results computed

with our method. The produced curve-skeleton

clouds contain between 100K and 300K points. We

render these clouds using small point splats of 2 by

2 pixels, to make them more visible. The key obser-

vation is that our skeleton point clouds are already

very close to the desired 3D location, even in the ab-

sence of any cloud postprocessing. In contrast, the

equivalent point clouds delivered by the method of

Livesu et al. are much noisier (see example in Fig. 3 a

and related discussion in Sec. 3.2.2), and thus require

signiﬁcant postprocessing to select the true-positives.

Since our point clouds are much sharper, we can di-

rectly use them for curve-skeleton visualization, as

shown in Fig. 5. If an explicit line representation of

such skeletons is desired, this can be easily obtained

by using e.g. the curve-skeleton reconstruction algo-

rithm described in (Jalba et al., 2012), Sec. VIII-C.

Thin tubular skeleton representations can be obtained

by isosurfacing the density ﬁeld induced by our 3D

point cloud. In this paper, we refrained from produc-

ing such reconstructions, as we want to let our main

contribution stand apart – the computation of noise-

free, accurate point-cloud representations of the curve

skeleton probability.

Comparison. Figure 6 compares our method with

several recent curve-skeleton extraction methods. As

visible, our curve skeleton has the same overall struc-

ture and positioning within the object. However, dif-

ferences exist. First, our method produces smoother

curve skeletons than (Dey and Sun, 2006) and (Jalba

et al., 2012). This is due to the density sharpen-

ing step, which does not have an equivalent in the

latter two methods. Also, (Au et al., 2008) re-

quires a so-called connectivity surgery step to re-

pair the curve skeleton after the main Laplacian ad-

vection has completed. This necessary step has the

undesired by-product of creating straight-line inter-

nal skeleton branches (Fig. 6 d, palm center). Sec-

ondly, we correctly ﬁnd the skeleton’s ligature and

internal branches. This is also the case for all other

methods except (Livesu et al., 2012), where all skele-

ton branches are merged in a single junction point

(Fig. 6 b). This fact is not surprising, given the branch

collapsing postprocessing step in the latter method. It

is not clear to us why this step is required (or beneﬁ-

cial), as it actually changes the topology of the skele-

ton, and thus may impair operations such as shape

analysis or matching.

Properties. Our method maintains all of the desir-

able properties of curve skeletons advocated by re-

lated work (Cornea et al., 2007; Au et al., 2008;

Tagliasacchi et al., 2012; Livesu et al., 2012; Jalba

et al., 2012): Our skeletons are thin and locally cen-

tered within the object. Higher-genus objects (with

tunnels) are handled well (see rabbit and rotor mod-

els, Fig. 5). The method is robust against noise, due

to the sharpening step (see dino and armadillo mod-

els, Fig. 5). Thin, sharp detail protrusions of the mod-

els generate curve skeleton branches, as long as these

parts project to at least 1 pixel in screen space (see

neptune, spider, and rabbit models, Fig. 5). This is

due to the usage of the 2D skeleton saliency metric,

which keeps 2D skeleton branches reaching into such

salient shape details (Sec. 3.1). Input model resolu-

tion, e.g. polygon count, is largely irrelevant to the

end result, since 2D skeletons are computed in image

space.

Limitations. Our method cannot recover complete

curve skeletons for shape parts which are not visible

from any viewpoint, i.e., permanently self-occluded.

This is an inherent problem of view-based 3D recon-

ProbabilisticView-based3DCurveSkeletonComputationontheGPU

245

struction. For such shapes, the object-space skele-

tonization methods mentioned in Sec. 2 should be

used.

5 CONCLUSIONS

We have presented a new method for computing

curve-skeletons as unstructured point clouds. Our

method extends the view-based curve-skeleton ex-

traction of Livesu et al. in several directions: (1)

Using salience-based skeletons to guarantee preser-

vation of terminal skeleton branches, (2) using depth

information to reduce the number of false-positives in

the 3D skeleton reconstruction, and (3) sharpening the

obtained point-cloud representation to better approx-

imate the 1D singularity locus of the curve skeleton.

We trade off speed for accuracy, by generating more

conservative skeleton samples and using more view-

points. However, by using a GPU implementation,

we achieve the same speed as the original method,

but deliver a much cleaner and sharper 3D skeleton

point-cloud approximation. Overall, our method can

be used either as a front-end for reconstructing line-

based representations of 3D curve skeletons, or for di-

rectly rendering such skeletons as unstructured point

clouds.

Future work can improve the point matching ac-

curacy, for example by using optical ﬂow models

or exploiting geometric variability properties of 2D

skeletons. Separately, implementing the 3D geodesic-

based curve-skeleton detector of (Dey and Sun, 2006)

by using the 2D collapsed boundary metric ρ (Eqn. 5)

is a promising way for recovering highly accurate

curve skeletons in this view-based framework.

REFERENCES

Au, O. K. C., Tai, C., Chu, H., Cohen-Or, D., and Lee, T.

(2008). Skeleton extraction by mesh contraction. In

Proc. ACM SIGGRAPH, pages 441–449.

Bai, X., Latecki, L., and Liu, W.-Y. (2007). Skeleton prun-

ing by contour partitioning with discrete curve evolu-

tion. IEEE TPAMI, 3(29):449–462.

Cao, J., Tagliasacchi, A., Olson, M., Zhang, H., and Su,

Z. (2010a). Point cloud skeletons via laplacian-based

contraction. In Proc. IEEE SMI, pages 187–197.

Cao, T., Tang, K., Mohamed, A., and Tan, T. (2010b). Paral-

lel banding algorithm to compute exact distance trans-

form with the GPU. In Proc. SIGGRAPH I3D Symp.,

pages 134–141.

Cornea, N., Silver, D., and Min, P. (2007). Curve-skeleton

properties, applications, and algorithms. IEEE TVCG,

13(3):87–95.

Cornea, N., Silver, D., Yuan, X., and Balasubramanian, R.

(2005). Computing hierarchical curve-skeletons of 3D

objects. Visual Comput., 21(11):945–955.

Dey, T. and Sun, J. (2006). Deﬁning and computing curve

skeletons with medial geodesic functions. In Proc.

SGP, pages 143–152. IEEE.

Hassouna, M. and Farag, A. (2009). Variational curve

skeletons using gradient vector ﬂow. IEEE TPAMI,

31(12):2257–2274.

Jalba, A., Kustra, J., and Telea, A. (2012). Comput-

ing surface and curve skeletons from large meshes

on the GPU. IEEE TPAMI. accepted; see

http://www.cs.rug.nl/∼alext/PAPERS/PAMI12.

Liu, L., Chambers, E., Letscher, D., and Ju, T. (2010). A

simple and robust thinning algorithm on cell com-

plexes. CGF, 29(7):22532260.

Livesu, M., Guggeri, F., and Scateni, R. (2012). Re-

constructing the curve-skeletons of 3D shapes

using the visual hull. IEEE TVCG, (PrePrints). http://

doi.ieeecomputersociety.org/10.1109/TVCG.2012.71.

Ma, J., Bae, S. W., and Choi, S. (2012). 3D medial axis

point approximation using nearest neighbors and the

normal ﬁeld. Visual Comput., 28(1):7–19.

Prohaska, S. and Hege, H. C. (2002). Fast visualization

of plane-like structures in voxel data. In Proc. IEEE

Visualization, page 2936.

Reniers, D., van Wijk, J. J., and Telea, A. (2008). Com-

puting multiscale skeletons of genus 0 objects using a

global importance measure. IEEE TVCG, 14(2):355–

368.

Siddiqi, K. and Pizer, S. (2009). Medial Representations:

Mathematics, Algorithms and Applications. Springer.

Stolpner, S., Whitesides, S., and Siddiqi, K. (2009). Sam-

pled medial loci and boundary differential geometry.

In Proc. IEEE 3DIM, pages 87–95.

Strzodka, R. and Telea, A. (2004). Generalized distance

transforms and skeletons in graphics hardware. In

Proc. VisSym, pages 221–230.

Tagliasacchi, A., Alhashim, I., Olson, M., and Zhang, H.

(2012). Skeletonization by mean curvature ﬂow. In

Proc. Symp. Geom. Proc., pages 342–350.

Tagliasacchi, A., Zhang, H., and Cohen-Or, D. (2009).

Curve skeleton extraction from incomplete point

cloud. In Proc. SIGGRAPH, pages 541–550.

Telea, A. (2012a). Feature preserving smoothing of shapes

using saliency skeletons. Visualization in Medicine

and Life Sciences, pages 155–172.

Telea, A. (2012b). GPU skeletonization code.

www.cs.rug.nl/svcg/Shapes/CUDASkel.

Telea, A. and Jalba, A. (2012). Computing curve skeletons

from medial surfaces of 3d shapes. In Proc. Theory

and Practice of Computer Graphics (TPCG), pages

224–232. Eurographics.

Telea, A. and van Wijk, J. J. (2002). An augmented fast

marching method for computing skeletons and center-

lines. In Proc. VisSym, pages 251–259.

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

246
