Decision Models as Software Artifacts

Bridging the Business-Software Gap for Decision Support Systems

Armando Guarnaschelli

, Omar Chiotti

and Héctor E. Salomone

INGAR, Instituto de Desarrollo y Diseño, CONICET-UTN, Avellaneda 3657, Santa Fe, Argentina

CIDISI, R&D Information Systems Engineering Centre, FRSF-UTN, Lavaisse 610, Santa Fe, Argentina

Keywords: Model Driven Development, Decision Models, Service Oriented Architecture, Reference Modeling.

Abstract: In this work we introduce a methodology for integrating the development of decision models with model

driven software development approaches. This methodology captures the relationships between service

oriented architecture software models and decision models by deriving from a common reference model, the

data and conceptual elements of both types of models. Using this reference model and through successive

model transformations and refinements, the methodology delivers integrated models and implementation

models of software aimed to be more resilient to changes in business models. As all software artifacts are

connected through a unique reference model, the collaboration with business partners is enabled at all levels

by sharing or reusing existent reference models.

1 INTRODUCTION

Decision support community has produced along the

years a rich body of highly efficient models and

algorithms to solve relevant problems applicable to

almost any aspect of decision making. The evolution

of information systems towards complexity and

integration of processes, challenges the survival of

models and algorithms that were conceived and

designed in isolation of the business context and

software engineering considerations.

To unleash the full potential of model-based

decision making in the context of modern software

systems it is mandatory to create bridges among

decision support specialists and software engineers.

This integration can be facilitated by exploring the

interactions of business modeling, service-oriented

software development and Decision Problem (DP)

analysis.

In this paper, we discuss a methodology that

intents to make those interactions explicit and guide

the development of business solutions including DPs

all along its lifecycle. From the very early stages of

requirement analysis and business process modeling

to the final stages of deploying software integrated

to complex software systems. The methodology is

strongly based on service-oriented software

development methods in recognition to the unpaired

advantages this approach has to address the

requirements of current business information

systems.

From this well-established methodological

backbone, we have made an effort to extend the

main concepts behind SOA (Service Oriented

Architecture, (Papazoglou & Van Den Heuvel,

2007) development to strength the interactions with

business modeling and DP solving. A central idea is

to maintain an always traceable relation among the

software artifacts that are being generated and the

business model. This is enabled by prescribing the

specification of a unique reference model serving as

the single source for domain representation,

semantic interoperability and foundation of any

involved data model.

Another important aspect is the adoption of a

Model Driven Development (Hailpern & Tarr, 2006)

approach that prescribes the generation of models at

different stages of the development. These models

provide the anchors for the automatic generation of

the software artifacts required for the project by

means of model to model transformations and

eventually model to code transformations.

The methodology proposed in this work allows

capturing, guiding and in some cases automating the

reflection of changes at the business model into:

Decision Models, their solution methods and

strategies, as well as into Data models and software

services enacting the processes in the business

284

Guarnaschelli A., Chiotti O. and Salomone H..

Decision Models as Software Artifacts - Bridging the Business-Software Gap for Decision Support Systems.

DOI: 10.5220/0004282000860095

In Proceedings of the 2nd International Conference on Operations Research and Enterprise Systems (ICORES-2013), pages 86-95

ISBN: 978-989-8565-40-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

model.

This characteristic is possible as this

methodology establishes the specification of

decision models and services independently of

solution and implementation strategies. This

contributes to bridging the business-software gap for

decision support systems.

2 METHODOLOGY ROADMAP

The proposed methodology is schematically

presented as a development roadmap in Figure 1 . It

consists in four modeling workflows: Business

Modeling, DP Modeling, Service Modeling and

Reference Modeling.

The starting point is the Business Modeling

workflow; its purpose is to produce a unified

business model that will drive the development of

every other workflow and becomes a permanent

consulting source of requirements, processes, goals

and objectives.

Reference Modeling is done throughout the

lifetime of the project in order to capture relevant

and essential domain elements used in every other

workflow and data model. It resorts to an abstract

and synthetic representation of the concepts in the

business model including relationships between

elements and possible constraints that validate

instances of them with respect to the business

context. Its purpose is twofold: First, it facilitates the

interaction of the resulting SOA based software

solution with existing systems, other enterprise

systems and with decision model languages (such as

GAMS (Brooke, Kendrick, Meeraus, & Raman,

2008), ILOG (IBM, 2011), etc.) and future systems

to be developed.

Second it serves as the conceptual base of the

project facilitating the communication between its

stakeholders: decision support specialists, business

analysts, potential users and software engineers.

In the DP Modeling workflow, the problem is

identified and specified in the context of the

business processes defined in the business model.

Figure 1: Methodology Roadmap.

Business

Modeling

Decision

Problem

Service

Modeling

Reference

Modeling

Definition Review

DomainElements

Relationships

OCLConstraints

Identification Specification Realization

Identification Specification Realization Implementation

model

Businessmodel

Capabilitybased

servicemodel

Service

model

Implementation

modelforservices

BusinessModeling

results in

isrefinedinto

isinputof

transformation

TIMELINE

ProblematicofaDecisionProblem

DPinitial

description

CODE

DecisionModelsasSoftwareArtifacts-BridgingtheBusiness-SoftwareGapforDecisionSupportSystems

285

This workflow considers both phases previous to

solve the DP (the data, resources and actors

involved) and post solving the DP (implementing

and using the results). The purpose of this workflow

is twofold: The first is obtaining a DP Specification

independent of the solution strategy. This allows

capturing every detail of the decision processes in

the context of the business and also reflecting future

changes in the business into decision processes and

models. Second the workflow finishes with a

solution strategy including the specification of a

decision model in the context of this solution

strategy (e.g. mathematical programming).

The Service Modeling workflow adapts

approaches for SOA modeling in order to match the

evolution of the DP Modeling workflow capturing

the intermediate models as appropriate software

artifacts.

DP and Service Modeling workflows have a

common structure composed by the phases of:

Identification, Specification, and Realization

(resulting in an implementation model for both DP

and services). The Implementation phase only

applies for Service Modeling as it implies defining

executable code for the SOA solution.

Several relationships are described in the

roadmap, for instance: results in implies the

activity/phase results into a software artifact (a

model), is refined into implies the source model is

refined into a richer model with increasing detail and

introducing new elements, is input of implies that the

source model is used to define the target model,

transformation implies a model transformation into

another model or code.

2.1 Business Modeling

Business modeling captures the vision and processes

that an organization holds and intends to realize. The

resulting models serve as the basis for the derivation

of all software artifacts in a software project.

Understanding the business means that software

engineers, decision support specialists, and every

stakeholder in a software project understand the

organization structure, dynamics, goals, etc. A

correctly built and specified business model

provides a source of consultation on all business

related issues during the software development

lifecycle. Additionally if business modeling is done

in conjunction with model driven development it

provides the benefit of a resilient software solution,

minimizing the effort to update software products

given a change in the business model.

Business modeling is composed by the activities

of business goals definition, business process

modeling, business rules identification and

requirements analysis. Following, these activities are

briefly described:

The definition of business goals encompass the

identification off all relevant goals of the business

and their modeling as a hierarchical three of sub-

goals and further refinement up to the definition of

measurable objectives. These business goals and

objectives must be related to one or more business

processes for allowing the definition of metrics that

measure the degree of goal fulfillment.

Business process modeling provides a detailed

description of the business processes and sub-

processes associated with a specific domain. The

model includes all the business processes that are

object of improvement and systematization and also

includes other related processes that are needed to

provide context and understanding of the business

structure and dynamics.

There are diverse graphical modeling languages

that can be used for business process modeling as

Unified Modeling Language (UML) activity

diagrams (OMG, 2010), Business Process Modeling

Notation (BPMN) (OMG, 2011) and flowcharting

among others. In this methodology we have chosen

BPMN because it provides a common process

description language that is both suitable for high-

level, business-oriented description of the processes

(as it is appealing for business analysts), and for

low-level specifications (as required by software

engineers).

2.2 Reference Modeling

The term reference model has been widely used in

information system literature mostly to denominate

any model which is used as a template to derive

enterprise specific models for a given business area.

A review of the usage of the term in the literature

can be found in (Thomas, 2005), where it is

characterized by its universality within a business

area and its reusability in different system

development projects.

In this software development methodology, the

building of a reference model is considered a crucial

step for integrating software designers and decision

support specialists. Every model (software model,

decision model, data model, etc.) will use a

reference model with a specific significance and

functionality as it serves to the following purposes:

ICORES2013-InternationalConferenceonOperationsResearchandEnterpriseSystems

286

• Semantic source: Every relevant concept

related to the business model is included as an

element in the reference model or can be defined by

a valid combination of reference model elements.

All meta-models in this methodology relate to the

reference model by referencing a generic entity

called DomainElement, which imply in general

terms to any entity of the reference model.

• Foundation for the service data model. All

messages exchanged among service providers and

consumers are defined using reference model

elements and the resulting data model constitutes the

communication schema of the final SOA solution

obtained. This schema is expressed using XML

schema definition language (W3C, 2004).

• Basis to define the enterprise ontology when

additional reasoning about the concepts of the

reference model is required.

• Facilitating interoperability between business

partners. Two business partners engaged in business

collaboration will reduce their semantic

interoperability problems by generating the

reference model for the collaboration and addressing

interoperability only at this level. This is possible

due to the fact that a valid reference model must be

able to represent every domain element used in the

context of the business and as a consequence, every

data element in any related system can be

represented as a combination of reference model

elements. Communicating two business related

systems reduces to agree to use the same Reference

Model.

To build a Reference Model UML class

diagrams are proposed. Classes represent conceptual

elements and their attributes help to specify a

particular instance of a concept. Relationships

between classes model relationships between

concepts. Constraints that ensure valid reference

model elements and instances should be expressed

using OCL (OMG, 2010) which is a widely used

semi-formal constraint language.

2.3 DP Modeling

As a guiding development principle for this phase,

the identification and specification of the DP should

be as rich as possible, and postpone the

considerations about the solution strategies available

and choice of reliable algorithms for the Realization

phase. This strong separation between DP

specification and how it is going to be solved

reinforces the philosophy of this methodology which

is to tighten the business solution (including the

decision models) to the business model.

2.3.1 DP Identification

In organizational or inter-organizational business

processes many decisions are taken either using an

automated mechanism or by a manual tasks. In some

cases the evaluation of the possible alternatives with

respect to business goals and objectives can become

both difficult and relevant enough to constitute a DP

requiring a decision model for representation and

solution. This methodology proposes to identify and

put DPs in the context of the business model relating

them to specific elements of the processes executed.

In general terms, any DP is composed by a set

(finite or infinite) of alternatives (sometimes also

called potential actions) and a set of one or more

criteria (objectives) used to evaluate and compare

alternatives (Figueira, Greco, Ehrogott, & Roy,

2005).

Within a business process a DP arises from two

sources: workflow decisions and decision tasks.

A workflow decision determines the execution

path to be followed in the process. If such decision

needs to be evaluated against business goals and

objectives and this evaluation is complex enough,

the workflow decision determines a DP. Every

alternative in this DP is an execution alternative for

the business process. An example of a workflow

decisions is the evaluation of a loan in a financial

business process, whether the loan is granted or not

different paths take place. If that evaluation is

complex enough it may determine a loan grant DP.

Decision tasks are those that imply the

achievement of a set of objectives with given

characteristics or satisfying certain constraints and

also may include the search for the right executors

and the definition of a right course of actions. Every

decision task intrinsically determines a DP. This

work focuses only in those decision tasks requiring

the formulation and solution of a decision model for

their accomplishment. Examples of decision tasks

are: Defining a production schedule, determining the

optimal routes for a distribution company, and

similar decisions.

In this phase of the DP workflow a DP is

identified within a business process together with an

initial description of alternatives and objectives

derived from the business model as described in

Figure 2. Every DP has a Problematic view referring

to the way a decision model for the problem and

feasible solutions should be built.

Problematic answers questions such: as in what

terms should the problem be posed? What is the type

of solution required?

DecisionModelsasSoftwareArtifacts-BridgingtheBusiness-SoftwareGapforDecisionSupportSystems

287

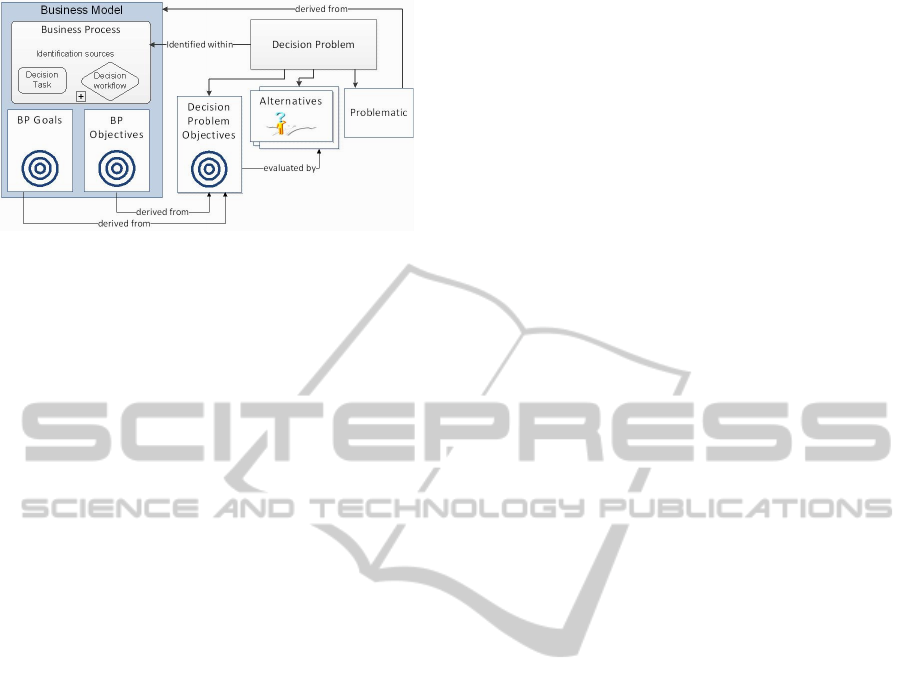

Figure 2: DP Identification.

How do the stakeholders see themselves with respect

to the decision process? What kind of procedure

seems the most appropriate for exploring the set of

alternatives?

This methodology proposes to extend the

problematic view to both DP identification and

service identification workflows. Thus, the previous

questions must be addressed in the context of the

business process where the problem arises,

including: who are the actors? And, what are the

roles they play? How is the solution expected to be

implemented in the business process and by which

possible services people or processes.

Once a DP is identified and described, the next

step obtaining a specification model. In the

following section we propose a meta-model for that

purpose.

2.3.2 DP Specification

In order to relate DPs to the business process they

help to enact we have developed a meta-model

consisting of a set of elements that allows specifying

any DP in a high level of abstraction (Figure 3).

By adopting the specification meta-model, a DP

specification results in a Decision Model that is

composed by four main types of objects: Variables,

Parameters, Functional Relations (between

variables and parameters) and Algorithms that

calculate functions required to describe the decision

model.

This specification is intended to be independent

of a solution strategy, and therefore the classes

representing functional relations, variables and

parameters should be instanced trying to represent

the identified DP in a rich and expressive fashion

without coupling to any solution paradigm

The concept of Functional Relation is extended

by the concept of Constraint and Objective Function

as these concepts are of common use when

developing decision models. It is also extended to

the concept of Function which might have an

algebraic representation or require an algorithm for

their calculation.

In a DP specification model, modeling and

instance parameters can be used. Modeling

Parameters are used to shape the structure of a

model, e.g. a tolerance. Instance Parameters are the

input data for the DP specification, e.g.: a forecasted

demand in a production planning model. Instance

parameters can be deterministic or non-deterministic

(its variability should be considered).

Variables defined in this phase will not include

specific variables related to a modeling technique.

The same applies for the functional relations

defined. For example, if the decision model requires

constraints, the decision support specialists should

not limit themselves to algebraic inequalities and

equalities (the structure of a mathematical program),

but should be able to define constraints such as:

if(tasks a and b is assigned to resource

)

then {

[a precedes b ↔endTime(a)≤startTime(b) ]

or[b precedes a ↔ endTime(b)≤startTime(a)]

}

(1)

In constraint (1) the consequences of an assignment

of tasks to a single resources is modeled. This

example could be transformed in the following

phase of the workflow DP Realization into a

mathematical programming formulation with valid

Big-M relaxations, or to a constraint programming

formalism, etc. But strategically in this stage it is

expressed in the natural way in which the constraint

arises without coupling to the limitations of a

solution technique.

It is relevant to analyze this example backwards,

as relevant domain elements arise in its description,

such as tasks having start and end times, resources,

and the assignment relationship between tasks and

resources. This clearly determines alternatives that

belong to the previous identification phase, and

domain elements that belong to the reference model.

The output of this phase will be a decision model

uncoupled from a specific representation technique

(mathematical programming, influence diagrams,

simulation models for decision support, etc.) Many

times a DP representation technique is both

benefited and limited by a set of solution algorithms;

this phase should capture a specification without

these limitations. Without coupling does not mean

the users are unable to use them, instead users

should use all representation artifacts in their reach

to better represent the DP.

ICORES2013-InternationalConferenceonOperationsResearchandEnterpriseSystems

288

Figure 3: Methodology Roadmap.

The stronger the effort in characterizing the DP

without coupling it to a specific representation, but

relating it to alternatives and goals of a business

model, the stronger the adherence to business

requirements the business solution will have.

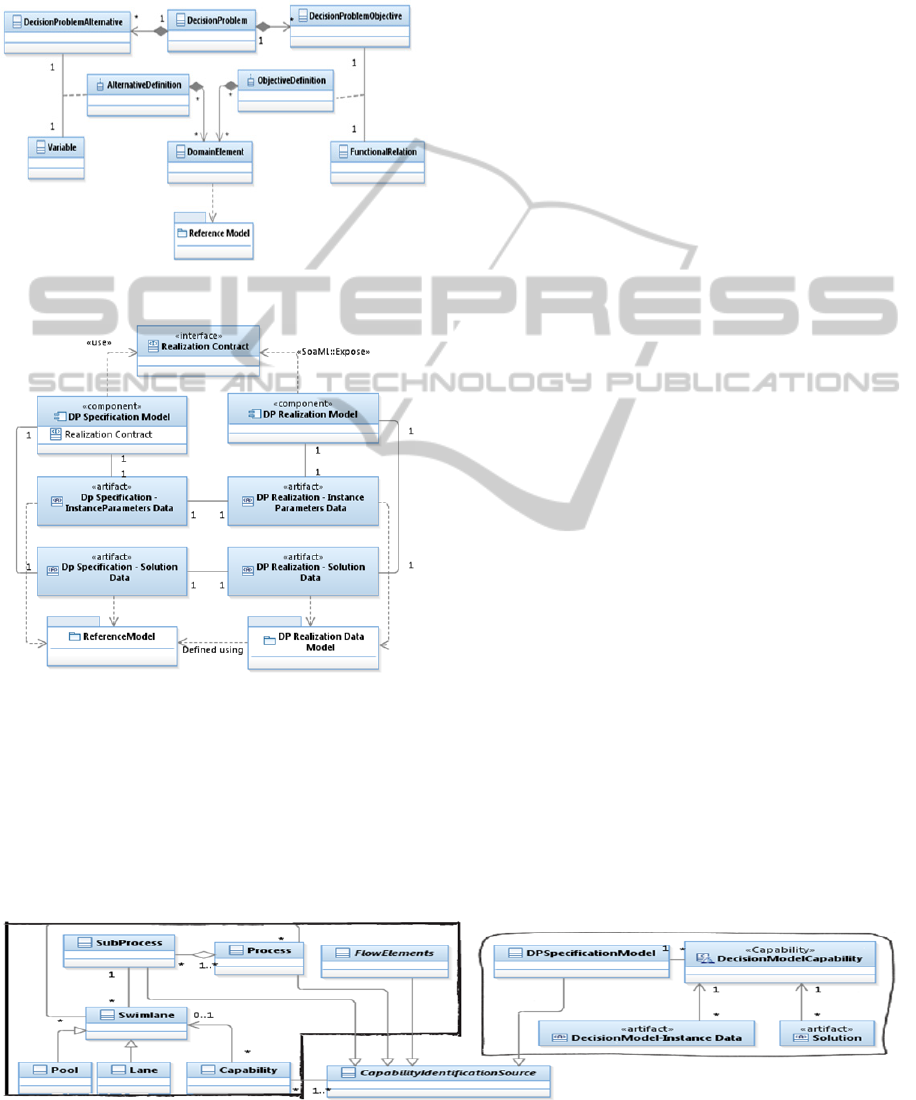

Traceability from the identified DP to the DP

specification is required. It can be accomplished by

exploiting the relationships in Figure 4. DP

Alternatives express the alternative in terms of

reference model elements (Domain Elements), and

the relationship with variables in the specification

model is captured by Alternative Definition objects

that express the alternative in terms of reference

model elements (domain elements) and hold a

mapping with variables in the specification model.

This allows a refinement on the representation of

alternatives, because usually alternatives cannot be

mapped directly to variables. Moreover, to represent

an alternative, many variables may be required. For

example a route in a logistic problem may be

represented by a set of nodes and for each node a

variable is required, therefore for this alternative (the

route) a set of variables is required.

2.3.3 Decision Problem Realization

The design of a solution to the specified decision

model representing a DP is captured in a DP

Realization model.

In order to obtain such model, decision support

specialists will explore the technical feasibility of

different techniques to formulate and solve decision

problems. It is in this realization phase where

decision support specialists need to evaluate

different algorithms and modeling languages and

solver engines available for the solution strategy

defined.

According to the DP Specification model, that is,

the type of functional relations, variables, objective

functions and constraints, the correct technique or

combinations of techniques will be chosen.

The tasks involved in this realization phase

encompass the tasks defined in the phases of design

and choice in the Simon´s approach to rational

decision making (Simon, 1977). In the design phase,

alternative solutions to the problem are developed

and explored and in the choice phase, a course of

action is selected. The requirement for this phase is

to obtain a solution that satisfies a realization

contract between the DP specification and

realization models as shown in

Figure 5

. The

requirements for this contract are of two types,

contractual and operational.

Contractually a realization model has to be able

to fulfill as good as possible with the specification of

the DP considering its variables, functional

relationships and objectives. During the formulation

of a realization model the problematic aspects of the

DP should be revised as they affect the feasibility of

implementing the obtained solution in the context of

the business processes.

The realization contract has to establish a well-

defined link with the specified DP. Decision support

specialists should document how specified variables,

constraints and objectives are maped to the

realization model. Every aspect of the realization

model referring to business related concepts should

be included in the specification model before its

usage in the realization model. The realization

model may introduce its own related concepts as

needed by the solution strategy but they should be

clearly differentiated from the former ones.

Operationally in the specification phase of the

DP and services (depicted in the following sections)

it is established that parameters and the solution of

the DP and messages of the service model should be

expressed using reference model elements. For that

purpose an automatic transformation engine that

translates the DP specified parameters and solution

to the realization model parameters and solution

DecisionModelsasSoftwareArtifacts-BridgingtheBusiness-SoftwareGapforDecisionSupportSystems

289

should be built. From the point of view of decision

support specialists it means that the parameters

needed to solve the realization model should be built

using combinations and transformations of

Reference Model elements.

Figure 4: Traceability of a DP from Identification to

Specification.

Figure 5: DP Realization Contract.

The automatic transformation engine will realize the

one to one relationships between the data artifacts of

both specification model (as required to be used by

the business model) and realization model (as

required to for the realization model to be solved).

2.4 Services Modeling

The main output of this phase is a model that

specifies all the potential services needed to enact

the business process in coordination with the

decision model identified and specified previously.

To define this model we resort to the SOAML

(OMG, 2009) modeling language, in which

Capability is the main concept used to identify

potential services, and serves as container for

Operations that can be seen as related functions.

For this phase, SOAML supports many

identification and development techniques; however

this work proposes an explicit link between every

capability and some aspect of the business model or

the decision model (DP specification model) that can

be labeled as the “source” for that capability.

Therefore the concept Capability Identification

Source is introduced. This source can be either a

specific BPMN element of the business process or

elements of the DP specification model. The

introduction of this dependency has the purpose of

ensuring future developed services can be traced

back to either a function needed by the execution of

a business process or the solution of a DP.

Capabilities also may be related to one specific

participant in a collaborative process, in Figure 6

represented by a pool in such case the capability will

hold operations able to execute every task and

activity (sub-process) the participant performs in the

business process. A capability can also be related to

one specific role/resource, in Figure 6 represented

by a Lane, in such case the capability belongs to a

participant in the business process but defines the

operations related to the role the participant assumes

in a section of the business process. For example a

planner participant in a production system may take

the role of forecasting demand and the role of

creating a production schedule, and SOA designers

may choose to provide different capabilities for both

functionalities. These aspects are shown in the

Service Identification Meta-model shown in Figure

6. On the left of the figure Business process related

capabilities are identified and on the right DP related

capabilities.

Figure 6: Service Identification Meta-model.

ICORES2013-InternationalConferenceonOperationsResearchandEnterpriseSystems

290

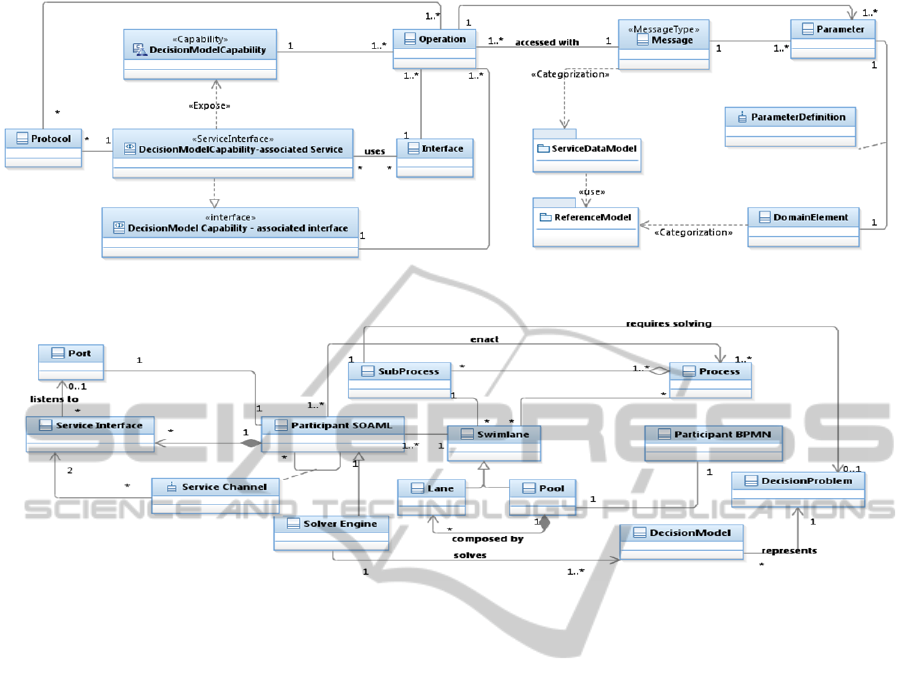

Figure 7: Service Specification Meta-model.

Figure 8: Service Realization Meta-model.

In this phase the problematic aspects identified

in DP Identification must be reflected on the choice

of the capabilities and operations needed to realize

the business processes in the business model. The

result of this phase is a typed initial service model

represented by Business Process and DP related

capabilities and a possible initial services

architecture.

2.4.1 Service Specification

SOAML provides all the needed conceptual

elements to specify a service. This is done by

defining service interfaces (including operations,

protocols, usage contracts), their realizations

(exposed interfaces), and the request of other

services, depicted as usage relationships.

Every service operation requires parameters for

its execution. Instead of using a set of parameters for

accessing an operation, this methodology proposes a

document centric approach, in which each operation

is associated with one single message with a

document attached containing all the required data

defined in compliance and derived from the

reference model.

In Figure 7 these concepts are organized into the

Service Specification meta-model. Although the

concepts in this figure apply to any capability in the

SOA solution, we only depict those capabilities

related to the decision model functions.

Every message is defined within a

ServiceDataModel package, which contains all

messages in a service solution. This package is

defined using the reference model. A service data

model establishes the subset of ReferenceModel

domain elements, and their relationships, required to

be able to define every message in the service

solution.

Protocols define the interaction between the

service and its consumers. Protocols can be defined

using UML interaction diagrams, that later can be

transformed into a service choreography (artifact to

define a collaboration between different services) or

into a service orchestration (artifact to define

internal interaction of a compound service).

An emphasis should be made in order to make an

explicit relationship between the DP specification

model and the service model. Parameters in a DP

(Figure 3) are captured in the service specification

model as well but they are hold by one or more

messages of the ServiceDataModel. Every parameter

of the specified decision model must have a

parameter definition built up with reference model

elements.

DecisionModelsasSoftwareArtifacts-BridgingtheBusiness-SoftwareGapforDecisionSupportSystems

291

2.4.2 Service Realization

In this phase software developers need to take

decisions to answer questions such as: which service

providers will provide which services? How services

operations will be implemented determining the

internal behavior of a service? How services

providers will be assembled to constitute

participants in the business process enactment by

services? How service channels, to provide

communication between participants will be

realized?

After answering all these questions the SOA

solution is ready for its implementation. Many

authors have dealt on how to anwer these questions

properly (Bercovici, Fournier, & Wecker, 2008;

Flaxer & Anil, 2004).

In Figure 8 we provide a meta-model for the

realization and composition of services regarding to

the objectives of this methodology. We propose that

SOA participants be always related to one Swimlane

which could be either a lane (a role of a participant

in BPMN business process) or a pool (a participant

in a BPMN business process). Each SOA

Participant will assemble a set of services and will

provide the corresponding ports to listen the request

for its services. In this way, the business process will

be realized by a set of SOAML participants (service

providers) through their interactions. The flow of

messages in the business process is realized by the

exchange of messages in the service interfaces

exposed by the participants. There is not a one to

one relationship between a SOAML participants and

business process participants because to provide the

functionality of a BPMN participant one or more

SOAML participants can be required. The

abstraction provided by the concept of participant,

allows the enactment of the business process

regardless of the actual implementation of the

service, which can in practice be deployed across

multiple enterprises, via web services, or within a

given single enterprise service bus (the

communication channel within an enterprise).

In particular reference to the implementation of

the service for supporting the realization strategy for

the decision model, Figure 8 shows the Solver

Engine as a participant offering the service to solve

the decision model.

3 VALIDATION

The methodology presented here was applied and

validated in the development of a software system

for collaborative management of disruptive events in

supply chains. This project, used as a case study,

included the definition of a complete new business

process conceived to be executed collaboratively by

independent supply chain partners with the intention

of providing system support for companies willing

to engage in collaboration agreements for

controlling the execution of their supply processes.

As result of the business model analysis, the

collaborative management of disruptive events in a

supply chain was modeled as a collaborative

business process that specifies a set of decision

making activities that require complex models to

systematize the capture of information about internal

and external changes, the prediction of disruptive

events that can affect the schedule execution, and the

activities of feasibility checking and schedule repair

considering the distributed nature of a supply chain.

The resulting business solution consisted in a

service-oriented information system where standard

SOAML techniques were applied following the

guidelines of the methodology of this work in order

to derive the architecture, define the services

interfaces, the service data models and the

choreographies representing the collaborations.

The proposed reference model accomplished the

description of the problem information in a very

high level of abstraction and therefore is applicable

to a wide range of supply chain processes, from

procurement, manufacturing, distribution, and

retailing domains.

In particular, the reference model proposed has

the characteristic of providing self-contained

descriptions of the information required for the

decision making activities involved in the business

process. This feature enables the possibility of

automating the generation of decision models

expressed in standard representations for decision

making tools (as mathematical programming solvers

or inference engines)

The details of the case study describing the

business process, the reference model and other

artifacts produced as the result of each phase can be

found in (Guarnaschelli, Fernandez, Chiotti, &

Salomone, 2012).

4 CONCLUSIONS

The methodology proposes to identify a DP starting

from the context of an enterprise business model,

specifically where it arises, in the enterprise business

processes. Current DP and modeling practices tend

to formulate decision models to solve DPs without

ICORES2013-InternationalConferenceonOperationsResearchandEnterpriseSystems

292

prescribing an explicit link between model

formulation and the enterprise business model. It

also formally preserves these relationships for

tracing purposes all along the development life

cycle. By ensuring a well-defined link between the

business model and the solved DP, more reliable and

usable Decision Support Systems can be obtained.

This is possible because the link obligates to

consider the context of the decision which is

composed by people, resources, data sources,

workflows, goals, business rules, etc. The risk of not

making this explicit link is that even a good solution

for the DP fails at its insertion in the business.

In current practice, the model formulation is

generally biased by the modeling and solution

paradigm chosen for the formulation (e.g.

mathematical programming models). The adoption

of a particular paradigm normally forces to make

some strong hypothesis about the DP (e.g. avoiding

nonlinear constraints, hypothesis on unknown but

required probability distributions, among others). As

a result, a premature abstraction of the DP normally

takes place with the risk that the models obtained do

not represent correctly the actual problem by

accepting limitations or formulating assumptions

without enough business information. In the

proposed methodology, the identification and

specification of the DPs are conducted

independently from a solution or formulation

paradigm using a general meta-model.

Sometimes the lack of a unified data sources and

models results in the introduction of concepts and

entities for the DP formulation and solution without

connection to the business process, where messages

are exchanged between participants and software

systems that might not have a close and easily to

capture relationship with DP concepts and entities.

As a consequence a misalignment between the

required data to solve the DP and the existent data

exchanged in messages in the business processes

arises, causing implementation and integration

problems both at the syntactic and semantic level.

The methodology proposes that once a solution

paradigm is finally adopted, its formulation relies

always on combining existent elements in the

reference model, avoiding the aforementioned

misalignment.

ACKNOWLEDGEMENTS

This work is partially supported by Consejo

Nacional de Investigaciones Científicas y Técnicas

(CONICET) and Agencia Nacional de Promoción

Científica y Técnica (ANPCyT).

REFERENCES

Bercovici, A., Fournier, F., & Wecker, A. (2008). From

Business Architecture to SOA Realization Using

MDD. In I. Schieferdecker & A. Hartman (Eds.),

Model Driven Architecture – Foundations and

Applications (Vol. 5095, pp. 381-392): Springer Berlin

/ Heidelberg.

Brooke, A., Kendrick, D., Meeraus, A., & Raman, R. (

2008). GAMS User Guide

Figueira, J., Greco, S., Ehrogott, M., & Roy, B. (2005).

Paradigms and Challenges Multiple Criteria Decision

Analysis: State of the Art Surveys (Vol. 78, pp. 3-24):

Springer New York.

Flaxer, D., & Anil, N. (2004, 15 Sept. 2004). Realizing

business components, business operations and

business services. Paper presented at the E-Commerce

Technology for Dynamic E-Business, 2004. .

Guarnaschelli, A., Fernandez, E., Chiotti, O., & Salomone,

H. E. (2012). A service-oriented approach to

collaborative management of disruptive events in

supply chains. International Journal of Innovative

Computing, Information and Control, 8(7 B), 5341-

5368.

Hailpern, B., & Tarr, P. (2006). Model-driven

development: the good, the bad, and the ugly. IBM

Syst. J., 45(3), 451-461.

IBM. (2011). IBM ILOG CPLEX Optimization Studio.

from http://www-01.ibm.com/software/integration/

optimization/cplex-optimization-studio/

OMG. (2009). Object Management Group - SoaML

Version 1.0 - Beta 2. from

http://www.omg.org/spec/SoaML/1.0/Beta2/PDF

OMG. (2010). Object Management Group, Unified

Modeling Language (UML) 2.3. from

http://www.omg.org/spec/UML/2.3

OMG. (2011). Object Management Group , Business

Process Model and Notation (BPMN) 2.0 from

http://www.omg.org/spec/BPMN/Current

Papazoglou, M. P., & Van Den Heuvel, W. J. (2007).

Service oriented architectures: Approaches,

technologies and research issues. VLDB Journal,

16(3), 389-415.

Simon, H. A. (1977). The New Science of Management

Decision: Prentice Hall PTR.

Thomas, O. (2005, September 5, 2005). Understanding the

Term Reference Model in Information Systems

Research. Paper presented at the Business Process

Management Workshops, Nancy, France.

W3C. (2004). XML Schema Part 0: Primer Second

Edition. from http://www.w3.org/TR/2004/REC-

xmlschema-0-20041028/

DecisionModelsasSoftwareArtifacts-BridgingtheBusiness-SoftwareGapforDecisionSupportSystems

293
