An Efﬁcient Implementation of a Static Move Descriptor-based Local

Search Heuristic

Onne Beek

, Birger Raa

and Wout Dullaert

Dept. Management Information and Operations Management, Ghent University, Tweekerkenstraat 2, Ghent, Belgium

Institute of Transport and Maritime Management Antwerp, University of Antwerp, Keizerstraat 64, Antwerp, Belgium

Keywords:

Efﬁcient Local Search, Vehicle Routing, Static Move Descriptors, Heuristic Priority Queue.

Abstract:

The Vehicle Routing Problem is a well-studied problem. Since its formulation in 1959, a great number of

powerful solution methods have been designed. However, for large scale problems, few techniques are able

to consistently ﬁnd good solutions within an acceptable time limit. In this paper, the concept of Static Move

Descriptors, a recently published technique for speeding up Local Search algorithms, is analyzed and an

efﬁcient implementation is suggested. We describe several changes that signiﬁcantly improve the performance

of an SMD-based Local Search algorithm. The result is an efﬁcient and ﬂexible technique that can easily be

adapted to different metaheuristics and can be combined with other complexity reduction strategies.

1 INTRODUCTION

1.1 Vehicle Routing Problem

The Vehicle Routing Problem is a general formula-

tion used to model a wide range of common distri-

bution problems. The basic VRP minimizes the total

distance required to visit a set of customers using mul-

tiple vehicles. This paper deals with the Capacitated

VRP, where vehicles have a capacity constraint.

A CVRP instance is deﬁned by a complete graph

G = (V,E), with V the customer set and E the edge

set. Each edge in E has an associated distance c

i j

, i.e.

the cost of traversing edge (i, j). The goal is to ﬁnd

the minimum cost set of routes, starting and ending

in v

, so that each vertex in V is visited. The sum

of customer demands, d

, assigned to a route may not

exceed the capacity of the vehicle, D

We will assume a homogenous ﬂeet, D

= D ∀ j,

and a symmetric distance matrix, c

i j

= c

∀i, j, that

satisﬁes the triangle inequality, c

i j

≤ c

+ c

k j

∀i, j,k.

For a thorough introduction to the VRP, we refer to

(Lenstra and Kan, 1981) and (Laporte, 2009).

1.2 Heuristics

The solving capabilities of exact methods are limited

to relatively small instances. For large scale problems

only heuristic methods are a viable option. Simple

heuristics, such as the Clarke and Wright savings al-

gorithm (Clarke and Wright, 1964), ﬁnd decent solu-

tions in minimal time.

Once a solution is found, improvement heuristics,

such as the Lin-Kernighan algorithm (Lin, 1965), are

used to further improve the solution. However, the

result can be far from optimal, as basic heuristics get

stuck in local optima. When heuristic solutions are

inadequate, metaheuristics are used to strategically

guide the search beyond local optima. Modern meta-

heuristics can ﬁnd near-optimal solutions, but their

performance scales poorly for larger instances.

Popular, high-performance local search-based

metaheuristics include Guided Local Search

(Voudouris et al., 2010) (Kilby et al., 1997),

Tabu Search (Gendreau et al., 1994) (Xu and Kelly,

1996) (Cordeau and Maischberger, 2011) and

Variable Neighborhood Search (Mladenovic and

Hansen, 1997) (Kyt

ojoki et al., 2007). Local Search

is also used in hybrid metaheuristics (Nguyen and

Yoshihara, 2007) (Lee et al., 2010).

This paper deals with Static Move Descriptors

(SMD), a new concept proposed by (Zachariadis and

Kiranoudis, 2010). To understand the logic behind

SMDs and the impact of our suggestions in this paper,

we will ﬁrst discuss the fundamental building blocks

of local search based algorithms in 2 and their con-

nection to performance in 2.5. We will then turn to the

SMD technique in 3. Our suggestions are explained

in 4. Finally, we will compare implementations in 5.

129

Beek O., Raa B. and Dullaert W..

An Efﬁcient Implementation of a Static Move Descriptor-based Local Search Heuristic.

DOI: 10.5220/0004284102770282

In Proceedings of the 2nd International Conference on Operations Research and Enterprise Systems (ICORES-2013), pages 277-282

ISBN: 978-989-8565-40-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 LOCAL SEARCH

Local Search-based algorithms perform an iterative

search through the solution space, by continuously

evaluating and making small adjustments to a solu-

tion. The search is very intense and highly localized,

but requires a guiding system to escape local minima.

A Local Search algorithm exists of several build-

ing blocks, or decision rules: the operator set, the

search and acceptance strategies, feasibility handling

and the guidance system.

2.1 Operators

The local search operators deﬁne which adjustments

can be made to a solution, or which solutions can

be reached at each step. Simple operators are cheap

to evaluate, but have less potential for improvement.

Complex operators can ﬁnd larger improvements, but

require more effort. Most modern algorithms use sim-

ple operators with a complex guiding system.

The most popular simple operator is the 2-Opt

(Croes, 1958) and its generalization k-Opt (Lin,

1965). Excellent examples of complex operators are

Node Ejection Chains (Rego, 2001) and Cyclic Trans-

fers (Thompson and Psaraftis, 1993).

2.2 Search and Acceptance

Move selection is a crucial decision. Most authors

use a best-accept strategy, where all possible moves

are evaluated and the best is executed. Alternatively,

the search can accept the ﬁrst improving move it en-

counters. This reduces the evaluation effort, but can

lead to low quality moves.

For the ﬁrst-accept strategy, the order in which

we evaluate moves dictates which move will be exe-

cuted. A smart search strategy might ﬁnd high quality

moves in minimal effort, but ﬁnding such strategies

has proven difﬁcult for the VRP.

2.3 Feasibility

Allowing temporary constraint violations can give the

search more ﬂexibility. However, it can be difﬁcult to

guide the search back to a feasible solution. Most au-

thors prefer to enforce feasibility and guide the search

around infeasible regions.

2.4 Search Guiding

A local search heuristic stops when it reaches a local

optimum and no operator can ﬁnd further improve-

ments. To diversify the search, a guiding system helps

the local search operators move away from the in-

cumbent by adjusting the problem. Simple systems

include random restarts and mutations, where a new

starting point is generated for the local search to con-

tinue. More complex systems keep track of frequent

solution characteristics, which are then penalized or

even forbidden to ensure new solutions are reached.

2.5 Complexity

The total optimization effort is decided by the cost

of a single iteration and the number of iterations re-

quired to reach an optimum. The ﬁrst depends on the

cost of a single move evaluation, which is a small,

operator-speciﬁc constant, multiplied by the number

of possibilities for each operator in the set, easily de-

termined by how many nodes are required to deﬁne a

single move of that type, e.g. there are O(n

) distinct

ways of swapping two nodes. The number of itera-

tions is inﬂuenced by the quality of each move. Ad-

ditionally, as each operator only affects a small part

of the solution, we can intuitively see that the move

count will increase with instance size.

The double impact of instance size causes bad

scaling in Local Search-based metaheuristics. Reduc-

ing the impact of size on these effort factors improves

the efﬁciency. Sadly, few general efﬁciency strategies

exist in the VRP literature. The next paragraphs hold

short descriptions of several important complexity re-

duction strategies.

Candidate Lists. Attributed to (Glover, 1990), the

idea of Candidate Lists (CL) is to restrict the neigh-

borhood by preemptively eliminating unlikely edges

based on relevant characteristics, such as edge cost.

The size of the List varies widely between authors. A

narrow list may exclude the optimal solution.

Variable Neighborhood Descent. Variable Neigh-

borhood Descent (Mladenovic and Hansen, 1997) re-

duces the search effort by iteratively performing LS

optimizations with a single operator instead of the en-

tire set. The operator changeover strategy can affect

the performance in terms of quality and efﬁciency.

Don‘t-Look Bits. The nature of Local Search

makes it so that each iteration only affects a small part

of the solution. Moves that take place in unaffected

regions therefore remain unchanged. DLBs (Bentley,

1990) exploit this information by tagging unimproved

neighbor solutions until they are affected by an itera-

tion. This way, unchanged parts can be ignored in the

next iteration and redundant evaluations are skipped.

ICORES2013-InternationalConferenceonOperationsResearchandEnterpriseSystems

130

3 STATIC MOVE DESCRIPTORS

The idea of Static Move Descriptors (Zachariadis and

Kiranoudis, 2010) is to build a memory structure that

enables the algorithm to keep track of changes in the

solution. Each move is stored in an efﬁcient data

structure, ordered by its solution-dependent cost tag.

When a move is affected, its cost tag is updated. This

improves the scaling of operators by an order of n.

The implementation of the SMD technique pro-

vides efﬁcient access to every move so they can be

easily found and updated, as well as make it easy to

search for the best move available. The underlying

algorithm is simple, iterating over three phases:

Initialization Phase. Given a starting solution, all

possible SMDs, one for each move, are generated and

their cost tags are calculated. The SMDs are then in-

serted into a Priority Queue (PQ), which keeps them

organized by their current cost tag.

Search Phase. The best SMD is extracted from the

PQ and its feasibility is checked. If infeasible, the

SMD is added to a Stack and the next SMD is ex-

tracted from the PQ. If feasible, the search ends and

all SMDs in the Stack are reinserted into the PQ. The

Update phase starts.

Update Phase. The feasible SMD is executed,

changing the solution. Using the SMD deﬁnition and

the update rules, all affected SMDs are identiﬁed and

deleted from the PQ. Their cost tags are updated with

regards to the new solution and they are reinserted.

The Search phase begins on the updated PQ.

The cost of the initialization phase can be amortized

over all moves. By updating the minimal amount of

cost tags, the scaling is improved. The downside is the

overhead of keeping the PQ organized. In the original

paper, the PQ is implemented as a Fibonacci Heap

(Fredman and Tarjan, 1987), which is a theoretically

optimal implementation for a PQ.

Drawbacks

The SMD technique is very promising in theory, but

does have several drawbacks. These will be the focus

of our own work, as we try to reduce their impact.

Memory Usage. Every SMD is stored during the

entire runtime of the algorithm. The memory require-

ments increase with the number of operators and the

complexity of each operator (e.g.: 2Opt ∼ O(n

) vs.

3Opt ∼ O(n

)). Additionally, the implementation of

the PQ adds signiﬁcant extra costs.

Cross-operator Effects. Any change in the solu-

tion will affect SMDs of every operator. The up-

date effort grows linearly with the size of the operator

set. Additionally, the amount of updating rules, which

determine which SMDs need to be updated, grows

quadratically with the number of operators, making

it harder to implement efﬁciently.

Heap Overhead. The Heap greatly speeds up the

Searching phase, but its beneﬁts are reduced by

its own cost. The SMD-based algorithm requires

many Heap operations and whilte a Fibonacci Heap

is theoretically optima, its practical performance is

poor. The effort of an operation increases with Heap

size, which grows strongly with instance size.

In the next chapter, we will suggest some ways to im-

prove the performance of SMD-based algorithms.

4 EFFICIENT SMD

IMPLEMENTATION

Three major changes are made. First, a Variable

Neighborhood search strategy (2.5) is adopted. Sec-

ondly, the Heap implementation is changed to one

with better practical performance. Lastly, the Search

phase is replaced with a novel heuristic heap search.

4.1 Variable Neighborhood Descent

By iteratively optimizing with a single operator, no

cross-operator updating is needed, drastically reduc-

ing the evaluation effort. Secondly, the heap size is

reduced, making all operations cheaper. However,

this change requires an Initialization phase (3) at each

changeover and reduces average move quality.

4.2 Binary Heap

The Binary Heap (Johnson, 1975) is the conceptual

opposite of the Fibonacci Heap: theoretically inferior,

but excellent practical performance. Preliminary tests

showed reduced memory usage and much faster Up-

date phases, but slower Search phases.

4.3 Heuristic Heap Search

Unlike the Fibonacci Heap, which relies on pointers

to organize its elements, a Binary Heap can be imple-

mented as an array with its Heap properties enforced

implicitly. This allows us to access elements without

making use of expensive Heap operations.

AnEfficientImplementationofaStaticMoveDescriptor-basedLocalSearchHeuristic

131

The array implementation maps the Tree-like

structure to linear memory by means of index-

relations. A node located at index k will ﬁnd its

parent at k/2 and its left and right children at 2 × k

and 2 × k + 1 respectively. Combined with the Heap

property (par(k) ≥ k ≥ children(k)), this means good

nodes are more likely to be located early in the array.

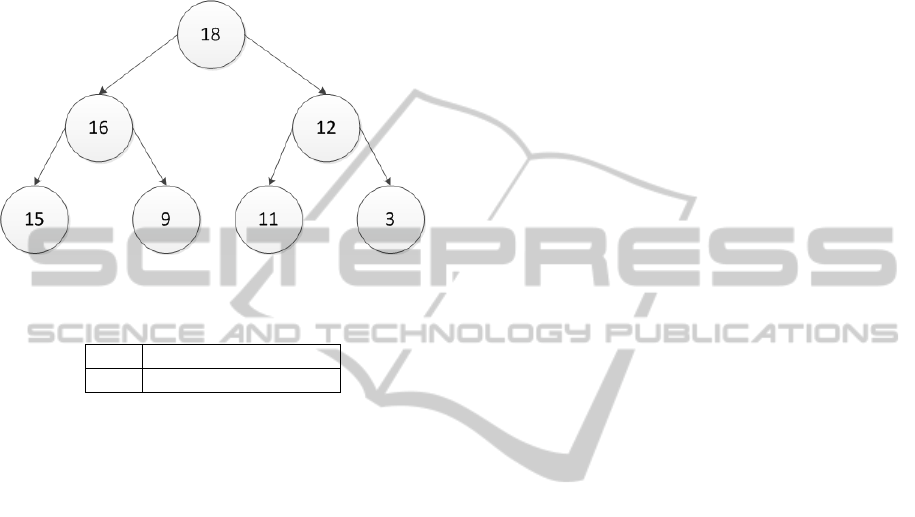

Figure 1: Tree-like structure of a Binary Heap.

Table 1: Array representation of a Binary Heap.

Index 0 1 2 3 4 5 6

Value 18 16 12 15 9 11 3

We can exploit this property by replacing the ex-

pensive iterated root-extracts by simple linear traver-

sal of the array, until a feasible SMD is found. This is

not guaranteed to be the best feasible move, but it is

very likely to be one of the best moves available.

This change adopts a ﬁrst-of-operator acceptance

strategy with a strongly guided search strategy.

Combining these three changes leads to signiﬁcant

speedups, with as only downside the forced change

from best-of-all to a guided ﬁrst-of-operator strategy.

5 RESULTS

We compare our version to the original. If we can

show reduced time per iteration without strong re-

ductions in average move quality, we can declare our

version more efﬁcient, provided our version does not

consistently lead to worse ﬁnal solutions.

In an effort to reduce external bias, we will com-

pare each version relative to a na

ıve implementation.

5.1 Algorithm Overview

We implemented and tested three algorithms:

1. The BASE algorithm: a na

ıve implementation of

a best-accept variable neighborhood search.

2. The FIB algorithm: the original SMD implemen-

tation; uses a Fibonacci Heap and best-accept.

3. The BIN algorithm: our suggested algorithm, us-

ing the heuristical heap search.

All algorithms use a VND (see 2.5) scheme to

allow for a better comparison. Preliminary results

showed that even for the original algorithm, VND al-

ways reduced runtimes without sacriﬁcing ﬁnal solu-

tion quality. Additionally, we believe it is a necessary

change for the SMD technique to be viable, as it pro-

vides more ﬂexibility for the operator set.

The operator set exists of the same three quadratic

operators as in (Zachariadis and Kiranoudis, 2010):

Swap, Relocate and 2Opt. Swap takes two nodes, i

and j, and swaps their positions. Relocate takes two

nodes, i and j, removes i from its current position and

reinserts it after j. The 2Opt has two variants: if i

and j are part of the same route, the route segment

between i and j is reversed; if i and j belong to differ-

ent routes, both routes are cut at i or j and the start of

one route is combined with the end of the other. Each

version uses the same cheapest-insertion construction

heuristic. We follow the VND scheme that consis-

tently lead to better results for each algorithm: 2Opt,

then Swap, then Relocate, repeat.

Tests were performed on 36 instances provided by

(Zachariadis and Kiranoudis, 2010), but due to space

constraints we will limit the report to 7 sets: 3 small

sets to analyze the scaling and 4 large sets for the ac-

tual performance.

• Small sets: g01, g04, 24 (240, 480, 720).

• Large sets: zk1 - zk4 (3000).

5.2 Time per Move

First we analyze the time per iteration. The BASE al-

gorithm performs a full evaluation and executes the

best. The SMD-based algorithms perform an Update

and Search phase, except in the ﬁrst iteration follow-

ing an operator changeover, in which case they per-

form an Initialization and Search phase. Frequent

changeovers increase the average time per iteration

because of the required Initialization step.

Table 2 shows the average time per iteration for

the small sets per operator. Note that 2Opt is sig-

niﬁcantly more expensive overall, because of its dual

(inter- and intraroute) nature, which results in addi-

tional work for each evaluation.

Comparing between sets, we see the BASE algo-

rithm scales poorly: tripling the instance size leads to

13 to 20 times slower iteration times. The FIB algo-

rithm performs poorly on small sets due to internal

ICORES2013-InternationalConferenceonOperationsResearchandEnterpriseSystems

132

overhead, but scales well with instance size: increas-

ing instance size by 3 leads to an average slowdown

factor of 5. The BIN algorithm scales slightly better

still and runs signiﬁcantly faster across the board, up

to 50 times faster than the FIB algorithm.

Table 2: Average time (ms) per iteration on small sets.

Set g01 g04 24

Size 240 480 720

BASE Swap 1.16 4.14 17.28

Reloc 0.88 3.76 11.51

2Opt 3.72 12.59 73.72

FIB Swap 1.38 3.30 6.41

Reloc 0.91 2.87 5.33

2Opt 4.60 10.89 22.13

BIN Swap 0.07 0.11 0.19

Reloc 0.06 0.10 0.17

2Opt 0.11 0.22 0.57

Table 3: Average time (ms) per iteration on large sets.

Set zk1 zk2 zk3 zk4

Size 3000 3000 3000 3000

BASE Swap 181.82 180.17 167.16 168.18

Reloc 118.15 116.75 109.56 114.91

2Opt 430.06 432.00 441.79 430.42

FIB Swap 66.01 66.31 66.94 67.38

Reloc 64.16 64.50 67.74 67.16

2Opt 132.58 146.44 124.93 136.62

BIN Swap 2.20 1.91 2.08 2.11

Reloc 1.63 1.44 1.44 1.47

2Opt 2.83 2.69 2.62 2.61

In table 3 we see the same comparison for the

large sets, which are roughly 12 times larger than

set g01. We see relative average slowdown factors

of 130, 50 and 27 for the BASE, FIB and BIN algo-

rithms respectively, further proving the scaling bene-

ﬁts of the SMD technique. In total, the FIB algorithm

works roughly 3 times faster than BASE, while the

our BIN algorithm works roughly 110 times faster on

the large sets. We conclude that the BIN implementa-

tion can ﬁnd and execute improvements much faster.

5.3 Move Quality

To verify our assumption that our novel heuristic heap

search leads to high quality moves, we measured the

number of iterations each algorithm needed to reach

a solution. To account for differences in optimization

paths, we used the quality of the worst ﬁnal solution

of the three algorithms as a cutoff point for our data.

We also veriﬁed that neither technique consistently

lead to better ﬁnal solutions. On the large sets, each

algorithm got within 12% to 5% of the best known

solutions, which is normal for a basic heuristic.

Table 4: Iterations required to reach similar solution quality.

g01 g04 24 zk1 zk2 zk3 zk4

BASE 276 494 679 11334 11329 9968 9794

FIB 285 476 656 10311 10475 9284 9884

BIN 357 651 1069 13242 10985 9867 10610

Table 4 shows that even the BASE and FIB al-

gorithms, which use the same strategy, still lead to

slightly different results. This can be explained by

difference in tie-breaking as well as precision errors.

While FIB may seem to outperform BASE consis-

tently, tests on other sets have disputed this. We have

taken the average of the two algorithms as comparison

point for BIN. The difference with our BIN algorithm

is more profound, requiring up to 30% more iterations

to reach a similar solution, although we see the rela-

tive difference becomes smaller for larger instances.

Our results show that our new implementation

beneﬁts greatly from the intelligent searching of the

SMD technique, leading to improved scaling factors,

while suffering less from the overhead that haunted

the original implementation proposed by (Zachariadis

and Kiranoudis, 2010). We feel the trade-off, being at

most 30% more iterations versus a speedup factor of

50, is greatly in favor of our implementation.

6 CONCLUSIONS

In this paper, we have taken a closer look at the fasci-

nating concept of Static Move Descriptors (Zachari-

adis and Kiranoudis, 2010), a strategy to speed up

Local Search-based algorithms by eliminating unnec-

essary reevaluations. We have revealed several ﬂaws

and suggested changes to its implementation.

Firstly, we have changed the search strategy to a

Variable Neighborhood. This speeds up the search

and allows costless expansion of the operator set.

Secondly, we change the underlying data structure

used to keep the SMDs organized: the theoretically

optimal Fibonacci Heap is replaced by the practically

efﬁcient Binary Heap. This speeds up the Update

phase tremendously, even for large instance sizes.

Lastly, we change the exact search phase to a

novel heuristic heap search, avoid expensive heap op-

erations. This makes the Search phase very efﬁcient.

Our results show that the changed strategy does

not affect ﬁnal solution quality. Moreover, we have

shown that the average move quality remains high,

while each iteration is sped up signiﬁcantly, leading

to impressive speedups overall.

AnEfficientImplementationofaStaticMoveDescriptor-basedLocalSearchHeuristic

133

7 FUTURE RESEARCH

The concept of Static Move Descriptors is very

promising and with our changes it is a practically vi-

able and ﬂexible speedup strategy. However, its full

potential has not yet been explored.

Firstly, our implementation has not yet been tested

inside a metaheuristic. The ﬂow of the algorithm

lends itself perfectly for a Guided Local Search or a

Tabu Search strategy. Either strategy could be imple-

mented without much difﬁculty and without hurting

performance.

Secondly, the ﬂexibility of the SMD concept al-

lows for combination with other speedup techniques,

such as Candidate Lists. This could signiﬁcantly

speed up the various parts of the algorithm.

REFERENCES

Bentley, J. L. (1990). Experiments on traveling salesman

heuristics. In Proceedings of the ﬁrst annual ACM-

SIAM symposium on Discrete algorithms, SODA ’90,

pages 91–99. Society for Industrial and Applied Math-

ematics.

Clarke, G. and Wright, J. (1964). Scheduling of vehicles

from a central depot to a number of delivery points.

Operations research, 12(4):568–581.

Cordeau, J. and Maischberger, M. (2011). A parallel it-

erated tabu search heuristic for vehicle routing prob-

lems. Computers & Operations Research.

Croes, G. (1958). A method for solving traveling-salesman

problems. Operations Research, 6(6):791–812.

Fredman, M. and Tarjan, R. (1987). Fibonacci heaps and

their uses in improved network optimization algo-

rithms. Journal of the ACM (JACM), 34(3):596–615.

Gendreau, M., Hertz, A., and Laporte, G. (1994). A tabu

search heuristic for the vehicle routing problem. Man-

agement science, 40(10):1276–1290.

Glover, F. (1990). Tabu search-part II. ORSA Journal on

computing, 2(I):4–32.

Johnson, D. (1975). Priority queues with update and ﬁnd-

ing minimum spanning trees. Information Processing

Letters, 4(3).

Kilby, P., Prosser, P., and Shaw, P. (1997). Guided local

search for the vehicle routing problem. Proceedings of

the 2nd International Conference on Meta-heuristics.

Kyt

ojoki, J., Nuortio, T., Br

aysy, O., and Gendreau,

M. (2007). An efﬁcient variable neighborhood

search heuristic for very large scale vehicle rout-

ing problems. Computers & Operations Research,

34(9):2743–2757.

Laporte, G. (2009). Fifty years of vehicle routing. Trans-

portation Science, 43(4):408–416.

Lee, C., Lee, Z., Lin, S., and Ying, K. (2010). An enhanced

ant colony optimization (EACO) applied to capaci-

tated vehicle routing problem. Applied Intelligence,

32(1):88–95.

Lenstra, J. and Kan, A. (1981). Complexity of vehicle rout-

ing and scheduling problems. Networks, 11(2):221–

227.

Lin, S. (1965). Computer solutions of the traveling sales-

man problem. Bell System Technical Journal.

Mladenovic, N. and Hansen, P. (1997). Variable neigh-

borhood search. Computers & Operations Research,

24(11):1097 – 1100.

Nguyen, H. and Yoshihara, I. (2007). Implementation of an

effective hybrid GA for large-scale traveling salesman

problems. Systems, Man, and Cybernetics, Part B:

Cybernetics, IEEE Transactions on, 37(1):92–9.

Rego, C. (2001). Node-ejection chains for the vehicle rout-

ing problem: Sequential and parallel algorithms. Par-

allel Computing, 27(3):201–222.

Thompson, P. M. and Psaraftis, H. N. (1993). Cyclic Trans-

fer Algorithm for Multivehicle Routing and Schedul-

ing Problems. Operations Research, 41(5):935–946.

Voudouris, C., Tsang, E., and Alsheddy, A. (2010). Guided

local search. Handbook of metaheuristics, pages 185–

218.

Xu, J. and Kelly, J. (1996). A network ﬂow-based

tabu search heuristic for the vehicle routing problem.

Transportation Science, 30(4):379–393.

Zachariadis, E. and Kiranoudis, C. (2010). A strategy for re-

ducing the computational complexity of local search-

based methods for the vehicle routing problem. Com-

puters & Operations Research, 37(12):2089–2105.

ICORES2013-InternationalConferenceonOperationsResearchandEnterpriseSystems

134
