Combining Holistic Descriptors for Scene Classiﬁcation

Kelly Assis de Souza Gazolli and Evandro Ottoni Teatini Salles

Universidade Federal do Esp´ırito, Vit´oria, ES, Brazil

Keywords:

Visual Descriptor, Scene Classiﬁcation, Gist Descriptor, Contextual Information, Census Transform, Holistic

Approach.

Abstract:

Scene classiﬁcation is an important issue in the ﬁeld of computer vision. To face this problem we explore in

this paper a combination of Holistic Descriptors to scene categorization task. Therefore, we ﬁrst describe the

Contextual Mean Census Transform (CMCT), an image descriptor that combines distribution of local struc-

tures with contextual information. CMCT is a holistic descriptor based on CENTRIST and, as CENTRIST,

encodes the structural properties within an image and suppresses detailed textural information. Second, we

present the GistCMTC, a combination of Contextual Mean Census Transform descriptor with Gist in or-

der to generate a new holistic descriptor representing scenes more accurately. Experimental results on four

used datasets demonstrate that the proposed methods could achieve competitive performance against previous

methods.

1 INTRODUCTION

Scenes classiﬁcation is widely applied in many do-

mains, such as, image retrieval and travel navigation.

However, this task is quite challenging because there

are a great number of possible classes. Also, some

scenes are ambiguous and indeed, even human beings

can be unsure about these classiﬁcations. In addition,

the variation in illumination and scale could be daun-

ting.

In the literature, several methods have been pro-

posed to perform scene classiﬁcation tasks. Oliva

and Torralba (Oliva and Torralba, 2001) proposed a

formal approach to build the ”gist” of the scene and

provided a statistical summary of the spatial layout

properties (naturalness, openness, expansion, depth,

roughness, complexity, ruggedness, symmetry) of the

scene.

Another popular approach is the local features

(Grauman and Darrell, 2005) (Fei-Fei and Perona,

2005). In this method the image is divided into

patches or regions on which individual features are

computed. The collection of these local descriptors

shapes the ﬁnal representation. In this sense, Scalar

Invariant Feature Transform (SIFT) (Lowe, 1999) be-

came a very popular local descriptor. This approach

transforms an image into a large collection of local

feature vectors, each of which is invariant to trans-

lation, scaling and rotation and partially invariant to

illumination changes.

The bag-of-features approach represents an image

as an orderless collection of local features. This

method models an image as an occurrence histogram

of visual words that are local descriptors of regions or

patches in the image (Wei Liu and Gabbouj, 2012).

Many variants of this model have been proposed.

Lazebnik et al. (Lazebnik et al., 2006) proposed a

spatial pyramid, a technique which works by parti-

tioning the image into increasingly ﬁne sub-regions.

Qin and Yung (Qin and Yung, 2010) proposed a

method based on contextual visual words, in which

the contextual information from neighbor region and

the regions from coarser scales are included. Despite

good results, this approach has some disadvantages.

The codebook, i.e., the set of visual words, should

be large enough so that each image could be properly

represented by the histogram, thus, the codebook size

depends on the dataset. Furthermore, the codebook-

building process is often computationally intensive,

which limits efﬁciency of its application (Wei Liu and

Gabbouj, 2012).

Recently, Wu and Rehg (Wu and Rehg, 2011) pro-

posed CENTRIST (Census Transform Histogram), a

holistic representation that captures structural proper-

ties, rough geometry and generalizability by mode-

ling distribution of local structures. CENTRIST is

easy to implement, has nearly no parameter to tune,

and is invariant to illumination.

In this paper, ﬁrst, using The Contextual Mean

Census Transform (CMCT), we show that combining

315

Gazolli K. and Salles E..

Combining Holistic Descriptors for Scene Classiﬁcation.

DOI: 10.5220/0004286103150320

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 315-320

ISBN: 978-989-8565-47-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

contextual features and local structures can help dif-

ferentiate local structures that are similar but have

considerable difference in its neighborhood. The

Contextual Mean Census Transform is a holistic vi-

sual descriptor that captures structural properties, by

modeling distribution of local structures, and adds

contextual information, by modeling the distribu-

tion of structures formed by neighbor local struc-

tures. Then, we propose GistCMTC, a combination

of CMTC contextual descriptor with Gist holistic ap-

proach. Therefore, by combining these two tech-

niques we intend enhancing the descriptor quality by

providing different types of information.

2 A CONTEXTUAL DESCRIPTOR

In this section, we ﬁrst present the Modiﬁed Census

Transform in which the proposed technique is based.

Then we extend the concept to the Contextual Mean

Census Transform (CMCT) descriptor.

2.1 Modiﬁed Census Transform

The Modiﬁed Census Transform (MCT) (Fr¨oba and

Ernst, 2004) is a nonparametric local transform based

on Census Transform (Zabih and Woodﬁll, 1994).

This technique was proposed with the aim of over-

come some weakness of Census Transform. The

Modiﬁed Census Transform, Γ(x) is computed in the

following manner. A 3 x 3 window of pixels is con-

sidered and the mean I(x) of the pixels is computed.

Every pixel in the 3 x 3 windowis then compared with

I(x). If the pixel is bigger than or equal to I(x), a bit 1

is set in the corresponding location. Otherwise, a bit

0 is set, as follows

Γ(x) =

y∈N

′

(x)

ζ(I(y), I(x)), ζ(m, n) =



1, m ≥ n

0, otherwise

(1)

where

represents concatenation operation, I(x) is

the mean of the intensity values in the 3 x 3 window

of pixels centered at x, I(y) is the gray value of the

pixel at y position and N

′

(x) is a local spatial neigh-

borhood of the pixel at x. In the Modiﬁed Census

Transform technique, 9 bits are generated and con-

verted to a decimal number in [0, 511], namely, here,

MCT.

In this work, we adopt Modiﬁed Census Trans-

form. However, we do not compare the mean I(x)

with the center pixel. Thus, we generate 8 bits, in-

stead of 9, which are converted to a decimal num-

ber in [0, 255], i.e., we generate a smaller descriptor.

Moreover, we adopt ζ(m, n) = 1, if m > n. In order to

differentiate Modiﬁed Census Transform with 9 bits

from Modiﬁed Census Transform with 8 bits and with

ζ(m, n) = 1, if m > n, we refer to this last as MCT(8

bits). Finally, a 256 bins histogram of MCT(8 bits)

values for an image is used as a visual descriptor.

2.2 CMCT - Contextual Mean Census

Transform

The Contextual Mean Census Transform (CMCT) in-

tegrates contextual information with local structures

information for differentiating regions that have simi-

lar structures, but have signiﬁcant difference in their

neighborhood. For accomplishing this task, this ap-

proach takes into consideration information of neigh-

borhood windows in the MCT(8 bits) computation,

by creating a new local structure from the local struc-

ture of the window and from the local structures of its

neighboring windows. We believe these additional in-

formation can improve the image representation. We

call these informations coming from outside windows

by context.

The steps for the Contextual Mean Census Trans-

form (CMCT) generation are as follow. First, MCT(8

bits) is computed for all pixels. Then, a histogram of

MCT(8 bits) is obtained. A new image is created in

which the original image pixels are replaced by the

correspondent MCT(8 bits) values. In the sequel, the

MCT(8 bits) is computed on the new images pixels

and a new histogram is generated. Then, the CMCT(8

bits) histogram for the original image histogram and

the the CMCT(8 bits) histogram for the new image are

concatenated, generating a new descriptor. The whole

process is schematized in Figure 1.

Figure 1: Contextual descriptor extraction process.

The MCT(8 bits) maps a 3 x 3 image window to

one of 256 possible values. Therefore, the MCT(8

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

316

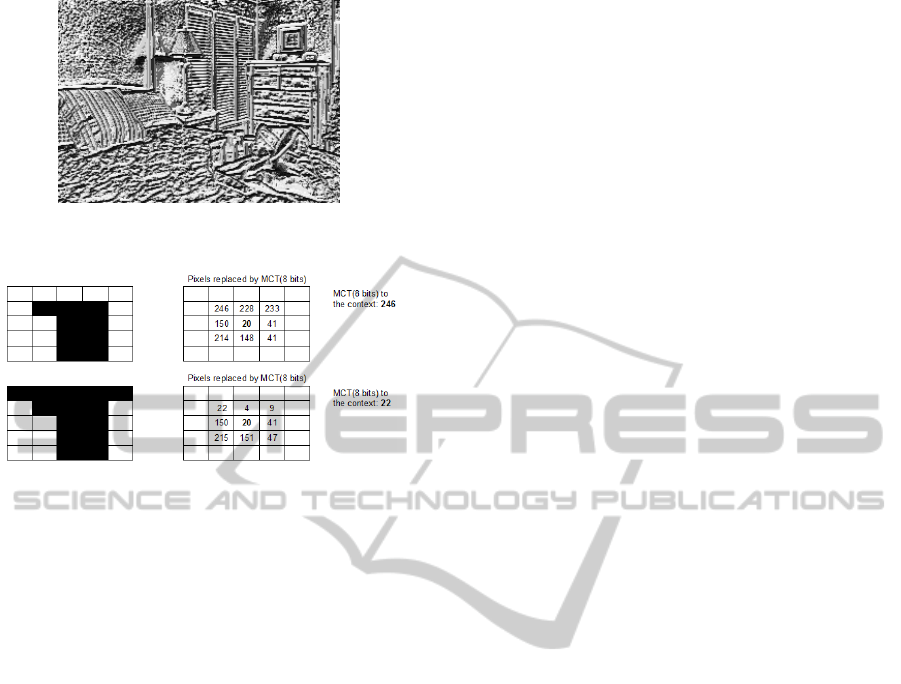

Figure 2: An example of an image from 15-category dataset

with the gray values replaced by MCT(8 bits).

Figure 3: Two different windows with the same structure in

the center (left). The pixelsreplaced by the values generated

by MCT(8 bits) for each 3x3 window (center). The value of

MCT(8 bits) to the new window (right).

bits) value acts as an index to different local struc-

tures. When pixel value is replaced by the MCT(8

bits) value, as illustrated in Figure 2, the information

type changes from intensity to local structure index.

So, when the Modiﬁed Census Transform is applied

on the new image, it performs comparisons between

local structures in the neighborhood, obtaining a dif-

ferent information type, i.e., the relationship between

local structures. Figure 3 shows two examples of

different 5 x 5 windows which has the same 3 x 3

window in the center. Although the windows have a

similar center structure, they generate a different set

of MCT(8 bits) values and, therefore, calculating the

MCT(8 bits) in the new images generate different va-

lues for each example.

This technique does not represent all the possible

local structures in a 5 x 5 window, which would re-

quire a 2

size descriptor , but since the MCT(8 bits)

for the original image and for the new image are com-

puted, it is possible representing 65,536 (256 x 256)

different structures using a 512 size descriptor. In this

way, it is possible identifying a greater number of lo-

cal structures and more accurately deﬁne their distri-

bution in each class, improving scene classiﬁcation

results.

3 HOLISTIC APPROACHES

In this section we propose GistCMCT. This new des-

criptor is a combination of two holistic approaches:

Gist (Oliva and Torralba, 2001) and CMCT.

3.1 Gist

Under the assumption that is not necessary iden-

tify the objects that make up a scene to identify the

scene, Oliva and Torralba (Oliva and Torralba, 2001)

proposed a holistic approach to build the ”gist” of

the scene using low-dimensional representation of a

set of global image properties such as naturalness,

openness, roughness, expansion, and ruggedness. In

this approach stable spatial structures within images

that reﬂect functionality of the location are captured

(Oliva and Torralba, 2001) rather than detailed infor-

mation about objects. As Gist is a holistic and low-

dimensional representation of the structure of a scene,

it does not require explicit segmentation of image and

objects. Therefore, this method requires very low

computational resources (Oliva and Torralba, 2006).

In (Zabih and Woodﬁll, 1994) it was showed that

Gist has a good performance when classifying out-

door scenes, however, when indoor scenes are added

the Gist accuracy becomes worse.

3.2 GistCMCT

Although the techniques presented in section 2 are

holistic, they differ from Gist. While Gist represents

the shape of the scene by computing stable spatial

structures within images that reﬂect functionality of

the location, CMCT summarizes local shape informa-

tion.

Gist has a certain weakness in recognizing in-

door scenes, but is quite efﬁcient in the recognition

of outdoor scenes. CMCT, as the CENTRIST, repre-

sents structural properties through the distribution of

local structures (for example, the percentages of lo-

cal structures that are local horizontal edge) (Wu and

Rehg, 2011) which helps in the classiﬁcation of man-

made environments, including, indoor environments.

A vector composed of Gist and CMCT descriptors

will gather their qualities, and will get, therefore, a

better performance in classifying scenes.

4 EXPERIMENTS

In this section, we investigate the effectiveness of

our representations and compare them with existing

works.

CombiningHolisticDescriptorsforSceneClassification

317

4.1 Datasets and Setup

Our descriptors has been tested on four data sets:

8-category scenes provided by Oliva and Torralba

(Oliva and Torralba, 2001), 15-category dataset

(Lazebnik et al., 2006), 8-class sports event (Li and

Fei-Fei, 2007) and 67-class indoor scene recognition

(Quattoni and Torralba, 2009).

In the experiment, each category in a data set is

split randomly into a training set and a test set. The

random splitting is repeated 5 times, and the ave-

rage accuracy is reported, as adopted by (Wu and

Rehg, 2011). All color images were converted to

gray scale. For training and classiﬁcation, we adopted

SVM (Support Vector Machine), a pattern classiﬁer

introduced by (Vapnik, 1998). We used the libSVM

(Chang and Lin, 2011) package modiﬁed by (Wu and

Rehg, 2009).

The log frequency weighting was applied in the

histogram values. The log frequency weighting is a

technique used in Information Retrieval (Salton and

McGill, 1983) whereas relevance does not increase

proportionally with term frequency. The log fre-

quency weight of term t in a document d (W

t,d

) is

t,d



1+ log(t f

t,d

), t f

t,d

> 0,

0, otherwise

(2)

where t f

t,d

is number of occurrences of term t in a

document d.

4.2 Experiments with CMCT

We ﬁrst present the results from CMCT. For all expe-

riments performed in this section, we employed li-

near kernel SVM to accomplish scene classiﬁcation.

Since the goal is to compare the efﬁciency of the des-

criptors, only the results of the experiments in which

the images were not partitioned into increasingly ﬁne

subregions are considered. In such a case, it is used

images without spatial representation and, therefore,

with levels number equal to zero. CMCT was imple-

mented using C++ and OpenCV.

4.2.1 15-Category Dataset

In this dataset an amount of 100 images in each ca-

tegory are used for training and the remaining images

constitute the testing set, as in previous researches.

When using CMCT, we achieve 76.87 ± 0.58% ac-

curacy in this dataset. Figure 4 presents the confu-

sion matrix from one run on 15-class scene dataset.

We observe that the biggest confusion happens be-

tween bedroom and livingroom, which have similar

elements. Humans may confuse them due to the small

inter-class variation.

Figure 4: Confusion matrix from one run for 15-class scene

recognition experiment using CMCT descriptor.

Table 1: Experimental results for 15-categories dataset.

Method Accuracy(%)

CENTRIST without PCA 73.29 ± 0.96

SPM (16 channel weak features) 66.80 ± 0.6

SPM (SIFT 400 clusters) 74.80 ± 0.3

Gist 73.28 ± 0.67

RCVW 74.5

MCT(8 bits) Histogram 73.71 ± 0.30

CMCT 76.87 ± 0.58

Table 1 compares the classiﬁcation performance

of the proposed method on 15-category dataset to

the following methods existing in literature: CEN-

TRIST(Wu and Rehg, 2011), SPM (Lazebnik et al.,

2006) with 0 levels, Gist (Oliva and Torralba, 2001),

Region Contextual Visual Words (RCVW) (Liu et al.,

2011) and Modiﬁed Centrist Transform (MCT) his-

togram with 8 bits (Fr¨oba and Ernst, 2004), with

CMCT.

In (Lazebnik et al., 2006), low level features were

divided into weak features, computed from local 3 x

3 neighborhoods, and strong features, SIFT features

computed from 16 x 16 image patches. CMCT out-

performs the weak features and the strong features

(SIFT 400 cluster centers). CMCT also outperforms

CENTRIST, since the CMCT provides more informa-

tion about the local image structures than CENTRIST.

In (Liu et al., 2011), a method for scene categoriza-

tion by integrating region contextual information into

the bag-of-words approach is used. CMCT also over-

comes this method. By comparing MCT(8 bits) his-

togram and CMCT, one can see that the addition of

contextual information improves performance, since

using only MCT(8 bits) histogram we achieve 73.71

± 0.30%.

4.2.2 8-Category Dataset

In this dataset an amount of 100 images in each ca-

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

318

tegory are used for training and the remaining images

constitute the testing set. In the 8-categoryscene class

CMCT achieves 79.91 ± 0.99% accuracy.

Table 2 shows experimental results for 8-category

dataset. Using Gist descriptor the recognition accu-

racy is 82.60 ± 0.86%, which is greater than the re-

sults achieved by the CMCT. However, on the 15-

category dataset which adds several indoor categories,

the accuracy using Gist dropped to 73.28 ± 0.67%,

which is lower than CMCT accuracy. As in 15-

category dataset, CMCT outperforms MCT(8 bits)

histogram and CENTRIST.

Table 2: Experimental results for 8 scene categories dataset.

Method Accuracy (%)

Gist 82.60 ± 0.86

CENTRIST (0 levels) 76.49 ± 0.84

MCT(8 bits) histogram 77.07 ± 0.68

CMCT 79.91 ± 0.99

4.2.3 8-Class Sports Event

Following (Li and Fei-Fei, 2007), in this dataset, we

use 70 images per class for training and 60 for tes-

ting. CMCT achieves, in this dataset, 67.41 ± 1.10%,

while CENTRIST (0 levels) achieves 63.91 ± 2.44%.

In (Li and Fei-Fei, 2007), in which the event clas-

siﬁcation is a result of scene environment classiﬁca-

tion and object categorization, the accuracy is 73.4%,

greater than CMCT. However, in scene and object ap-

proach (Li and Fei-Fei, 2007), manual segmentation

and object labels are used as additional inputs, a pro-

cedure that is not used in CMCT.

4.2.4 67-Class Indoor Scene Recognition

Following (Quattoni and Torralba, 2009), in this

dataset, we use 80 images in each category for trai-

ning and 20 images for testing. The experiments per-

formed by (Quattoni and Torralba, 2009) with Gist

achieved about 21% average recognition accuracy.

When it is used local and global information to re-

present the scenes, the accuracy was improved to

25%. By using CMCT we achieve 25.82 ± 0.72%.

The experiments performed using CENTRIST with

no levels achieved 22.46 ± 0.84%. As one can see, in

this challeging dataset, CMCT reaches better results

than all techniques presented.

4.3 Experiments with GistCMCT

In all experiments performed in this section, we em-

ployed Histogram Intersection kernel (HIK) (Wu and

Rehg, 2009) Support Vector Machine. For testing

Gist we used the Matlab code provided by (Oliva and

Torralba, 2001). The division of training and test is

the same adopted in the previous experiments.

In the 15-Category Dataset, GistCMCT results is

signiﬁcantly greater than CMCT, since GistCMCT

achieves 82.37 ± 0.11% accuracy. GistCMCT also

outperforms Angular Radial Partitioning (ARP) Gist

(Wei Liu and Gabbouj, 2012), a technique that im-

proves Gist by modifying the grid division, which

achieve 75.25 ± 0.67% accuracy on this dataset. By

comparing confusion matrices presented in Figure 4

and Figure 5, the mean of diagonal matrix values in-

creased from 0.77 to 0.82 when GistCMCT is used.

Furthermore, it is possible to verify that the recogni-

tion rates in all outdoor classes are improved, as well

as most recognition rates in indoor classes.

Figure 5: Confusion matrix from one run for 15-class scene

recognition experiment using GistCMCT descriptor.

GistCMCT results is also signiﬁcantly greater

than CMCT in the 8-category, since GistCMCT

achieves85.64 ± 0.88% accuracy. ARP Gist (Wei Liu

and Gabbouj, 2012), which achieves 84.77 ± 0.71%

accuracy is, again, overcomed by GistCMCT in this

dataset.

In the 8-class sports event GistCMCT achieves

76.08 ± 1.58% accuracy and, therefore, it overcomes

CMCT and the results presented in (Li and Fei-Fei,

2007).

GistCMCT achieves 32.60 ± 0.81% in the out-

door scenes dataset showing better results than

CMCT. It is interesting to note that even without out-

door scenes, adding Gist descriptor improves perfor-

mance in this dataset.

5 CONCLUSIONS

The Contextual Mean Census Transform captures

structural properties by modeling distribution of local

CombiningHolisticDescriptorsforSceneClassification

319

structures and combines it with contextual informa-

tion. Those contextual information are obtained from

the distribution of local structures formed from lo-

cal structures in the original image, to perform scene

recognition task. CMCT combines a modiﬁcation of

CENTRIST with contextual information. Comparing

the results of MCT(8 bits) histogram and CMCT, one

can see that the introduction of contextual informa-

tion improves the image representation. Furthermore,

CMCT preserves the advantages of CENTRIST (easy

to implement, almost no parameter to tune, low illu-

mination dependence) and shows better performance,

as one can see in the presented experiments. As CEN-

TRIST, CMCT is not invariant to rotation.

The GistCMCT, in its turn, is a combination of

two holistic approach: Gist and CMCT. In Tables 1

and 2 it is possible to see that CMCT is overcomed

by Gist when only outdoor scenes are presented and

outperforms Gist when indoor scenes are classiﬁed.

The combination of these two different global des-

criptors improves classiﬁcation and outperforms as

much Gist as CMCT. Besides the good performance,

GistCMCT does not need creating codebooks, which

is often computationally intense.

In our future research, we intend to use some

form of associating spatial layout information, as

subregions of different resolution levels, and include

another type of information to improve the classiﬁca-

tion performance.

REFERENCES

Chang, C.-C. and Lin, C.-J. (2011). Libsvm: A library

for support vector machines. ACM Trans. Intell. Syst.

Technol., 2(3):1–27.

Fei-Fei, L. and Perona, P. (2005). A bayesian hierarchi-

cal model for learning natural scene categories. In

Proceedings of the 2005 IEEE Computer Society Con-

ference on Computer Vision and Pattern Recognition

(CVPR’05) - Volume 2, pages 524–531. IEEE Com-

puter Society.

Fr¨oba, B. and Ernst, A. (2004). Face detection with the

modiﬁed census transform. In Proceedings of the

Sixth IEEE international conference on Automatic

face and gesture recognition, pages 91–96. IEEE

Computer Society.

Grauman, K. and Darrell, T. (2005). The pyramid match

kernel: Discriminative classiﬁcation with sets of

image features. In Proceedings of the Tenth IEEE In-

ternational Conference on Computer Vision - Volume

2, ICCV ’05, pages 1458–1465. IEEE Computer So-

ciety.

Lazebnik, S., Schmid, C., and Ponce, J. (2006). Beyond

bags of features: Spatial pyramid matching for rec-

ognizing natural scene categories. In Proceedings

of the 2006 IEEE Computer Society Conference on

Computer Vision and Pattern Recognition - Volume 2,

CVPR ’06, pages 2169–2178. IEEE Computer Soci-

ety.

Li, L.-J. and Fei-Fei, L. (2007). What, where and who?

classifying events by scene and object recognition. In

IEEE 11th International Conference on Computer Vi-

sion, pages 1–8. IEEE Computer Society.

Liu, S., Xu, D., and Feng, S. (2011). Region contextual

visual words for scene categorization. Expert Systems

with Applications, 38(9):11591–11597.

Lowe, D. G. (1999). Object recognition from local scale-

invariant features. In Proceedings of the International

Conference on Computer Vision - Volume 2, ICCV

’99, pages 1150–1157. IEEE Computer Society.

Oliva, A. and Torralba, A. (2001). Modeling the shape of

the scene: A holistic representation of the spatial en-

velope. Int. J. Comput. Vision, 42(3):145–175.

Oliva, A. and Torralba, A. (2006). Building the gist of a

scene: The role of global image features in recogni-

tion. Progress in Brain Research, 155:23–36.

Qin, J. and Yung, N. (2010). Scene categorization

via contextual visual words. Pattern Recognition,

43(5):1874–1888.

Quattoni, A. and Torralba, A. (2009). Recognizing indoor

scenes. In Proceedings IEEE CS Conf. Computer Vi-

sion and Pattern Recognition, pages 413–420. IEEE

Computer Society.

Salton, G. and McGill, M. J. (1983). Introducrion to mod-

ern information retrieval. New York: McGraw-Hill.

Vapnik, V. (1998). The support vector method of function

estimation. Nonlinear Modeling advanced blackbox

techniques Suykens JAK Vandewalle J Eds, pages 55–

85.

Wei Liu, S. K. and Gabbouj, M. (2012). Robust scene clas-

siﬁcation by gist with angular radial partitioning. In

Communications Control and Signal Processing (IS-

CCSP), 2012 5th International Symposium on, pages

2–4.

Wu, J. and Rehg, J. M. (2009). Beyond the euclidean dis-

tance : Creating effective visual codebooks using the

histogram intersection kernel. In Computer Vision,

2009 IEEE 12th International Conference on, pages

630–637. IEEE Computer Society.

Wu, J. and Rehg, J. M. (2011). Centrist: A visual descriptor

for scene categorization. IEEE Trans. Pattern Anal.

Mach. Intell., 33(8):1489–1501.

Zabih, R. and Woodﬁll, J. (1994). Non-parametric lo-

cal transforms for computing visual correspondence.

In Proceedings of the third European conference on

Computer Vision - Volume 2, ECCV ’94, pages 151–

158. Springer-Verlag New York, Inc.

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

320
