Segmentation of Kinect Captured Images using Grid based 3D

Connected Component Labeling

Aniruddha Sinha

, T. Chattopadhyay

and Apurbaa Mallik

Innovation Lab, Tata Consultancy Services, Kolkata, India

Indian Statistical Institute, Kolkata, India

Keywords:

Kinect, 3D Segmentation, 3D Connected Component, Grid based Approach.

Abstract:

In this paper authors have presented a grid based 3-Dimensional (3D) connected component labeling method

to segment the video frames captured using Kinect RGB-D sensor. The Kinect captures the RGB value of

the object as well as its depth using two different cameras/sensors. A calibration between these two sensors

enables us to generate the point cloud (a 6 tuple entry containing the RGB values as well as its position along

x, y and z directions with respect to the camera) for each pixel in the depth image. In the proposed method we

initially construct the point clouds for all the pixels in the depth image. Then the space comprising the cloud

points is divided into 3D grids and then label the components using the same index which are connected in the

3D space. The proposed method can segment the images even where the projection of two spatially different

objects overlaps in the projected plane. We have tested the segmentation method against the HARL dataset

with different grid size and obtained an overall segmentation accuracy of 83.8% for the optimum grid size.

1 INTRODUCTION

Human activity recognition from camera captured im-

ages/videos is an important research topic for last

few decades because of its business implications in

surveillance, retails, etc. Some such methods can be

found in (Trinh, 2011), (Gabbur, 2011) and (Trinh,

2012). Segmentation (Alon, 2009) of the input video

prior to activity recognition is one of the approaches

proposed in some of those methods. These meth-

ods have a clear edge over the other methods in

terms of getting a better recognition accuracy for the

frames/images with multiple activities. One of the

most commontechniquesunderlying such approaches

is connected component analysis (Hu, 2003).

Since last few years, Kinect has emerged as one of

the most popular consumer electronics product as a

gaming platform (Teardown, 2011). Kinect includes

a camera to sense the RGB values as well as an In-

fra Red (IR) camera to sense the depth of the object

(Owens, 2012). So the above mentioned human ac-

tivity detection problem gets a new paradigm with the

onset of such a popular RGB-D sensor like Kinect.

One such set of Kinect captured gray scale and depth

images for Human Activity Recognition experiments

can be found from the dataset (Wolf, 2012) published

by LIRIS for Human Activity Recognition and Local-

ization (HARL). The problem of segmentation using

connected component analysis also needs to be modi-

ﬁed with the onset of such RGB-D sensor like Kinect

because these RGB-D sensor data allow us to properly

segment the objects which are overlapping in their 2D

projection plane though residing in different planes in

3D world as shown in the Figure 1. In this Figure two

men are shaking hands and the other two are not con-

nected in the real world. However it seems that all

these four men are touching each other in the projec-

tion as we see in the image.

Figure 1: Apparently touching objects in 2D projection

plane (From HARL dataset).

Related state of the art for HARL problem is very

less as human detection problem using RGB-D data

is relatively newer one. One such solution proposed

by Xia et. al. in (Xia, 2012) has a limitation that it

327

Sinha A., Chattopadhyay T. and Mallik A..

Segmentation of Kinect Captured Images using Grid based 3D Connected Component Labeling.

DOI: 10.5220/0004289303270332

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 327-332

ISBN: 978-989-8565-47-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

can work only if the skeleton of the human in the im-

ages are detected accurately. Surface normals on the

3D cloud points are used for people detection in (Heg-

ger, 2012). They detect people in walking, sitting and

other postures. However, there is no analysis done

while multiple people are interacting among them-

selves. So there is a need of segmentation of human

being prior to recognize the activity. Some methods

for segmenting such RGB-D sensor data can be found

in (Donoser, 2006). The automatic segmentation of

3D objects are proposed by (Tombari, 2011) using the

local consistency of the labels obtained from the fea-

ture data. Most of the previous works perform feature

extraction and segmentation on the cloud point (Heg-

ger, 2012) which tries to eliminate the effect of noise

using the local consistency parameter. However, this

technique is computationally expensive. The reasons

for the noise (Weerasinghe, 2012) are mostly due to

reﬂections of the IR from specular surfaces, interfer-

ences with outdoor lights or indoor IR sources, pres-

ence of objects with black colour and range or dis-

tance limitation in Kinect which is approximately 12

feet.

In this paper, we attempt a new technique of seg-

mentation of objects by initially converting the cloud

points to voxels by grid formation followed by 3D

connected component labeling. The voxelization not

only reduces the computational complexity of the

connected component analysis but also helps in elim-

inating the noise in the depth data. In the present

work we have used the concept of grid formation for

streaming 3D data as described in (Isenburg, 2009)

and extended that to segmentation. We propose to use

the count of the cloud points in a 3D grid and con-

sider only those grids having the counts more than

a threshold while ignoring the remaining grids. The

count values of the grids are used for segmentation us-

ing connected component labeling (Molinier, 2005),

(Kalogerakis, 2010).

The paper is organized as follows: Section 2 gives

the description of the proposed approach of segmen-

tation, section 3 gives the experimental results, fol-

lowed by discussions on the results in section 4 and

ﬁnally the conclusion is given in section 5.

2 PROPOSED METHOD

The method of voxel based 3D segmentation pro-

posed in this paper has three stages - (i) creation of

cloud points from the depth and the color image, (ii)

binary voxel creation from cloud points by grid for-

mation, (iii) 3D connected component analysis on the

binary grid voxels.

2.1 Creation of Cloud Points

The Kinect device provides color image (CI) and

depth image (DI) for every frame. The 3D cloud

points are generated from the color and the depth im-

age using the intrinsic and extrinsic parameters of the

Kinect camera (Khoshelham, 2012). The entire pro-

cess is shown in Figure 2. The color image shown

in this ﬁgure is a gray image, as the dataset (Wolf,

2012) used in the paper has the gray image instead of

color images. However, in general the image would

be a color image. A summary of the steps are given

below:

• For every pixel (depth) p

in the DI, the {x,y,z}

co-ordinates in the 3D world co-ordinate system

are derived using the intrinsic parameters of the

depth camera.

• For every pixel (depth) p

in the DI, the corre-

sponding pixel p

= {r,g,b} in CI is derived using

the extrinsic parameters of the Kinect depth and

color camera.

• For every p

in the DI, a 3D cloud point (V

)

is generated as a 6-tuple entry given by V

{x,y,z,r,g,b}.

The space (S

) encompassed by all the cloud points

is given by eqn. 1. The next step is to derive grid

vertices as explained in the next section.

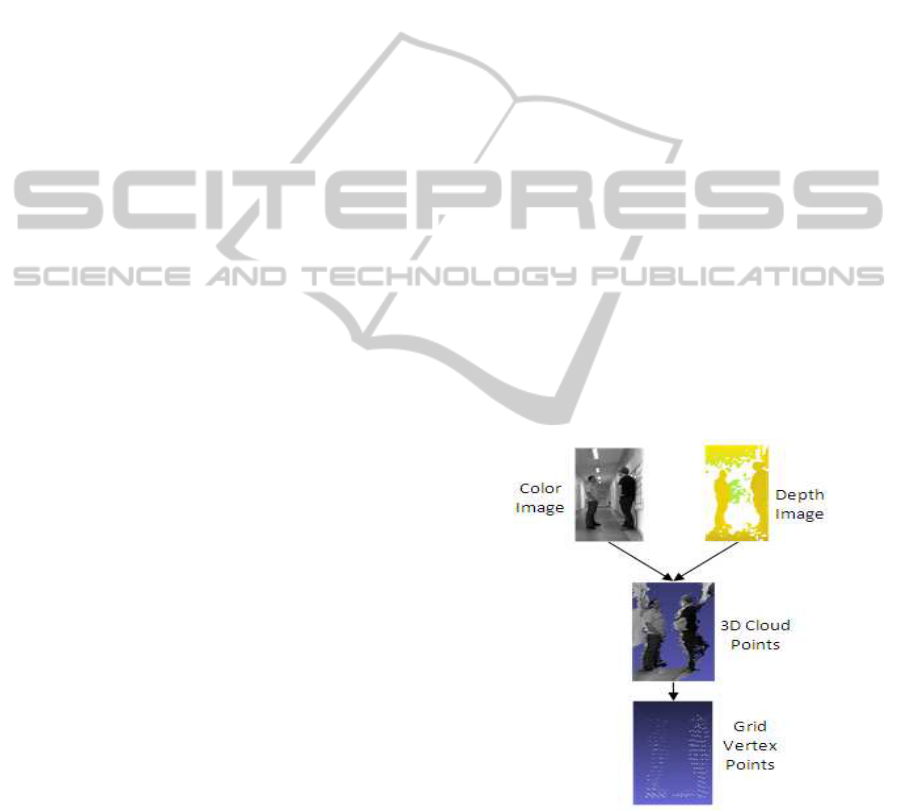

Figure 2: Creation of Cloud Points and Grid Vertices.

2.2 Grid Formation for Voxelization

The space (S

) visible by Kinect is divided into small

grids or parallelepiped along the width (X), height (Y)

and depth (Z). The direction of X and Y are the same

as the direction of X

and Y

of the depth image plane

for Kinect and direction of Z is perpendicular to the

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

328

-Y

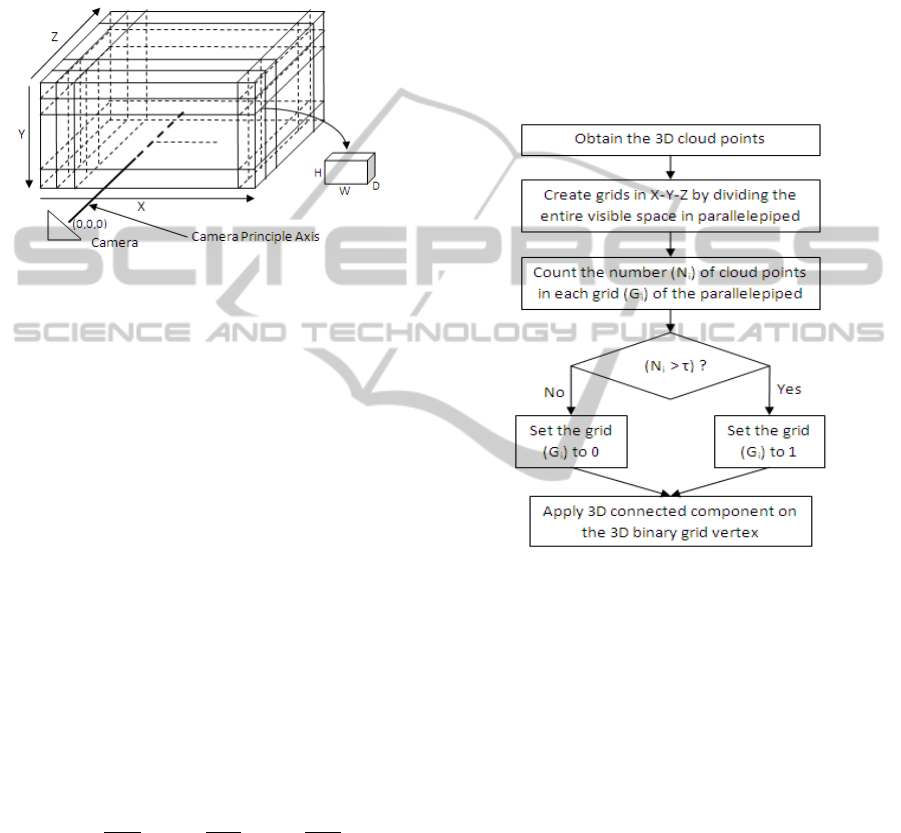

plane. The formation of the grid is shown in

Figure 3 where the 3D world co-ordinate (x,y,z) of the

depth camera in Kinect is assumed to be (0,0,0). Sim-

ilar voxelization technique is also presented in (Gorte,

2004) for segmentation of trees using laser scans. The

ﬂowchart for the binary voxel creation is shown in

Figure 4. The cloud points for the entire space S

Figure 3: Creation of Grid in 3D space.

is represented by eqn. 1 where X

nmax

, Y

nmax

are the

individual maximum absolute co-ordinates of all the

cloud points V

{x,y,z,r,g,b} in negative direction of

the X, Y respectively; X

pmax

, Y

pmax

are the same in

the positive direction of the X, Y respectively. Z

max

the individual maximum co-ordinate of all the cloud

points V

{x,y,z,r,g,b} in Z direction.

= {V

(x, y,z,r, g, b) | − X

nmax

≤ x ≤ X

pmax

−Y

nmax

≤ y ≤ Y

pmax

, 0 ≤ z ≤ Z

max

}

max

= X

nmax

+ X

pmax

max

= Y

nmax

pmax

(1)

The space S

is divided into grids of size W, H and

D in X, Y and Z directions respectively as shown in

Figure 3. The index for the i

grid G

is given by

eqn. 2, where W

, H

and D

are the number of grids

and w, h and d are the indices to the grid in X, Y and

Z directions respectively. The notation ’*’ indicates

multiplication.

i = w+ h∗W

+ d ∗W

∗ H

max

, H

max

, D

max

(2)

The number of cloud points, N

in i

grid, G

is com-

puted as shown in eqn. 3, where S

is the space of

the cloud points V

which belong within the grid G

∑

x,y,z∈S

(x, y,z,r, g, b) (3)

In case of noise, the countN

would be very less. Thus

the grids with counts above a threshold (τ) are treated

as validgrids. The vertex V

={0,1} correspondingto

the grid G

contains the binary information as shown

in eqn. 4 and is termed as binarized grid vertex.

= 1 if N

≥ τ

= 0 if N

< τ

(4)

The co-ordinates of the grid vertex V

are the mean

of the co-ordinates of the point clouds V

belonging

within the grid G

. The size of the grid is conﬁgurable.

Larger grid size reduces the computational complex-

ity at the cost of loss in spatial resolution. Hence we

perform an experiment to see the effect of grid size on

the segmentation accuracy of human being.

Figure 4: Creation of Voxels and Connected Components.

2.3 Segmentation using Component

Labeling

The method of connected component labeling is as

described below:

• Each of the binarized 3D grid vertices V

as are

taken as the input. Each vertex (V

) corresponds

to the grid G

as described in eqn. 4

• For each vertex now we start to deﬁne a label start-

ing from 2 and increment the label valuewhenever

a new label needs to be used.

• For each i

grid in the ﬁrst search for its 26 neigh-

bours.

• If V

= V

= 1 and V

is unlabeled, then label

with the label of V

. Where i is the grid

under consideration and j is any of the 26 neigh-

bouring vertex of i.

• If V

= 0 and V

= 1 and V

is unlabeled, mark

with a new label

SegmentationofKinectCapturedImagesusingGridbased3DConnectedComponentLabeling

329

• If V

= V

and V

= 1 and V

is already la-

beled, mark the label of V

and V

as same label

and keep track of it using an additional array.

• If V

and V

have different labels and V

is un-

labeled, then put a new label to i but keep track

of labels of i, j, k in a table where i is the grid

under consideration and j and k are two different

adjacent grids of i.

• Go through the table after a complete pass on the

image and resolve the conﬂicts.

• All the grid points are recursively traversed (Wu,

2005) to complete the labeling process.

Finally the size of the k

component C

is measured

using the volume Vol

of the component as given in

eqn. 5.

Vol

∑

i∈C

(5)

The components which are greater than a threshold

(τ

) are considered as potential human being.

3 RESULTS

In this section we are going to discuss our experiment

set up and experimental results. We have tested our

algorithm against the HARL data set (Wolf, 2012)

published by LIRIS for a competition on Human Ac-

tivity Recognition in ICPR 2012. This data set con-

tains human activities that can be classiﬁed into 10

classes. Among these 10 classes, the segmentation

problem becomes more difﬁcult for the videos con-

taining human-human interactions and the possibility

of wrong segmentation is also higher for these activ-

ities. So we have selected three types of activities

namely (i) discussion of two or more people, (ii) one

person is giving some item to other one, and (iii) hand

shaking of two people to test our proposed method.

The details of the test data is given in Table 1.

Table 1: Details of Test Data.

Total number of activity 3

Total number of Videos 45

Total number of Clips 50

Total number of Frames 2163

Total number of Human 4732

We have tested our method against different grid

sizes to ﬁnd the optimum grid size on a subset of the

above described test dataset. The subset consists of

4 of videos (V1, V2, V3, and V4) as shown in Ta-

ble 2, where each video contains 3 and more clips.

We have varied the grid sizes W, H and D in steps

of 10 cm along the X, Y and Z directions respec-

tively. Our experimentalresults on these different grid

sizes are shown in Table 2. The segmentation accu-

racy is derived by comparing the number of correct

human segmentation against the manually generated

ground truth. Results show that the segmentation ac-

curacy degrades with the increase of grid size along

z direction. The main reason behind it is that the

width/breadth of the image of a human being standing

at a distance of 1 to 5 meters from the camera with the

camera parameters derived from Kinect is less than 10

cm. So the possibility of two human being standing

on a cube of bigger grid size is greater than that of the

possibility of a single man standing in that grid. As

a consequence the possibility for wrong segmentation

in a bigger grid size is also higher than the possibility

of an error in the relatively smaller grid size.

Table 2: Segmentation Accuracy (%) Vs Grid size (cm) -

The W,H,D contains the grid sizes and V1,V2,V3,V4 con-

tains the accuracy values for four videos respectively.

W H D V1 V2 V3 V4

10 10 10 80 84 93.03 79.31

10 10 20 65.71 51 41.37 44.82

10 10 30 25.71 34 24.13 31.34

10 20 10 0 0 0 6.8

10 20 ≥20 0 0 0 0

10 30 ≥10 0 0 0 0

20 10 10 5.71 0 0 0

20 10 ≥20 0 0 0 0

20 20 ≥10 0 0 0 0

20 30 ≥10 0 0 0 0

30 10 10 14.48 0 0 6.8

30 10 ≥20 0 0 0 0

30 20 ≥10 0 0 0 0

30 30 ≥10 0 0 0 0

We have benchmarked our proposed method

against the traditional 2D segmentation method on the

test data mentioned in Table 1. Table 3 shows that the

accuracy of segmentation of the proposed method out

performs the gray value based 2-D connected compo-

nent approach. The overall accuracy for 3D approach

is 83.8% as against 52.3% for 2D approach.

Table 3: Segmentation Accuracy (%) for 2D and 3D ap-

proach.

Activity 2D approach 3D approach

Discussion 54.3 79.2

Give and take 58.6 78.2

Hand shaking 44.5 91.6

The details of the segmentation accuracy (%)

along with its sources of errors has been described

in Table 4. This table shows the occurrence of the

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

330

segmentation errors coming from under segmentation

(US) and over segmentation (OS) for different types

of activities. It can be noted that the errors due to

US is much higher compared to errors due to OS.

This is due to the fact that the grid formation tends to

merge two components which are actually separated

but their boundaries lying within the same grid.

Table 4: Segmentation Accuracy (%) for 3D approach.

Activity Clips OS US Correct

Discussion 16 2 18.8 79.2

Give and take 14 2.3 19.5 78.2

Hand shaking 20 1.4 7 91.6

The 2D based approach has a time complexity of

O(n

) where as the standard 3D based approaches

have an complexity of O(n

). We have reduced the

complexity by our proposed grid formation technique

as the grid size is signiﬁcantly bigger than a voxel

with single cloud point. In our experiments we have

found that the number of grid vertices V

is approxi-

mately 100 times less than the number of cloud points

. Thus for a VGA resolution image obtained from

Kinect, the proposed method is producing better seg-

mentation accuracy compared to the 2D connected

component based approach at the cost of marginally

higher computational complexity.

4 DISCUSSION

We now critically analyze some of the interesting

cases. The segmentation results for the Figure 1 are

shown in Figure 5. It shows the grid vertices, cor-

rect segmentation of the interacting people in the fore-

ground and separate segments for the background per-

son. The image with the grid vertices (Figure 5(b)) is

slightly rotated for better understanding and visibility.

The correspondence between the human in the image

and the grid vertices are shown using colored arrows.

It can be observed that the grid creation using the 3D

cloud points depth information eases the segmenta-

tion process compared to the normal 2D segmenta-

tion. There are scenarios where people are partially

occluded as shown in Figure 6. It can be seen that due

to the separation in the depth the people are correctly

segmented.

A scenario of under-segmentationis shown in Fig-

ure 7. Here two people are in discussion activity. It

can be seen that a single connected component is cre-

ated containing two people where the connection is

via the ﬂoor. This can be either handled by detect-

ing the ground plane or in general performing ero-

sion on the 3D grid vertices. A sample case of over-

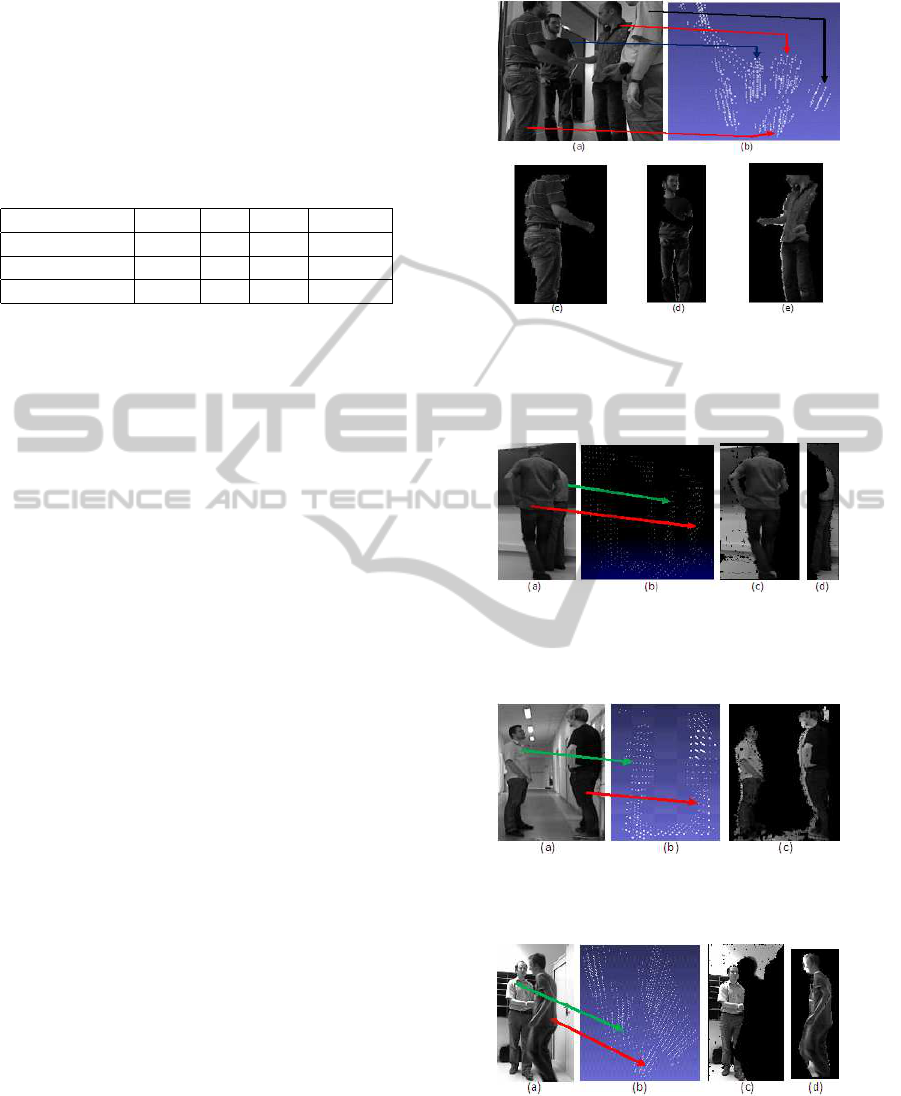

Figure 5: Segmentation of interacting human beings -

(a) The original image (from HARL dataset), (b) Bina-

rized Grid vertices, (c) Segmented foreground human doing

handshake, (d) Segmented background human, (e) Another

segmented foreground human doing handshake

Figure 6: Segmentation of partially occluded interacting hu-

man beings - (a) The original image (from HARL dataset),

(b) Binarized Grid vertices, (c) Segmented human closer to

the Kinect, (d) Partially occluded segmented human

Figure 7: Under-Segmentation of interacting human beings

- (a) The original image (from HARL dataset), (b)Binarized

Grid vertices, (c) Segmentation of human during discussion.

Figure 8: Over-Segmentation of interacting human beings -

(a) The original image (from HARL dataset), (b) Binarized

Grid vertices, (c) Segmented human doing handshake, (d)

Another segmented human doing handshake

segmentation is shown in Figure 8 where in spite of

two people involved in handshake they are separately

SegmentationofKinectCapturedImagesusingGridbased3DConnectedComponentLabeling

331

segmented. This is due to the fact that there is a dis-

continuity between the right wrist of the person on

the right and the body itself. The discontinuity is

due to the occlusion as can be seen from the Figure

8(a). Hence the grid vertices are not present in that

occluded region leading to over segmentation.

5 CONCLUSIONS

In this paper we have proposed a method of segmen-

tation for RGB-D image frame using grid based con-

nected component analysis. Experiments performed

on HARL dataset indicate improved human segmen-

tation accuracy compared to standard 2D segmenta-

tion approach. The formation of grid reduces the

processing complexity as well as handles the noisy

depth information obtained from Kinect. The pro-

posed method has two limitations namely (i) under

segments the image/video frame if the person is lean-

ing over a wall and (ii) over segments when a human

being is spread over two adjacent grids and one of the

grid has a voxel count less than our deﬁned threshold

value. We have left the adaptive grid size selection

and wall/ﬂoor estimation that might solve the existing

limitations as a future scope of research.

ACKNOWLEDGEMENTS

The authors would like to thankfully acknowledge the

help and support from Prof. Dipti Prasad Mukherjee

of ECSU unit of Indian Statistical Institute and Ms

Sangheeta Roy, Mr. Brojeshwar Bhowmick and Mr.

Kingshuk Chakravarty of Innovation Labs, TCS.

REFERENCES

C. Wolf, J. Mille, L.E Lombardi, O. Celiktutan, M. Jiu, M.

Baccouche, E Dellandrea, C.-E. Bichot, C. Garcia, B.

Sankur, (2012). The LIRIS Human activities dataset

and the ICPR 2012 human activities recognition and

localization competition. Technical Report RR-LIRIS-

2012-004, LIRIS Laboratory, March 28th, 2012.

Donoser, M.; Bischof, H. (2006). 3D Segmentation by

Maximally Stable Volumes (MSVs). Pattern Recogni-

tion, 2006. ICPR 2006. 18th International Conference

on , vol.1, no., pp.63-66.

Owens, J. (2012). Object Detection using the Kinect. U.S.

Army Research Laboratory ATTN: RDRL-VTA, Ab-

erdeen Proving Ground MD 21005, March 2012.

Martin Isenburg and Jonathan Shewchuk (2009). Stream-

ing Connected Component Computation for Trillion

Voxel Images. MASSIVE Workshop, June 2009.

K. Wu, E. Otoo and K. Suzuki. (2005). Two strate-

gies to speed up connected component labeling al-

gorithms. Technical report, 2005. Technical Report,

LBNL-59102.

Evangelos Kalogerakis, Aaron Hertzmann, Karan Singh,

(2010). Learning 3D Mesh Segmentation and Label-

ing. ACM Transactions on Graphics, Vol. 29, No. 3,

July 2010.

B. Gorte, N. Pfeifer (2004). 3D Image Processing to Re-

construct Trees from Laser Scans. Proceedings of

the 10th annual conference of the Advanced School

for Computing and Imaging (ASCI), Ouddorp, the

Netherlands, 2004.

Matthieu Molinier, Tuomas Hme and Heikki Ahola (2005).

3D-Connected components analysis for trafﬁc moni-

toring in image sequences acquired from a helicopter.

In Proceedings of the 14th Scandinavian conference

on Image Analysis (SCIA’05), Heikki Kalviainen,

Jussi Parkkinen, and Arto Kaarna (Eds.). Springer-

Verlag, Berlin, Heidelberg, 141-150.

Frederik Hegger, Nico Hochgeschwender, Gerhard K.

Kraetzschmar and Paul G. Ploeger. (2012). People

Detection in 3d Point Clouds using Local Surface Nor-

mals. RoboCup, Mexico, 2012.

F. Tombari, L. Di Stefano, S. Giardino. (2011). Online

Learning for Automatic Segmentation of 3D Data.

IEEE/RSJ Int. Conf. on Intelligent Robots and Systems

(IROS ’11), 2011.

J. Hu, G. Farin, M. H. (2003). Statistical 3D Segmen-

tation With Greedy Connected Component Labelling

Reﬁnement Research OnlinID paper-0017, 2003

L. Xia, C.-C. Chen, and J. K. Aggarwal, (2012). View In-

variant Human Action Recognition Using Histograms

of 3D Joints. The 2nd International Workshop on Hu-

man Activity Understanding from 3D Data (HAU3D),

CVPR 2012.

H. Trinh, Q. Fan, S. Pankanti et al. (2011). Detecting Hu-

man Activities in Retail Surveillance Using Hierarchi-

cal Finite State Machine. International Conference

on Acoustics, Speech and Signal Processing (ICASSP)

2011.

Hoang Trinh, Quanfu Fan, Prasad Gabbur, Sharath Pankanti

(2012). Hand tracking by binary quadratic program-

ming and its application to retail activity recognition.

CVPR 2012: 1902-1909.

Prasad Gabbur, Sharath Pankanti, Quanfu Fan, Hoang Trinh

(2011). A pattern discovery approach to retail fraud

detection. KDD 2011: 307-315.

J. Alon, V. Athitsos, Q. Yuan and S. Sclaroff. (2009). A uni-

ﬁed framework for gesture recognition and spatiotem-

poral gesture segmentation. IEEE PAMI, vol. 31, pp.

16851699, 2009.

The teardown. (2011). Engineering Technology, vol. 6,

no.3, pp. 94-95, April 2011.

I.P. Tharindu Weerasinghe, Janaka Y. Ruwanpura, Jeffrey

E. Boyd, and Ayman F. Habib. (2012). Application

of Microsoft Kinect sensor for tracking construction

workers. Construction Research Congress 2012, May

21-23.

Khoshelham, K., Oude Elberink, S. (2012). Accuracy and

resolution of kinect depth data for indoor mapping ap-

plications. Sensors, vol. 12, 1437-1454.

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

332
