Real-time Appearance-based Person Re-identiﬁcation

Over Multiple Kinect

Cameras

Riccardo Satta, Federico Pala, Giorgio Fumera and Fabio Roli

Department of Electrical and Electronic Engineering, University of Cagliari, Cagliari, Italy

Keywords:

Video Surveillance, Person Re-identiﬁcation, Kinect.

Abstract:

Person re-identiﬁcation consists of recognizing a person over different cameras, using appearance cues. We

investigate the deployment of real-world re-identiﬁcation systems, by developing and testing a working pro-

totype. We focus on two practical issues: computational complexity, and reliability of segmentation and

tracking. The former is addressed by using a recently proposed fast re-identiﬁcation method, the latter by

using Kinect cameras. To our knowledge, this is the ﬁrst example of a fully-functional re-identiﬁcation system

based on Kinect in the literature. We ﬁnally point out possible improvements and future research directions.

1 INTRODUCTION

Person re-identiﬁcation is the task of recognizing a

person over different cameras, using cues related to

clothing appearance (Doretto et al., 2011). In this pa-

per we focus on two issues related to the deployment

of re-identiﬁcation systems in real-world application

scenarios: (i) Computational complexity must be low

enough to satisfy real-time requirements; (ii) The ac-

curacy of pedestrian detection, tracking and segmen-

tation (ﬁrst stage of the pipeline) is critical: in par-

ticular, accurate segmentation is needed to avoid in-

cluding background elements. Computational com-

plexity has been overlooked so far in the literature.

Among the few exceptions, we mention our previ-

ous work (Satta et al., 2012). To improve segmen-

tation accuracy, depth maps provided by range cam-

eras could be exploited (e.g., Time-Of-Flight (Kolb

et al., 2009) or code structured light cameras (Salvi

et al., 2004)). They could also improve tracking pre-

cision, attaining robustness to occlusions and illumi-

nation changes, which are difﬁcult to deal with using

RGB information only.

We investigated the above issues by developing

a fully-functional prototype of a real-time, multiple

cameras re-identiﬁcation system. We exploited the

fast re-identiﬁcation method of (Satta et al., 2012),

and the off-the-shelf, low-cost Kinect

range cam-

era, described in Sect. 2. In particular, we used the

Kinect free software libraries, that enable enhanced

tracking, segmentation and pose estimation, using

depth data. We describe the prototype architecture

and implementation in Sect. 3, and its evaluation, on

a data set we collected in our Lab, in Sect. 4.

2 BACKGROUND

2.1 Fast Person Re-identiﬁcation

Most existing re-identiﬁcation methods subdivide the

image I of an individual into M ≥ 1 parts {I

, . . . , I

}

(e.g., torso and legs), and represent each part I

as a

bag (set) of local feature vectors (components) {i

}

(e.g. patches, SIFT points). The Multiple Component

Dissimilarity (MCD) framework (Satta et al., 2012)

drastically reduces the matching time of such meth-

ods, exploiting the fact that the above representation is

likely to exhibit redundancies across individuals that

share similar clothing characteristics. MCD turns the

above kind of appearance descriptor into a dissimilar-

ity one, consisting of a vector of dissimilarities be-

tween each body part I

and a set of representative

bag of components for that part, called prototypes.

Prototypes are constructed from a given gallery of

images of N individuals, I = {I

, . . . , I

}. For each

body part m = 1, . . . , M: 1) The feature vectors {i

}

of each I ∈ I are merged into a set X

j=1

j,m

2) X

is clustered, and the resulting N

clusters P

m,1

, . . . , P

m,N

} are deﬁned as the prototypes for the

m-th body part. This procedure returns M sets of pro-

totypes P = {P

, . . . , P

Given the original descriptor of an individual, I =

407

Satta R., Pala F., Fumera G. and Roli F..

Real-time Appearance-based Person Re-identiﬁcation Over Multiple KinectTM Cameras.

DOI: 10.5220/0004292504070410

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 407-410

ISBN: 978-989-8565-48-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

tracking

segmentation

skeletonisation

Microsoft

Kinect SDK

detection

acquired

tracks

camera network

Re-ID module

matching with

templates

ranking

body part

subdivision

descriptor

computation

Kinect

ID 4

ID 0

ID 15

ID 7 ID 16 ID 2

(a) (b) (c) (d)

GUI

presentation

add new tracks

to the

Template DB

Template

templates

ranking

Kinect

Figure 1: Left: example of the capabilities of the Kinect SDK. Two individuals are tracked, and their skeleton is super-

impressed on the image. The upper-right box shows segmentation in depth domain. Right: system architecture (see text).

, . . . , I

}, the corresponding MCD descriptor is ob-

tained as the concatenation of the M dissimilarity vec-

tors I

= [I

, . . . , I

], where:



d(I

, P

m,1

), . . . , d(I

, P

m,N

)



, m = 1, . . . , M ,

and d(·, ·) is a dissimilarity measure between two

sets of components, e.g., the k-th Hausdorff Distance

(Satta et al., 2012). To match two dissimilarity vec-

tors I

and I

, a weighted Euclidean distance is used:

higher weights are assigned to most signiﬁcant proto-

types (see (Satta et al., 2012) for further details).

A speciﬁc implementation of MCD (MCDimpl)

was proposed in (Satta et al., 2012). It subdivides

body into torso and legs (M = 2), and uses as com-

ponents patches randomly extracted from each body

part, described by their HSV colour histogram. Pro-

totypes are constructed using a two-stage clustering

algorithm, and are then deﬁned as the patch near-

est to the centroid of each cluster. In (Satta et al.,

2012) it was shown that MCDimpl can allow several

thousands matchings per second, since they reduce

to comparing two real vectors. Moreover, although

prototype construction can be time-consuming, pro-

totypes can be obtained off-line from any gallery of

individuals that exhibits a reasonable variety of cloth-

ings. In particular, such gallery can be different from

the template gallery of the system, and thus does not

need to be updated, as new templates are added during

operation.

2.2 The Kinect Device

The Kinect platform was originally proposed for the

home entertainment market. Due to its low cost, it

is currently gaining much interest over the computer

vision community. The device provides: (i) an RGB

camera (1280 × 960 pixels at 30fps); (ii) an IR depth

sensor based on code structured light, which con-

structs a 640 × 480 pixels depth map at 30fps, with

an effective range of 0.7 to 6 meters. The Kinect

SDK also provides reliable tracking, segmentation

and skeletonisation (Shotton et al., 2011), based on

depth and RGB data (see Fig. 1-left).

The technology adopted by the Kinect device suf-

fers from two limitations. First, the maximum dis-

tance at which a person can be detected (around 5–6

mt) is relatively low. However, ad hoc sensors (proba-

bly more costly) can be developed to deal with higher

distances, based on the same technology. Second, the

use of IR projectors and sensors to build the depth

map prevents outdoor usage, because of the interfer-

ence in the IR band caused by the sun light. In-

door environments include nevertheless typical video-

surveillance scenarios (e.g., ofﬁces, airports).

3 SYSTEM IMPLEMENTATION

Our prototype tracks all the individuals seen by a net-

work of Kinect cameras, adds to a template data base

an appearance descriptor (template) of each acquired

track, and re-identiﬁes online each new individual, by

matching its descriptor with all current templates. Af-

ter a track is acquired, the operator is shown the list

of templates, ranked according to the matching score

to that track.

Our prototype architecture is shown in Fig. 1

(right). It consists of a network of Kinect cameras,

connected to a PC (Fig. 1, right (a)). First, detection,

tracking, segmentation (i.e., silhouette extraction) and

skeletonisation of each individual seen by the network

are carried out (Fig. 1, right (b)), exploiting the Kinect

SDK (other detection techniques based on RGB and

range data can also be used, e.g., (Salas and Tomasi,

2011; Spinello and Arras, 2011)). Each individual

is associated to a track, i.e., the sequence of regions

of the RGB frames containing him/her, extracted by

the detector, and the corresponding skeletons. After

a track T is acquired, a template is created by the re-

identiﬁcation module (Fig. 1-right(c)), and is added to

the Template DB. A template is made up of the acqui-

sition date and time, and of the 5 frames {T

, . . . , T

}

of the track exhibiting the largest silhouette area, with

the corresponding MCDimpl descriptors.

Online re-identiﬁcation is performed for each new

track T , with respect to all current templates. The

ﬁrst frame of T is initially matched to the templates,

and then subsequent frames sampled every t

acquire

= 1

sec., but only if the corresponding silhouette area

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

408

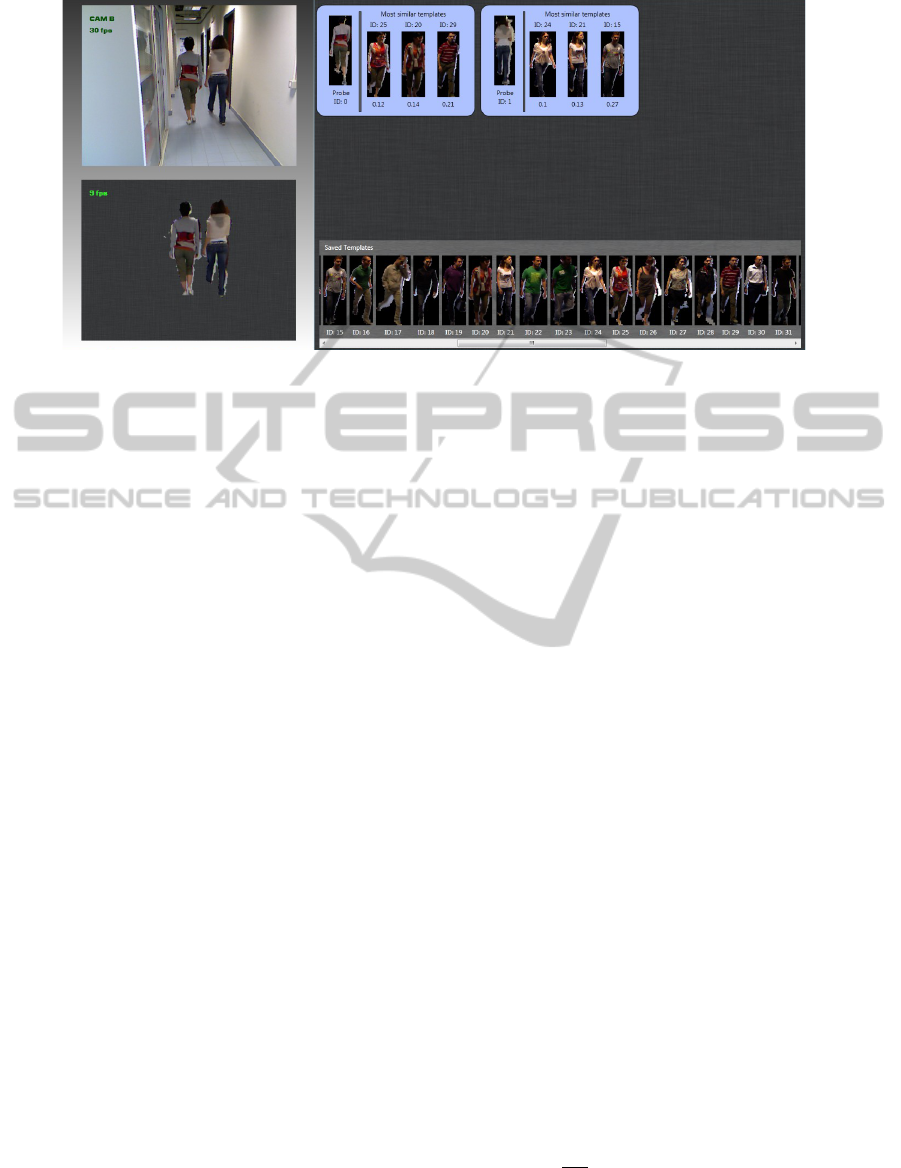

Figure 2: Screenshot of the main view of the prototype GUI, showing images coming from one camera. The user can run

many of these views to check simultaneously different cameras. Left: RGB output (top) and segmentation (bottom). Right:

the best frame (i.e., the one with the largest silhouette area), the matching score and the template ID of the three template

tracks most similar to the one on the left (top); the current template tracks (bottom).

is greater than the one of the previously processed

frame. For a given frame f to be matched: (1) the

silhouette is subdivided into torso and legs; (2) an ap-

pearance descriptor q is created; (3) q is matched to

all current templates. If a frame contains up to two

individuals, the Kinect SDK provides their skeleton,

made up of 20 different joint points. In this case, in

step (1) the torso is obtained by taking all pixels be-

tween the hip center, and of the middle point between

the head point and the shoulder center. Similarly, the

legs body part is obtained from the pixels between the

hip center, and of the lowest foot. If the skeleton is not

available, the body is subdivided using the method of

(Farenzena et al., 2010).

Steps (2) and (3) rely on MCDimpl (see Sect. 2.1).

In our system the prototype gallery was built off-line,

using the 1.264 pedestrian images of the VIPeR data

set (Gray et al., 2007), which exhibit a wide variety of

clothing appearances. The matching score between q

and a template track T was computed as the median

score between q and the MCDimpl descriptors of the

best frames {T

, . . . , T

For each new track, the sorted list of templates

(Fig. 1(d)) is shown to the operator through a Graph-

ical User Interface (Fig. 2), where one representative

frame for each template is displayed. By clicking on

it, the other frames are also displayed.

4 EVALUATION

We evaluated our system in a real scenario: a small

network of two Kinect cameras, A and B, deployed

in an ofﬁce building (see Fig. 4, left). The software

was installed on a PC with a dual-core i5 2.3GHz

CPU. We ﬁrst collected a data set of videos of 54 peo-

ple wearing different clothing. Two video sequences

were acquired for each individual: frontal (camera A)

and back pose (camera B). This is a challenging data

set, due to strongly different poses and non-uniform

illumination (see Fig. 4, middle). It is available upon

request. The experiments were carried out by in-

jecting the video sequences into the system, simulat-

ing their online acquisition. The video sequences of

camera A were used to populate the Template DB:

in this step, re-identiﬁcation was disabled. Then, re-

identiﬁcation was performed for each video-sequence

of camera B, without subsequently adding them to the

Template DB. The above experiment was repeated by

switching the roles of cameras A and B.

Re-identiﬁcation accuracy was assessed via the

Cumulative Matching Characteristic (CMC) curve,

i.e., the probability of ﬁnding the true identity among

the ﬁrst n templates, as a function of n, averaged

over the two runs (Fig. 4, right). Note that the re-

ported performance takes into account all processing

steps, from tracking to matching, while most previous

works focus only on descriptor creation from silhou-

ette, and matching. Computing one descriptor from a

frame (including all preprocessing steps) took about

descr

= 50 ms. Matching one probe with one template

track took about t

match

= 0.03 ms.

The maximum number I of individuals that can

be tracked and re-identiﬁed simultaneously is approx-

imately I =

acq

proc

, where t

proc

is the processing time

required to re-identify one frame. It is given by

proc

= t

descr

+ M · t

match

, where M is the number of

tracks in the Template DB. In Fig. 3 we plotted I vs

Real-timeAppearance-basedPersonRe-identificationOverMultipleKinectTMCameras

409

(a) (b) (c)

1 5 10 15 20 25 30 35 40 45 50 55 60

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

recognition rate

rank

CMC

Figure 4: Left: position of cameras A and B. Middle: examples of front and back views from our data set: (a) the same

individual wearing different clothing and cumbersome accessories; (b) different people wearing clothing of the same colour,

and (c) clothing with strong differences between front and back view. Right: average CMC curve attained by our prototype.

M using t

acq

= 1 sec. (see Sect. 3), it can be noted that

M inﬂuences I only slightly, due to the very low t

match

of MCDimpl. In real scenarios, M depends on the

number of individuals seen by the camera network in

the period of time of interest (e.g., one day). In small

indoor scenarios (e.g., ofﬁce buildings), a reasonable

value of M is 400-500. The actual number of distinct

individuals may be much smaller, but it is likely that

each one would be seen many times by the camera

network. In this case, around 15 different individu-

als can be re-identiﬁed simultaneously by our system.

Even in larger environments (M ≥ 1000) the value of

I decreases only slightly. It is worth noting that a se-

curity operator is usually interested in re-identifying

only one or a few individuals at a time. Thus, the per-

formance of the proposed system should already sat-

isfy such needs, in small/medium indoor scenarios.

5 CONCLUSIONS

We described the implementation of an online re-

identiﬁcation system working with multiple Kinect

cameras, which addresses the challenging issues of

computational complexity, and of tracking and seg-

mentation. To this aim, we used the fast re-

identiﬁcation method of (Satta et al., 2012), which

enables on-line re-identiﬁcation over a camera net-

work, and carried out tracking and segmentation ex-

ploiting the depth map provided by the Kinect de-

vice, although its technology limits its application to

0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500

Maximum number of individuals re−identified simultaneously

Figure 3: Maximum number I of individuals seen by the

camera network that can be re-identiﬁed simultaneously,

versus the number M of template tracks.

indoor environments. Two main improvements can

be foreseen. First, temporal reasoning on the spa-

tial layout of the camera network can be exploited,

to avoid matching the current track with templates ac-

quired distantly in space or time. Second, a quality

measure should be deﬁned to select the most repre-

sentative frame of a track, for template construction.

We used to this aim the silhouette area, but lighting

conditions and body pose could be considered as well.

ACKNOWLEDGEMENTS

This work has been partly supported by the project

CRP-18293 funded by Regione Autonoma della

Sardegna, L.R. 7/2007, Bando 2009.

REFERENCES

Doretto, G., Sebastian, T., Tu, P., and Rittscher, J. (2011).

Appearance-based person reidentiﬁcation in camera

networks: problem overview and current approaches.

J. Amb. Intell. and Human. Comp. 2:127–151.

Farenzena, M., et al. (2010). Person re-identiﬁcation by

symmetry-driven accumulation of local features. In

CVPR, 2010.

Gray, D., Brennan, S., and Tao, H. (2007). Evaluating ap-

pearance models for recognition, reacquisition, and

tracking. In PETS, 2007.

Kolb, A., Barth, E., Koch, R., and Larsen, R. (2009). Time-

of-Flight Sensors in Computer Graphics. In Euro-

graphics 2009 - State of the Art Reports.

Salas, J. and Tomasi, C. (2011). People detection using

color and depth images. In MCPR, 2011.

Salvi, J., et al. (2004). Pattern codiﬁcation strategies in

structured light systems. Patt. Rec. 37(4):827–849.

Satta, R., Fumera, G., and Roli, F. (2012). Fast person re-

identiﬁcation based on dissimilarity representations.

Patt. Rec. Lett. 33(14):1838–1848.

Shotton, J., et al. (2011). Real-time human pose recognition

in parts from single depth images. In CVPR, 2011.

Spinello, L. and Arras, K. (2011). People detection in rgb-d

data. In IROS, 2011.

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

410
