Perceptual Comparison of Demosaicing Algorithms and In-camera

Demosaicing with JPEG Compression

Bartolomeo Montrucchio

Dipartimento di Automatica e Informatica, Politecnico di Torino, c.so Duca degli Abruzzi 24, Torino, Italy

Keywords:

Demosaicing Algorithms, Perceptual Comparison, Color Filter Array (CFA).

Abstract:

Color image acquisition in digital cameras is often performed by using CCD or CMOS sensor chips with a

color ﬁlter array on the top of a single monochromatic sensor. In this paper, a perceptual comparison is per-

formed among three well known demosaicing algorithms plus in-camera demosaicing with lossy compression

JPEG, by means of subjective tests, that is with the help of human beings. The novelty of the approach is

that chosen algorithms have been selected as representative of those used in commercial raw image converters

used by professionals in graphics and that the test has been performed on a large number of people, achieving

results only partially similar to the results got by means of computed metrics. The results show that in the

greatest part of conditions and for non particularly expert users, the capability of the most advanced demosaic-

ing algorithms of producing an almost perfect reconstruction on the full-color image is not strictly required.

Only for selected categories of images it is possible to ﬁnd a clear winner among the algorithms.

1 INTRODUCTION

Full color images in digital cameras are often ob-

tained putting a Color Filter Array (CFA) in front of

a single monochromatic sensor. There exist at least

one solution able to avoid CFA, the Foveon X3 chip,

that works in a way similar to classical color ﬁlms,

but the greatest majority of digital cameras still uses

CFA based sensors.

Reconstructed image can be subjected to several

artifacts, and different demosaicing algorithms try to

address this problem.

The basic idea of this paper is (as also suggested

in (Gunturk et al., 2005)) to verify if from the percep-

tual point of view is there a true difference among dif-

ferent demosaicing algorithms, characterized by dif-

ferent cpu time for the demosaicing and by differ-

ent levels of objective and subjective performance.

In the paper three different demosaicing algorithms

will be subjectively compared among themselves and

with the in-camera demosaiced and lossy compressed

JPEG produced by a semiprofessional high end Full

Frame Canon reﬂex 5D MarkII camera. The novelty

of the approach is based both on the use of an eas-

ily available and highly efﬁcient implementation of

such demosaicing algorithms and on the wide num-

ber of the observers participating to the experiment

with respect to similar previous studies. Time and ef-

fort required to the ﬁnal user to process and archive

the images with respect to the ﬁnal subjective quality

(that is more interesting to the photographer) have in

fact to be considered in the design of the demosaicing

algorithm itself.

The rest of the paper is organized as follows. In

Section 2 a brief background on demosaicing algo-

rithms is presented. In Sections 3 and 4 the proposed

experiment is presented and the results are summa-

rized from a perceptual point of view. Finally in Sec-

tion 5 conclusions are presented.

2 BACKGROUND

Modern high end digital cameras are always able to

store in the memory card not only an already demo-

saiced image (usually with lossy compression (JPEG)

or Tiff format) but also the raw image directly taken

from the sensor. Raw images reﬂect the used CFA,

which is usually structured on Bayer’s idea. In par-

ticular in (Hao et al., 2011) a new method for de-

signing optimal color ﬁlter arrays is presented; re-

sults are very interesting, since it is possible to de-

sign speciﬁc CFAs. Many demosaicing algorithms

have been developed in the previous years (Gunturk

et al., 2005) and a number of new algorithms have

130

Montrucchio B..

Perceptual Comparison of Demosaicing Algorithms and In-camera Demosaicing with JPEG Compression.

DOI: 10.5220/0004297801300133

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 130-133

ISBN: 978-989-8565-47-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

been presented recently. A basic algorithm can be

considered as based on bilinear interpolation of near

values for getting missing values; it can be seen e.g. in

(Sakamoto et al., 1998). Another common algorithm

is (Chang et al., 1999), in which a threshold-based

variable number of gradients is used. Gradients are

computed in eight directions instead then on a sin-

gle direction. AHD algorithm (Hirakawa and Parks,

2005) does the demosaicing trying to interpolate in

the direction with fewer color artifacts and addressing

aliasing with ﬁlterbank techniques; moreover interpo-

lation artifacts are reduced by means of nonlinear it-

erative procedure. An extensive survey can be found

in (Li et al., 2008); in this survey directions for future

research are outlined. Generally speaking, in order to

compare demosaicing algorithms objective and sub-

jective measures can be used. As reported in (Gunturk

et al., 2005) objective measures like mean square er-

ror (MSE), CIELAB and its spatial extensions (e.g S-

CIELAB), and the measure of the zipper effect as ”an

increase in color difference with respect to its most

similar neighbor”) are very accurate. Subjective mea-

sures are less frequently used. In (Rajeev Ramanath

et al., 2002) subjective tests are used to assess numeri-

cal measures. However, as reported in (Longere et al.,

2002), the use of objective metrics, even if very accu-

rate, can provide results different from the perceptual

ones. For these reasons in this paper a fully perceptual

approach is proposed.

3 PROPOSED EXPERIMENT

The basic idea of the experiment is to compare Bilin-

ear(Sakamoto et al., 1998), VNG(Chang et al., 1999),

AHD(Hirakawa and Parks, 2005) and the in-camera

demosaiced JPEG (Canon reﬂex cameras’ JPEG),

from a perceptual point of view since, as explained

in Section 2, a perceptual comparison can be useful

for a better (and global) understanding of the behav-

ior of a demosaicing algorithm. These four differ-

ent algorithms have been chosen in order to select

a basic demosaicing algorithm (Bilinear), a medium

strength algorithm (VNG) and a high quality algo-

rithm (AHD), in comparison to the in-camera demo-

saiced and lossy compressed JPEG provided directly

by the camera (usually used when the highest quality

is not strictly required). In-camera demosaiced and

lossy compressed JPEG (at maximum quality) was

included in order to try to understand if developing

a raw image with advanced demosaicing algorithms

like those included in the software used by profes-

sionals for developing raw images (Dcraw (Cofﬁn,

2011) was chosen because its code is probably used

as starting point for several very common softwares

and because its algorithms, even not the best of all,

are anyway very good) is really useful or not.

The images have been acquired by means of a

semiprofessional digital camera Canon 5D MarkII

(21 Megapixels, full frame 24x36), equipped with

professional high quality (even if non diffraction lim-

ited) Canon lenses.

Four test images (scenes) have been acquired.

In particular in this experiment were involved much

more people than in (Longere et al., 2002) (47 in-

stead of 10) and the test was much shorter (in the

other case one hour was required). Even with a short

test, many volunteers were not coherent when the test

was repeated changing the order of the algorithms in

the images (procedure not followed in (Longere et al.,

2002), so it is not possible to know how much their

volunteers were coherent).

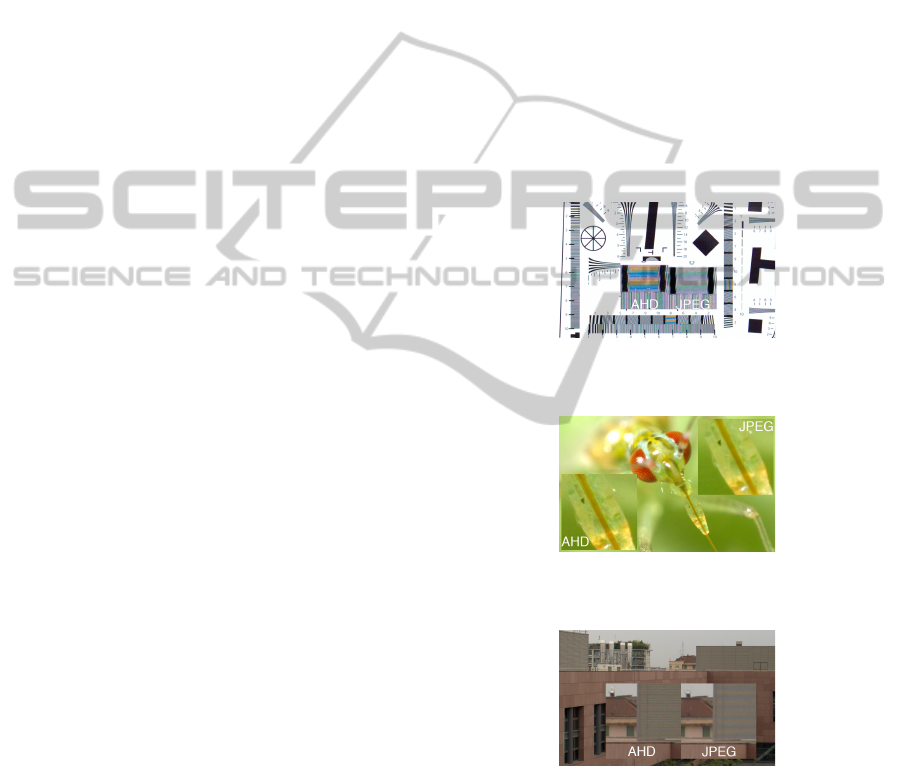

Figure 1: ISO 12233 chart image. Enlarged details are for

AHD and in-camera JPEG.

Figure 2: Macro image. Enlarged details are for AHD and

in-camera JPEG.

Figure 3: Urban image. Enlarged details are for AHD and

in-camera JPEG.

The four images are reported in Fig.1, Fig.2,

Fig.3, and Fig.4 and represent a ISO 12233 test chart

(technical image, Canon EF 24-105 f4 L IS USM,

50mm, f4, 1/30s, tripod, manual focus with Live-

View), a macro-photo (Canon MP-E 65mm f2.8 1-

5x used at 3x, f5.6, 1/200s, ﬂash, manual focus with

LiveView, the ﬁeld in the cropped photo is about

3mmx2mm), a typical urban image (Canon 24-105

PerceptualComparisonofDemosaicingAlgorithmsandIn-cameraDemosaicingwithJPEGCompression

131

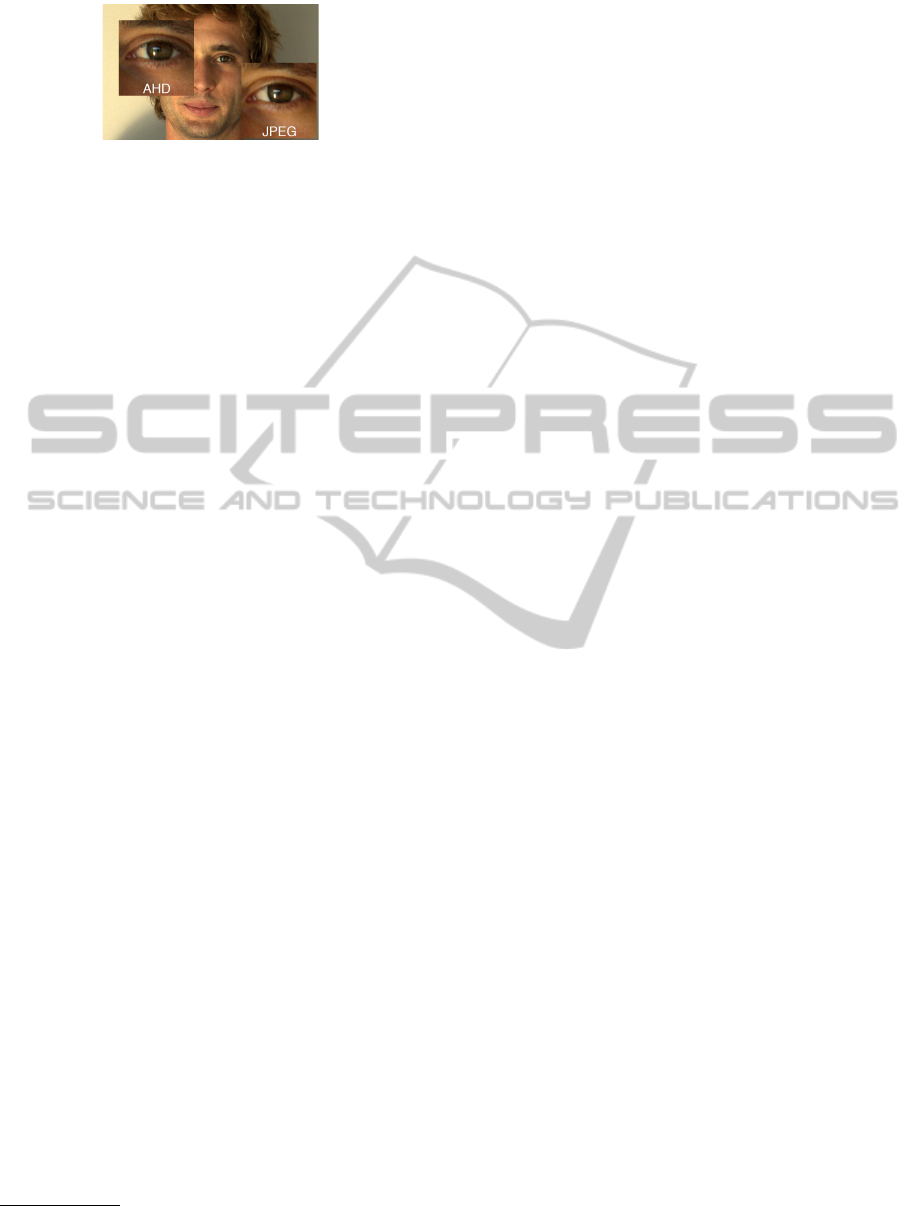

Figure 4: Human face image. Enlarged details are for AHD

and in-camera JPEG.

as before used at 24 mm, tripod, 1/200s, f8, man-

ual focus with LiveView) and a human face (Canon

24-105 as before used at 55mm, 1/50s f5.6, auto-

focus). The experimental setup is based on a high

quality 1900x1200 pixel monitor (17” MacBookPro

notebook computer) and the four algorithms (each im-

age being of 960x600 pixels) are presented together

(given a speciﬁc photo) in the same image in order to

give to the subject a direct way to compare results. As

in (Longere et al., 2002) the perceptual question was

which was the most pleasant and detailed image. In

this case also the least pleasant and detailed one was

requested. The time left to the subject for the image

was about 30 seconds.

The involved volunteers were 47, with a mean age

of 30 years, mainly males. The original raw and jpg

images have been cropped (without scaling) and ad-

justed in terms of levels, contrast and sharpening as

described in (Longere et al., 2002) in order to put all

algorithms on the same level of sharpness and col-

ors. All original raw images and test images are avail-

able as soon as an internal report more extended with

several more details

. Volunteers were also asked

to declare eyesight problems (color issues were not

present). Volunteers involved in eyesight problems

were about half of the total. Finally volunteers were

asked to assess their level in expertise in digital im-

age photography. Each volunteer was involved in only

one session, in which he/she was asked to give a pref-

erence on eight images, that is two slides for each

photo. In the second slide the order of the four al-

gorithms used to process the photo was changed in

order to verify if the volunteer is able to give again

the same preference. The test requested no more than

ﬁfteen minutes for each person. It is important to note

that it was possible also to choose no difference.

4 PERCEPTUAL RESULTS

In this Section the perceptual results will be pre-

sented, in order to show how data have been collected.

http://staff.polito.it/bartolomeo.montrucchio/

VISAPP2013/

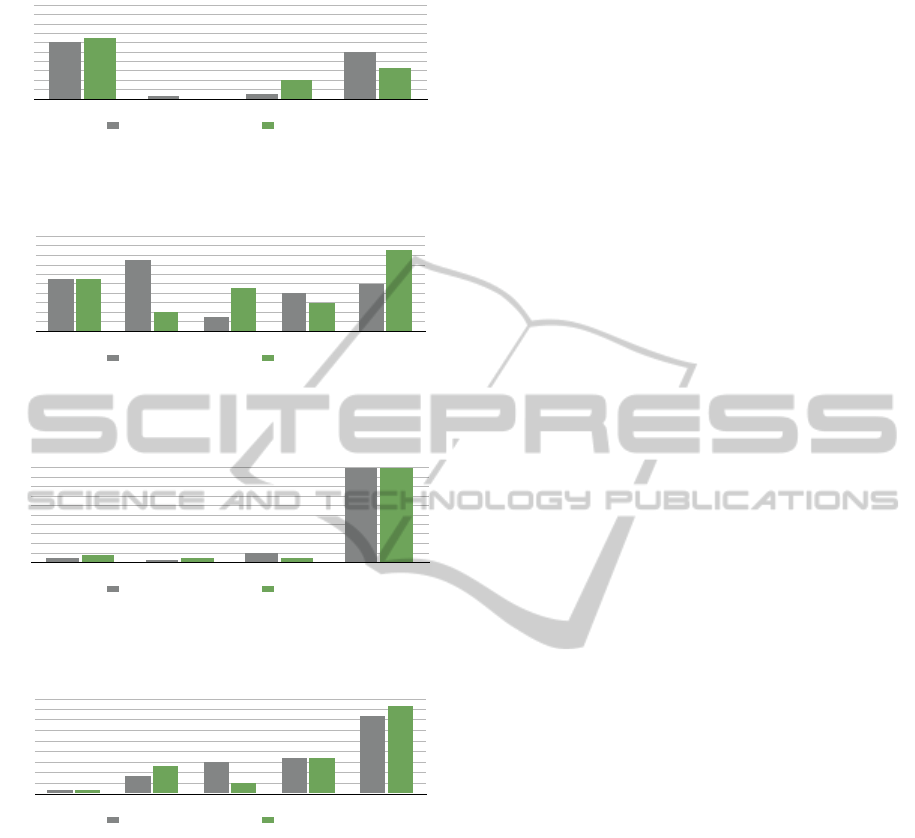

In Fig.5 are presented the results for ISO 12233 chart

image, in Fig.6 are presented the results for the macro

photo, in Fig.7 are presented the results for the ur-

ban photo, and ﬁnally in Fig.8 are presented the re-

sults for the human face photo. People who had eye-

sight problems (corrected) showed a result very sim-

ilar to the people without problems. For this reason

speciﬁc results will be omitted here. From the per-

ceptual results just reported, it appears that the best

(with objective metrics) algorithm, AHD, is not so

good from a perceptual point of view. In fact, even

if seeing accurately Fig.1, Fig.2, Fig.3 and Fig.4, it is

possible to say that AHD is normally better than the

other (probably with some doubt in ISO 12233 chart

image), results of the perceptual comparison say that

AHD is for sure better than the other only in the ur-

ban image. In fact in the chart image the best algo-

rithm appears to be JPEG, with a good consistency

(Fig.5) between slides 1 and 2; the reason is proba-

bly that JPEG, being in this case a demosaicing plus

a lossy algorithm, smooths high frequencies, reduc-

ing aliasing. Please note that volunteers have told that

even without colored aliasing they would have cho-

sen again JPEG, generally. In the macro image there

is a great confusion, because AHD wins only in slide

2, there is very few coherency between slide 1 and 2

and the people indicating that there is no differences

among the images are more than 10 (Fig.6). In the

urban image, as told before, AHD wins very clearly.

On 47 people, 40 are able to see the superiority of

AHD. The reason is probably that the aliasing and the

lack of details of the other algorithms make the com-

parison easy (Fig.7). For the human face image the

winner is again AHD (Fig.8), but it is not a clear win-

ner, because only around 50% of the people choose

AHD. The most interesting results are with the peo-

ple that were coherent between slide 1 and slide 2.

This double test, simply mixing the order of the im-

ages, has been able to ﬁnd true expert people, or at

least people able to ﬁnd a perceptual meaning in the

images. In macro and human face photos only half or

less of the volunteers were able to ﬁnd again the best

image, while in the urban image AHD was also easy

to be found and in the ISO chart again volunteers did

not change their opinion (in this case choosing mainly

JPEG).

5 CONCLUSIONS

A perceptual comparison of three demosaicing algo-

rithms and in-camera integrated demosaicing (with

lossy compression) has been performed. The sub-

jective experiments have shown, involving 47 volun-

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

132

Jpeg Bilinear VNG AHD

Slide 1 Slide 2

Figure 5: Number of people who chose each algorithm

picking the most detailed image given ISO 12233 chart im-

age (slide 1 and slide 2).

No diff. Jpeg Bilinear VNG AHD

Slide 1 Slide 2

Figure 6: Number of people who chose each algorithm

picking the most detailed image given macro image (slide 1

and slide 2).

Jpeg Bilinear VNG AHD

Slide 1 Slide 2

Figure 7: Number of people who chose each algorithm

picking the most detailed image given urban image (slide

1 and slide 2).

No diff. Jpeg Bilinear VNG AHD

Slide 1 Slide 2

Figure 8: Number of people who chose each algorithm

picking the most detailed image given human face image

(slide 1 and slide 2).

teers, that the most powerful demosaicing algorithm

here considered, AHD, is seen as the clear winner

only in very selected cases. In-camera demosaiced

(and compressed) JPEG often offers good results, of

course uses less space on disk, does not require addi-

tional cpu time and for some kinds of images appears

even better to general digital image users (probably

for the reﬂex internal processing).

The main result is then that for the great major-

ity of applications, mainly consumer (in this paper

diffraction-limited images like those from telescope

or microscope have not been considered), in-camera

demosaiced and compressed (high quality) JPEG is

a very good choice in order to reduce time and ef-

fort required to produce and archive the ﬁnal image.

This does not mean that a in-camera demosaiced with

lossy compression ﬁle contains more details or it is

better in an objective way; it means that for several

applications (usually consumer) it appears good (and

sometimes even better) in a subjective way, allowing

to reduce time and effort in developing raw ﬁles.

ACKNOWLEDGEMENTS

Many thanks are due to Luca Moglia for conducting

the experiments in his M.S. thesis work. Many thanks

also to everyone that participated in the experiments

and to Bruno Monastero for his important help in sta-

tistical analysis.

REFERENCES

Chang, E., Cheung, S., and Pan, D. Y. (1999). Color ﬁlter

array recovery using a threshold-based variable num-

ber of gradients. In Proc. SPIE, volume 3650, pages

36–43.

Cofﬁn, D. J. (2011). Dcraw, decoding raw digital photos in

linux. http://www.cybercom.net/˜dcofﬁn/dcraw/.

Gunturk, B., Glotzbach, J., Altunbasak, Y., Schafer, R., and

Mersereau, R. (2005). Demosaicking: color ﬁlter ar-

ray interpolation. Signal Processing Magazine, IEEE,

22(1):44 – 54.

Hao, P., Li, Y., Lin, Z., and Dubois, E. (2011). A geometric

method for optimal design of color ﬁlter arrays. Image

Processing, IEEE Transactions on, 20(3):709 –722.

Hirakawa, K. and Parks, T. (2005). Adaptive homogeneity-

directed demosaicing algorithm. Image Processing,

IEEE Transactions on, 14(3):360 –369.

Li, X., Gunturk, B., and Zhang, L. (2008). Image demo-

saicing: a systematic survey. In Proc. SPIE, volume

6822.

Longere, P., Zhang, X., Delahunt, P., and Brainard, D.

(2002). Perceptual assessment of demosaicing al-

gorithm performance. Proceedings of the IEEE,

90(1):123 –132.

Rajeev Ramanath, A., Snyder, B., and Hinks, C. (2002).

Image comparison measure for digital still color cam-

eras. In Image Processing. 2002. Proceedings. 2002

International Conference on, volume 1, pages I–629

– I–632 vol.1.

Sakamoto, T., Nakanishi, C., and Hase, T. (1998). Software

pixel interpolation for digital still cameras suitable for

a 32-bit mcu. Consumer Electronics, IEEE Transac-

tions on, 44(4):1342–1352.

PerceptualComparisonofDemosaicingAlgorithmsandIn-cameraDemosaicingwithJPEGCompression

133
