A Pyramid of Concentric Circular Regions to Improve Rotation

Invariance in Bag-of-Words Approach for Object Categorization

Arnaldo Cˆamara Lara and Roberto Hirata Jr.

Institute of Mathematics and Statistics, University of Sao Paulo, Sao Paulo, Brazil

Keywords:

Spatial Pyramids, Rotation-Invariant, Bag-of-Words, Object Categorization.

Abstract:

The bag-of-words (BoW) approach has shown to be effective in image categorization. Spatial pyramids in

conjunction to the original BoW approach improve overall performance in the categorization process. This

work proposes a new way of partitioning an image in concentric circular regions and calculating histograms

of codewords for each circular region. The histogram of the entire image is concatenated forming the image

descriptor. This slight and simple modiﬁcation preserves the performance of the original spatial information

and adds robustness to image rotation. The pyramid of concentric circular regions showed to be almost 78%

more robust to rotation of images in our tests compared to the traditional rectangular spatial pyramids.

1 INTRODUCTION

Object recognition is a very active research area in

Computer Vision (CV). Several approaches are used

to deal with this problem. One of the most used and

successful ones is the bag-of-words (BoW) approach.

It consists of clustering the local features in a prede-

termined number of centers, the codewords or visual

words. The collection of visual words forms the vi-

sual dictionary. The ﬁnal descriptor of an image is

a frequency histogram of these visual words (Csurka

et al., 2004). Spatial pyramid is a technique that adds

some spatial information in the BoW approach and it

improves the ﬁnal results (Lazebnik et al., 2006).

A big drawback in the use of spatial pyramids in

the BoW approach is that it is not rotation-invariant.

Rotation invariance is not important for a lot of ob-

jects like mountains, cars, houses, buildings, etc.

These objects are usually presented in a scene without

variations in rotation. However cans, bottles, shoes,

pens or books are examples of objects that can be pre-

sented in a scene in different angles of rotation. For

a human being, it is easy to identify a bottle or a can

independent of its rotation in the scene. However, al-

gorithms for object categorization do not treat these

differences in rotation appearance without a cost.

In this work, we propose a pyramid of concentric

circular regions in conjunction with a visual dictio-

nary to improve the rotation invariance of object cat-

egorization algorithms. The piramid is formed by a

collection of concentric circles where the frequency

histograms of visual words are computed and the ﬁ-

nal descriptor is the concatenation of the frequency

histogram of each circular region and the histogram

of the entire image.

This text is organized in the following way. In

this section, we introduced the problem and the mo-

tivation of our proposed modiﬁcation in the spatial

pyramids. The next section describes the main ap-

proaches used to deal with the object recognition

problem. The main contribution of this work, the

pyramid of concentric circular regions, is described

in Section 3. Section 4 gives details about the imple-

mentation of the techniques described in this work:

descriptor, classiﬁer and database used. Section 5 de-

scribes the experiments and shows the results. The

results of experiments are analysed in Section 6. Fi-

nally, Section 7 concludes the work and gives some

directions for future works.

2 OBJECT RECOGNITION

From all possible tasks of CV area, object recogni-

tion is among the most challenging ones and it is also

a very active research area (Szeliski, 2011). Even

the state-of-art algorithms are unable to recognize all

objects in all type of scenes in all possible condi-

tions. Objects can be presented in different view-

points, scales or sizes. They can be in a different po-

sitions, rotated or ocluded in the scenes. Changes in

687

Câmara Lara A. and Hirata Jr. R..

A Pyramid of Concentric Circular Regions to Improve Rotation Invariance in Bag-of-Words Approach for Object Categorization.

DOI: 10.5220/0004298806870692

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 687-692

ISBN: 978-989-8565-47-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

the lightning conditions can vary the appearance of

objects. Therefore, many different situations can pro-

duce a big variability in the aspects of objects.

The object recognition problem can be divided

into some smaller sub-problems. If one wants to clas-

sify an object already detected in a scene as belonging

to a class of a set of possible classes, the problem is

named categorization. Categorization is an important

task. When we know the category of an object in a

scene, it is known what can be done with this object.

That is very important to the semantic understanding

of a scene.

Categorization of objects is an extremely difﬁcult

task and, up to date, the algorithms did not reach a

2-years child level of accuracy in the results of object

categorization (Szeliski, 2011). Categorization algo-

rithms only have good performance classifying an ob-

ject as one of a set of known classes in a closed world

collection. An adult person can recognize tens of

thousands of different object categories. As the num-

ber of known classes increase, the accuracy of clas-

siﬁcation process decreases. For 10000 image cate-

gories, the best accuracy is less than 5% (Deng et al.,

2010).

The ﬁrst successful approach used to handle this

task was the BoW. It appeared in text classiﬁcation

area and it was adapted to be used to classify objects

detected in a scene (Cula and Dana, 2001). It is robust

to variability of appearance of objects in the scene, to

cluttered background and to changes in the lightning

conditions. It showed computational efﬁciency and

it has become widely used since then (Csurka et al.,

2004). The main steps of BoW approach are:

• Extraction of local features. Local features are

known to be very efﬁcient in the task of object

detection and categorization. They are computed

using a spatial area near the pixel of interest.

• Construction of the visual dictionary. The set

of local features are clustered in some number

of centers, generally using k-means (Duda et al.,

2001). The center of each cluster is a represen-

tative feature of all features in its neighbourhood.

The collection of all centers of clusters forms the

visual dictionary.

• Representation. Local features extracted from

training and testing image sets are translated to

visual words. Each local feature is represented

by its nearest visual word. The ﬁnal descriptor is

the frequency histogram of the visual words from

each image.

• Learning. A classiﬁer is trained using labeled de-

scriptors to build a model for each class of the im-

age collection.

Spatial Pyramids is an extension of the BoW ap-

proach that adds spatial information in the orderless

features of the BoW signiﬁcantly improving the over-

all performance (Lazebnik et al., 2006).

Spatial pyramids consist of partitioning an image

in increasingly smaller sub-regions and computing

BoW technique in each sub-region. Spatial pyramids

have a sequence of L levels. Each level l ∈ 0, ..., L− 1

has 2

2∗l

sub-regions. Spatial pyramids are just an ex-

tension of the traditional BoW approach. In the case

of L = 1, the spatial pyramid technique is reduced to

the standard BoW approach.

3 PYRAMID OF CONCENTRIC

CIRCULAR REGIONS

A pyramid of concentric circular regions (PCCR) is

proposed in this work to substitute spatial pyramids

in object categorization when rotation-invariance is a

desirable property. A PCCR is built using L levels,

where the last level, level L, is the whole image and

the other levels, level l where l ∈ 1..L − 1, are con-

centric circular regions with increasing radii centered

in a point P passed as a parameter. The ﬁrst level

has a radius equals a factor R of the smaller axis of

the image (height or width). The next level has a ra-

dius of 2× R, and so on. The last level, level L, is

the entire image. The area of a level l includes the

area of level l − 1. For each region, a set of local

descriptors are extracted and we translate these de-

scriptors into codewords. So, each region is repre-

sented as a normalized frequency histogram of code-

words, following the BoW approach. A set of weights

, with

∑

i=1

= 1, is applied to the histograms of

each level. The ﬁnal descriptor is the concatenation

of weighted frequency histogram of visual words of

each region. We excluded from the ﬁnal descriptor

the frequency of the codeword used to map the re-

gions outside the circular region. Therefore, for a vi-

sual dictionary of C codewords, the size of the ﬁnal

descriptor is L× (C− 1) dimensions.

Figure 1 shows an image of class BACK-

GROUND Google and the same image rotated in

196

◦

. The second row shows the plots of the descrip-

tor of both images in the BoW approach using a visual

dictionary of 600 codewords. The next row shows a

plot of descriptors of both images in BoW + spatial

pyramids in 2 levels. The ﬁrst level has one regionand

next level has 4 regions. Descriptors of each region

are translated to codewords of the same visual dictio-

nary. Final descriptors of each image totalize 3000

dimensions. The last row shows the plots of descrip-

tors in PCCR approach. It was used 4 levels and the

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

688

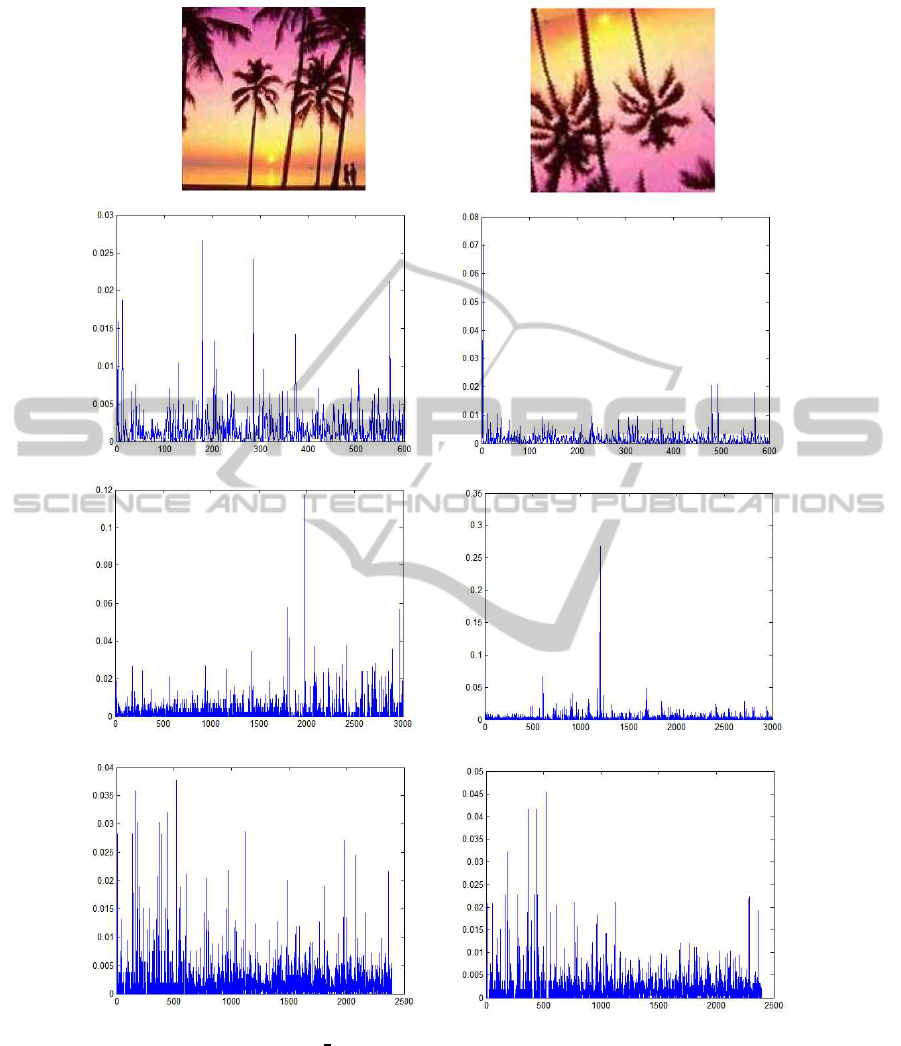

Figure 1: Original image of BACKGROUND Google and a rotated image (196

◦

of rotation). The second row shows the

descriptor of each image in the traditional BoW with 600 codewords. The third row shows the descriptors of both images in

BoW + spatial pyramid of 2 levels totalizing 3000 dimensions and the last row shows the descriptors of the images using the

PCCR with 2396 dimensions.

same 600 codewords visual dictionary. The ﬁnal de-

scriptor in PCCR approach has 2396 dimensions for

each image (= 4 levels ×(600− 1) codewords).

To calculate the difference between the descrip-

tors computed using the BoW + spatial pyramid and

the PCCR, we applied the chi-squared distance be-

tween the two ﬁnal descriptors of original and ro-

tated image. For BoW + spatial pyramid approach,

the difference between the two descriptors is 3.4055

and for the PCCR the difference is 1.2146. Therefore,

APyramidofConcentricCircularRegionstoImproveRotationInvarianceinBag-of-WordsApproachforObject

Categorization

689

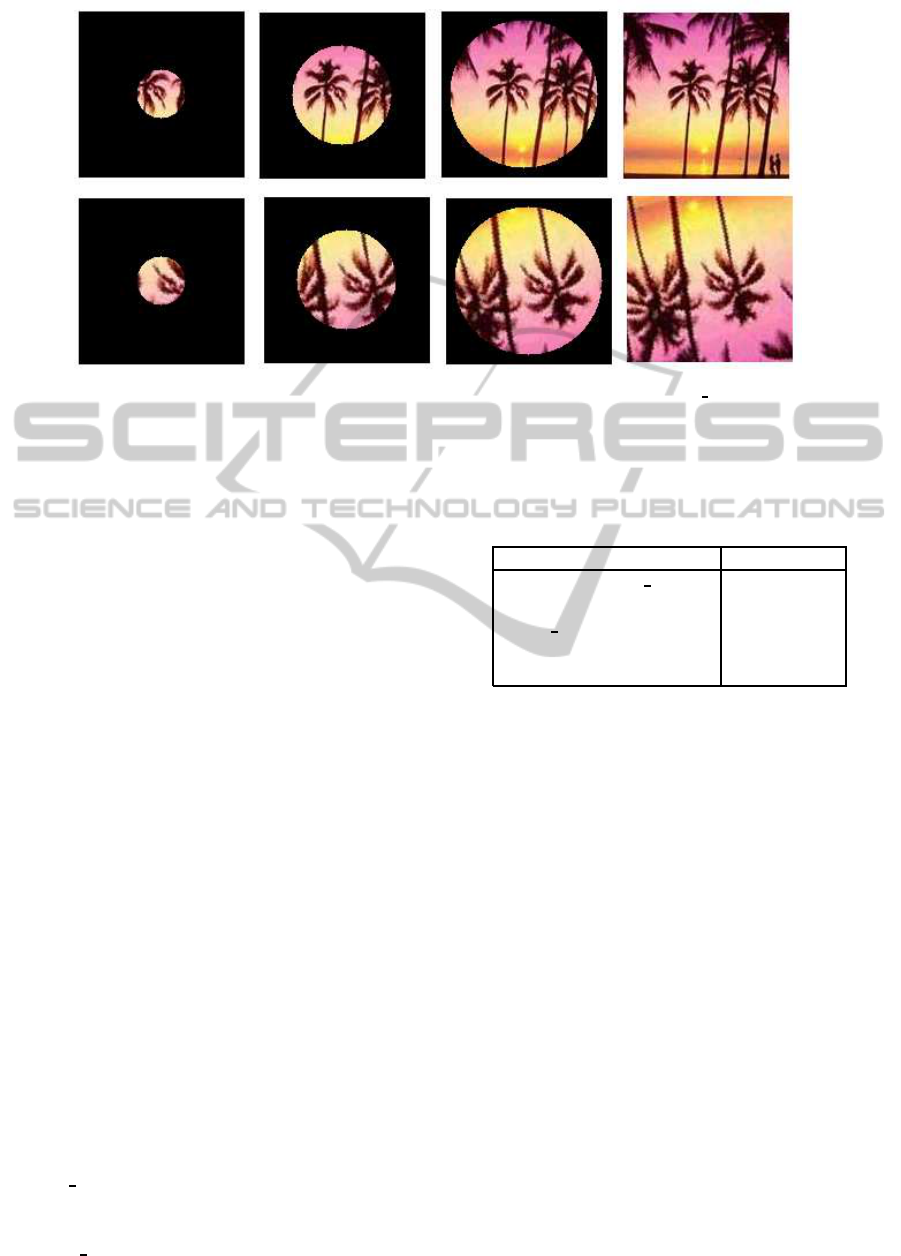

Figure 2: This ﬁgure shows the same images of Figure 1. The original image of the BACKGROUND Google class of Caltech-

101 database and the image rotated in 196

◦

. It shows the 4 regions of the PCCR approach for each image. The ﬁrst column

shows the ﬁrst circular region with radius of 15% of image’s height, the next column shows the second region and so on, until

the last column showing the entire image that is the fourth region used to calculate the ﬁnal descriptor.

for the same rotation, a PCCR produced a smaller

difference between the two descriptors. As the pro-

posed spatial approach has 2396 dimensions and the

original rectangular spatial pyramids has 3000 di-

mensions, we calculated the average difference for

each dimension. The result for spatial pyramid is

3.4055 ÷ 3000 = 1.1352 × 10

−3

and the result for

PCCR is 1.2146 ÷ 2396 = 5.0693 × 10

−4

. So, the

PCCR has also a smaller average difference for each

dimension.

Figure 2 shows the same images of Figure 1 and

each region used to calculate the ﬁnal descriptor.

4 IMPLEMENTATION

In this section, we describe some of the implemen-

tation details. We tested the experiments in Caltech-

101 database (Fei-Fei et al., 2006). It has 101 differ-

ent categories of images. Most of the classes have a

relative small number of images, but 5 classes have

hundreds of images. This subset of the database

is named “Tiny” subset and some papers report re-

sults in this subset (Sivic et al., 2005). There is not

occlusion in the images, there is just one object in

each image and the database is considered easy for

object categorization. Table 1 shows the 5 classes

of the Tiny subset of Caltech-101 database and the

number of samples for each class. The class BACK-

GROUND Google is composed by random images.

There is no speciﬁc pattern in the images there. Faces

is composed by faces and some background area. The

class Faces easy shows faces of different people in

Table 1: Classes of tiny subset of Caltech-101 database and

number of samples per class.

Class # of samples

BACKGROUND Google 467

Faces 435

Faces easy 435

Leopards 200

Motorbikes 798

the same way as the class Faces, but less background

area is visible in the images. The class Leopards

shows different images of leopards in different situ-

ations in nature and the class Motorbikes shows dif-

ferent motorbikes in lateral view.

The descriptor used is Pyramidal Histogram of Vi-

sual Words (PHOW) that is a SIFT-derived descrip-

tor (Bosch et al., 2007). It does not use the SIFT key-

point detector but it computes the SIFT descriptor in a

dense grid of points. The SIFT descriptor is computed

using different neighbourhood areas. It is often used

in conjunction with the BoW approach and the spa-

tial pyramids. The PHOW descriptor, BoW approach

and spatial pyramids are reported as the state-of-art in

object categorization (Wang et al., 2010).

We use the Support Vector Machines (SVM) clas-

siﬁer to model the classes (Cortes and Vapnik, 1995).

It is the most used classiﬁer in object recognition

problems (Szeliski, 2011). Training is done using

data composed by ordered pairs (x

, y

), i = 1, ..., L,

where x

∈ R

, L is the size of training set and D is

the number of dimensions of the training points and

∈ {−1, +1}. For the classiﬁcation, it is necessary

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

690

to solve the optimization problem of minimizing:

kwk

∑

i=1

, (1)

where y

.w+ b) − 1 + ξ

≥ 0 ∀ i, that is a decision

boundary more ﬂexible than a pure linear classiﬁca-

tion. If the data points are not linearly separable, it

is necessary to use the “kernel trick” that is a special

function, the kernel function, that maps the training

points into a higher dimension space where data can

be linearly separable. The kernel function depends on

the nature of the problem.

5 EXPERIMENTS AND RESULTS

This section reports the experiments done in this

work. The experiments used PHOW descriptor and

SVM classiﬁer using chi-squared kernel (Section 4).

It has used 100 images of each class of the Tiny subset

of Caltech-101 database for the training phase. A total

of 250 images were used in the test phase, 50 images

of each class. A multiclass approach was used, each

image of the test set has one object belonging to each

one of the 5 classes of the subset. The algorithm re-

sponses the most likely class of each image of the test

set. PHOW descriptor calculates the SIFT descriptor

using different neighbourhood areas. We used neigh-

bourhood areas with radius of 2, 4, 6 and 10 pixels.

PHOW descriptor uses a dense grid of points. The

distance between two consecutive points is 5 pixels.

It was used 3 approaches to deal the problem: BoW,

BoW + Spatial Pyramids and the proposed PCCR. For

PCCR approach, we used L = 4 levels, a visual dic-

tionary of PHOW descriptor with C = 600 codewords

and the same weight for each level (ω

). These

values were empirically chosen. The point P, center

of concentric circular regions, used were the center of

each image.

For each tested approach, two experiments were

done: one using the original images of the test set

and other one using random angles of rotation applied

in the images. Figure 3 shows some of images used

and their rotated version. The images are resized by a

factor F computed by the following formula:

F =

(

height

)

+ (

width

)

height

, (2)

where height and width are the original measurements

of the image. After the image is resized by the factor

F, it is rotated by a random angle and a crop centered

keep the ﬁnal image with the same size of the origi-

nal image. This procedure avoid to show background

Table 2: Accuracy of the experiments using 3 different ap-

proaches in rotated and non-rotated test images.

Expt. Rotation Approach Acc.(%)

1 No BoW 96.4

2 Yes BoW 42.0

3 No BoW + SPM 96.8

4 Yes BoW + SPM 43.2

5 No PCCR 98.4

6 Yes PCCR 76.8

Table 3: Accuracy (%) for each class of tested subset of

Caltech-101 database in each performed experiment.

Classes

Experiments

1 2 3 4 5 6

BCK Google 84 74 86 90 94 72

Faces 98 2 98 10 100 86

Faces easy 100 96 100 90 100 84

Leopards 100 22 100 10 98 92

Motorbikes 100 16 100 16 100 50

color in the ﬁnal image. Table 2 shows the accuracy

obtained by the 6 experiments and Table 3 shows the

accuracy of the 6 experiments of each tested class.

6 ANALYSIS OF RESULTS

We can see in Experiments1 and 3 that using the BoW

approach and spatial pyramids the problem of object

categorization using these 5 classes of Caltech-101 is

practically solved. Less than 10 misses in 250 test-

ing images, an accuracy of above 96%. Three classes,

Faces easy, Leopards and Motorbikes, reached 100%

of correctness. The two faces classes, Faces and

Faces easy, have a big intraclass similarity but, still,

they reached 98% and 100% of accuracy respectively.

Other complex class is the BACKGROUND Google

class. It tries to model any other kind of category in

the world what is practically impossible. However,

in this closed world problem, this class got 84% and

86% of accuracy in the two experiments.

The results are completely different when the test-

ing set is rotated. The overall accuracy of the object

categorization dropped to 42% without the use of spa-

tial pyramids (Experiment 2) and 43.2% using spatial

pyramids (Experiment 4). A completely different re-

sults when compared to Experiments 1 and 3.

Experiment 5 showed our proposed approach in

the normal dataset without rotation in the test set. We

got a surprisingly 98.4% of accuracy. The overall

accuracy did not dropped using this alternative spa-

tial pyramid and there is a signiﬁcant improvement

of results where rotations are presented in the tests.

APyramidofConcentricCircularRegionstoImproveRotationInvarianceinBag-of-WordsApproachforObject

Categorization

691

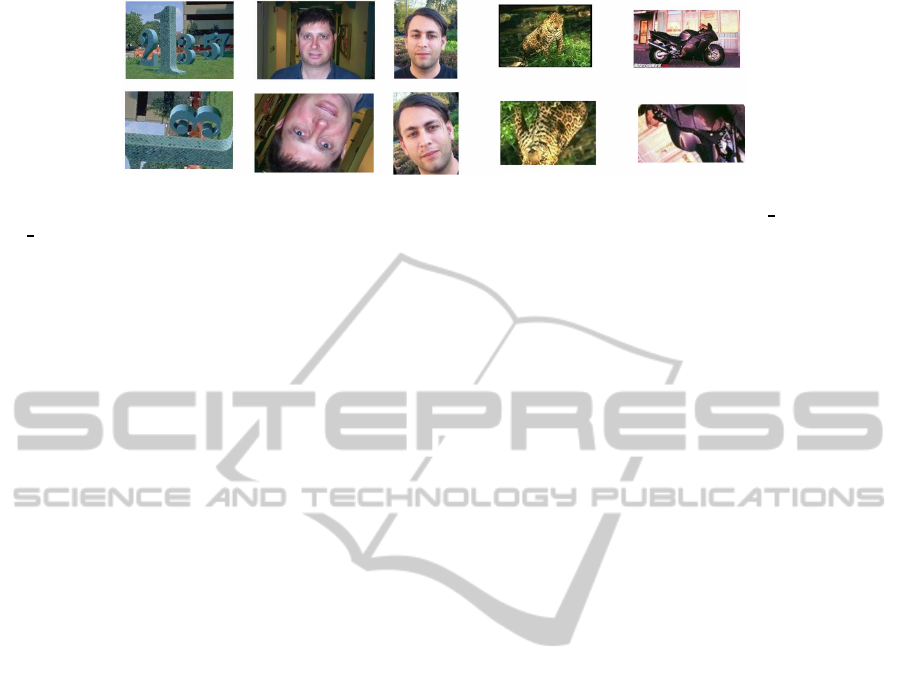

Figure 3: It shows a sample of image for each class of the testing set. In the ﬁrst line, it shows the original images and

in the second line, it shows the rotated image. From left to right column, the classes are: BACKGROUND Google, Faces,

Faces Easy, Leopards and Motorbikes.

The proposed approach got 76.8% of accuracy against

43.2% of accuracy using the BoW + spatial pyramids.

Almost 78% better when compared to the traditional

approach.

7 CONCLUSIONS

AND FUTURE WORK

In this work, we treat the rotation invariance in the

object categorization problem. The state-of-art meth-

ods used to deal the problem do not treat the pres-

ence of rotation objects in the scene. This property is

important for some kinds of objects and scenes. We

propose, for spatial quantization, a pyramid that uses

a collection of circular concentric areas and showed

to be more robust to rotation of objects in the scene.

When compared to the traditional spatial pyramids,

the results showed very promising results improving

the accuracy in almost 78% in a scenary of pres-

ence of rotation of objects. As future work, we are

planning to test some other parameters for the pro-

posed approach like a different number of levels for

the pyramid, different size of radius in each level of

the pyramid, different descriptors like SURF that is

reported to be more robust to rotation than SIFT and

PHOW and to test in a different and more challeng-

ing database. In a more realistic scenario, just some

objects were rotated while background remains un-

changed. Still, rotation can occur around different

points in 3D space.

ACKNOWLEDGEMENTS

We would like to thanks the reviewers for the valuable

contributions. The authors are partially supported by

CNPq, the Brazilian National Research Council.

REFERENCES

Bosch, A., Zisserman, A., and Munoz, X. (2007). Image

classiﬁcation using random forests and ferns. In 11th

International Conference on Computer Vision, pages

1–8, Rio de Janeiro, Brazil.

Cortes, C. and Vapnik, V. (1995). Support-vector networks.

Machine Learning, 20(3):273.

Csurka, G., Dance, C., Fan, L., Willamowski, J., and Bray,

C. (2004). Visual categorization with bags of key-

points. In ECCV International Workshop on Statis-

tical Learning in Computer Vision, Prague, Czech Re-

public.

Cula, G. and Dana, J. (2001). Compact representation of

bidirectional texture functions. In IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition, pages 1041–1047, Kauai, USA. IEEE

Computer Society.

Deng, J., Berg, A., Li, K., and Fei-Fei, L. (2010). What does

classifying more than 10,000 image categories tell us?

Computer Vision–ECCV 2010, pages 71–84.

Duda, R. O., Hart, P. E., and Stork, D. G. (2001). Pattern

Classiﬁcation. John Wiley and Sons.

Fei-Fei, L., Fergus, R., and Perona, P. (2006). One-

shot learning of object categories. IEEE Transac-

tions On Pattern Analysis and Machine Intelligence,

28(4):594–611.

Lazebnik, S., Schmid, C., and Ponce, J. (2006). Beyond

bags of features: Spatial pyramid matching for rec-

ognizing natural scene categories. In Computer Vi-

sion and Pattern Recognition, 2006 IEEE Computer

Society Conference on, pages 2169–2178, New York,

USA.

Sivic, J., Russell, R., Efros, A., Zisserman, A., and Free-

man, W. (2005). Discovering objects and their loca-

tion in images. In Computer Vision, 2005. ICCV 2005.

Tenth IEEE International Conference on, pages 370–

377, San Diego, USA. IEEE Computer Society.

Szeliski, R. (2011). Computer Vision: Algorithms and Ap-

plications. Springer-Verlag.

Wang, J., Yang, J., Yu, K., Lv, F., Huang, T., and Gong, Y.

(2010). Locality-constrained linear coding for image

classiﬁcation. In Computer Vision and Pattern Recog-

nition, IEEE Computer Society Conference on, pages

3360–3367, San Francisco, USA. IEEE Computer So-

ciety.

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

692
