Audio/Visual Recurrences and Decision Trees for Unsupervised TV

Program Structuring

Alina Elma Abduraman

, Sid-Ahmed Berrani

and Bernard Merialdo

Orange Labs, France Telecom R&D, 35510 Cesson-S´evign´e, France

Multimedia Communications Dept., Eurecom, 06904 Sophia Antipolis, France

Keywords:

Program Structuring, Non-linear Browsing, Audio/Visual Recurrence Detection, Decision Tree Classiﬁcation.

Abstract:

This paper addresses the problem of unsupervised TV program structuring. Program structuring allows direct

and non linear access to the desired parts of a program. Our work addresses the structuring of programs like

news, entertainment, shows, magazines... It is based on the detection of audio and visual recurrences. It

proposes an effective classiﬁcation and selection system, based on decision trees, that allows the detection of

“separators” among these recurrences. Separators are short audio/visual sequences that delimit the different

parts of a program. The decision trees are built based on attributes issued from techniques like applause

detection, scenes segmentation, face/speaker detection and clustering. The approach has been evaluated on a

112 hours dataset corresponding to 169 episodes of TV programs.

1 INTRODUCTION

TV programs have an underlying structure that is lost

when these are broadcasted. The linear mode is the

only available reading mode when viewing programs

recorded using a Personal Video Recorder or through

a TV-on-Demandservice. The fast-forward/backward

functions are the only available tools for browsing. In

this context, program structuring becomes important

in order to provide users with novel and useful brows-

ing features. The idea is to recover the original struc-

ture of the program by ﬁnding the start time of each

part composing it. In addition to advanced browsing

features, TV program structuring can also be used for

summarization,indexing andquerying, archiving,etc.

Our approach relies on “separators”, which are

short audio/visual sequences that delimit the different

parts of a program. They are recurrent, as they gener-

ally repeat within or between different episodes of a

program. The idea is to detect these separators among

all the recurrences that are present in a program and

use them to delimit the different parts of the program.

In our previous works we have proposed different ap-

proaches for the detection of recurrences. In this pa-

per we advance an effective classiﬁcation and selec-

tion system, based on decision trees, that allows us to

detect as many “separators” as possible among these

recurrences. The attributes used for the construction

of decision trees are issued from techniques like ap-

plause detection, scenes segmentation, face/speaker

detection and clustering.

We continue to focus on “recurrent” programs

which are composed of several “episodes” that are pe-

riodically broadcasted. We explain our choice for this

type of programs by their applicative interest and by

their important properties that make the task feasible

(meaning they generally have a clear structure with

well deﬁned main parts delimited by separators).

The rest of the paper is organized as follows. Sec-

tion 2 presents existing techniques for program struc-

turing. Section 3 presents the proposed approach.

Section 4 evaluates the proposed approach. Section 5

concludes the paper.

2 RELATED WORK

TV programs structuring can be classiﬁed into two

categories: speciﬁc and generic.

The speciﬁc approaches try to structure programs

in a supervised manner using prior knowledge of the

domain in order to extract relevant data and construct

a structured model of the analyzed video. Within this

category there are most of the sport program struc-

turing techniques. The rules of the game provide

prior knowledge that is used to provide constraints on

the appearance of events or the succession of those

701

Abduraman A., Berrani S. and Merialdo B..

Audio/Visual Recurrences and Decision Trees for Unsupervised TV Program Structuring.

DOI: 10.5220/0004300307010708

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 701-708

ISBN: 978-989-8565-47-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

events. In a ﬁrst step the video is segmented into

narrative segments like play and break making use

of production rules and different outputs of camera

views (Tjondronegoro and Chen, 2010) or based on

predeﬁned models (Xie et al., 2004). Then high-

lights/events are detected based on object tracking

(player/ball tracking, detection of goal mouth, cen-

ter line) and/or speciﬁc sounds identiﬁcation (exciting

speech, applause, hitting ball).

News programs structuring techniques also

rely on speciﬁc approaches. Most news videos exhibit

a similar and well deﬁned structure. This structure is

used to segment the program and to classify its dif-

ferent parts into anchor person shots, report, weather

forecast, interview... Template matching techniques

but also face detection, statistical approaches, HMMs

or SVMs are often employed ( (Misra et al., 2010;

Eickeler et al., 2001)). Once the shots are clas-

siﬁed, a more challenging task is to segment the

broadcast into coherent stories. To do so, temporal

models, predeﬁned rules, Finite State Automatons or

HMMs (Chaisorn et al., 2003) are used.

More generic techniques tend to make use of the

“recurrence” of certain audio/video sequences. In

this sense in (Jacobs, 2006), the video self-similarity

is exploited to identify anchor shots as frequent pat-

terns occurring in news and magazines. Audio recur-

rences are detected in radio broadcast streams in or-

der to identify the jingles that separate different top-

ics or to extract meaningful information. In (Mus-

cariello et al., 2009), a dynamic time wrapping tech-

nique is used to discover repeating words. The prin-

ciple is inspired from (Herley, 2006) where repeti-

tions in audio streams are detected by time correlat-

ing low-dimension audio representations. The video

repetitions are used to validate the audio ones. Audio

and video consistency of repeated segments is used

in (Ben and Gravier, 2011) where an event mining

technique is used to detect relevant events.

Within generic approaches, a lot of works has

developed on the use of scenes as structuring ele-

ments. They use clustering methods, scene transi-

tion graphs, cinematic rules, HMMs or SVM classi-

ﬁers (Sidiropoulos et al., 2010; Goela et al., 2007;

Zhai and Shah, 2006). However, the deﬁnition of

a scene is very ambiguous and depends on the sub-

jective human understanding of its meaning. Conse-

quently, these methods are difﬁcult to evaluate.

For more details about the presented approaches,

readers may refer to (Kompatsiaris et al., 2011).

3 THE PROPOSED SOLUTION

We focus in this work on structuring recurrent TV

programs. One of the main properties of these pro-

grams is their clear and steady structure. Moreover,

the different parts of a program are generally delim-

ited by short audio/visual sequences that we named

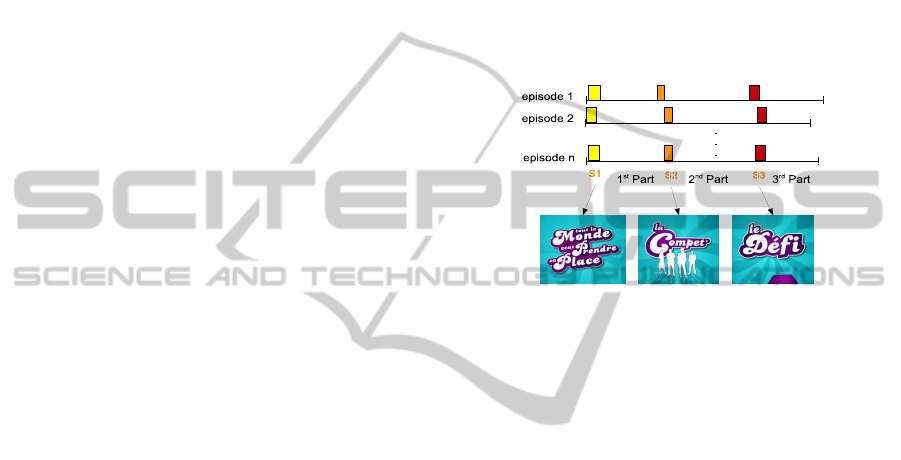

“separators”. In Figure 1, examples of separators are

illustrated. The horizontal lines represent the timeline

of different episodes of the same program. Boxes rep-

resent the separators that delimit the main parts of the

program. The three images are extracted from sepa-

rators of a French game show.

Figure 1: Example of separators.

The main idea of our approach is to automatically

detect these separators. The parts of each episode are

then identiﬁed using the separators boundaries: the

end of a separator is the start of a new part. There is

no need of any prior knowledge on the structure or on

the number of parts the program might have.

3.1 Overview of the System

The proposed approach analyzes, in a ﬁrst step, a set

of episodes of a recurrent program in order to detect

the audio and visual recurrences separately. Among

these recurrences there are also the separators but not

all the recurrences are necessarily separators. Con-

sequently in a second step, a prior-ﬁltering process is

applied. Furthermore, in a third step, all the remaining

recurrences are passed through a classiﬁcation mod-

ule based on decision trees, that decides whether a

recurrence is a separator or not.

3.2 Visual Recurrence Detection

This algorithm extracts descriptors from the visual

content for the episodes that are going to be struc-

tured. It also proceeds with detecting the visual re-

currences using the technique described in (Berrani

et al., 2008). First, shot segmentation is performed.

For each shot, few keyframes are chosen. A two level

description of the frames is used. First, a DCT-based

64-bits Basic Visual Descriptor (BVD) is computed

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

702

for each frame. Its role is to match nearly identical

frames. It is used to precisely determine the bound-

aries of a recurrence. The second level focuses on

keyframes and computes for each a more robust de-

scriptor (KVD). It is a 30-dimensional descriptor and

it is also DCT-based. KVDs are clustered using a

micro-clustering technique in order to group together

the near-identical shots. The number of KVDs per

cluster corresponds to the number of times a sequence

is repeated. The clusters are then analyzed and the set

of recurrences is created.

3.3 Audio Recurrence Detection

To detect audio recurrences, a recurrence detection al-

gorithm is applied over the set of episodes to be struc-

tured. The algorithm is described in details in (Abdu-

raman et al., 2011b).

For each episode, a descriptor is computed us-

ing basic audio features that rely on the short time

spectrum variations. When searching for recurrences,

each of the episodes, in turn, becomes query while

the rest become references. The query and the ref-

erence are compared by computing an average Ham-

ming distance between their corresponding descrip-

tors. In order to detect the intra episode recurrences

as well, the query is also matched with itself. A match

is conﬁrmed if the distance between the descriptors

falls below a pre-determined threshold. At the end

of the processing, the set of obtained matching seg-

ment pairs are analyzed and clustered. First, each pair

of segments instantiates a cluster. Second, each two

overlapping clusters are merged. Two clusters overlap

if a segment belongs simultaneously to both clusters.

3.4 Prior Filtering Module

Not all of the audio and visual recurrences are separa-

tors. Sequences that are replayed or that are very simi-

lar might also appear in the recurrences. We call these

“false alarms”. To remove them, a post-processing

step is used. First, a prior ﬁlter is used to remove

the recurrences having all their occurrences coming

from the same episode. In this way, the intra-episode

false alarms are ﬁltered out. Second, to ﬁlter the inter-

episode false alarms, a study of the temporal density

of the occurrencesof the remainingrecurrences is per-

formed. The idea is to ﬁnd areas with high concentra-

tions. These are likely to be times when a separator is

broadcasted. The isolated occurrences are likely to be

false alarms. For more details about this method the

reader may refer to (Abduraman et al., 2011a).

The temporal ﬁlter can only be applied to pro-

grams that have a temporal stability, like TV games.

For the case of news programs, where the number of

reports and their time lengths are different from one

episode to another, the temporal stability is not satis-

ﬁed. Moreover, in the case of the audio modality, the

detected recurrences are often far too many and ran-

domly distributed. We decided thus to apply the tem-

poral ﬁlter only for the visual recurrences that come

from temporally stable programs.

3.5 Decision Trees Classiﬁcation

The remaining recurrences are next passed through a

classiﬁcation step based on decision trees. We have

chosen to work with decision trees as these are most

appropriate for our goal and the type of data we use.

Moreover, results can be easily analyzed and under-

stood. In the same time it is a powerful classiﬁcation

tool. The idea is to build a model through a sequence

of questions made on a set of several input variables.

Each next question depends on the previous answer.

Once the model is build it can be used afterward to

predict the value of a target variable based on the in-

put variables. In our case, we will consider all the

variables as binary. We deﬁne the target variable as

the category to which the recurrence belongs to: 1 for

separator and 0 otherwise; and we call the input vari-

ables “attributes”.

3.5.1 Attributes Description

The ﬁrst attribute, denoted A0, is computed from the

intersection of the audio and visual recurrences. It

equals 1 if for an analyzed visual recurrence there is a

corresponding audio recurrence and vice versa.

Applause Detection. The method used for the detec-

tion of applause, is part of an audio classiﬁcation ap-

proach that allows the segmentationof an audio visual

content into speech, music, applause, silence, other.

It is based on the computation of low level features

that are used to discriminate between different types

of sound. The classiﬁer is based on the Bayes theorem

and the features are modeled using Gaussian Mixture

Models as in (Scheirer and Slaney, 1997).

Three attributes are issued from this module:

• A1 = 1 if applause exist in the analyzed recurrence

• A2, A3 = 1 if applause exist in the right/left neigh-

borhood of the analyzed recurrence

Scene Segmentation. Wz used for the segmentation

of videos into scenes a hierarchical classiﬁcation al-

gorithm that emphasize the similarities of shots that

are temporally close. The idea is to build a similarity

tree where each leaf represents a shot and each node

Audio/VisualRecurrencesandDecisionTreesforUnsupervisedTVProgramStructuring

703

represents a possible scene. The similarity is com-

puted based on the colorimetric distribution.

The attribute issued from this module is:

• A4 = 1 if there is a scene cut in the close neigh-

borhood of the analyzed recurrence

Face Detection and Clustering. The technique used

for face detection is based on the convolutional face

ﬁnder described in (Garcia and Delakis, 2004). It con-

sists of a pipeline of convolution and sub-sampling

modules that perform automatic features extraction

and classiﬁcation. A micro-clustering technique is

used to cluster together the most similar faces, be-

longing to the same person.

Four attributes are computed:

• A5 = 1 if there is a face in the analyzed recurrence

• A6, A7 = 1 if the face in the right/left neighbor-

hood of the analyzed recurrence is the same as the

one inside the analyzed recurrence

• A8 = 1 if the same face is in the right and left

neighboring of the analyzed recurrence

Speaker Diarization and Clustering. The algorithm

used for the speaker diarization and clustering is sim-

ilar to the one described in (Claude Barras and Gau-

vain, 2006) and proposes to index people indepen-

dently by the audio information. The audio signal

is ﬁrst segmented into speech/non speech sequences.

Each speech sequence is then segmented into speaker

turn. The sequences corresponding to the same per-

son are then clustered together using a Bayesian In-

formation Criterion and Cross-likelihood Ratio.

Four attributes are computed:

• A9 = 1 if a speaker is in the analyzed recurrence

• A10, A11 = 1 if the speaker in the right/left neigh-

borhood of the analyzed recurrence is the same as

the one inside the analyzed recurrence

• A12 = 1 if the same speaker is in the right and left

neighborhood of the analyzed recurrence

3.5.2 Training Phase

In order to build the decision tree, a set of n sam-

ples (recurrences) from the training data is used. Each

sample is described by the 13 binary attributes previ-

ously presented and by a target category that conﬁrms

if the recurrence is a separator or not. The tree is built

by asking questions on attributes. The attribute se-

lected for questioning is chosen by a predeﬁned cri-

terion. The tests on this attribute are used to split the

current training data set into subsets. The algorithm

is recursive and progressively splits the training data

set into smaller subsets as long as the subset is not

“pure”(all the samples belong to the same category)

or there is at least another attribute to test. The split

can be stopped beforehand by imposing a constraint

on the criterion’s parameters. In this case the node is

transformed into a leaf and assigned a category.

We used three different criteria for the choice of

the attribute to be tested in the current node:

Purity Criterion. This criterion considers the num-

ber of samples classiﬁed in each leaf. The idea is to

choose the attribute that makes the immediate descen-

dant nodes as pure as possible. Let us consider A

, i

= 0,...12, one of the deﬁned attributes and j = 0,1 the

values that attribute A

can take. Suppose that n

the number of samples of category c, c = 0,1, the pu-

rity function computed for each leaf is: p

= max

and the purity for A

is: P

∑

Entropy Criterion. This second criteria follows the

same idea as the previous one, meaning to choose the

attribute that makes the descendant nodes as pure as

possible. The difference is that in this case, the purity

is treated as an entropy impurity function and the cho-

sen attribute will be the one that provides the smaller

impurity. Considering the same notation as for the

previous case, the purity function computed for each

leaf is:

= −

∑

∗ log

, where n

∑

and the purity for attribute A

is: P

∑

∗ p

Weighted Class (Error Minimization) Criterion.

This last criterion takes in consideration the problem

when the number of samples assigned to each of the

two categories is very different. Moreover, the ﬁrst

criterion tried to obtain a good performance by max-

imizing the number of well classiﬁed samples (recur-

rences). In this case, we focus on obtaining a good

performance from the point of view of minimizing the

number of errors. We deal with two kinds of errors:

• the FP (false positive) → recurrences that were

wrongly classiﬁed as separators

• the FN (false negative) → recurrences that were

wrongly classiﬁed as non-separators

The cost of each type of error is weighted by a

parameter λ. The attribute that minimizes the cost of

the errors will be chosen.

4 EXPERIMENTS

In order to evaluate the proposed solutions we per-

formed experiments using real TV broadcasts. We

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

704

used a variety of TV programs, excluding non-

recurrent programs like movies and programs which

do not have a separator-based structure like TV series.

4.1 Datasets

The experimental dataset contains about 112 hours

of videos, corresponding to 169 episodes (with 1594

separators) of 11 TV programs, broadcasted on 4

French TV channels. 5 of the programs, are TV

games. The separators delimit different stages of the

game and they vary in number between 4 and 8. 6

others are TV magazines. Their separators delimit the

reports and the scenes where the anchor presents the

next topic. In number they vary from 5 up to 23. The

last program is a news program and it is similar to the

magazines. It is composed of a set of reports and an-

chor person scenes. The number of separators can go

from 20 up to 27. For all these programs the separa-

tors are repeated inter- or/and intra-episode.

The dataset has been divided in 2 groups: one con-

taining the games and the other one containing the

magazines and news programs. The objective was to

group programsdepending on their properties, and we

have noticed that magazines and news programs have

almost the same structure (set of reports and anchor

person scenes), different from that of the games.

For all of the episodes of these programs, we have

manually annotated the separators by indicating their

start time and end time.

4.2 Initial Analysis of Recurrences

The starting point of our study is the detection of

recurrences. The main assumption of our approach

is that separators are repeated and can be detected

as recurrences. After applying our recurrence detec-

tion technique on each episode following the meth-

ods described in Sections 3.2 and 3.3, we get a set

of 14,283 recurrences among which 14,130 are audio

recurrences and 1,002 are visual recurrences. In or-

der to compute the recurrences of an episode, we con-

sidered the 3 previously broadcasted episodes. Only

the recurrences obtained for the analyzed episode are

considered into the result set of recurrences.

For all our experiments, this dataset has been split

into 2 datasets. The ﬁrst one is used for training while

the second one is used for evaluation (test).

We have ﬁrst studied the recurrences in order to

validate our main assumption, that is separators can

be detected as recurrences. We have thus considered

the training dataset and we have evaluated the propor-

tion of recurrences that are separators. This is equiv-

alent to consider a naive classiﬁer that assigns all the

recurrences to the class “separators”. Table 1 sum-

marizes the obtained precision, recall and F-Measure

for both program categories ”games” and ”magazines

and news”, and also for audio and visual recurrences.

Table 1: Analysis of audio/visual recurrences.

Audio rec. Visual rec.

P R F P R F

Games 0.0612 1 0.1154 0.8248 1 0.9040

Mag+News 0.4072 1 0.5787 0.7442 1 0.8533

Table 1 shows that for the TV games, among

the audio recurrences, only almost 6% are separators

while the rest of 94% should be ﬁltered out as they

belong to the category “non-separators”. These cor-

respond to speciﬁc audio sequences that can be found

in TV games. An example is the sound of pushing a

certain button when a competitor wants to answer a

question, or the audio sequence that announces if the

answer was true or false.

On the contrary, for the visual recurrences, most

of the recurrences (82%) are separators and only 18%

are “non-separators”. This already gives a good ratio

precision recall measured by the F score up to 0.9.

For the case of magazines and news, we noticed

the same phenomenon even though the percentage

of separators among the audio recurrences is higher

(41%) than for the correspondent in TV games.

These differences between datasets and their cor-

respondent audio and visual recurrences, encouraged

us to continue the experiments considering separately

games and magazines+news, and also training and

performing classiﬁcation separately for visual recur-

rences and audio ones.

4.3 Recurrence Classiﬁcation

In this section, the objective is to evaluate the ability

of a classiﬁer to distinguish if a recurrence in the test

dataset is a separator or not.

For the moment, there is no study that could relate

the type of errors to the end-user satisfaction. Con-

sequently, we cannot decide whether when browsing

inside a TV show, it is more annoying to have some

missing separators (related to false negative errors) or

to have to skip some recurrences that are not separa-

tors (related to false positives errors). Therefore, we

use for evaluation the precision and recall for each of

the two categories(P

, R

for non-separators and P

for separators). We also compute the classiﬁcation

accuracy as a global measure that shows the propor-

tion of true results in the entire test dataset.

As already stated, a classiﬁer has been trained for

each modality. TV games have also been separated

Audio/VisualRecurrencesandDecisionTreesforUnsupervisedTVProgramStructuring

705

from magazines+news. The obtained results are sum-

marized in Tables 2 and 3.

Table 2: Evaluation of the classiﬁcation results on au-

dio/visual recurrences - Games.

Games P

Acc

Audio

M1 0.9960 0.9701 0.9829 0.8848 0.5015 0.6401 0.9673

M2 0.9961 0.9700 0.9829 0.8889 0.4985 0.6388 0.9673

M3 0.9912 0.9761 0.9836 0.8095 0.6053 0.6927 0.9688

Video

M1 0.2581 0.5714 0.3555 0.8832 0.9667 0.9231 0.8625

M2 0 0 0 0.8531 1 0.9207 0.8531

M3 0.6774 0.5385 0.6000 0.9419 0.9000 0.9204 0.8673

Table 3: Evaluation of the classiﬁcation results on au-

dio/visual recurrences - Mag&News.

M&N P

Acc

Audio

M1 0.8656 0.8054 0.8344 0.7139 0.6159 0.6613 0.7776

M2 0.9381 0.7781 0.8506 0.8172 0.5086 0.6270 0.7867

M3 0.9474 0.7709 0.8501 0.8333 0.4828 0.6114 0.7837

Visual

M1 0.2683 0.7333 0.3928 0.8750 0.9813 0.9251 0.8667

M2 0 0 0 0.8392 1 0.9126 0.8392

M3 0.1951 0.8889 0.32 0.8658 0.9953 0.9261 0.8667

The lines in the tables correspond to the results

obtained when using the trees trained with each of the

3 criteria described in Section 3.5.2: M1 for the purity

criterion, M2 for the entropy criterion and ﬁnally M3

for the error minimization criterion.

When comparing the different methods, in all of

the cases, we can notice that the performances regard-

ing the classiﬁcation accuracy are very similar.

It is interesting to notice that for the case of visual

recurrences and for both games and magazines+news,

the classiﬁcation step does not signiﬁcantly improve

the results. The naive classiﬁer that considers all the

recurrences as separators performs as good as the de-

cision tree-based classiﬁers. In particular, when try-

ing the entropy criteria the tree that is build assigns

the category “separator” to all the recurrences. This

means that for the case of visual recurrences, recur-

rences that are obtained after applying the ﬁlters are

good enoughand the classiﬁcation step using decision

trees was unable to further improve the results.

As already explained, there is no study that could

relate the type of errors to the end-user satisfaction.

Nevertheless, in a browsing use-case, separators can

be used as anchors that allow users to skip a part and

go directly to the next one, or for instance, to go back

to the beginning of the current part. In this case, re-

call becomes more important than precision. Con-

sequently, for visual recurrences, the entropy criteria

should be preferred.

For the audio recurrences, in the case of games

the error minimization criterion returns the best recall

measure. This criterion allows equilibrating the im-

portance of samples in the 2 classes. It is particularly

important when the samples of the 2 classes in the

training dataset are unbalanced, which is the case of

audio recurrences. For the audio recurrences of mag-

azines and news programs the best recall measure for

the class of separators remains the entropy criterion.

4.4 Evaluation of the Whole Solution

In this section, we evaluate our solution that includes

the detection of recurrences and their classiﬁcation.

The idea is to assess its performance in detecting sep-

arators. For this evaluation, we have used the test

dataset and the separators ground-truth. This groud-

truth is composed of all the separators manually anno-

tated on all the episodes composing the test dataset.

Precision, recall and F-measure have been used to

measure the performance of separator detection.

Table 4: Separator detection using only recurrences, with-

out any classiﬁcation.

Audio Visual Audio

Visual

P R F1 P R F1 P R F1

Games 0.07 0.95 0.13 0.75 0.74 0.73 0.08 0.97 0.14

M&N 0.42 0.92 0.55 0.71 0.48 0.55 0.43 0.93 0.56

Table 4 shows the performance of separator de-

tection if we consider all the recurrences as separa-

tors, that is, no classiﬁcation is performed. The low-

est precision corresponds to the audio recurrences in

the games dataset. Most of these recurrences are not

separators, but false alarms. Regarding the visual re-

currences, the precision is much higher meaning that

most of these are separators. The best recall corre-

sponds to the audio approach where a high number

of recurrences is found. The recall for the visual re-

currences is not as high due to the fact that the visual

recurrence detection algorithm that we proposed de-

tects only near-identical recurrences. Separators con-

taining the logo of the show superposed on natural

images of the set for example, can not be detected.

The last column in the table represents the union

of the results obtained for the audio and visual ap-

proaches separately. We added this column as it

can provide information about the contribution of

each approach but also about the overall performance

in detecting separators, when considering both ap-

proaches (audio and video).

To evaluate the recurrence detection and classi-

ﬁcation algorithm we applied on the detected recur-

rences, the classiﬁers that performed the best classiﬁ-

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

706

Table 5: Separator detection after recurrence classiﬁcation.

Audio Visual Audio

Visual

P R F1 P R F1 P R F1

Games 0.84 0.76 0.79 0.78 0.65 0.71 0.85 0.78 0.82

M&N 0.84 0.52 0.65 0.74 0.47 0.57 0.85 0.62 0.72

cation accuracy in the previous section and we evalu-

ated the results using the separators ground-truth. The

results are presented in Table 5.

The general tendency after classiﬁcation is an im-

provementof precision at the cost of a decrease for the

recall. This means that recurrences that are not sep-

arators are ﬁltered out but in the same time some of

the true separators too. This could be a consequence

of the noise induced by the different technologies that

we used when computing the attributes. Another rea-

son, equally important, could be the erroneous choice

of attributes that are not as relevant for our task as we

might have expected.

Nevertheless, if we take a close look in Table 5 for

the case of visual recurrences the classiﬁcation does

not inﬂuence the results signiﬁcantly. The most im-

portant changes appear for the case of audio recur-

rences. In this manner, when considering the games,

there is an important increase of the precision with

77% after classiﬁcation, with a decrease in the recall

of 19%. However the F1 score that combines the pre-

cision and recall measures is superior with 66%. For

the magazines and news the variation of the precision

and recall is around 40%, with an increase of the F1

score of only 10%.

5 CONCLUSIONS

In this paper we proposed an approach for the detec-

tion and classiﬁcation of audio and visual recurrences

based on decision trees. The idea was to compute the

performance of such system on the detection of ”sep-

arators”, that are at the root of an automatic recurrent

TV program structuring system.

Experiments showed that our main assumption,

that separators are repeated and could be detected as

recurrences is validated. When classifying these re-

currences, using decision trees trained with the 3 pro-

posed criteria, the performances regarding the classi-

ﬁcation accuracy are very similar. Moreover, for the

case of visual recurrences, these do not exceed signif-

icantly the naive classiﬁer meaning that in this case a

classiﬁcation step in not really necessary.

The evaluation of the whole solution, showed that

a lot of false alarms are ﬁltered out (especially for au-

dio recurrences) but with them a part of the separators

too. This resulted in an increase of the precision but at

the cost of a decrease in the recall. However, globally,

the F-measure for the audio case is better after per-

forming the classiﬁcation step. For the visual-based

approach, results are not signiﬁcantly inﬂuenced.

In perspective, we intend to extend further the use

of decision trees by trying combinations of attributes

in the training stage. We would also like to consider

the use of another type of classiﬁer, such as the SVMs.

This would allow us to compare the results and con-

clude if the actual results are more inﬂuenced by the

limitations of decision trees or by the attributes we

have deﬁned.

REFERENCES

Abduraman, A. E., Berrani, S.-A., and Merialdo, B.

(2011a). Audio recurrence contribution to a video-

based tv program structuring approach. In IEEE Int.

Symposium on Multimedia, Dana Point, CA, USA.

Abduraman, A. E., Berrani, S.-A., Rault, J.-B., and Blouch,

O. L. (2011b). From audio recurrences to tv program

structuring. In 4th Int. Workshop on Automated Me-

dia Analysis and Production for Novel TV Services,

Scottsdale, Arizona, USA.

Ben, M. and Gravier, G. (2011). Unsupervised mining of

audiovisually consistent segments in videos with ap-

plication to structure analysis. In IEEE Int. Conf. on

Multimedia and Exhibition, Barcelone, Espagne.

Berrani, S.-A., Manson, G., and Lechat, P. (2008). A

non-supervised approach for repeated sequence detec-

tion in tv broadcast streams. Image Communication,

23(7):525–537.

Chaisorn, L., Chua, T.-S., and Lee, C.-H. (2003). A multi-

modal approach to story segmentation for news video.

World Wide Web, 6(2):187–208.

Claude Barras, Xuan Zhu, S. M. and Gauvain, J.-L. (2006).

Multistage speaker diarization of broadcast news.

IEEE Trans. On Audio, Speech and Language Pro-

cessing, 14(5):1505–1512.

Eickeler, S., Wallhoff, F., Iurgel, U., and Rigoll, G. (2001).

Content based indexing of images and video using

face detection and recognition methods. In IEEE Int.

Conf. on Acoustics, Speech and Signal Processing,

Salt Lake City, Utah, USA.

Garcia, C. and Delakis, M. (2004). Convolutional face

ﬁnder: A neural architecture for fast and robust face

detection. IEEE Trans. on Pattern Analysis and Ma-

chine Intelligence, 26(11):1408–1423.

Goela, N., Wilson, K., Niu, F., and Divakaran, A.

(2007). An svm framework for genre-independent

scene change detection. In IEEE Int. Conf. on Mul-

timedia and Expo, Beijing, China.

Herley, C. (2006). Argos: automatically extracting repeat-

ing objects from multimedia streams. In IEEE Trans.

on Multimedia, vol. 8, pages 115–129.

Audio/VisualRecurrencesandDecisionTreesforUnsupervisedTVProgramStructuring

707

Jacobs, A. (2006). Using self-similarity matrices for struc-

ture mining on news video. Advances in Artiﬁcial In-

telligence, 3955:87–94.

Kompatsiaris, D. Y., Merialdo, P. B., and Lian, D. S., ed-

itors (2011). TV Content Analysis: Techniques and

Applications. CRC Press, Taylor Francis LLC.

Misra, H., Hopfgartner, F., Goyal, A., Punitha, P., and Jose,

J. M. (2010). Tv news story segmentation based on

semantic coherence and content similarity. In 16th Int.

Multimedia Modeling Conf., Chongqing, China.

Muscariello, A., Gravier, G., and Bimbot, F. (2009). Audio

keyword extraction by unsupervised word discovery.

In Conf. of the Int. Speech Communication Associa-

tion (Interspeech), Brighton UK.

Scheirer, E. and Slaney, M. (1997). Construction and eval-

uation of a robust multifeature speech/music discrim-

inator. In IEEE Int. Conf. on Acoustics, Speech and

Signal Processing, Munich, Germany.

Sidiropoulos, P., Mezaris, V., Kompatsiaris, I., Meinedo, H.,

Bugalho, M., and Trancoso, I. (2010). On the use of

audio events for improving video scene segmentation.

In 11th Int. Workshop on Image Analysis for Multime-

dia Interactive Services, Desenzano del garda, Italy.

Tjondronegoro, D. W. and Chen, Y.-P. P. (2010).

Knowledge-discounted event detection in sports

video. IEEE Trans. on Systems, Man, and Cybernet-

ics, Part A: Systems and Humans, 40(5):1009–1024.

Xie, L., Xu, P., Chang, S.-F., Divakaran, A., and Sun, H.

(2004). Structure analysis of soccer video with do-

main knowledge and hidden markov models. Pattern

Recognition Letters, 25(7):767 – 775.

Zhai, Y. and Shah, M. (2006). Video scene segmentation

using markov chain monte carlo. IEEE Trans. on Mul-

timedia, 8(4):686 – 697.

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

708
