Automatic Text Localisation in Scanned Comic Books

Christophe Rigaud

, Dimosthenis Karatzas

, Joost Van de Weijer

, Jean-Christophe Burie

and Jean-Marc Ogier

Laboratory L3i, University of La Rochelle, Avenue Michel Cr

epeau 17042 La Rochelle, France

Computer Vision Center, Universitat Autnoma de Barcelona, E-08193 Bellaterra, Barcelona, Spain

Keywords:

Text Localization, Comics, Text/Graphic Separation, Complex Background, Unstructured Document.

Abstract:

Comic books constitute an important cultural heritage asset in many countries. Digitization combined with

subsequent document understanding enable direct content-based search as opposed to metadata only search

(e.g. album title or author name). Few studies have been done in this direction. In this work we detail a novel

approach for the automatic text localization in scanned comics book pages, an essential step towards a fully

automatic comics book understanding. We focus on speech text as it is semantically important and represents

the majority of the text present in comics. The approach is compared with existing methods of text localization

found in the literature and results are presented.

1 INTRODUCTION

Comic books constitute an important cultural heritage

asset in many countries. In this work we detail a novel

method for the automatic text localization in scanned

comic books written in Latin script, an essential step

towards an automatic comics understanding.

The focus of this work is not to recognize the text

but to localize it and separate it from the graphical

content. In comics, as in many other unstructured

documents, text recognition depends on text localiza-

tion. The text may be everywhere within the drawing

area which produces a lot of noise and false detections

if we submit it directly to an OCR process. Moreover,

text in comics presents a lot of variations (e.g. stroke,

orientation, colour, size) that can cause many issues at

both the localization and recognition processes. Text

localization provides text-only images to a recogni-

tion system to improve recognition accuracy and re-

duce computing time. Moreover, text localization is

also important because it is related to many parts of

the comics content (e.g. speech balloon, characters

and panels) and deﬁnes the reading order (Tsopze

et al., 2012). Detecting these parts and establishing

their relationship is crucial towards complete comics

understanding. In addition, text localization in comics

opens up several interesting applications such as im-

age compression (Su et al., 2011), OCR training and

also translation, speech synthesis and retargeting to

different mobile reading devices (Matsui et al., 2011).

Text localization in real scenes and video frames

is an active research topic (Jung et al., 2004). How-

ever, applying existing text detection methods to

comics would fail because the nature of comic docu-

ments is different. Comics being unstructured graph-

ical documents, combine the difﬁculties of both do-

mains, making the task of text localization especially

challenging. On one hand, they differ from classi-

cal documents in that they comprise complex back-

grounds of a graphical nature. Furthermore, they be-

long to the class of non-structured documents mean-

ing there is no regular structure present for the pre-

diction of text locations and no layout method ap-

plicable. Text localization in complex images has

been previously studied in scene images (Weinman

et al., 2009; Epshtein et al., 2010; Neumann and

Matas, 2012) and (Wang and Belongie, 2010; Meng

and Song, 2012), video sequences (Kim and Kim,

2009; Shivakumara et al., 2009) and digital-born im-

ages (Web and email) (Karatzas and Antonacopou-

los, 2007). Text localization in unstructured docu-

ments has been studied in teaching boards (Oliveira

and Lins, 2010) for example. However, text local-

ization in documents which are both unstructured and

have complex background has received relatively lit-

tle attention (Clavelli and Karatzas, 2009).

To solve the particular problems which are pro-

voked by the combination of complex background

and unstructured documents, we propose a new text

localization method. We improve the initial segmen-

814

Rigaud C., Karatzas D., Weijer J., Burie J. and Ogier J..

Automatic Text Localisation in Scanned Comic Books.

DOI: 10.5220/0004301308140819

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 814-819

ISBN: 978-989-8565-47-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

tation step to cope with complex backgrounds. Fur-

thermore, we adapt the line extraction method to cope

with unstructured documents. To evaluate our method

we propose a new benchmark dataset for text local-

ization in comic documents which will be made pub-

licly available in few months. In our results we show

that our method outperforms existing text localiza-

tion methods applied on comics. Moreover, we be-

lieve that the proposed method generalizes to other

unstructured images with complex backgrounds such

as maps, posters and signboard images.

Section 2 presents an overview of text detection

from comics. Sections 3 and 4 present the proposed

method. Finally, sections 5 and 6 shows some experi-

ments and conclude this paper.

2 RELATED WORK

Text/graphic separation was studied for different ap-

plications as the analysis of newspaper images, ad-

ministrative documents, cheques and graphical docu-

ments such as maps and engineering drawings. There

is little work published on comics text/graphic separa-

tion and text localization. Bottom-up approaches use

connected component (CC) algorithms which depend

on a segmentation step. (Su et al., 2011) use Sliding

Concentric Windows as text/graphic separation then

use mathematical morphology and an SVM classiﬁer

to classify text from non-text CC. As the morpholog-

ical operations are performed with a ﬁxed mask size,

the method is orientation and resolution dependent.

(Rigaud et al., 2012) make use of “the median value

of the border page pixels” to binarize the image, ex-

tract CC and then classify them into “noise”, “text”

or “frame” (based on CC heights). This method as-

sumes that the page always contains text and that the

text background colour is similar to the paper back-

ground. A top-down approach starting with speech

balloon (white blob) detection following by mathe-

matical morphology operations to ﬁnd lines of text is

proposed by (Arai and Tolle, 2011). This method re-

lies on balloon detection which is limited to closed

balloons in this case. Another top-down approach that

deﬁnes a sliding window of a character size to detect

letters is suggested by (Yamada et al., 2004).

The contributions of this paper come at different

levels. First, an adaptive comics page segmentation

method is presented. Second, a text/graphic separa-

tion algorithm is proposed based on the local contrast

ratio. Finally, a grouping method is proposed to create

lines.

3 TEXT LOCALIZATION IN

COMPLEX BACKGROUND

DOCUMENTS

In this section we propose several adaptations to the

standard text localization pipeline to overcome the

problems introduced by complex background.

3.1 Adaptive Segmentation

Segmentation is a crucial step in many text localiza-

tion methods. Comic speech text is made of strokes,

generally black on white, that we need to segment. A

perfect text segmentation would result to individual

characters represented by single connected compo-

nents. The complex background of comic documents

complicates this step. Typical thresholding methods

would fail to segment the text because text is drawn

with the same style of strokes as many other graphical

elements in the page.

Therefore, we propose an adaptive segmentation

method. For a single page we assume that the text

background brightness is similar around all the char-

acters of the same page. However, in our case, the op-

timal segmentation threshold differs for every single

page of comics depending on the background colour

of the text areas. The method is based on the obser-

vation that choosing the threshold too low, as well as

choosing the threshold too high leads to an excess of

connected components (CC), ﬁgure 1.

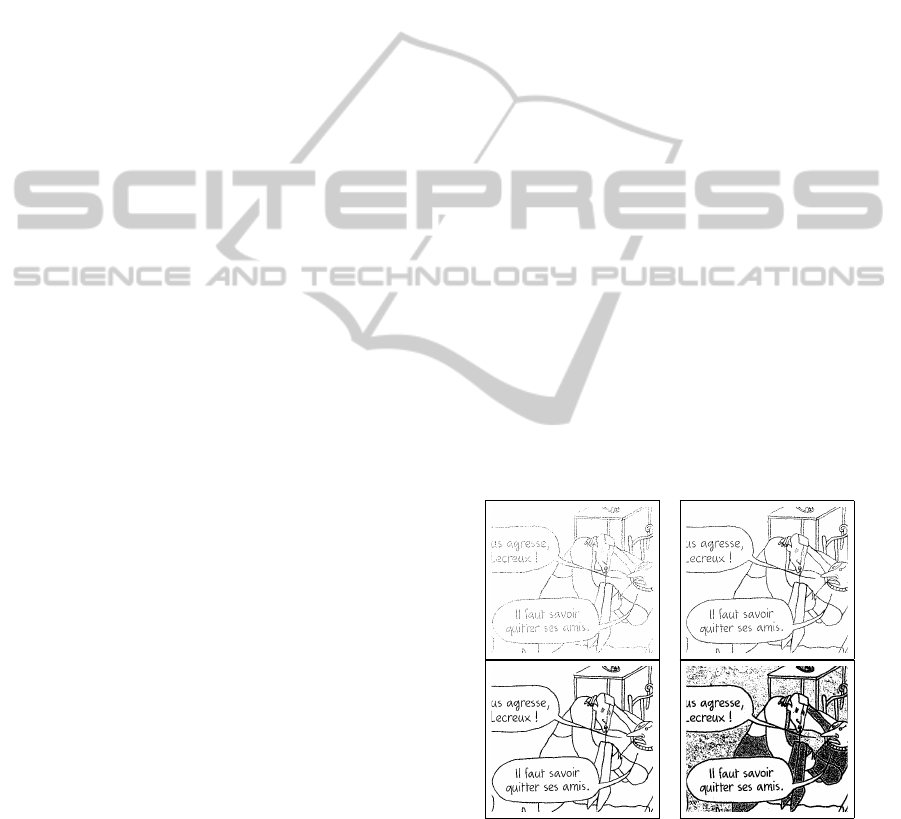

Figure 1: Segmentation at different threshold levels from

the lower top-left to the higher bottom-right (threshold = 50,

100, 150, 200). We observe that the number of CC increases

when the dark lines are cut and also when background start

to appear as salt and paper noise. Source: (Roudier, 2011).

This phenomenon is intrinsic to the nature of

comics, as due to the design process they contain tex-

tured areas and loosely connected strokes that give

AutomaticTextLocalisationinScannedComicBooks

815

rise to merged components at different thresholds.

This is intensiﬁed by the digitisation and image com-

pression process that adds further noise to the page.

Our method, Minimum Connected Components

Thresholding (MCCT), automatically ﬁnds the right

threshold by computing the number of CC for differ-

ent threshold levels in a range of values from th

min

to th

max

and selecting the one that produces the min-

imum number of CC (in a 8 bits graylevels image).

Then we ﬁnd the ﬁrst minimal number of CC. See ex-

ample on ﬁgure 2. Note, that the optimal threshold is

correctly predicted by MCCT as it corresponds to the

bottom-left image ﬁg. 1.

100 110 120 130 140 150 160 170 180 190 200 210 220 230

1000

2000

3000

4000

5000

6000

Binarization thres holds

Nb of connected com ponents

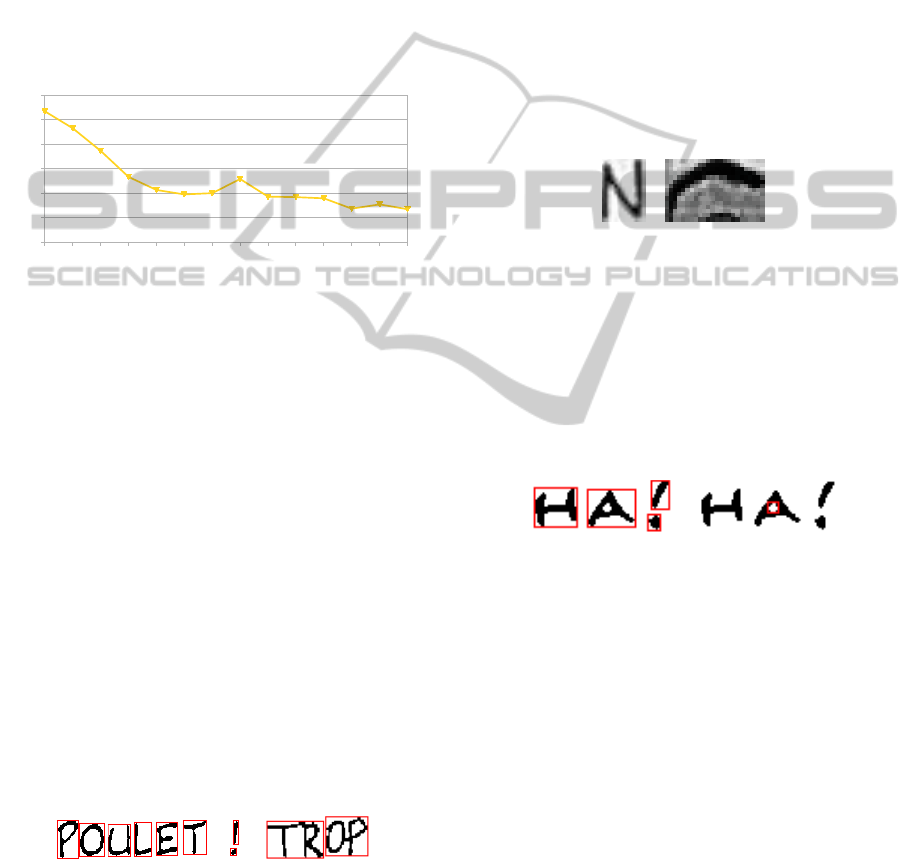

Figure 2: Example of number of CC function of the seg-

mentation threshold. In this case, th

min

= 100, th

max

= 230

and our algorithm found 150 as optimal threshold threshold.

As an alternative segmentation method, we also

tried to extract text CC using the Maximally Stable

Extremal Region (MSER) algorithm (Matas et al.,

2002) nevertheless, this algorithm produces an excess

of false detections as in general a lot of the graphi-

cal elements are equally stable as the text. We also

try the well known Otsu (Otsu, 1979) algorithm (see

section 5).

3.2 Text/Graphics Separation

After the segmentation step, the CC may correspond

to graphics, single letters or a sequence of letters if

some letters are connected together (ﬁg. 3). The ob-

jective of this section is to separate the last two cate-

gories from the ﬁrst one. Note that the merged letters

will not affect our results (if they are part of the same

word) as we are aiming to text line localization.

Figure 3: Example of connection between letters. On the

left a word with only detached letters, on the right a word

detected as two pairs of attached letters because of the hand-

writing.

We propose a number of rules, applied sequen-

tially, to separate graphics from text. Due to the wide

variety of text usage in comic albums, the method

should be size, translation, rotation, scale and contrast

invariant. In addition, it should be robust to text-less

pages which may appear randomly within an album.

From all the components extracted by the CC algo-

rithm, we use three ﬁltering rules to select only the

ones corresponding to textual elements.

Rule 1: we compare the standard deviation of the

graylevels of each CC bounding boxes (see ﬁgure 4)

with the contrast ratio of the page to make a hight/low

local contrast CC separation. We assume a Gaussian

distribution but other distribution are under study. The

contrast ratio of the page is the absolute difference

between the minimum and the maximum graylevels

found on the page. In order to avoid artefacts pixel

values, we apply a median ﬁltering as preprocessing.

Figure 4: Example of mean (µ) and standard deviation (σ)

values of two CC bounding boxes. For the letter N, µ,σ =

[167,84], for the eyebrow µ, σ = [110, 57].

Rule 2: we apply a topological ﬁltering that con-

sists in removing all the CC that overlap with others

assuming that a letter CC can’t contain another CC

(similar to (Thotreingam Kasar et al., 2007)). In our

study we consider only the black on white CC. (see

ﬁgure 5).

Figure 5: On the left an example of black on white CC

bounding box (red rectangle) and the right a white on black.

Rule 3: we check that each letter l

is surrounded

by other letters l

(with

∈ [0,n]) which is intrinsic

to the design of text (grouping characters in words

and text lines). To do so, we check for similar

in height components in an area equal to the size

of the component’s bounding box extended to its

left/right/top/bottom directions (ﬁgure 6). For in-

stance, l

is similar in height to l

if abs(l

.height −

.height) < a ∗ l

.height (a =similarity offset).

Rule 4: we check all the CC bounding boxes pairs

that overlap more than b% each other. We remove the

biggest from each pairs.

The four rules exploit contrast, topology and text

structure to classify the CCs as being either graphics

or text.

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

816

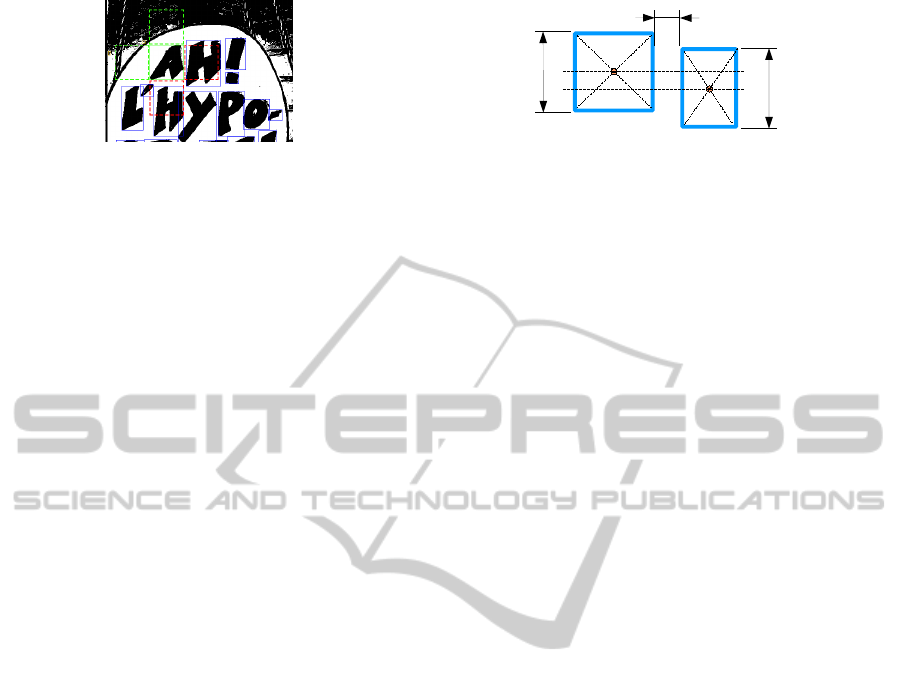

Figure 6: Example of the letter validation method (rule 3).

The area of the bounding box of the letter “A” is extended

in four directions around the letter “A” to check if any other

letter (blue rectangles) overlaps with it. In this case, there

are two overlapping components (red dashed rectangles) at

the right and the bottom of the letter “A”. The component is

thus accepted as a possible letter.

4 TEXT LOCALIZATION IN

UNSTRUCTURED

DOCUMENTS

In this paper we consider the term unstructured doc-

uments to deﬁne documents in which text can be ar-

bitrarily placed and oriented within the page. In this

section we propose a method for text localization in

such documents.

The gap between letters (or attached letters) and

lines can vary signiﬁcantly with the rotation. In fact,

handwriting generates many artefacts such as lack of

good alignment, mergers between letters and mergers

between text lines. We propose a method that han-

dles the two ﬁrst aforementioned artefacts consider-

ing only the height of the CC.

We ﬁrst look for the ﬁrst letter of each text line. A

letter is considered ﬁrst if it is positioned on the left,

on the same horizontal line and if there is no intersec-

tion found with any other letters at a distance equal to

the letter height. Then the other letters on the right

are added by checking their relative horizontal and

vertical positions. For this purpose, we deﬁned two

conditions that are auto-adaptive to each letter (see

ﬁgure 7):

• The horizontal inter-letter distance d should be

smaller than the maximal height of the letters

(d < Max(h1,h2));

• The vertical alignment is considered as correct if

the horizontal position of the centre of the next let-

ter c2 passes trough the ﬁrst letter (y

min

(letter

) >

c2.x and y

max

(letter

) > c2.x);

This is similar in principle to (Clavelli and

Karatzas, 2009) but adapted to take into account the

horizontal alignment of text lines. Our method does

not consider the letter width as we never know how

many letters correspond to the CC.

Figure 7: Letter horizontal and vertical positions variables

(on the left letter

, on the right letter

). The bounding

boxes are drawn in blue and the geometric centres (c1,c2)

in orange.

5 EXPERIMENTS AND RESULTS

In this paper we have proposed a method for text lo-

calization in unstructured documents with complex

background. In these results we compare our results

to other text localization methods, which were either

designed for unstructured documents (Tombre et al.,

2002) or complex backgrounds (Neumann and Matas,

2012).

For the experiments, we applied a 3x3 median ﬁl-

tering on the whole image in order to smooth pix-

els values and then the MCCT was performed with

a threshold computed from a range [th

min

,th

max

] =

[100,230]. The range was deﬁned from the experi-

ments as there is no enough information at lower or

higher segmentation levels. We ignored CC smaller

than 6 pixels because typically 6 pixels are needed to

make letters fully recognizable by subjects (Wright,

2002). The hight/low local contrast CC separation

(rule 1) was computed from a threshold of 50% based

on experiments. For the text grouping (rule 3), the

height similarity offset were deﬁned at a = 1/2 as we

assume that uppercase letters are twice bigger than

lowercase letter. Finally, the maximum overlapping

percentage was ﬁxed at 30% (rule 4) based on exper-

iments. Results are shown ﬁgure 8. In some cases

we couldn’t reach 100% recall because the proposed

method is not ﬁtted for the graphical text (e.g. sound

effects, onomatopoeias, page title) and bright over

dark text which are in the ground truth with no dis-

tinction. A one-pass colour segmentation was also

experienced (see section 5.3).

5.1 Dataset

The dataset used was composed of comics pages

sourced from European publisher which contain 1700

text lines in total. The pages were selected from 15 al-

bums belonging to different authors in order to be as

representative as possible. They are in different for-

mat (e.g. A4, A5, single strip) and resolution (e.g 100

- 300 DPI). The dataset and the ground truth will be

AutomaticTextLocalisationinScannedComicBooks

817

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

100

AUTO

MAX

Image ID

Recall (%)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

100

AUTO

MAX

Image ID

Recall (%)

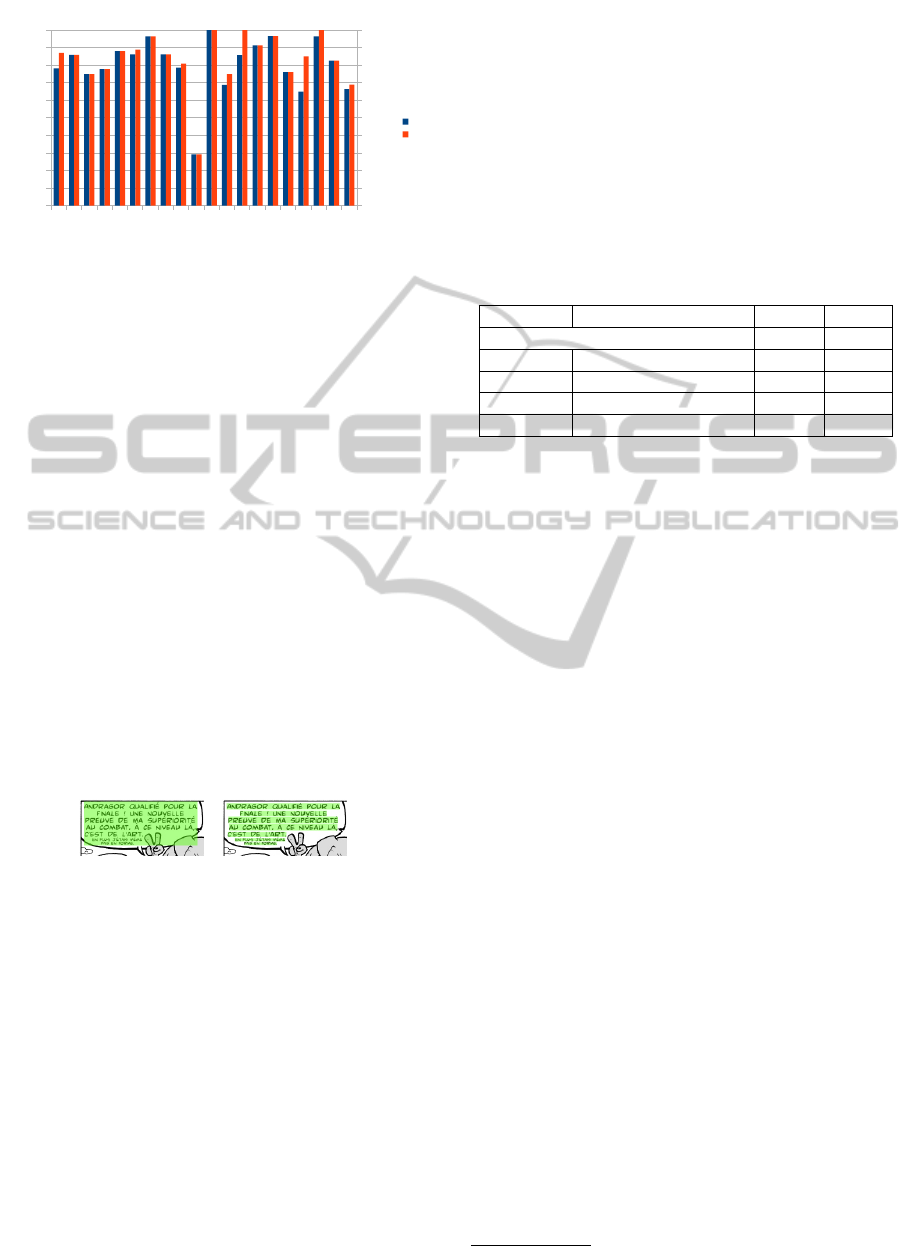

Figure 8: This ﬁgure shows the maximum recall obtained

manually (MAX) and the adaptive segmentation (AUTO)

for a sample of images of the dataset. Image 10 contains

more than 60% of bright text over dark background which

is not detected by our algorithm.

made available in the pubic domain

5.2 Ground Truth

In order to evaluate our algorithm, we created a

ground truth information for all the dataset pages us-

ing a tool developed by the laboratory L3i. As we

consider text localization only, an easy way would be

to draw a rectangle (bounding box) around each para-

graph but the problem is that in comics, paragraph

level bounding boxes may overlap with a large non-

text part of the image (see ﬁgure 9). Hence we de-

cided to produce ground truth at line level which is

considerably better than paragraph level (although of

limited accuracy in the case of text height variations

and rotation). We intend to investigate word and letter

levels in a future work.

Figure 9: Ground truth bounding boxes (green rectangles)

at paragraph level (left part) and line level (right part).

Note that the ground truth was created for all

types of text with no distinction between sound ef-

fects (onomatopoeias), graphic text, speech text and

narrative text. As we focus on speech text in this pa-

per, we do not expect to reach 100% text detection for

some images.

5.3 Evaluation

As far as we know, there is no similar evaluation

scheme deﬁned for comics in the literature, therefore

we employ a well known real scene text localization

method. We used (Wolf and Jolion, 2006) to evalu-

ate our results following the approach of the ICDAR

competition 2011 (Karatzas et al., 2011). We used

the area precision thresholds proposed in the original

publication: t

= 0.4 and we decreased the area re-

call threshold from t

= 0.8 to t

= 0.6 in order to be

more ﬂexible with accent and punctuation miss detec-

tions (e.g.

E, ..., !, ?) that enlarge the bounding

boxes of line level ground truth. No splits and merges

penalizations were considered, as text detection at ei-

ther the word or text-line level is considered as cor-

rect. The table bellow shows a comparison with dif-

ferent segmentation and text/graphic separation meth-

ods from the literature.

Segment. Text/graphic sepa. R (%) P (%)

(Neumann and Matas, 2012) 12.56 30.19

Colour Proposed 15.69 6.92

Proposed (Tombre et al., 2002) 74.18 61.25

Otsu Proposed 75.14 64.14

Proposed Proposed 75.82 76.15

Figure 10: Recall (R) and precision (P) results for different

method combinations.

Because comics are really speciﬁc documents,

real-scene text detection (Neumann and Matas, 2012)

detect very few text lines. The best results we reached

with a method from literature is a text/graphic sepa-

ration method design for documents (Tombre et al.,

2002) based on our adaptive segmentation (MCCT).

The combination of the proposed adaptive seg-

mentation (MCCT) following by our text/graphic sep-

aration beats the best method tested from the literature

of 0.68% recall and 12.01% precision. The dataset

was proceeded in 5 minutes on a regular machine, al-

gorithms are available online

6 CONCLUSIONS AND

PERSPECTIVES

We have proposed and evaluated a new method to lo-

calize text lines in comics books. The proposed ap-

proach is composed by a minimum connected com-

ponents thresholding (MCCT) to segment text candi-

date connected components, a text/graphic separation

based on contrast ratio and text line detection. The

evaluation shows that more than 75.8% of the text

lines are detected with 76% precision. However, the

current method focuses on speech text, and further ef-

fort has to be made to detect other types of text such

as graphic text. Text localization was a ﬁrst step to-

wards automatic comics book understanding, our fu-

ture work will build on text detection results to look

into speech balloon detection.

http://ebdtheque.univ-lr.fr

VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications

818

ACKNOWLEDGEMENTS

This work was supported by the European Doctor-

ate founds of the University of La Rochelle, Euro-

pean Regional Development Fund, the region Poitou-

Charentes (France), the General Council of Charente

Maritime (France), the town of La Rochelle (France)

and the Spanish research projects TIN2011-24631,

RYC-2009-05031.

REFERENCES

Arai, K. and Tolle, H. (2011). Method for real time text ex-

traction of digital manga comic. International Journal

of Image Processing (IJIP), 4(6):669–676.

Clavelli, A. and Karatzas, D. (2009). Text segmentation in

colour posters from the spanish civil war era. In Pro-

ceedings of the 2009 10th International Conference

on Document Analysis and Recognition, ICDAR ’09,

pages 181–185, Washington, DC, USA. IEEE Com-

puter Society.

Epshtein, B., Ofek, E., and Wexler, Y. (2010). Detect-

ing text in natural scenes with stroke width transform.

In Computer Vision and Pattern Recognition (CVPR),

2010 IEEE Conference on, pages 2963 –2970.

Jung, K., Kim, K. I., and Jain, A. K. (2004). Text informa-

tion extraction in images and video: a survey. Pattern

Recognition, 37(5):977 – 997.

Karatzas, D. and Antonacopoulos, A. (2007). Colour text

segmentation in web images based on human percep-

tion. Image and Vision Computing, 25(5):564 – 577.

Karatzas, D., Mestre, S. R., Mas, J., Nourbakhsh, F., and

Roy, P. P. (2011). Icdar 2011 robust reading competi-

tion - challenge 1: Reading text in born-digital images

(web and email). International Conference on Docu-

ment Analysis and Recognition, 0:1485–1490.

Kim, W. and Kim, C. (2009). A new approach for over-

lay text detection and extraction from complex video

scene. Image Processing, IEEE Transactions on,

18(2):401 –411.

Matas, J., Chum, O., Urban, M., and Pajdla, T. (2002). Ro-

bust wide baseline stereo from. In In British Machine

Vision Conference, pages 384–393.

Matsui, Y., Yamasaki, T., and Aizawa, K. (2011). In-

teractive manga retargeting. In ACM SIGGRAPH

2011 Posters, SIGGRAPH ’11, pages 35:1–35:1, New

York, NY, USA. ACM.

Meng, Q. and Song, Y. (2012). Text detection in natural

scenes with salient region. In Document Analysis Sys-

tems (DAS), 2012 10th IAPR International Workshop

on, pages 384 –388.

Neumann, L. and Matas, J. (2012). Real-time scene text lo-

calization and recognition. Computer Vision and Pat-

tern Recognition, pages 1485–1490.

Oliveira, D. M. and Lins, R. D. (2010). Generalizing tableau

to any color of teaching boards. In Proceedings of

the 2010 20th International Conference on Pattern

Recognition, ICPR ’10, pages 2411–2414, Washing-

ton, DC, USA. IEEE Computer Society.

Otsu, N. (1979). A threshold selection method from gray-

level histograms. IEEE Transactions on Systems, Man

and Cybernetics, 9(1):62–66.

Rigaud, C., Tsopze, N., Burie, J.-C., and Ogier, J.-

M. (2012). Robust frame and text extraction from

comic books. Lecture Note for Computer Science

GREC2011, 7423(19).

Roudier, N. (2011). Les Terres Creusees, volume Acte sur

BD. Actes Sud.

Shivakumara, P., Phan, T., and Tan, C. L. (2009). A robust

wavelet transform based technique for video text de-

tection. In Document Analysis and Recognition, 2009.

ICDAR ’09. 10th International Conference on, pages

1285 –1289.

Su, C.-Y., Chang, R.-I., and Liu, J.-C. (2011). Recog-

nizing text elements for svg comic compression and

its novel applications. In Proceedings of the 2011

International Conference on Document Analysis and

Recognition, ICDAR ’11, pages 1329–1333, Wash-

ington, DC, USA. IEEE Computer Society.

Thotreingam Kasar, Jayant Kumar, and Ramakrishnan,

A. G. (2007). Font and Background Color Indepen-

dent Text Binarization. In Intl. workshop on Camera

Based Document Analysis and Recognition (workshop

of ICDAR), pages 3–9.

Tombre, K., Tabbone, S., Plissier, L., Lamiroy, B., and

Dosch, P. (2002). Text/graphics separation revisited.

In in: Workshop on Document Analysis Systems (DAS,

pages 200–211. Springer-Verlag.

Tsopze, N., Gu

erin, C., Bertet, K., and Revel, A. (2012).

Ontologies et relations spatiales dans la lecture d’une

bande dessin

ee. In Ing

enierie des Connaissances,

pages 175–182, Paris.

Wang, K. and Belongie, S. (2010). Word spotting in the

wild. In Daniilidis, K., Maragos, P., and Paragios, N.,

editors, Computer Vision ECCV 2010, volume 6311

of Lecture Notes in Computer Science, pages 591–

604. Springer Berlin / Heidelberg.

Weinman, J., Learned-Miller, E., and Hanson, A. (2009).

Scene text recognition using similarity and a lexi-

con with sparse belief propagation. Pattern Analy-

sis and Machine Intelligence, IEEE Transactions on,

31(10):1733 –1746.

Wolf, C. and Jolion, J.-M. (2006). Object count/area

graphs for the evaluation of object detection and seg-

mentation algorithms. Int. J. Doc. Anal. Recognit.,

8(4):280–296.

Wright, S. L. (2002). Ibm 9.2-megapixel ﬂat-panel display:

Technology and infrastructure.

Yamada, M., Budiarto, R., Endo, M., and Miyazaki, S.

(2004). Comic image decomposition for reading

comics on cellular phones. IEICE Transactions, 87-

D(6):1370–1376.

AutomaticTextLocalisationinScannedComicBooks

819
