Top-Down Visual Attention with Complex Templates
Jan T
¨
unnermann, Christian Born and B
¨
arbel Mertsching
GET Lab, University of Paderborn, Pohlweg 47-49, 33098 Paderborn, Germany
Keywords:
Visual Attention, Saliency, Top-Down Control, Visual Search, Object Detection.
Abstract:
Visual attention can support autonomous robots in visual tasks by assigning resources to relevant portions of
an image. In this biologically inspired concept, conspicuous elements of the image are typically determined
with regard to different features such as color, intensity or orientation. The assessment of human visual atten-
tion suggests that these bottom-up processes are complemented – and in many cases overruled – by top-down
influences that modulate the attentional focus with respect to the current task or a priori knowledge. In arti-
ficial attention, one branch of research investigates visual search for a given object within a scene by the use
of top-down attention. Current models require extensive training for a specific target or are limited to very
simple templates. Here we propose a multi-region template model that can direct the attentional focus with
respect to complex target appearances without any training. The template can be adaptively adjusted to com-
pensate gradual changes of the object’s appearance. Furthermore, the model is integrated with the framework
of region-based attention and can be combined with bottom-up saliency mechanisms. Our experimental re-
sults show that the proposed method outperforms an approach that uses single-region templates and performs
equally well as state-of-the-art feature fusion approaches that require extensive training.
1 INTRODUCTION
Artificial attention models serve the purpose of guid-
ing a visual agent’s high-level resources towards rele-
vant portions of a scene. Technical models are typ-
ically grounded on the Feature-Integration Theory
(Treisman and Gelade, 1980) and implemented ac-
cording to the scheme described by Koch and Ullman
(1985) where saliency is determined for different fea-
tures (as color or orientation) separately and subse-
quently fused to an overall saliency map.
Bottom-up models of visual attention direct the
attentional focus towards salient parts of the scene
that stand out from their neighborhood. Saliency can
be determined in various ways, e.g. by applying fil-
ters on image pyramids (Itti et al., 1998; Belardinelli
et al., 2009), finding conspicuities in frequency do-
main (Hou and Zhang, 2007; Jian Li and He, 2011)
or in a region-based manner (Aziz and Mertsching,
2008a; T
¨
unnermann and Mertsching, 2012). A recent
and extensive review of different artificial attention
models has been published by Borji and Itti (2012).
However, the fact that the task at hand has a sub-
stantial influence on scene analysis had already been
demonstrated by Yarbus (1967), who had shown that
subjects produce considerably different scan paths
(fixations and saccades) for the same scene but with
different tasks. Also, more recent assessments of
the primate vision system yield evidence that top-
down influences (information fed back from higher
cognitive levels) have an impact on even early pre-
attentional stages, see e.g. (Li et al., 2004) and
(Hilkenmeier et al., 2009).
This paper contributes to the branch of research
in artificial modeling that aims to integrate such top-
down influences. Top-down mechanisms have been
modeled in a broad variety, reaching from the influ-
ence of scene context (or “gist”) (Torralba et al., 2006;
Oliva and Torralba, 2006) over knowledge and fa-
miliarity (Aziz et al., 2011) to specific search tasks
(Itti and Koch, 2001; Navalpakkam and Itti, 2006;
Aziz and Mertsching, 2008b; Wischnewski et al.,
2010; Kouchaki and Nasrabadi, 2012). Here, we
focus on the visual search task, which is known
to strongly rely on attention in biological systems
(Wolfe and Horowitz, 2004). The artificial models
pursuing this idea can be divided into two groups: fea-
ture map fusion approaches and template-based ap-
proaches. Feature map fusion approaches (Itti and
Koch, 2001; Navalpakkam and Itti, 2006; Kouchaki
and Nasrabadi, 2012) extend the model by Itti et al.
(1998) which creates an image-pyramid and filters it
370
Tünnermann J., Born C. and Mertsching B..
Top-Down Visual Attention with Complex Templates.
DOI: 10.5220/0004302403700377
In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 370-377
ISBN: 978-989-8565-47-1
Copyright
c
 2013 SCITEPRESS (Science and Technology Publications, Lda.)

for different low-level features, such as color, orienta-
tion and intensity and calculates center-surround dif-
ferences. The resulting maps from different channels
and different resolutions of the pyramid are fused to
form a master map of saliency which is used to obtain
the focus of attention. In the classic bottom-up formu-
lation, the fusion is a simple superposition of the in-
dividual maps. Itti and Koch (2001) have investigated
different fusion strategies, one of them containing in-
formation from supervised learning of a search target
that increases the likelihood that the corresponding
object will become most salient in a linear combina-
tion of the maps. Navalpakkam and Itti (2006) include
knowledge about target and background in the deter-
mination of the fusion weights. Recently, Kouchaki
and Nasrabadi (2012) proposed nonlinear fusion us-
ing a neural network that was trained with the target
object. Template-based approaches work with a seg-
mentation of the scene and an abstract template that
is defined by a set of region features (such as color,
size, symmetry, orientation, etc.) of the target (Aziz
and Mertsching, 2008b; Wischnewski et al., 2010).
Therefore, these approaches do not require training
and can deal with abstract information about the tar-
get (“look for a large, red object”) which is advan-
tageous in many contexts where training in advance
or supervision is not an option. However, an object
may be more complex than what a single set of re-
gion features can capture; additionally, it can occur
in different perceptual configurations due to distance,
occlusion or perspective distortion. Here, we suggest
a method to consider multi-region templates that can
represent more complex objects and are tolerant to
changes in the perceptual appearance. Our evaluation
shows that this extended template-based model has a
performance that compares well with feature map fu-
sion models (that rely on extensive training), without
requiring any training.
2 MULTI-REGION TEMPLATES
The proposed method is grounded in the concept
of region-based attention, in which the scene is ini-
tially segmented into regions ℜ = {R
1
,R
2
,...,R
n
}.
The method of segmentation is not relevant here,
and thus we simply assume in the following that
a region R
i
represents a connected area of pixels
by the magnitudes φ
f
i
of different features f that
have been obtained during or after the segmenta-
tion. In our implementation, we use the features
average color, symmetry, orientation and eccentric-
ity (based on central 2D moments) and size in pix-
els ( f ∈ {color,orientation,symmetry,eccentricity,size}); for details
regarding the creation of regions and features for at-
tentional processes we refer to (Aziz and Mertsching,
2008a).
The idea of multi-region templates is straightfor-
ward. Instead of looping over the regions R
i
of the
scene segmentation and comparing their features to
a single template region F
td
(Aziz and Mertsching,
2008b), the scene segmentation is searched for a spe-
cific configuration C
F
td
of template regions that are
expected at their relative positions with a certain po-
sition tolerance D. Note that we call the set of tem-
plate features F
td
also a region, as it can be obtained
by segmenting an image of the target object. The
proposed algorithm is based on the concept of fix-
ing one (arbitrary) region of the template as the par-
ent π
j
∈ C
F
td
of all other template regions τ
k
∈ C
F
td
.
This parent is searched first in the scene segmen-
tation just as described for single-region templates
in (Aziz and Mertsching, 2008b) with F
td
= π
j
(see
also box Top-Down Saliency Equations). When
the parent is found with a certain likelihood, i.e. a
scene region R
i
achieves a certain single-region top-
down saliency (SRTD) γ
i
according to (Aziz and
Mertsching, 2008b), a new proto-object PO
p
is cre-
ated and the identified parent (R
i
) is added to it. Then
children are searched and when scene regions η
m
are
identified as children, the one (η
max
m
) with the most
SRTD saliency is added to the proto-object. When
the parent was found with a size different from its
size in the template, the expected sizes and distances
for all children are adjusted. The overall top-down
saliency Γ
p
of the proto-object PO
p
is calculated as
the average of the η
max
m
’s SRTD saliencies γ
max
m
and
the parent’s saliency γ
i
. The contributions of the chil-
dren can be reduced by a penalty µ(d) for deviations d
from the expected distance between parent and child
and it is zero when the child is completely missing
(not at a tolerable position with regard to D). This
process is repeated with another template region be-
ing the parent until all template regions have been the
parent once. This is required as there is always the
chance that the parent region is missing due to occlu-
sion or perspective distortion, or that a more fitting
configuration can be found by adjusting the expected
sizes with respect to another parent region. The focus
of attention for the scene can be obtained as the PO
p
with the highest saliency Γ
p
. In our tests, we marked
its position by drawing a bounding box that contains
all the regions of the proto-object (see figure 2 (b)).
The template configuration C
F
td
can be created from
abstract knowledge or by segmenting an image of the
target (see figure 1).
Algorithm 1 formally describes the overall proce-
dure and generates a top-down saliency map by as-
Top-DownVisualAttentionwithComplexTemplates
371

1
2
3
4
1*
x=0
y=0
color = red
ori = 40
ecc = ...
...
2
x=100 50
y=0 50
color = red
ori = 140
ecc = ...
...
+
-
+
-
3
x=50 50
y=50 50
color = red
ori = 0
ecc = ...
...
+
-
+
-
4
x=52 50
y=4 50
color = red
ori = 34
ecc = ...
...
+
-
+
-
(a) (b)
(c)

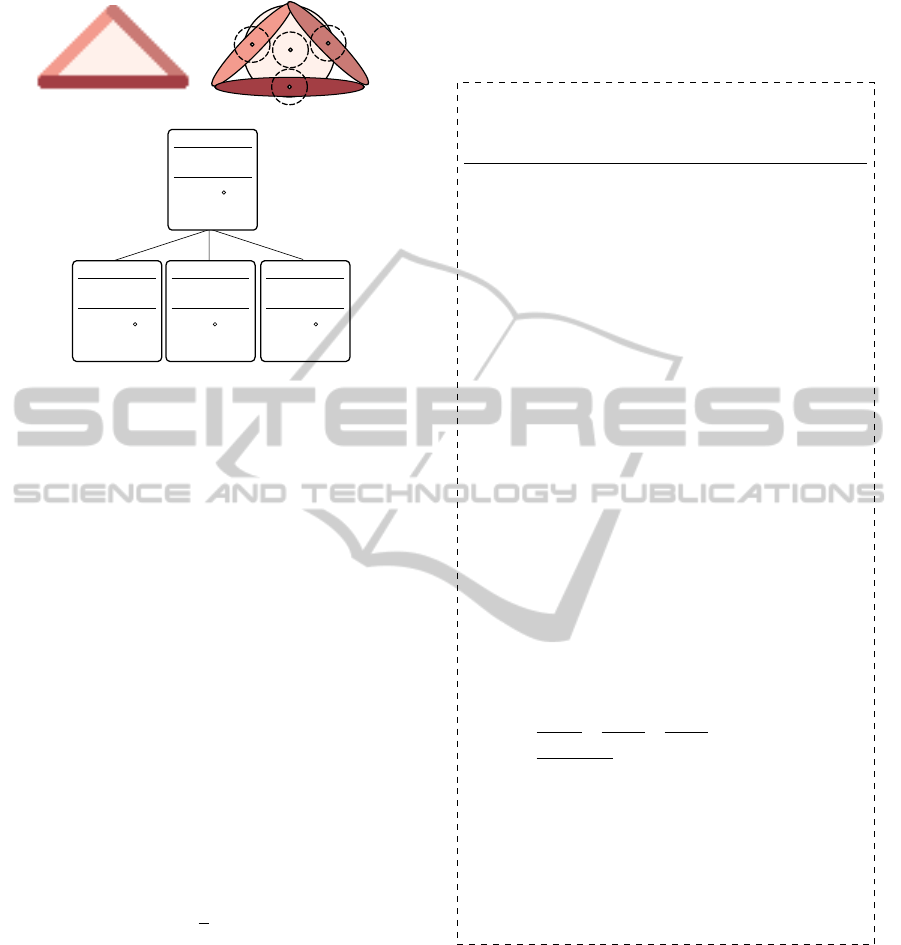

Figure 1: (a) A pixel-based input can be segmented to ob-
tain a template. (b) Illustration of information stored for
a multi-region template. The position tolerance D with re-
spect to the region center is indicated by the dashed circles.
(c) During the execution of the algorithm a region is se-
lected as parent (here 1, marked by the *) and the other re-
gions become children that are expected at relative positions
according to the template layout.
cribing the highest saliency to each individual region
that some parent-children configuration containing it
yielded for it. Variable π
j
loops over the template
regions to select every region as parent once. The
threshold threshold
π
is the minimum single-region
top-down saliency required to continue. If all com-
parisons with the R
i
are below it, this parent region
is considered to be not found in the scene. The child
regions in the template are denoted as τ
k
and the po-
tential child regions in the scene as η
m
. Note that the
function µ(d) is the penalty for variance in the ex-
pected region position which should be low close to
the expected position and high further away. We used
µ(d) as defined in equation 1.
µ(d) =

(1 − (
d
D
)
e
) if d ≤ D
0 else
(1)
where d is the distance between found and expected
position and D the parameter that defines the maxi-
mum allowed distance. The mentioned size adjust-
ment with respect to the current parent region π
j
in the
SRTD saliency computation is omitted in algorithm 1
for clarity.
The concept proposed here is independent of spe-
cific features; however, in our implementation we use
the features color, symmetry, orientation, eccentric-
ity and size of the individual regions as described by
Aziz and Mertsching (2008b). The similarity measure
is the single-region top-down saliency determination
from (Aziz and Mertsching, 2008b), which is summa-
rized in the box Top-Down Saliency Equations for
the interested reader.
Top-Down Saliency Equations
(Aziz and Mertsching, 2008b)
In the following, the target is defined as F
td
which is a collec-
tion of target features F
f
td
. The features of scene regions R
i
are
denoted as φ
f
i
. In our current implementation, the features f ∈
{color,orientation,symmetry,eccentricity,size} are considered. The single-
region top-down saliency for a feature (except color which is a compound
feature; see below) is computed by obtaining the normalized ratio Θ
f
of
the feature magnitudes.
Θ
f
=
(
φ
f
i
/F
f
td
for φ
f
i
< F
f
td
F
f
td
/φ
f
i
otherwise
The ratio is then 0 ≥ Θ
f
≥ 1, regardless of the direction of the difference
or the value range of the feature.
The single-region top-down saliency 0 ≥ γ
f
i
≥ 1 for region R
i
is then
obtained as
γ
f
i
=
(
Θ
f
for Θ
f
> D
Θ
0 otherwise
where D
Θ
is a threshold below which regions are considered not similar
at all (we set D
Θ
= 0.91 in our implementation).
The top-down color saliency (γ
f
with f = color) is computed with the
following formula, as color is a compound feature which consist of hue,
saturation and intensity (in our HSI color space implementation). The
thresholds D
h
, D
s
and D
I
are the tolerated differences of each component
and ∆
h
i
, ∆
s
i
and ∆
I
i
the actual differences between the color components
of region R
i
and F
color
td
. The color saliency γ
color
i
is given by
γ
color
i
=







a(D
h
−∆
h
i
)
D
h
+
b(D
s
−∆
s
i
)
D
s
+
c(D
I
−∆
I
i
)
D
I
for ∆
h
i
< D
h
∧ chrom
(a+b+c)(D
I
−∆
I
i
)
D
I
for ∆
I
i
< D
I
∧ achrom
0 otherwise
where crhom is true if (and only if) the colors of the region R
i
and the
template F
color
td
are both chromatic. If (and only if) both are achromatic,
acrhom is true. The weights a, b and c are used to adjust the importance
of the color channels and are set to a = 0.39, b = 0.22 and c = 0.39 in
our implementation).
The overall top-down saliency γi is computed as the (possibly) weighted
average of the γ
f
i
.
The result of the procedure is a region-based top-
down saliency map (see figure 2 (d)) and a number
of proto-objects (PO
p
in algorithm 1) that contain
the found configurations of regions and the group’s
overall saliency Γ
p
. In figure 2 (b) the target has
been highlighted with the bounding box of the proto-
object with the highest top-down saliency (note that
the saliency map in figure 2 (d) also contains contri-
butions from other proto-objects).
VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications
372

Algorithm 1: Multi-Region Top-Down Saliency.
1: for each π
j
∈ C
F
td
do // Every template region becomes the parent once.
2: for each R
i
∈ ℜ do // Every scene region is checked against the parent.
3: if γ
i
with F
td
= π
j
> threshold
π
then // SRTD saliency for region R
i
with template π
j
exceeds threshold.
4: Append(ProtoObjects, PO
p
) // Add a new proto-object to the list.
5: Append(PO
p
, (R
i
)) // Add the identified parent to the proto-object.
6: Γ
p
= Γ
p
+ γ
i
// Begin summing up proto-object saliency.
7: for each τ
k
6= π j ∈ C
F
td
do //Search for the child regions.
8: for each η
m
∈ ℜ do
9: ∆
expected
k
f ound
m
= Distance(Position(η
m
),Position(R
i
)+RelativePosition(τ
k
) // Store the deviation from the expected position.
10: if ∆
expected
k
f ound
m
< D then // If not too far away, consider as child.
11: if (γ
m
with (F
td
= τ
k
)) · µ(∆
expected
k
f ound
m
) > γ
max
m
then // If SRTD saliency for η
m
with the template τ
k
higher that the current max. . . .
12: γ
max
m
= γ
m
· µ(∆
expected
k
f ound
m
) // ... store maximum saliency.
13: η
max
m
= η
m
// ... store maximum salient region.
14: end if
15: end if
16: end for
17: Append(PO
p
,η
max
m
) // Add best fitting candidate to proto-object.
18: Γ
p
= (Γ
p
+ γ
max
m
)/size(PO
p
) // Add contribution of child to proto-object saliency and normalize.
19: end for
20: end if
21: end for
22: end for
————–
Distance(x,y): Returns distance between x and y; Position(Region): Returns position of Region;
RelativePosition(Region): Returns position of Region relative to the parent in the template; Append(List,Object): Appends Object to List.
3 ADAPTIVE TEMPLATES
The method described above is capable of compen-
sating small deviations in the object appearance in the
scene with regard to the template. The configuration
can change drastically due to motion of the system or
scene objects. This can be compensated to a certain
degree when the current template is continuously up-
dated. Usually, the appearance changes only slightly
from frame to frame, so the template from the pre-
vious frame will still work for the current; the cur-
rently focused object (the associated proto-object) is
a good template for the next frame. Furthermore, the
method described in section 2 is not limited to one
multi-region template. Different templates can be ap-
plied successively and the best fitting will select the
focus of attention. In combination with the afore-
mentioned adaptive updating, this means that object
representations can be learned by accumulating mul-
tiple templates over time and an object that had dis-
appeared from the scene can be rediscovered when it
reappears similar to any of the stored configurations.
This resembles the idea of learning objects from mul-
tiple views (Blanz et al., 1996). Interestingly, the be-
havior that emerges from these mechanisms is also
similar to modern object tracking solutions as TLD
(Kalal et al., 2009), which include adaptive updating
and learning of the templates. We included a demon-

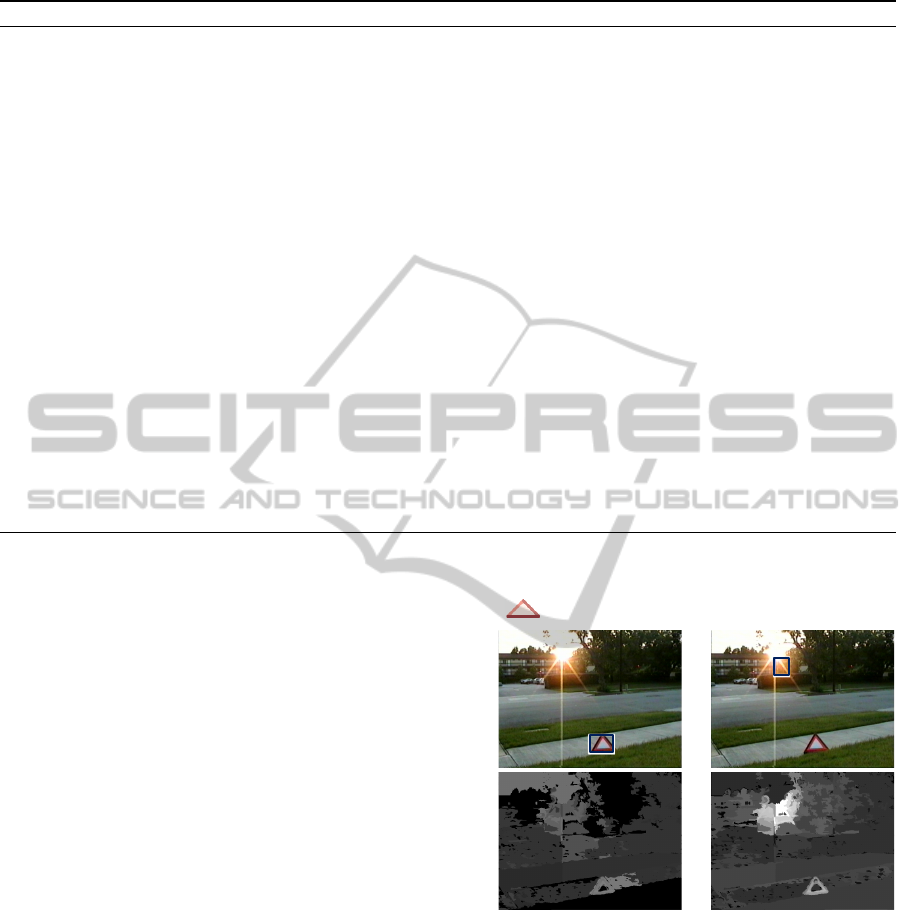

(a)
(b) (c)
(d)
(e)
Figure 2: (a) Template used for the multi-region top-down
model that finds the target in a single run, marked in (b).
(c) In a bottom-up saliency calculation, the focus of atten-
tion is directed towards the salient sun. (d) A top-down
saliency map obtained as described in algorithm 1. Note
that saliency was assigned to regions multiple times by dif-
ferent parent-child configurations, whereas the final focus
(shown in (b)) is obtained by finding the highest proto-
object saliency (saliency summed for all regions of one con-
figuration). The bottom-up saliency map in (e) shows peaks
at the triangle but higher ones at the sun. The image is part
of the STIMTriangle database from Itti and Koch (2001).
stration of this behavior in section 4 in addition to the
evaluation in the context of visual search.
Top-DownVisualAttentionwithComplexTemplates
373

4 EVALUATION
We evaluated the top-down attention capabilities of
our model in a visual search task using the popular
STIMTriangle database from Itti and Koch (2001),
where an emergency triangle is to be found in the
scene (one example image from the scene is shown
in figure 2). For our model we provided an abstract
multi-region template (shown in figure 2 (a)) which
basically consists of the three red bars and the bright
center as regions of the template (as illustrated in fig-
ure 1). For the single-region top-down mechanism
that is a sub-process of the proposed method and
the region-based bottom-up model we set the feature
weights (see Aziz and Mertsching, 2008b) to high im-
portance for color, medium importance for size and
very low importance for any other features. The pa-
rameter threshold
π
, which mainly influences the run-
time, was set to 0.6 and the position tolerance D was
set to 50 pixels. The STIMTriangle database contains
a training set and a test set (32 images each). As the
region-based algorithms require no training, we eval-
uated them also on the training set, additionally to the
test set.

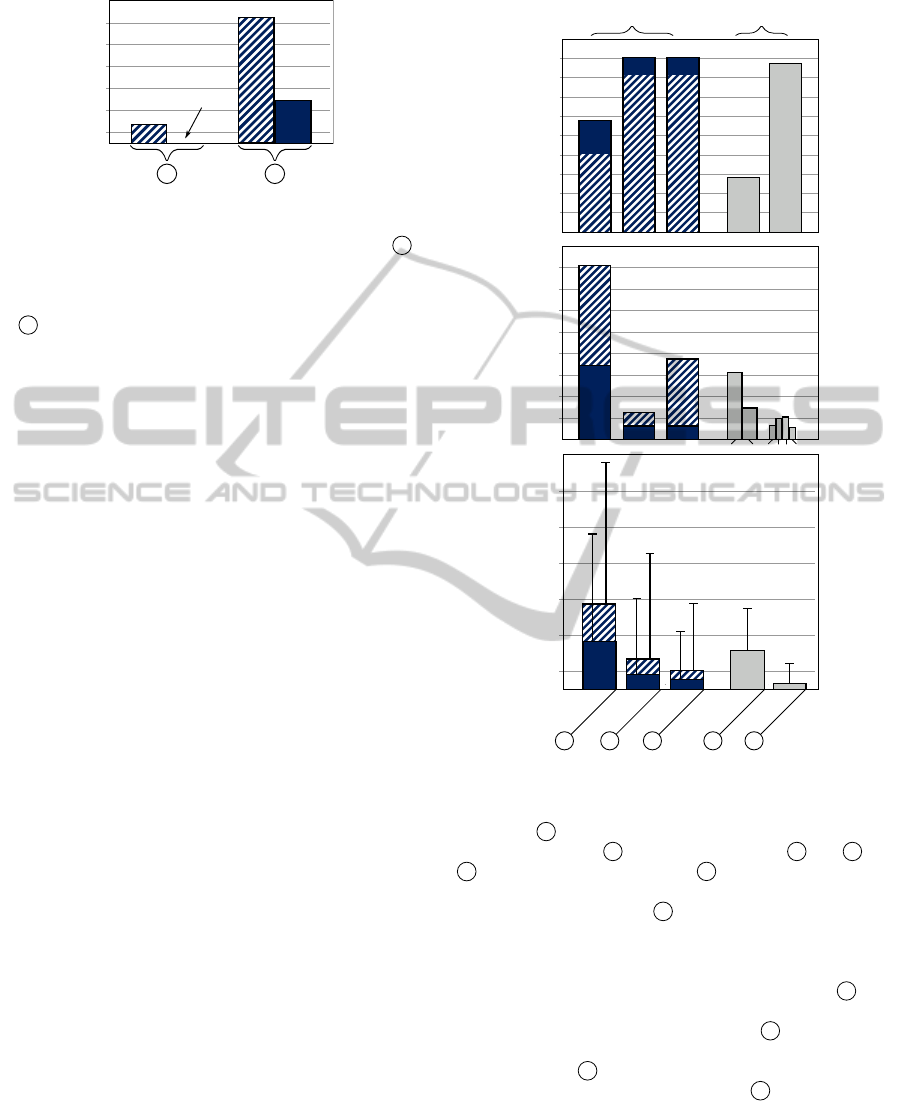

Figure 3 shows a comparison of the single-region
top-down model by Aziz and Mertsching (2008b) and
the proposed method. The latter detects all targets in
the training set in the first trial (hence, the zero mean)
and requires 1.68 fixations in the average on the test
set. The huge difference in success compared to the
single-region method 2 – it has a mean of 11.4 for
the test set and 4.69 for the training set – can be ex-
plained by the fact that the single-region method re-
lies on capturing the target’s appearances with a single
set of features. This means, only if the target is per-
ceptually similar to the template (same projected size,
same average color, etc.), then it has a high detection
probability. The difference in the results of the single-
region method applied to the test set and applied to
the training set is a another indicator for this. The
training set contains more clear appearances (always
frontal, no parts occluded), so it is more likely that
they perceptually resemble the template appearance.
A comparison of bottom-up models, in particular fea-
ture map fusion models which are capable of learn-
ing various different appearances, and the proposed
multi-region top-down model is depicted in figure 4.
Figure 4 1 shows results of the region-based
bottom-up attention model by Aziz and Mertsching
(2008a) in this task. The proposed method is marked
with
2 in the figure; a combination of the bottom-up
computation and the proposed method is shown as 3 .
The bottom-up contribution was weighted five times
as high as the top-down saliency; this was empirically
determined and at lower or higher weights no ben-
efit was achieved (in the future, such a combination
will be automatically optimized by fusion strategies
similar to those reported in (Itti and Koch, 2001)).
The results marked by 4 have been reported in litera-
ture (Kouchaki and Nasrabadi, 2012) for the bottom-
up model by Itti et al. (1998) for this database. Fi-
nally, the map fusion and top-down strategies by Itti
and Koch (2001) and Kouchaki and Nasrabadi (2012)
are labeled with 5 .
The bottom-up models were included as the
emergency-triangle often is a pop-out and they can
be considered a baseline without top-down informa-
tion. As the region-based models do not require
any training, we run them on the full set of images
from the STIMTriangle database. The measures we
used are compatible with those used by Kouchaki and
Nasrabadi (2012), but they have been normalized by
the image set size (when required) to allow compar-
ison of results from the full set and the test set. The
portions of the bars in the figure that are dashed refer
to the measure considering only the test set, while full
bars represent the whole set. Figure 4 (a) depicts the
portion of first hit detections (FHD); this is the portion
of images in which the target was found in a single run
of the model. The bottom-up models perform 30 % to
60 % and all variants involving top-down influences
at about 90 %. When a target was not hit immedi-
ately, inhibition of return (IOR) was applied, so in a
consecutive run the model selects the next salient el-
ement. The unsuccessful trials measure (UST in fig-
ure 4 (b)) is the portion of images where the target
was not found within five trials. The mean number of
trials before target detection and its standard deviation
is reported in figure 4 (c). The relatively high means
and standard deviations, along with the quite success-
ful FHDs, reflect that most targets were found quickly
except for some images that required a large number
of trials. This effect seems to be stronger for region-
based methods in general and might result from seg-
mentation problems. However, in general the perfor-
mance of the proposed model compares well with fea-
ture map fusion models. The mean number of trials
until detection is reduced when bottom-up and top-
down is combined.
Figure 5 shows a demonstration of using adaptive
templates as outlined in section 3. The initial tem-
plate is shown in figure 5 (a) and frames of a dynamic
scene in which the observer is moving is shown in
figure 5 (b). Note that only every eleventh frame is
shown, so the frame-to-frame difference in the evalu-
ated scene was smaller than in the figure. When the
adaptive updating of the template is not applied (fig-
ure 5 (c)) the saliency is gradually going down and
VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications
374

1
3
5
7
9
11
13
Mean
21
0
Figure 3: Mean number of fixations until the target was
found. The dashed bars correspond to the evaluation of the
test set and solid bars to evaluation of the training set. 1
The proposed model had no wrong detections at all before
the target was found on the training set, which contains im-
ages with a frontal view and the target is always fully visi-
ble. 2 The results for the single-region template top-down
model by Aziz and Mertsching (2008b). This model shows
a large difference between the test set and training set due to
the fact that it cannot compensate appearance variations that
occur more pronounced in the test set. Note that in some im-
ages the single-region template model was not able to find
the target within 30 trials (this happened seven times for the
test set and two times for the training set). In this situation,
the number of trials required was fixed at 30, so the perfor-
mance of the single-region template model is overestimated
and the advantage of the multi-region template model might
be even larger.
when the difference of the original template and cur-
rent appearance is too large, the object is no longer the
most salient entity (this can be seen in the last frame
of the sequence). When the adaptive updating is ac-
tivated, the saliency is constantly kept at high levels,
even when the resemblance of the original template
and the current appearance is extremely low (as in the
last frame). The test scene continued with the target
completely leaving the scene (not shown), but it is re-
discovered when it enters the scene again. This test
was performed on data from a mobile robot simula-
tor (Kotth
¨
auser and Mertsching, 2010) where a very
stable segmentation can be obtained. In a test on a
highly dynamic and noisy real world scene, the target
was fixated in only about 30 % of the frames. How-
ever, the proposed system is not intended as a tracker,
but as these results show, it can be a valuable support
for such systems.
5 CONCLUSIONS
The proposed top-down attention model has been
evaluated in a visual search task. The comparison
with other attention models that were tested in
this task shows that our template-based approach
performs similarly successful as models that require
extensive training. The multi-region templates pre-
BU
TD
TD+BU
BU
TD+BU
1
3
5
7
9
11
13
0
.1
.2
.3
.4
.5
.6
.7
.8
.9
1
Region-based
models
Image-pyramid-
based models
0
.1
.2
.3
.4
(a) Portion FHD(b) Portion UST(c) Mean (STD)
i ii iii iii
iv
1 2 3 4 5
Figure 4: Different attention models evaluated on the STIM-
Triangle database from Itti and Koch (2001). The region-
based bottom-up model by Aziz and Mertsching (2008a) is
marked as 1 . The proposed multiregion-region top-down
model is marked as 2 and a combination of 1 and 2 as
3 . When not splitted, bars of 4 refer to results of the
bottom-up model by Itti et al. (1998) reported by Kouchaki
and Nasrabadi (2012) and 5 to the nonlinear fusion sug-
gested in (Kouchaki and Nasrabadi, 2012). (a) shows the
portion of “First Hit Detections” in which the targets was
selected in the first run and (b) the portion of “Unsuccessful
Trials”, where the target was not found in five trials. 4 i is
the value for the model from Itti and Koch (2001) reported
in (Kouchaki and Nasrabadi, 2012) while 4 ii is the value
reported in (Itti and Koch, 2001) for the “Naive” feature
fusion strategy. 5 i is the nonlinear fusion strategy from
(Kouchaki and Nasrabadi, 2012), while 5 ii,iii,iv refer to
N (.), “Iterative” and “Trained” from (Itti and Koch, 2001),
respectively. (c) gives the mean number of trials required
until target detection and the standard deviation. Dashed
bars indicate that only the test set of the database was con-
sidered. As the region-based models do not require train-
ing, they were also evaluated on the full set (test + training),
which is shown as solid parts of the bars.
Top-DownVisualAttentionwithComplexTemplates
375

(a)
(b)
(c)
(d)

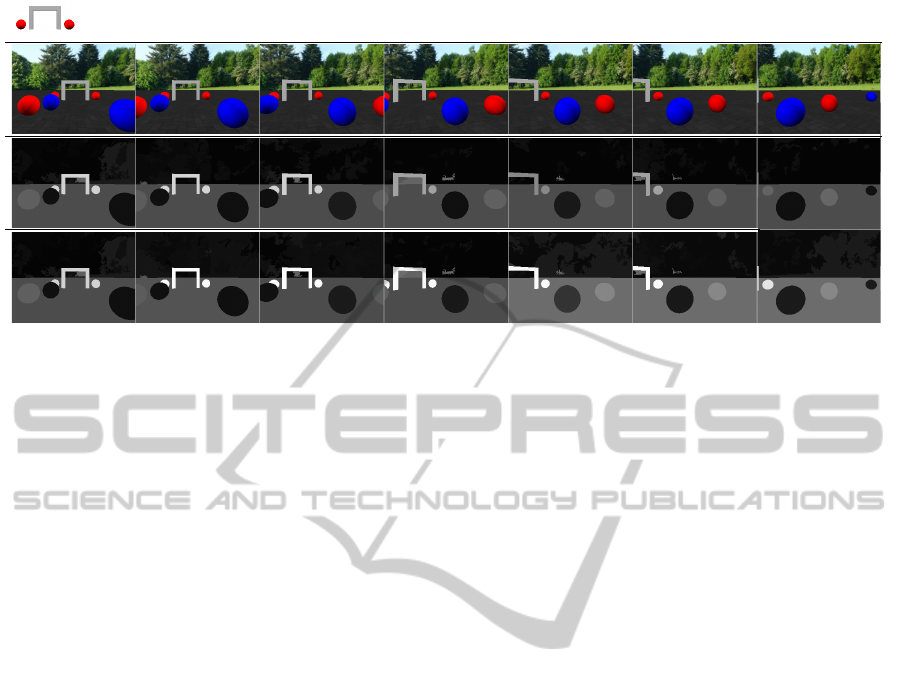

Figure 5: (a) The initial template. (b) Frames from a sequence where the perceptual image of the object is distorted and
occluded by perspective changes due to motion of the system. (c) Results of the initial template being applied to each frame.
(d) When the template is continuously updated with the previously focused configuration, a high saliency can be retained even
when only a small part of the target is visible.
serve the advantage of region-based pre-attentional
calculations. Configurations and features of the
template can be altered at runtime, based on abstract
information (e.g. “look for a triangle with blue
border”) with no need to re-learn the appearance
on low levels. Furthermore, multi-region templates
proved to be robust and allow heuristics to com-
pensate perspective variations, occlusions and other
alterations in the perceptual appearance of the target.
We demonstrated that multi-region templates and
proto-objects can be used to establish an adaptive
behavior that keeps the attentional focus on the
target, when it gradually changes its appearance,
compensating even substantial changes compared to
the original template.
The computation time of the proposed multi-
region top-down model depends on the complexity of
the scene and the template. For the set of images and
the template from the evaluation (see section 4) the
top-down saliency computation itself consumed 32
ms in average on a 3.4 GHz computer, so if a number
of multi-region templates are applied to a segmen-
tation it can be done at about 30 cycles per second.
The full processing including segmentation, however,
took about 330 ms at the rather high resolution of
640 × 480. The full processing can be sped up to a
reasonable frame rate by lowering the input image
resolution or adjusting segmentation parameters
to yield a coarser resolution at the cost of lower
detection rates. With regard to this speed-accuracy
trade-off, it should be considered if a subsequent task
requires a rather accurate or a rather fast suggestion
from the attentional focus. For example, if a full
object recognition follows, it might be sufficient to
quickly generate rough candidates. If the goal is to
perform some long-term behavior towards the target
(such as driving towards it for a detailed analysis)
it might be better to invest more effort into the
attentional selection.
However, the pre-attentional processing must be as
fast as possible, so recently, a GPU-based segmenta-
tion method has been developed that is well suited for
region-based attention models (Backer et al., 2012).
In future work on region-based top-down attention,
this will replace the current sequential segmentation.
Further aspects of the proposed method are subject
to parallelization also. The template configuration is
searched in the scene multiple times with every tem-
plate regions being the parent in one search; however,
these searches are completely independent from one
another and can be executed at the same time. To
further improve the detection rate, different relations
between regions can be considered. In the current im-
plementation we only care for the distance from par-
ent to child regions, but other relations, such as the
direction (e.g. child is left of the parent) or the appear-
ance (child is brighter than parent) could yield useful
contributions.
REFERENCES
Aziz, Z., Knopf, M., and Mertsching, B. (2011).
Knowledge-Driven Saliency: Attention to the Unseen. In
ACIVS 6915, LNCS, pages 34 – 45.
Aziz, Z. and Mertsching, B. (2008a). Fast and Robust Gen-
eration of Feature Maps for Region-Based Visual Atten-
tion. IEEE Transactions on Image Processing, 17, May
2008(5):633 – 644.
Aziz, Z. and Mertsching, B. (2008b). Visual Search in Static
VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications
376

and Dynamic Scenes Using Fine-Grain Top-Down Vi-
sual Attention. In ICVS 5008, LNCS, pages 3 – 12, San-
torini, Greece.
Backer, M., T
¨
unnermann, J., and Mertsching, B. (2012).
Parallel k-Means Image Segmentation Using Sort, Scan
& Connected Components on a GPU. In FTMC-III,
LNCS.
Belardinelli, A., Pirri, F., and Carbone, A. (2009). Atten-
tion in cognitive systems. chapter Motion Saliency Maps
from Spatiotemporal Filtering, pages 112–123. Springer,
Berlin - Heidelberg.
Blanz, V., Sch
¨
olkopf, B., B
¨
ulthoff, H., Burges, C., Vapnik,
V., and Vetter, T. (1996). Comparison of View-based Ob-
ject Recognition Algorithms Using Realistic 3D Models.
In von der Malsburg, C., von Seelen, W., Vorbr
¨
uggen,
J., and Sendhoff, B., editors, Artificial Neural Networks,
volume 1112 of LNCS, pages 251–256. Springer, Berlin
- Heidelberg.
Borji, A. and Itti, L. (2012). State-of-the-Art in Visual At-
tention Modeling. Accepted for: IEEE TPAMI.
Hilkenmeier, F., T
¨
unnermann, J., and Scharlau, I. (2009).
Early Top-Down Influences in Control of Attention: Ev-
idence from the Attentional Blink. In KI 2009: Advances
in Artificial Intelligence. Proceeding of the 32nd Annual
Conference on Artificial Intelligence.
Hou, X. and Zhang, L. (2007). Saliency Detection: A Spec-
tral Residual Approach. In IEEE CVPR, pages 1–8.
Itti, L. and Koch, C. (2001). Feature Combination Strategies
for Saliency-Based Visual Attention Systems. Journal of
Electronic Imaging, 10(1):161–169.
Itti, L., Koch, C., and Niebur, E. (1998). A Model of
Saliency-Based Visual Attention for Rapid Scene Anal-
ysis. IEEE TPAMI, 20(11):1254–1259.
Jian Li, Martin Levine, X. A. and He, H. (2011). Saliency
Detection Based on Frequency and Spatial Domain Anal-
yses. In BMVC, pages 86.1–86.11. BMVA Press.
Kalal, Z., Matas, J., and Mikolajczyk, K. (2009). Online
Learning of Robust Object Detectors During Unstable
Tracking. On-line Learning for Computer Vision Work-
shop.
Koch, C. and Ullman, S. (1985). Shifts in Selective Atten-
tion: Towards the Underlying Neural Circuitry. Human
Neurobiology, 4:219–227.
Kotth
¨
auser, T. and Mertsching, B. (2010). Validating Vision
and Robotic Algorithms for Dynamic Real World Envi-
ronments. In Ando, N., Balakirsky, S., Hemker, T., Reg-
giani, M., and Stryk, O., editors, Simulation, Modeling,
and Programming for Autonomous Robots, volume 6472
of LNCS, pages 97–108. Springer, Berlin - Heidelberg.
Kouchaki, Z. and Nasrabadi, A. M. (2012). A Nonlinear
Feature Fusion by Variadic Neural Network in Saliency-
based Visual Attention. VISAPP, pages 457–461.
Li, W., Pi
¨
ech, V., and Gilbert, C. D. (2004). Perceptual
Learning and Top-Down Influences in Primary Visual
Cortex. Nature Neuroscience, 7(6):651–657.
Navalpakkam, V. and Itti, L. (2006). An Integrated Model
of Top-Down and Bottom-Up Attention for Optimal Ob-
ject Detection. In IEEE CVPR, pages 2049–2056, New
York, NY.
Oliva, A. and Torralba, A. (2006). Building the Gist of a
Scene: The Role of Global Image Features in Recogni-
tion. In Progress in Brain Research, page 2006.
Torralba, A., Oliva, A., Castelhano, M. S., and Hender-
son, J. M. (2006). Contextual Guidance of Eye Move-
ments and Attention in Real-world Scenes: The Role of
Global Features in Object Search. Psychological Review,
113(4):766–786.
Treisman, A. M. and Gelade, G. (1980). A Feature-
Integration Theory of Attention. Cognitive psychology,
12(1):97–136.
T
¨
unnermann, J. and Mertsching, B. (2012). Continuous
Region-Based Processing of Spatiotemporal Saliency. In
VISAPP, pages 230 – 239.
Wischnewski, M., Belardinelli, A., Schneider, W. X., and
Steil, J. J. (2010). Where to Look Next? Combining
Static and Dynamic Proto-objects in a TVA-based Model
of Visual Attention. Cognitive Computation, pages 326–
343.
Wolfe, J. M. and Horowitz, T. S. (2004). What Attributes
Guide the Deployment of Visual Attention and How Do
They Do It? Nature Reviews Neuroscience, 5(6):495–
501.
Yarbus, A. L. (1967). Eye Movements and Vision. Plenum.,
New York, NY.
Top-DownVisualAttentionwithComplexTemplates
377
