Integrating Occlusion Culling and Hardware Instancing for Efficient

Real-time Rendering of Building Information Models

Mikael Johansson

Chalmers University of Technology, Gothenburg, Sweden

Keywords: Real Time Rendering, Occlusion Culling, Hardware Instancing, BIM.

Abstract: This paper presents an efficient approach for integrating occlusion culling and hardware instancing. The

work is primarily targeted at Building Information Models (BIM), which typically share characteristics

addressed by these two acceleration techniques separately – high level of occlusion and frequent reuse of

building components. Together, these two acceleration techniques complement each other and allows large

and complex BIMs to be rendered in real-time. Specifically, the proposed method takes advantage of

temporal coherence and uses a lightweight data transfer strategy to provide an efficient hardware instancing

implementation. Compared to only using occlusion culling, additional speedups of 1.25x-1.7x is achieved

for rendering large BIMs received from real-world projects. These speedups are measured in viewpoints that

represents the worst case scenarios in terms of rendering performance when only occlusion culling is

utilized.

1 INTRODUCTION

With the creation of Building Information Models

(BIM), the content produced by architects and

designers has evolved from traditional 2D-drawings

to semantically-rich, object-oriented 3D-models.

With all of the data available in 3D, this concept

further facilitates the use of real-time visualizations

in various contexts. However, as primarily created to

describe a complete building in detail, many 3D

datasets extracted from BIMs provides a challenge

to manage in real-time without additional

acceleration techniques (Steel et al., 2012).

In this context, occlusion culling has been shown

to provide a suitable option (Johansson and Roupé,

2012). Given that typical building models naturally

exhibit a lot of occlusion this is an efficient approach

to increase rendering performance for many

viewpoints. Still, for viewpoints where many objects

are, in fact, visible, occlusion culling alone may not

always be able to provide sufficiently high frame

rates. Common examples include exterior views of

whole building facades where the sheer number of

draw calls, and hence CPU burden, easily becomes

the limiting factor in terms of rendering performance

(Wloka, 2003).

Another characteristic of typical BIMs is the

frequent reuse of identical building components. As

similarity tends to reduce design, production and

maintenance costs, use of multiple identical

components, such as doors and windows, is common

in any building (Sacks et al., 2004). For viewpoints

where many objects are visible it is therefore a high

probability that many of these objects are identical,

albeit placed at different locations. One way to take

advantage of this is to utilize the hardware

instancing functionality of modern GPUs. With

hardware instancing it is possible to render multiple

copies of the same geometry with a single draw call,

thereby reducing CPU-burden for scenes with much

repetition. However, even if the reduction of draw

calls improves performance in CPU-limited

scenarios, the GPU still has to process all the

instantiated geometry. As such, culling of invisible

instances is still important to reduce overall

workload

This paper presents a method to integrate

occlusion culling and hardware instancing in order

to provide efficient real-time rendering of large

BIMs. By using an efficient occlusion culling

algorithm hardware instancing can be restricted to

visible replicated objects only. For viewpoints when

many objects are visible, hardware instancing

complements the occlusion culling by providing an

efficient rendering path for visible replicated objects.

The key component to realize this is an efficient

197

Johansson M..

Integrating Occlusion Culling and Hardware Instancing for Efﬁcient Real-time Rendering of Building Information Models.

DOI: 10.5220/0004302801970206

In Proceedings of the International Conference on Computer Graphics Theory and Applications and International Conference on Information

Visualization Theory and Applications (GRAPP-2013), pages 197-206

ISBN: 978-989-8565-46-4

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

dynamic hardware instancing implementation that

takes advantage of temporal coherence and uses a

lightweight data transfer strategy.

2 RELATED WORK

2.1 Occlusion Culling

With occlusion culling the aim is to identify and

reject occluded regions of 3D scenes in order to

improve rendering performance. Within this

category of acceleration techniques a vast amount of

research has been conducted and for a general

overview interested readers are referred to the

surveys provided by (Cohen-Or et al, 2003) and

(Bittner and Wonka, 2003). In essence, available

algorithms can be classified according to whether

they require time-consuming offline computations or

not.

When considering online approaches, which

require no pre-computations, the support for

hardware accelerated occlusion queries has provided

a simple mechanism to detect visibility. With

hardware occlusion queries the GPU returns the

number of pixels that passes the depth test when

rasterizing a given object. This way, proxy

geometries can be used to detect occlusion before

the actual object is rendered. However, due to the

delayed processing in the graphics pipeline the result

of the query is not immediately available on the

CPU which makes an efficient implementation more

complex. This problem was addressed with the

Coherent Hierarchical Culling (CHC) algorithm,

which exploits spatial and temporal coherence in

order to reduce latency and overhead of the queries

(Bittner et al., 2004). However, although the CHC

algorithm works well in highly occluded scenes,

wasted queries and unnecessary state changes makes

it less reliable for viewpoints when many objects are

visible. In order to reduce the number of wasted

queries, (Guthe et al., 2006) proposed a method,

called Near Optimal Hierarchical Culling (NOHC),

based on a statistical model for occlusion probability

and a hardware calibration step. Assuming proper

hardware calibration their approach always performs

better than view-frustum culling. In (Mattausch et

al., 2008) an improved version of the CHC

algorithm, called CHC++ was presented. Although

the core ideas of the algorithm remain the same, the

additional components introduced by CHC++

provide a significant improvement in rendering

speed compared to both NOHC and CHC. Mainly,

this was achieved by introducing batching of queries

as a means to reduce costly state changes.

When considering the case of rendering complex

BIMs, the efficiency of the CHC++ algorithm has

been recently demonstrated (Johansson and Roupé,

2012). Compared to view-frustum culling, CHC++

provided significant speedups for a number of fairly

large BIMs during both interior and exterior

viewpoints.

As an alternative to occlusion queries, (Hill and

Collin, 2011) recently proposed a modern variant of

the hierarchical z-buffer (Green et al., 1993), where

all visibility tests are performed on the GPU. The

state of visibility is then read-back to the CPU, so

that un-occluded objects can be rendered in a single

stage. However, although reported as being

successfully used in recent computer games, the

performance implications are still largely unknown

for general 3D models. In addition, this approach

requires a set of good occluders in order to initiate

the z-buffer.

A problem common to practically all visibility

culling methods is that of granularity. On the one

hand, in order to maximize culling efficiency, we

ideally want to perform visibility determination on

the level of granularity provided by the individual

objects contained in a 3D scene. On the other hand,

for viewpoints with many visible objects, this is not

an optimal organization of the 3D scene, considering

the aim of keeping a low draw call count (Wloka,

2003). In this case, reduction of draw calls can often

be addressed by geometry batching, where spatially

coherent objects (with similar material properties)

are combined into larger ones during a pre-process

(Buchholz and Döllner, 2005). However, even if this

process enhance rendering performance for certain

viewpoints, it potentially reduces culling efficiency,

and hence, performance, for other viewpoints.

Besides requiring a dedicated pre-process, geometry

batching also complicates the use of additional

acceleration techniques applied per-object, such as

level-of-detail (LOD).

The proposed method addresses this situation by

performing implicit geometry batching. By taking

advantage of hardware instancing capabilities of

modern GPUs, culling can be performed at fine

granularity at the same time as the amount of draw

calls is reduced for viewpoints with many visible

objects.

2.2 Hardware Instancing

For 3D scenes where many individual objects have

to be rendered it is not uncommon that the large

number of draw calls (and related state changes and

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

198

buffer binds) becomes the limiting factor in terms of

performance (Wloka, 2003). Given a large amount

of replicated geometry, hardware instancing is one

way to address this problem. The idea behind this

concept is to use a single draw call when rendering

multiple copies of the same geometry. By using a

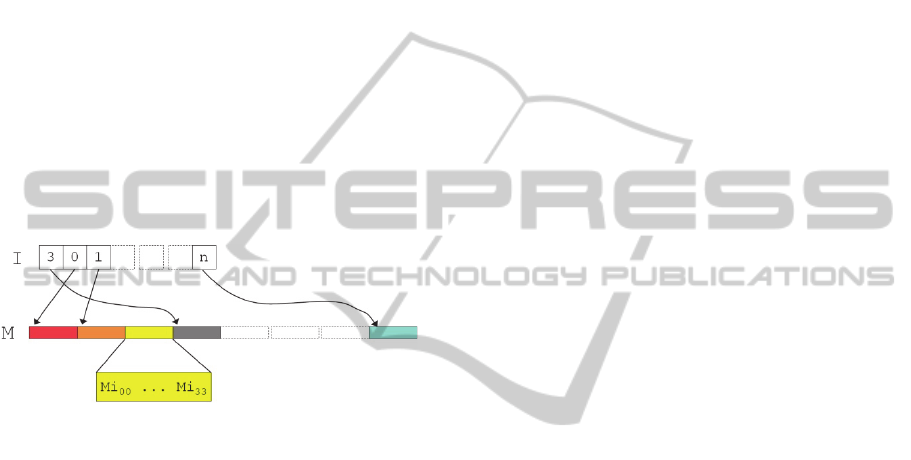

previously uploaded buffer or texture object

containing per-instance data (i.e. transformation

matrix), each instance can then be transformed to its

correct location on the GPU. Typical applications

that can benefit from hardware instancing include

rendering of crowds and vegetation, which usually

require a large number of instances at the same time

as there exists much repetition. In (Park et al., 2009),

(Dudash, 2007), and later (Ramos et al., 2012),

examples on how to render several thousands of

animated characters in real-time with the use of

hardware instancing is presented. Recently, (Bao et

al., 2012) presented a GPU-driven framework for

rendering large forests. Hardware instancing,

together with level-of-detail selection on the GPU,

allow them to render several thousands of detailed

trees, with shadows, in real-time.

However, even if hardware instancing reduces

the number of draw calls, and hence CPU-burden,

the GPU still have to process all the geometry that is

instantiated. Without any type of visibility culling,

this may lead to unnecessary high GPU-burden for

3D scenes with many instances. In order to limit the

number of instances, (Park et al., 2009) and (Bao et

al., 2012) perform view-frustum culling on the GPU.

Still, for highly occluded scenes, such as

Building Information Models, view-frustum culling

only allows a subset of the invisible geometry to be

rejected. The proposed method addresses this

problem by an efficient dynamic hardware

instancing implementation. By taking advantage of

temporal coherence together with a lightweight data

transfer approach, occlusion culling can be

performed at object level at the same time as

replicated geometry is efficiently rendered using

hardware instancing.

3 THE IFC BUILDING MODEL

For the majority of BIM authoring tools the

underlying data-model closely resembles that of the

Industry Foundation Classes (Eastman et al., 2011).

Instead of pure geometrical entities, this scheme

represents a building or facility in terms of its

individual building components, such as walls,

doors, windows and floors. For each component a

visual representation is then provided in the form of

one or several geometrical entities (i.e. triangular

meshes). When considering instancing, this concept

is performed at the building component level. As an

example, all instances of a specific window type will

be considered a unique building component but

share the same visual representation. For the

implementation and tests presented in this paper, no

additional processing of the input 3D-data has been

performed except organizing it in a bounding

volume hierarchy. In this hierarchy, leaf nodes

represent the individual building components. As

such, culling is performed at a granularity

corresponding to the individual building

components. However, hardware instancing is

performed at a level corresponding to the

geometrical entities that represent each component.

For the rest of this paper replicated components

that are suitable for hardware instancing are referred

to as instanceable. The specific geometry being

instanced is referred to as the geometry reference.

4 ALGORITHM OUTLINE

The proposed method consists of three main steps.

In order to give an overview of the algorithm all

three steps are briefly discussed below.

Determine Visible Instances. Using an efficient

occlusion culling system, we inherently have access

to the set of potentially visible objects in a certain

frame. Based on the assumption that hardware

instancing is the most efficient way to render

multiple copies of the same geometry, this set is

searched for replicated components. These objects

are then scheduled for rendering with hardware

instancing in the next frame.

Upload Required Data to GPU. Given a set of

visible objects to be rendered using hardware

instancing, per-instance data need to be uploaded to

the GPU. To reduce per-frame data transfer, an

indexed approach is used: During scene loading,

transformation matrices for all potential instances

are uploaded to the GPU. During rendering, only a

single index per instance needs to be transferred in

order to locate the corresponding transformation

matrix in GPU memory. Thus, at the end of each

frame, data in the form of indices is uploaded to the

GPU for processing during the next frame.

Render using Hardware Instancing. At the

beginning of each frame opaque instances collected

during the previous frame are rendered using

hardware instancing. However, for semi-transparent

geometry hardware instancing introduces

IntegratingOcclusionCullingandHardwareInstancingforEfficientReal-timeRenderingofBuildingInformationModels

199

complexities. As correct depth ordering no longer

can be maintained, an order-independent

transparency rendering technique (Everitt, 2001) is

needed to support hardware instancing of semi-

transparent geometry.

5 INTEGRATING OCCLUSION

CULLING AND HARDWARE

INSTANCING

As outlined, the general idea behind the proposed

method is to dynamically select candidates for

hardware instancing, based on visibility knowledge

provided by the occlusion culling system. For the

purpose of this, any efficient occlusion culling

algorithm can be used as long as it provides

visibility classification for all objects in a scene. For

the implementation and tests presented in this paper

the latest version of the Coherent Hierarchical

Culling algorithm, CHC++ has been used. This

choice is based on the simplicity of the algorithm

and the fact that it has already been proven to work

well when applied to large Building Information

Models. As such, it provides a good basis for further

enhancements. In the followings subsections the

details of the algorithm is presented, starting with a

review of the hardware instancing API together with

important aspects of the CHC++ algorithm.

5.1 Hardware Instancing API

Taking OpenGL as an example, the instancing API

extends the conventional draw call by exposing the

option to specify the number of times a particular

batch of geometry should be rendered. In the vertex

shader an internal counter (gl_InstanceID) is then

accessible which advances for each iteration. Using

the internal counter as an index, the per-instance

transformation matrix can then be sourced from any

type of previously uploaded array, texture or buffer

object. However, the arrangement of per-instance

data must reflect the fact that the internal counter

advances with a fixed step. In order to render a

specific set of instances with a single draw call, the

per-instance data must be arranged sequentially.

5.2 CHC++

The original CHC algorithm takes advantage of

spatial and temporal coherence in order to provide

efficient scheduling of hardware occlusion queries.

The state of visibility from the previous frame is

used to initiate queries in the current frame

(temporal coherence) and by organizing the scene in

a hierarchical structure (i.e. bounding volume

hierarchy) it is possible to test entire branches of the

scene with a single query (spatial coherence). While

traversing a scene in a front-to-back order, queries

are only issued for previously invisible interior

nodes and for previously visible leaf nodes of the

hierarchy. The state of visibility for previously

visible leaves is only updated for the next frame and

they are therefore rendered immediately (without

waiting for the query results to return). The state of

visibility for previously invisible interior nodes is

important for the current frame and they are not

further traversed until the query results return. By

interleaving the rendering of (previously) visible

objects with the issuing of queries, the algorithm

reduces idle time due to waiting for queries to

return.

Although the core ideas remain the same,

CHC++ introduced several optimizations which

make it perform very well even in situations with

low occlusion. Most notably, the improved version

addressed the problem of redundant state changes

due to the interleaved rendering and querying.

Instead of directly querying a node, it is appended to

a queue. When this queue reaches a certain size, the

rendering state is changed to querying and an

occlusion query is issued for each node in the queue.

In addition, this mechanism allows an application to

perform material sorting before rendering visible

objects in order to reduce costly API calls.

In order to reduce the number of queries, the

original CHC algorithm introduced an important

optimization based on temporal coherence - A

visible object is assumed to stay visible and will

only be tested for visibility again after a user-

specified amount of frames (typically 10-20). This

optimization, together with the assumption that

hardware instancing is the most efficient way to

render multiple copies of the same geometry, is the

entry-point for the proposed method. When an

object suitable for instancing is found visible, it is

scheduled to be rendered using hardware instancing

in the following frame.

5.3 Data Preparation

In a static situation, where the same set of instances

should be rendered every frame, per-instance data

can be uploaded to GPU-memory once, and then,

during subsequent draw calls, be fetched in the

vertex shader based on the value of the internal

instance counter. In the proposed approach,

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

200

however, a dynamic behaviour is needed in order to

support per-frame selection of which geometry to

render using hardware instancing. As per-instance

data needs to be arranged sequentially in order to

facilitate a single draw call per geometry reference,

this require complete or partial updates of the shared

buffer or texture every frame. In order to optimize

this process an indexed approach is used, as

explained visually in Figure 1. During scene loading,

transformation matrices for all instanceable objects

are collected and placed in a single array, denoted

M. The location of each instance’s transformation

matrix within this array is recorded for later use.

During rendering, a single index is then needed to

locate each instance’s transformation matrix within

M. For a 4x4 transformation matrix, this approach

effectively reduces the required data transfer by a

factor of 16. Both the index array (I) and matrix

array (M) are implemented as a Texture Buffer

Objects.

Figure 1: An array of indices (I) is used to locate each

instance’s transformation matrix, encoded in a single,

shared array (M).

5.4 Collecting Visible Instances

Depending on the occlusion culling algorithm of

use, the state of visibility for objects in a scene

might be known at different stages. For instance, the

GPU-based implementation of the Hierarchical Z

Buffer proposed by (Hill, 2011), resolves visibility

for all objects in a single phase in the beginning of a

frame. The CHC++ algorithm, on the other hand,

distributes this process by interleaving the rendering

of objects with the issuing of queries, effectively

delaying the complete visibility knowledge of a

scene towards the end of the frame. In order to cope

with different implementations and to provide

additional time for the required data transfer, the

rendering of instanceable geometry is deferred by

one frame. Thus, an object detected visible in frame

n will be scheduled for rendering using hardware

instancing in frame n+1. Figure 2 presents the

modifications to the original CHC++ algorithm that

is needed in order to implement this behavior. When

a node of the spatial hierarchy is found visible, the

TraverseNode function is called for its children (For

a complete picture of the algorithm the reader is

referred to the original CHC++ paper). During

traversal of an instanceable leaf node the algorithm

first checks if it is scheduled for rendering using

hardware instancing in the current frame. If this is

not the case it is rendered in a conventional way by

adding it to a render queue. In a second step, it is

scheduled for rendering using hardware instancing

in the next frame.

TraverseNode(N) {

if isLeaf(N) {

+ if isInstanceable(N) {

+ if N.nextInstFrameId != frameId {

+ Render(N);

+ }

+ EnqueueForInstInNextFrame(N);

+ N.nextInstFrameId = frameId + 1;

+ }

+ else {

Render(N);

+ }

}

else {

DistanceQueue.PushChildren(N);

N.IsVisible = false;

}

};

Figure 2: Pseudo-code for the collection of visible

instances. Difference to the CHC++ algorithm is marked

in blue.

5.5 Data Transfer

At the end of frame n, a set of objects suitable for

rendering using hardware instancing in frame n+1

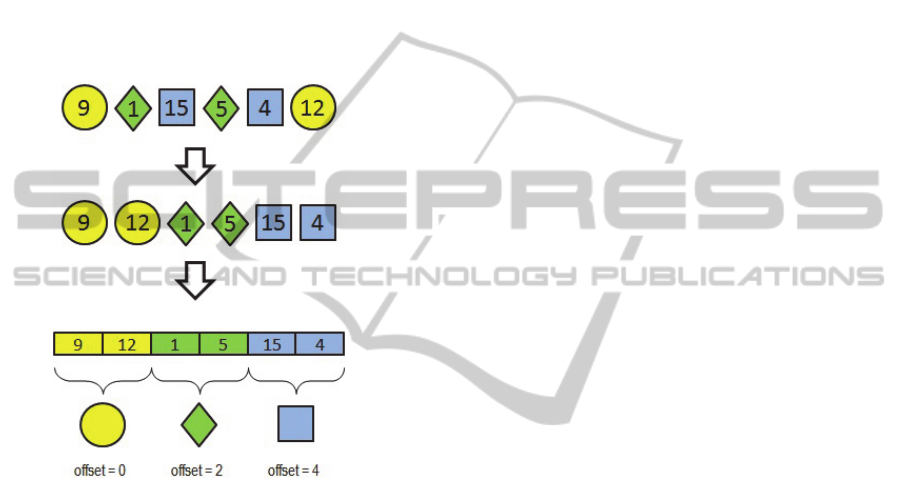

has been collected. As illustrated in Figure 3, this set

is sorted by geometry reference to generate a single

array of indices (I) to upload to GPU memory. Thus,

for m unique geometry references the array will

contain m regions of indices. Within each region, the

array is populated with indices corresponding to the

location of each instance’s transformation matrix in

M. While generating the array the offset to each

specific region is also recorded. This offset is needed

during rendering in order to use a single indices

array for all geometry references (Section 5.6).

During this stage, before the actual upload, the

minimum number of instances per geometry

reference is also considered. Geometry rendered

with hardware instancing uses a more complex

vertex shader and require additional data transfer,

which itself introduce a performance penalty. In

order to gain an increase in performance the

reduction of draw calls must reflect this. If the

IntegratingOcclusionCullingandHardwareInstancingforEfficientReal-timeRenderingofBuildingInformationModels

201

number of collected instances per geometry

reference is below a user-defined parameter, NImin,

they are not scheduled for instancing in the next

frame. Instead the parameter nextInstFrameId

(Figure 2) is set to zero on the corresponding objects

in order to render them using a non-instanced

approach in the next frame. For the different BIMs

evaluated in this paper (Section 6), empirical tests

have shown that a minimum requirement of three (3)

instances per geometry reference is a suitable

choice. However, ultimately, this parameter should

be set per geometry reference, taking number of

triangles into account.

Figure 3: Collected instances (top) are sorted by geometry

reference (middle) to generate the final index array and

corresponding offsets (bottom). The numbers (indices)

corresponds to the location of each instance’s

transformation matrix in M.

5.6 Rendering

As based on hardware occlusion queries, the CHC++

algorithm requires that visible objects are rendered

before occluded ones in order to properly detect

occlusion. Thus, in order to preserve the state of

visibility, opaque instances are rendered using

hardware instancing in a single single step at the

beginning of each frame. However, if the visibility

determination system is separated from the

conventional rendering, this step can be performed

at a later stage.

The actual rendering of all collected instances is

performed by a single draw call per geometry

reference. During this stage, the transformation

matrix array (M) and indices array (I) are bound to

the context. In Figure 4, GLSL code fragments from

the vertex shader are shown. Here, the internal

counter (gl_InstanceID) is used to fetch the current

index from the indices array (I). This index is then

used to locate the correct transformation matrix in

the transformation matrix array (M). However, when

invoking an instanced draw call, the internal counter

will start its iteration from zero (0). As a single array

is used for all indices an offset is required to define

which region to fetch values from. This offset is

recorded during the actual forming of the global

indices array (Section 5.5), and during rendering it is

supplied as a uniform per geometry reference.

uniform samplerBuffer M; //Matrices

uniform samplerBuffer I; //Indices

uniform int _offset;

void main()

{

//Fetch index by offset

int id = gl_InstanceID + _offset;

int idx =

int(texelFetchBuffer(I,id).x);

mat4 OT =

mat4(texelFetchBuffer(M,idx*4),

texelFetchBuffer(M,idx*4+1),

texelFetchBuffer(M,idx*4+2),

texelFetchBuffer(M,idx*4+3));

gl_Position =

gl_ModelViewProjectionMatrix *

OT * gl_Vertex;

//-------------------------------

//Other per-vertex calculations.

//-------------------------------

};

Figure 4: Vertex shader used for the instanced rendering

path (GLSL-code).

5.6.1 Semi-transparent Geometry

Using conventional methods, semi-transparent

geometry is rendered after opaque objects, in a back-

to-front order, using alpha blending (Akenine-

Möller et al., 2008). With hardware instancing

correct order among transparent objects can no

longer be preserved and, consequently, an order-

independent transparency rendering technique is

needed. A common technique within this category of

algorithms is depth peeling (Bavoil, 2008), where

transparent fragments are sorted by rendering the

geometry several times, peeling off one transparent

layer at a time. However, although accurate, the

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

202

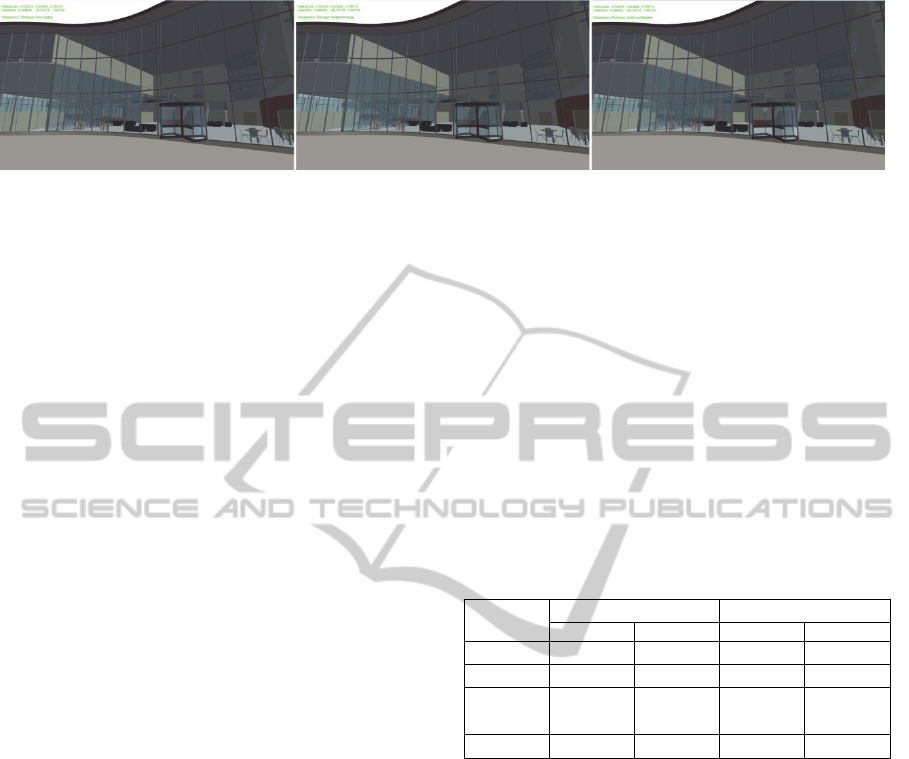

Figure 5: Transparency rendering modes: Depth peeling (left), Weighted average (middle) and sorted by object (right).

performance penalty of depth peeling is rather high

which makes it unsuitable in practice. As a

performance efficient alternative, a single pass

approximation of depth peeling is suggested in

(Bavoil, 2008). The technique, referred to as

weighted average transparency, calculates the final

color as the alpha-weighted sum of colors divided by

the average alpha. When blending pixels of equal

color and transparency, this technique produces

correct results. However, when colors and

transparency values differ too much, the result of the

weighted average technique starts to deviate in terms

of correctness compared to depth peeling. Still,

despite being an approximation, it works very well

for typical building models. As the use of

transparency and color for windows and glazed

structures is usually coherent within a building, the

technique produces plausible results. Even in

situations when many transparent layers are visible,

the difference between the correct and the

approximate method is hard to detect, as seen in

Figure 5.

In the proposed method, both instanced and non-

instanced semi-transparent geometry are rendered in

a final stage each frame. For the implementation and

tests the weighted average transparency technique

has been primarily used. However, in the results

section, the findings in terms of performance for the

depth peeling approach are also reported.

6 RESULTS

The proposed method has been tested on four

different Building Information Models. The models

were created in Autodesk Revit 2012, and all four

represents planned or existing buildings (see Table 2

and 3 for detailed information). For all of the tests an

Intel Core i7 3.07 GHz CPU and an Nvidia GeForce

570 GTX graphics card was used. The CHC++

occlusion culling algorithm was used together with a

bounding volume hierarchy built according to the

surface area heuristics (Macdonald, 1990), and the

screen resolution was set to 1280 x 720. Unless

otherwise stated, the following parameters were

used: maximum triangle count for instancing

Tmax=3000, assumed visible frames Nav=20,

minimum number of instances NImin=3. The

weighted average technique (WA) was used for

rendering semi-transparent geometry when hardware

instancing (HI) was activated. Without instancing

activated semi-transparent geometry was rendered

using a conventional sort-by-object approach

(SORT). However, for the Hotel model the

performance numbers with depth peeling (DP) is

also presented.

Table 1: Frame times (in ms) for view-frustum culling

(VFC) and occlusion culling (CHC++) for one exterior

and one interior viewpoint for each of the four test models.

Scene

INTERIOR EXTERIOR

VFC CHC++ VFC CHC++

Library 13.1 1.9 17.2 7.5

Hospital 26.6 1.1 37.8 18.8

Student

Housing

40.1 1.2 68.2 11.3

Hotel 56.3 1.4 130.2 47.8

The CHC++ algorithm has previously been

found to perform very well compared to only using

view frustum culling for typical BIMs. These

findings were confirmed for all of the test-models.

Table 1 presents a comparison of frame times for

one interior (highly occluded) and one exterior

(same as seen in the screenshots in Table 2 and 3)

viewpoint for each of the four models. As can be

seen, the CHC++ algorithm provides a significant

speedup, especially for the interior viewpoints.

Given this, subsequent tests were focused on the

worst case scenarios provided by the test models -

viewpoints when many objects are visible. In such

situations the sheer number of objects that has to be

rendered becomes the limiting factor in terms of

performance. For all test models these scenarios

were found in exterior viewpoints and a set of

camera paths were constructed accordingly. These

walkthroughs represents the worst case scenarios in

terms of rendering performance when only occlusion

culling was enabled. Table 2 (left) presents the

IntegratingOcclusionCullingandHardwareInstancingforEfficientReal-timeRenderingofBuildingInformationModels

203

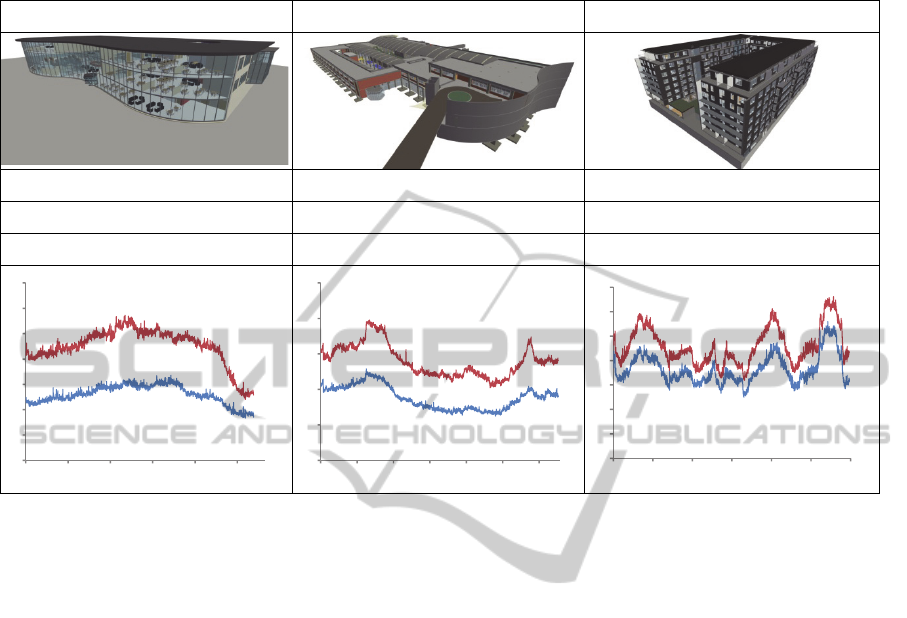

Table 2: Statistics for three of the test models and frame times for the proposed approach with occlusion culling (CHC++),

hardware instancing (HI) and weighted average transparency (WA) compared to occlusion culling (CHC++) and

conventional sort-by-object transparency (SORT) for the predefined walkthroughs.

LIBRARY HOSPITAL STUDENT HOUSING

3,291,869 triangles 1,561,972 triangles 10,857,175 triangles

7,312 objects 18,530 objects 17,666 objects

11,195 geometry batches 22,265 geometry batches 33,455 geometry batches

frame times with and without hardware instancing

enabled for the Library model. This model features a

large glazing façade and consequently, many interior

objects are visible at the same time when viewed

from the outside. Here, the camera path provides an

orbital camera movement from one side of the

building to the other, while facing the center of the

building. Compared to only using occlusion culling,

the proposed method provides an average speed-up

of 1.7x during this walkthrough. For the Hotel

model the results are similar (Table 3). However, in

this case the number of visible objects is mainly a

result of a vast façade composed by many replicated

windows, curtain wall elements and façade stones.

The walkthrough sequence is similar as for the

Library model, however, in the end interior, more

occluded regions of the building are also visited.

During these viewpoints the number of visible

instanceable objects is low and, hence, few or none

of them are rendered using hardware instancing.

Still, in such viewpoints the occlusion culling

system alone is able to deliver high performance and

the important thing to note is that the proposed

method only introduces a slight overhead, noticeable

only in terms of relative numbers. For the non-

interior parts of the walkthrough sequence an

average speed-up of 1.7x was achieved with

hardware instancing.

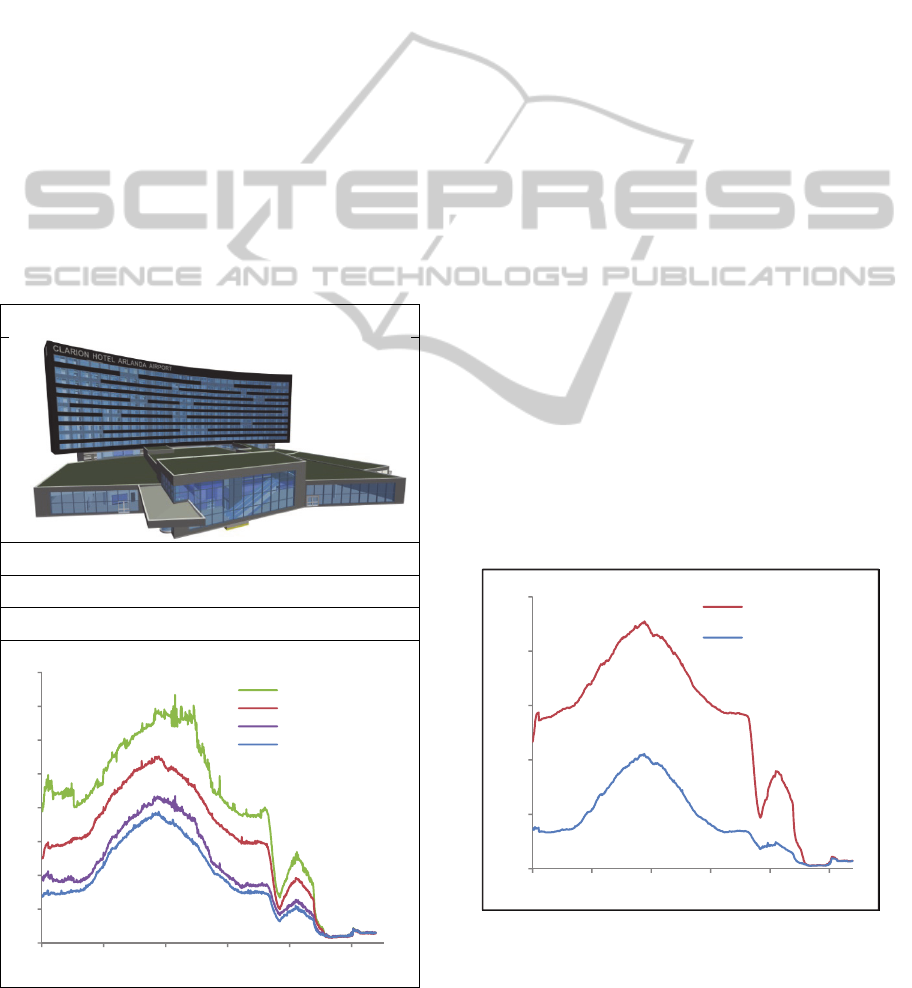

Table 3 also presents the performance results

with depth peeling (DP). This approach guarantees a

correct results but the performance penalty is higher

compared to the weighted average technique.

Nevertheless, compared to conventional sorting

(SORT) a 1.5x speed-up was still achieved with

instancing. On the other hand, when depth peeling

was used in both cases (instanced and non-

instanced) the average speed-up was almost 2x.

Figure 6 presents the number of draw calls with

and without hardware instancing enabled for the

Hotel model. This plot reveals the source of the

performance gain. As can be seen, the numbers of

draw calls are greatly reduced and, as a

consequence, the performance is increased.

Table 2 also presents the performance numbers

for the Hospital (middle) and Student Housing

model (right). For the Hospital model an average

speed-up of 1.6x is achieved with instancing. For the

Student Housing model the performance gain of the

proposed method is more moderate. Although an

average speed-up of 1.25x is achieved, it is less than

expected considering the model still has a fairly

large amount of replicated components. However,

compared to the other models, the animation

sequence for the Student Housing model does not

feature viewpoints equally beneficial in terms of

instancing. First, the relative amount of visible

1 301 601 901 1201 1501

CHC++ | SORT

CHC++ | HI | WA

TIME (ms)

FRAMES

1 301 601 901 1201 1501 1801

CHC++ | SORT

CHC++ | HI | WA

TIME (ms)

FRAMES

1 501 1001 1501 2001 2501

CHC++ | SORT

CHC++ | HI | WA

TIME (ms)

FRAMES

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

204

replicated geometry is not as high and, second, the

number of different geometry references is higher.

7 CONCLUSIONS

This paper has presented a simple, yet efficient

approach for integrating occlusion culling and

hardware instancing. Compared to only using

occlusion culling, average speed-ups of 1.25x – 1.7x

were achieved for all test models in viewpoints

where many objects are visible. Without dynamic

hardware instancing activated, these viewpoints

represents the

worst case scenarios in terms of

rendering performance.

Table 3: Statistics for the Hotel model and frame times for

the proposed approach with occlusion culling (CHC++),

hardware instancing (HI) and weighted average

transparency (WA) compared to occlusion culling

(CHC++) and conventional sort-by-object transparency

(SORT) for the predefined walkthrough. In addition, the

frame times for depth peeling (DP) are presented.

HOTEL

6,176,072 triangles

41,899 objects

62,624 geometry batches

The only aspect to consider a limitation is the

requirement of an order-independent transparency

rendering technique for semi-transparent geometry.

A simple solution to remove this restriction would

be to skip the use of hardware instancing for

transparent geometry. Still, such geometry often

possesses characteristics suitable for hardware

instancing, which makes them tempting to include.

For the tested models the weighted average

technique was found to provide plausible results

with high performance. In addition, depth peeling

was shown to provide a viable option if a fully

correct result is important.

For future work it would be interesting to test the

proposed method together with other occlusion

culling algorithms. The CHC++, although efficient,

tightly integrates visibility determination and actual

rendering of geometry. This puts restrictions on

when collection, upload and rendering of instanced

geometry can be performed. If these restrictions

were relaxed, it is possible that a more efficient

implementation of hardware instancing could be

achieved.

Another area of further investigations would be

the parameters NImin (minimum number of

instances per geometry reference) and Tmax

(maximum number of triangles for instanced

geometries) for different scenes and hardware

setups. Although the results show that uniform

values for these parameters works in practice, it is

likely that the performance could be further

enhanced by letting NImin depend on triangle count

(i.e. demanding a higher instance count for

geometries with many triangles).

Figure 6: Number of draw calls with and without hardware

instancing for the Hotel model.

1 201 401 601 801 1001

TIME (ms)

FRAMES

CHC++ | DP

CHC++ | SORT

CHC++ | HI | DP

CHC++ | HI | WA

5000

10000

15000

20000

25000

1 201 401 601 801 1001

CHC++ | SORT

CHC++ | HI | WA

FRAMES

NUM. DRAW CALLS

IntegratingOcclusionCullingandHardwareInstancingforEfficientReal-timeRenderingofBuildingInformationModels

205

REFERENCES

Akenine-Möller, T., Haines, E., Hoffman, N. (2008). Real-

Time Rendering 3rd Edition. A. K. Peters, Ltd.,

Natick, MA, USA.

Bao, G., Li, H., Zhang, X., Dong, W. (2012). Large-scale

forest rendering: Real-time, realistic, and progressive.

Computers & Graphics, Vol. 36, Issue 3, Pages 140-

151.

Bavoil, L., Myers, K. (2008). Order Independent

Transparency with Dual Depth Peeling. Tech. rep.,

NVIDIA Corporation.

Bittner, J., Wimmer, M., Piringer, H., Purgathofer,

W.(2004). Coherent Hierarchical Culling: Hardware

Occlusion Queries Made Useful. Computer Graphics

Forum 23, 3, pages 615–624.

Bittner, J., Wonka, P. (2003). Visibility in Computer

Graphics. Environment and Planning B: Planning and

Design 30, 5, pages 729–756.

Buchholz, H., Döllner, J. (2005). View-Dependent

Rendering of Multiresolution Texture-Atlases.

Proceedings of the IEEE Visualization 2005,

Minneapolis, USA.

Cohen-Or, D., Chrysanthou, Y. L., Silva, C. T., Durand F.

(2003). A Survey of Visibility for Walkthrough

Applications. In IEEE Transactions on Visualization

and Computer Graphics 09, 3, pages 412–431.

Dudash, B. (2007). Animated crowd rendering. In GPU

Gems 3. Addison-Wesley, pages 39–52.

Eastman, C., Teicholz, P., Sacks, R., Liston, K. (2011)

BIM Handbook (2nd Edition) A guide to building

information modeling for owners, managers,

designers, engineers and contractors, John Wiley &

Sons, New Jersey.

Everitt, C. (2001). Interactive Order-Independent

Transparency. Tech. rep., NVIDIA Corporation.

Greene, N., Kass, M., Miller, G. (1993). Hierarchical

ZBuffer Visibility. In SIGGRAPH ’93, pages 231–238.

Guthe, M., Balazs, A., Klein, R. (2006). Near Optimal

Hierarchical Culling: Performance Driven Use of

Hardware Occlusion Queries. In Eurographics

Symposium on Rendering 2006.

Hill, S., Collin, D. (2011). Practical, Dynamic Visibility

for Games. In Gpu Pro 2.

Johansson, M., Roupé, M. (2012). Real-Time Rendering

of large Building Information Models. In proceedings

of CAADRIA 2012 - Beyond Codes & Pixels, pages

647-656.

Macdonald, J. D., Booth, K. S. (1990). Heuristics for ray

tracing using space subdivision. Visual Computer 6, 6,

pages 153–65.

Mattausch, O., Bittner, J., Wimmer, M. (2008). CHC++:

Coherent Hierarchical Culling Revisited. Computer

Graphics Forum (Proceedings Eurographics 2008)

27, 2, pages 221–230.

Park, H., Han, J. (2009). Fast Rendering of Large Crowds

Using GPU. In Entertainment Computing - ICEC 2008

(Lecture Notes in Computer Science, 5309), pages

197-202.

Ramos, F., Ripolles, O., Chover, M. (2012). Continuous

Level of Detail for Large Scale Rendering of 3D

Animated Polygonal Models. In Articulated Motion

and Deformable Objects (Lecture Notes in Computer

Science, 7378), pages 194-203.

Sacks, R., Eastman, C. M., Lee, G. (2004). Parametric 3D

modeling in building construction with examples from

precast concrete. In Automation in Construction 13,

pages 291– 312.

Steel, J., Drogemuller, R., Toth, B. (2012). Model

interoperability in building information modelling. In

Software and Systems Modeling, 11, 1, pages 99-109.

Wloka, M. (2003). Batch, Batch, Batch: What Does It

Really Mean? Presentation at Game Developers

Conference 2003.

GRAPP2013-InternationalConferenceonComputerGraphicsTheoryandApplications

206
