Tool Support for the Evaluation of Matching Algorithms

in the Eclipse Modeling Framework

Sabrina Uhrig and Felix Schw

agerl

Applied Computer Science 1, University of Bayreuth, Universit

atsstr. 30, 95440 Bayreuth, Germany

Keywords:

EMF Models, Model Comparison, Matching Algorithms, Evaluation.

Abstract:

In the ﬁeld of model-driven development, sophisticated support for comparing model versions is urgently

needed. Unfortunately, algorithms for model matching have been rarely evaluated so far. This paper deals with

two extensions to the Eclipse Modeling Framework (EMF) that facilitate the evaluation of matching algorithms

for EMF models, with the goal to combine user involvement and automated testing in the evaluation process.

First a tree editor is presented that allows for the manual and semi-automated creation of match models which

formalize the intended matching result. Second a benchmarking procedure is implemented which – given

the intended match and the actual results of matching algorithms – automatically derives the number of α

and β errors in a target-performance comparison. These results are valuable for drawing conclusions about

the speciﬁc qualities of matching algorithms or for ﬁnding an adequate set of parameters for a conﬁgurable

algorithm.

1 INTRODUCTION

Models play a more and more important role in con-

temporary software engineering processes. Particu-

larly in the ﬁeld of model-driven development many

different versions of models are created before the

software is deployed. Therefore reliable comparison

tools for models are needed to identify the differences

between two versions, which may serve as a basis for

merging, for tracing the evolution of the models or for

maintenance.

Usually the comparison of two models consists

of two steps, the identiﬁcation of the corresponding

model elements and the derivation of the differences

based on the computed correspondences. With EMF

Compare (Brun and Pierantonio, 2008), the Eclipse

Modeling Framework (Steinberg et al., 2009) realizes

a model-based approach for the comparison of EMF

models

. For a 2-way comparison, the correspond-

ing elements are determined by a match engine and

stored as an EMF Compare match model. Then a diff

engine is used to derive the resulting differences as a

diff model. These can be visualized in the EMF Com-

pare editor.

Our research focuses on algorithms for the ﬁrst

step – the matching of model elements – that do not

rely on unique object identiﬁers but use strategies

http://www.eclipse.org/emf/compare/

such as edit distance or similarity for the identiﬁcation

of corresponding model elements. In (Uhrig, 2011)

different kinds of matching algorithms have been de-

scribed that are conﬁgurable and can be alternatively

used instead of the EMF Compare match engine. Be-

yond the correctness of the results of each single al-

gorithm, which has to be veriﬁed, we are faced with

the additional problem that different matching algo-

rithms may compute different correct solutions (see

example in section 4). This paper addresses the evalu-

ation of these different matching results as the quality

of the results may be judged differently by the user.

As EMF Compare does not provide any support for

measuring or benchmarking comparison results, this

paper contributes two tools based on the Eclipse Mod-

eling Framework which enable the evaluation of the

different matching algorithms for EMF models, in or-

der to ﬁnd the preferred matching algorithm and – if it

is conﬁgurable – the desired parameter conﬁguration.

The rest of this paper is structured as follows: Sec-

tions 2 and 3 cover related work and our contribution.

Next we provide an overview of the evaluation pro-

cess and on how the tools interact with EMF. Sections

5 and 6 deal with the implementation and usage of the

manual match editor and and the benchmarking tool.

After a case study in section 7, section 8 concludes

with a short outlook on current and future research.

101

Uhrig S. and Schwägerl F..

Tool Support for the Evaluation of Matching Algorithms in the Eclipse Modeling Framework.

DOI: 10.5220/0004310801010110

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 101-110

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

Although there exist several approaches for model

matching or model comparison

(Brun and Pieranto-

nio, 2008; Kelter et al., 2005; Lin et al., 2007; Uhrig,

2011; van den Brand et al., 2010), there are few

benchmark studies available which compare various

algorithms with respect to the quality of the results.

Existing evaluation studies are often limited to the ap-

proach presented by the authors, e.g. (Kelter et al.,

2005). The authors in (van den Brand et al., 2011)

compare their own algorithm to only one other ap-

proach (Brun and Pierantonio, 2008). The case study

in (Kolovos et al., 2009) considers various approaches

but contains few examples.

In our opinion, this gap can be put down to the fol-

lowing reasons: On one hand, the implementation of

some of the approaches is not available or operates on

internal data formats different from EMF Compare.

On the other hand, the qualitative evaluation is im-

peded by the high effort coming with the manual re-

view of the results. An automated evaluation is only

possible if the used test sets consist of the input mod-

els to compare and the intended output, i.e. the match

models for each pair of input models.

When modeling real-world examples, one pos-

sibility to obtain intended match models is record-

ing the user’s changes on the input model(s) in or-

der to trace corresponding model elements. Un-

fortunately, the majority of modeling environments,

including generated EMF editors, do not include a

change-recording mechanism initially. Consequently,

it must be plugged into existing tools (Herrmannsdo-

erfer and Koegel, 2010) or new editors with change-

recording support must be provided. As an automa-

tion for change-recording, several model generators

have been implemented which are designed for dif-

ferent purposes. The Ecore Mutator in the AMOR

project

addresses the evaluation of model differenc-

ing and merging. The model generators described in

(Pietsch et al., 2012) and (van den Brand et al., 2011)

are designed for the evaluation of model differencing.

Another way for obtaining intended match models is

the construction of the intended output models by the

user/developer, as realized in (van den Brand et al.,

2011), which seems to be the preferred method when

real-world examples without edit-history should be

used or if an edit-history independent interpretation

of the changes is desired.

With the manual construction of the intended

(diff) models and the method of counting the errors

of the computed differences, the approach in (van den

which include the step of model matching implicitly

http://www.modelversioning.org/

Brand et al., 2011) is the closest to our work presented

in this paper. We refer to section 6.1 for a detailed

comparison of the two evaluation algorithms and just

discuss the main issue, the different starting points,

here: In (van den Brand et al., 2011), the result of

the difference calculation is evaluated, whereas our

approach compares the resulting match models with

an intended match model. We consider the evalua-

tion of the used match and diff engines in the ﬁrst and

the second step of model comparison as separate con-

cerns, as it is possible to deduce different diff models

from the same match model by using different edit op-

erations (e.g. composed operations such as move and

copy instead of atomic operations). This is also the

point in which our evaluation approach differs from

the other benchmarking strategies mentioned above.

3 CONTRIBUTION

The evaluation approach we present combines user

involvement and automated testing and has been im-

plemented by two tools: The ﬁrst tool, a tree editor

for EMF Compare match models, permits the manual

construction of intended match models, which – to-

gether with the models to compare – form a test set.

The second tool compares actual match models to the

intended match models

. Our approach considers the

following aspects:

Match-based Error Calculation. Our qualitative

evaluation addresses the match models computed

by matching algorithms, which are the basis for

the ensuing deduction of differences in the second

step of model comparison, and for the merging of

models.

State-based Evaluation. We only take the actual

states of the models into account instead of trans-

forming the recorded edit operations into the in-

tended match model. The fact that state-based

differences may differ from history-based differ-

ences has been discussed earlier in the context

of unique object identiﬁers (Ohst, 2004; Uhrig,

2011).

User Involvement. The manual match editor intro-

duces user involvement into the evaluation pro-

cess. This leads to extended evaluation capabil-

ities as realistic test models for which no edit-

history is available can be handled, too.

Construction of Match Model. The user is ex-

pected to model the intended match himself

This step does not require another match based model

comparison, as only identical match elements have to be

identiﬁed for the automated calculation of errors

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

102

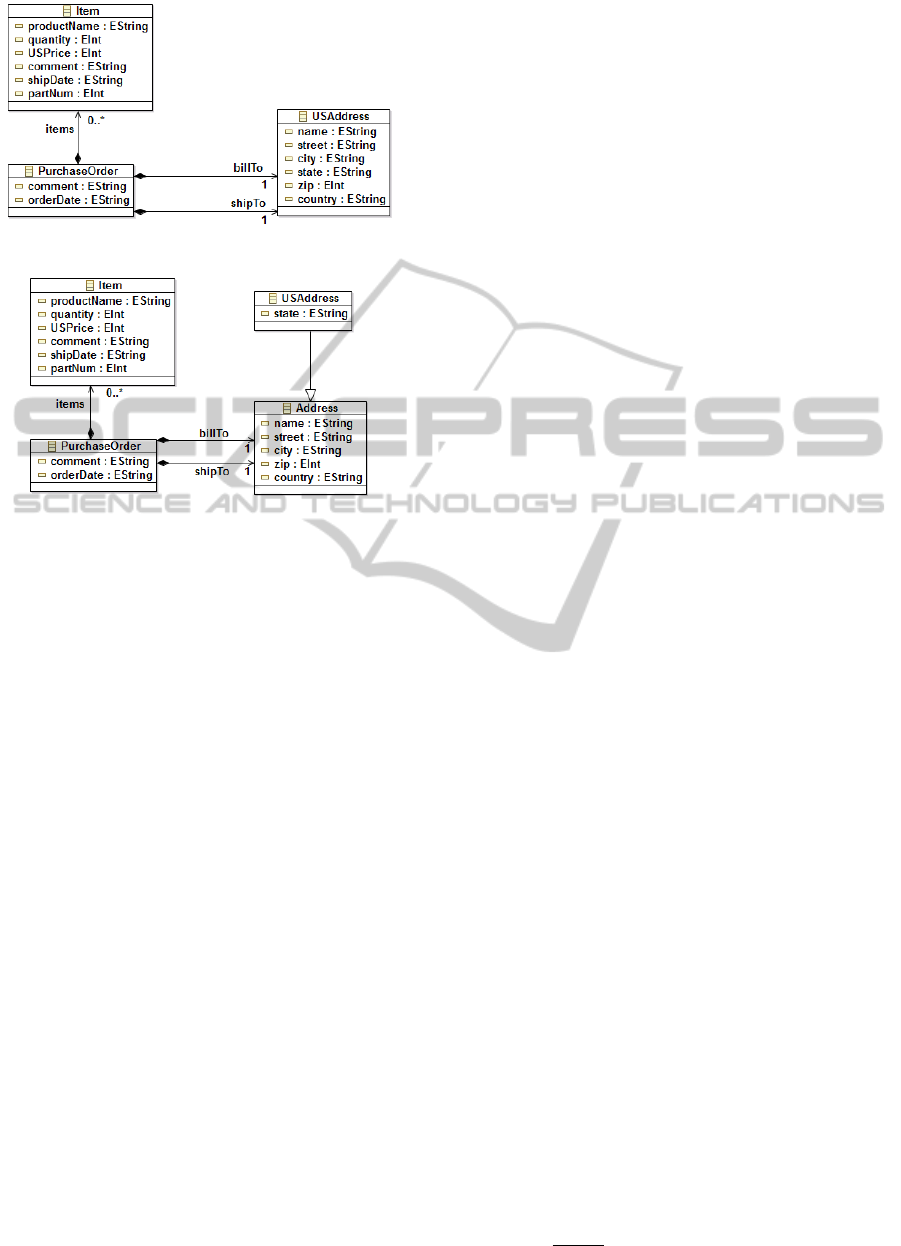

Figure 1: Ecore class diagram A.

Figure 2: Ecore class diagram B.

from scratch. So we assume to get more reliable

solutions than by reviewing existing solutions

as the user is not inﬂuenced by the presented

suggestions.

Semi-automated Matching. The manual match ed-

itor provides semi-automated sub-tree matching

procedures in order to reduce the effort for the

creation of the intended match model. This is re-

commended especially in the case of large models

with minor changes.

Automated Error Calculation. The manually de-

ﬁned match model can be used for the benchmark-

ing of several algorithms without the need for re-

peated manual reviews, as error calculation itself

is completely automated.

4 TOOL OVERVIEW

As mentioned in the introduction, the comparison of

a pair of models consists of two steps. In the match-

ing step, corresponding elements are identiﬁed for the

given model versions. Two elements correspond if

they are equal or sufﬁciently similar in the view of the

matching algorithm used (or the user). In the differ-

encing step, change operations describing the differ-

ences are derived: Elements which do not correspond

to another element have been deleted or created. Fur-

ther the details of each pair of corresponding elements

are compared in order to identify change operations

like name changes. The fact that the derived model

difference will vary depending on the computed cor-

respondences is demonstrated by example 4.1.

4.1 Example

Figures 1 and 2 show two versions of an Ecore

class diagram which models the well-known pur-

chase order example in (Steinberg et al., 2009,

p. 70). It is obvious that the classes Item/Item

and PurchaseOrder/PurchaseOrder correspond,

respectively. So two options for the class USAddress

remain: If the class USAddress in Version A is

matched with Address in version B, we get the fol-

lowing differences: the name change of the class

Address to USAddress, the insertion of the attribute

state and the deletion of the class USAddress. If

we match both USAddress classes instead, we get the

deletion of the class Address, change of the targets

of the references shipTo and billTo and the inser-

tion of the attributes name, street, city, zip and

country into the class USAddress.

4.2 Proposed Workﬂow

Figure 3 illustrates the workﬂow that we propose for

the evaluation of two algorithms A and B against a

manual match model on the basis of the model pair

E1.ecore and E2.ecore. Any matching algorithm

that produces its result as an EMF Compare match

model can be plugged into the framework. For the

modeling of the intended match, which serves as a ref-

erence for the results of the two algorithms, the user

is provided with the manual match editor described

in section 5.3. The match models obtained from both

the algorithms and the manual match editor are con-

verted into diff models using the EMF Compare diff

engine. The result, a model difference, is serialized in

an EMF diff resource together with its match model.

In the evaluation step, the results of the algorithms

(these are the actual match models in ﬁgure 3) are

compared to the model that has been chosen as the in-

tended match model (e.g. the manually created match

model). Resulting false positive and false negative er-

rors are collected in a CSV ﬁle (comma separated val-

ues) which can be used as a basis for further statistical

investigations.

While the workﬂow described above only deals

with the comparison of one single pair of Ecore mod-

els with two algorithms, we assume that a pairwise

comparison of a number N of Ecore models with a

number A of matching algorithms shall be performed.

In sum, A ·

N(N−1)

match models are computed. In-

ToolSupportfortheEvaluationofMatchingAlgorithmsintheEclipseModelingFramework

103

EMF Compare Diff Engine

E1.ecore

Input Models

Matching Differencing

Manual Match Editor

manual.match

Evaluation

Evaluation Tool

eval.csv

Manual.emfdiff

A.emfdiff

B.emfdiff

Matching Algorithm A

Matching Algorithm B

Intended

Match Model

Actual

Match Model

Actual

Match Model

Match

Match Diff

Diff

Match Diff

Match

E2.ecore

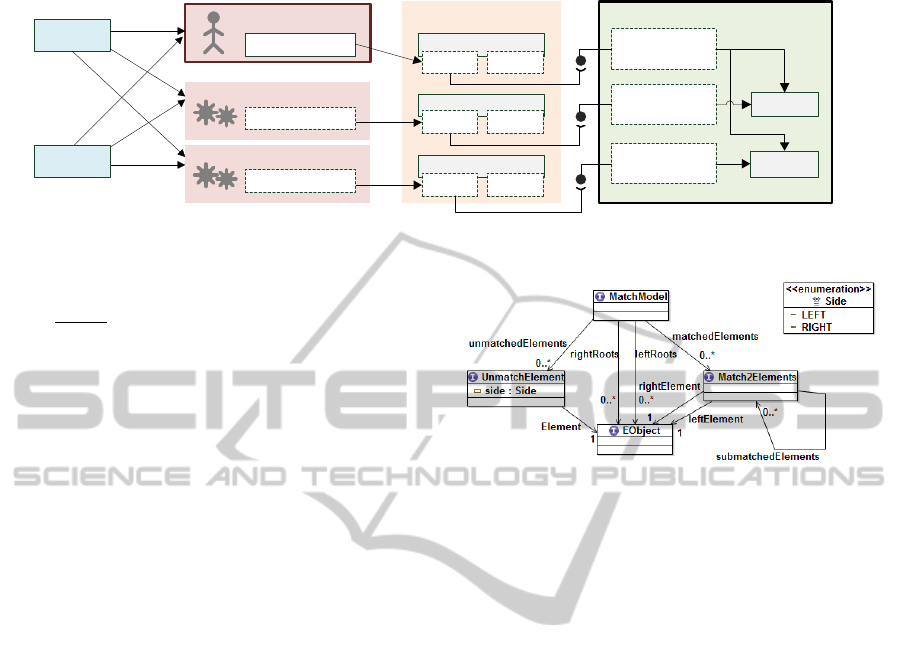

Figure 3: Comparing two Ecore models with two matching algorithms and evaluating the results versus a manually created

match model.

volving the user in all cases requires the manual cre-

ation of

N(N−1)

additional match models.

Although we propose to create the intended match

model manually from scratch for the reasons we dis-

cussed in section 3, the tools presented in this paper

also support other workﬂows: It is possible to se-

lect the result of a matching algorithm as the intended

model, to edit generated match models in the manual

match editor in order to obtain the intended model or

to support the modeling from scratch with the help of

semi-automated sub-tree matching procedures.

5 THE MANUAL MATCH EDITOR

In order to save the corresponding elements found by

the user, a match model has to be created. As the

Eclipse Modeling Framework does not provide an ed-

itor for match models, the implementation of a user

interface for the creation and editing of match models

was necessary.

5.1 EMF Compare Match Metamodel

In the Eclipse Modeling Framework the results of

a matching procedure are stored in a match model

which conforms to the EMF Compare match meta-

model shown in ﬁgure 4. A MatchModel consists of

a set of match elements that link corresponding ob-

jects of the compared models. We focus on 2-way

matches which are represented by the model class

Match2Elements. It connects two arbitrary EMF

model objects (EObject) from the left and right input

model by the leftElement and rightElement ref-

erences. The matches are organized in a containment

tree by the submatchedElements self-reference. The

hierarchy of match elements must conform to the hi-

erarchy of the models to match. Furthermore, a match

model contains a set of instances of UnmatchElement

of both models. These elements refer to model ob-

Figure 4: EMF Compare match metamodel (simpliﬁed).

jects that cannot be assigned a corresponding element

on the opposite side. The attribute side describes

whether the referenced model element is contained in

the left or in the right model.

5.2 Implementation Approach

The fact that the EMF Compare match metamodel

was available led us to the development of the user

interface in a model-driven way. In (Steinberg et al.,

2009, part 3) the generation of Java source code for

tree editors based on existing EMF metamodels is de-

scribed. The generated code comprises three plug-ins

model, edit and editor. We customized these plug-ins

in order to provide the user with a familiar interface

and to preserve the consistency of the match model

while he/she builds up the matching tree from scratch.

The generated edit plugin controls aspects of

representation and manipulation of model instances.

Classes of this plug-in have been customized in order

to constrain or adapt the editing operations on corre-

sponding models. In order to display match elements

in a way the user is familiar with (e.g. icons and labels

of tree nodes), we obtain an item provider speciﬁc to

the metamodel of input models from the global EMF

registry. This mechanism does not require any “hard-

wired” domain-speciﬁc conﬁguration.

The editor plug-in provides a preliminary user in-

terface in the form of a tree-based editor that we used

as a basis for further customizations.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

104

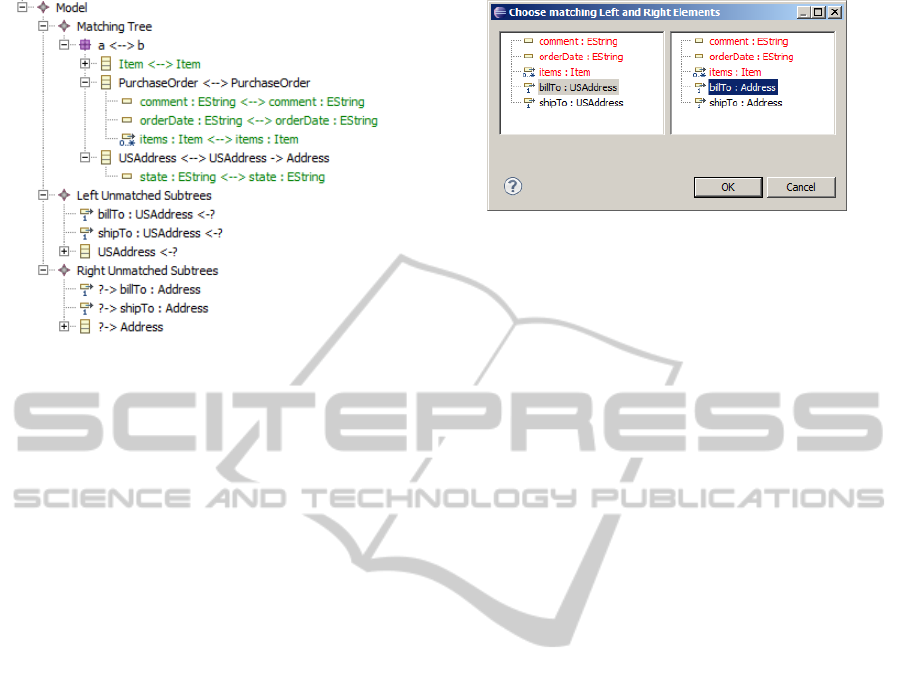

Figure 5: The manual match editor’s main pane.

5.3 Usage of the Customized Editor

The manual match editor facilitates the process of

user-deﬁned matching in two ways. On the one hand,

it can be used to build match models from scratch.

On the other hand, it allows for the manipulation of

existing match models.

5.3.1 Creating a Match Model from Scratch

The generated EMF tree editor requires an instance

of MatchModel as the root of the editable tree. A

customized wizard asks the user for a left and a

right resource containing valid EMF models. After-

wards, the user has to select a root object from each

input model, which will result in the creation of a

top-level Match2Elements instance. Each other ob-

ject part of the left or right model is added to the

unmatchedElements set automatically, assigning its

corresponding Side. The created model is persisted

within a .match resource when the wizard is closed.

5.3.2 Extracting Matches from EMF Diffs

Typically, match models are part of an EMF diff re-

source which results from a two-step model com-

parison including matching and differencing. In or-

der to allow for the manipulation of existing match

models, a .match ﬁle can be extracted from a valid

.emfdiff resource using the respective context menu

entry. This is the recommended procedure in case

there exists a nearly optimal matching result that only

requires minor modiﬁcations.

5.3.3 Synthesizing a Match Model

A screenshot of the manual match editor is given in

Figure 5. In its tree representation, the match model

Figure 6: Selecting a pair of corresponding model elements

in a dialog.

is grouped by three additional top-level nodes, con-

taining the current Matching Tree and the Unmatched

Elements of the left and right side. The Matching

Tree’s content is given by the currently edited match

model. For reasons of clarity and in order to facilitate

the identiﬁcation of pairs of corresponding model ele-

ments, the contents of the Unmatched Elements nodes

are not displayed as a list, which is the default in the

EMF Compare match metamodel, but as a sequence

of sub-trees.

The matching tree itself is to be synthesized by

the user step by step. For this purpose, the user

can double-click on an existing parent match ele-

ment, where a new pair of corresponding child ele-

ments shall be inserted. The subsequent dialog lets

the user choose a pair of objects from the left and

right input models (cf. Figure 6). In order to pre-

serve the hierarchy, these must be either directly or

indirectly contained by the respective parent match

element. Accordingly, the user’s choice is restricted

to the sub-trees of the left and right parents, i.e. the

editor takes care that the created match model will be

valid. Elements of different hierarchical levels can be

matched, which will result in the detection of move

operations by the EMF Compare diff engine. In ad-

dition, a red coloring of objects that are already part

of another match element facilitates the identiﬁcation

of unmatched elements and prevents the user from

matching an element twice by mistake.

Having selected a pair of objects, a corresponding

instance of Match2Elements is inserted as child ele-

ment of the selected parent and shown in the editable

tree. At the same time, corresponding entries are

deleted from the Left and Right Unmatched Subtrees

nodes in order to ensure the consistency of the overall

match model. Conversely, unmatched elements are

re-added when matches are deleted by the user. For

the purpose of consistency, the direct manipulation of

unmatched subtrees has been prohibited, too.

ToolSupportfortheEvaluationofMatchingAlgorithmsintheEclipseModelingFramework

105

5.3.4 Semi-automated Matching

Further customizations of the generated editor code

facilitate the editing of match models. To begin with,

the user is notiﬁed by a green coloring of match ele-

ments in the main pane when the corresponding map-

ping is “complete”. This transitive property is true

when under a given match element, all direct or in-

direct child elements of the left and right referenced

model elements are already matched.

Another method of convenience was added in or-

der to avoid the need of insertion of “trivial” match

elements. For a sub-tree, an automated matching of

child elements with pairwise identical labels can be

invoked recursively by an extra context menu entry.

This reduces the effort for a slightly differing model

pair but should not be used without manual review by

the user.

5.3.5 Exporting the Match Model

When the editing of the match model has been ﬁn-

ished by the user, he/she can export the results using

the respective context menu entry. Both match and

derived diff are serialized inside an EMF diff resource

which is needed for the subsequent evaluation steps.

Besides exporting an .emfdiff, the user can inspect

the comparison result in the EMF Compare editor.

6 BENCHMARKING MATCHING

ALGORITHMS

In order to measure the qualities of different matching

algorithms, we need procedures that benchmark their

results. According to our deﬁnition, benchmarking

matching algorithms means counting the number of

errors in the resulting match models for each of them.

Our evaluation tool comprises support for both the

execution of matching algorithms and the calculation

of a score which counts the number of errors in their

results, compared to the intended result. Both proce-

dures run subsequently in a batch environment, com-

paring a number of pairs of EMF based input models

using selected matching algorithms which are typi-

cally implemented by so called match engines. The

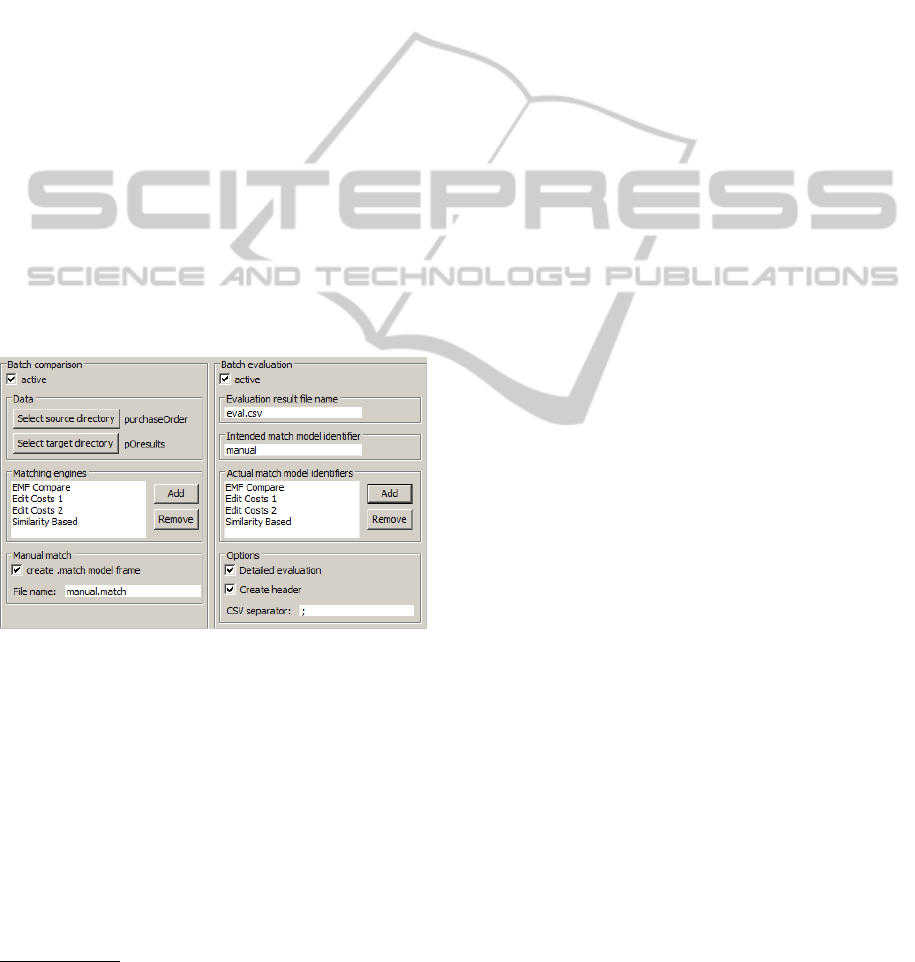

user can control and parametrize the overall process

in a graphical interface.

6.1 Computation of Errors

Before considering batch procedures, let us present

the algorithm which calculates the number of errors,

given an actual and an intended match model that both

refer to the same pair of input models. In the follow-

ing, M states the intended match model, which may

have been modeled manually by the user, and M

rep-

resents a match model which is the actual result cal-

culated by a matching algorithm. As in (Kappel et al.,

2007), a match element that is contained in M

but

not in M is regarded as false positive (α error). Each

match element in the intended model that is not con-

tained in the resulting model is a false negative (β er-

ror). Given an actual match model M

and an intended

match model M, the basic idea how the numbers of

false positive errors α and false negative errors β are

calculated is described in the following:

1. α := 0, β := 0.

2. For each match element m from the M

matching

tree:

(a) If M contains a match element that targets the

same pair of left and right model elements as m,

continue.

(b) Else, α := α +1.

3. For each match element n from the M matching

tree:

(a) If M

contains a match element that targets the

same pair of left and right model elements as n,

continue.

(b) Else, β := β +1.

4. return α, β.

In the actual implementation, we reduced the

number of comparison steps by linearizing both

matching trees into lists of match elements that are

additionally grouped by metamodel classes

. After

having identiﬁed two identical match elements in step

2, these are removed from both lists in order to re-

duce the number of subsequent comparison steps. In

step 3, it is only necessary to count the remaining

matches because due to commutativity and unique-

ness of matches, we can assume that no further corre-

sponding match exists in the linearized structure after

step 2.

The values α and β are absolute and relate to the

number of match elements inside the test set which

have been classiﬁed false positive or false negative.

The characteristics precision (p) and recall (r), in

contrast, are relative and provide a comprehensive

comparison criterion. For a given evaluation result,

these values can be calculated directly from α and β

and the value |M| which represents the number of true

positive, i.e. intended matches:

p =

|M|

|M| + α

r =

|M|

|M| + β

This implies that only objects which belong to the same

metamodel class can be matched.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

106

In (van den Brand et al., 2011) a related method

is proposed for the evaluation of model differences

which constitute the result of different comparison al-

gorithms to evaluate. Differences are classiﬁed into

three distinct categories: added, deleted and changed.

In contrast to our method, which takes matches and

not differences into account, moves cannot be de-

tected. Differences are considered identical when

they belong to the same category and refer to the same

element. The set of intended (“correct”) differences is

compared to the set of actual (“found”) differences in

order to determine the intersection set (“matching dif-

ferences”) which serves as a basis for the calculation

of precision and recall values.

6.2 Batch Comparison and Evaluation

The overall benchmarking of matching algorithms

can be controlled with a graphical user interface

which is provided as an Eclipse view. The comparison

and evaluation procedures do not explicitly depend on

each other but they are meant to be used subsequently.

A screenshot of the batch user interface (UI) is given

in Figure 7.

Figure 7: The batch UI.

In the left-hand part of the view, the comparison

phase is conﬁgured. The user can choose a directory

containing a number of ﬁles containing models con-

forming to the same metamodel which will be com-

pared pairwise. Also, an output folder must be se-

lected where the calculated .emfdiff ﬁles contain-

ing match and diff models will be placed for each

compared model pair. Below, the user can add the

matching algorithms to compare

and conﬁgure their

parameters if supported by the respective match en-

gine. Furthermore he/she has to assign a unique name

A dialog lists all extensions of the extension point

org.eclipse.emf.compare.match.engine found in the

registry of the current Eclipse installation.

to each chosen engine which is needed to identify the

generated outputs in the second phase.

When the ﬁrst batch comparison phase is started,

each of the selected match engines produces an

.emfdiff ﬁle per model pair and engine, where the

ﬁle name is given by the identiﬁer assigned to the

engine. The batch procedure automatically organizes

the resulting ﬁles inside a new sub-folder per model

pair. A convenience option inside the left-hand part

of the batch UI allows for the creation of an empty

match model inside each sub-folder referring to a pair

of compared models. This is where the manual match

editor described in section 5.3 can be applied to pro-

vide the intended result manually before the second

batch phase starts.

The right-hand part of the view covers the bench-

marking of the matching algorithms. The UI com-

ponents let the user choose identiﬁers that have been

assigned in the left-hand part for the intended or ac-

tual match models. Iterating through the sub-folders

of the outpout directory, each representing one pair

of input models, the second batch procedure bench-

marks all actual match models speciﬁed against the

intended match model using the algorithm described

in section 6.1. In the view, the user can also specify

the name of the CSV ﬁle to contain the benchmark

result, i.e. α and β errors broken down to every com-

pared pair and per matching algorithm. An additional

option allows for a more detailed report which item-

izes the α and β errors by the respective metamodel

class (see example in Table 2).

7 CASE STUDY

In order to evaluate the use and the usability of our

tools we applied them to a real-world case study of

versioned Ecore models of the ModGraph project.

ModGraph (Winetzhammer, 2012) is a tool for de-

scribing the behavior of EMF models by graph trans-

formations. We chose six different versions of the

ModGraph metamodel, which contain between 102

and 168 objects. Our formalized intended match-

ing result comprises 15 diagram pairs, each including

from 86 up to 132 match elements.

We compared the results of the following three

matching algorithms:

EMF Compare Match Engine (emf). (Brun and

Pierantonio, 2008) The generic match engine

can be applied to the comparison of any pair

of EMF based models conforming to the same

metamodel. The algorithm works in a hierarchical

and similarity-based way. We used the version

1.3.1 installed in Eclipse Juno and disabled the

ToolSupportfortheEvaluationofMatchingAlgorithmsintheEclipseModelingFramework

107

Table 1: Key ﬁgures from the evaluation run. Numbers of matches and errors constitute the sum of all 15 test runs, while the

precision and recall numbers are average values.

matching algorithm

intended

matches

actual

matches

correct

matches

α errors

β errors

precision

recall

Similarity Based (sim) 1477 1401 1308 93 169 0.9357 0.8878

Estimated Edit Costs (ec) 1477 1274 1207 67 270 0.9525 0.8367

Estimated Edit Costs with Threshold (ec th) 1477 1241 1455 22 236 0.9841 0.8582

EMF Compare Match Engine (emf) 1477 1533 1404 129 73 0.9079 0.9442

options which rely either on functional or XMI

identiﬁers.

Similarity based Matching (sim). (Uhrig, 2011)

This matching algorithm is specialized on Ecore

class diagrams. It computes similarity values for

all possible correspondences and ﬁnally selects

the matches with the largest total similarity values

using a heuristic greedy strategy. The weights

of the single similarity values are conﬁgurable.

During the batch procedure, we kept the default

conﬁguration.

Matching with Estimated Edit Costs (ec). (Uhrig,

2011) In contrast to similarity-based approaches,

this algorithm for Ecore class diagrams considers

the matching as an optimization problem that

tries to minimize the edit costs, e.g. the costs of

transforming one object into another by changing

its details. Optionally, a threshold prevents

the unintentional matching of a pair of EClass

instances with a too high editing distance. For the

evaluation we used two instances of the matching

algorithm, the default conﬁguration and another

one with an activated threshold.

The batch comparison step calculated matches for

each of the 15 possible combinations of the six in-

put models and four selected match engine instances.

Before the evaluation, we used the manual match edi-

tor to formalize our intended matching result for each

model pair. In many cases, classes had been renamed

or split between the model versions. Nevertheless, the

semi-automated matching support facilitated the man-

ual matching procedure. Finally, we started the batch

evaluation where the manual match was speciﬁed as

the intended result.

The results are displayed in Table 1: While the

intended match models contain 1477 match elements

in total, the number of match elements found in the

actual match models varies from 1241 up to 1533

(see column 2). The comparison of the match ele-

ments delivers the number of correct match elements

that are identical in both the actual and the intended

match model (see column 3), the α and β errors and

the derived precision and recall values. As we can

see, each of the tested matching algorithms produced

errors compared to the user-deﬁned intended match

models. The emf algorithm attains the highest num-

ber of false positive matches and the lowest number of

false negative matches. For the given test set, we can

draw the conclusion that emf tends to show a rather

greedy behavior and produces a surplus of matches,

resulting in a lower precision value. Table 2 presents

the detailed key ﬁgures for each pair of models com-

pared. Having a closer look at the last four columns,

which contain the α and β errors divided into the dif-

ferent metamodel classes, one will realize that the

high total number of α errors is due to false posi-

tive matches of EReference and EGenericType in-

stances.

By interpreting the results of the matching algo-

rithms, one can also draw conclusions about the im-

pact of different parametrizations of the same match-

ing algorithms: The basic conﬁguration of the editing

distance algorithm (ec) attains 67 α and 270 β errors.

The use of the threshold option (ec th) obviously helps

reducing the number of α errors, in our example even

by a factor of three. Considering the detailed ﬁgures

again, we realize that the matching was especially im-

proved for instances of EClass and their contained

structural features. In a similar way, our evaluation

tool could also help ﬁnding an optimal parametriza-

tion for the weights of the similarity values of the sim

algorithm.

8 CONCLUSIONS

In this paper we presented tool support for bench-

marking different matching algorithms by compar-

ing their matching results against an intended model.

Both tools can be plugged into the Eclipse Model-

ing Framework and deal with arbitrary EMF models.

The manual match editor allows to create the intended

match model either from scratch or by revising the

nearly optimal match created by an algorithm. There-

fore user involvement is supported in the evaluation

process and intended match models can be created in

a semi-automated way even if no edit-history is avail-

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

108

Table 2: Detailed key ﬁgures of the case study performed on a Intel Core i7@2,60GHz machine (single threaded).

left and

right model

matching

algorithm

intended

matches

actual

matches

intended

unmatched

elements

actual

unmatched

elements

total

α errors

total

β errors

precision

recall

runtime

(msec)

α/β EClass

α/β

EAttribute

α/β

EReference

α/β

EGeneric-

Type

1 2

sim

22 4 12 0.9535 0.8723 25 1/1 0/0 1/5 2/6

ec 73 26 0 13 1 0.8687 16 0/0 0/0 0/6 0/7

ec th 73 27 1 14 0.9884 0.8586 29 1/1 0/1 0/5 0/7

emf 90 12 7 3 0.9186 0.9634 38 1/1 0/1 3/0 3/1

1 3

sim

21 4 12 0.9535 0.8723 14 1/1 0/0 1/5 2/6

ec 74 24 5 17 0.9418 0.8265 15 1/1 1/1 1/6 2/9

ec th 73 26 1 14 0.9884 0.8586 16 1/1 0/1 0/5 0/7

emf 92 9 9 3 0.8953 0.9625 26 1/1 0/1 4/0 4/1

1 4

sim

30 4 16 0.9535 0.8367 39 2/2 0/2 1/4 1/8

ec 74 28 8 20 0.9070 0.7959 12 2/2 1/2 2/6 3/10

ec th 71 30 1 16 0.9884 0.8416 13 1/1 0/2 0/5 0/8

emf 84 17 3 5 0.9651 0.9432 48 1/1 0/2 1/0 1/2

1 5

sim

49 2 14 0.9756 0.8511 19 2/2 0/2 0/4 0/6

ec 72 44 5 15 0.9390 0.8370 15 1/1 1/2 1/5 2/7

ec th 67 45 0 15 1 0.8454 14 0/1 0/2 0/5 0/7

emf 81 34 4 5 0.9512 0.9398 26 0/1 0/2 1/0 3/2

1 6

sim

41 19 27 0.7595 0.6897 11 8/8 0/1 4/6 7/12

ec 68 44 12 23 0.8481 0.7444 11 6/6 1/2 1/4 4/11

ec th 63 44 7 23 0.9114 0.7579 28 5/6 0/2 0/4 2/11

emf 83 29 21 17 0.7342 0.7733 28 6/6 0/2 4/1 11/8

2 3

sim

114

3 0 0 1 1 12 0/0 0/0 0/0 0/0

ec 102 9 0 12 1 0.9048 11 0/0 0/0 0/6 0/6

ec th 102 9 0 12 1 0.9048 10 0/0 0/0 0/6 0/6

emf 116 1 2 0 0.9825 1 19 0/0 0/0 1/0 1/0

2 4

sim

103

101

19 0 2 1 0.9810 12 0/0 0/1 0/0 0/1

ec 89 25 1 15 0.9903 0.8718 11 1/1 0/1 0/6 0/7

ec th 89 24 0 14 1 0.8803 10 0/0 0/1 0/6 0/7

emf 107 11 6 2 0.9417 0.9798 22 0/0 0/1 3/0 3/1

2 5

sim

41 6 10 0.9368 0.8990 19 2/2 0/2 0/1 4/5

ec 80 52 5 20 0.9474 0.8182 13 3/3 1/2 0/6 1/9

ec th 81 49 0 14 1 0.8716 12 0/1 0/1 0/6 0/6

emf 104 30 14 5 0.8526 0.9419 20 0/1 0/1 4/0 10/3

2 6

sim

36 10 14 0.8947 0.8586 14 4/4 0/1 2/2 4/7

ec 80 43 4 19 0.9579 0.8273 14 3/3 0/1 0/5 1/10

ec th 81 44 3 17 0.9684 0.8440 31 2/2 0/1 0/5 1/9

emf 106 23 18 7 0.8105 0.9167 90 1/1 0/1 5/0 12/5

3 4

sim

105

103

16 0 2 1 0.9813 11 0/0 0/1 0/0 0/1

ec 91 22 1 15 0.9905 0.8739 8 1/1 0/1 0/6 0/7

ec th 91 21 0 14 1 0.8824 8 0/0 0/1 0/6 0/7

emf 105 12 2 2 0.9810 0.9810 14 0/0 0/1 1/0 1/1

3 5

sim

38 4 10 0.9596 0.9048 14 2/2 0/2 0/1 2/5

ec 82 49 5 22 0.9495 0.8103 13 3/3 1/2 0/6 1/11

ec th 83 46 0 16 1 0.8609 10 0/1 0/1 0/6 0/8

emf 102 31 8 5 0.9192 0.9479 17 0/1 0/1 2/0 6/3

3 6

sim

33 10 13 0.8958 0.8687 13 4/4 0/1 2/2 4/6

ec 82 40 4 18 0.9583 0.8364 12 3/3 0/1 0/5 1/9

ec th 83 41 3 16 0.9688 0.8532 9 2/2 0/1 0/5 1/8

emf 104 24 15 7 0.8438 0.9205 69 1/1 0/1 3/0 11/5

4 5

sim

110

108

22 6 8 0.9455 0.9286 14 2/2 0/1 1/1 3/4

ec 93 37 5 22 0.9545 0.8268 13 3/3 1/1 0/7 1/11

ec th 95 35 1 16 0.9910 0.872 10 1/1 0/0 0/7 0/8

emf 113 21 6 3 0.9455 0.9720 15 0/1 0/0 1/0 5/2

4 6

sim

109

108

19 7 8 0.9358 0.9273 13 3/3 0/0 1/1 3/4

ec 95 26 4 18 0.9633 0.8537 14 3/3 0/0 0/6 1/9

ec th 96 27 3 16 0.9725 0.8689 9 2/2 0/0 0/6 1/8

emf 114 16 10 5 0.9083 0.9519 17 1/1 0/0 1/0 8/4

5 6

sim

132

128

24 17 21 0.8712 0.8456 19 8/8 0/1 2/2 7/10

ec 119 32 8 21 0.9394 0.8552 39 4/4 0/0 0/7 4/10

ec th 115 34 2 19 0.9848 0.8725 11 1/2 0/0 0/7 1/10

emf 132 16 4 4 0.9697 0.9697 19 1/1 0/0 0/1 3/2

ToolSupportfortheEvaluationofMatchingAlgorithmsintheEclipseModelingFramework

109

able. The batch view controls the invocation of match

engines for the pairwise comparison of models in a

test set. The proposed benchmarking tool is conﬁg-

urable in terms of input models, algorithms to com-

pare and the level of detail of the reported α and β

errors.

In a case study, we used the presented manual

match editor in order to model the intended matching

results for our test cases, which belong to a real-world

example for which only different versions but no edit-

history was available. The benchmark procedure with

evaluation support helped to gain insights on how the

different matching algorithms behave when being ap-

plied to a certain set of test cases. If the results of the

algorithms are not identical with the intended match

model, it is recommended to inspect the detailed re-

ports of α and β errors in the different categories of

model elements in order to judge the overall perfor-

mance of the tested algorithms. Consequently, the

user can select his/her preferred procedure and – if

necessary – adapt the parametrization of conﬁgurable

matching algorithms in order to obtain better results.

Future work might address the editing comfort of

the manual match editor. We think that editing a

match model could be facilitated on the one hand by

extending the semi-automated matching capabilities

by supporting the partial application of matching al-

gorithms for sub-trees. On the other hand, we con-

sider a graphical (e.g. GMF

based) editor for the

model matching since working on a tree representa-

tion is not ideal for users only familiar with concrete

graphical syntax. In contrast to the generically im-

plemented tree editor, a speciﬁc graphical editor must

depend on the metamodel of matched EMF models in

order to be able to integrate their concrete graphical

syntax. Additionally, we plan to extend our evaluation

tool in order to support multiple intended match mod-

els. For each compared model pair and algorithm,

the minimum of the error ﬁgures obtained from all

intended models could be regarded as a measure of

the quality of results.

REFERENCES

Brun, C. and Pierantonio, A. (2008). Model differences

in the eclipse modelling framework. UPGRADE,

IX(2):29–34.

Herrmannsdoerfer, M. and Koegel, M. (2010). Towards a

generic operation recorder for model evolution. In

Proceedings of the 1st International Workshop on

Model Comparison in Practice, IWMCP ’10, pages

76–81, New York, NY, USA. ACM.

http://www.eclipse.org/modeling/gmp/

Kappel, G., Kargl, H., Kramler, G., Schauerhuber, A., Seidl,

M., Strommer, M., and Wimmer, M. (2007). Matching

metamodels with semantic systems - an experience re-

port. In Datenbanksysteme in Business, Technologie

und Web (BTW 2007), Workshop Proceedings, pages

38–52. Verlag Mainz.

Kelter, U., Wehren, J., and Niere, J. (2005). A generic dif-

ference algorithm for UML models. In Liggesmeyer,

P., Pohl, K., and Goedicke, M., editors, Software En-

gineering 2005, Lecture Notes in Informatics, pages

105–116. Gesellschaft f

ur Informatik.

Kolovos, D. S., Di Ruscio, D., Pierantonio, A., and Paige,

R. F. (2009). Different models for model matching:

An analysis of approaches to support model differ-

encing. In Proceedings of the 2009 ICSE Workshop

on Comparison and Versioning of Software Models,

CVSM ’09, pages 1–6, Washington, DC, USA. IEEE

Computer Society.

Lin, Y., Gray, J., and Jouault, F. (2007). DSMDiff: A Differ-

entiation Tool for Domain-Speciﬁc Models. European

Journal of Information Systems, pages 349–361.

Ohst, D. (2004). Versionierungskonzepte mit Unterst

utzung

ur Differenz- und Mischwerkzeuge. PhD thesis, Uni-

versit

at Siegen, Siegen, Germany.

Pietsch, P., Yazdi, H. S., and Kelter, U. (2012). Con-

trolled generation of models with deﬁned properties.

In J

ahnichen, S., K

upper, A., and Albayrak, S., edi-

tors, Software Engineering 2012, Lecture Notes in In-

formatics, pages 95–106. Gesellschaft f

ur Informatik,

Bonn.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF Eclipse Modeling Framework. The

Eclipse Series. Addison-Wesley, Upper Saddle River,

NJ, 2nd edition edition.

Uhrig, S. (2011). Korrespondenzberechnung auf Klassen-

diagrammen. PhD thesis, Universit

at Bayreuth,

Bayreuth, Germany.

van den Brand, M., Hofkamp, A., Verhoeff, T., and Proti

Z. (2011). Assessing the quality of model-comparison

tools: a method and a benchmark data set. In Pro-

ceedings of the 2nd International Workshop on Model

Comparison in Practice, IWMCP ’11, pages 2–11,

New York, NY, USA. ACM.

van den Brand, M., Proti

c, Z., and Verhoeff, T. (2010).

Fine-grained metamodel-assisted model comparison.

In Proceedings of the 1st International Workshop on

Model Comparison in Practice, IWMCP ’10, pages

11–20, New York, NY, USA. ACM.

Winetzhammer, S. (2012). Modgraph - generating exe-

cutable emf models. In Margaria, T., Padberg, J.,

Taentzer, G., Krause, C., and Westfechtel, B., edi-

tors, Proceedings of the 7th International Workshop

on Graph Based Tools, volume 54 of Electronic Com-

munications of the EASST, pages 32–44, Bremen,

Deutschland.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

110
