A Survey of Model Comparison Approaches and Applications

Matthew Stephan and James R. Cordy

Queen’s University, Kingston, Ontario, Canada

Keywords:

Model Comparison, Model-Driven Engineering, Model Versioning, Model Clone Detection.

Abstract:

This survey paper presents the current state of model comparison as it applies to Model-Driven Engineering.

We look speciﬁcally at how model matching is accomplished, the application of the approaches, and the types

of models that approaches are intended to work with. Our paper also indicates future trends and directions.

We ﬁnd that many of the latest model comparison techniques are geared towards facilitating arbitrary meta

models and use similarity-based matching. Thus far, model versioning is the most prevalent application of

model comparison. Recently, however, work on comparison for versioning has begun to stagnate, giving way

to other applications. Lastly, there is wide variance among the tools in the amount of user effort required to

perform model comparison, as some require more effort to facilitate more generality and expressive power.

1 INTRODUCTION

Model-Driven Engineering (MDE) involves using

high-level software models as the main artifacts

within the development cycle. As MDE becomes

more prevalent in software engineering, the need for

effective approaches for ﬁnding the similarities and

differences among high-level software models, or

model comparison, becomes imperative. Since MDE

involves models being considered ﬁrst class artifacts

by developers, it is clear model comparison is impor-

tant as it assists model management and may help

facilitate analysis of existing projects and MDE re-

search. It not only provides merit as a stand-alone

task, but helps engineers with other MDE tasks such

as model composition and inferring and testing of

model transformations (Kolovos et al., 2006).

Despite model comparison’s importance in MDE,

there are no deﬁnitive surveys on the state of the art

in model comparison research. There are a few pa-

pers that touch upon it, however, they look at only

a very small subset of the work in existence and ei-

ther at those intended for only a speciﬁc model type

or application. In this survey paper, we present the

current state of model comparison research and dis-

cuss the area’s future directions. The purpose in do-

ing so is to investigate and describe the approaches to

accomplish model comparison, the various applica-

tions that approaches are used for, and to categorize

the approaches by the types of models they are able

to compare. As such, this survey can be used by en-

gineers as a quick reference guide, organized by the

types of models being compared: If they must work

with a speciﬁc model type or need a speciﬁc applica-

tion to be accomplished via model comparison, they

can use this survey to determine if an approach is right

for them or if they should build upon an existing one.

We begin with background information on model

comparison in Section 2. Section 3 categorizes and

describes the existing model comparison approaches

by the type and subtype of models that they compare.

Section 4 provides a summary of the survey results

and future directions of the area. Section 5 identiﬁes

other techniques and approaches related to the model

comparison work discussed in this survey, as well as

other surveys.

2 BACKGROUND

We begin by deﬁning model comparison as it applies

in this survey. Much of the existing work can be split

into two categories: those techniques aimed at model

versioning, and those aimed at model similarity anal-

ysis, or “clone detection”, so we additionally deﬁne

those categories.

2.1 Model Comparison

This section discusses model comparison as a task

in MDE and refers speciﬁcally to the act of identi-

fying similarities or differences between model ele-

265

Stephan M. and Cordy J..

A Survey of Model Comparison Approaches and Applications.

DOI: 10.5220/0004311102650277

In Proceedings of the 1st International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2013), pages 265-277

ISBN: 978-989-8565-42-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

ments. Aside from versioning and model clone de-

tection, model comparison has merit in other areas of

MDE including being the foundation for model com-

position, model transformation testing (Kolovos et al.,

2006; Lin et al., 2004; Stephan and Cordy, 2013), and

others discussed in this survey.

Kolovos, Paige, and Polack (2006) deﬁne model

comparison as an operation that classiﬁes elements

into four categories: (1) Elements that match and

conform, (2) Elements that match and do not con-

form, (3) Elements that do not match and are within

the domain of comparison, and (4) Elements that do

not match and are not within the domain of com-

parison. Matching refers to elements that represent

the same idea or artifact, while conformance is ad-

ditional matching criteria. An example of non con-

formance in an UML class diagram can be when a

class in both models has the same name but one is

abstract. So while they likely represent the same ar-

tifact, they do ’match enough’ or conform to one an-

other (Kolovos et al., 2006). The speciﬁc deﬁnition

of conformance is dependent on the current compari-

son context and goal. The domain of the comparison

can be viewed as matching criteria. Non-matching el-

ements that are outside the domain of comparison can

come from matching criteria that is either incomplete

or intentionally ignoring them.

In the context of model versioning, model com-

parison has been decomposed into three phases (Brun

and Pierantonio, 2008): Calculation, Representation,

and Visualization. However, there is nothing about

this decomposition that is speciﬁc to model version-

ing. In the following paragraphs we elaborate on these

phases and provide examples of approaches.

Calculation. Calculation is the initial step of model

comparison and is the act of identifying similarities

and differences between different models. It can seen

as the classiﬁcation of elements into the four cate-

gories presented earlier. Calculation techniques can

work with speciﬁc types of models, such as done

with UML-model comparison methods (Alanen and

Porres, 2003; Girschick, 2006; Kelter et al., 2005;

Ohst et al., 2003; Xing and Stroulia, 2005). How-

ever, it is possible to have meta-model independent

comparisons, such as techniques for Domain Spe-

ciﬁc Models (Lin et al., 2007) and other such ap-

proaches (Rivera and Vallecillo, 2008; Selonen and

Kettunen, 2007; van den Brand et al., 2010). Kolovos,

Di Ruscio, Pierantonio, and Paige (2009) break down

calculation methods into four different categories

based on how they match corresponding model ele-

ments: 1]static identity-based matching, which uses

persistent and unique identiﬁers; 2]signature-based

matching, which is based on an element’s uniquely-

identifying signature that is calculated from a user-

deﬁned function; 3]similarity-based matching, which

uses the composition of the similarity of an element’s

features; and 4]custom language-speciﬁc matching

algorithms, which uses matching algorithms designed

to work with a particular modeling language. In the

remainder of this survey we focus mainly on this

phase, as calculation is the most researched and is

of the greatest interest to our industrial partners since

it will help us with our goal of considering how to

discover common sub-patterns among models (Alalﬁ

et al., 2012).

Representation. This phase deals with the underly-

ing form that the differences and similarities detected

during calculation will take. One approach to repre-

sentation is the notion of edit scripts (Alanen and Por-

res, 2003; Mens, 2002). Edit scripts are an operational

representation of the changes necessary to make one

model equivalent to another and can be comprised

of primitive operations such as add, edit, and delete.

They tend to be associated with calculation meth-

ods that use unique identiﬁers and may not be user-

friendly due to their imperative nature. In contrast,

model-based representation (Ohst et al., 2003) is a

more declarative approach. It represents differences

by recognizing the elements and sub-elements that

are the same and those that differ. Most recently, an

abstract-syntax-like representation (Brun and Pieran-

tonio, 2008) has been proposed that represents the

differences declaratively and enables further analysis.

There are properties (Cicchetti et al., 2007; Van den

Brand et al., 2010) for representation techniques that

separate them from calculation approaches and make

them ideal for MDE environments. Cicchetti, Di Rus-

cio, and Pierantonio (2008) provide a representation

that is ideal for managing conﬂicts in distributed en-

vironments.

Visualization. Visualization involves displaying

the differences in a desirable form to the end user. Vi-

sualization is considered somewhat secondary to cal-

culation and representation and may be tied closely to

representation. For example, model-based representa-

tion can be visualized through colouring (Ohst et al.,

2003). Newer visualization approaches try to sepa-

rate visualization from representation (Van den Brand

et al., 2010; Wenzel, 2008; Wenzel et al., 2009).

There is also an approach (Schipper et al., 2009) to ex-

tend visualization techniques for comparing text ﬁles

to work with models by including additional features

unique to higher level representations, such as fold-

ing, automatic layout, and navigation.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

266

2.2 Model Versioning

The need for collaboration amongst teams in MDE

projects is equally signiﬁcant as it is in traditional

software projects. Traditional software projects

achieve this through Version Control Systems (VCS)

such as CVS

and Subversion

. Similarly, for MDE,

it is imperative that modelers are able to work in-

dependently but later be able to reintegrate updated

versions into the main project repository. Traditional

VCS approaches do not work well with models as

they are unable to handle model-speciﬁc problems

like the “dangling reference” problem and others (Alt-

manninger et al., 2009).

Model versioning is broken into different phases

by different people (Alanen and Porres, 2003; Alt-

manninger et al., 2008; Kelter et al., 2005). Gener-

ally, it is seen to require some form of model com-

parison or matching, that is, the identiﬁcation of what

model elements correspond to what other model el-

ements; detection and representation of differences

and conﬂicts; and model merging, that is, combining

changes made to corresponding model elements while

accounting for conﬂicts. For the purpose of this sur-

vey, we focus mainly on the ﬁrst phase, model com-

parison. While the other phases are equally as im-

portant, we are interested mostly in the way model

versioning approaches achieve model comparison.

2.3 Model Clone Detection

Another example of model comparison being used in

a different and speciﬁc context is model clone detec-

tion. In traditional software projects, a code clone

refers to collections of code that are similar to one an-

other in some measure of similarity (Koschke, 2006).

One common reason that code clones arise in these

projects is the implementation of a similar concept

throughout the system. The problem with code clones

is that a change in this one concept means that the sys-

tem must be updated in multiple places. Research in

code clones is very mature and there are many tech-

niques and tools to deal with them (Roy et al., 2009).

The analogous problem of model clones refers to

groups of model elements that are shown to be similar

in some deﬁned fashion (Deissenboeck et al., 2009).

By comparison with code clone detection, research in

model clone detection is quite limited (Deissenboeck

et al., 2010), with the majority of approaches thus far

tailored for Simulink data-ﬂow models.

http://www.nongnu.org/cvs/

http://subversion.tigris.org

3 MODEL COMPARISON

APPROACHES AND

APPLICATIONS

This section categorizes existing model comparison

methods by the speciﬁc types of models they com-

pare and discusses the applications of the compar-

isons. Within each section, we further classify the ap-

proaches by the sub type of model they are intended

for. While some methods claim they can be extended

to work with other types of models, we still place each

one in only the category they have demonstrated they

work with and make note of the claimed extendability.

3.1 Methods for Multiple Model Types

This section looks at approaches that are able to deal

with more than one type of model, such as both struc-

tural and behavioral models. Approaches like this can

be more general, but can not use information speciﬁc

to the model type.

3.1.1 UML Models

UML is a meta model deﬁned by the MOF and is the

most prominent and well known example of a MOF

instance. This section looks at model comparison ap-

proaches intended to compare more than one type of

UML model.

Alanen and Porres (2003; 2005) perform model

comparison as a precursor to model versioning. Their

model matching is achieved through static identity-

based matching as it relies on the UML’s univer-

sally unique identiﬁers(UUID). Their work is focused

on identifying differences between matched models.

They calculate and represent differences as directed

deltas, that is, operations that turn one model into the

other and that can be reversed through a dual opera-

tion. Their difference calculation is achieved through

the three steps that results in a sequence of operations:

1] Given a model V and V’, map matched model ele-

ments through UUID comparison; 2] Add operations

to create the elements within V’ that do not exist in

V and then add operations to delete the elements that

are in V that are not in V’; 3] For all the elements that

are in both V and V’, any changes that have occurred

to the features within these elements from V to V’ are

converted to operations that ensure that feature order-

ing is preserved.

Rational Software Architect. (RSA) is an IBM

product intended to be a complete MDE development

environment for software modeling. Early versions

of RSA, RSA 6 and earlier, allow for two ways of

performing model comparison on UML models, both

ASurveyofModelComparisonApproachesandApplications

267

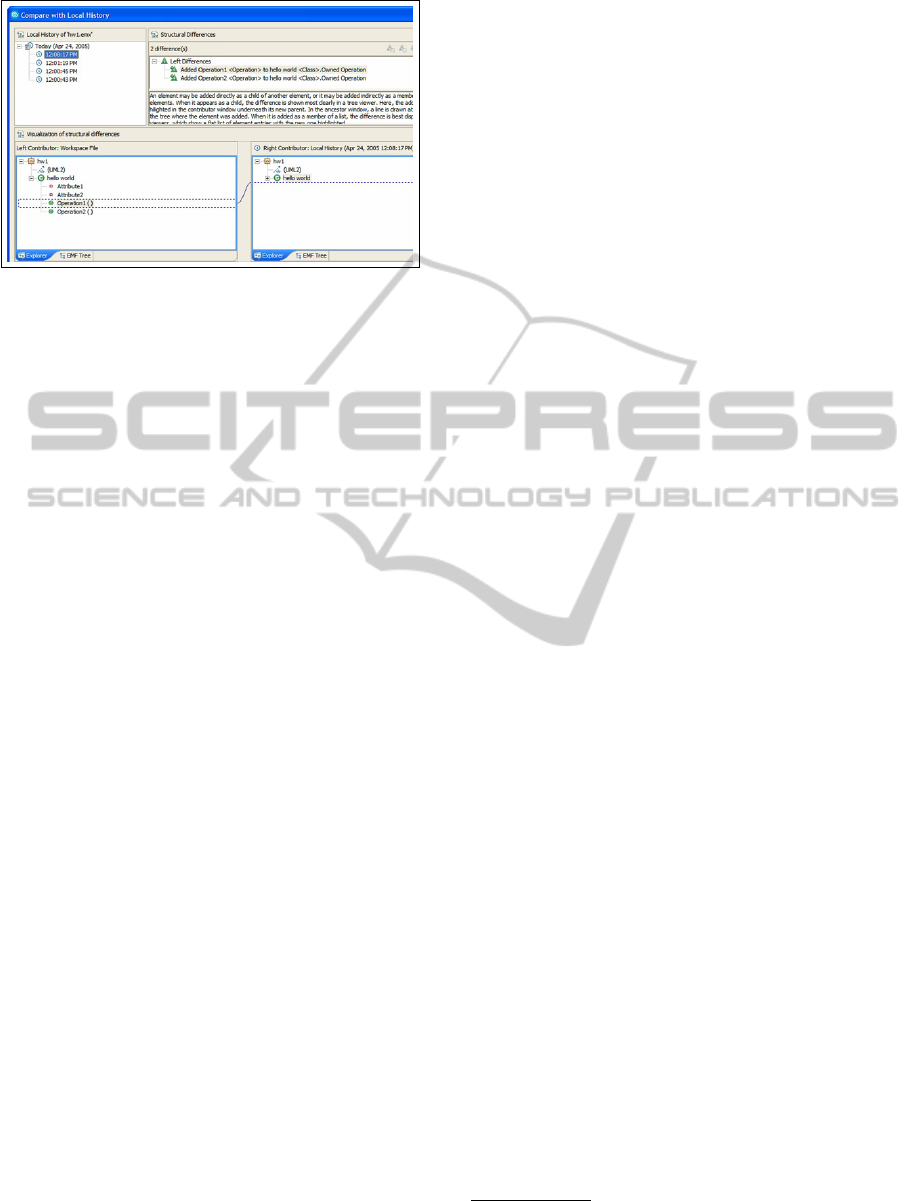

Figure 1: RSA “Compare with Local History” Window,

adapted from (Letkeman, 2005).

of which are a form of model versioning: Compar-

ing a model from its local history and comparing a

model with another model belonging to the same an-

cestor (Letkeman, 2005). In both cases, model match-

ing is done using UUIDs. The calculation for ﬁnding

differences between matched elements is proprietary.

Figure 1 shows an example of the “compare with

local history” RSA window. The bottom pane is split

between the two versions while the top right pane de-

scribes the differences found between the two. The

window and process for comparing a model with an-

other model within the same ancestry is very similar.

In RSA version 7 and later a facility is provided by the

tool to compare and merge two software models that

are not necessarily from the same ancestor (Letke-

man, 2007). This is accomplished manually through

user interaction, that is, there is no calculation taking

place other than the option to do a relatively simple

structural and UUID comparison. The user selects el-

ements from the source that should be added to the

target, maps matching elements from the source and

target, and chooses the ﬁnal names for these matched

elements.

Another example of a technique that compares

UML models and utilizes their UUIDs is proposed by

Ohst, Welle, and Kelter (2003). This technique trans-

forms UML models to graphs and then traverses each

tree level with the purpose of searching for identical

UUIDs. The technique takes into account differences

among the matched model elements, such as features

and relationships.

Selonen and Kettunen (2007) present a technique

for model matching that derives signature-match rules

based on the abstract syntax of the meta model de-

scribing the modeling language. Speciﬁcally, they

say that two models match if they belong to the same

meta class, have the same name and the same primary

context, which includes the surrounding structure of

the model comprised of neighbours and descendants.

They state that this technique can be extended to work

with any MOF-based modeling languages. Additional

rules can be added by extending the model with ap-

propriate stereotypes that the technique can interpret.

Odyssey VCS (Oliveira et al., 2005) is a model

versioning tool intended to work with all types of

UML models in CASE environments. It does not

perform model matching as all elements are linked

to a previous version, starting with a baseline ver-

sion. Differences or conﬂicts are detected by process-

ing XML Metadata Interchange (XMI) ﬁles and using

UML-speciﬁc knowledge to calculate what elements

have been added, modiﬁed, or deleted.

Storrle (2010) developed the MQlone tool to ex-

periment with the idea of detecting UML model

clones. They convert XMI ﬁles from UML CASE

models and turn them into Prolog

. Once in Pro-

log, they attempt to discover clones using static iden-

tity matching combined with similarity metrics such

as size, containment relationships, and name similar-

ity.

3.1.2 EMF Models

Eclipse Modeling Framework (EMF) models

are

MOF meta-meta models that can deﬁne meta mod-

els, such as UML. They are intended for use within

the Eclipse development environment.

EMFCompare (Brun and Pierantonio, 2008) is an

Eclipse project. Rather than relying on EMF models’

UUIDs, they use similarity based-matching to allow

the tool to be more generic and useful in a variety of

situations. The matching calculation is based on vari-

ous statistics and metrics that are combined to gener-

ate a match score. This includes analyzing the name,

content, type, and relations of the elements. They also

ﬁlter out element data that comes from default val-

ues. It should be noted that while EMFCompare is

speciﬁc to EMF models, the underlying calculation

engine is meta-model independent, similar to the ap-

proaches discussed in Section 3.1.3

TopCased (Farail et al., 2006) is a project provid-

ing an MDE environment that uses EMF models and

is intended speciﬁcally for safety critical applications

and systems. It performs its matching and differenc-

ing using static identity-based matching, similar to

Alanen and Porres.

SmoVer (Reiter et al., 2007) is another model

versioning tool that can work with any EMF-based

model. In this approach they do both version-speciﬁc

comparisons like Odyssey VCS, termed syntactical,

and semantic comparisons. Semantic comparisons

www.swi-prolog.org

http://www.eclipse.org/emf/

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

268

are those that are carried out on semantic views. Se-

mantic views, in this context, are the resulting models

that come from a user-deﬁned model transformation

that SmoVer executes on the original models being

compared in order to give the models meaning from

a particular view of interest. These transformations

are speciﬁed in the Atlas Transformation Language

(ATL)

. Models are ﬁrst compared syntactically, then

transformed, then compared once again. Matching is

accomplished through static-identity based matching

and differences are calculated by comparing structural

changes. The authors note that the amount of work re-

quired for creating the ATL transformations is not too

large and that “the return on investment gained in bet-

ter conﬂict detection clearly outweighs the initial ef-

fort spent on specifying the semantic views.” The ex-

amples they discuss required roughly 50 to 200 lines

of ATL transformation language code.

Riveria and Vallecillo (2008) employ similarity-

based matching in addition to checking persistent

identiﬁers for their tool, Maudeling. They use

Maude (Clavel et al., 2002), a high-level language that

supports rewriting-logic speciﬁcation and program-

ming, to facilitate the comparison of models from

varying meta models speciﬁed in EMF. They provide

this in the form of an Eclipse plugin called Maudel-

ing. Using Maude, they specify a difference meta

model that represents differences as added, modiﬁed,

or deleted elements. The process ﬁrst begins by us-

ing UUIDs. If there is no UUID match, they then

rely on a variant of similarity-based matching that

calculates the similarity ratio by checking a variety

of structural features. Then, to calculate differences,

they go through each element and categorize it based

on a number of scenarios and incorporate this infor-

mation into its difference meta model. There is no

user work required as Maudeling has the ATL trans-

formations within it that transforms the EMF models

into their corresponding Maude representations. Op-

erations are executed in the Maude environment auto-

matically, requiring no user interaction with Maude.

3.1.3 Metamodel-agnostic Approaches

This section discusses comparison approaches for

models that can conform to an arbitrary meta model,

assuming it adheres to speciﬁc properties.

Examples of Metamodel-independent approaches

that use similarity-based matching strategies include

the Epsilon Comparison Language (Kolovos, 2009)

and Domain-Speciﬁc Model DiffDSMDiff (Lin et al.,

2007). DSMDiff is an extension of work done on

UML model comparison techniques. DSMDiff uses

http://eclipse.org/atl/

both similarity- and signature- based matching. The

similarity-based matching focuses on the similarity

of edges among different model nodes. DSMD-

iff evaluates differences between matched elements

and considers them directed deltas. While DSMDiff

was developed using DSMLs speciﬁed in the Generic

Modeling Environment (GME), the techniques can

be extended to work with any DSML creation tool.

The creators of DSMDiff propose allowing user-

interaction that will enable one to choose the map-

pings (matches) from a list of applicable candidates.

Epsilon Comparison Language (ECL) was de-

veloped after DSMDiff and SiDiff, which is dis-

cussed later, and attempts to address the fact that its

predecessors do not allow for modellers to conﬁg-

ure language-speciﬁc information that may assist in

matching model elements from different meta mod-

els (Kolovos, 2009). This is accomplished in a im-

perative yet high-level manner. ECL allows modelers

to specify model comparison rule-based algorithms

to identify matched elements within different models.

The trade off is that, while complex matching crite-

ria can be expressed using ECL, it requires more time

and knowledge of ECL. Kolovos acknowledges that

metamodel-independent approaches using similarity-

based matching typically perform fairly well, but

there often are “corner cases” that ECL is well suited

to identify.

A plugin for meta-Case applications was devel-

oped (Mehra et al., 2005) that performs model ver-

sion comparison for models deﬁned by a meta-Case

tool. Meta-Case tools operate similarly to their CASE

counterparts except they are not constrained by a par-

ticular schema or meta model. This plugin matches

all the elements by their unique identiﬁers and cal-

culates the differences as directed deltas. Oda and

Saeki (2005) describe a graph-based VCS that is quite

similar in that it works with meta-Case models and

matches them using baselines and unique identiﬁers.

Differences are calculated as directed deltas with re-

spect to earlier versions.

Nguyen (2006) proposes a VCS that can detect

both structural and textual differences between ver-

sions of a wide array of software artifacts. This ap-

proach utilizes similarity-based matching by assign-

ing all artifacts an identiﬁer that encapsulates the ele-

ment and representing them as nodes within a directed

attributed graph, similar to model clone detection ap-

proaches.

Van den Brand, Protic, and Verhoeff(2010) de-

ﬁne a set of requirements for difference represen-

tations and argue that current meta-modeling tech-

niques, such as MOF, are not able to satisfy them.

They present their own meta-modeling technique and

ASurveyofModelComparisonApproachesandApplications

269

deﬁne differences with respect to it. They provide

a model comparison approach and prototype that al-

lows user conﬁguration of what combination of the

four model-matching strategies to employ. The au-

thors provide examples where they extend the work

done previously for SiDiff, combining it with other

matching techniques, like using a UUID. This gener-

ality comes at a cost of a large amount of conﬁgura-

tion, work, and user-interaction.

There are methods that translate models into an-

other language or notation that maintain the semantics

of the models to facilitate model comparison. One

example is the work done by Gheyi, Massoni,and

Borba (2005) in which they propose an abstract equiv-

alence notion for object models, in other words, a

way of representing objects that allows them to be

compared. They use an alphabet, which is the set of

relevant elements that will be compared, and views,

which are mappings that express the different ways

that one element in one model can be interpreted

by elements of a different model. Equivalence be-

tween two models is deﬁned as the case where, for

every interpretation or valid instance that satisﬁes one

model, there exists an equivalent interpretation that

satisﬁes an instance in the other model. They illus-

trate their approach using Alloy models

. Similarly,

Maoz, Ringert, and Rumpe (2011b) present the no-

tion of semantic diff operators, which represent the

relevant semantics of each model, and diff witnesses,

which are the semantic differences between two mod-

els. Semantics are represented through the use of

mathematical formalisms. From these ideas, Maoz

et al. provide the tools cddiff and addiff for class

diagram differencing and activity class diagram dif-

ferencing, respectively. Other examples of translat-

ing models into another language include UML mod-

els being translated into Promela/SPIN models (Chen

and Cui, 2004; Latella et al., 1999; Lilius and Paltor,

1999), although this work does not intend to perform

model comparison nor differencing explicitly.

The Query/View/Transform(QVT) standard pro-

vides the outline for three model transformation lan-

guages that can act on any arbitrary model or meta-

model that conform to the MOF speciﬁcation. One of

these languages, QVT-Relations(QVT-R) allows for a

declarative speciﬁcation of two-way (bi-directional)

transformations and is more expressive than the other

QVT languages. This expressiveness allows for a

form of model comparison through its checkonly

mode, which is the mode where models are checked

for consistency rather than making changes (Stevens,

2009). In brief, game theory is applied to QVT-R

by using a veriﬁer and refuter. The veriﬁer conﬁrms

http://alloy.mit.edu

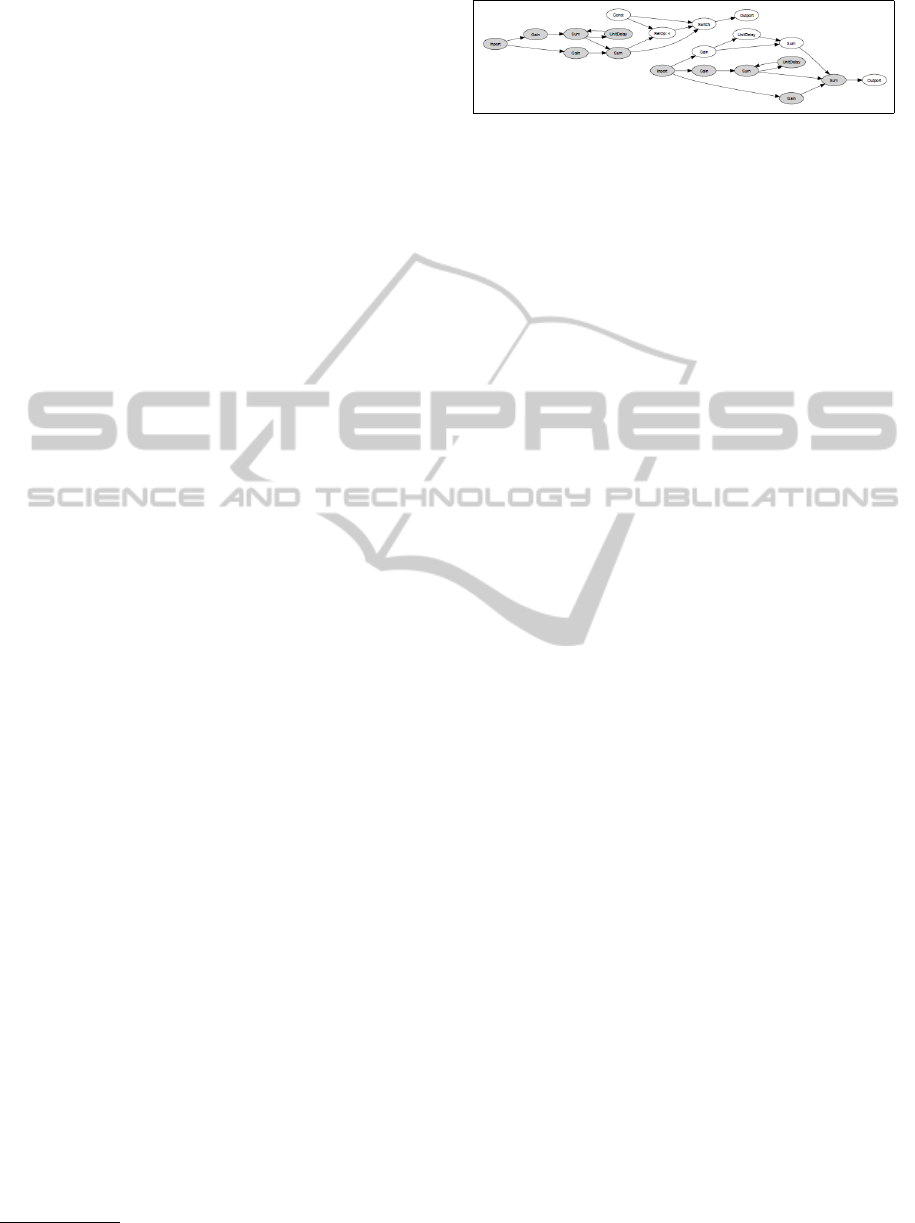

Figure 2: Normalised model graph of model clone example

(Deissenboeck et al., 2009).

that the check will succeed and the refuter’s objec-

tive is to disprove it. The semantics of QVT are ex-

pressed in such a way that implies “the check returns

true if and only if the veriﬁer has a winning strategy

for the game”. This allows one to compare models

assuming a transformation was expressed in this lan-

guage that represented the differences or similarities

being searched for. In this case, the transformation

will yield true if the pair/set of models are consistent

according to the transformation.

3.2 Methods for Behavior/Data-ﬂow

Models

3.2.1 Simulink and Matlab Models

CloneDetective (Deissenboeck et al., 2009) is an ap-

proach that uses ideas from graph theory and is appli-

cable to any model that is represented as a data-ﬂow

graph. Models are ﬁrst ﬂattened and unconnected

lines are removed. Subsequently, they are normalised

by taking all of the blocks and lines found within the

models and assigning them a label that consists of

essential information for comparison. The informa-

tion described in the label changes according to the

type of clones being searched for by the tool. Fig-

ure 2 displays the result of this step on a Simulink

model, including the labels that come from normal-

isation, such as UnitDelay and RelOp:h. The grey

portions within the graph represent a clone. This is

accomplished by CloneDetective in its second phase:

clone pair extraction. This phase is the most similar

to the model matching discussed thus far, however,

rather than matching single elements, it is attempting

to match the largest common set of elements. It falls

into the category of similarity-based matching as the

features of each element are extracted, represented as

a label during normalisation, and compared.

Similarly, eScan and aScan algorithms attempt to

detect exact-matched and approximate clones, respec-

tively (Pham et al., 2009). Exact-matched clones are

groups of model elements having the same size and

aggregated labels, which contain topology informa-

tion and edge and node label information. Approx-

imate clones are those that are not exactly matching

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

270

but ﬁt some similarity criteria. aScan uses vector-

based representations of graphs that account for a sub-

set of structural features within the graph. The main

difference between these algorithms and CloneDetec-

tive is that these algorithms group their clones ﬁrst

and from smallest to largest. They claim that this

helps detect clones that CloneDetective can not. This

is later refuted, however, by the authors of CloneDe-

tective (Deissenboeck et al., 2010). aScan is able

to detect approximate clones while CloneDetective is

not. Much like CloneDetective, these algorithms uti-

lize similarity-based matching.

Al-Batran, Schatz, and Hummel (2011) note that

existing approaches deal with syntactic clones only,

that is they can detect only syntactically and struc-

tural similar copies. Using normalization techniques

that utilize graph transformations, they extend these

approaches to cover semantic clones that may have

similar behavior but different structure. So, a clone in

this context is now deﬁned as two (sub)sets of models

that have “equivalent unique normal forms” of mod-

els. These unique normal forms are acquired by per-

forming 40 semantic-preserving transformations on

Simulink models. It was found that extending clone

detection in this way yields more clones than simple

syntactic comparison.

Most recently, Alalﬁ, Cordy, Dean, Stephan, and

Stevenson (2012) developed Simone, which detects

near-miss clones in Simulink models. This is done

by modifying existing code-clone techniques to work

with the textual representations of the Simulink mod-

els while still being model-sensitive. In comparison

to CloneDetective, they detect the same exact clones

and some additional near-miss ones.

3.2.2 Sequence Diagrams

Liu, Ma, Zhang, and Shao (Liu et al., 2007) discover

duplication in sequence diagrams. They convert se-

quence diagrams into an array and represent that ar-

ray as a sufﬁx tree. This tree is traversed and dupli-

cates are extracted by looking for the longest com-

mon preﬁx, or elements that lead to the leaf node,

of two sufﬁxes. Duplicates are deﬁned as a set of

sequence-diagram fragments that contain the same el-

ements and have the same sequence-diagram speciﬁc

relationships. Figure 3 demonstrates an example of

a duplicate. In this case, the largest common pre-

ﬁx include the four elements highlighted within each

diagram. The image is taken from their tool Dupli-

cationDetector. Much like the model clone detec-

tion approaches discussed, this technique employs a

variation of similarity-based matching as it is com-

paring a graph representation of a fragment‘s fea-

tures/elements.

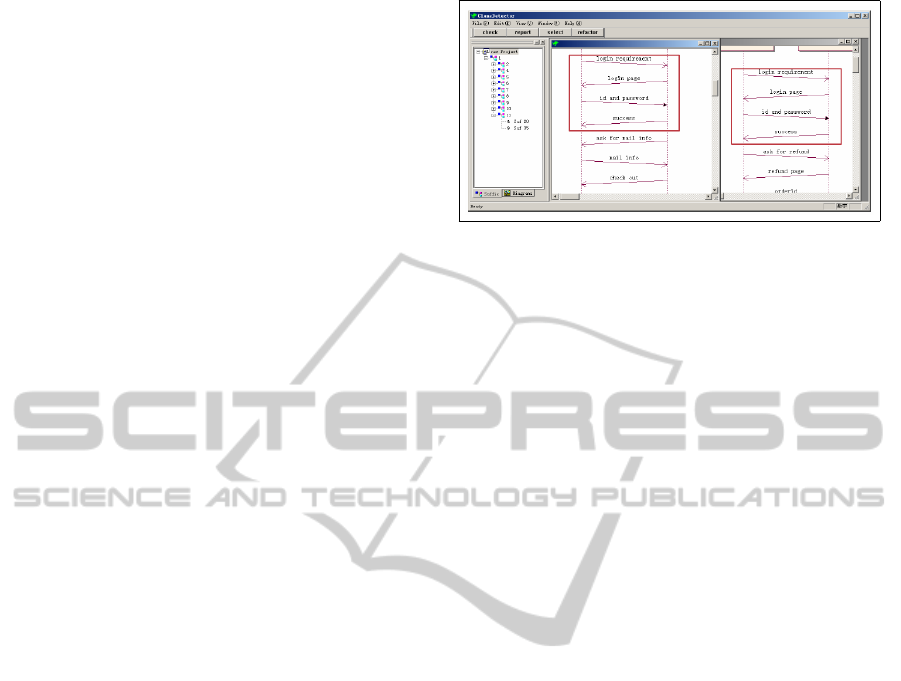

Figure 3: Duplicate sequence fragment (Liu et al., 2007).

3.2.3 Statechart Diagrams

Nejati et al. (2007) match state chart diagrams for

the purpose of model merging. They accomplish

this by using heuristics that include looking at ter-

minological, structural, and semantic similarities be-

tween models. The heuristics are split into 2 cat-

egories: static heuristics that use attributes without

semantics, such as the names or features of ele-

ments; and behavioural heuristics, which ﬁnd pairs

that have similar dynamic behavior. Due to the use

of heuristics, this approach requires a domain ex-

pert look over the relations and add or remove re-

lations, accordingly, to acquire the desired match-

ing relation. This approach employs both similarity-

based matching through static heuristics and custom-

language speciﬁc matching through dynamic heuris-

tics. After similarity is established between two state

charts, the merging operation calculates and repre-

sents differences as variabilities, or guarded transi-

tions, from one model to the other.

3.3 Methods for Structural Models

This section discusses approaches that are designed

to work with models that represent the structure of

a system. They beneﬁt from the domain knowledge

gained by working with structural models only.

Early work on comparing and differencing soft-

ware structural diagrams was done by Rho and

Wu (1998). They focus on comparing a current ver-

sion of an artifact to its preceding ancestor.

3.3.1 UML Structural Models

UMLDiff (Xing and Stroulia, 2005) uses custom

language-speciﬁc matching by using name-similarity

and UML structure-similarity to identify matching el-

ements. These metrics are combined and compared

against a user-deﬁned threshold. It is intended to be

a model versioning reasoner: It discovers changes

made from one version of a model to another.

ASurveyofModelComparisonApproachesandApplications

271

UMLDiff

cld

(Girschick, 2006) focuses on UML

class diagram differencing. It uses a combination

of static identity-based and similarity-based match-

ing within its evaluation function, which measures

the quality of a match. Similarly, Mirador (Barrett

et al., 2010) is a plugin created for the Fujaba (From

Uml to Java and Back Again)

tool suite that allows

for user directed matching of elements. Speciﬁcally,

users can select match candidates that are ranked ac-

cording to a similarity measure that is a combination

of static identity-based and similarity-based match-

ing, like UMLDiff

cld

Reddy et al. (2005) use signature-based match-

ing in order to compare and compose two UML class

models in order to assist with Aspect-oriented mod-

eling (Elrad et al., 2002). Models are matched based

on their signatures, or property values associated with

the class. Each signature has a signature type, which

is the set of properties that a signature can take. Using

KerMeta

, a model querying language, the signatures

used for comparison are derived by the tool based on

the features it has within the meta model.

Berardi, Calvanese, and De Giacomo (2005)

translate UML class diagrams into ALCQI, a “sim-

ple” description logic representation. They show that

it is possible for one to reason about UML class di-

agrams as ALCQI description logic representations

and provide an encoding from UML class diagrams

to ALCQI. While the translation does not maintain

the entire semantics of the UML classes, it preserves

enough of it to check for class equivalence. Because

they use UML-speciﬁc semantics, we argue that theirs

is a form of language-speciﬁc matching.

Maoz, Ringert, and Rumpe (2011a) extend work

on semantic differencing and provide a transla-

tion prototype, called CD2Alloy, that converts UML

classes into Alloy. This Alloy code contains con-

structs that determine the corresponding elements of

two UML class diagrams and also allows for seman-

tic comparisons, such as determining if one model is

a reﬁnement of another. It can be considered to be

a custom-language speciﬁc comparison because of its

use of UML semantics.

3.3.2 Metamodel-agnostic Approaches

Preliminary work on model comparison was done

by Chawathe, Rajaraman, Garcia-Molina, and

Widom (1996) in which they devised a comparison

approach intended for any structured document. They

convert the data representing the document structure

into a graph consisting of nodes that have identiﬁers

http://www.fujaba.de/

http://www.kermeta.org

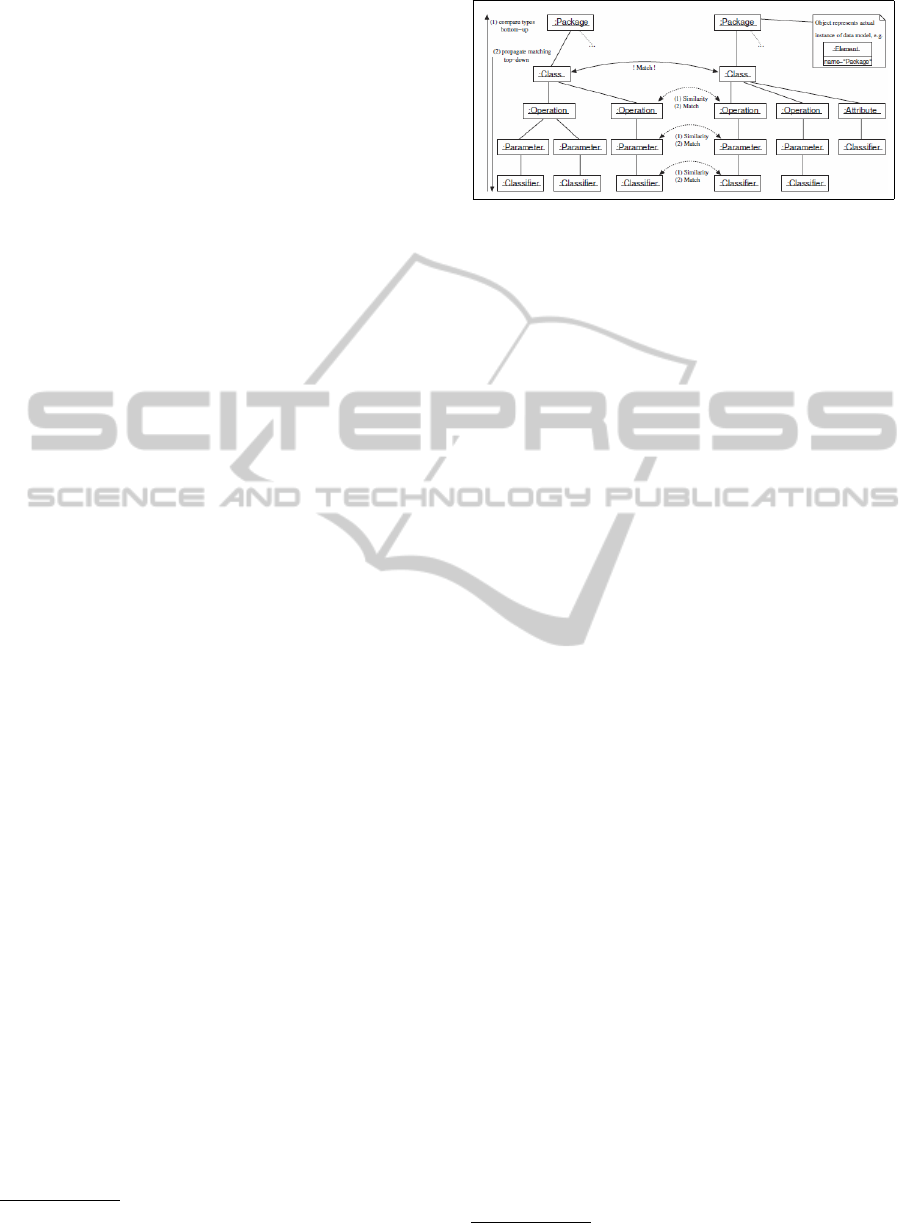

Figure 4: Example SiDiff comparison (Kelter et al., 2005).

derived from the corresponding elements they rep-

resent. This approach, which is analogous to the

model clone detection techniques, uses similarity-

based matching and describes differences in terms of

directed deltas.

SiDiff (Kelter et al., 2005) is very similar to

UMLDiff except SiDiff uses a simpliﬁed underlying

comparison model in order to be able to handle any

models stored in XMI format. Similarly to UMLDiff,

it uses similarity-based metrics. In contrast to UMLD-

iff, as shown by the up arrow in Figure 4, its calcula-

tion begins bottom-up by comparing the sub elements

of a pair of model elements starting with their leaf el-

ements. This is done with respect to the elements’

similarity metrics. An example of a weighted sim-

ilarity is having a class element consider the simi-

larity of its class name weighted the highest. So, in

the case of the two Class elements being compared in

Figure 4, all of the Classiﬁer elements are compared

ﬁrst. If a uniquely identifying element is matched,

such as a class name, they are immediately identiﬁed

as a match. This is followed by top-down propagation

of this matching pair. This top-down approach allows

for the algorithm to deduce differences by evaluating

a correspondence table that is the output of the match-

ing phase.

Similarly to the translation of UML class

diagrams into ALCQI, D’Amato; Staab;and

Fanizzi (2008), propose a comparison measure

for description logics, such as those used in the

Semantic Web

. This is accomplished by using ex-

isting ontology semantics. They describe a semantic

similarity measure that is able use the semantics of

the ontology that the concepts refer to.

3.4 Methods for Product Line

Architectures

Chen, Critchlow, Garg, Van der Westhuizen, and Van

der Hoek (Chen et al., 2004) present work to do com-

parisons of product line models for merging. The

http://semanticweb.org/

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

272

assumption in this work is that the comparison is

being done between two versions of the same arti-

fact. Comparison is done recursively and is increas-

ingly ﬁne grained as the algorithm delves deeper into

the product-line hierarchy. This approach employs

similarity-based matching: lower elements in the hi-

erarchy compare interfaces, optionality, and type; and

higher level elements compare the elements contained

within them. Differences are represented as directed

deltas.

Rubin and Chechik (2012) devise a framework for

comparing individual products that allows for them to

be updated automatically to a product line conform-

ing to those used in product-line engineering. They

use similarity-based matching, that is, products are

viewed as model elements and a match is deﬁned as

the case where a pair of model elements have features

that are similar enough to be above a deﬁned weighted

threshold. The authors note that “(their) refactoring

framework is applicable to a variety of model types,

such as UML, EMF or Matlab/Simulink, and to differ-

ent compare, match and merge operators”. The fore-

seeable user work that would be required in using this

framework includes having a domain expert specify

the similarity weights and features of interest and also

determining the optimum similarity thresholds.

3.5 Methods for Process Models

Soto and Munch (2006) discuss the need for ascer-

taining differences among software development pro-

cess models and outline what such a difference sys-

tem would require. They devise Delta-P (Soto, 2007),

which can work with various UML process models.

Delta-P converts process models into Resource De-

scription Framework (RDF)

notation in order to

have them represented in a normalized triplebased no-

tation. It then performs an identity-based compari-

son and calculates differences. They employ static-

identity based matching as they use unique identiﬁers.

Differences are represented as directed deltas, which

can be grouped together to form higher level deltas.

Similarly, Dijkman, Dumas, Van Dongen, Karik,

and Mendling(Dijkman et al., 2011) discuss three

similarity metrics that help compare stored process

models: node matching similarity, which compares

the labels and attributes attached to process model el-

ements; structural similarity, which evaluates labels

and topology; and, behavioral similarity, which looks

at labels in conjunction with causal relations from the

process models.

http://www.w3.org/RDF/

4 SUMMARY AND FUTURE

DIRECTIONS

Table 1 summarizes the approaches discussed in this

survey paper organized by the type and sub type

of model they can compare. As seen in the table,

similarity-based matching is the most commonly em-

ployed strategy. It is clear that one future direction of

work in this area is the focus on tools that are able to

work with models that conform to an arbitrary meta

model. This result is consistent with the recent trend

in domain-speciﬁc modeling.

The majority of work in model comparison ap-

pears to be geared towards model versioning, how-

ever the most recent work is not. Much of the re-

cent work is focusing on model transformation test-

ing and model clone detection. Also, new extensions

of existing model comparison approaches are being

attempted such as the extension of model clone de-

tection in order to detect common sub-structures or

patterns within models (Stephan et al., 2012). These

patterns can ideally be used by project engineers to

facilitate analysis and assist in the development of fu-

ture MDE projects.

The last column showcases the relative amount

of user work required to accomplish model compar-

ison. This is based on our research performed for this

survey and is purely qualitative. The justiﬁcation for

each tool that has one * or more can be found in the

textual descriptions provided previously. ECL and the

approach presented by Van den Brand et al. require

the most user work, however this is intentional to al-

low for more power and generality. Many approaches

require no user interaction as they operate under spe-

ciﬁc conditions or are dynamic enough to understand

the context or meta models they are working with.

5 RELATED WORK

5.1 Other Comparison Approaches

There is an abundance of work in comparing software

artifacts at the code level: However, there are many

arguments as to why these are not easily transferable

to the modeling domain (Altmanninger et al., 2009).

There are approaches that serialize models to

text, for example, XML document difference de-

tection (Cobena et al., 2002), schema-based match-

ing (Shvaiko and Euzenat, 2005), and tools like

Xlinkit (Nentwich et al., 2003), which compares XMI

representations of models. These approaches focus on

too low a level of abstraction in that they can not ac-

ASurveyofModelComparisonApproachesandApplications

273

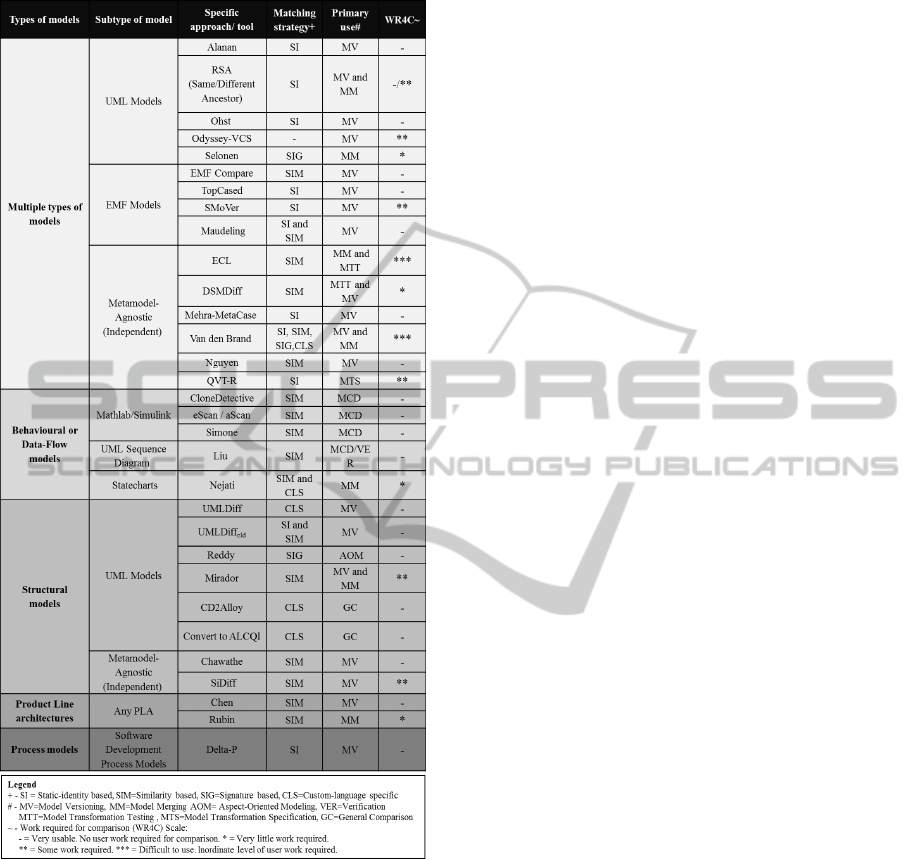

Table 1: Summary of Model Comparison Approaches.

count for model-speciﬁc features such as inheritance

and cross referencing (Kolovos et al., 2006).

As discussed earlier, code clone detection tech-

niques (Roy et al., 2009) have difﬁculty and are un-

able to account for model-speciﬁc relations since they

are strictly textual. Also, the notion of a code clone

and model clone are quite different things.

Similarity Flooding (Melnik et al., 2002) is an

example of a labelled graph matching algorithm. It

can be seen as a similarity-based matching approach

in that it uses the similarity of an element’s neigh-

bouring nodes to discover matching elements. If two

node’s neighbours are similar, then their similarity

measure increases. The problem with this approach

is that it works on too high of a conceptual level and

is not able to use diagram- or context- speciﬁc in-

formation (Fortsch and Westfechtel, 2007). A simi-

lar problem is experienced by the method presented

by Krinke (2002) in which similar code is discovered

through program dependency graph analysis.

5.2 Related Survey Papers

This section discusses other reviews that overlap with

the model comparison review of this survey.

Altmanninger, Seidl, and Wimmer (2009) perform

a survey on model versioning approaches. This sur-

vey differs from the work done in ours in that they

focus very little on matching, investigate versioning

systems only, and discuss only a subset of the model

comparison approaches that we do. They are much

more concerned with merging than comparison.

Sebastiani and Supiratana (2008) provide a sum-

mary of various differencing approaches, however,

they look at only three speciﬁc approaches at a high

level and compare them: SiDiff, UMLDiff, DSMDiff.

This is done with a focus on how these techniques can

trace a model’s evolution.

Selonen (2007) performs a brief review of UML

model comparison approaches. It looks at ﬁve spe-

ciﬁc approaches, all of which we cover. Similar to

this survey, they also note the various usage scenarios

or applications of the approaches. In contrast, our sur-

vey looked at techniques that deal with various types

of models and included additional UML approaches

not identiﬁed by Selonen.

Finally, this paper is an updated and condensed

version of our own technical report surveying this

area (Stephan and Cordy, 2011).

6 CONCLUSIONS

Model comparison is a relatively young research area

that is very important to MDE. It has been imple-

mented in various forms and for various purposes,

predominantly in model versioning, merging, and

clone detection.

We have provided an overview of the area, and

have observed that the majority of recent approaches

allow for models belonging to arbitrary meta-models.

Similarity-based matching is the approach taken by

most methods. Model versioning appears to be the

most common goal for model comparison up to this

point, but that is starting to shift. Lastly, some ap-

proaches require more user effort to perform model

comparison, however this is to facilitate ﬂexibility and

strength. Many of the approaches require no user in-

teraction because they are intentionally constrained or

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

274

are made to deal with multiple situations.

There is still much room for maturity in model

comparison and it is an important area that must be

in the minds of MDE supporters, as it has many ben-

eﬁts and is widely-applicable. It is our hope that this

survey paper of model comparison acts as a refer-

ence guide for both model-driven engineers and re-

searchers.

REFERENCES

Al-Batran, B., Schatz, B., and Hummel, B. (2011). Seman-

tic clone detection for model-based development of em-

bedded systems. Model Driven Engineering Languages

and Systems, pages 258–272.

Alalﬁ, M. H., Cordy, J. R., Dean, T. R., Stephan, M., and

Stevenson, A. (2012). Models are code too: Near-miss

clone detection for simulink models. In ICSM, vol-

ume 12.

Alanen, M. and Porres, I. (2003). Difference and union of

models. In UML, pages 2–17.

Alanen, M. and Porres, I. (2005). Version control of soft-

ware models. Advances in UML and XML-Based Soft-

ware Evolution, pages 47–70.

Altmanninger, K., Kappel, G., Kusel, A., Retschitzegger,

W., Seidl, M., Schwinger, W., and Wimmer, M. (2008).

AMOR-towards adaptable model versioning. In MCCM,

volume 8, pages 4–50.

Altmanninger, K., Seidl, M., and Wimmer, M. (2009). A

survey on model versioning approaches. International

Journal of Web Information Systems, 5(3):271–304.

Barrett, S., Butler, G., and Chalin, P. (2010). Mirador:

a synthesis of model matching strategies. In IWMCP,

pages 2–10.

Berardi, D., Calvanese, D., and De Giacomo, G. (2005).

Reasoning on UML class diagrams. Artiﬁcial Intelli-

gence, 168(1-2):70–118.

Brun, C. and Pierantonio, A. (2008). Model differences in

the Eclipse modelling framework. The European Journal

for the Informatics Professional, pages 29–34.

Chawathe, S., Rajaraman, A., Garcia-Molina, H., and

Widom, J. (1996). Change detection in hierarchically

structured information. In ICMD, pages 493–504.

Chen, J. and Cui, H. (2004). Translation from adapted UML

to promela for corba-based applications. Model Check-

ing Software, pages 234–251.

Chen, P., Critchlow, M., Garg, A., Van der Westhuizen, C.,

and van der Hoek, A. (2004). Differencing and merging

within an evolving product line architecture. PFE, pages

269–281.

Cicchetti, A., Di Ruscio, D., and Pierantonio, A. (2007). A

metamodel independent approach to difference represen-

tation. Technology, 6(9):165–185.

Cicchetti, A., Di Ruscio, D., and Pierantonio, A. (2008).

Managing model conﬂicts in distributed development. In

Models, pages 311–325.

Clavel, M., Duran, F., Eker, S., Lincoln, P., Marti-Oliet, N.,

Meseguer, J., and Quesada, J. (2002). Maude: speciﬁ-

cation and programming in rewriting logic. Theoretical

Computer Science, 285(2):187–243.

Cobena, G., Abiteboul, S., and Marian, A. (2002). Detect-

ing changes in XML documents. In ICDE, pages 41–52.

D’Amato, C., Staab, S., and Fanizzi, N. (2008). On the

inﬂuence of description logics ontologies on conceptual

similarity. Knowledge Engineering: Practice and Pat-

terns, pages 48–63.

Deissenboeck, F., Hummel, B., Juergens, E., Pfaehler, M.,

and Schaetz, B. (2010). Model clone detection in prac-

tice. In IWSC, pages 57–64.

Deissenboeck, F., Hummel, B., Jurgens, E., Schatz, B.,

Wagner, S., Girard, J., and Teuchert, S. (2009). Clone

detection in automotive model-based development. In

ICSE, pages 603–612.

Dijkman, R., Dumas, M., Van Dongen, B., Karik, R., and

Mendling, J. (2011). Similarity of business process

models: Metrics and evaluation. Information Systems,

36(2):498–516.

Elrad, T., Aldawud, O., and Bader, A. (2002). Aspect-

oriented modeling: Bridging the gap between implemen-

tation and design. In Generative Programming and Com-

ponent Engineering, pages 189–201.

Farail, P., Gauﬁllet, P., Canals, A., Le Camus, C., Sciamma,

D., Michel, P., Cregut, X., and Pantel, M. (2006). The

topcased project: a toolkit in open source for critical

aeronautic systems design. ERTS, pages 1–8, electronic.

Fortsch, S. and Westfechtel, B. (2007). Differencing and

merging of software diagrams state of the art and chal-

lenges. ICSDT, pages 1–66.

Gheyi, R., Massoni, T., and Borba, P. (2005). An abstract

equivalence notion for object models. Electronic Notes

in Theoretical Computer Science, 130:3–21.

Girschick, M. (2006). Difference detection and visualiza-

tion in UML class diagrams. Technical University of

Darmstadt Technical Report TUD-CS-2006-5, pages 1–

15.

Kelter, U., Wehren, J., and Niere, J. (2005). A generic dif-

ference algorithm for UML models. Software Engineer-

ing, 64:105–116.

Kolovos, D. (2009). Establishing correspondences be-

tween models with the epsilon comparison language.

In Model Driven Architecture-Foundations and Applica-

tions, pages 146–157.

Kolovos, D., Di Ruscio, D., Pierantonio, A., and Paige,

R. (2009). Different models for model matching: An

analysis of approaches to support model differencing. In

CVSM, pages 1–6.

Kolovos, D., Paige, R., and Polack, F. (2006). Model com-

parison: a foundation for model composition and model

transformation testing. In IWGIMM, pages 13–20.

Koschke, R. (2006). Survey of research on software clones.

Duplication, Redundancy, and Similarity in Software,

pages 1–24,electronic.

Krinke, J. (2002). Identifying similar code with program

dependence graphs. In WCRE, pages 301–309.

ASurveyofModelComparisonApproachesandApplications

275

Latella, D., Majzik, I., and Massink, M. (1999). Automatic

veriﬁcation of a behavioural subset of UML statechart

diagrams using the SPIN model-checker. Formal Aspects

of Computing, 11(6):637–664.

Letkeman, K. (2005). Comparing and merging UML mod-

els in IBM Rational Software Architect. IBM Rational -

Technical Report (Online).

Letkeman, K. (2007). Comparing and merging UML

models in IBM Rational Software Architect: Part

7. http://www.ibm.com/developerworks/rational/library/

07/0410 letkeman/.

Lilius, J. and Paltor, I. (1999). Formalising UML state ma-

chines for model checking. UML, pages 430–444.

Lin, Y., Gray, J., and Jouault, F. (2007). DSMDiff: a dif-

ferentiation tool for domain-speciﬁc models. European

Journal of Information Systems, 16(4):349–361.

Lin, Y., Zhang, J., and Gray, J. (2004). Model compari-

son: A key challenge for transformation testing and ver-

sion control in model driven software development. In

OOPSLA Workshop on Best Practices for Model-Driven

Software Development, volume 108, pages 6, electronic.

Liu, H., Ma, Z., Zhang, L., and Shao, W. (2007). Detecting

duplications in sequence diagrams based on sufﬁx trees.

In APSEC, pages 269–276.

Maoz, S., Ringert, J., and Rumpe, B. (2011a). Cd2alloy:

Class diagrams analysis using alloy revisited. Model

Driven Engineering Languages and Systems, pages 592–

607.

Maoz, S., Ringert, J., and Rumpe, B. (2011b). A mani-

festo for semantic model differencing. In ICMSE, MOD-

ELS’10, pages 194–203.

Mehra, A., Grundy, J., and Hosking, J. (2005). A generic

approach to supporting diagram differencing and merg-

ing for collaborative design. In ASE, pages 204–213.

Melnik, S., Garcia-Molina, H., and Rahm, E. (2002). Simi-

larity ﬂooding: A versatile graph matching algorithm and

its application to schema matching. In ICDE, pages 117–

128.

Mens, T. (2002). A state-of-the-art survey on software

merging. TSE, 28(5):449–462.

Nejati, S., Sabetzadeh, M., Chechik, M., Easterbrook, S.,

and Zave, P. (2007). Matching and merging of statecharts

speciﬁcations. In ICSE, pages 54–64.

Nentwich, C., Emmerich, W., Finkelstein, A., and Ellmer,

E. (2003). Flexible consistency checking. TOSEM,

12(1):28–63.

Nguyen, T. (2006). A novel structure-oriented difference

approach for software artifacts. In CSAC, volume 1,

pages 197–204.

Oda, T. and Saeki, M. (2005). Generative technique of ver-

sion control systems for software diagrams. In ICSM,

pages 515–524.

Ohst, D., Welle, M., and Kelter, U. (2003). Differences be-

tween versions of UML diagrams. ACM SIGSOFT Soft-

ware Engineering Notes, 28(5):227–236.

Oliveira, H., Murta, L., and Werner, C. (2005). Odyssey-

vcs: a ﬂexible version control system for UML model

elements. In SCM, pages 1–16.

Pham, N., Nguyen, H., Nguyen, T., Al-Kofahi, J., and

Nguyen, T. (2009). Complete and accurate clone detec-

tion in graph-based models. In ICSE, pages 276–286.

Reddy, R., France, R., Ghosh, S., Fleurey, F., and Baudry,

B. (2005). Model Composition - A Signature-Based Ap-

proach.

Reiter, T., Altmanninger, K., Bergmayr, A., Schwinger,

W., and Kotsis, G. (2007). Models in conﬂict-detection

of semantic conﬂicts in model-based development. In

MDEIS, pages 29–40.

Rho, J. and Wu, C. (1998). An efﬁcient version model of

software diagrams. In APSEC, pages 236–243.

Rivera, J. and Vallecillo, A. (2008). Representing and op-

erating with model differences. Objects, Components,

Models and Patterns, pages 141–160.

Roy, C., Cordy, J., and Koschke, R. (2009). Comparison and

evaluation of code clone detection techniques and tools:

A qualitative approach. Science of Computer Program-

ming, 74(7):470–495.

Rubin, J. and Chechik, M. (2012). Combining related prod-

ucts into product lines. In 15th International Conference

on Fundamental Approaches to Software Engineering.

To Appear.

Schipper, A., Fuhrmann, H., and von Hanxleden, R. (2009).

Visual comparison of graphical models. In ICECCS,

pages 335–340.

Sebastiani, M. and Supiratana, P. (2008). Tracing the

differences on an evolving software model. http://

www.idt.mdh.se/kurser/ct3340/archives/ht08/papersRM

08/28.pdf.

Selonen, P. (2007). A Review of UML Model Comparison

Approaches. In NW-MoDE, pages 37–51.

Selonen, P. and Kettunen, M. (2007). Metamodel-based

inference of inter-model correspondence. In ECSMR,

pages 71–80.

Shvaiko, P. and Euzenat, J. (2005). A survey of schema-

based matching approaches. Journal on Data Semantics

IV, pages 146–171.

Soto, M. (2007). Delta-p: Model comparison using seman-

tic web standards. Softwaretechnik-Trends, 2:27–31.

Soto, M. and Munch, J. (2006). Process model difference

analysis for supporting process evolution. Software Pro-

cess Improvement, pages 123–134.

Stephan, M., Alaﬁ, M., Stevenson, A., and Cordy, J. (2012).

Towards qualitative comparison of simulink model clone

detection approaches. In IWSC, pages 84–85.

Stephan, M. and Cordy, J. R. (2011). A survey of methods

and applications of model comparison. Technical report,

Queen’s University. TR. 2011-582 Rev. 2.

Stephan, M. and Cordy, J. R. (2013). Application of model

comparison techniques to model transformation testing.

In MODELSWARD. to appear.

Stevens, P. (2009). A simple game-theoretic approach to

checkonly qvt relations. Theory and Practice of Model

Transformations, pages 165–180.

Storrle, H. (2010). Towards clone detection in uml domain

models. In ECSA, pages 285–293.

MODELSWARD2013-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

276

van den Brand, M., Protic, Z., and Verhoeff, T. (2010).

Fine-grained metamodel-assisted model comparison. In

IWMCP, pages 11–20.

Van den Brand, M., Protic, Z., and Verhoeff, T. (2010).

Generic tool for visualization of model differences. In

IWMCP, pages 66–75.

Wenzel, S. (2008). Scalable visualization of model differ-

ences. In CVSM, pages 41–46.

Wenzel, S., Koch, J., Kelter, U., and Kolb, A. (2009). Evo-

lution analysis with animated and 3D-visualizations. In

ICSM, pages 475–478.

Xing, Z. and Stroulia, E. (2005). UMLDiff: an algorithm

for object-oriented design differencing. In ASE, pages

54–65.

ASurveyofModelComparisonApproachesandApplications

277
